ASUS Prime B760M-K D4 Intel B760 DDR4 Micro-ATX Motherboard

ASUS Prime B760M-K D4 Intel B760 DDR4 Micro-ATX Motherboard

Rs.29,100.00
Rs.29,100.00
Sale Sold out
Shipping calculated at checkout.
WARRANTY

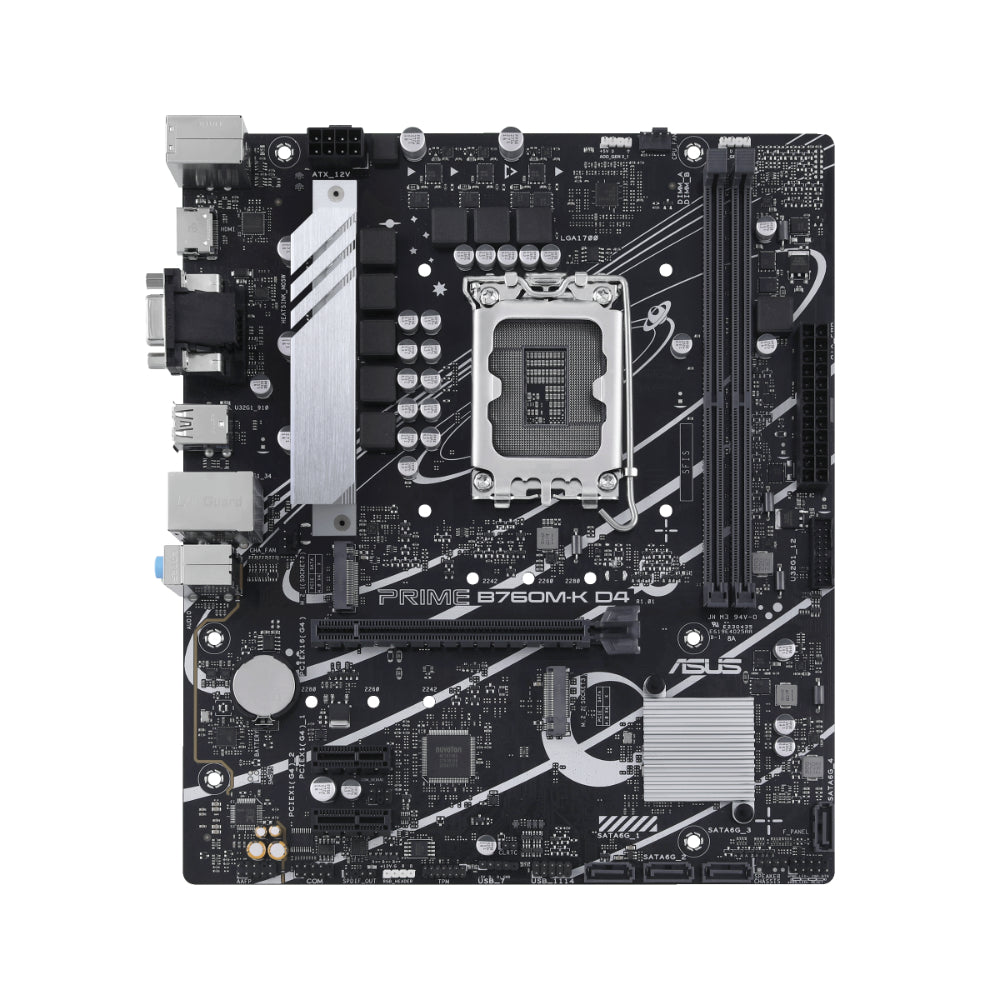

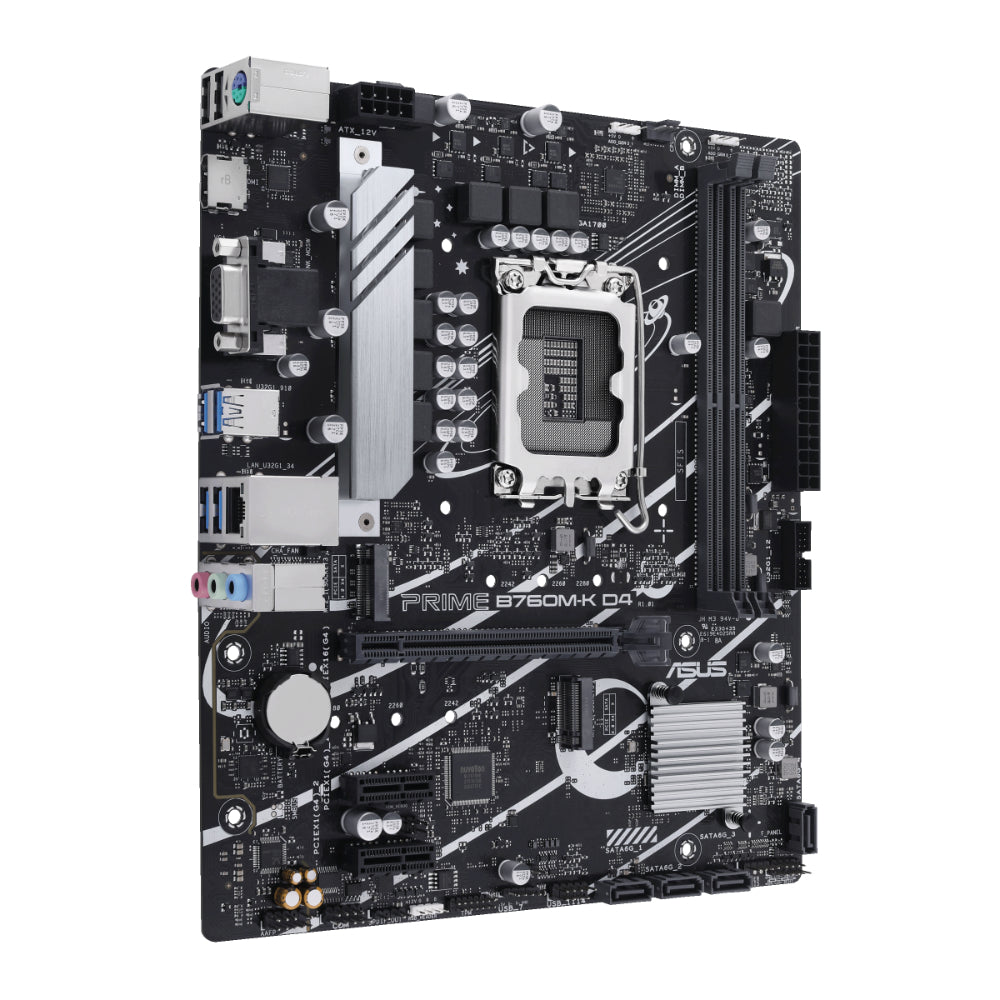

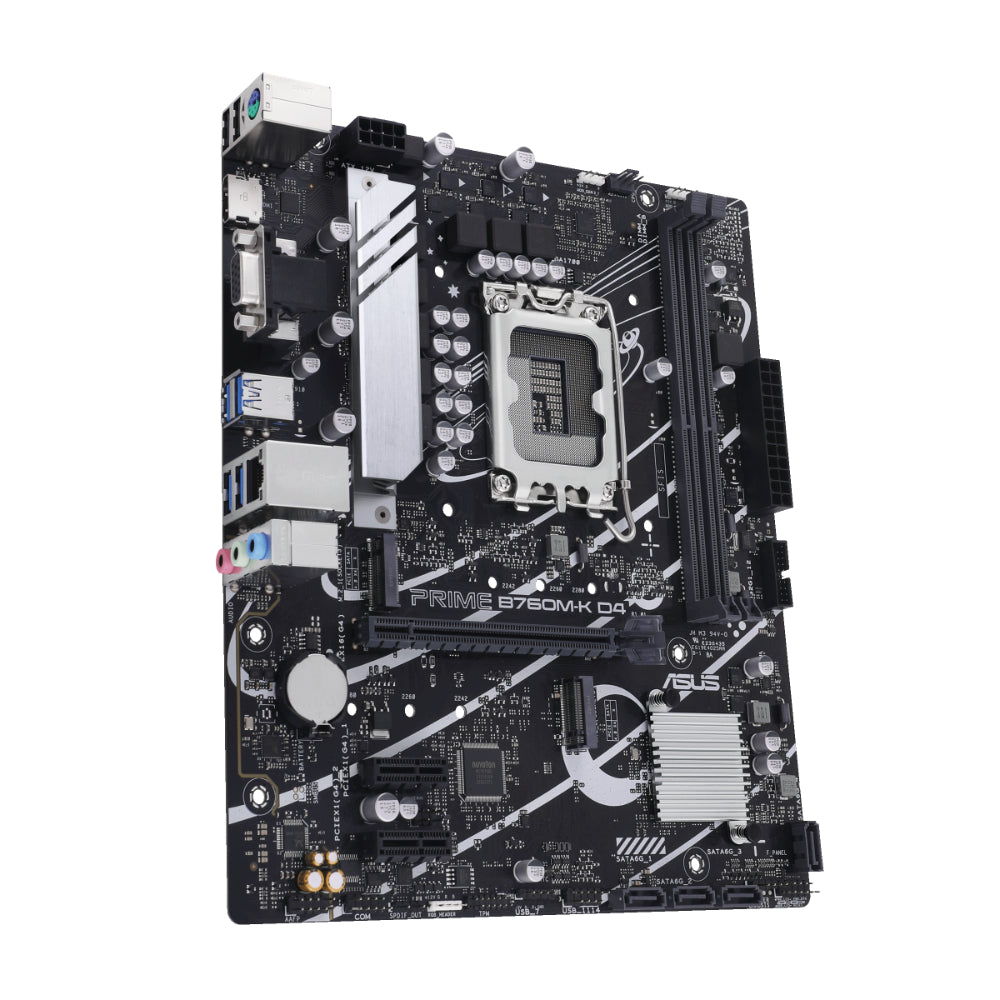

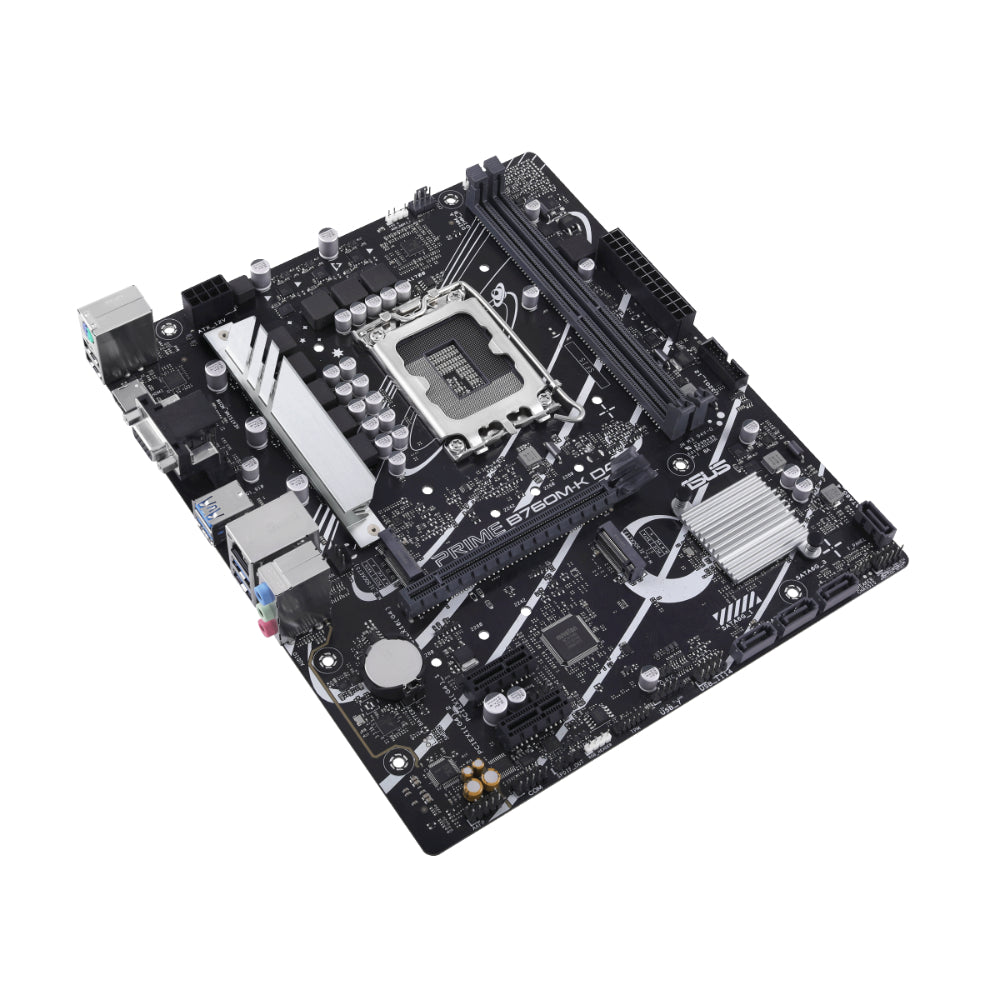

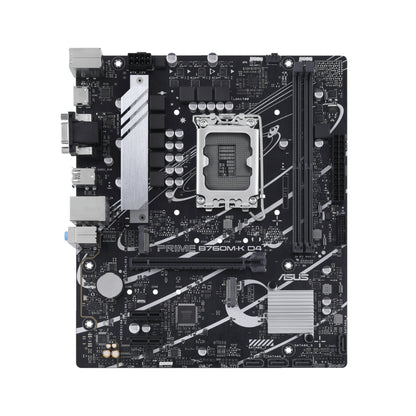

The ASUS Prime B760M-K D4 is a feature-rich Intel B760 micro-ATX motherboard designed for 14th, 13th, and 12th Gen Intel Core processors. With DDR4 memory support up to 5333MT/s (OC), PCIe 4.0, dual PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet, and versatile connectivity, it provides a solid foundation for gaming PCs, productivity systems, and high-performance desktop builds.

Featuring VRM and PCH heatsinks, hybrid fan headers with Fan Xpert, ASUS 5X Protection III, and Aura Sync RGB connectivity, the Prime B760M-K D4 combines reliable hardware protection with flexible cooling and customization options.

Key Features

  • Intel LGA1700 Socket—Supports 14th, 13th, and 12th Gen Intel Core processors, plus compatible Pentium Gold and Celeron processors.
  • Intel B760 Chipset—Reliable platform for modern Intel desktop systems.
  • DDR4 Memory Support—2 DIMM slots supporting up to 64GB DDR4 with speeds up to 5333 MT/s (OC).
  • Dual-Channel Architecture—Supports Intel XMP for optimized memory performance.
  • PCIe 4.0 x16 — High-bandwidth graphics card slot for modern GPUs.
  • Dual PCIe 4.0 x1 Slots—Additional expansion options for compatible cards and peripherals.
  • 2× PCIe 4.0 M.2 Slots—Supports high-speed NVMe SSDs in 2242, 2260, and 2280 formats.
  • 4× SATA 6 Gb/s—Flexible storage expansion for SATA SSDs and hard drives.
  • 2.5 Gb Ethernet—Realtek 2.5 Gb LAN delivers faster wired networking than traditional Gigabit Ethernet.
  • USB 3.2 Gen 1 — Multiple high-speed USB Type-A ports for peripherals and external storage.
  • HDMI & VGA—Convenient display connectivity for compatible Intel processors with integrated graphics.
  • Aura Sync RGB—Addressable Gen 2 and Aura RGB headers for synchronized lighting.
  • Comprehensive Cooling—VRM heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert support.
  • ASUS 5X Protection III—DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, and stainless-steel back I/O.
  • Micro-ATX Form Factor—Compact 24.4 × 21.1 cm design suitable for a wide range of PC cases.

Performance & Expansion

The Prime B760M-K D4 provides a balanced platform for modern Intel processors and discrete graphics cards. Its PCIe 4.0 x16 slot offers high-speed connectivity for graphics cards, while two additional PCIe 4.0 x1 slots provide expansion flexibility.

For storage, the motherboard includes two PCIe 4.0 x4 M.2 slots, allowing users to install fast NVMe SSDs alongside four SATA 6Gb/s drives. Intel Rapid Storage Technology also supports SATA RAID 0/1/5/10.

DDR4 Memory Support

With two DIMM slots and support for up to 64GB of DDR4 memory, the motherboard is suitable for gaming, office applications, content creation, and everyday productivity.

Supported memory speeds include:

DDR4 5333/5066/5000/4800/4600/4400/4266/4000/3733/3600/3466/3400/3333/3200/3000/2933/2800/2666/2400/2133 MHz

Higher frequencies marked OC require compatible hardware and BIOS configuration.

High-Speed Networking

The integrated Realtek 2.5Gb Ethernet controller provides significantly higher wired network bandwidth than standard Gigabit Ethernet, making it suitable for high-speed internet connections, local network file transfers, gaming, and media workflows.

Connectivity

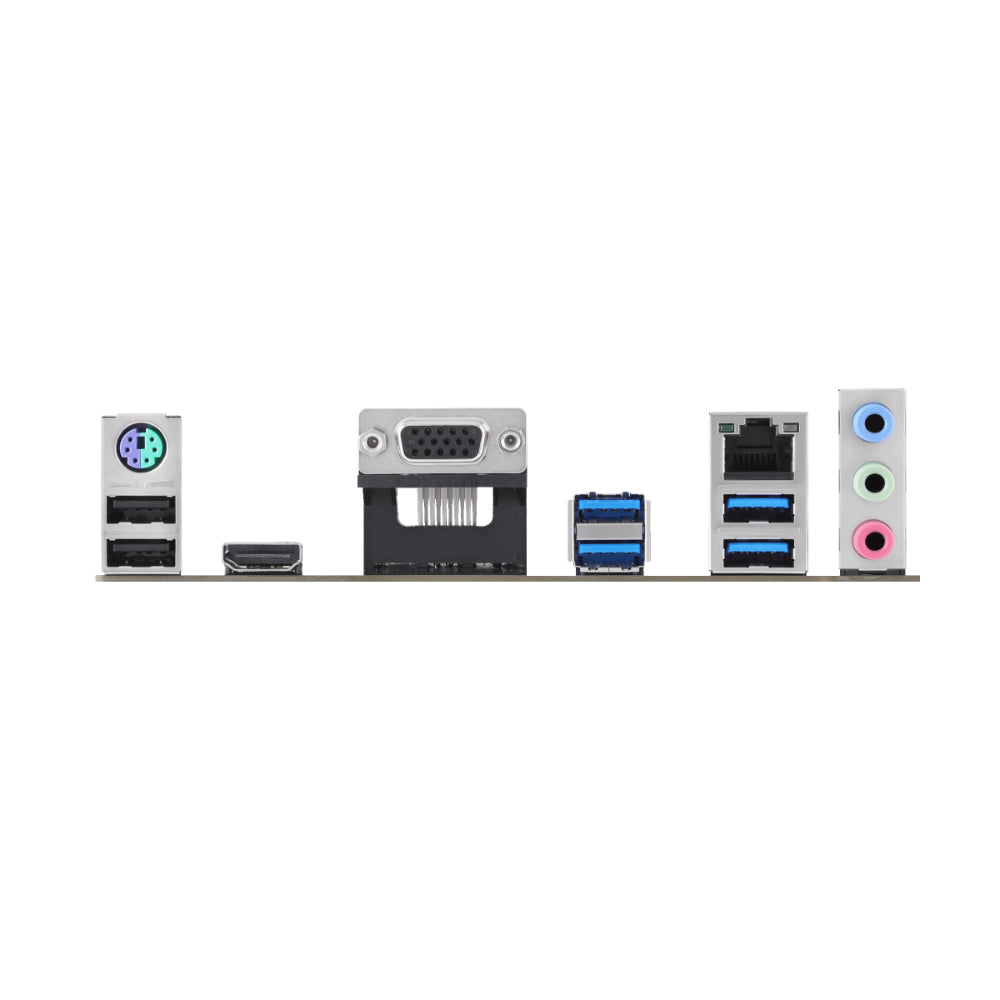

Rear I/O

  • 4× USB 3.2 Gen 1 Type-A
  • 2× USB 2.0 Type-A
  • 1× HDMI
  • 1× VGA
  • 1× Realtek 2.5 Gb Ethernet
  • 3× Audio jacks
  • 1× PS/2 Keyboard/Mouse combo port

Internal Connectivity

  • 1× USB 3.2 Gen 1 header
  • 2× USB 2.0 headers
  • 2× M.2 slots
  • 4× SATA 6 Gb/s
  • 2× Addressable Gen 2 RGB headers
  • 1× Aura RGB header
  • 1× COM header
  • 1× S/PDIF Out header
  • 1× SPI TPM header
  • 1× Front Panel Audio header
  • 1× System Panel header
  • Clear CMOS header
  • Speaker header

Cooling & ASUS Features

The motherboard incorporates a VRM heatsink and PCH heatsink to help maintain stable operating temperatures. Hybrid fan headers and Fan Xpert allow users to manage connected cooling fans according to system temperatures and workload.

ASUS 5X Protection III provides additional hardware safeguards through:

  • DIGI+ VRM
  • LANGuard
  • Overvoltage Protection
  • SafeSlot Core
  • Stainless-Steel Back I/O

Aura Sync RGB

Customize compatible PC lighting through ASUS Aura Sync, with both Addressable Gen 2 RGB headers and an Aura RGB header. Lighting can be synchronized with other compatible components and peripherals through ASUS software.

Audio

The integrated Realtek 7.1-channel High Definition Audio codec supports up to 24-bit/192 kHz playback, with audio shielding, premium audio capacitors, jack detection, multi-streaming, and front-panel jack retasking.

Specifications

Specification Details
Brand ASUS
Model Prime B760M-K D4
Chipset Intel B760
CPU Socket LGA1700
CPU Support Intel 14th / 13th / 12th Gen
Memory Type DDR4
Memory Slots 2× DIMM
Maximum Memory 64GB
Memory Speed Up to DDR4-5333 (OC)
Expansion 1× PCIe 4.0 x16, 2× PCIe 4.0 x1
M.2 Slots 2× PCIe 4.0 x4
SATA 4× SATA 6 Gb/s
LAN Realtek 2.5 Gb Ethernet
USB 3.2 Gen 1 Rear 4× Type-A + Front header
USB 2.0 Rear 2× Type-A + 2× headers
Video Outputs HDMI, VGA
Audio Realtek 7.1-channel HD Audio
RGB Aura RGB + 2× Addressable Gen 2
Form Factor Micro-ATX
Dimensions 24.4 × 21.1 cm
OS Support Windows 11 / Windows 10 64-bit

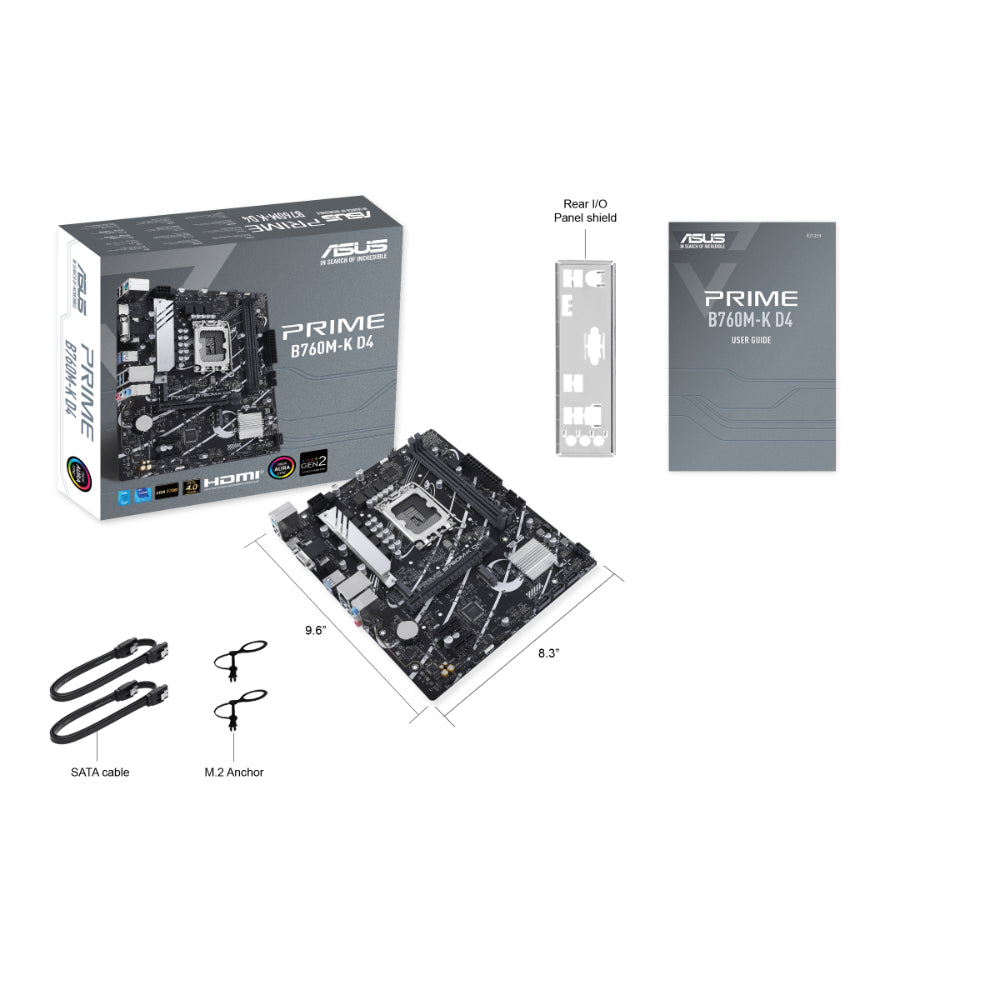

What's in the Box

  • ASUS Prime B760M-K D4 motherboard
  • 2× SATA 6Gb/s cables
  • I/O Shield
  • 2× M.2 anchors
  • User Guide
