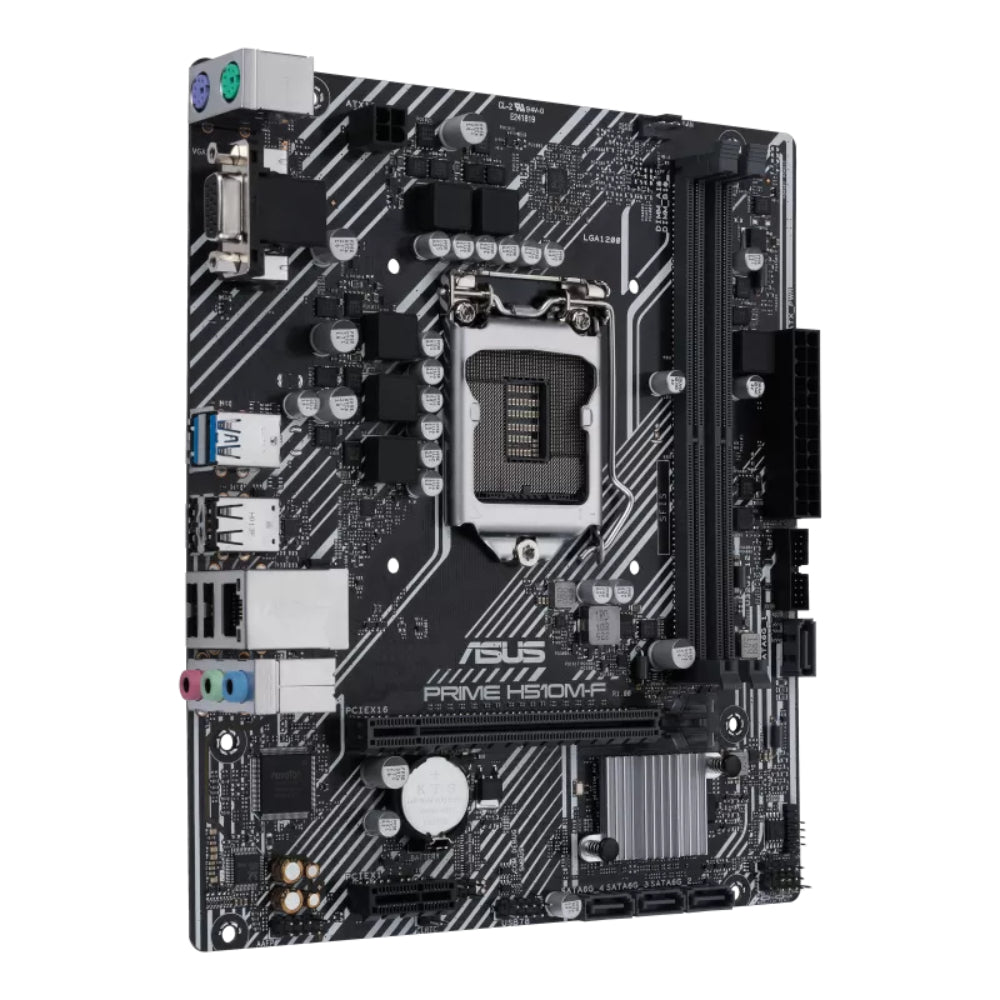

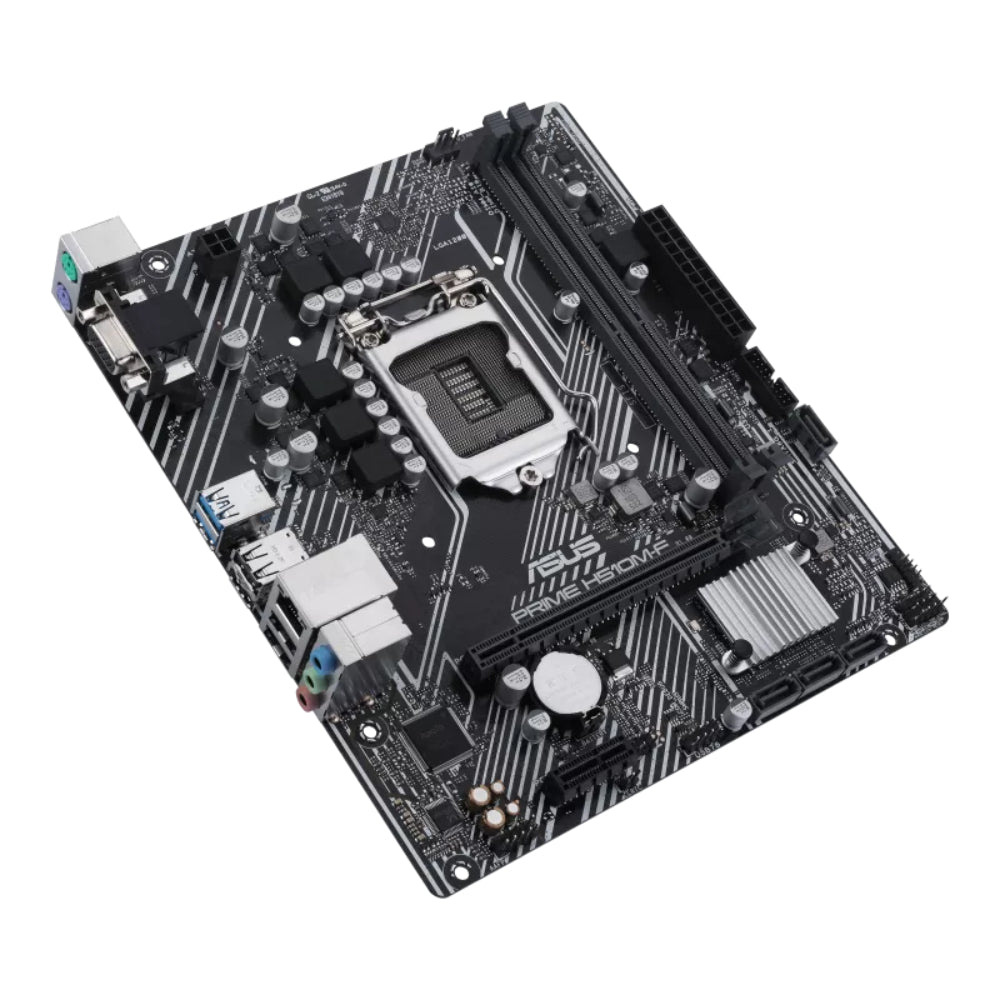

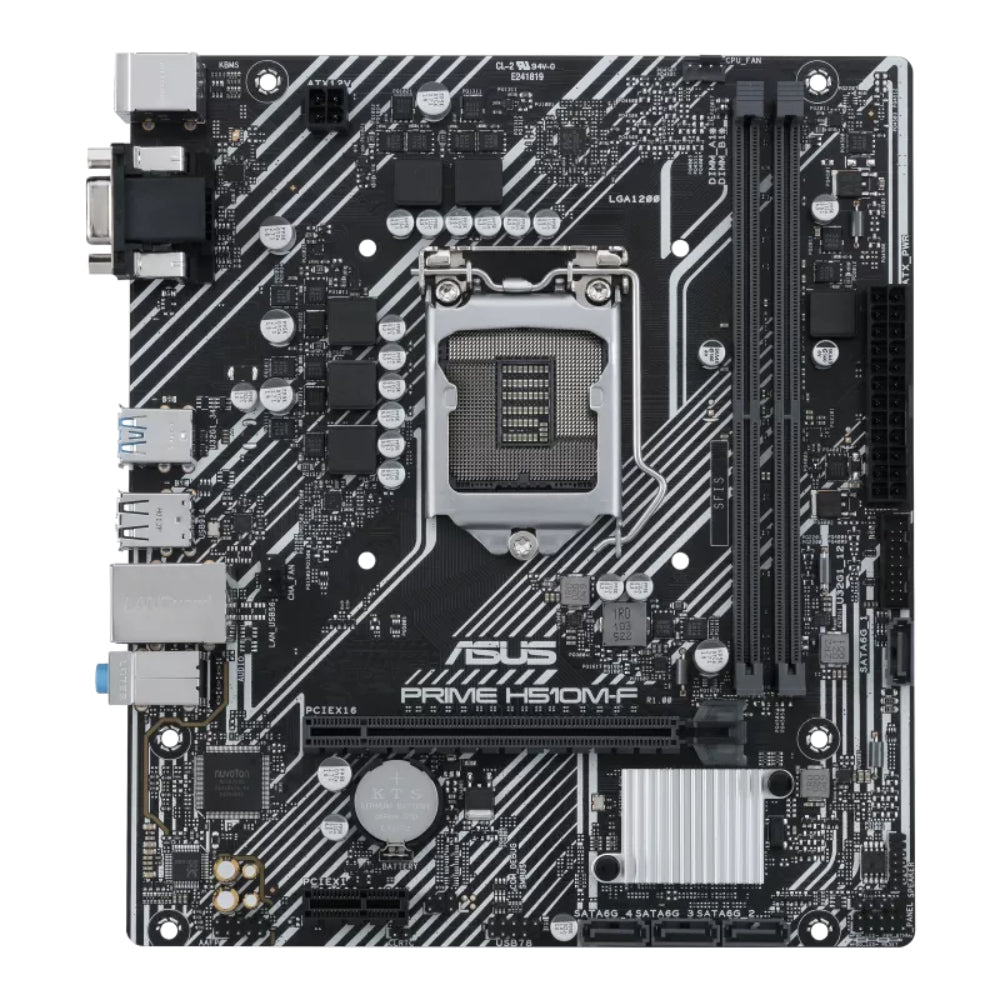

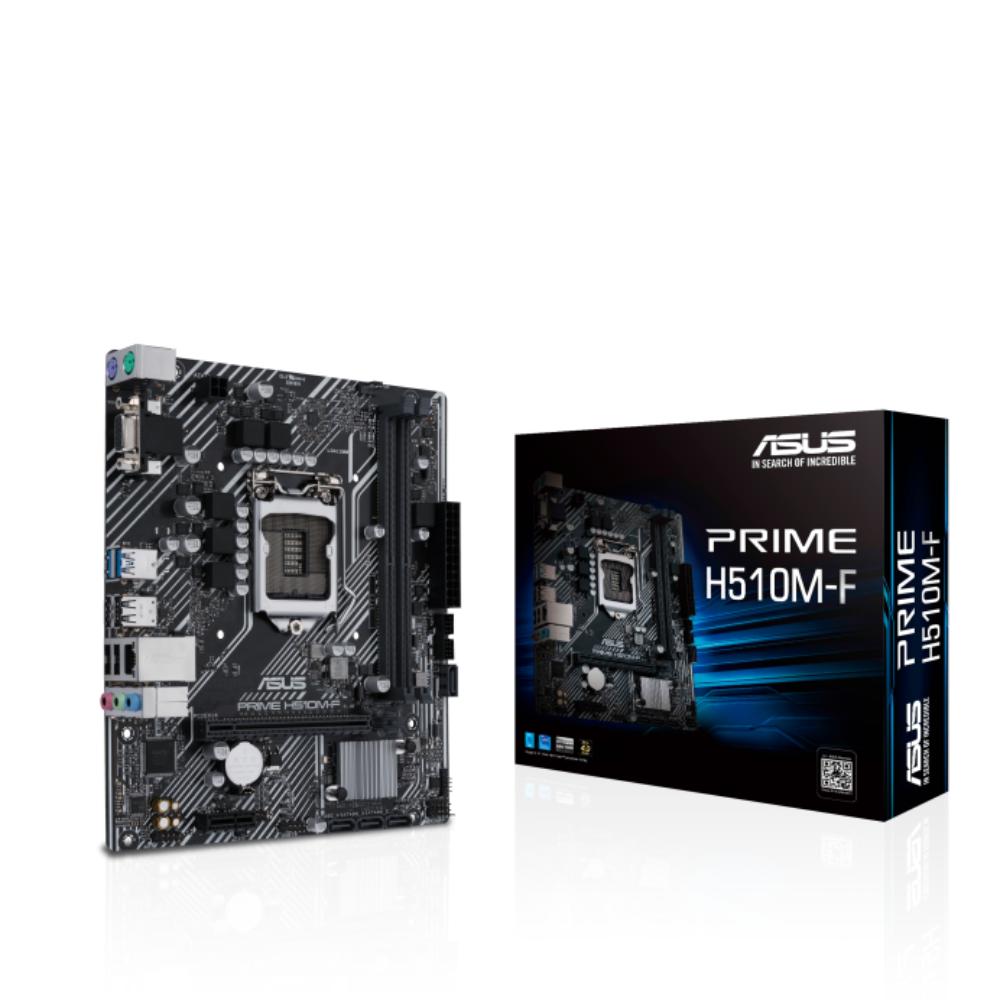

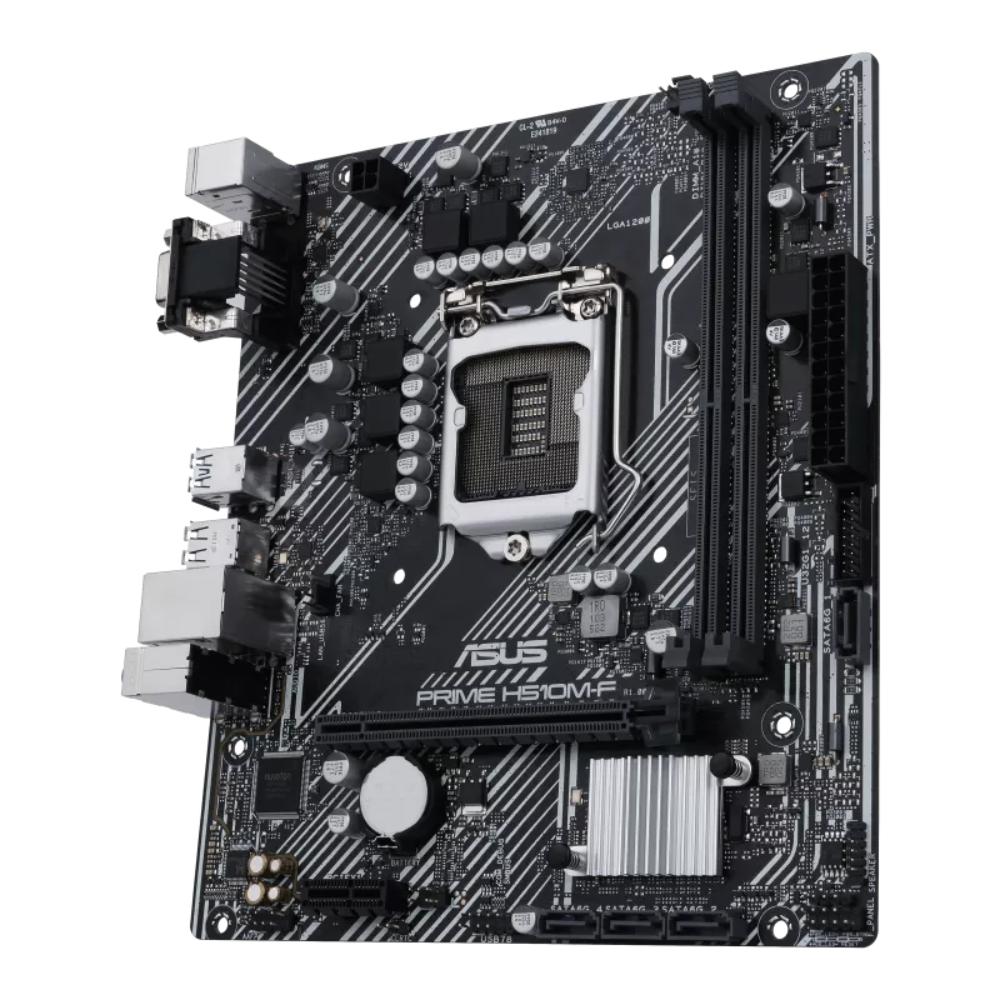

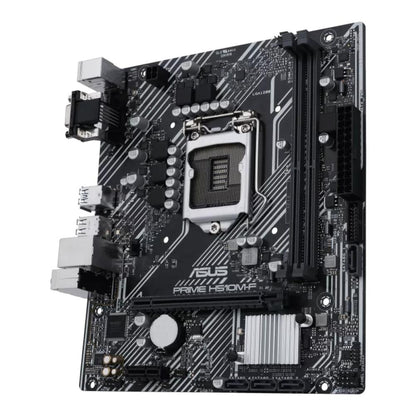

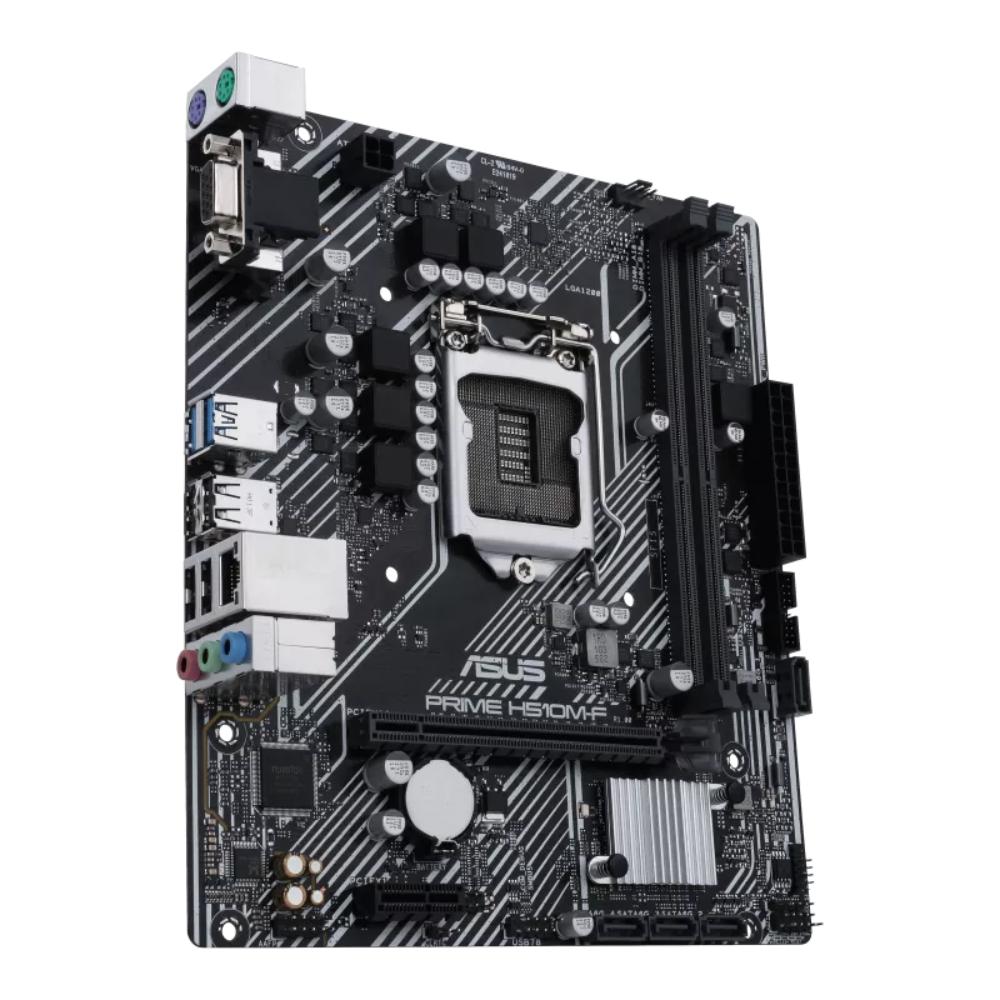

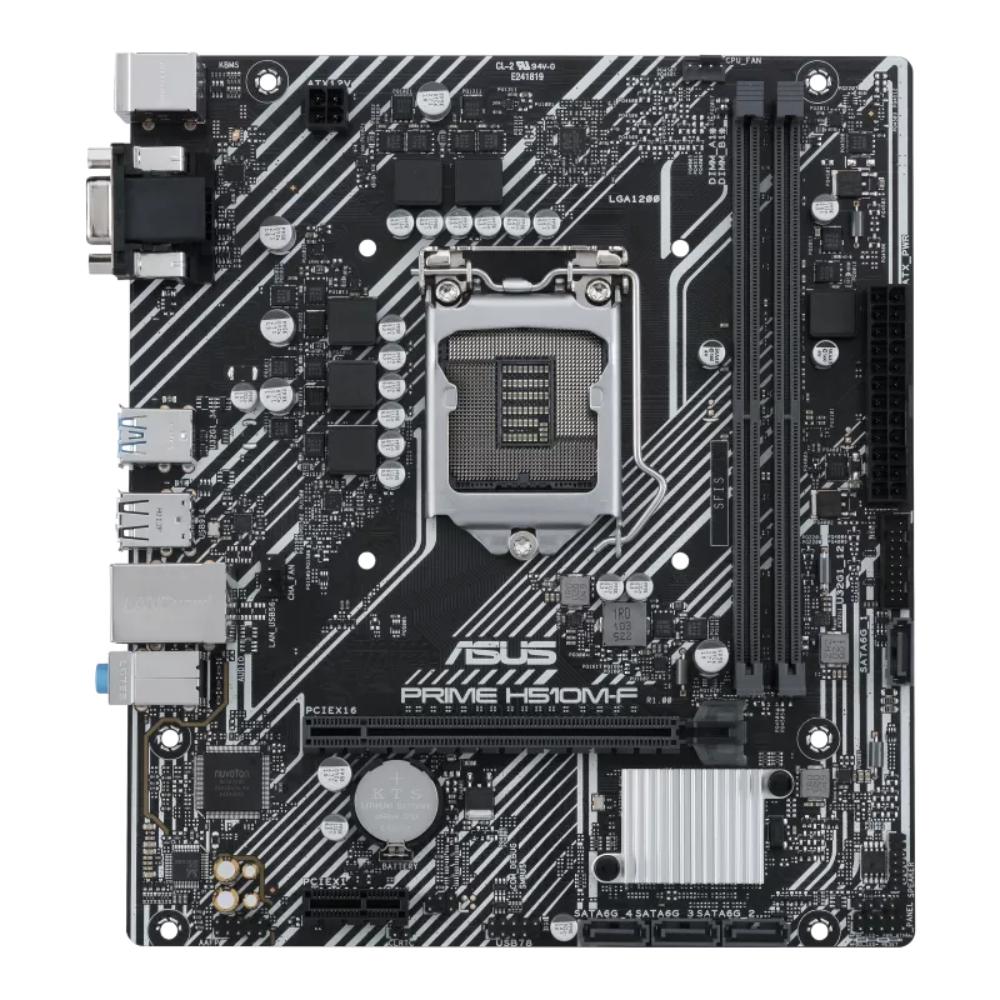

ASUS PRIME H510M-F Intel H510 Micro ATX Motherboard | LGA 1200 | 11th/10th Gen Intel Core | DDR4 3200MHz | PCIe 4.0 | 4× SATA 6Gb/s | USB 3.2 Gen 1 | 1Gb Ethernet

The ASUS PRIME H510M-F motherboard is a reliable Micro ATX motherboard designed for Intel 11th and 10th Gen desktop processors using the LGA 1200 socket. Powered by the Intel H510 chipset, it supports DDR4 memory, PCIe 4.0 connectivity with compatible 11th Gen processors, multiple SATA 6Gb/s storage devices, and high-speed USB connectivity.

With support for up to 64GB DDR4 memory, a PCIe 4.0/3.0 x16 slot, four SATA 6Gb/s ports, Realtek 1Gb Ethernet, and USB 3.2 Gen 1 Type-A, the PRIME H510M-F provides a practical foundation for everyday computing, office systems, home PCs, and entry-level desktop builds. ASUS 5X Protection III adds multiple hardware safeguards for improved system reliability.

Key Features

Intel LGA 1200 Socket

The LGA 1200 socket supports compatible 11th Gen and 10th Gen Intel Core processors, as well as selected Pentium Gold and Celeron processors.

• Intel 11th Gen Core processor support
• Intel 10th Gen Core processor support
• Pentium Gold support
• Celeron processor support
• Supports Intel Turbo Boost Technology 2.0
• Supports Intel Turbo Boost Max Technology 3.0 depending on CPU

Intel H510 Chipset

Powered by the Intel H510 chipset, the motherboard provides a stable platform for mainstream Intel desktop systems with support for DDR4 memory, PCIe expansion, SATA storage, and USB connectivity.

DDR4 Dual-Channel Memory

The PRIME H510M-F features 2 × DIMM slots supporting up to 64 GB DDR4 memory.

Supported memory speeds include:

• DDR4 3200MHz (OC)
• DDR4 2933 MHz
• DDR4 2800 MHz
• DDR4 2666 MHz
• DDR4 2400 MHz
• DDR4 2133 MHz
• Dual-channel memory architecture
• Intel XMP support
• Non-ECC, unbuffered memory

The actual supported memory frequency depends on the installed processor.

PCIe 4.0 Expansion

With a PCIe x16 slot, the motherboard can take advantage of PCIe 4.0 bandwidth with compatible 11th Gen Intel processors.

• 1 × PCIe 4.0/3.0 x16 slot
• 1 × PCIe 3.0 x1 slot
• 11th Gen Intel CPUs support PCIe 4.0 x16
• 10th Gen Intel CPUs operate the x16 slot at PCIe 3.0

Flexible SATA Storage

The PRIME H510M-F provides 4 × SATA 6Gb/s ports for connecting SATA SSDs, HDDs, and other compatible storage devices.

• 4 × SATA 6 Gb/s
• Suitable for SSDs and hard drives
• Supports multiple SATA storage devices

USB 3.2 Gen 1 Connectivity

Connect modern peripherals through multiple USB ports.

Rear I/O:

• 2 × USB 3.2 Gen 1 Type-A
• 4 × USB 2.0 Type-A

Internal Headers:

• 1 × USB 3.2 Gen 1 header supporting 2 additional USB 3.2 Gen 1 ports
• 1 × USB 2.0 header supporting 2 additional USB 2.0 ports

Realtek 1 Gb Ethernet

The integrated Realtek 1Gb Ethernet controller provides wired network connectivity for everyday internet access, file transfers, online applications, and local networking.

Integrated D-Sub Display Output

The motherboard includes a D-Sub/VGA output for compatible processors with integrated graphics, making it suitable for office and general-purpose systems without requiring a dedicated graphics card.

7.1-Channel HD Audio

The integrated Realtek ALC887/897 audio codec provides high-definition audio with support for up to 24-bit/192kHz playback.

Audio features include:

• 7.1-channel surround sound support
• Audio shielding
• Dedicated audio PCB layers
• Jack detection
• Multi-streaming
• Front-panel jack retasking

ASUS 5X Protection III

ASUS 5X Protection III provides multiple hardware-level safeguards designed to improve system durability and reliability.

Includes:

• DIGI+ VRM
• LANGuard
• Overvoltage Protection
• SafeSlot Core

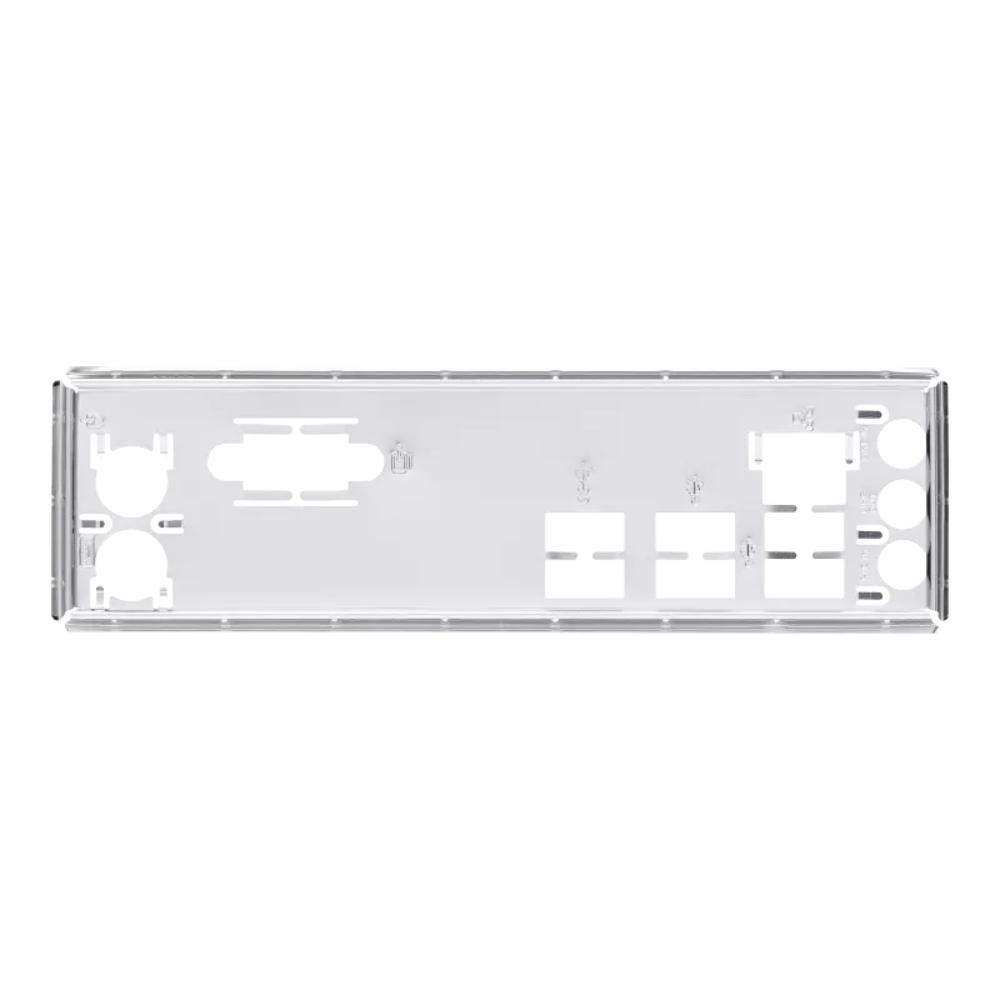

• Stainless-Steel Back I/O

ASUS Q-Design

The motherboard includes ASUS installation-friendly design features such as

• Q-DIMM
• Q-Slot

These features make memory and expansion-card installation easier.

ASUS Thermal Solution

An aluminum heatsink design helps manage chipset temperatures and maintain stable operation during everyday workloads.

Compact Micro ATX Design

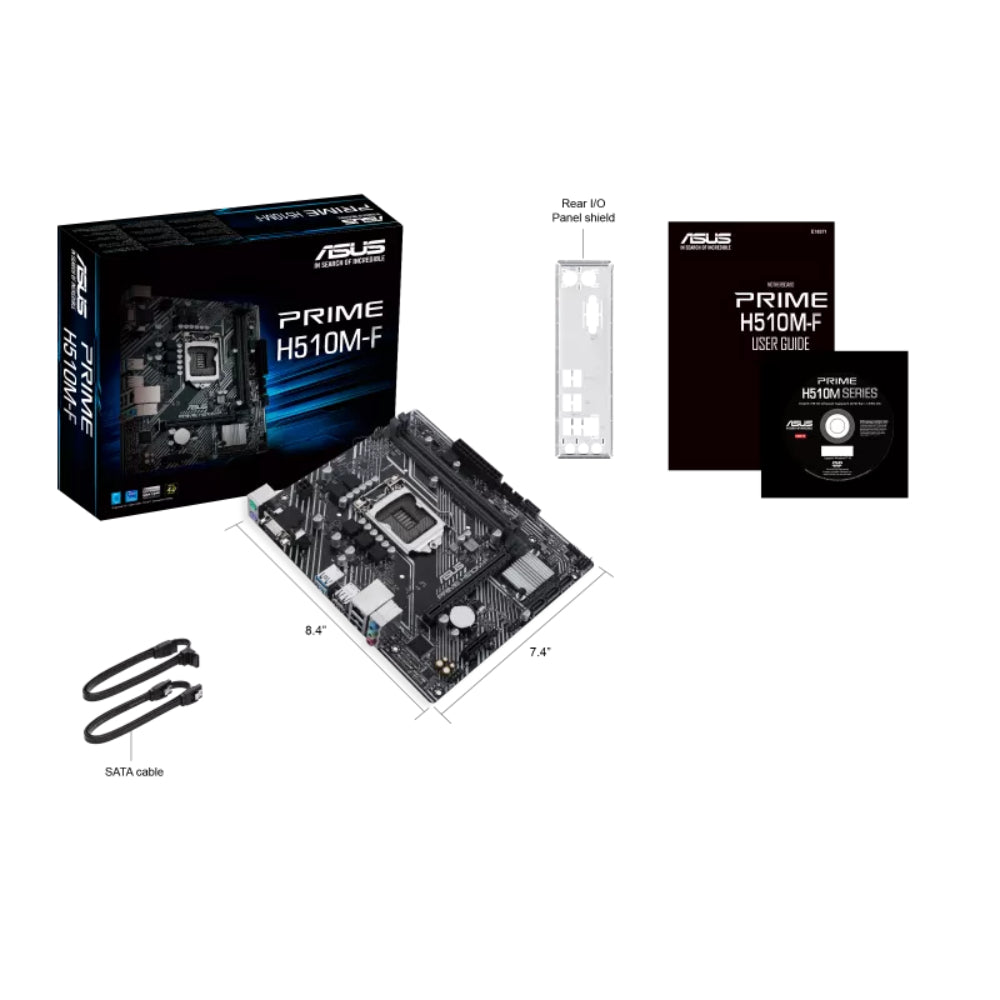

With dimensions of approximately 18.8 × 21.3 cm, the PRIME H510M-F is suitable for compact desktop systems and Micro ATX-compatible cases.

Technical Specifications

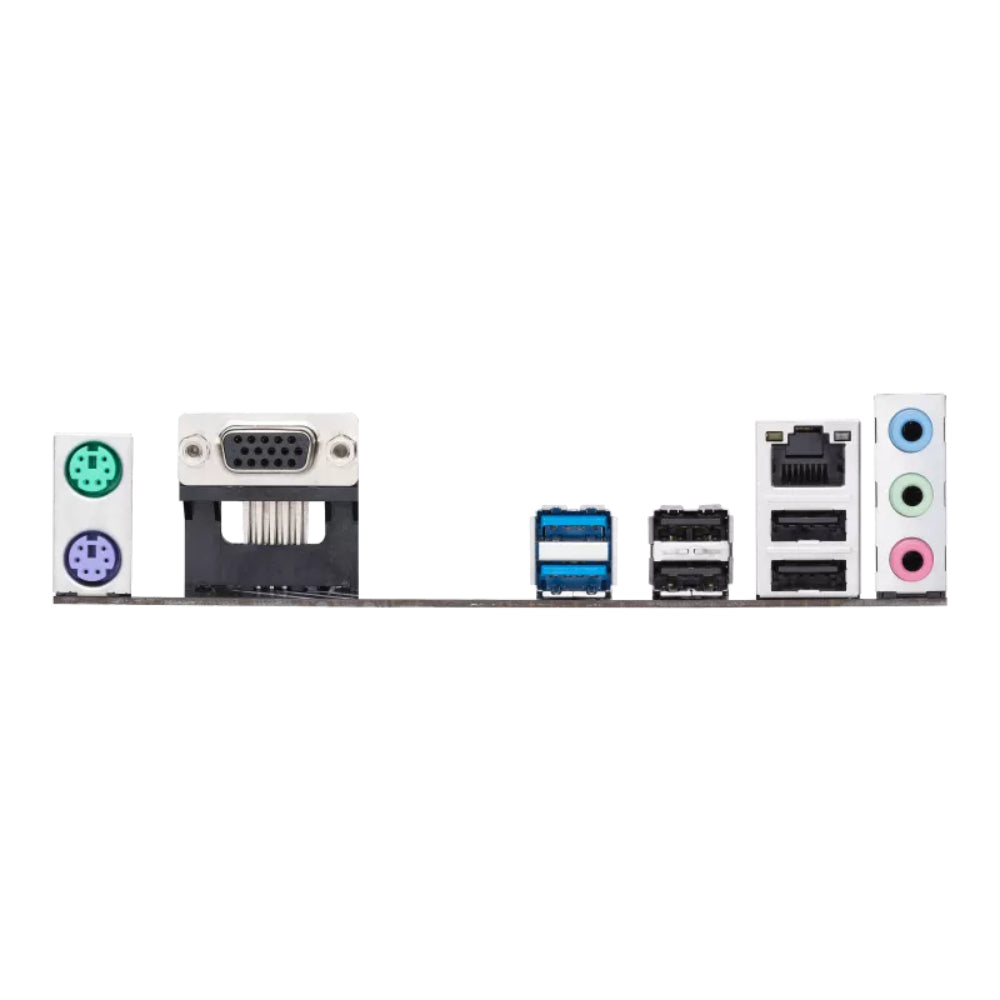

Back Panel Connectivity

• 2 × USB 3.2 Gen 1 Type-A
• 4 × USB 2.0 Type-A
• 1 × D-Sub
• 1 × Realtek 1 Gb Ethernet
• 3 × Audio jacks
• 1 × PS/2 Keyboard
• 1 × PS/2 Mouse

Internal Connectivity

• 4 × SATA 6 Gb/s
• 1 × USB 3.2 Gen 1 header
• 1 × USB 2.0 header
• 1 × 4-pin CPU fan header
• 1 × 4-pin chassis fan header
• 1 × 24-pin main power connector
• 1 × 4-pin +12V power connector
• 1 × Front Panel Audio header
• 1 × Speaker header
• 1 × System Panel header
• 1 × Clear CMOS header

ASUS Software & BIOS Features

The PRIME H510M-F supports a range of ASUS utilities and firmware features, including

• Armoury Crate
• AI Suite 3
• TurboV EVO
• EPU
• DIGI+ VRM
• EZ Update
• ASUS CPU-Z
• AI Charger
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• UEFI BIOS EZ Mode

Ideal Applications

Perfect for:

• Home & Office PCs
• Business Desktop Systems
• Entry-Level Gaming PCs
• Intel 10th Gen PC Builds
• Intel 11th Gen PC Builds
• Budget Desktop Computers
• Work-from-Home Systems
• Student PCs
• POS & Business Systems
• General Productivity
• Internet & Multimedia PCs
• Compact Micro ATX Builds
• Everyday Computing

Why Choose the ASUS PRIME H510M-F?

• Intel H510 chipset
• LGA 1200 socket
• Supports 11th & 10th Gen Intel Core processors
• 2 × DDR4 DIMM slots
• Up to 64GB RAM
• DDR4 3200MHz (OC) support
• Dual-channel memory
• PCIe 4.0 x16 with compatible 11th Gen CPUs
• 1 × PCIe 3.0 x1
• 4 × SATA 6Gb/s ports
• USB 3.2 Gen 1 connectivity
• Realtek 1 Gb Ethernet
• D-Sub/VGA output
• Realtek ALC887/897 7.1-channel audio
• ASUS 5X Protection III
• DIGI+ VRM
• SafeSlot Core
• LANGuard
• Overvoltage Protection
• Micro ATX form factor
• ASUS Q-DIMM & Q-Slot
• UEFI BIOS with EZ Mode
• Compact 18.8 × 21.3 cm design
