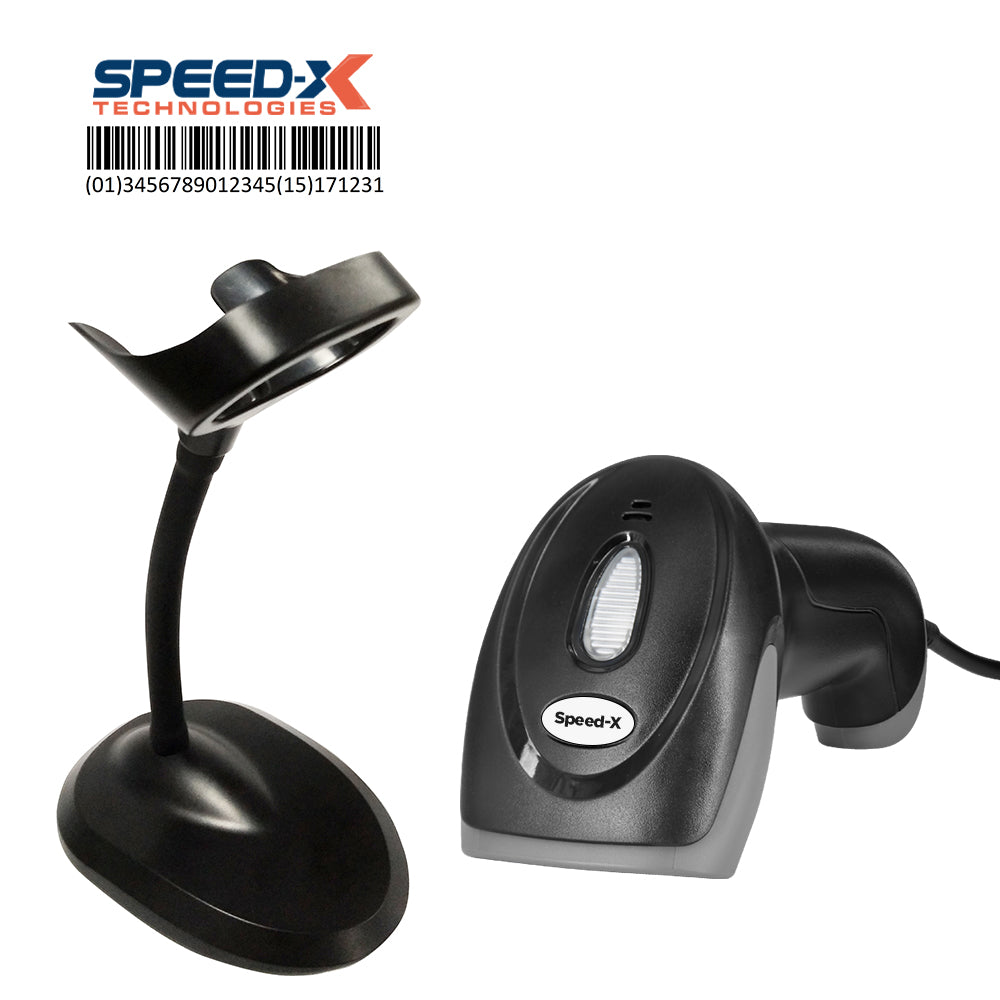

Speed-X 8400 | 1D Laser Handheld Barcode Scanner (Plug-and-Play USB Cable)

Speed-X 8400 | 1D Laser Handheld Barcode Scanner (Plug-and-Play USB Cable)

Rs.3,950.00 PKR
Rs.4,500.00 PKR Rs.3,950.00 PKR
Sale Sold out
Shipping calculated at checkout.

The Speed-X 8400 is a lightweight and reliable 1D laser barcode scanner designed for fast and accurate scanning. With its ergonomic design and plug-and-play USB connectivity, this scanner is ideal for retail, inventory management, and other business applications. Its robust performance and user-friendly features make it an excellent choice for efficient operations.

Key Features:

  1. High-Performance Scanning

    • Decoding speed of 100 ± 20 scans per second ensures quick and precise barcode reading.
    • Reads all major 1D barcodes, including UPC, EAN, Code 128, Code 39, and GS1 DataBar.

  2. Laser Scanning Technology

    • Equipped with a 650nm visible laser diode for superior scanning accuracy.
    • Handles barcodes with low print contrast (PCS > 30%).

  3. Plug-and-Play USB Interface

    • Simple setup with USB HID Keyboard/USB VCP or RS-232 interface options.
    • No additional drivers required—connect and start scanning.

  4. Ergonomic and Durable Design

    • Compact dimensions of 90mm x 67mm x 168mm and lightweight at 130g for easy handling.
    • Built to withstand daily use in various environments.

  5. Wide Decode Capability

    • Supports a range of 1D barcode symbologies, including EAN, UPC, Code 39, Code 128, and GS1 DataBar.

  6. Environmental Adaptability

    • Operates efficiently in temperatures ranging from 0°C to 50°C.
    • Can be stored in temperatures from -10°C to 60°C.

  7. Visual and Audio Indicators

    • Beeper and LED indicators for successful scans.

Technical Specifications:

Electrical Characteristics

  • Interface: USB HID Keyboard/USB VCP or RS-232
  • Input Voltage: DC 5V ± 5%
  • Current: Max 185mA

Performance Characteristics

  • Light Source: 650nm visible laser diode
  • Decoding Speed: 100 ± 20 scans/second
  • Minimum Resolution: 4 mil (0.1mm)
  • Decode Angle:
    • Pitch: -30° to +30°
    • Skew: -60° to +60°
    • Tilt: -30° to +30°

Decode Capability

  • Supported 1D Symbologies:
    EAN13, EAN8, UPC A, UPC E, ISBN, ISSN, Code 39, Code 128, Codabar, MSI, GS1 DataBar, and more.

Decoding Depth of Field

Symbology Resolution Barcode Number Barcode Width Nearest Farthest
Code 128 5 mil 20 4.3 x 1.5 cm 5 cm 10 cm
Code 128 15 mil 7 4.3 x 1.5 cm 2.5 cm 26 cm
Code 39 6.67 mil 16 4.4 x 1.5 cm 3 cm 19 cm
Code 39 20 mil 4 4.3 x 1.5 cm 3 cm 32 cm
EAN13 13.34 mil 13 4.2 x 1.5 cm 2 cm 24 cm

Environmental Characteristics

  • Operating Temperature: 0°C to 50°C
  • Storage Temperature: -10°C to 60°C
  • Operating Humidity: 20%–85% (non-condensing)
  • Storage Humidity: 20%–95% (non-condensing)

Applications:

  • Retail: Enhance checkout and inventory processes.
  • Warehouse Management: Efficient stock tracking and logistics.
  • Healthcare: Streamline patient and inventory management.
  • Office Use: Simplify document management and asset tracking.

Why Choose the Speed-X 8400?

The Speed-X 8400 1D Laser Handheld Barcode Scanner offers high-speed scanning, durable performance, and an ergonomic design, making it an excellent choice for businesses seeking a reliable and affordable barcode scanning solution.
