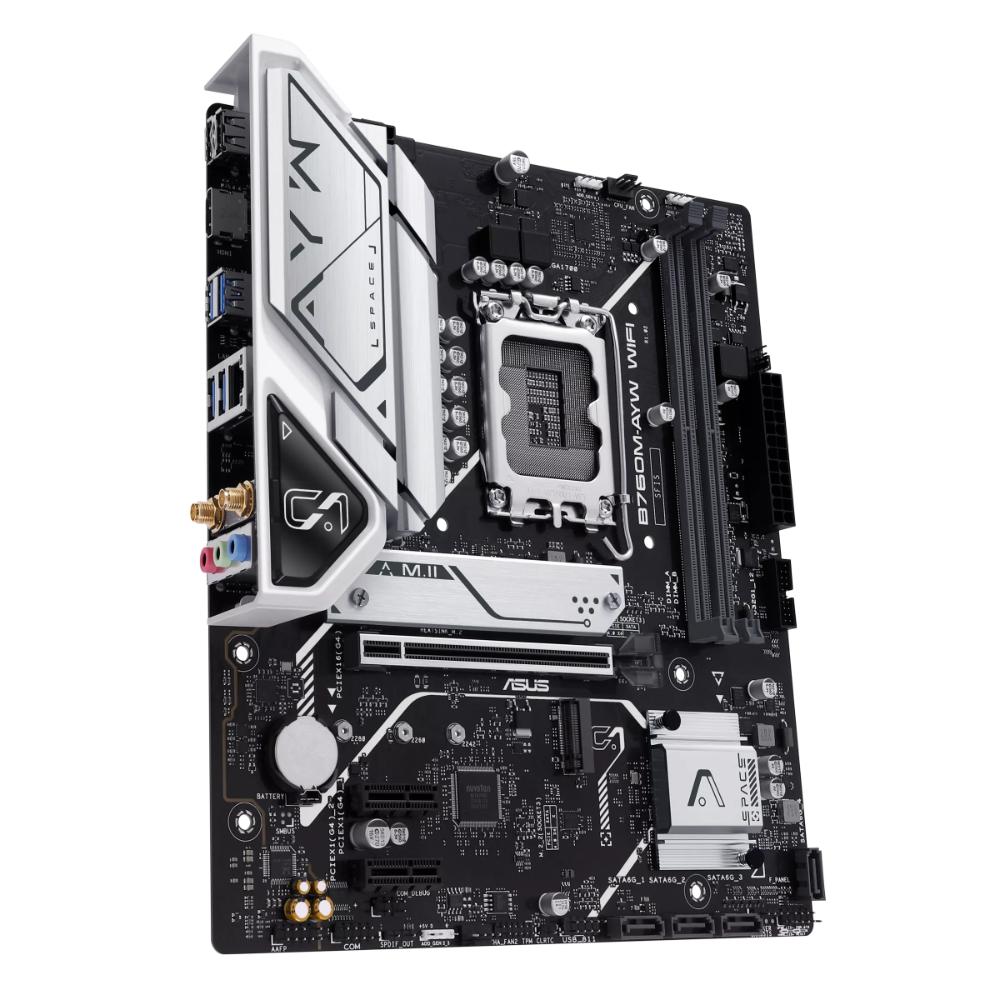

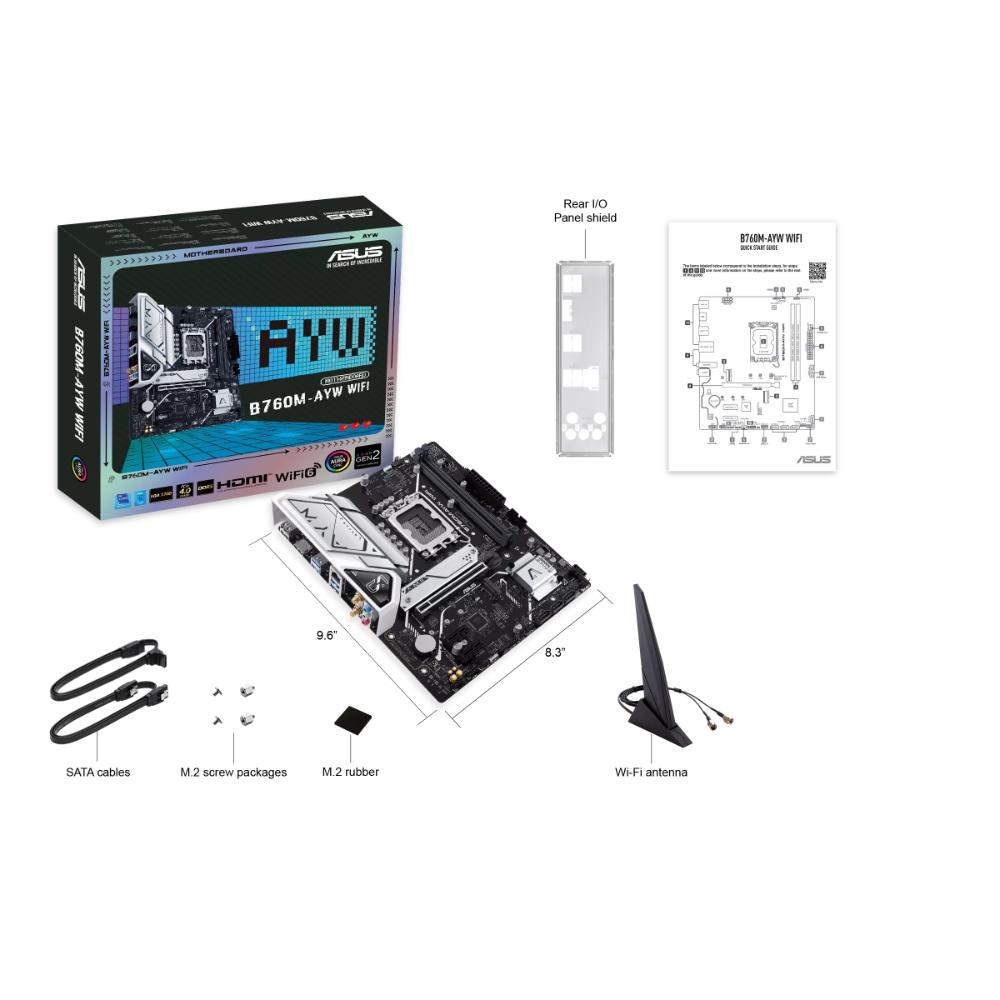

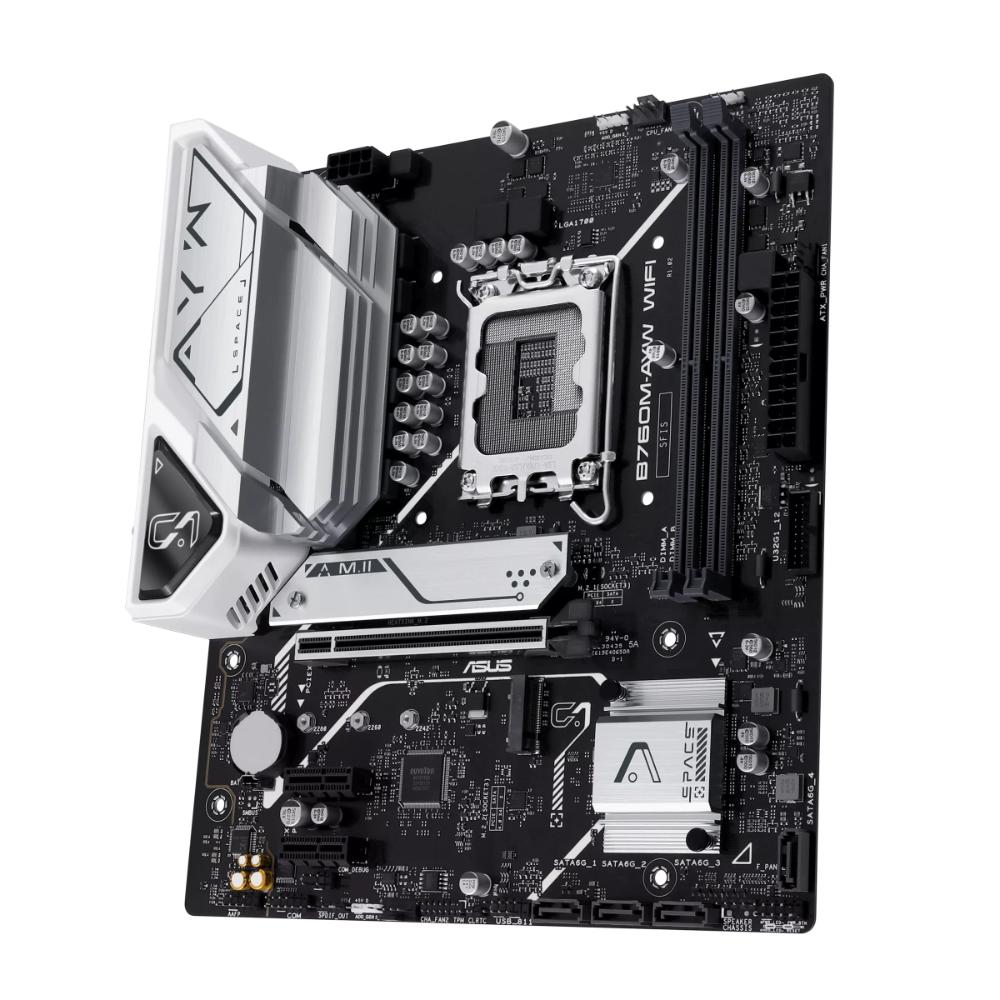

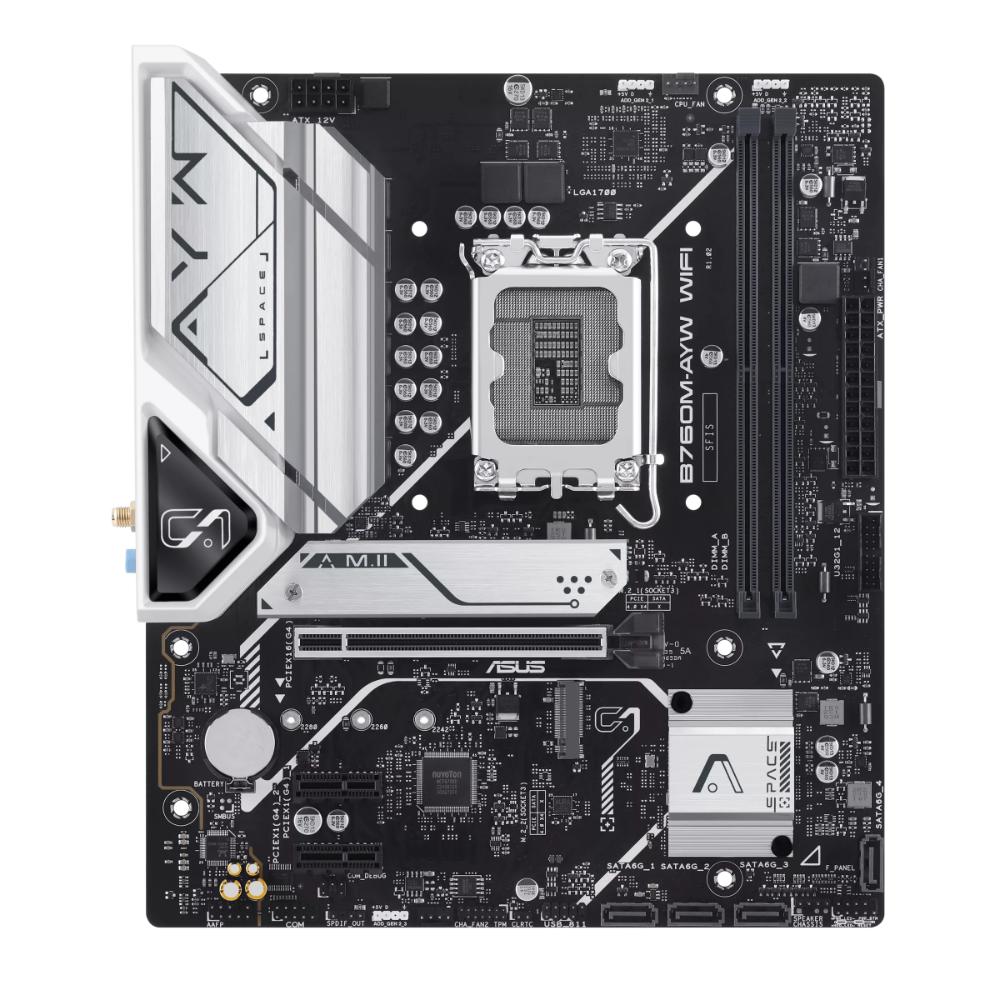

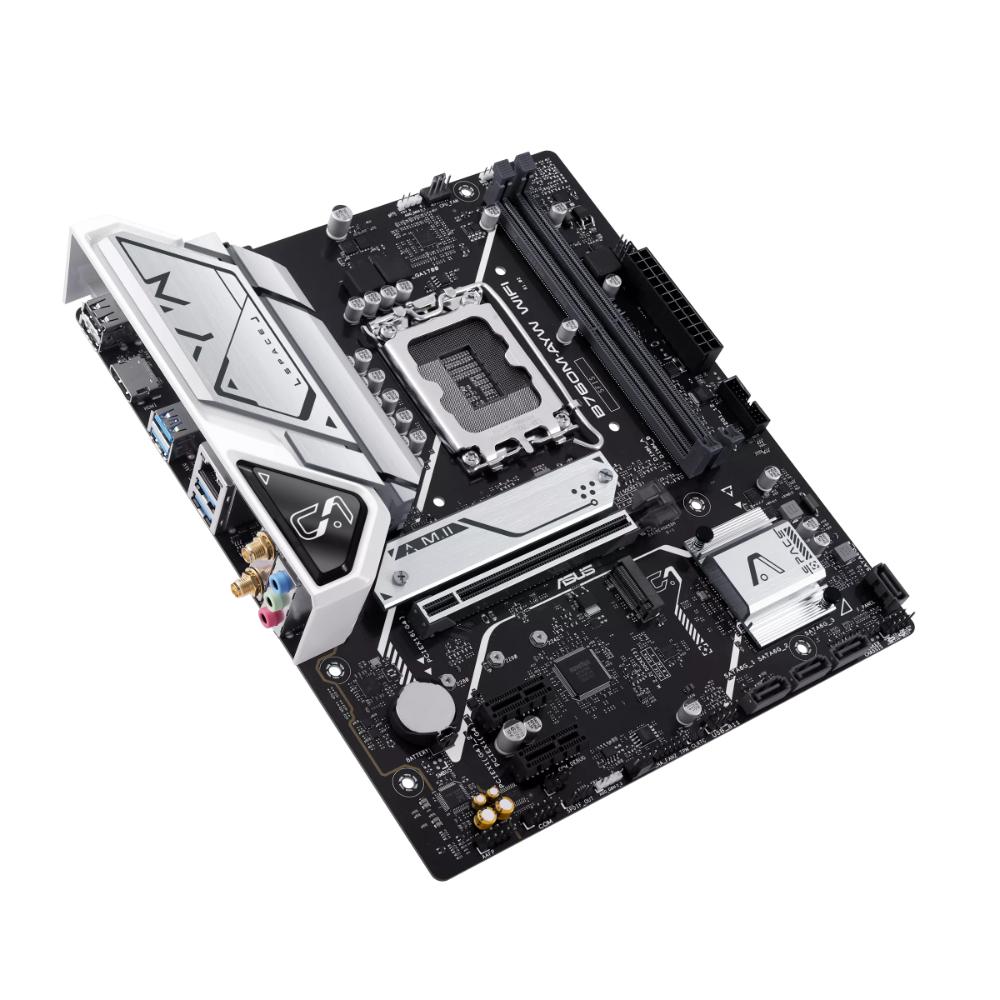

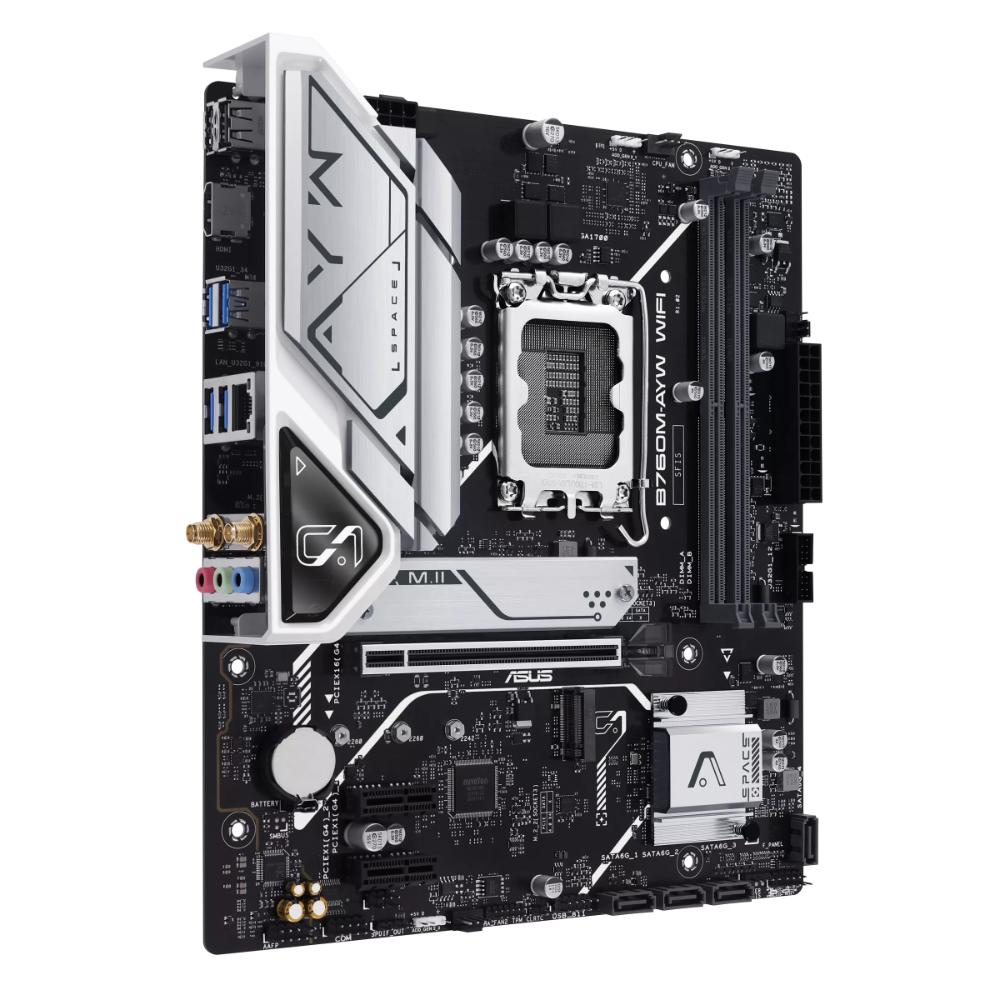

ASUS B760M-AYW WIFI Motherboard | Intel B760 | LGA 1700 | DDR5 | WiFi 6 | 2.5Gb Ethernet | 2 × M.2 PCIe 4.0 | mATX | HDMI | Aura Sync

The ASUS B760M-AYW WIFI motherboard is a feature-rich Intel B760 mATX motherboard designed for modern gaming PCs, home and office systems, content creation, and AI-ready computing. Supporting Intel 14th, 13th, and 12th Gen processors through the LGA 1700 socket, it combines DDR5 memory support, PCIe 4.0 connectivity, dual M.2 storage slots, WiFi 6, and 2.5Gb Ethernet in a compact Micro-ATX form factor.

With support for up to 96GB of DDR5 memory, speeds of up to DDR5-8000+ (OC), PCIe 4.0 x16 graphics, two PCIe 4.0 x4 M.2 slots, and four SATA 6Gb/s ports, the B760M-AYW WIFI provides a flexible foundation for powerful and responsive PC builds.

The motherboard also features WiFi 6, Bluetooth 5.3, Realtek 2.5 Gb Ethernet, HDMI 2.1, USB 3.2 Gen 1 connectivity, Realtek 7.1-channel audio, an M.2 heatsink, a VRM heatsink, and Aura Sync Addressable Gen 2 RGB headers, making it an excellent choice for versatile gaming and productivity systems.

Key Features

Intel B760 Platform with LGA 1700 Socket

The ASUS B760M-AYW WIFI supports a broad range of Intel processors using the LGA 1700 socket, including:

• Intel Core 14th Gen processors
• Intel Core 13th Gen processors
• Intel Core 12th Gen processors
• Intel Pentium Gold processors
• Intel Celeron processors
• Intel Turbo Boost Technology 2.0
• Intel Turbo Boost Max Technology 3.0 support depending on CPU

DDR5 Memory Support

The motherboard features 2 × DDR5 DIMM slots with dual-channel memory architecture and support for up to 96GB of system memory.

It supports DDR5 memory speeds from 4800MHz up to 8000MHz (OC), depending on the CPU and memory configuration.

• 2 × DDR5 DIMM slots
• Up to 96 GB capacity
• Dual-channel memory architecture
• Intel XMP support
• ASUS OptiMem technology
• Non-ECC, unbuffered memory

PCIe 4.0 Expansion

The B760M-AYW WIFI provides high-speed PCIe connectivity for graphics cards and expansion devices.

• 1 × PCIe 4.0 x16 slot
• 2 × PCIe 4.0 x1 slots
• ASUS SafeSlot Core+ design
• High-bandwidth PCIe 4.0 connectivity

The primary PCIe 4.0 x16 slot is suitable for modern graphics cards and other high-performance expansion hardware.

Dual PCIe 4.0 M.2 Slots

Install fast NVMe SSDs using the motherboard's 2 × M.2 slots, both supporting PCIe 4.0 x4 mode.

• 2 × M.2 Key M slots
• Supports 2242 / 2260 / 2280 drives
• PCIe 4.0 x4 interface
• M.2 heatsink
• Intel Rapid Storage Technology support

WiFi 6 & Bluetooth 5.3

Built-in WiFi 6 provides fast and reliable wireless networking without requiring a separate WiFi adapter.

• WiFi 6
• 802.11 a/b/g/n/ac/ax
• 2.4 GHz / 5 GHz frequency bands
• Bluetooth 5.3
• Included ASUS WiFi antennas

2.5 Gb Ethernet

The integrated Realtek 2.5Gb Ethernet controller provides high-speed wired networking for gaming, file transfers, streaming, and other bandwidth-intensive applications.

The motherboard also incorporates ASUS LANGuard for additional network protection.

HDMI 2.1 Display Output

The B760M-AYW WIFI includes an HDMI 2.1 port supporting up to 4K at 60 Hz when supported by the installed processor's integrated graphics.

USB Connectivity

The motherboard provides multiple USB ports for peripherals, storage devices, keyboards, mice, controllers, and other accessories.

Rear I/O includes:

• 4 × USB 3.2 Gen 1 Type-A
• 2 × USB 2.0 Type-A

Internal headers provide additional USB connectivity:

• 1 × USB 3.2 Gen 1 header
• 1 × USB 2.0 header

Comprehensive Cooling

The motherboard is equipped with thermal solutions designed to help maintain stable operation during demanding workloads.

• VRM heatsink
• M.2 heatsink
• PCH heatsink
• 1 × CPU fan header
• 2 × chassis fan headers
• ASUS Fan Xpert 2+ support

Aura Sync RGB Lighting

Customize your PC build with ASUS Aura Sync lighting support.

The motherboard features:

• 3 × Addressable Gen 2 headers
• Aura Sync compatibility
• Addressable RGB lighting support

Synchronize compatible RGB components for a coordinated gaming or workstation setup.

Realtek 7.1-Channel High Definition Audio

The integrated Realtek 7.1-channel High Definition Audio CODEC provides high-quality onboard audio with support for up to 24-bit/192kHz playback.

Audio features include:

• Audio shielding
• Premium audio capacitors
• Dedicated audio PCB layers
• Jack detection
• Multi-streaming
• Front-panel jack retasking

ASUS 5X Protection III

The motherboard incorporates ASUS protection and reliability technologies, including:

• DIGI+ VRM
• LANGuard
• Overvoltage Protection
• SafeSlot Core+

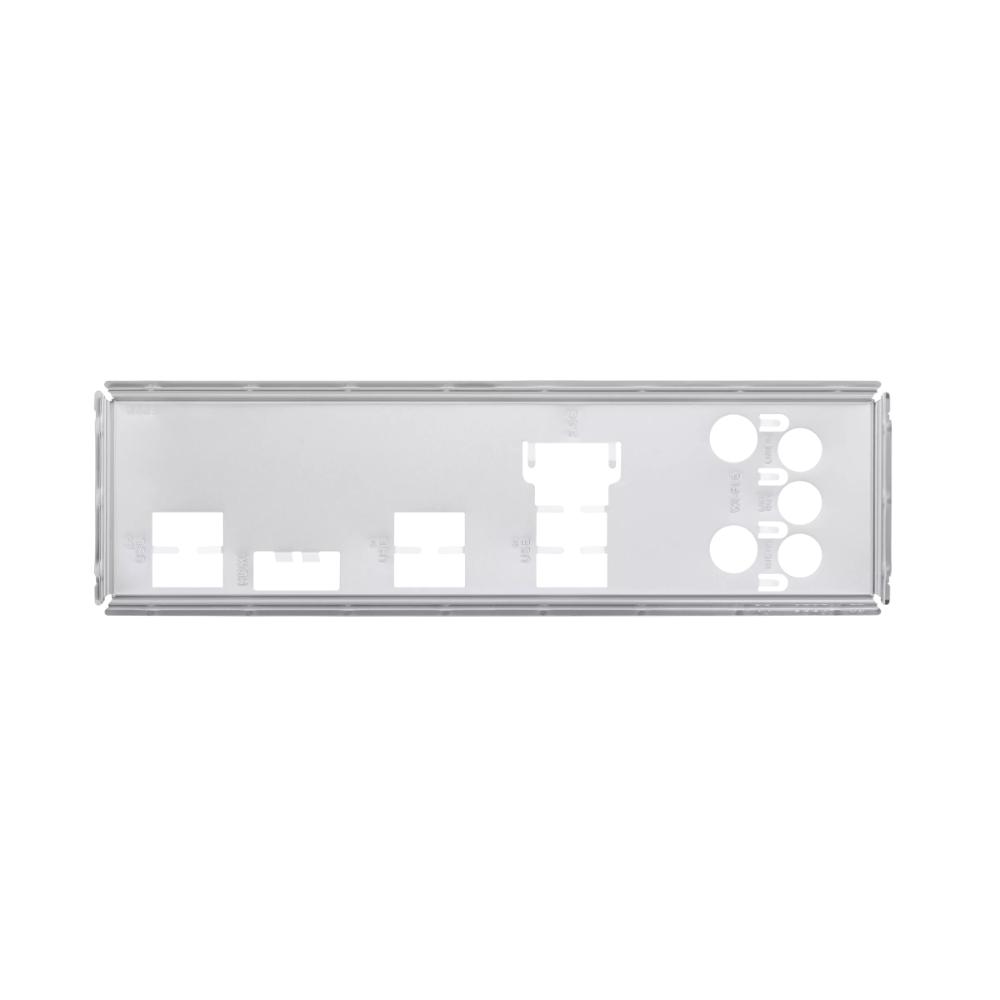

• Stainless-Steel Back I/O

ASUS Q-Design

ASUS Q-Design technologies make system building and troubleshooting easier with:

• M.2 Q-Latch
• Q-DIMM
• Q-LED Core
• Q-Slot

BIOS & Software Features

The B760M-AYW WIFI includes a 128 MB UEFI AMI BIOS with ASUS EZ DIY functionality.

Supported ASUS software includes:

• Armoury Crate
• Aura Sync
• Fan Xpert 2+
• Power Saving
• Two-Way AI Noise Cancellation
• AI Suite 3
• DIGI+ VRM
• PC Cleaner
• ASUS CPU-Z
• MyASUS
• Norton 360 Deluxe – 60-day free trial
• WinRAR

BIOS features include:

• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode

Technical Specifications

Specification	Details
Model	ASUS B760M-AYW WIFI
Form Factor	Micro-ATX (mATX)
Dimensions	24.4 × 21.1 cm (9.6 × 8.3 inches)
CPU Socket	Intel LGA 1700
Supported CPUs	Intel Core 14th / 13th / 12th Gen, Pentium Gold, Celeron
Chipset	Intel B760
Memory Type	DDR5
Memory Slots	2 × DIMM
Maximum Memory	96GB
Memory Architecture	Dual Channel
Memory Speed	DDR5-4800 to DDR5-8000+ (OC)
Memory Support	Non-ECC, Unbuffered
Intel XMP	Yes.
Graphics Output	1 × HDMI 2.1
HDMI Resolution	Up to 4K @ 60Hz
PCIe x16	1 × PCIe 4.0 x16
PCIe x1	2 × PCIe 4.0 x1
M.2 Slots	2 × M.2 PCIe 4.0 x4
M.2 Sizes	2242 / 2260 / 2280
SATA	4 × SATA 6 Gb/s
Ethernet	Realtek 2.5 Gb Ethernet
Wireless	WiFi 6
Bluetooth	Bluetooth 5.3
Rear USB	4 × USB 3.2 Gen 1 Type-A, 2 × USB 2.0 Type-A
Internal USB	1 × USB 3.2 Gen 1 header, 1 × USB 2.0 header
Audio	Realtek 7.1 Surround Sound HD Audio
Audio Resolution	Up to 24-bit / 192 kHz
RGB	3 × Addressable Gen 2 headers
CPU Fan Header	1 × 4-pin
Chassis Fan Headers	2 × 4-pin
Power Connectors	1 × 24-pin Main Power, 1 × 8-pin + 12V
TPM	SPI TPM Header
S/PDIF	Yes.
Operating System	Windows 10 64-bit / Windows 11
BIOS	128 MB UEFI AMI BIOS

Connectivity

The ASUS B760M-AYW WIFI provides a versatile selection of wired and wireless connectivity options.

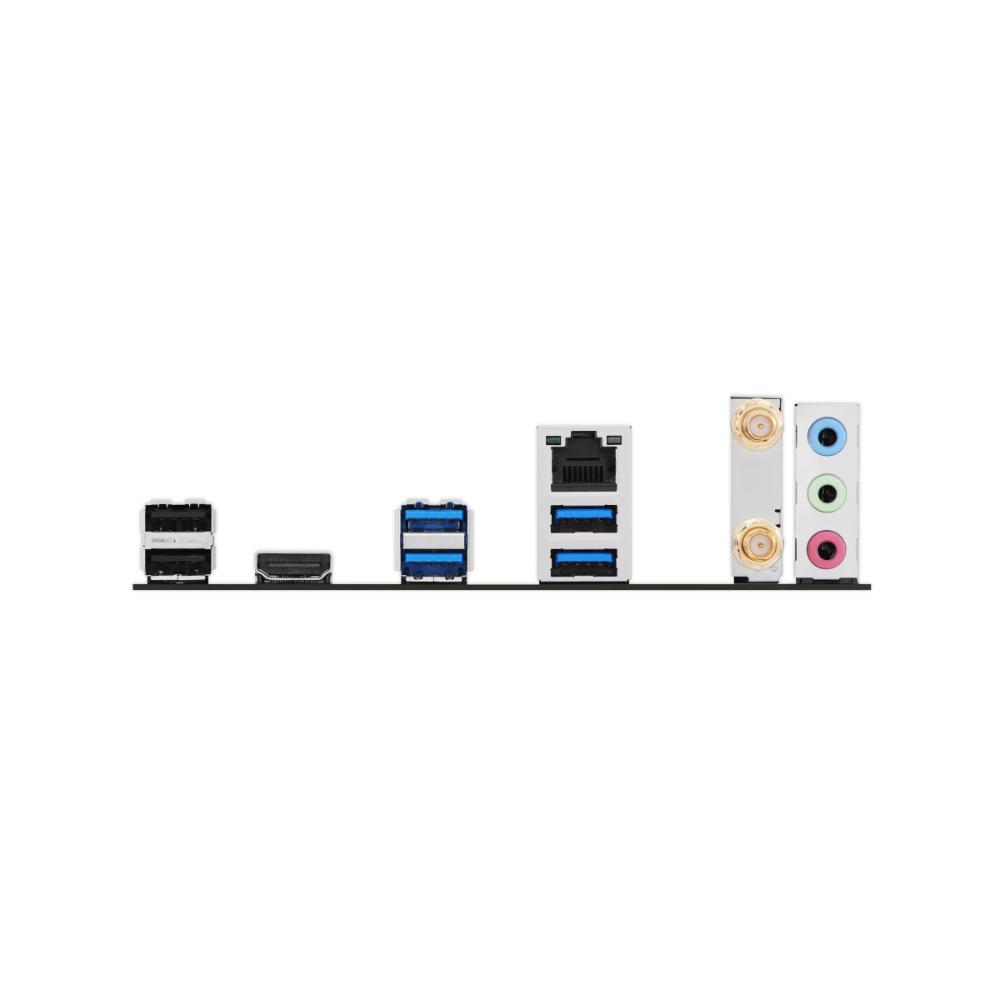

Rear I/O

• 4 × USB 3.2 Gen 1 Type-A
• 2 × USB 2.0 Type-A
• 1 × HDMI 2.1
• 1 × WiFi module connection
• 1 × Realtek 2.5 Gb Ethernet
• 3 × Audio jacks

Internal Connectivity

• 2 × M.2 PCIe 4.0 x4
• 4 × SATA 6Gb/s
• 1 × USB 3.2 Gen 1 header
• 1 × USB 2.0 header
• 3 × Addressable Gen 2 RGB headers
• 1 × S/PDIF Out header
• 1 × SPI TPM header
• 1 × COM port header
• 1 × Clear CMOS header
• 1 × Front Panel Audio header

Storage Support

The B760M-AYW WIFI provides multiple storage options for modern PC builds.

• 2 × PCIe 4.0 M.2 slots
• Supports 2242 / 2260 / 2280 NVMe SSDs
• 4 × SATA 6Gb/s ports
• Intel Rapid Storage Technology support
• SATA RAID 0/1/5/10 support

This combination allows users to build systems with fast NVMe storage alongside additional SATA SSDs or hard drives.

Networking

The integrated Realtek 2.5Gb Ethernet controller provides high-speed wired networking, while built-in WiFi 6 enables fast wireless connectivity.

Wireless features include:

• WiFi 6
• 802.11 a/b/g/n/ac/ax
• 2.4 GHz / 5 GHz support
• Bluetooth 5.3
• ASUS WiFi antennas

Gaming Features

The ASUS B760M-AYW WIFI provides a solid platform for gaming PCs with:

• Intel B760 chipset
• Support for Intel Core 14th / 13th / 12th Gen processors
• DDR5 memory support
• Up to 8000 MHz+ DDR5 OC
• PCIe 4.0 x16 graphics slot
• 2 × PCIe 4.0 M.2 slots
• 2.5 Gb Ethernet
• WiFi 6
• Bluetooth 5.3
• Realtek 7.1-channel audio
• ASUS SafeSlot Core+
• VRM and M.2 heatsinks
• Aura Sync RGB lighting
• Fan Xpert 2+
• ASUS Q-Design features

AI-Ready PC Platform

The B760M-AYW WIFI is designed as an AI-ready PC motherboard, providing the processing support, high-speed memory, PCIe connectivity, storage expansion, and networking required for modern computing workloads.

Combined with a compatible Intel processor and dedicated graphics card, it can serve as the foundation for gaming systems, productivity PCs, content creation workstations, and AI-capable desktop builds.

Ideal Applications

Perfect for:

• Gaming PCs
• Intel 14th Gen PC Builds
• Intel 13th Gen PC Builds
• Intel 12th Gen PC Builds
• AI-Ready PCs
• Home & Office PCs
• Workstations
• Content Creation
• Multimedia Systems
• High-Speed Networking PCs
• WiFi Gaming PCs
• Compact mATX Builds
• NVMe SSD-Based Systems
• RGB Gaming Builds
• Custom PC Builds

Why Choose the ASUS B760M-AYW WIFI?

• Intel B760 chipset
• LGA 1700 socket
• Supports 14th / 13th / 12th Gen Intel Core processors
• DDR5 memory support
• Up to 96GB RAM
• Supports up to DDR5-8000+ (OC)
• 2 × PCIe 4.0 M.2 slots
• PCIe 4.0 x16 graphics slot
• 2 × PCIe 4.0 x1 slots
• Realtek 2.5 Gb Ethernet
• WiFi 6
• Bluetooth 5.3
• HDMI 2.1
• 4 × SATA 6Gb/s
• Realtek 7.1-channel HD audio
• USB 3.2 Gen 1 connectivity
• M.2 heatsink
• VRM heatsink
• Fan Xpert 2+
• Aura Sync RGB
• 3 × Addressable Gen 2 RGB headers
• ASUS 5X Protection III
• ASUS Q-Design
• Compact mATX form factor
• AI-ready PC platform
