ASUS PRIME A620AM-K-CSM | AMD A620A | AM5 | DDR5 | Ryzen 9000/8000/7000 | PCIe 4.0 | M.2 | 1Gb LAN | micro-ATX

The ASUS PRIME A620AM-K-CSM is a compact AMD AM5 micro-ATX motherboard designed to unlock the potential of AMD Ryzen™ 9000, 8000, and 7000 Series desktop processors. Built around the AMD A620A chipset, it provides a solid foundation for modern PC builds with DDR5 memory, PCIe 4.0 graphics support, high-speed NVMe storage, 1Gb Ethernet, and versatile USB connectivity.

Designed to be Advanced AI PC-ready, the PRIME A620AM-K-CSM combines reliable hardware with ASUS firmware and software features to provide a practical platform for productivity, business, home computing, and PC DIY builds.

Key Features

AMD AM5 Platform

The motherboard features the AMD Socket AM5 platform and supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors, with support for CPUs up to 120W.

DDR5 Memory Support

Two DDR5 DIMM slots support up to 128GB of memory. The motherboard supports memory speeds of up to 7200+ MT/s (OC) with Ryzen 9000/7000 processors and up to 7600+ MT/s (OC) with Ryzen 8000 processors.

It also supports AMD EXPO™ and ASUS Enhanced Memory Profile (AEMP) for simplified memory optimization.

PCIe 4.0 Expansion

The motherboard includes a PCIe 4.0 x16 slot for graphics cards and other high-speed expansion devices. With Ryzen 9000 and 7000 Series processors, the slot supports x16 mode.

M.2 PCIe 4.0 Storage

A dedicated M.2 Key M slot supports 2242, 2260, and 2280 devices using PCIe 4.0 x4, providing fast NVMe storage performance.

Four additional SATA 6Gb/s ports provide flexible storage connectivity.

1 Gb Ethernet

The integrated Realtek 1Gb Ethernet controller provides reliable wired networking, enhanced with ASUS LANGuard protection.

High-Speed USB Connectivity

The rear I/O includes four USB 5Gbps Type-A ports and two USB 2.0 Type-A ports. Internal headers provide support for additional USB 5 Gbps and USB 2.0 ports.

HDMI & DisplayPort

The motherboard provides DisplayPort 1.4 and HDMI 2.1 outputs. DisplayPort supports up to 8K @ 30Hz, while HDMI supports up to 4K @ 60Hz, depending on processor graphics capabilities.

Aura Sync RGB

Three addressable RGB Gen 2 headers allow compatible RGB lighting components to be connected and synchronized through ASUS Aura Sync.

ASUS 5X Protection III

ASUS protection technologies include DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, and Stainless-Steel Back I/O for enhanced durability and system protection.

Technical Specifications

Specification	Details
Brand	ASUS
Model	PRIME A620AM-K-CSM
Chipset	AMD A620A
CPU Socket	AMD AM5
Supported CPUs	AMD Ryzen 9000 / 8000 / 7000 Series
Maximum CPU Support	Up to 120W
Form Factor	Micro-ATX
Dimensions	8.9 × 8.7 inches / 22.6 × 22.1 cm
Memory Type	DDR5
Memory Slots	2 × DIMM
Maximum Memory	128GB
Memory Architecture	Dual Channel
Memory Speed	Up to 7200+ MT/s (OC) / 7600+ MT/s (OC) depending on CPU
PCIe x16	1 × PCIe 4.0 x16
PCIe x1	1 × PCIe 3.0 x1
M.2	1 × M.2 Key M, PCIe 4.0 x4
SATA	4 × SATA 6 Gb/s
Ethernet	Realtek 1 Gb Ethernet
Audio	Realtek 7.1 Surround Sound HD Audio
DisplayPort	1 × DisplayPort 1.4
HDMI	1 × HDMI 2.1
USB	USB 5 Gbps & USB 2.0
BIOS	256 MB Flash ROM, UEFI AMI BIOS
Operating System Support	Windows 11 / Windows 10 64-bit

Expansion Slots

AMD Ryzen 9000 & 7000 Series

• 1 × PCIe 4.0 x16 slot supporting x16 mode

AMD Ryzen 8000 Series

• 1 × PCIe 4.0 x16 slot supporting x8/x4 mode depending on processor

AMD A620A Chipset

• 1 × PCIe 3.0 x1 slot

Storage

The PRIME A620AM-K-CSM supports:

• 1 × M.2 Key M slot
• M.2 2242 / 2260 / 2280 support
• PCIe 4.0 x4 mode
• 4 × SATA 6Gb/s ports

RAID Support

AMD RAIDXpert2 supports RAID configurations depending on the processor:

• Ryzen 9000: RAID 0/1/5/10
• Ryzen 8000: RAID 0/1
• Ryzen 7000: RAID 0/1/10

Memory

• 2 × DDR5 DIMM slots
• Up to 128GB total memory
• Dual-channel architecture
• Non-ECC unbuffered DDR5
• AMD EXPO™ support
• ASUS AEMP support
• On-die ECC support
• Up to 7200+ MT/s (OC) with Ryzen 9000/7000
• Up to 7600+ MT/s (OC) with Ryzen 8000

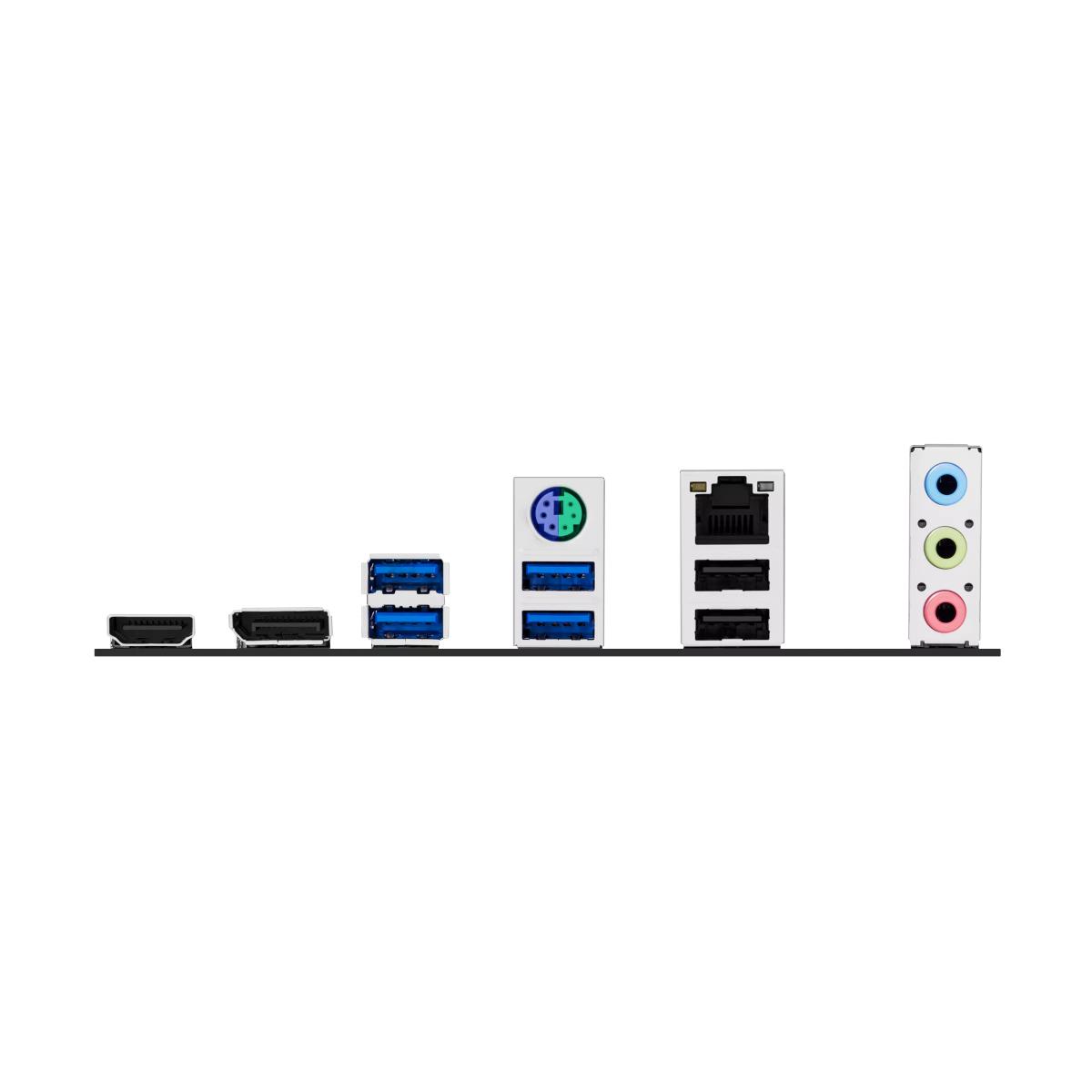

Rear I/O

• 4 × USB 5 Gbps Type-A
• 2 × USB 2.0 Type-A
• 1 × DisplayPort
• 1 × HDMI
• 1 × Realtek 1 Gb Ethernet
• 3 × Audio jacks
• 1 × PS/2 Keyboard/Mouse combo port

Internal I/O

Fan & Cooling

• 1 × 4-pin CPU fan header
• 2 × 4-pin chassis fan headers

Power

• 1 × 24-pin main power connector
• 1 × 8-pin +12V CPU power connector

Storage

• 1 × M.2 Key M slot
• 4 × SATA 6Gb/s ports

USB

• 1 × USB 5Gbps header supporting 2 additional USB 5Gbps ports
• 2 × USB 2.0 headers supporting 4 additional USB 2.0 ports

Miscellaneous

• 3 × Addressable RGB Gen 2 headers
• 1 × Clear CMOS header
• 1 × COM Port header
• 1 × Front Panel Audio header
• 1 × S/PDIF Out header
• 1 × SPI TPM header
• 1 × Front Panel System header

Audio

The motherboard features a Realtek 7.1 Surround Sound High Definition Audio. CODEC supporting:

• Jack detection
• Multi-streaming
• Front-panel jack retasking
• Up to 24-bit/192 kHz playback
• Audio shielding
• Premium audio capacitors
• Dedicated audio PCB layers

Networking

Ethernet

• Realtek 1 Gb Ethernet
• ASUS LANGuard
• Wake-on-LAN by PME
• PXE support

Cooling

ASUS thermal features include:

• Aluminum heatsink design
• 1 × CPU Fan header
• 2 × Chassis Fan headers
• Fan Xpert 2+ software support

These features provide flexible cooling management for compatible PC builds.

ASUS Protection Features

ASUS 5X Protection III

• DIGI+ VRM
• LANGuard
• Overvoltage Protection
• SafeSlot Core
• Stainless-Steel Back I/O

ASUS Q-Design

• Q-DIMM
• Q-LED Core
• Q-Slot

Aura Sync RGB

The motherboard includes three Addressable RGB Gen 2 headers, allowing users to connect compatible RGB strips, fans, and other lighting accessories.

Through ASUS Aura Sync, supported components can be synchronized to create a coordinated lighting setup.

Software & BIOS

ASUS Software

• Armoury Crate
• Aura Creator
• Aura Sync
• Fan Xpert 2+
• ASUS DriverHub
• ASUS CPU-Z
• Norton 360 Deluxe — 60-day free trial
• WinRAR — 40-day free trial

UEFI BIOS

• AI Cache Boost
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
• 256 MB Flash ROM
• UEFI AMI BIOS

Manageability

The motherboard supports:

• WOL by PME
• PXE

These features make it suitable for business and managed desktop environments.

Included Accessories

• 2 × SATA 6Gb/s cables

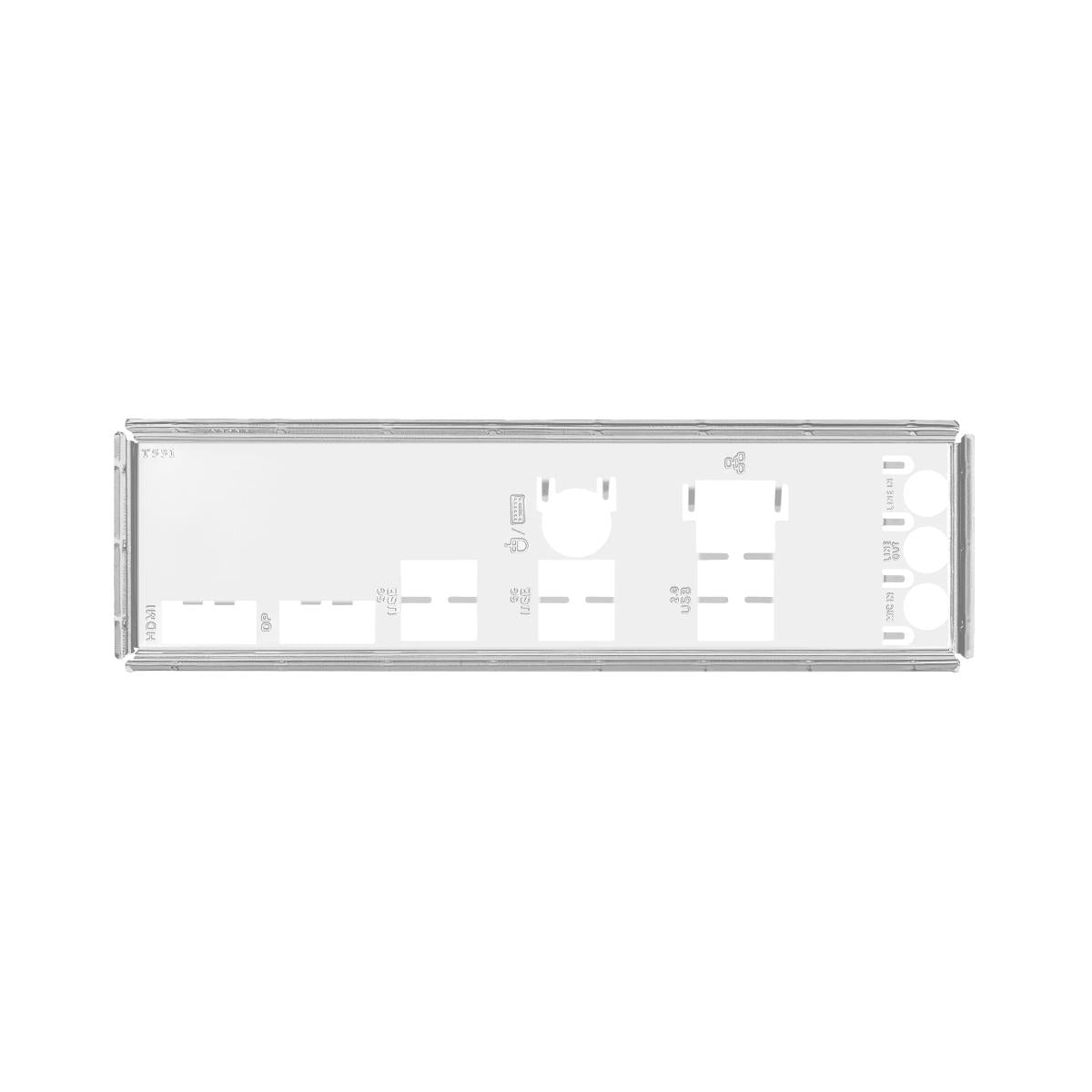

• I/O Shield
• M.2 SSD Screw Package
• ACC Express Activation Key Card
• Quick Start Guide

Operating System Support

The motherboard supports:

• Windows 11
• Windows 10 64-bit

Ideal For

• AMD Ryzen 9000 PC builds
• AMD Ryzen 8000 PC builds
• AMD Ryzen 7000 PC builds
• Home and office desktops
• Business PCs
• Productivity systems
• PC DIY enthusiasts
• Compact micro-ATX builds
• NVMe storage systems
• Entry-level to mid-range gaming PCs
• AI-ready desktop systems

Why Choose ASUS PRIME A620AM-K-CSM?

The ASUS PRIME A620AM-K-CSM provides a modern AM5 platform with support for AMD Ryzen 9000, 8000, and 7000 Series processors, DDR5 memory up to 128GB, PCIe 4.0 graphics and storage, 1Gb Ethernet, HDMI 2.1, DisplayPort 1.4, and extensive USB connectivity.

Its compact micro-ATX form factor, ASUS 5X Protection III, Q-Design features, Aura Sync RGB support, and practical expansion options make it a strong choice for building a reliable modern AMD desktop.
