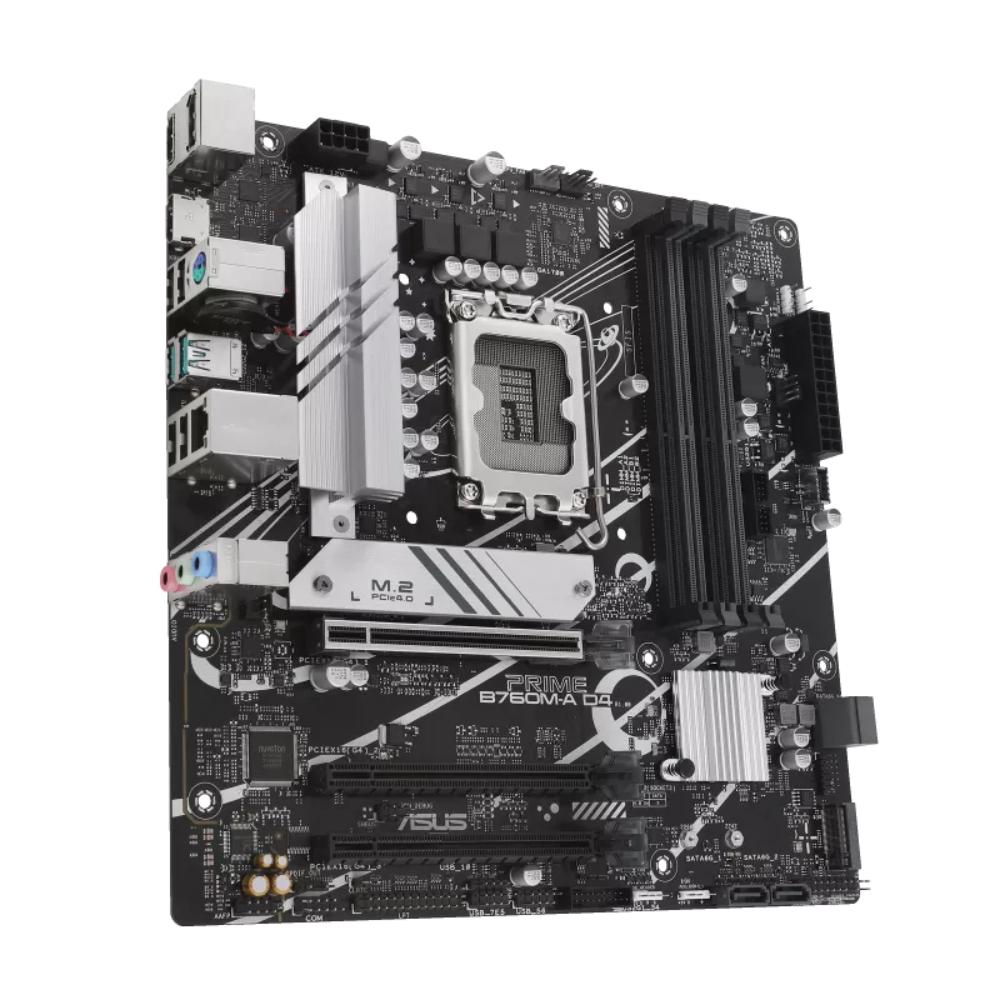

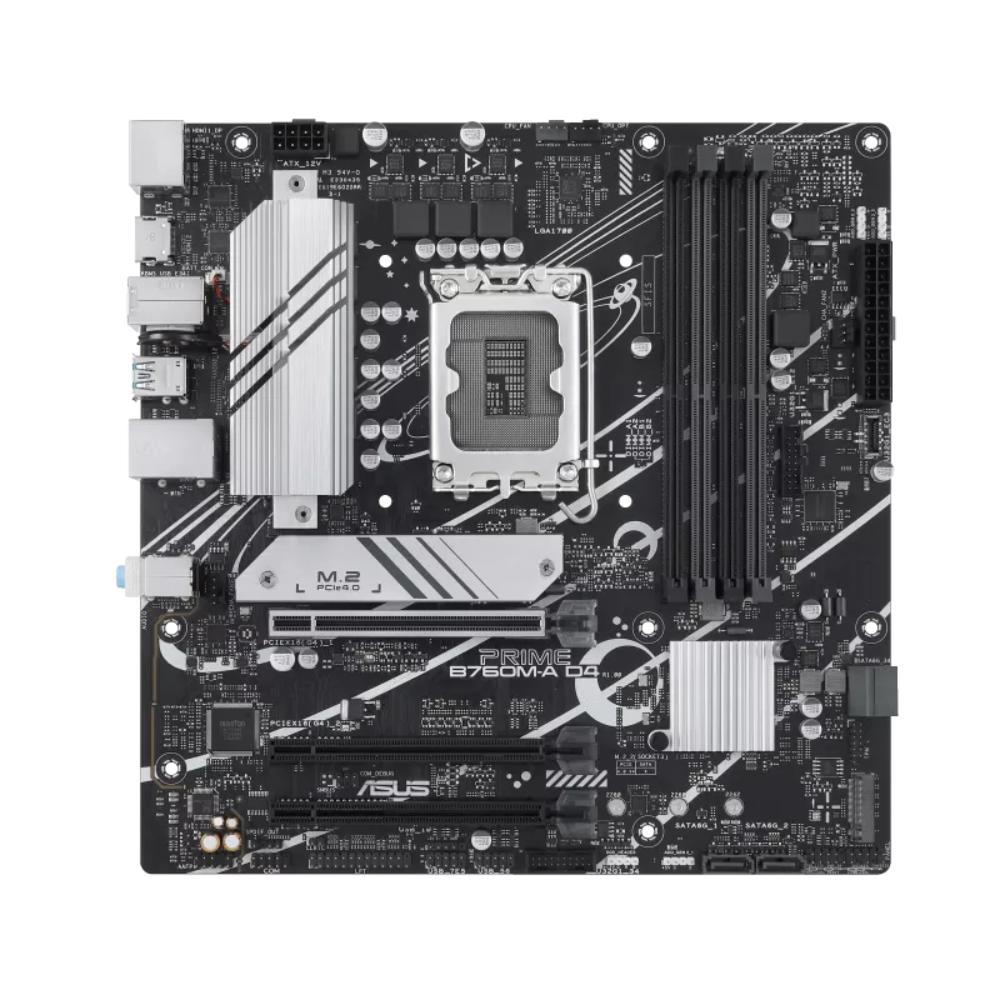

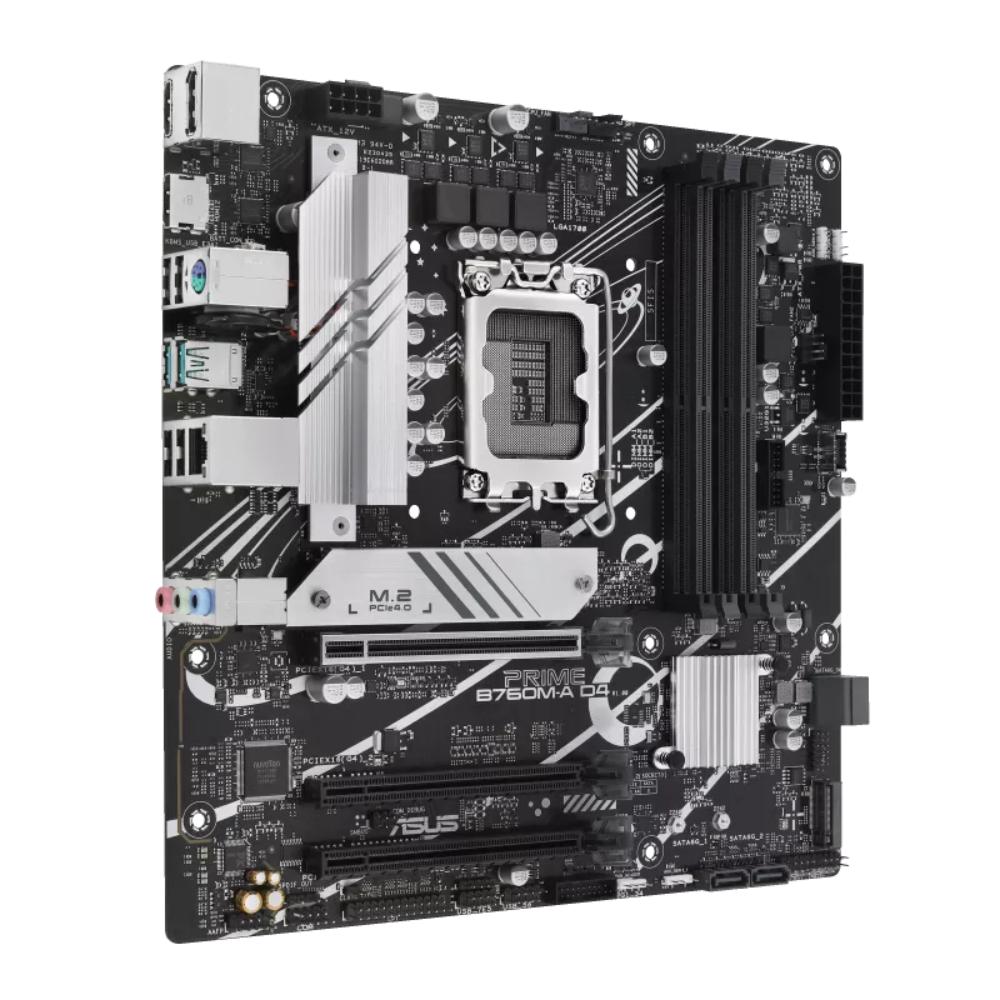

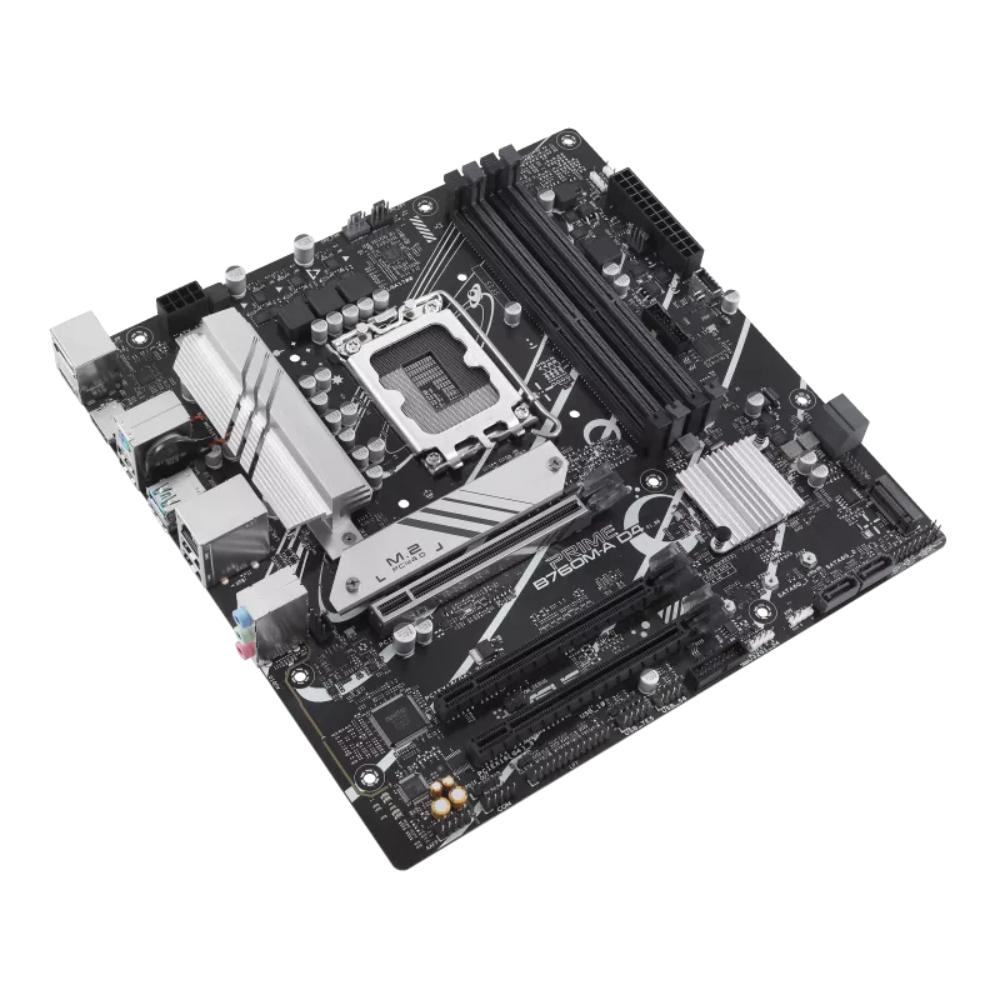

ASUS Prime B760M-A D4 Intel B760 DDR4 Micro-ATX Motherboard

The ASUS Prime B760M-A D4 is a versatile Intel B760 micro-ATX motherboard built for 14th, 13th, and 12th Gen Intel Core processors. Featuring DDR4 memory support up to 128GB, PCIe 4.0 expansion, dual PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, dual HDMI, and USB 3.2 connectivity, it provides an excellent foundation for gaming, professional workstations, content creation, and high-performance desktop systems.

With ASUS OptiMem II, VRM and M.2 heatsinks, comprehensive fan control through Fan Xpert 2+, and Aura Sync RGB, the Prime B760M-A D4 combines performance, connectivity, cooling, and customization in a compact mATX platform.

Key Features

• Intel LGA1700 Socket—Supports Intel 14th, 13th, and 12th Gen Core processors, plus compatible Pentium Gold and Celeron processors.
• Intel B760 Chipset—Modern platform designed for high-performance Intel desktop systems.
• DDR4 Memory Support—4 DIMM slots supporting up to 128GB DDR4.
• High-Speed DDR4—Supports memory speeds up to 5333 MT/s (OC) with Intel XMP.
• ASUS OptiMem II—Optimized memory trace routing for improved signal integrity and overclocking potential.
• PCIe 4.0 x16—High-bandwidth slot for modern graphics cards.
• Additional PCIe 4.0 Slots—Provides additional expansion flexibility for compatible cards.
• Dual M.2 PCIe 4.0 Slots—Supports high-speed NVMe SSDs in 2242, 2260, and 2280 formats.
• 4× SATA 6G6 Gb/s—Supports additional SATA storage devices and RAID configurations.
• Realtek 2.5 Gb Ethernet—High-speed wired networking for gaming, file transfers, and high-bandwidth applications.
• DisplayPort + Dual HDMI—Multiple display outputs supporting up to 4K at 60 Hz on compatible Intel processors.
• Rear USB 3.2 Gen 2—Fast connectivity for modern peripherals and external storage.
• Front USB Type-C — Convenient high-speed front-panel USB-C connectivity.
• Aura Sync RGB—Addressable Gen 2 and Aura RGB headers for customizable synchronized lighting.
• Comprehensive Cooling—VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+.
• ASUS 5X Protection III — Multiple hardware safeguards for improved reliability.
• Micro-ATX Form Factor—Compact 24.4 × 24.4 cm design.

Powerful Intel Platform

The Prime B760M-A D4 features the LGA1700 socket and supports Intel 14th, 13th, and 12th Gen Core processors. Intel Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0 are supported on compatible processors.

The B760 chipset provides a strong balance of performance and connectivity for gaming PCs, productivity systems, content creation machines, and general-purpose desktops.

DDR4 Performance with ASUS OptiMem II

Four DIMM slots support up to 128GB of DDR4 memory in a dual-channel configuration.

Supported speeds include:

DDR4 5333/5066/5000/4800/4600/4400/4266/4000/3733/3600/3466/3400/3333/3200/3000/2933/2800/2666/2400/2133 MHz

Higher frequencies marked OC require compatible processors, memory modules, and BIOS configuration.

ASUS OptiMem II improves memory signal integrity through careful trace and via routing, helping support higher memory frequencies and improved stability.

PCIe 4.0 Expansion

The motherboard provides:

• 1× PCIe 4.0 x16 slot for graphics cards
• 1× PCIe 4.0 x16 slot operating at x4 mode
• 1× PCIe 4.0 x16 slot operating at x1 mode

This gives users additional flexibility for expansion cards, storage controllers, networking cards, and other compatible PCIe devices.

Dual PCIe 4.0 M.2 Storage

Two onboard M.2 Key M slots support 2242, 2260, and 2280 NVMe SSDs with PCIe 4.0 x4 connectivity.

The motherboard also provides four SATA 6Gb/s ports for SATA SSDs and hard drives, with Intel Rapid Storage Technology supporting RAID 0/1/5/10.

2.5 Gb Ethernet

Integrated Realtek 2.5Gb Ethernet provides high-speed wired networking for modern broadband connections, gaming, network storage, large file transfers, and other bandwidth-intensive applications.

Display Connectivity

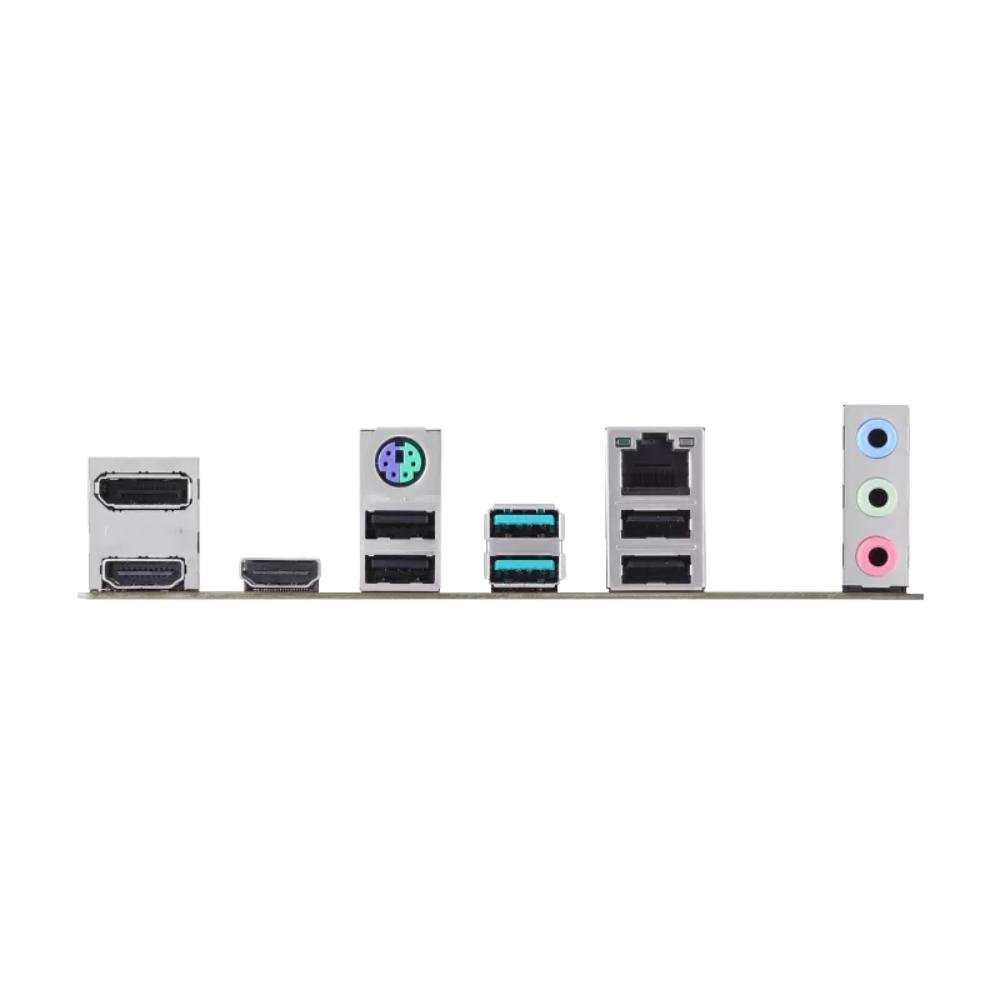

The rear I/O includes:

• 1× DisplayPort 1.4—up to 4K at 60 Hz
• 2× HDMI—up to 4K at 60 Hz

Display functionality depends on the integrated graphics capabilities of the installed Intel processor.

USB Connectivity

Rear I/O

• 2× USB 3.2 Gen 2 Type-A
• 4× USB 2.0 Type-A

Internal / Front Connectivity

• 2× USB 3.2 Gen 1 headers supporting 4 additional USB 3.2 Gen 1 ports
• 1× USB 3.2 Gen 1 front-panel Type-C connector
• 2× USB 2.0 headers supporting 4 additional USB 2.0 ports
• 1× USB 2.0 header supporting 1 additional USB 2.0 port

Comprehensive Cooling

The Prime B760M-A D4 features a dedicated cooling design, including:

• VRM heatsink
• M.2 heatsink
• PCH heatsink
• CPU fan header
• CPU OPT fan header
• 2× chassis fan headers
• Hybrid fan control
• Fan Xpert 2+

These features help users configure and manage system cooling according to workload and temperature.

Aura Sync RGB Lighting

The motherboard includes:

• 3× Addressable Gen 2 RGB headers
• 1× Aura RGB header

With ASUS Aura Sync, compatible RGB components can be synchronized to create a coordinated lighting setup.

ASUS 5X Protection III

ASUS incorporates multiple hardware protection technologies:

• DIGI+ VRM
• LANGuard
• Overvoltage Protection
• SafeSlot Core+
• Stainless-Steel Back I/O

Audio

The integrated Realtek 7.1-channel High Definition Audio codec supports up to 24-bit/192 kHz playback.

Audio enhancements include:

• Audio shielding
• Premium audio capacitors
• Dedicated audio PCB layers
• Jack detection
• Multi-streaming
• Front-panel jack retasking

Specifications

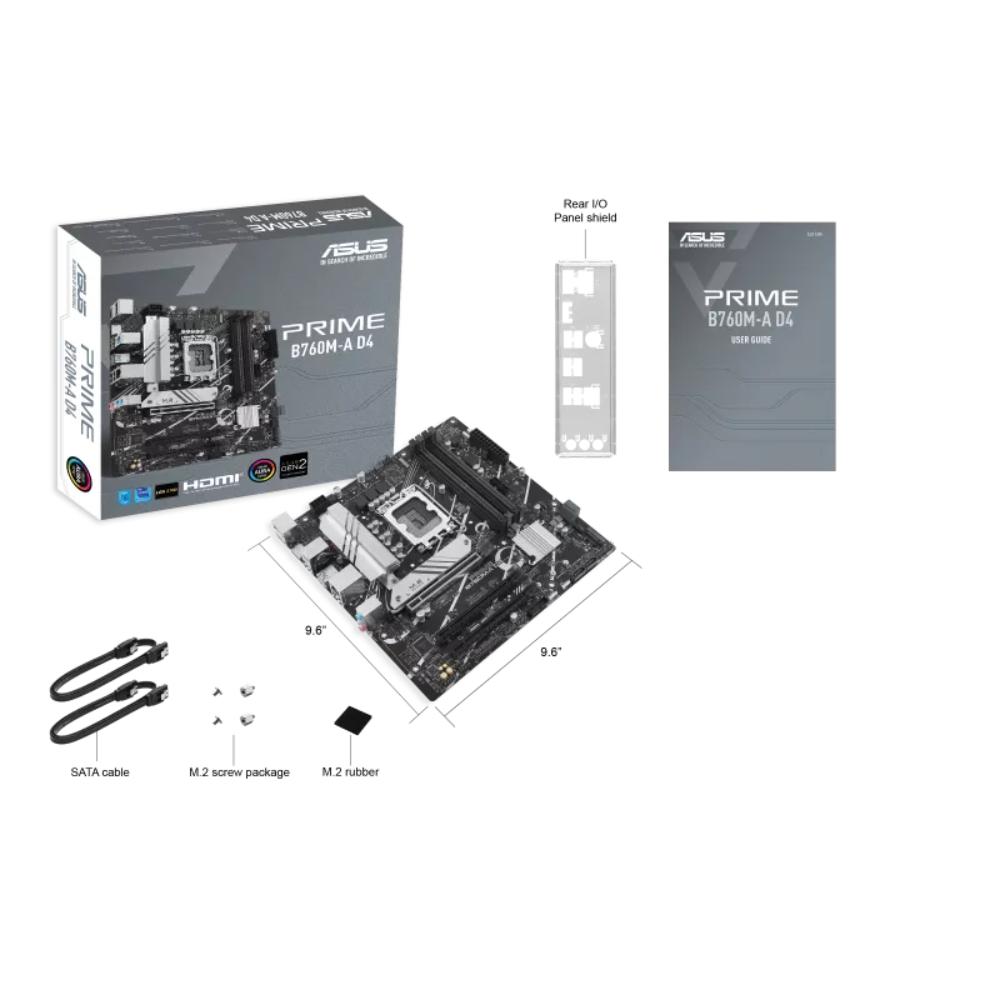

What's in the Box

• ASUS Prime B760M-A D4 motherboard
• 2× SATA 6Gb/s cables
• I/O Shield
• M.2 Rubber Package
• M.2 SSD Screw Package
• User Guide
