ASUS Prime B760M-A WIFI Motherboard | Intel B760 | LGA 1700 | mATX | DDR5 | Wi-Fi 6 | 2.5Gb Ethernet | PCIe 4.0 | 2× M.2 | HDMI | DisplayPort | USB Type-C | Aura Sync

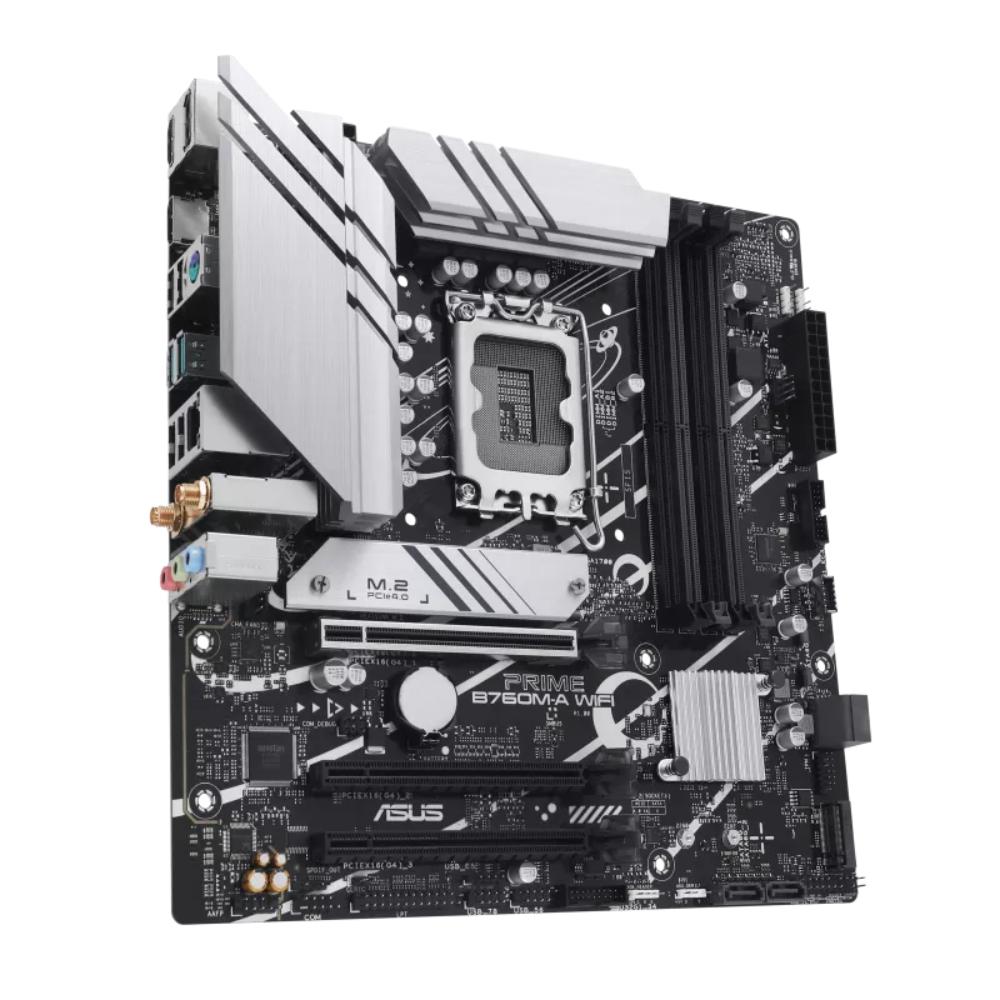

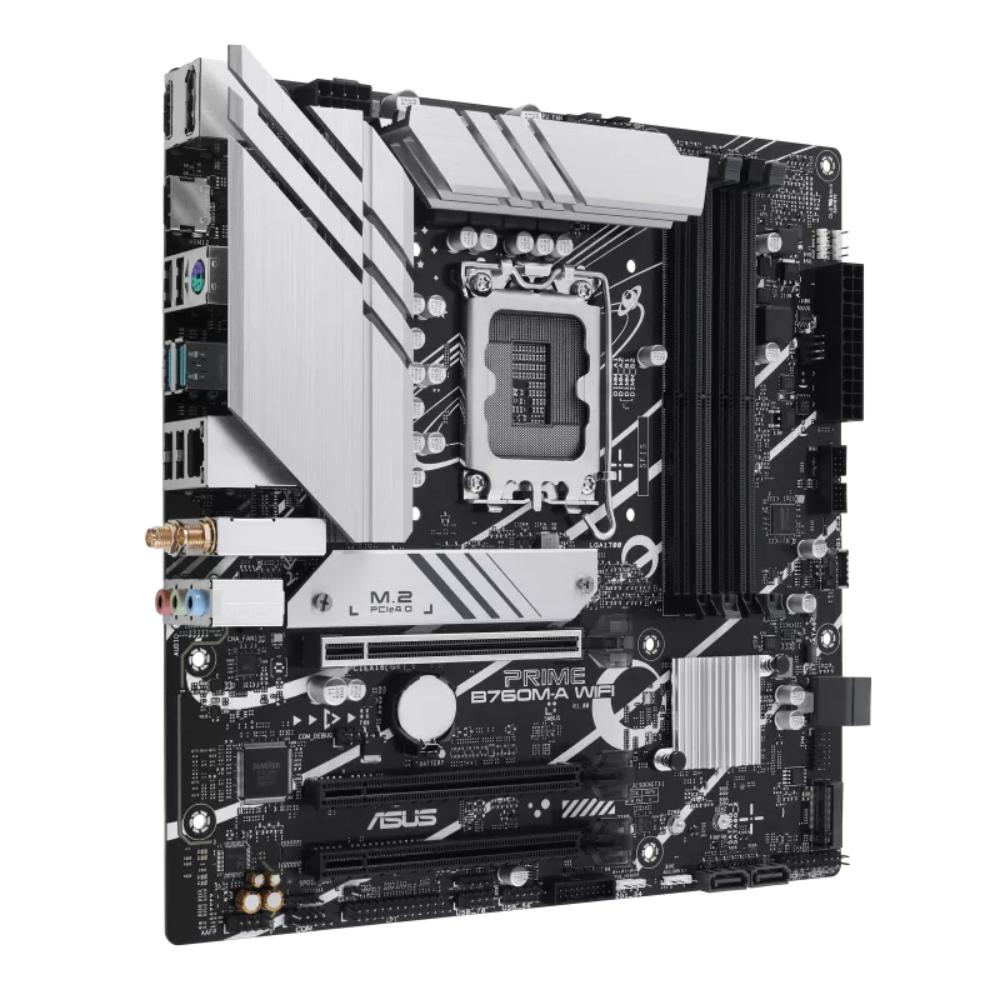

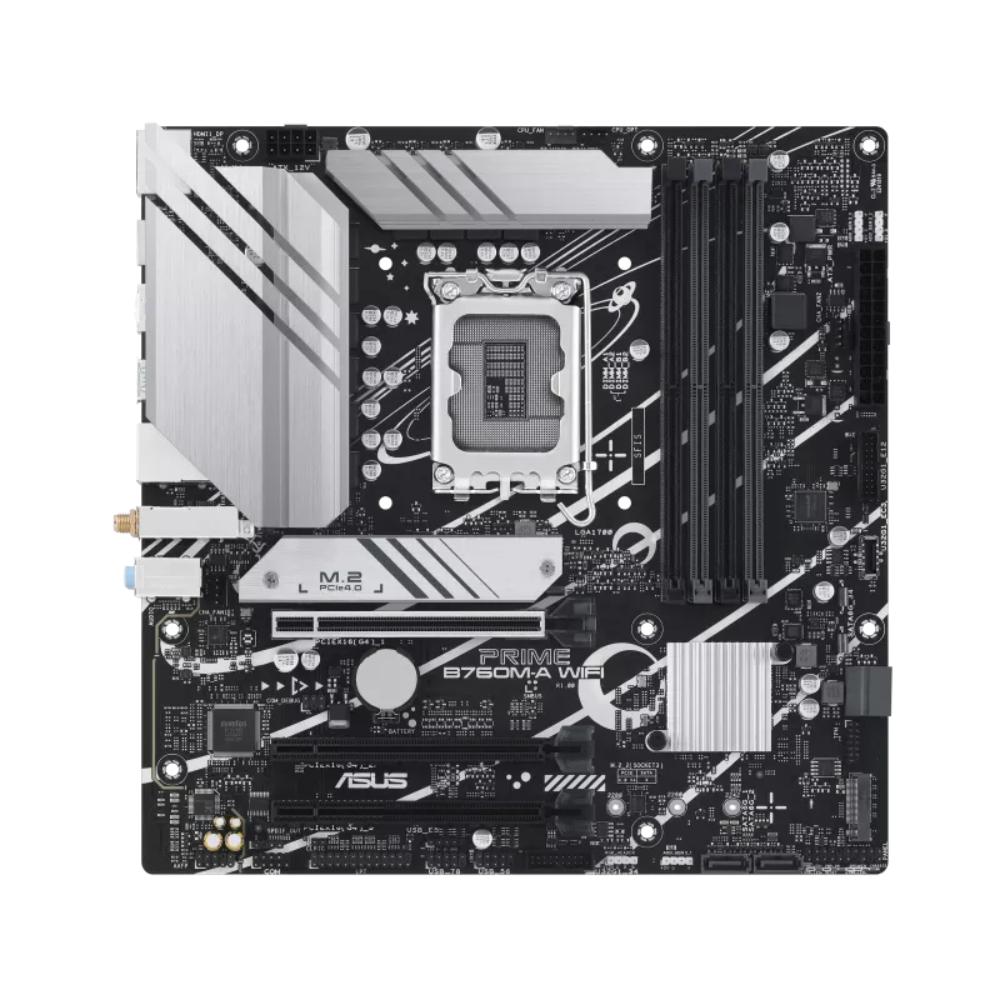

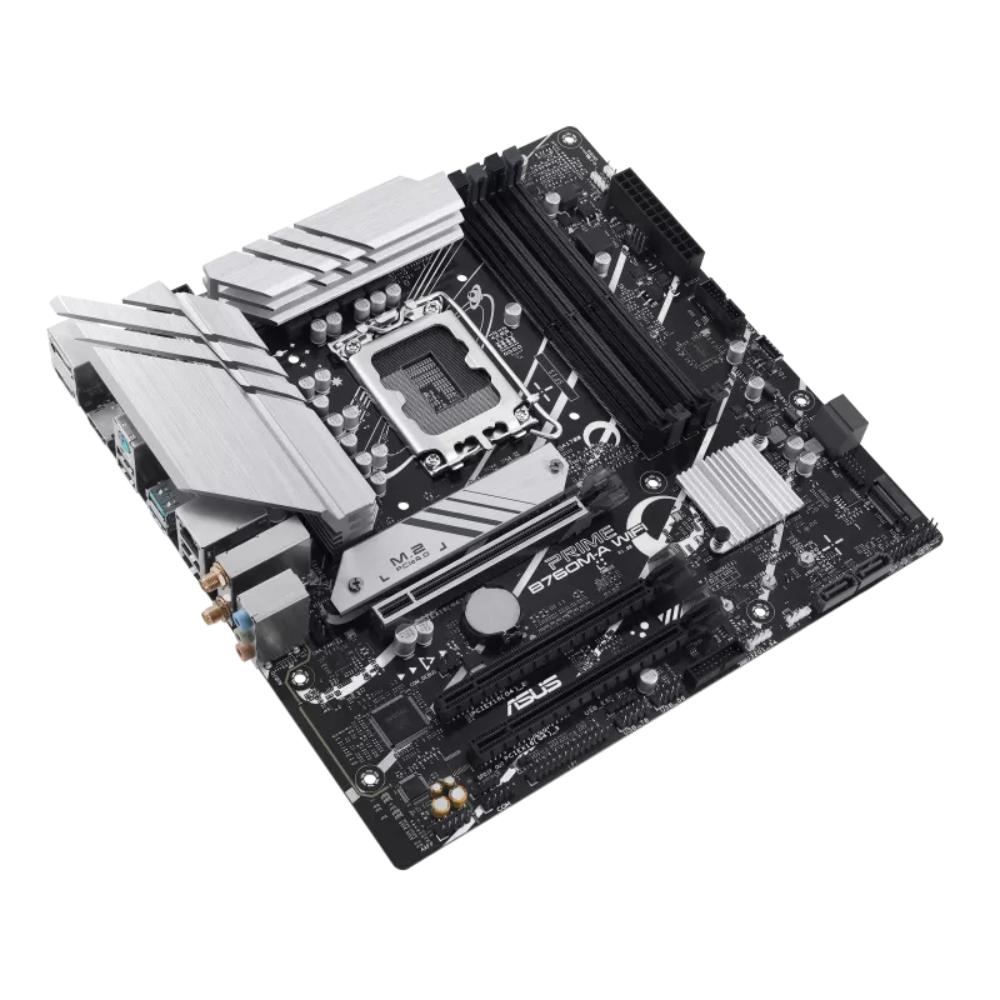

The ASUS Prime B760M-A WIFI is a versatile Intel B760 mATX motherboard designed for modern gaming PCs, productivity systems, content creation workstations, and high-performance desktop builds. Supporting 14th, 13th, and 12th Gen Intel Core processors, it combines the LGA 1700 platform with DDR5 memory, PCIe 4.0 expansion, dual M.2 storage, 2.5Gb Ethernet, integrated Wi-Fi 6, and Bluetooth 5.2.

With four DDR5 DIMM slots supporting up to 192GB, two PCIe 4.0 M.2 slots, a PCIe 4.0 x16 graphics slot, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, dual HDMI, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C, and ASUS Aura Sync RGB support, the Prime B760M-A WIFI provides a comprehensive foundation for a modern Intel PC.

Key Features

Intel LGA 1700 Socket

The motherboard supports Intel processors based on the LGA 1700 socket.

Compatible processors include:

• 14th Gen Intel Core processors
• 13th Gen Intel Core processors
• 12th Gen Intel Core processors
• Intel Pentium Gold processors
• Intel Celeron processors

The motherboard uses the Intel B760 chipset and supports Intel Turbo Boost technologies depending on the processor.

DDR5 Memory Support

The Prime B760M-A WIFI features 4 DDR5 DIMM slots with dual-channel memory architecture.

It supports up to 192GB of DDR5 memory and speeds up to DDR5-7200+ (OC), depending on CPU and memory configuration.

Memory features include:

• DDR5 7200+ (OC)
• Dual-channel architecture
• Intel XMP support
• ASUS OptiMem II
• ASUS Enhanced Memory Profile II
• Non-ECC unbuffered DDR5 memory

PCIe 4.0 Expansion

The motherboard provides multiple PCIe 4.0 expansion slots for graphics cards and other high-speed expansion devices.

Expansion configuration includes:

• 1× PCIe 4.0 x16 slot
• 1× PCIe 4.0 x16 slot supporting x4 mode
• 1× PCIe 4.0 x16 slot supporting x1 mode

Dual M.2 PCIe 4.0 Storage

Install up to two high-speed NVMe SSDs using the motherboard's integrated M.2 slots.

Both M.2 slots support:

• M.2 2242
• M.2 2260
• M.2 2280
• PCIe 4.0 x4 mode

The motherboard also includes 4× SATA 6Gb/s ports for additional storage.

Realtek 2.5 Gb Ethernet

The integrated Realtek 2.5Gb Ethernet controller provides high-speed wired networking for gaming, large file transfers, streaming, and other demanding network applications.

Wi-Fi 6 Wireless Connectivity

Built-in Wi-Fi 6 provides fast wireless networking without requiring an additional PCIe or USB Wi-Fi adapter.

The integrated wireless solution supports:

• Wi-Fi 6
• 802.11a/b/g/n/ac/ax
• 2×2 wireless configuration
• 2.4 GHz and 5 GHz bands
• Bluetooth 5.2

The motherboard includes ASUS Wi-Fi antennas in the box.

HDMI & DisplayPort

The motherboard provides multiple display outputs for compatible Intel processors with integrated graphics.

Video outputs include:

• 1× DisplayPort 1.4
• 2× HDMI 2.1

DisplayPort supports up to 4K at 60 Hz, while HDMI supports up to 4K at 60 Hz.

High-Speed USB Connectivity

The Prime B760M-A WIFI provides high-speed connectivity for modern peripherals and front-panel devices.

Rear connectivity includes:

• 2× USB 3.2 Gen 2 Type-A
• 4× USB 2.0 Type-A

Front-panel connectivity includes:

• 2× USB 3.2 Gen 1 headers
• 1× USB 3.2 Gen 1 Type-C connector
• Multiple USB 2.0 headers

Comprehensive Cooling

The motherboard incorporates dedicated thermal solutions for important motherboard components.

Cooling features include:

• VRM heatsink
• M.2 heatsink
• PCH heatsink
• Hybrid fan headers
• Fan Xpert 2+

These features provide flexible cooling control for different PC configurations.

ASUS OptiMem II

ASUS OptiMem II optimizes memory trace routing and signal integrity to help improve memory stability and performance.

Combined with DDR5 and XMP support, the platform is designed to take advantage of higher-speed memory configurations.

ASUS Aura Sync RGB

The motherboard includes Aura Sync RGB support for customizable PC lighting.

It provides:

• 3× Addressable Gen 2 headers
• 1× Aura RGB header

Compatible RGB components can be synchronized through ASUS Aura Sync.

Technical Specifications

Storage

The ASUS Prime B760M-A WIFI supports a combination of PCIe 4.0 NVMe SSDs and SATA storage.

M.2 Slots

• M.2_1: 2242 / 2260 / 2280, PCIe 4.0 x4
• M.2_2: 2242 / 2260 / 2280, PCIe 4.0 x4

SATA

• 4× SATA 6Gb/s ports
• Intel Rapid Storage Technology support for SATA RAID 0/1/5/10

Wireless & Networking

The integrated networking solution provides both wired and wireless connectivity.

Wired

• Realtek 2.5 Gb Ethernet

Wireless

• Wi-Fi 6
• 2×2 802.11a/b/g/n/ac/ax
• 2.4 GHz / 5 GHz
• Bluetooth 5.2

This makes the motherboard suitable for gaming PCs where both low-latency wired networking and flexible wireless connectivity are required.

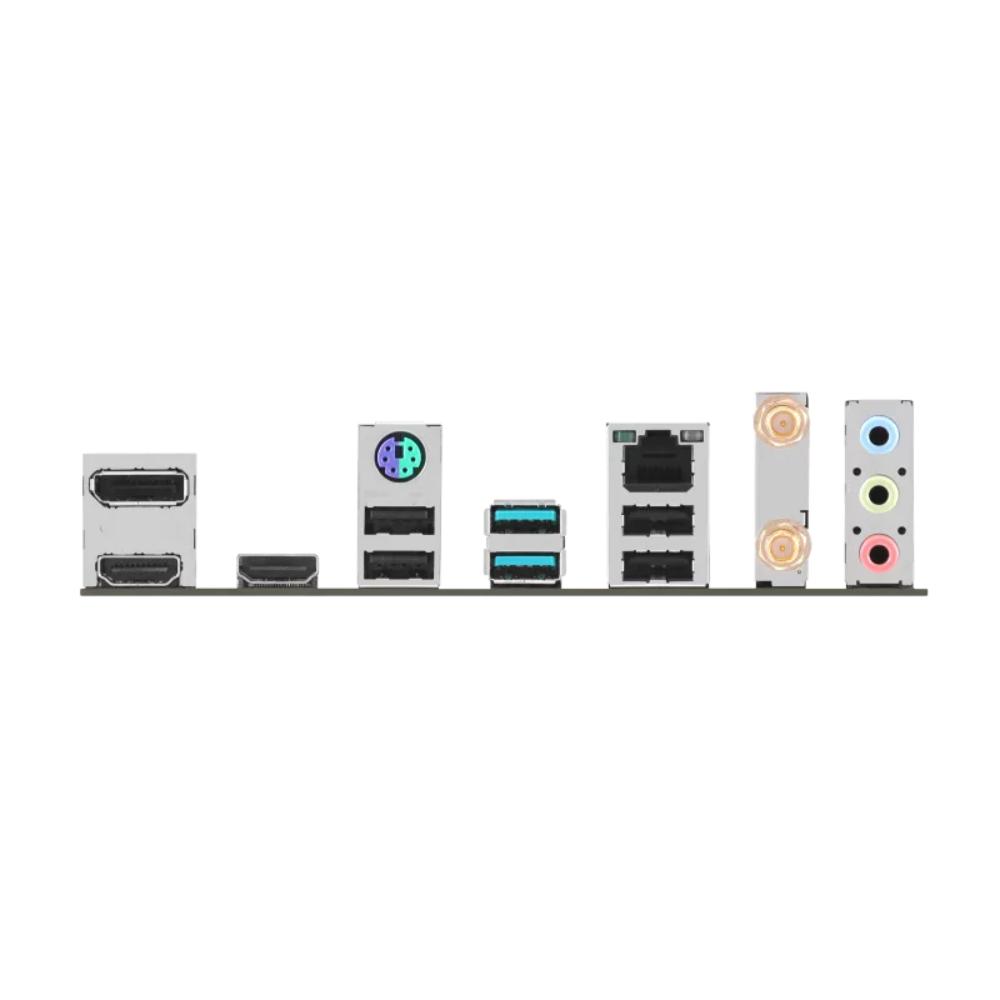

Rear I/O

The rear panel provides:

• 2× USB 3.2 Gen 2 Type-A
• 4× USB 2.0 Type-A
• 1× DisplayPort
• 2× HDMI
• 1× Wi-Fi module
• 1× Realtek 2.5 Gb Ethernet
• 3× audio jacks
• 1× PS/2 keyboard/mouse combo port

Internal I/O

The motherboard includes:

Fan Headers

• 1× 4-pin CPU fan header
• 1× 4-pin CPU OPT Fan header
• 2× 4-pin Chassis Fan headers

Storage

• 2× M.2 slots
• 4× SATA 6Gb/s ports

USB

• 2× USB 3.2 Gen 1 headers
• 1× USB 3.2 Gen 1 Type-C connector
• 2× USB 2.0 headers
• Additional USB 2.0 header

RGB

• 3× Addressable Gen 2 headers
• 1× Aura RGB header

Other Connectivity

• Clear CMOS header
• COM port header
• Front-panel audio header
• LPT header
• S/PDIF Out header
• SPI TPM header
• System panel header with chassis intrusion function

ASUS 5X Protection III

The Prime B760M-A WIFI includes ASUS protection technologies designed to improve system reliability.

Features include:

• DIGI+ VRM
• LANGuard
• Overvoltage Protection
• SafeSlot Core+
• Stainless-Steel Back I/O

ASUS Q-Design

The motherboard includes ASUS Q-Design features to simplify PC building and troubleshooting.

Features include:

• Q-DIMM
• Q-LED Core
• Q-Slot

ASUS Thermal Solution

Thermal management features include:

• M.2 heatsink
• VRM heatsink
• PCH heatsink
• Hybrid fan headers
• Fan Xpert 2+

Audio

The Prime B760M-A WIFI features a Realtek 7.1-channel High Definition Audio CODEC.

Audio features include:

• Jack detection
• Multi-streaming
• Front-panel jack retasking
• Up to 24-bit / 192 kHz playback
• Audio shielding
• Premium audio capacitors
• Dedicated audio PCB layers

Software Features

ASUS software support includes:

• Armoury Crate
• Aura Creator
• Aura Sync
• Fan Xpert 2+
• Power Saving
• AI Suite 3
• DIGI+ VRM
• PC Cleaner
• ASUS CPU-Z
• MyASUS
• Norton Deluxe 60-day free trial
• WinRAR

UEFI BIOS

The motherboard features a 128 MB Flash ROM UEFI AMI BIOS with:

• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode

Operating System Support

Compatible operating systems include:

• Windows 11
• Windows 10 64-bit

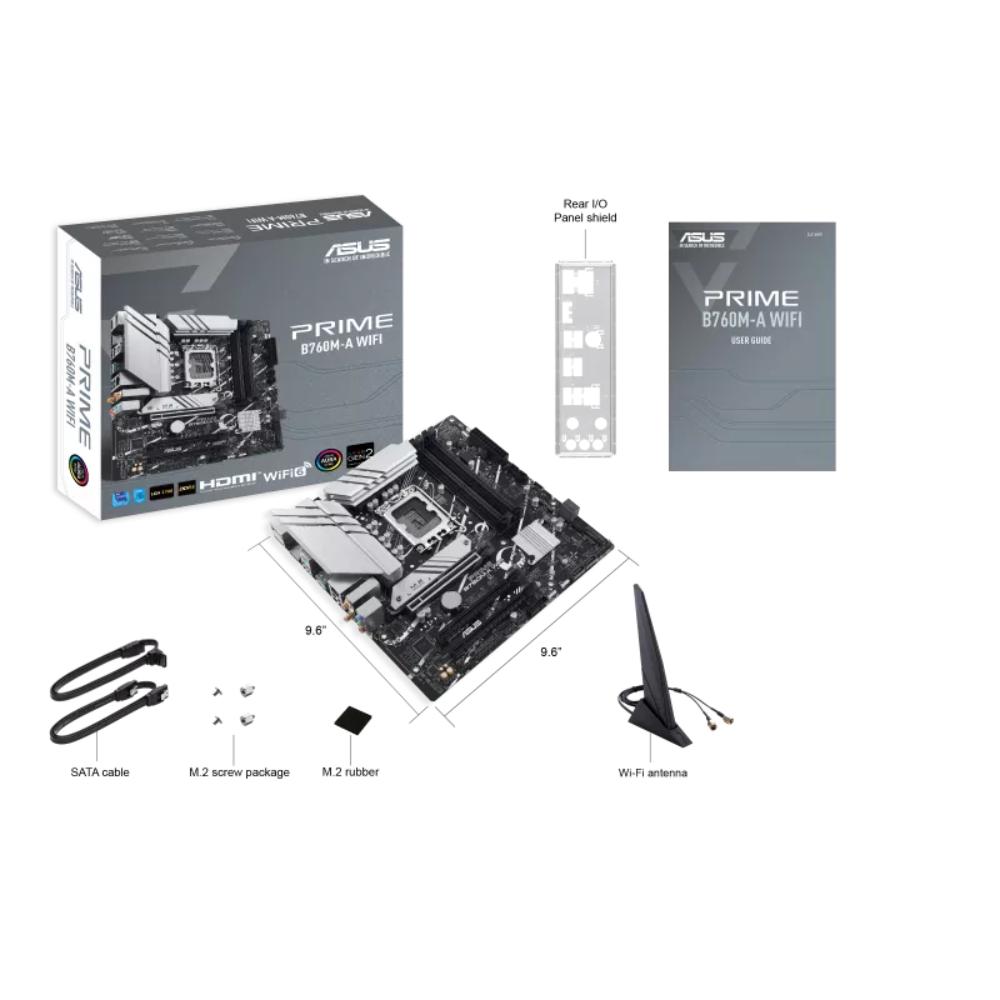

Accessories

The box includes:

• 2× SATA 6Gb/s cables
• ASUS Wi-Fi moving antennas
• I/O Shield
• M.2 Rubber Package
• M.2 Screw Package
• User Guide

Form Factor

The ASUS Prime B760M-A WIFI uses a compact micro-ATX (mATX) form factor.

Dimensions: 24.4 × 24.4 cm
Size: 9.6 × 9.6 inches

This makes it suitable for both compact systems and standard ATX-compatible PC cases.

Ideal Applications

Perfect for:

• Intel Gaming PCs
• Intel 14th Gen Gaming PCs
• Intel 13th Gen Gaming PCs
• Intel 12th Gen Gaming PCs
• DDR5 Gaming Builds
• Wi-Fi Gaming PCs
• Home & Office PCs
• Workstations
• Content Creation PCs
• Productivity Systems
• High-Performance Desktop PCs
• Compact Gaming PCs
• NVMe SSD Builds
• Multi-Storage Systems
• Wireless Desktop PCs

Why Choose the ASUS Prime B760M-A WIFI?

• Intel B760 chipset
• LGA 1700 socket
• Supports 14th, 13th, and 12th Gen Intel Core processors
• 4× DDR5 DIMM slots
• Supports up to 192GB RAM
• DDR5 speeds up to 7200+ MT/s (OC)
• ASUS OptiMem II
• ASUS Enhanced Memory Profile II
• PCIe 4.0 x16
• 2× PCIe 4.0 M.2 slots
• 4× SATA 6 Gb/s
• Realtek 2.5 Gb Ethernet
• Built-in Wi-Fi 6
• Bluetooth 5.2
• 1× DisplayPort
• 2× HDMI 2.1
• Rear USB 3.2 Gen 2
• Front USB 3.2 Gen 1 Type-C
• Realtek 7.1-channel audio
• VRM, M.2, and PCH heatsinks
• Fan Xpert 2+
• Aura Sync RGB
• 3× Addressable Gen 2 headers
• ASUS 5X Protection III
• SafeSlot Core+
• Compact mATX form factor
