ASUS Prime B760M-K DDR5 — Intel B760 LGA1700 mATX Motherboard

ASUS Prime B760M-K DDR5 — Intel B760 LGA1700 mATX Motherboard

Rs.29,100.00
Rs.29,100.00
Sale Sold out
Shipping calculated at checkout.
WARRANTY

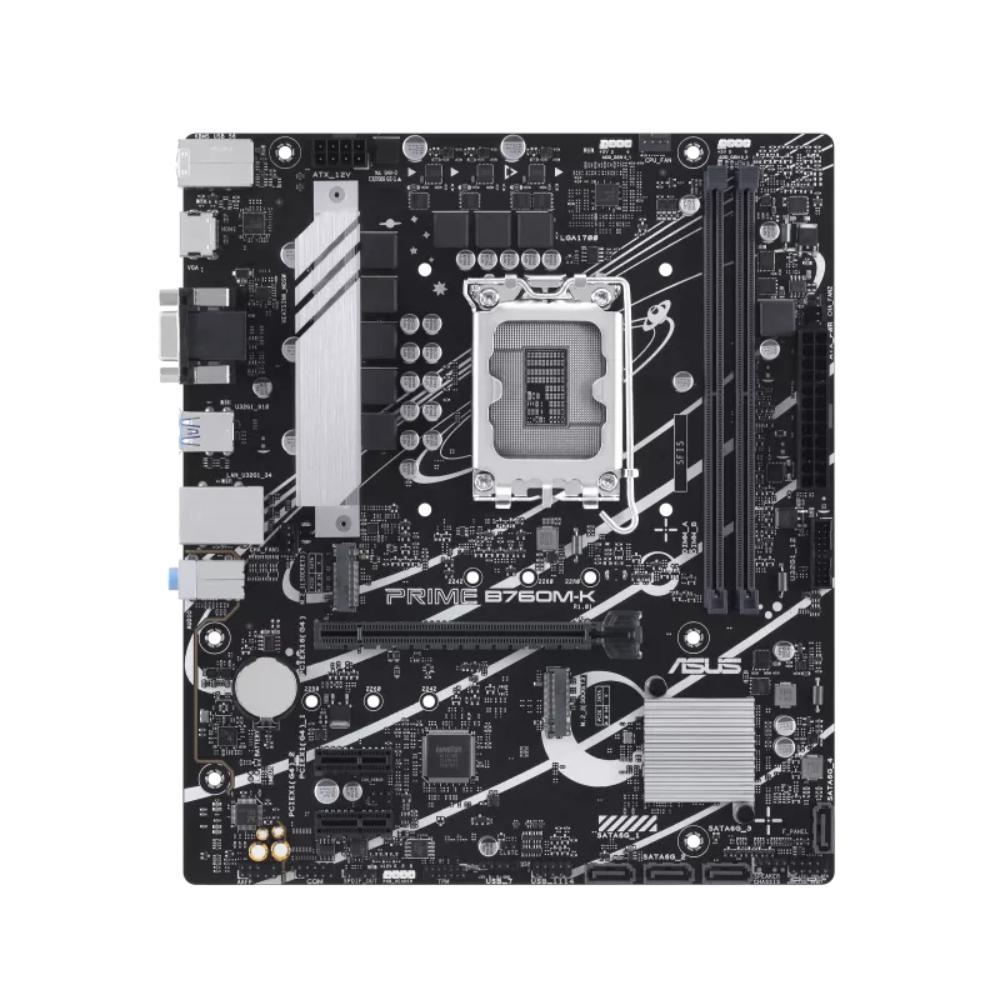

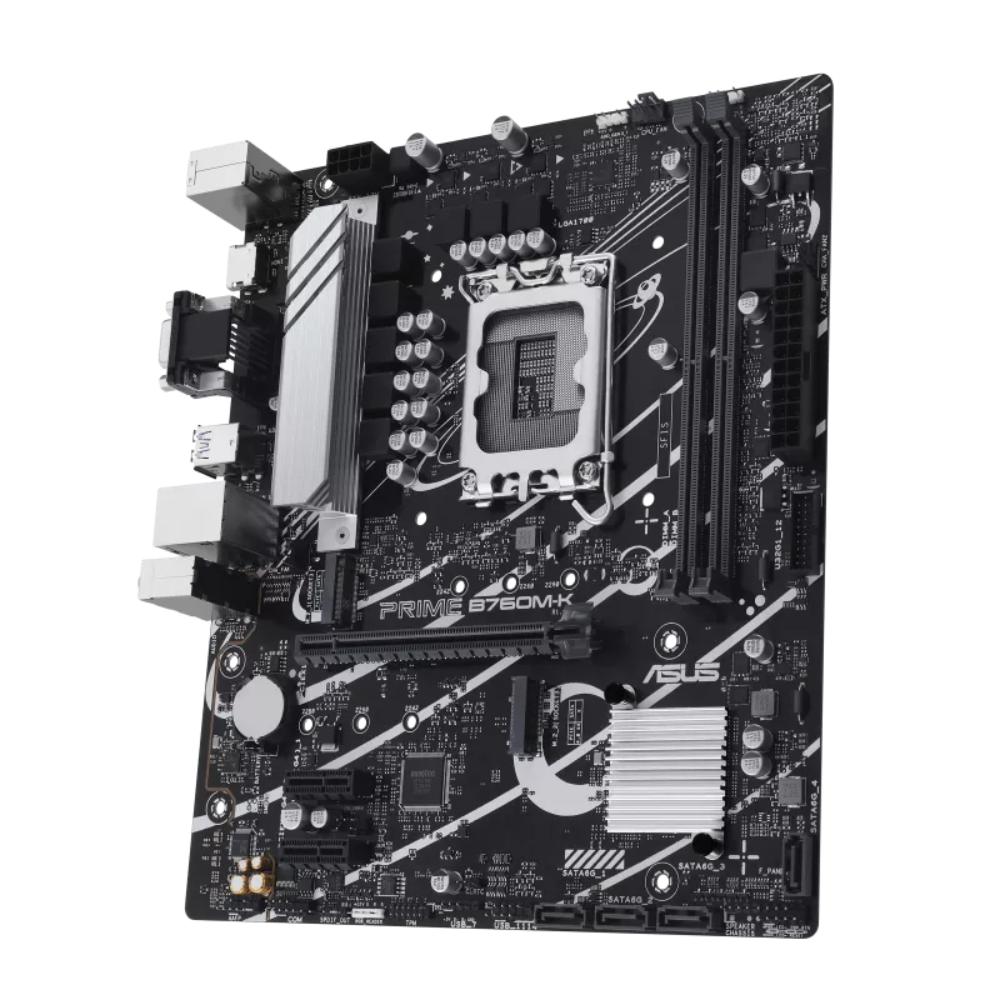

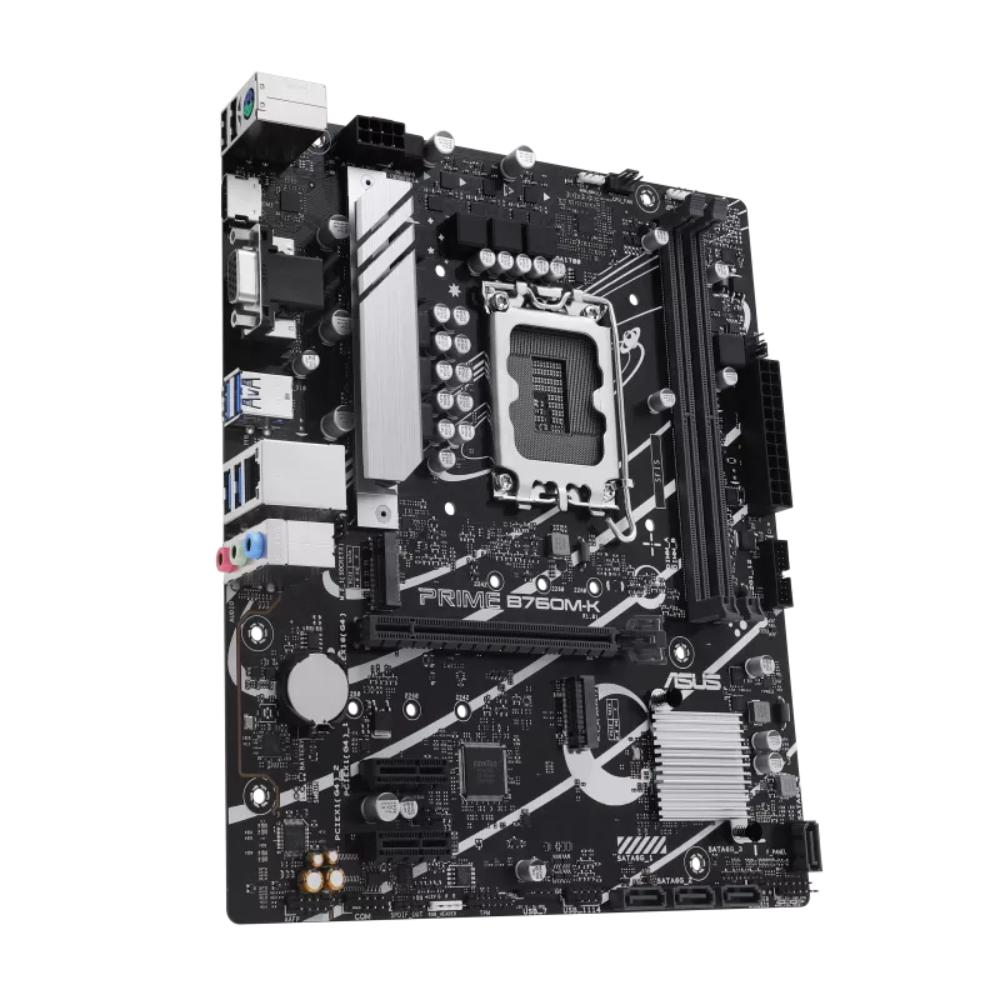

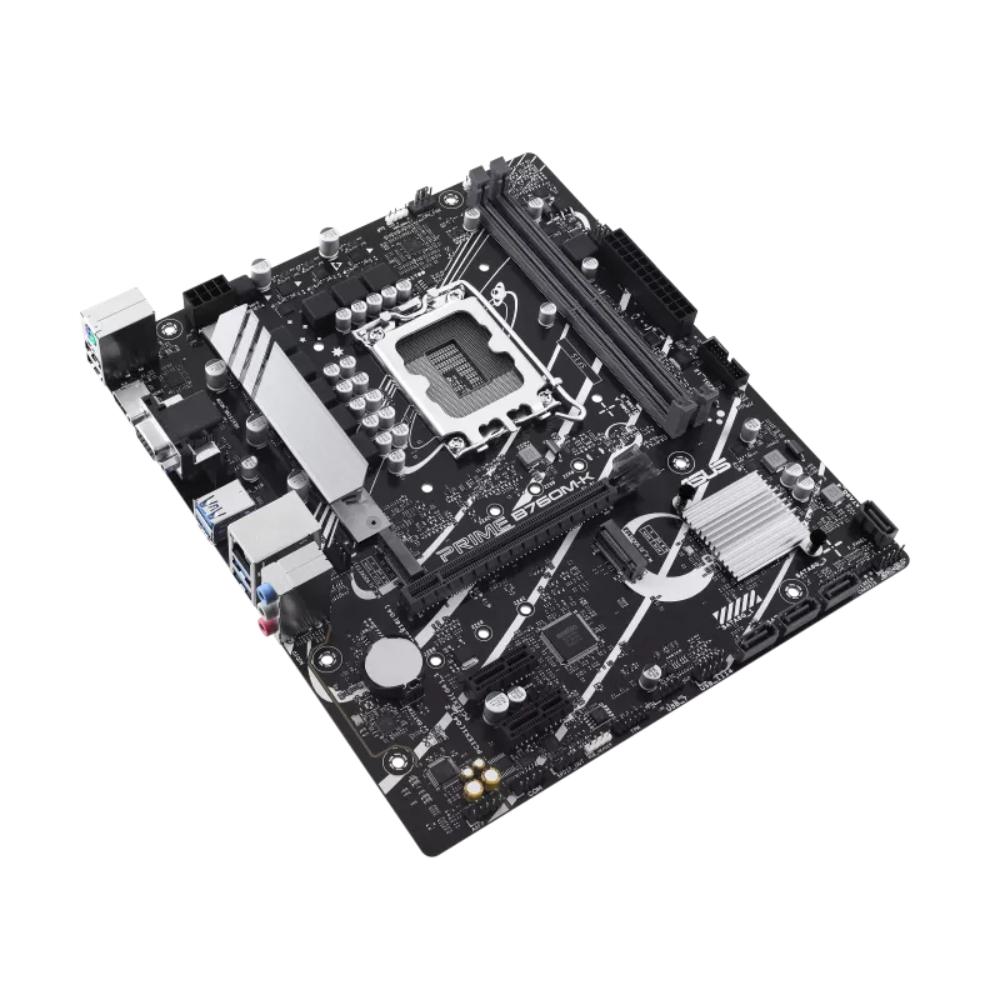

The ASUS Prime B760M-K is a compact and feature-rich Intel B760 micro-ATX motherboard designed for 14th, 13th, and 12th Gen Intel Core processors. With DDR5 memory support up to 96GB, two PCIe 4.0 M.2 slots, PCIe 4.0 expansion, Realtek 2.5Gb Ethernet, HDMI and VGA outputs, and Aura Sync RGB support, it provides a strong foundation for modern gaming, productivity, and high-performance PC builds.

Key Features

  • Intel LGA1700 Socket: Supports 14th, 13th, and 12th Gen Intel Core processors, plus Pentium Gold and Celeron processors
  • Intel B760 Chipset: Modern platform for Intel desktop processors
  • DDR5 Memory: 2 × DIMM slots supporting up to 96 GB DDR5
  • High-Speed DDR5 Support: Up to DDR5-8000 (OC) depending on CPU and memory configuration
  • Dual PCIe 4.0 M.2 Slots: Supports two high-speed NVMe SSDs at PCIe 4.0 x4
  • PCIe 4.0 Expansion: 1 × PCIe 4.0 x16 slot and 2 × PCIe 4.0 x1 slots
  • 2.5Gb Ethernet: Realtek 2.5Gb LAN for fast wired networking
  • Display Connectivity: HDMI 2.1 and VGA outputs, with HDMI supporting up to 4K at 60 Hz
  • USB 3.2 Gen 1: Multiple rear USB ports and front USB header support
  • Aura Sync RGB: Addressable Gen 2 and Aura RGB headers for synchronized lighting
  • Comprehensive Cooling: VRM heatsink, chassis fan headers, and Fan Xpert 2+
  • Two-Way AI Noise Cancellation: Helps reduce background noise for clearer communication
  • ASUS 5X Protection III: Enhanced protection through DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, and Stainless-Steel Back I/O
  • Micro-ATX Form Factor: Compact 24.4 × 21.1 cm design

Specifications

Specification Details
Model ASUS Prime B760M-K
CPU Socket Intel LGA1700
Chipset Intel B760
CPU Support Intel Core 14th / 13th / 12th Gen
Memory Type DDR5
Memory Slots 2 × DIMM
Maximum Memory 96GB
Memory Speed Up to DDR5-8000 (OC)
Memory Architecture Dual Channel
XMP Supported
Expansion Slots 1 × PCIe 4.0 x16, 2 × PCIe 4.0 x1
M.2 Slots 2 × PCIe 4.0 x4
SATA 4 × SATA 6 Gb/s
LAN Realtek 2.5 Gb Ethernet
Display Outputs 1 × HDMI, 1 × VGA
Rear USB 4 × USB 3.2 Gen 1, 2 × USB 2.0
Front USB 1 × USB 3.2 Gen 1 header, 2 × USB 2.0 headers
Audio Realtek 7.1 Surround Sound HD Audio
RGB 2 × Addressable Gen 2 + 1 × Aura RGB header
Form Factor micro-ATX
Dimensions 24.4 × 21.1 cm

Memory Support

The motherboard features two DDR5 DIMM slots with support for up to 96GB of non-ECC, unbuffered memory. It supports DDR5 speeds from 4800MHz up to 8000MHz (OC), depending on the processor, memory modules, and system configuration. Intel XMP is supported for compatible memory kits.

High-Speed Storage

The two PCIe 4.0 M.2 slots support 2242, 2260, and 2280 M.2 drives and provide high-speed NVMe storage performance. Four additional SATA 6Gb/s ports allow for conventional SSDs and hard drives.

Expansion & Graphics

For graphics cards and other expansion hardware, the Prime B760M-K includes:

  • 1 × PCIe 4.0 x16 slot for graphics cards
  • 2 × PCIe 4.0 x1 slots for additional expansion cards
  • 1 × HDMI 2.1 output
  • 1 × VGA output

The integrated display outputs require a compatible Intel processor with integrated graphics.

Networking & USB

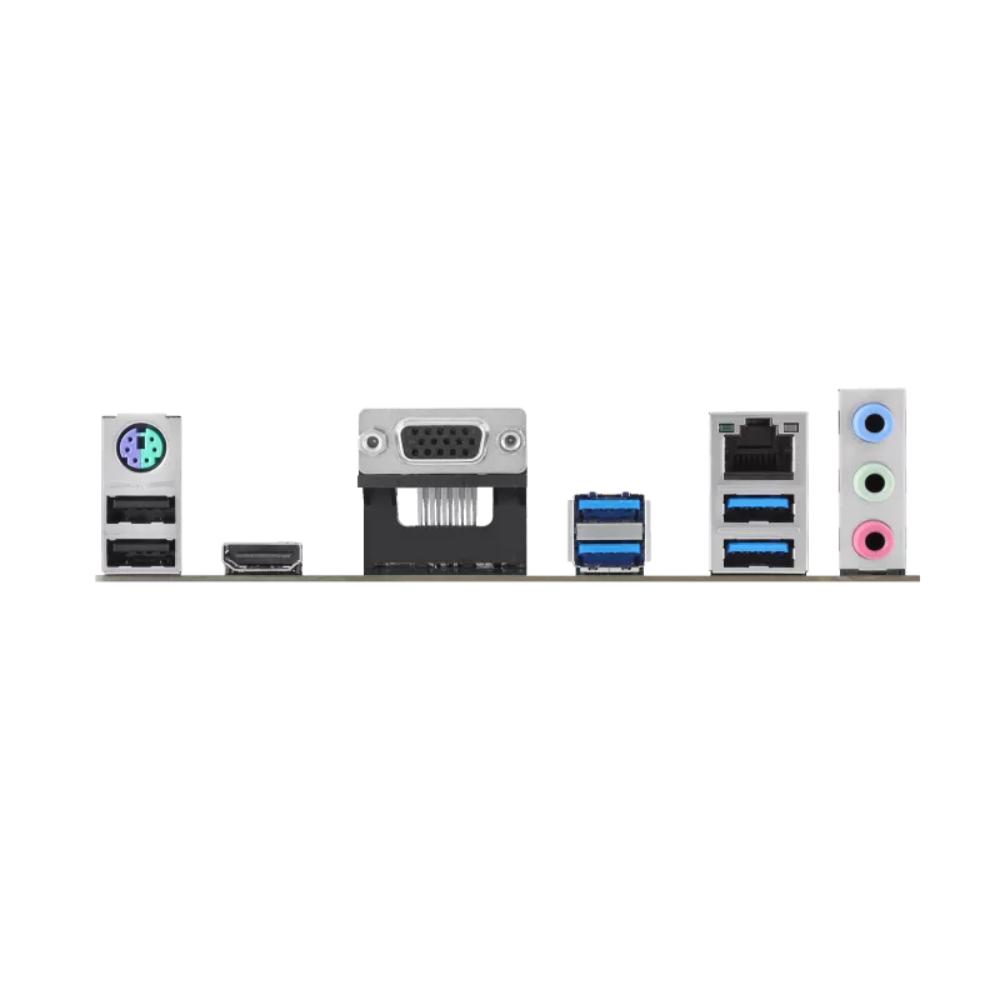

A Realtek 2.5Gb Ethernet controller provides fast wired networking for modern networks. The rear I/O includes four USB 3.2 Gen 1 Type-A ports and two USB 2.0 ports, while internal headers provide additional front-panel connectivity.

Cooling & RGB

The Prime B760M-K includes a VRM heatsink and multiple fan headers for efficient system cooling. Fan Xpert 2+ provides software-based fan control and monitoring.

For customized builds, Aura Sync provides:

  • 2 × Addressable Gen 2 headers
  • 1 × Aura RGB header
  • Aura Sync lighting control through compatible ASUS software and components

Audio

The motherboard features Realtek 7.1-channel High Definition Audio, supporting up to 24-bit/192 kHz playback, with audio shielding, premium audio capacitors, and dedicated audio PCB layers.

ASUS Protection & Features

ASUS 5X Protection III includes:

  • DIGI+ VRM
  • LANGuard
  • Overvoltage Protection
  • SafeSlot Core
  • Stainless-Steel Back I/O

Additional ASUS technologies include Q-DIMM, Q-LED Core, Q-Slot, ProCool, VRM heatsink design, Aura Sync, and Fan Xpert 2+.

Software & BIOS

Compatible ASUS software includes:

  • Armoury Crate
  • Aura Sync
  • Fan Xpert 2+
  • AI Suite 3
  • DIGI+ VRM
  • PC Cleaner
  • ASUS CPU-Z
  • Two-Way AI Noise Cancellation
  • Norton 360 Deluxe — 60-day free trial
  • WinRAR

The motherboard features a 128 MB Flash ROM UEFI AMI BIOS with ASUS EZ Flash 3, CrashFree BIOS 3, and UEFI BIOS EZ Mode.

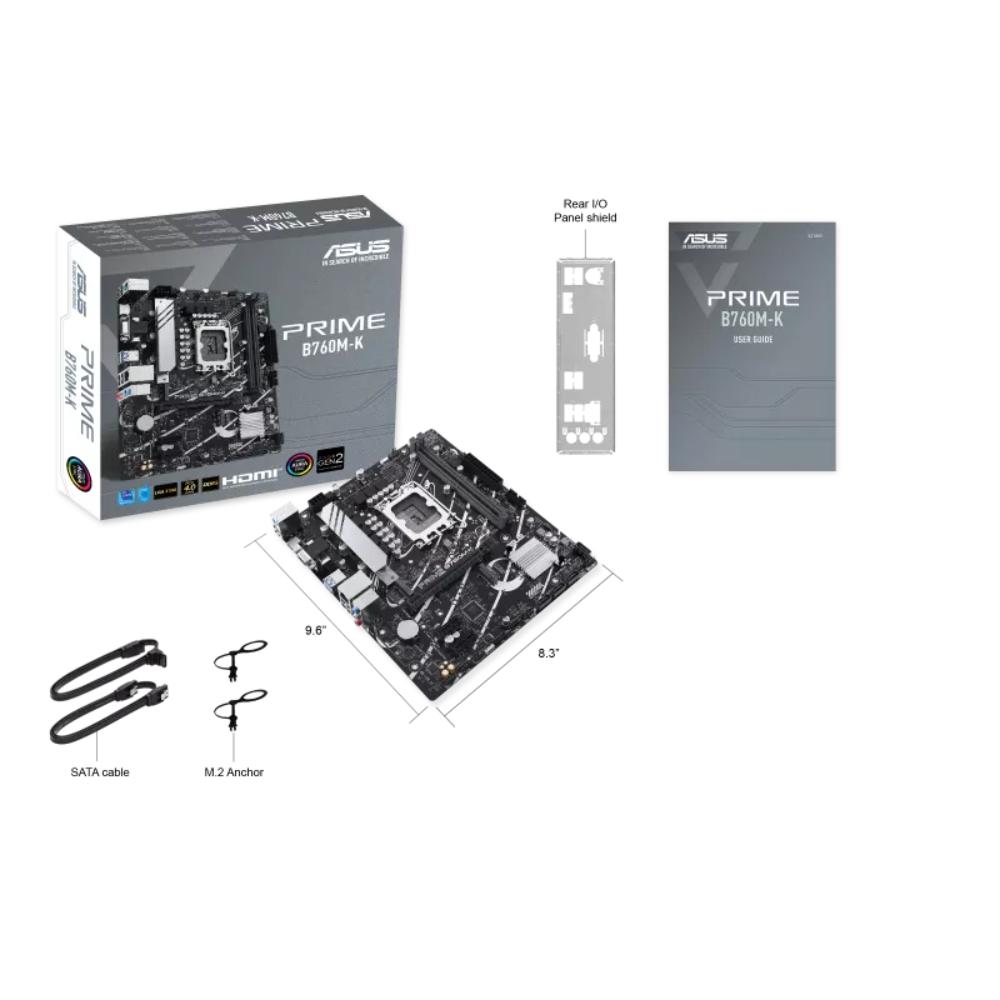

What's Included

  • 2 × SATA 6Gb/s cables

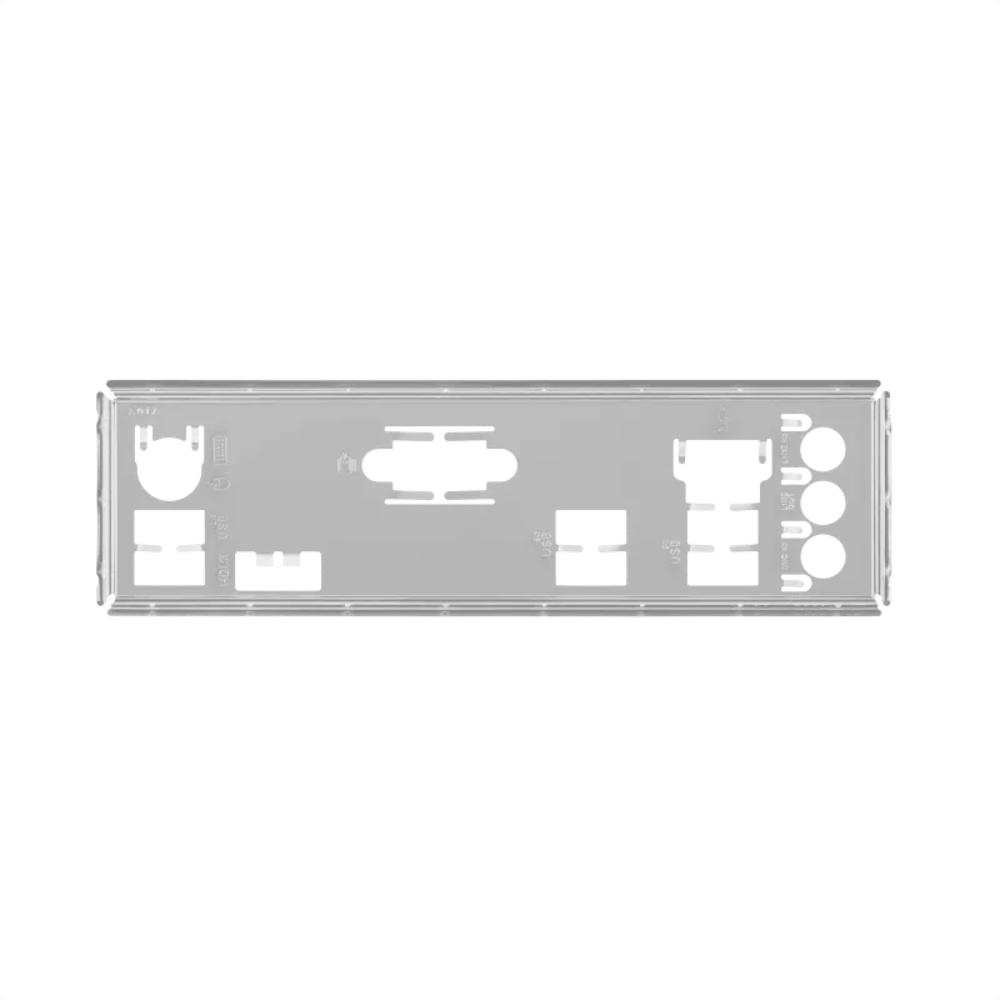

  • 1 × I/O Shield
  • 2 × M.2 Anchors
  • 1 × User Guide

Ideal For

  • Intel 14th / 13th / 12th Gen PC Builds
  • Gaming PCs
  • Office & Business Systems
  • Productivity PCs
  • Content Creation
  • High-Speed NVMe Storage Builds
  • Compact micro-ATX Systems
  • RGB Gaming Builds
