ASUS

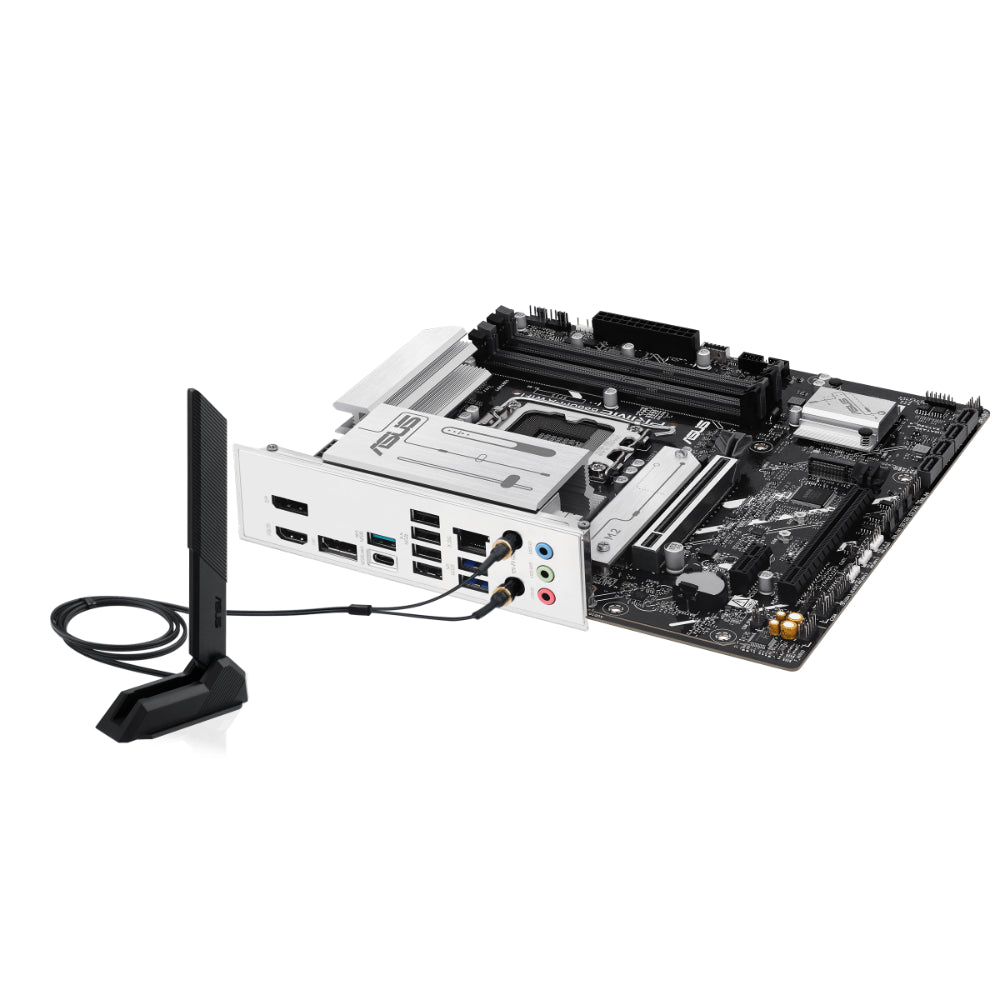

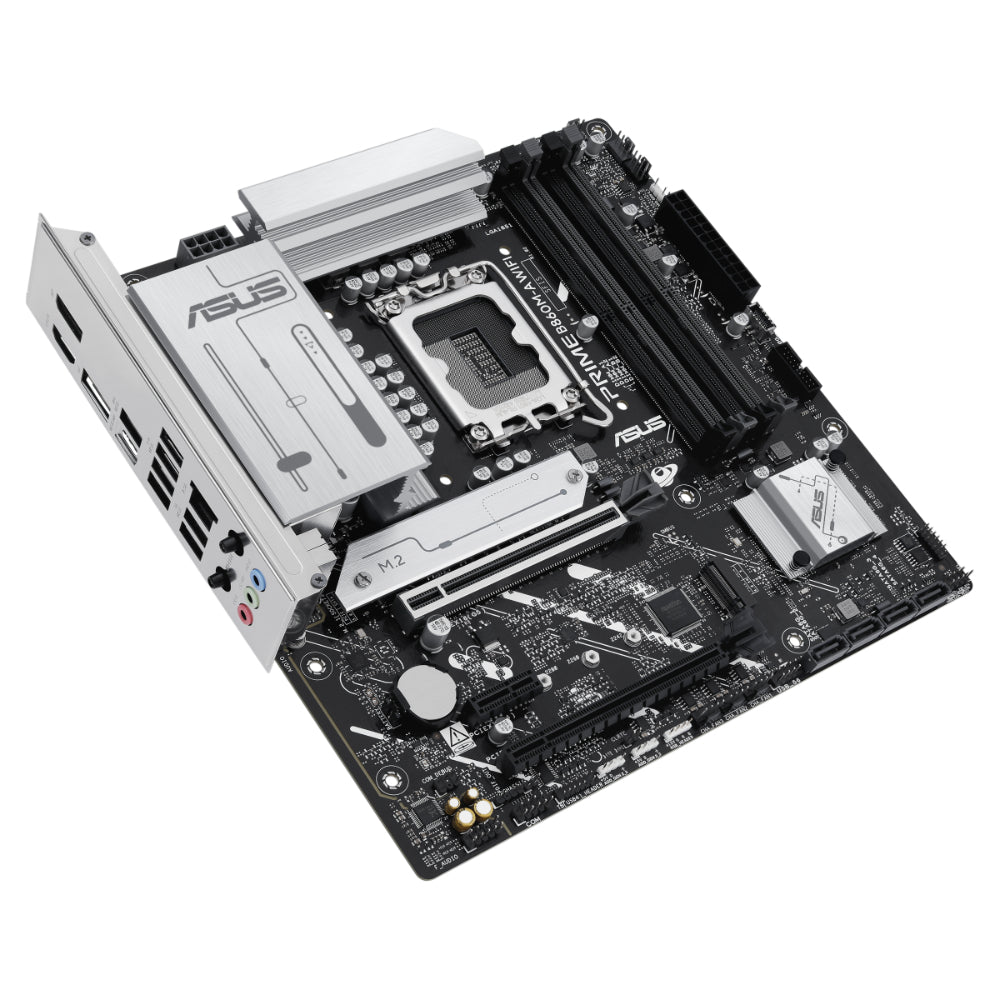

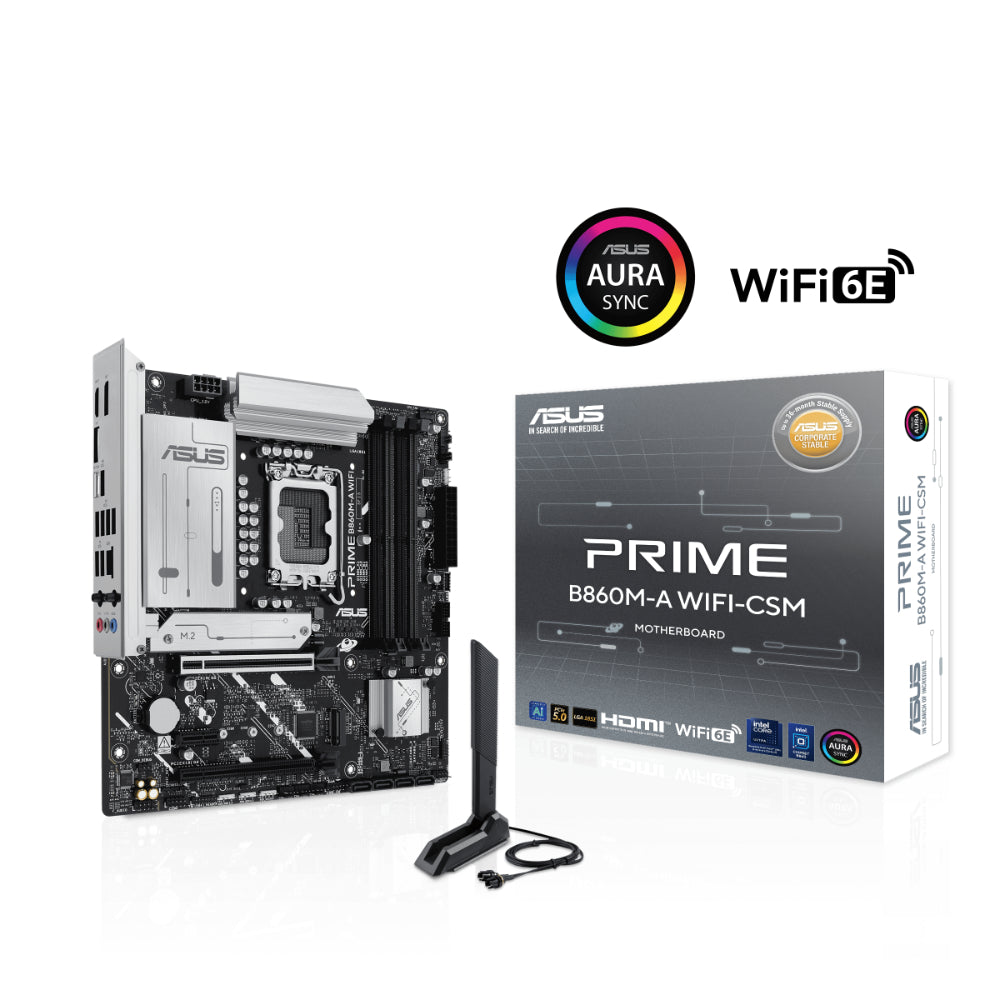

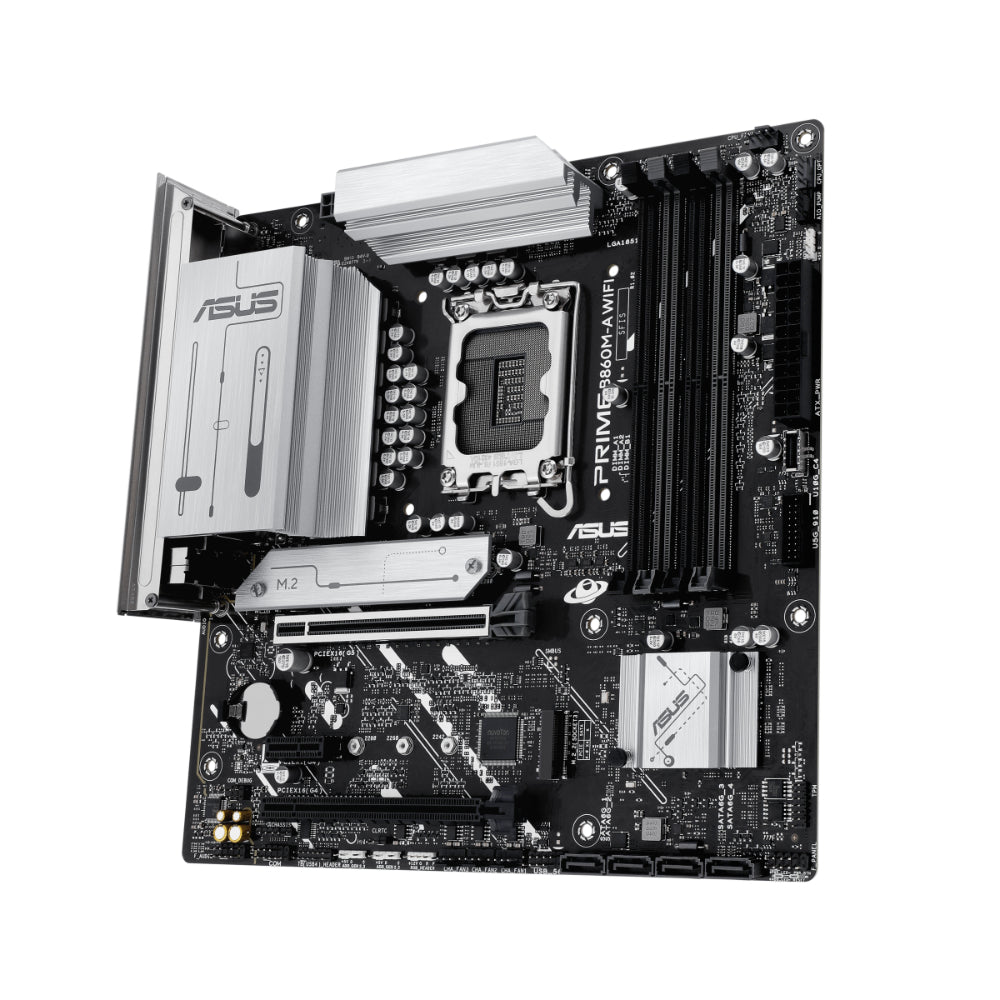

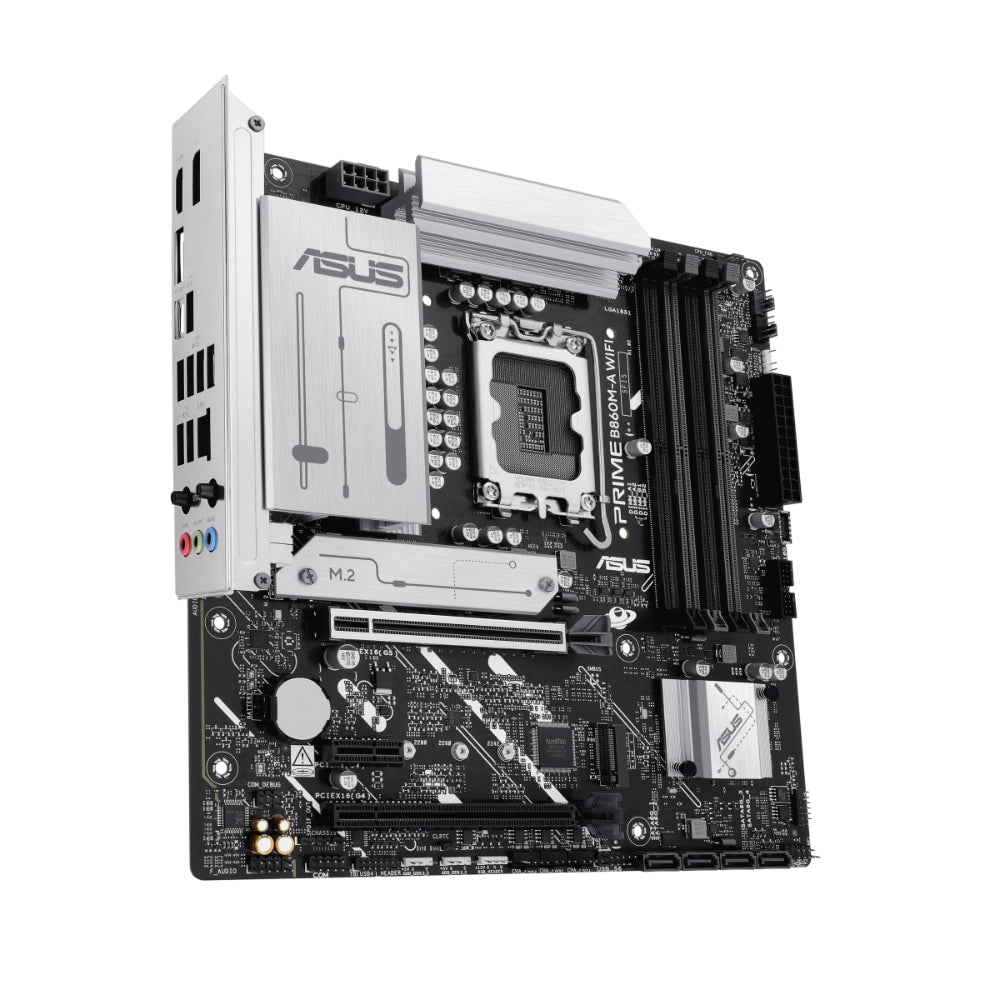

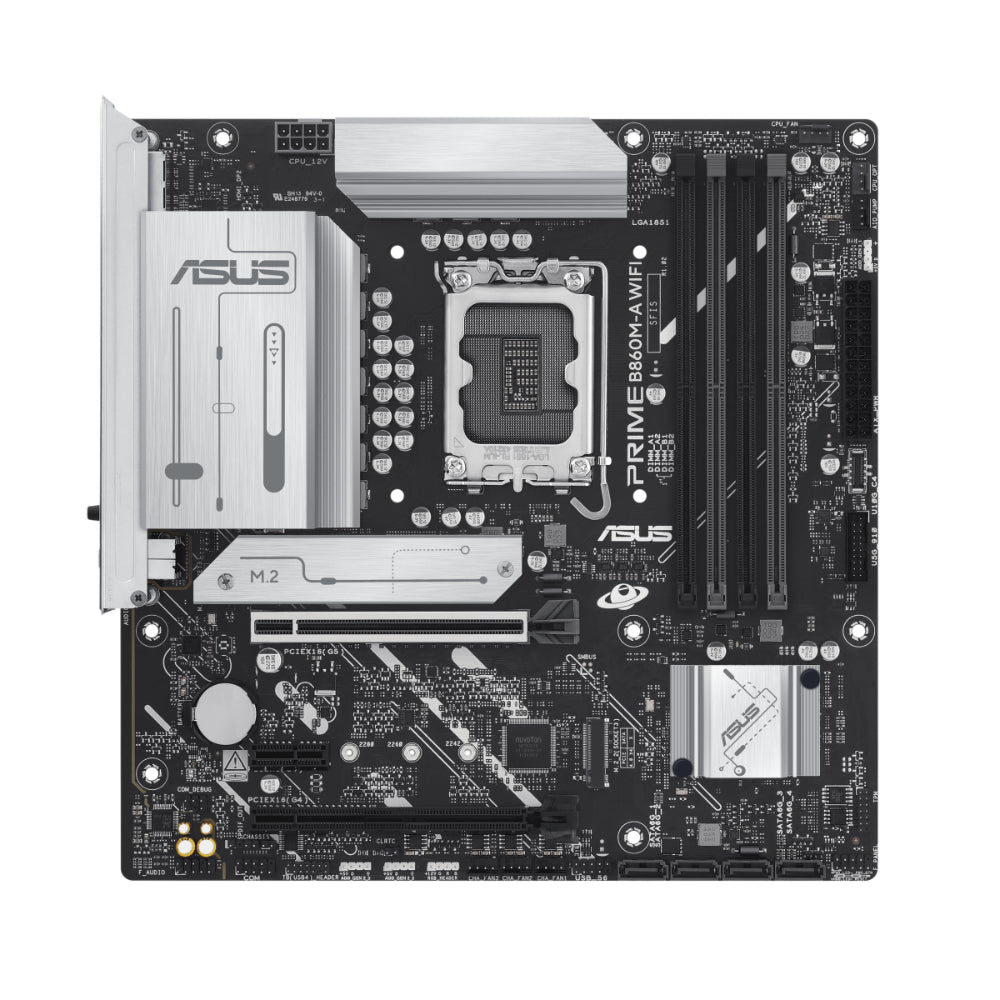

ASUS PRIME B860M-A WIFI-CSM | Micro-ATX Motherboard Ultimate DDR5 | Wi-Fi 6E PCIe 5.0 for AI | Gaming Creative Power
ASUS PRIME B860M-A WIFI-CSM | Micro-ATX Motherboard Ultimate DDR5 | Wi-Fi 6E PCIe 5.0 for AI | Gaming Creative Power
Couldn't load pickup availability
The ASUS PRIME B860M-A WIFI-CSM is a next-gen micro-ATX motherboard purpose-built for high-performance desktop builds, AI applications, and creative workflows. Featuring support for Intel® Core™ Ultra processors on the LGA1851 socket, blazing DDR5 memory speeds up to 8666+ MT/s (OC), PCIe 5.0 for ultra-fast GPUs and SSDs, Wi-Fi 6E, and Realtek 2.5Gb Ethernet, this motherboard offers cutting-edge connectivity and rock-solid reliability. With ASUS AEMP III memory tuning, Fan Xpert 2+ cooling control, and Aura Sync RGB, it provides power, speed, and aesthetics in a compact form.
Designed for Performance
Supporting Intel® Core™ Ultra processors and up to 256GB DDR5 memory, the B860M-A WIFI-CSM delivers serious multitasking and data throughput. ASUS AEMP III technology maximizes memory stability and speed—achieving performance beyond DDR5-7600+. With both a PCIe 5.0 x16 slot and a PCIe 4.0 x16 slot, plus DIMM Fit Pro for advanced memory tuning, this board is ready for high-demand tasks in AI development, gaming, and production.
Next-Gen Storage & Connectivity
Equipped with two ultra-fast M.2 slots—one PCIe 5.0 and one PCIe 4.0—you can achieve storage speeds up to 128Gbps for lightning-fast load times. Wi-Fi 6E ensures low-latency, triple-band wireless networking, while Realtek 2.5Gb Ethernet provides seamless wired performance. USB 20Gbps (Type-C®), 10Gbps, and 5Gbps ports let you connect modern devices with maximum data transfer efficiency.
Smart Cooling & Thermal Management
Designed with integrated VRM and M.2 heatsinks, the board efficiently dissipates heat for long-lasting performance. ASUS Fan Xpert 2+ and 5 hybrid fan headers allow for full fan customization with auto-tuning, extreme quiet mode, and UEFI BIOS integration—perfect for workloads that require thermal consistency without noise.
Customizable RGB & ASUS Exclusive Features
Customize your build with three Addressable Gen 2 RGB headers and one Aura RGB header compatible with Aura Sync, enabling synchronized lighting effects across your setup. Packed with exclusive software like Armoury Crate, Aura Creator, Fan Xpert, and CPU-Z, this motherboard is engineered for advanced builders who want control over every aspect of their PC.
Product Specifications
| Specification | Details |
|---|---|
| Form Factor | micro-ATX (24.4cm x 24.4cm) |
| Socket | Intel® LGA 1851 |
| Chipset | Intel® B860 |
| Memory Support | DDR5 up to 8666+ MT/s OC (4 x DIMM, up to 256GB) |
| Expansion Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4), 1 x PCIe 4.0 x1 |
| Storage | 1 x PCIe 5.0 x4 M.2, 1 x PCIe 4.0 x4 M.2, 4 x SATA 6Gbps |
| Networking | Realtek 2.5Gb Ethernet, Wi-Fi 6E (2x2), Bluetooth® v5.3 |
| USB Ports | Rear: 1 x USB 20Gbps (Type-C®), 1 x USB 10Gbps, 2 x USB 5Gbps, 4 x USB 2.0 Front: USB 10Gbps Type-C®, USB 5Gbps header, USB 2.0 header |
| Display Outputs | 2 x DisplayPort 1.4, 1 x HDMI 2.1 |
| Audio | Realtek 7.1 HD Audio CODEC, Premium Capacitors |
| Cooling | VRM Heatsink, M.2 Heatsink, AIO Pump Header, Fan Xpert 2+ |
| RGB | 3 x Addressable Gen2, 1 x Aura RGB Header |
| Software | Armoury Crate, Aura Creator, ASUS DriverHub, MyHotkey |
| OS Compatibility | Windows 11 (22H2+), Windows 10 64-bit (21H2+) |
Applications
Perfect for gamers, AI developers, and content creators who need a high-speed, future-proof motherboard with DDR5 memory, PCIe 5.0 storage and GPU support, and ultra-fast Wi-Fi 6E. Its micro-ATX form factor makes it ideal for compact yet powerful desktop builds.
Why Choose ASUS PRIME B860M-A WIFI-CSM?
Built for Intel® Core™ Ultra processors with LGA 1851 socket
DDR5 support up to 8666+ MT/s with AEMP III & DIMM Fit Pro
Dual M.2 slots with PCIe 5.0 x4 and PCIe 4.0 x4 support
Onboard Wi-Fi 6E and 2.5Gb Ethernet for blazing-fast networking
USB 20Gbps Type-C®, HDMI 2.1 & Dual DisplayPort outputs
Advanced cooling with VRM/M.2 heatsinks and Fan Xpert 2+
Fully customizable RGB with Aura Sync compatibility
Durable 5X Protection III with pre-mounted I/O shield
Buy from Mustafa Computers – Authorized ASUS Reseller in Pakistan
Purchase the ASUS PRIME B860M-A WIFI-CSM from Mustafa Computers and build with confidence.
100% Genuine Products
Official ASUS Warranty
Expert Support & Fast Nationwide Delivery
