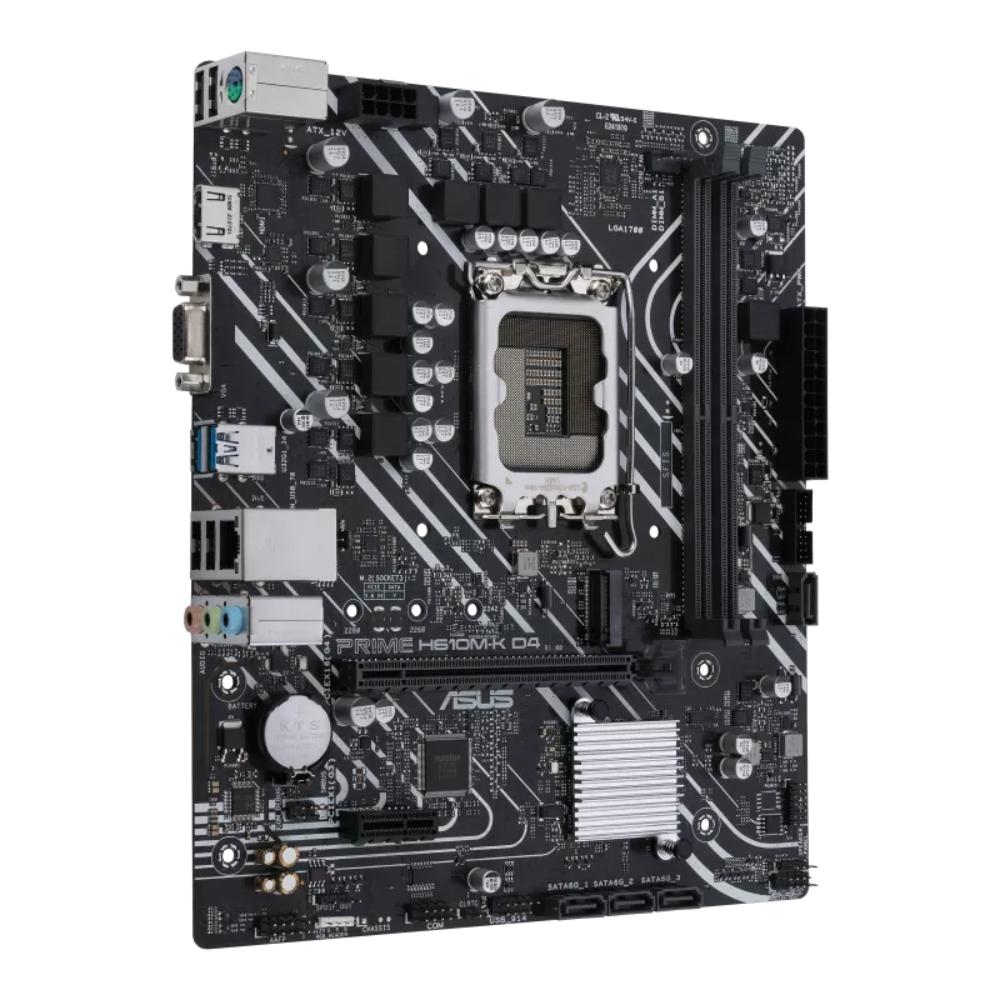

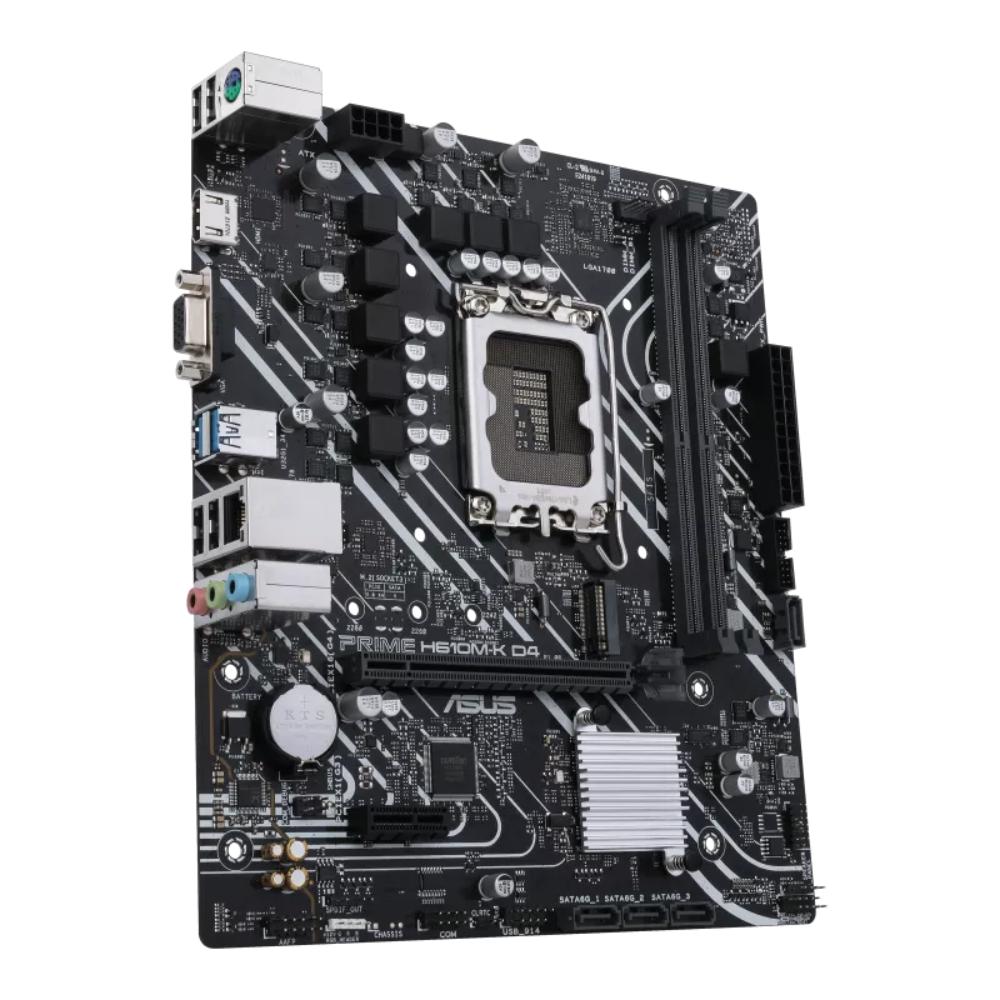

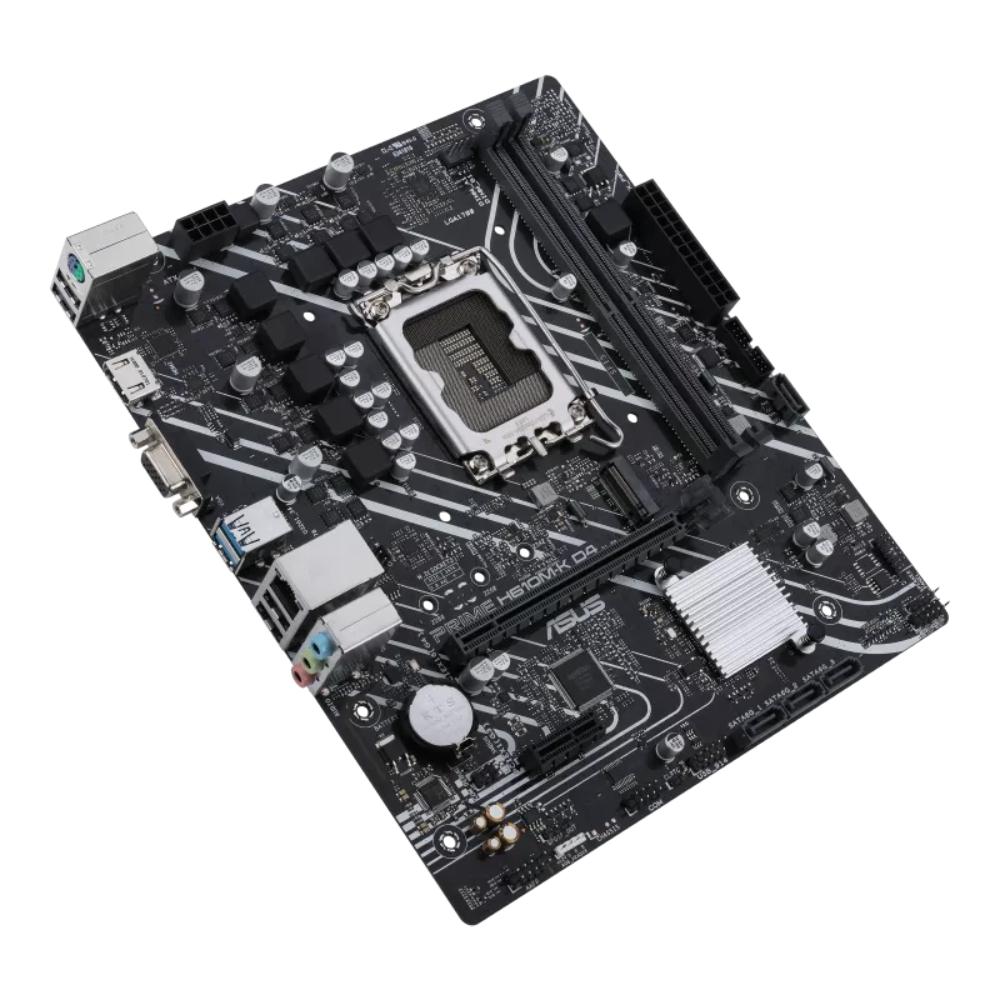

ASUS PRIME H610M-K D4 Intel H610 Micro ATX Motherboard | LGA 1700 | 14th/13th/12th Gen Intel Core | DDR4 3200MHz | PCIe 4.0 | M.2 PCIe 3.0 x4 | 4× SATA 6Gb/s | HDMI 4K@60Hz | 1Gb Ethernet

The ASUS PRIME H610M-K D4 Motherboard is a compact Micro ATX motherboard designed for Intel 14th, 13th, and 12th Gen processors using the LGA 1700 socket. Powered by the Intel H610 chipset, it supports up to 64GB DDR4 memory, PCIe 4.0 graphics connectivity, an M.2 slot for high-speed storage, and multiple USB and SATA ports.

With DDR4 3200MHz support, a PCIe 4.0 x16 slot, 32Gbps M.2 interface, 4 × SATA 6Gb/s ports, Realtek 1Gb Ethernet, HDMI 4K@60Hz output, and USB 3.2 Gen 1 connectivity, the PRIME H610M-K D4 is an excellent foundation for budget-friendly office, home, productivity, and entry-level gaming PCs. ASUS 5X Protection III, Fan Xpert, and an aluminum heatsink provide additional reliability and cooling support.

Key Features

Intel LGA 1700 Socket

The motherboard supports Intel processors using the LGA 1700 socket, including:

• Intel 14th Gen Core processors
• Intel 13th Gen Core processors
• Intel 12th Gen Core processors
• Intel Pentium Gold processors
• Intel Celeron processors
• Intel Turbo Boost Technology 2.0
• Intel Turbo Boost Max Technology 3.0 depending on CPU

Intel H610 Chipset

Powered by the Intel H610 chipset, the PRIME H610M-K D4 provides a reliable platform for modern Intel desktop processors with support for DDR4 memory, PCIe expansion, M.2 storage, SATA drives, USB connectivity, and integrated graphics outputs.

DDR4 Dual-Channel Memory

The PRIME H610M-K D4 features 2 × DIMM slots supporting up to 64GB DDR4 memory.

Supported memory speeds include:

• DDR4 3200MHz
• DDR4 3000MHz
• DDR4 2933MHz
• DDR4 2800MHz
• DDR4 2666MHz
• DDR4 2400MHz
• DDR4 2133MHz
• Dual-channel memory architecture
• Intel XMP support
• Non-ECC, unbuffered memory

Actual memory speeds depend on the installed processor and memory modules.

PCIe 4.0 x16 Expansion

The motherboard features a PCIe 4.0 x16 slot for compatible Intel 14th, 13th, and 12th Gen processors, providing high-bandwidth connectivity for dedicated graphics cards and other compatible expansion devices.

• 1 × PCIe 4.0 x16
• 1 × PCIe 3.0 x1

High-Speed M.2 Storage

Install a compatible M.2 SSD using the integrated Key M M.2 slot.

The M.2 slot supports:

• 2242
• 2260
• 2280 form factors
• PCIe 3.0 x4 mode
• SATA mode

The M.2 interface provides up to 32Gbps bandwidth when operating in PCIe mode.

Note: When an M.2 SATA device is installed, it shares bandwidth with the SATA6G_4 port, making SATA6G_4 unavailable.

Four SATA 6Gb/s Ports

For additional storage flexibility, the motherboard includes 4 × SATA 6Gb/s ports, allowing users to connect SATA SSDs, HDDs, and other compatible storage devices.

HDMI 4K@60Hz & D-Sub

The motherboard provides integrated graphics outputs for compatible Intel processors with integrated graphics.

• 1 × HDMI
• Supports up to 4K@60Hz
• 1 × D-Sub
• Suitable for compatible displays and office monitors

Realtek 1Gb Ethernet

The integrated Realtek 1Gb Ethernet controller provides reliable wired network connectivity for internet access, file sharing, business applications, streaming, and everyday networking.

USB 3.2 Gen 1 Connectivity

Connect modern peripherals through the motherboard's high-speed USB ports.

Rear I/O:

• 2 × USB 3.2 Gen 1 Type-A
• 4 × USB 2.0 Type-A

Internal Headers:

• 1 × USB 3.2 Gen 1 header supporting 2 additional USB 3.2 Gen 1 ports
• 1 × USB 2.0 header supporting 2 additional USB 2.0 ports

7.1-Channel High Definition Audio

The motherboard features 7.1-channel Realtek High Definition Audio with support for up to 24-bit/192kHz playback.

Audio features include:

• Jack detection
• Multi-streaming
• Front-panel jack retasking
• Audio shielding
• Dedicated audio PCB layers

ASUS 5X Protection III

ASUS 5X Protection III provides multiple hardware-level safeguards for improved system reliability.

Includes:

• DIGI+ VRM
• LANGuard
• Overvoltage Protection
• SafeSlot Core

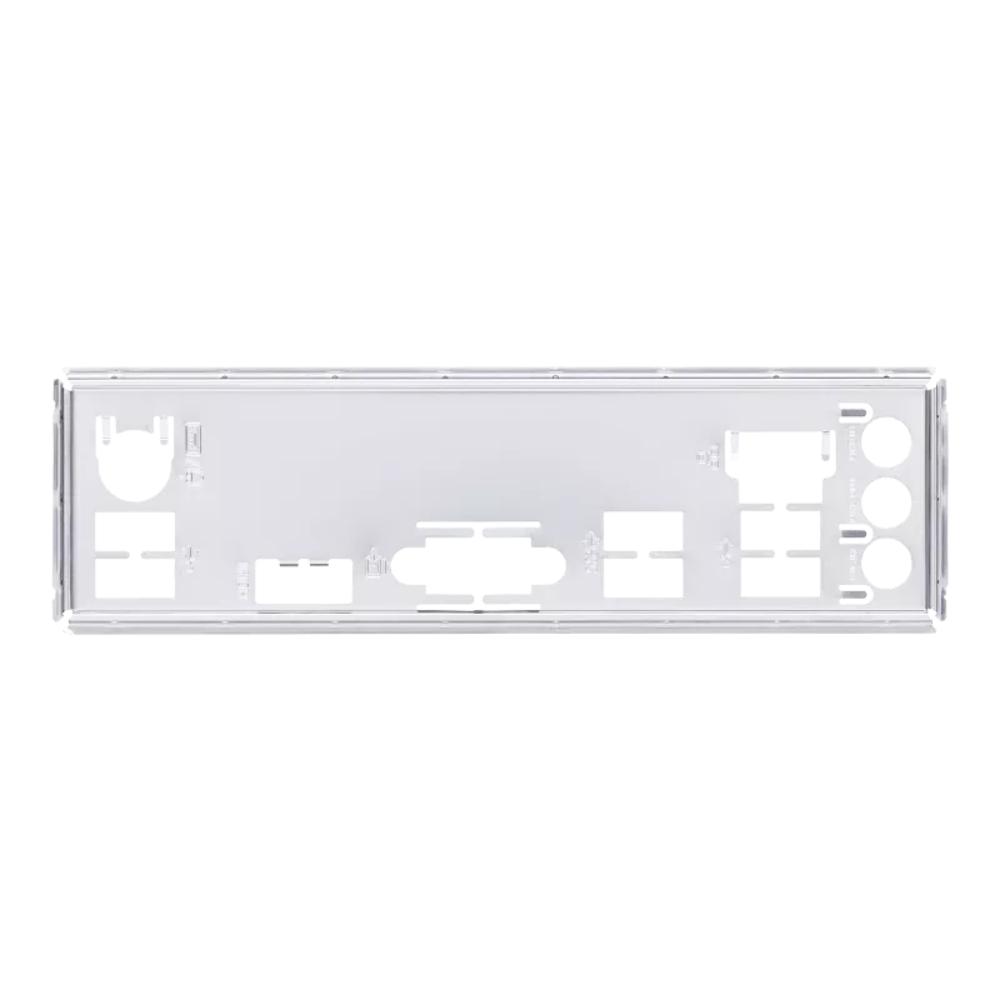

• Stainless-Steel Back I/O

Comprehensive Cooling

The PRIME H610M-K D4 incorporates an aluminum heatsink design and supports Fan Xpert for cooling management.

Cooling connectivity includes:

• 1 × 4-pin CPU Fan header
• 1 × 4-pin Chassis Fan header

ASUS Q-Design

ASUS Q-Design features simplify component installation and handling.

• Q-DIMM
• Q-Slot

RGB Header

Add compatible RGB lighting to your system through the integrated RGB header, with lighting management through ASUS software.

COM & TPM Headers

For specialized and business-oriented system configurations, the motherboard provides:

• 1 × COM Port header
• 1 × SPI TPM header
• 1 × S/PDIF Out header
• 1 × Speaker header

Technical Specifications

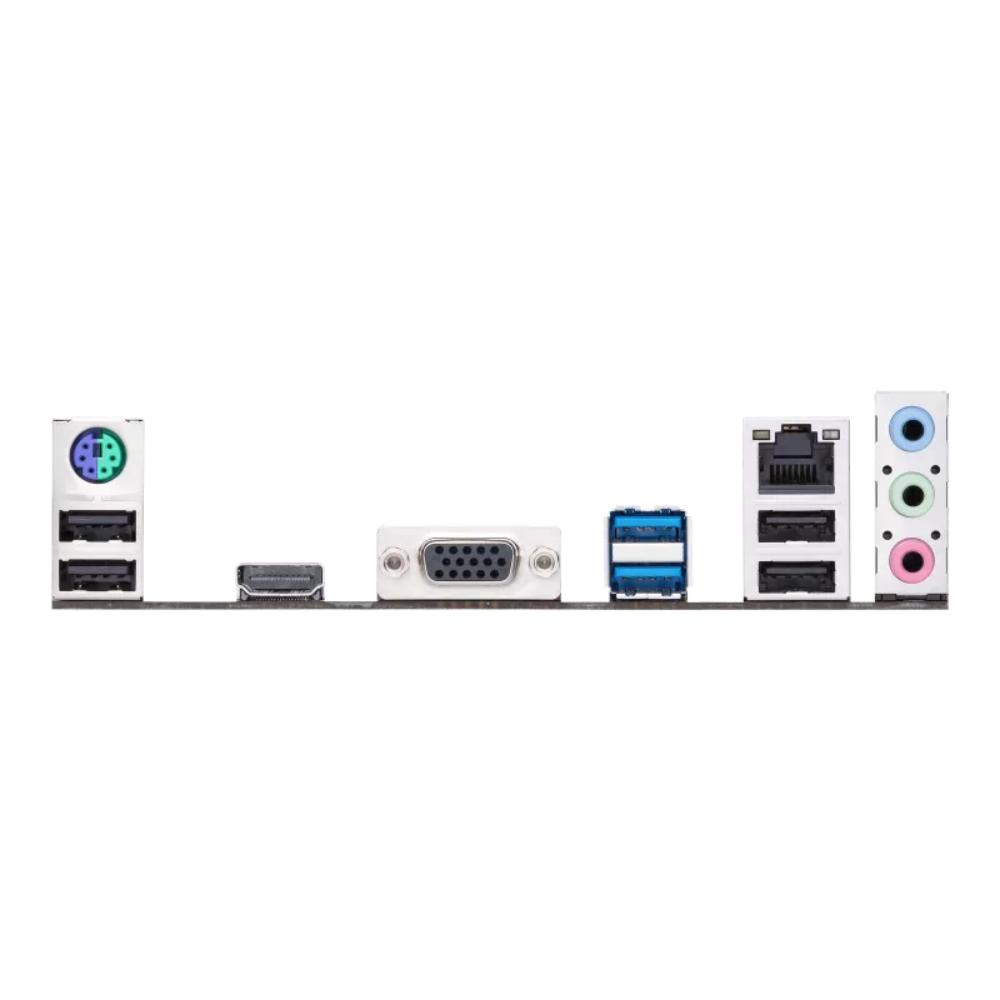

Back Panel Connectivity

• 2 × USB 3.2 Gen 1 Type-A
• 4 × USB 2.0 Type-A
• 1 × HDMI
• 1 × D-Sub
• 1 × Realtek 1Gb Ethernet
• 3 × Audio jacks
• 1 × PS/2 Keyboard/Mouse Combo

Internal Connectivity

• 1 × M.2 Key M slot
• 4 × SATA 6Gb/s
• 1 × USB 3.2 Gen 1 header
• 1 × USB 2.0 header
• 1 × 4-pin CPU Fan header
• 1 × 4-pin Chassis Fan header
• 1 × 24-pin Main Power connector
• 1 × 8-pin +12V Power connector
• 1 × RGB header
• 1 × Clear CMOS header
• 1 × COM Port header
• 1 × Front Panel Audio header
• 1 × S/PDIF Out header
• 1 × Speaker header
• 1 × SPI TPM header
• 1 × System Panel header

ASUS Software & BIOS Features

The PRIME H610M-K D4 supports a range of ASUS utilities and BIOS features, including:

• Armoury Crate
• AI Suite 3
• TurboV EVO
• EPU
• DIGI+ VRM
• Fan Xpert
• ASUS CPU-Z
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
• Norton Antivirus free trial
• WinRAR

Ideal Applications

Perfect for:

• Home & Office PCs
• Business Desktop Systems
• Budget Intel PC Builds
• Entry-Level Gaming PCs
• Intel 14th Gen PC Builds
• Intel 13th Gen PC Builds
• Intel 12th Gen PC Builds
• Student PCs
• Work-from-Home Systems
• General Productivity
• Compact Micro ATX PCs
• Multimedia PCs
• POS & Business Systems
• Everyday Computing
• Budget Workstations

Why Choose the ASUS PRIME H610M-K D4?

• Intel H610 chipset
• LGA 1700 socket
• Supports Intel 14th, 13th & 12th Gen processors
• 2 × DDR4 DIMM slots
• Up to 64GB RAM
• DDR4 3200MHz support
• Dual-channel memory architecture
• PCIe 4.0 x16
• PCIe 3.0 x1
• 32Gbps M.2 slot
• PCIe 3.0 x4 / SATA M.2 support
• 4 × SATA 6Gb/s
• HDMI 4K@60Hz
• D-Sub display output
• Realtek 1Gb Ethernet
• USB 3.2 Gen 1
• 7.1-channel HD audio
• ASUS 5X Protection III
• DIGI+ VRM
• LANGuard
• SafeSlot Core
• Overvoltage Protection
• Aluminum heatsink
• Fan Xpert
• RGB header
• COM header
• SPI TPM header
• Micro ATX form factor
• 23.4 × 20.3cm compact design
