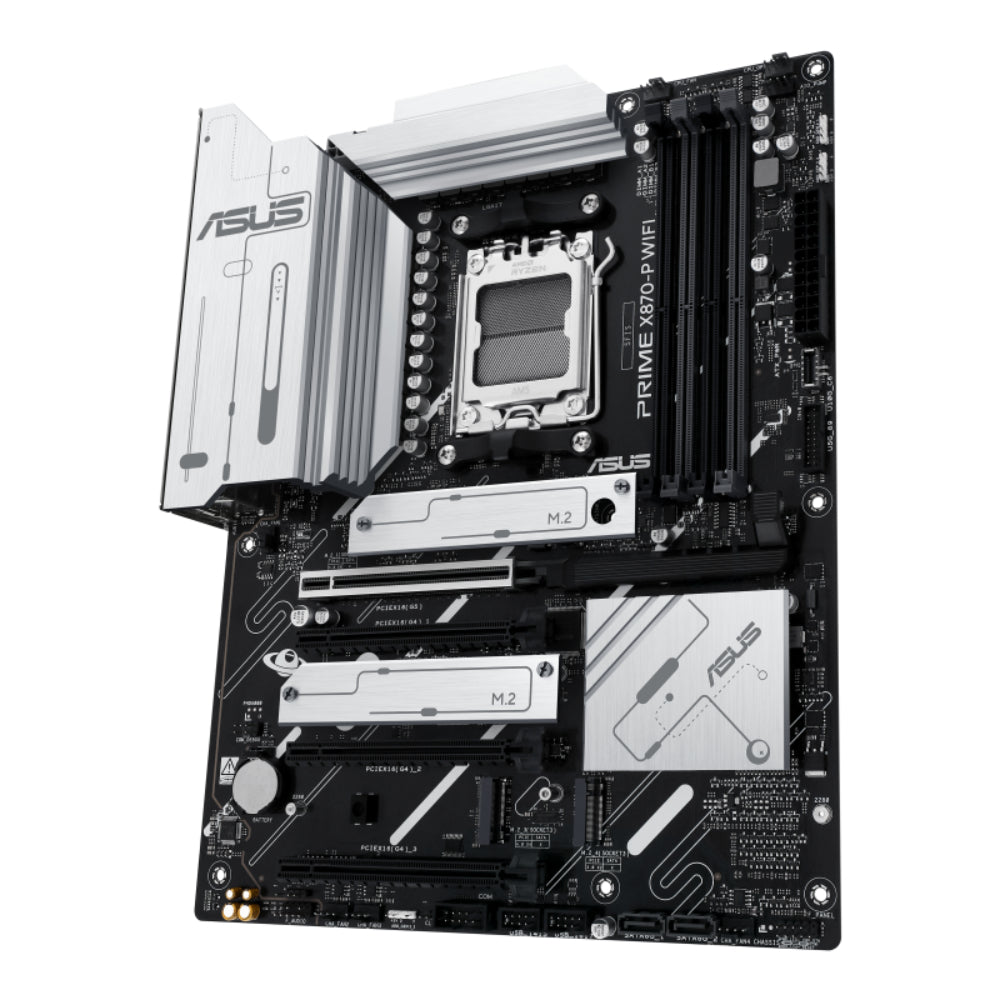

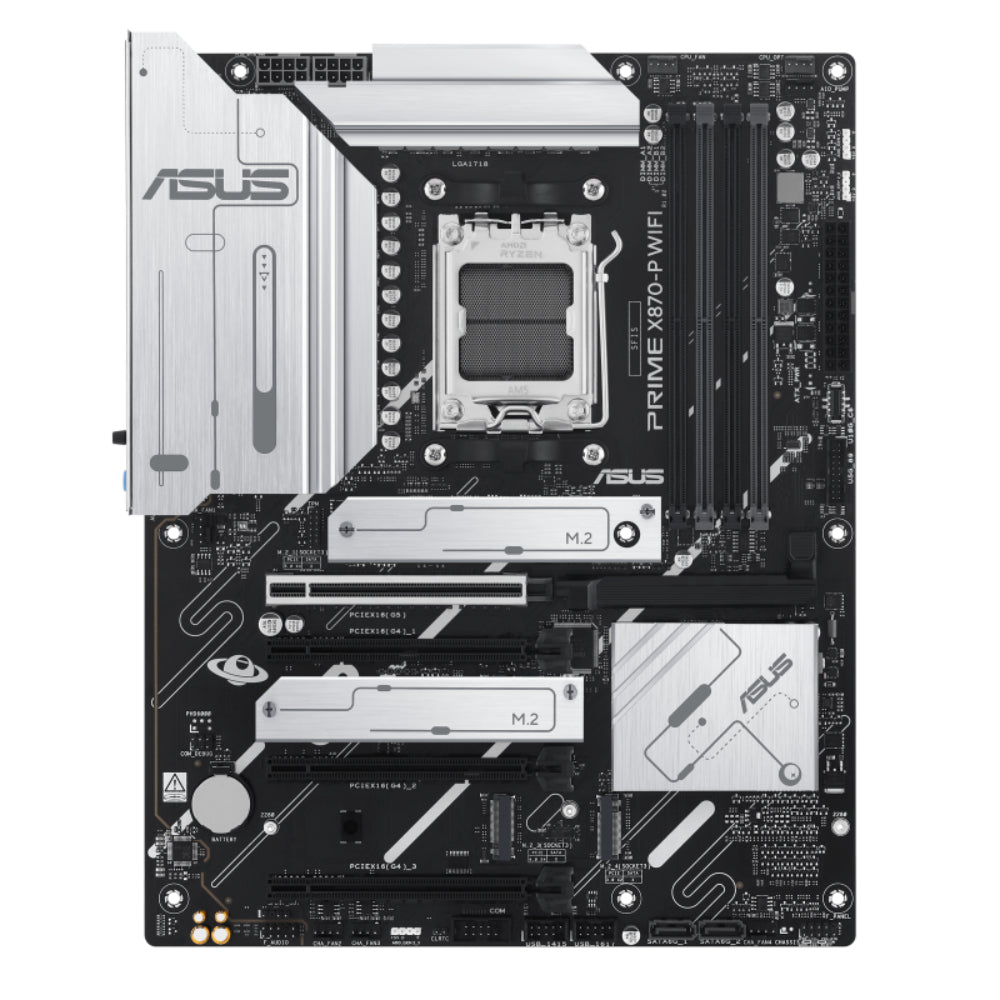

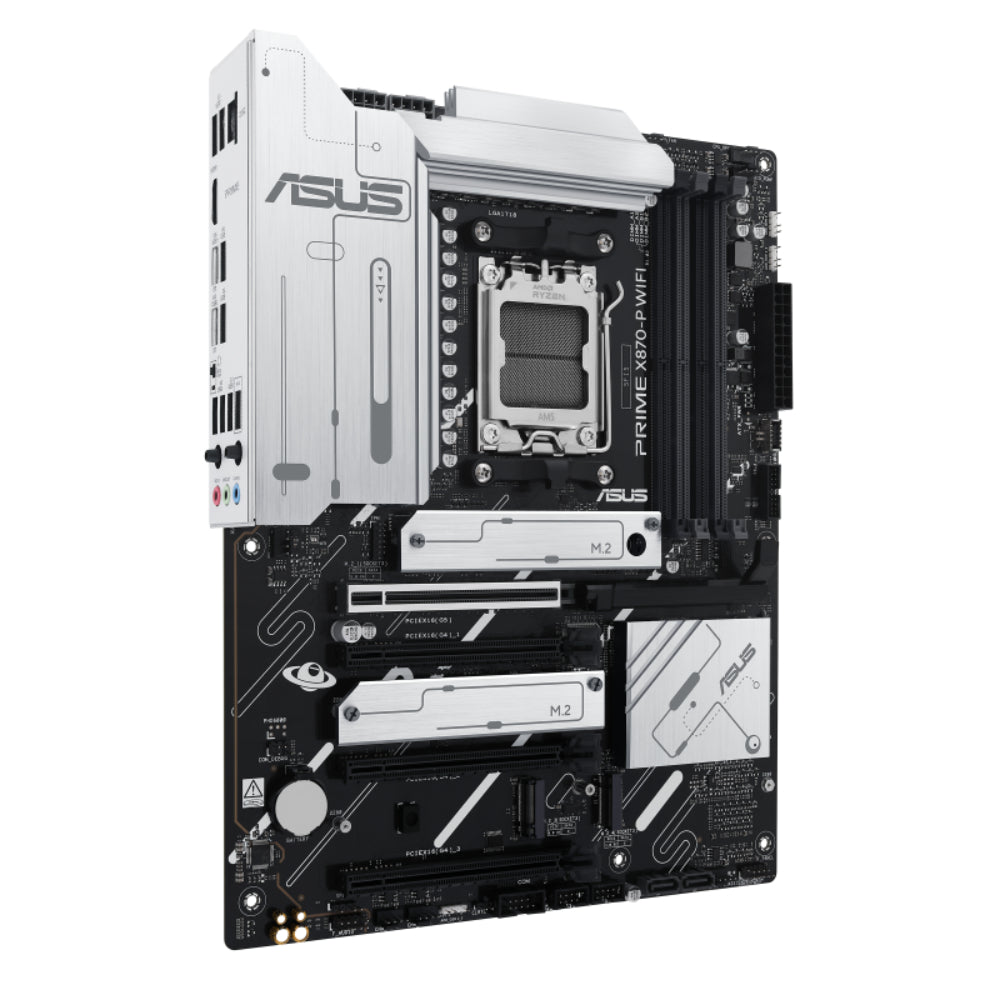

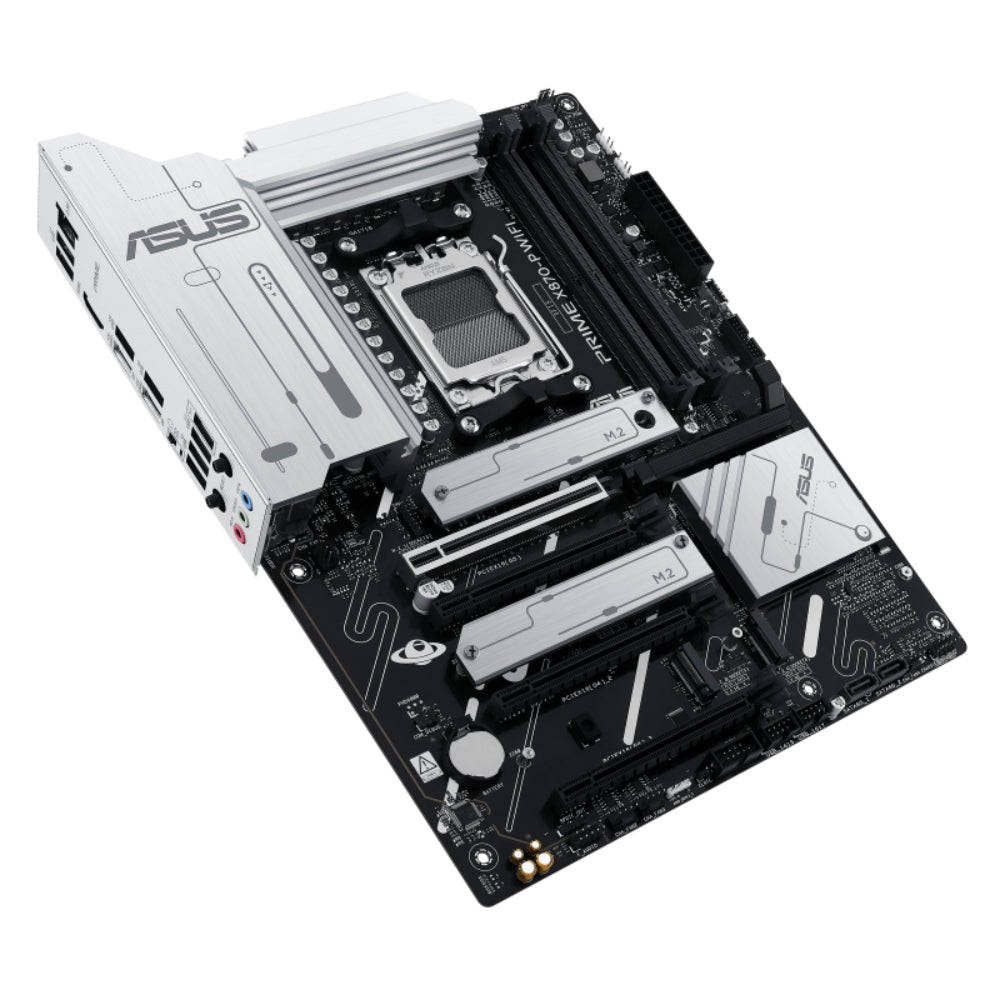

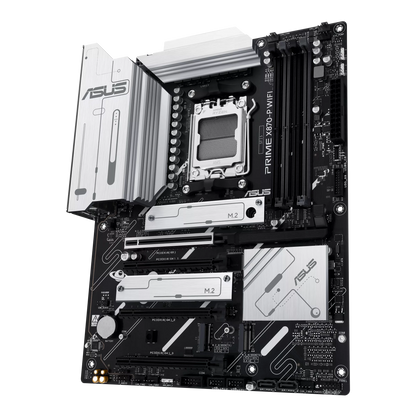

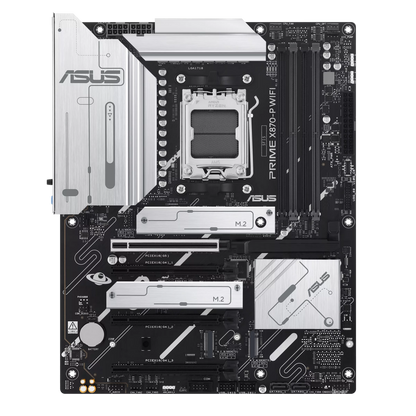

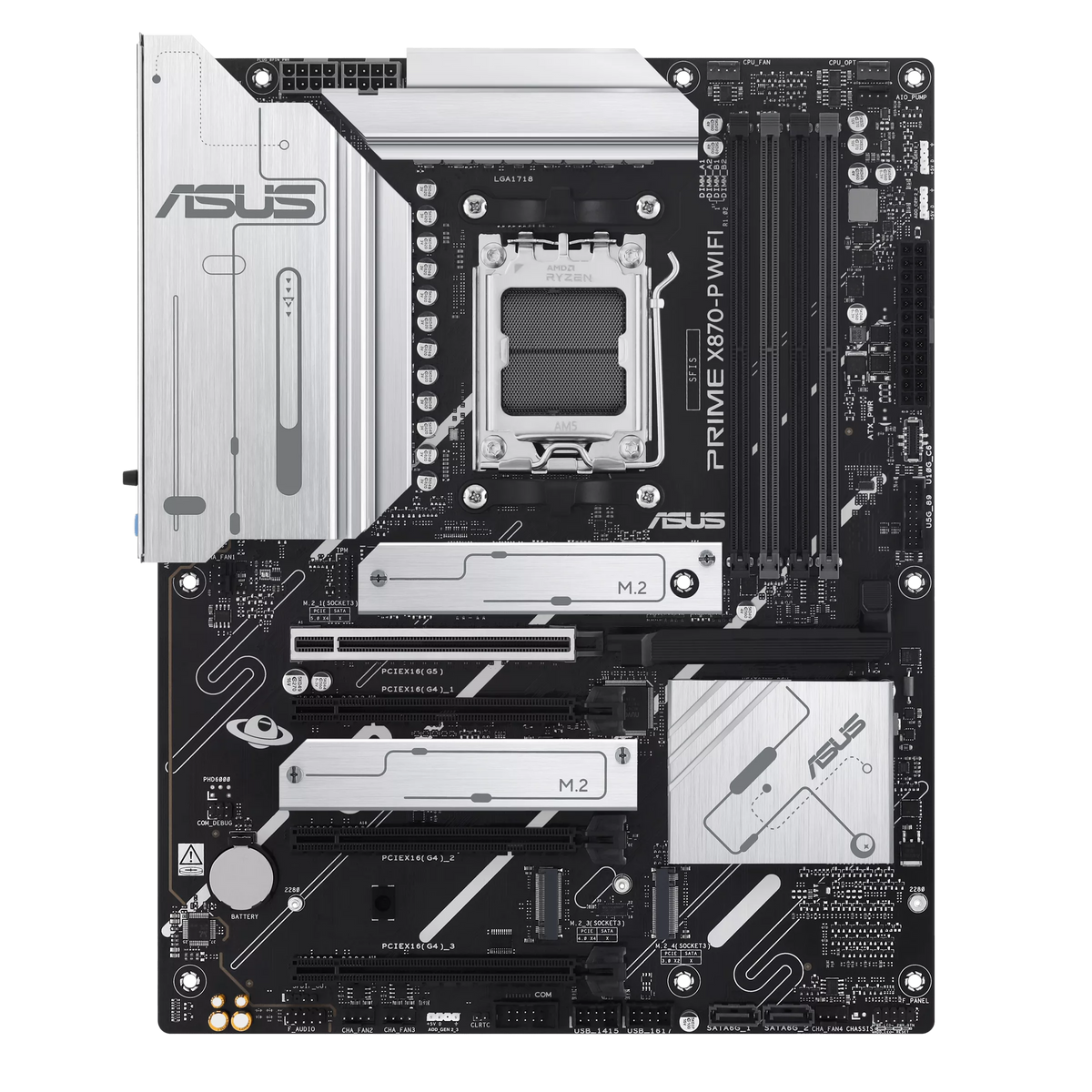

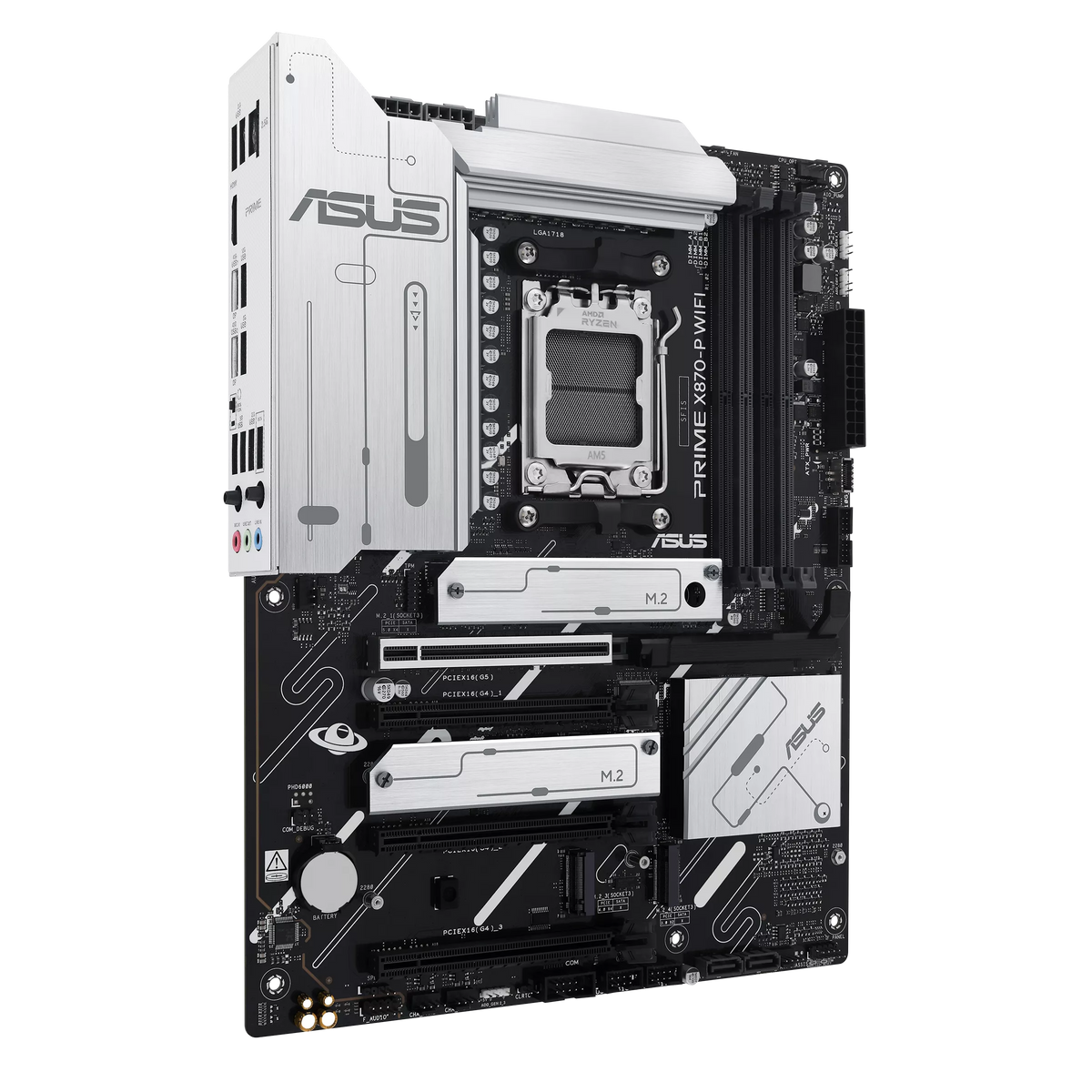

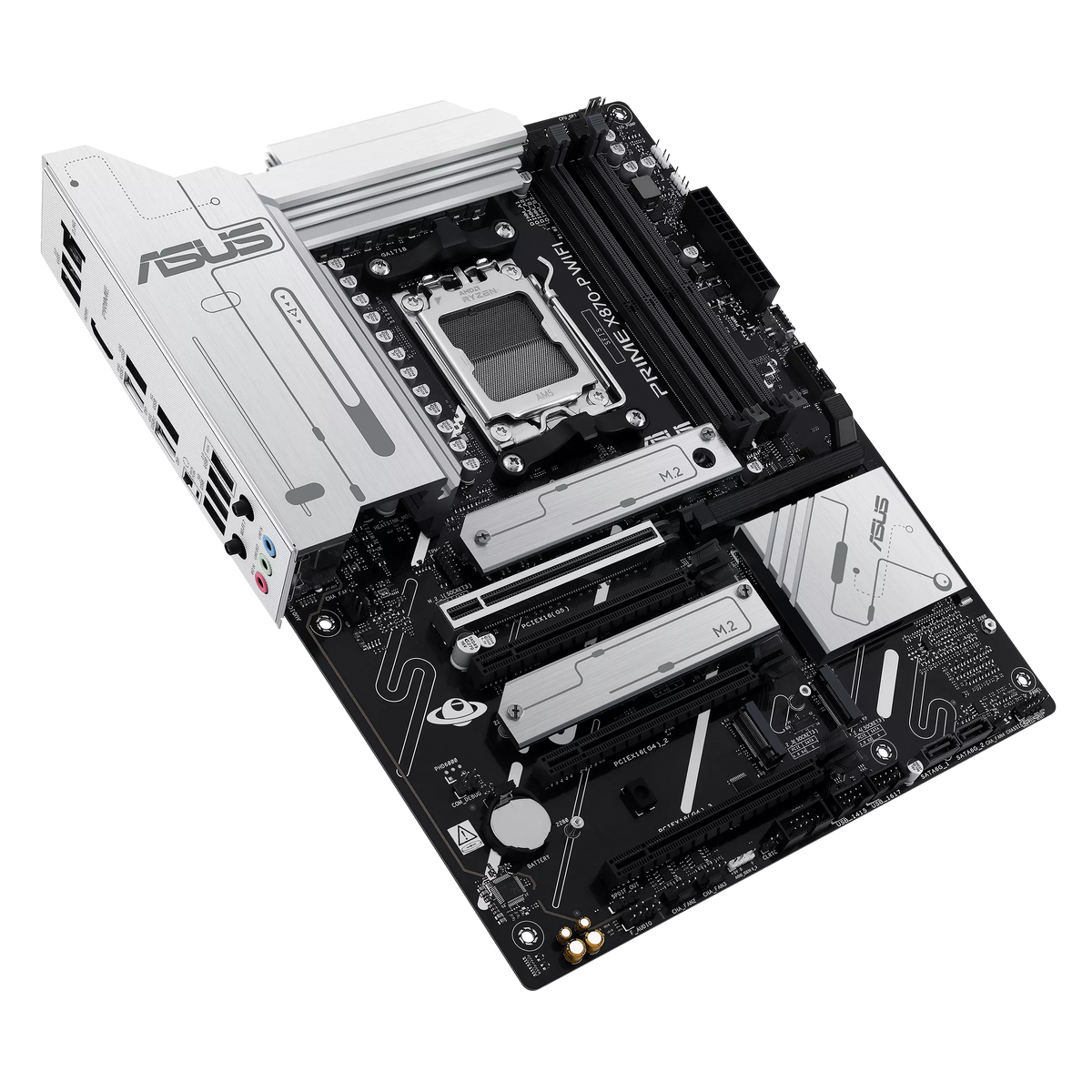

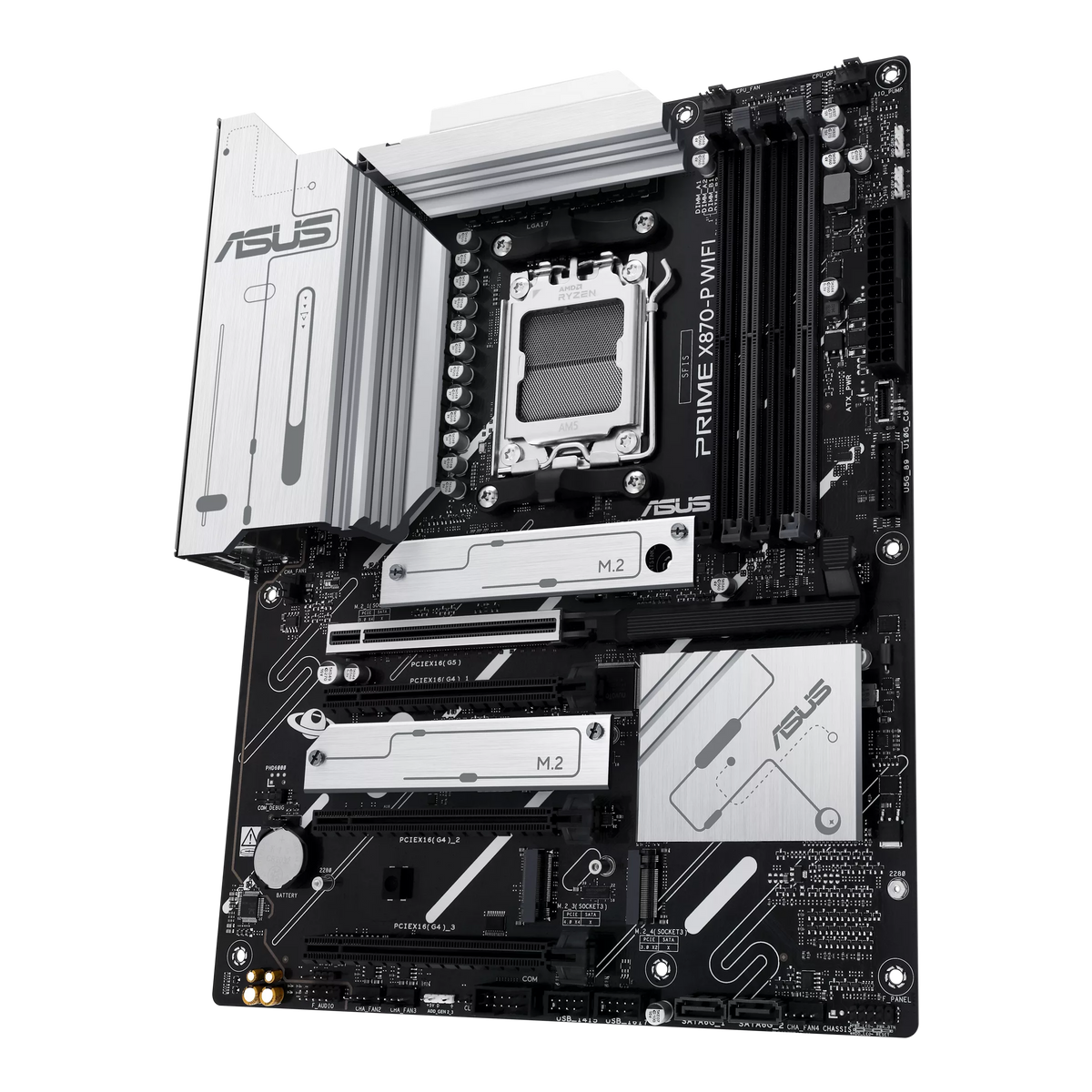

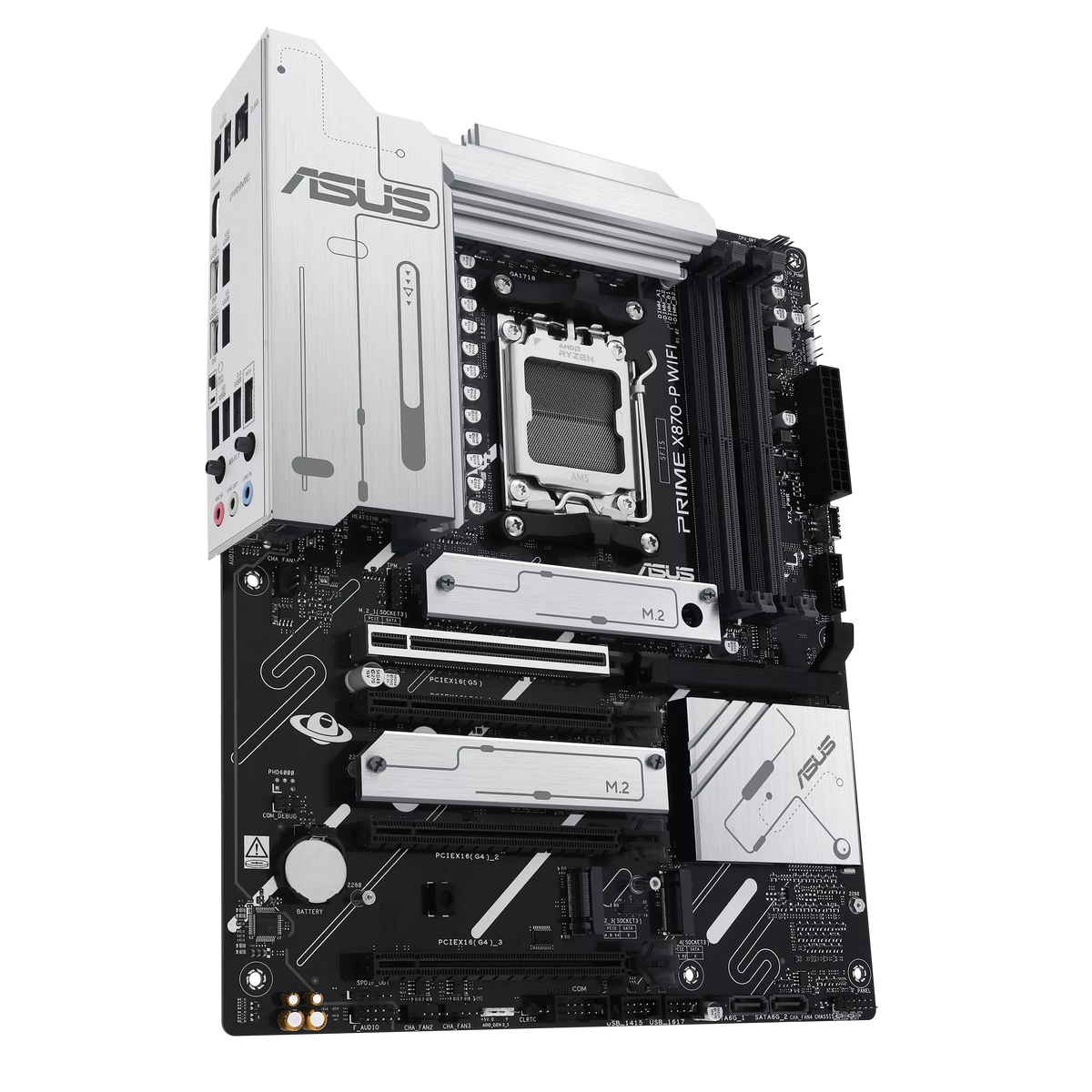

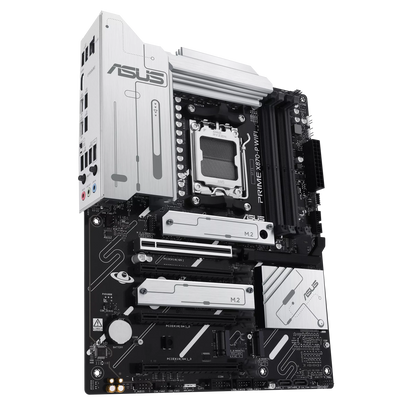

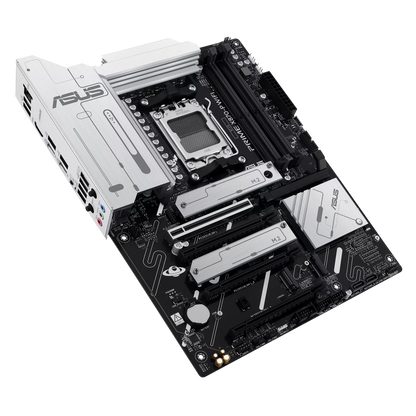

ASUS PRIME X870-P WIFI-CSM AMD AM5 ATX Motherboard | Ryzen 9000/8000/7000 | 256GB DDR5 | 8000+MT/s (OC) | Wi-Fi 7 | 2.5Gb LAN | 4× M.2 | PCIe 5.0

The ASUS PRIME X870-P WIFI-CSM motherboard is designed to unleash the performance of the latest AMD Ryzen™ processors with a robust power design, comprehensive cooling, and intelligent tuning features. Built for advanced PC DIY systems and demanding AI PC applications, it combines high-speed DDR5 memory support, PCIe 5.0 connectivity, Wi-Fi 7, USB4, and flexible storage options in a full-size ATX platform.

Key Features

AMD AM5 Platform

Built around the AMD Socket AM5, the motherboard supports AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors, providing a modern foundation for high-performance gaming, productivity, and AI-focused systems.

High-Speed DDR5 Memory

Four DDR5 DIMM slots support up to 256 GB of memory and speeds of up to 8000+ MT/s (OC) with compatible Ryzen processors. AMD EXPO™ and ASUS Enhanced Memory Profile (AEMP) provide convenient memory performance optimization.

PCIe 5.0 Graphics Support

The primary PCIe x16 slot supports PCIe 5.0 x16 mode with compatible Ryzen 9000 and 7000 Series processors, providing high-bandwidth connectivity for modern graphics cards and expansion hardware.

Four M.2 Storage Slots

The motherboard provides four M.2 slots for high-speed NVMe storage. The primary M.2 slot supports PCIe 5.0 x4 with compatible Ryzen 9000 and 7000 processors, while additional slots provide PCIe 4.0 and PCIe 3.0 connectivity.

Wi-Fi 7 Connectivity

Integrated 2×2 Wi-Fi 7 supports 2.4 GHz, 5 GHz, and 6 GHz frequency bands, with support for 160 MHz bandwidth and transfer rates of up to 2.9 Gbps under supported conditions.

USB4 40 Gbps

Two rear USB4 40 Gbps Type-C ports provide high-speed data connectivity and support USB Type-C display output, making the board suitable for modern high-bandwidth peripherals and displays.

2.5 Gb Ethernet

The integrated Realtek 2.5Gb Ethernet provides fast wired networking, complemented by ASUS LANGuard for additional network protection.

Comprehensive Cooling

The motherboard features a VRM heatsink design, flexible M.2 heatsink support, multiple chassis fan headers, CPU/CPU OPT fan headers, and an AIO pump header for flexible thermal management.

Intelligent Tuning & DIY Features

ASUS Q-Design, EZ DIY technologies, BIOS FlashBack, Q-LED Core, Q-Dashboard, and intelligent software tools help simplify system building, configuration, monitoring, and maintenance.

Technical Specifications

Specification	Details
Brand	ASUS
Series	PRIME
Model	PRIME X870-P WIFI-CSM
CPU Socket	AMD Socket AM5
Chipset	AMD X870
Supported Processors	AMD Ryzen 9000 / 8000 / 7000 Series
Memory Type	DDR5
Memory Slots	4 × DIMM
Maximum Memory	256GB
Memory Speed	Up to 8000+ MT/s (OC)
Memory Architecture	Dual Channel
Memory Support	ECC & Non-ECC Unbuffered DIMM
Memory Technologies	AMD EXPO, ASUS AEMP
Primary PCIe Slot	PCIe 5.0 x16
M.2 Slots	4 × M.2
SATA Ports	2 × SATA 6 Gb/s
Ethernet	Realtek 2.5 Gb Ethernet
Wireless	Wi-Fi 7 2×2
Bluetooth	Bluetooth 5.4
Audio	Realtek 7.1 Surround Sound HD Audio
BIOS	256 MB Flash ROM, UEFI AMI BIOS
Form Factor	ATX
Dimensions	30.5 × 24.4 cm
Operating System	Windows 11

Expansion Slots

AMD Ryzen 9000 & 7000 Series

• 1 × PCIe 5.0 x16 slot supporting x16 mode

AMD Ryzen 8000 Series

• 1 × PCIe 4.0 x16 slot supporting x8/x4 mode depending on CPU

AMD X870 Chipset

• 3 × PCIe 4.0 x16 slots supporting x1 mode

PCIEX16(G4)_1 shares bandwidth with M.2_2 and is disabled when M.2_2 is operating.

PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3 and are disabled when M.2_3 is operating.

Storage

The motherboard supports 4 × M.2 slots and 2 × SATA 6Gb/s ports.

M.2 Support

• M.2_1: PCIe 5.0 x4 with Ryzen 9000/7000 processors
• M.2_1: PCIe 4.0 x4 with Ryzen 8000 processors
• M.2_2: PCIe 4.0 x4 through the X870 chipset
• M.2_3: PCIe 4.0 x4 through the X870 chipset
• M.2_4: PCIe 3.0 x2 through the X870 chipset
• Supports 2242 / 2260 / 2280 / 22110 form factors where applicable
• 2 × SATA 6Gb/s ports

Storage Bandwidth Sharing

• M.2_2 shares bandwidth with PCIEX16(G4)_1
• M.2_3 shares bandwidth with PCIEX16(G4)_2 and PCIEX16(G4)_3
• M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2

AMD RAIDXpert2 Technology

• Ryzen 9000: RAID 0/1/5/10
• Ryzen 8000: RAID 0/1
• Ryzen 7000: RAID 0/1/10

Graphics Output

• 1 × HDMI 2.1—up to 4K at 60 Hz
• 2 × USB4 40 Gbps Type-C ports with DisplayPort 1.4a display output—up to 4K at 60 Hz

Graphics capabilities depend on the installed processor.

Wireless & Bluetooth

Wi-Fi 7

• 2×2 Wi-Fi 7 (802.11be)
• 2.4 GHz / 5 GHz / 6 GHz frequency bands
• Up to 160 MHz bandwidth
• Up to 2.9 Gbps transfer rate under supported conditions
• Bluetooth 5.4

Wi-Fi 7 functionality and 6 GHz availability depend on operating system and regional regulations. Full Wi-Fi 7 functionality on Windows 11 requires version 24H2 or later.

USB Connectivity

Rear USB

• 2 × USB4 40 Gbps Type-C
• 1 × USB 10 Gbps Type-A
• 3 × USB 5 Gbps Type-A
• 4 × USB 2.0 Type-A

Front USB

• 1 × USB 10 Gbps Type-C connector
• 1 × USB 5Gbps header supporting 2 additional USB 5Gbps ports
• 2 × USB 2.0 headers supporting 4 additional USB 2.0 ports

USB Type-C power delivery output supports up to 5V/3A.

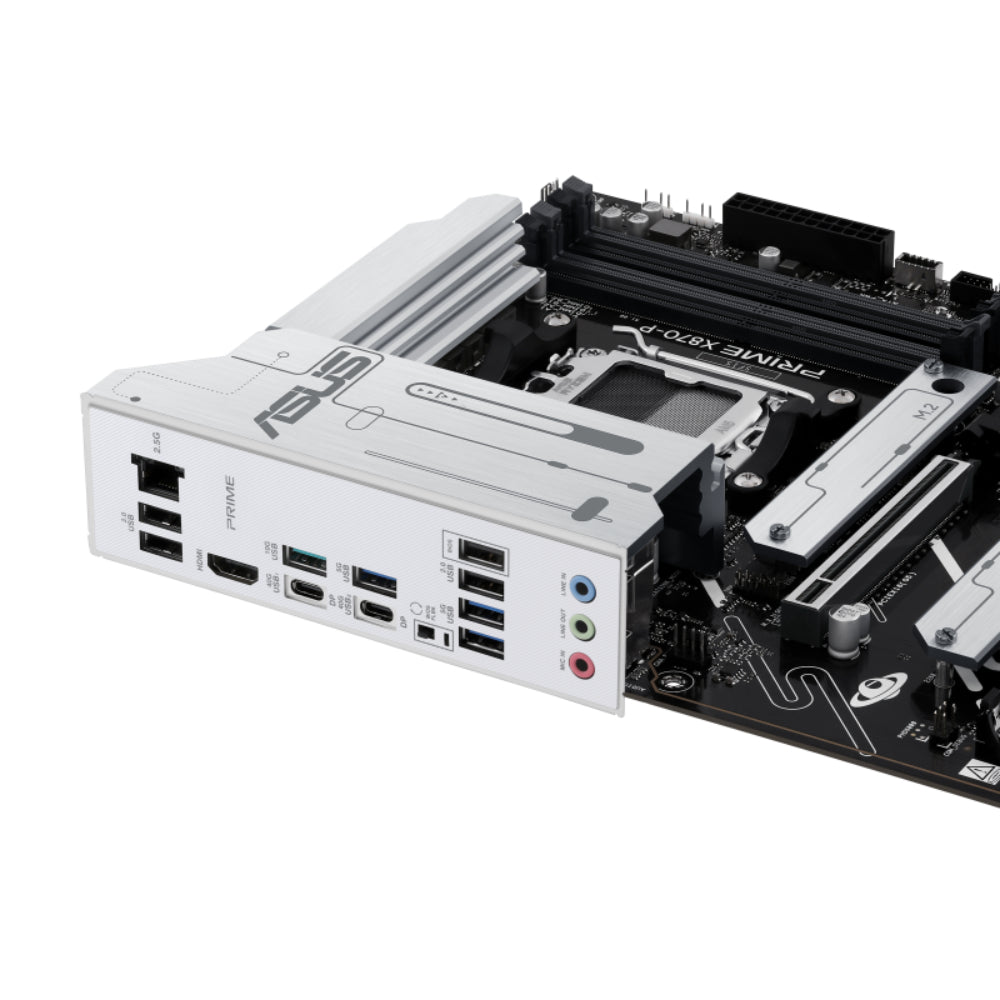

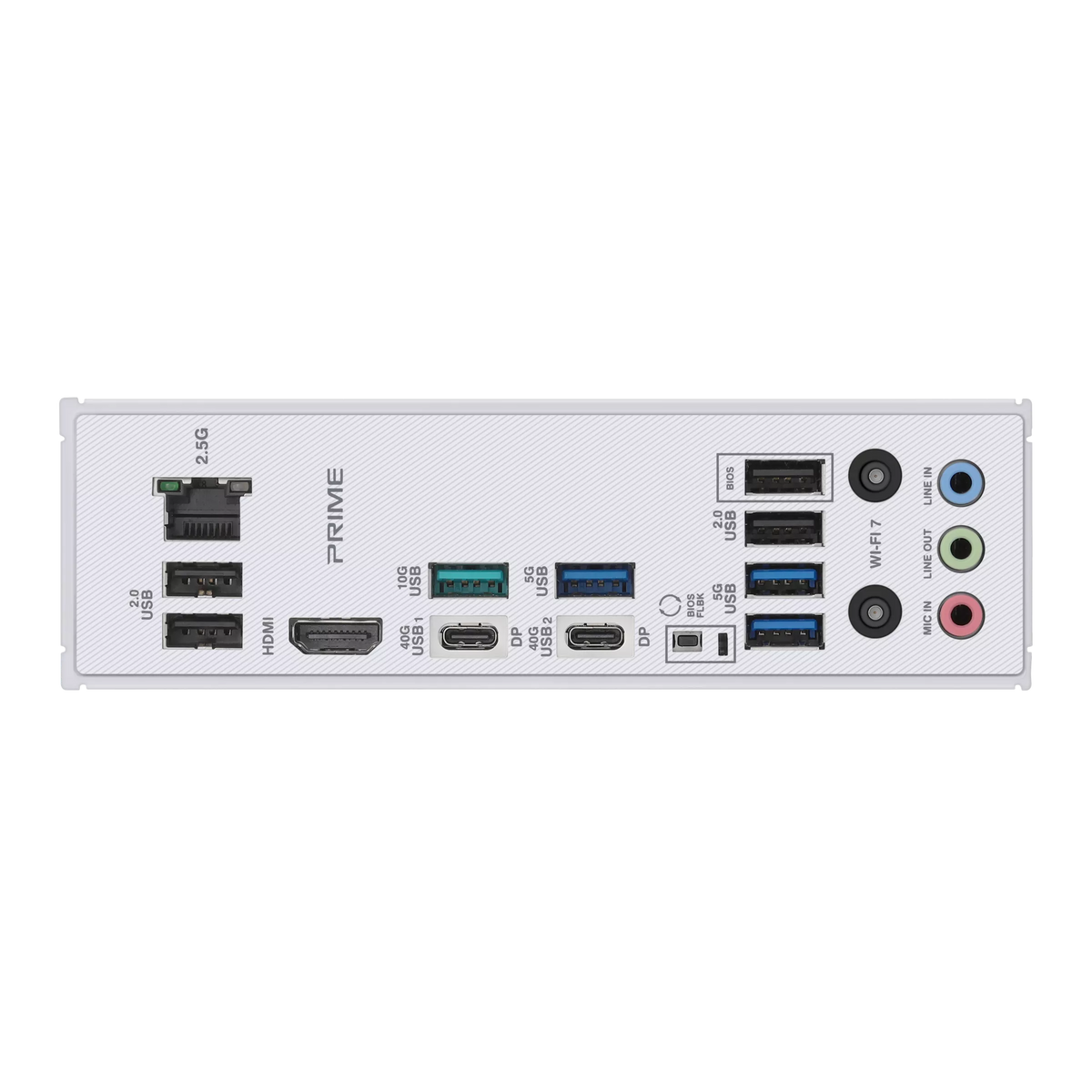

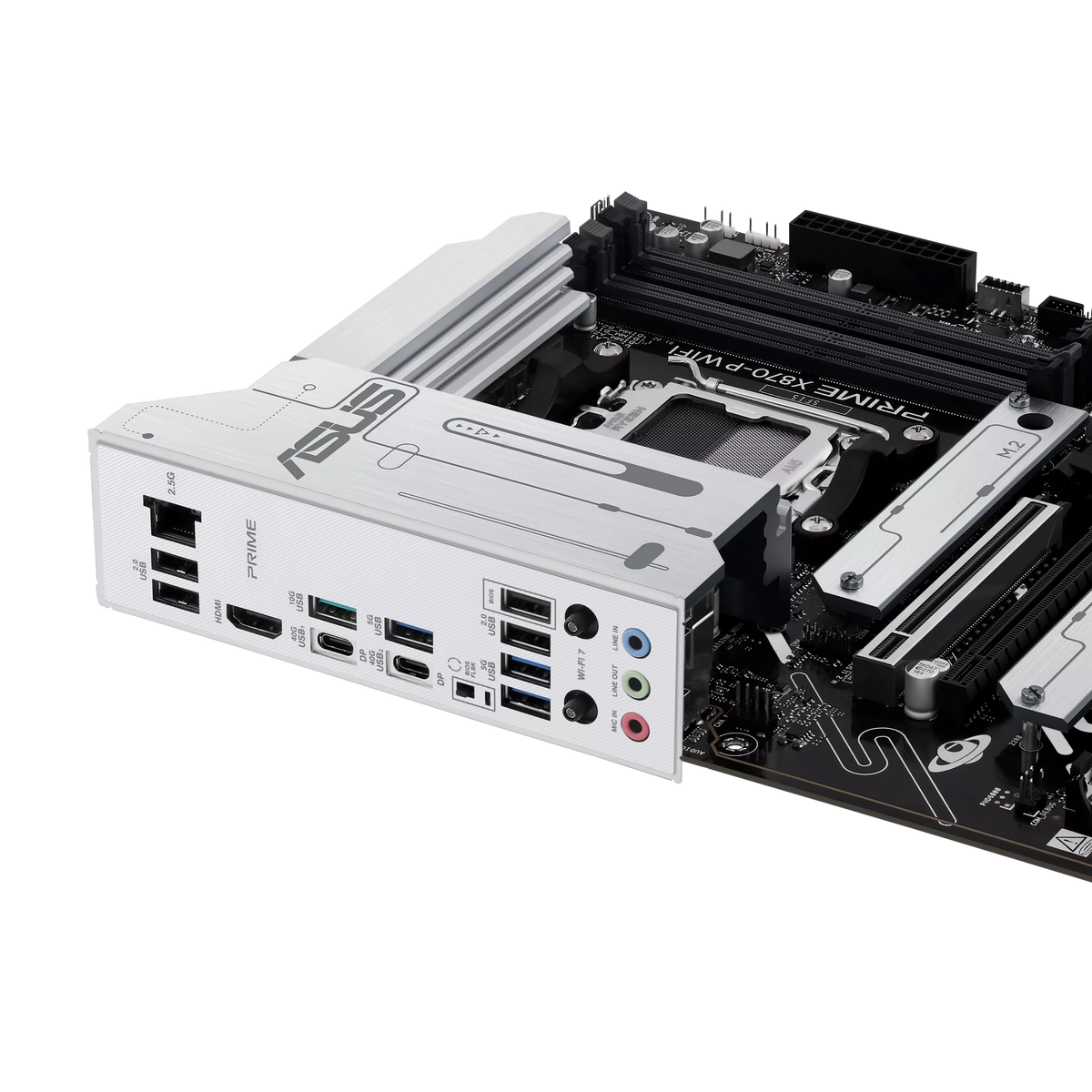

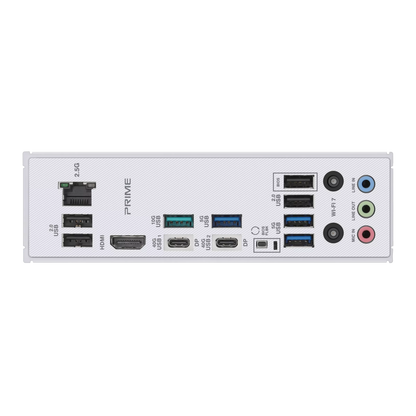

Rear I/O

• 2 × USB4 40 Gbps Type-C
• 1 × USB Type-A 10 Gbps
• 3 × USB Type-A 5 Gbps
• 4 × USB Type-A USB 2.0
• 1 × HDMI
• 1 × Wi-Fi module
• 1 × Realtek 2.5 Gb Ethernet
• 3 × Audio jacks
• 1 × BIOS FlashBack button

Internal I/O Connectors

Fan & Cooling

• 1 × 4-pin CPU fan header
• 1 × 4-pin CPU OPT Fan header
• 1 × 4-pin AIO pump header
• 4 × 4-pin chassis fan headers

Power

• 1 × 24-pin main power connector
• 2 × 8-pin +12V CPU power connectors

Storage

• 4 × M.2 slots
• 2 × SATA 6Gb/s ports

USB

• 1 × USB 10 Gbps Type-C connector
• 1 × USB 5 Gbps header supporting 2 additional ports
• 2 × USB 2.0 headers supporting 4 additional ports

Additional Headers

• 3 × Addressable Gen 2 headers
• 1 × Clear CMOS header
• 1 × COM Port header
• 1 × Front Panel Audio header
• 1 × S/PDIF Out header
• 1 × SPI TPM header
• 1 × System Panel header

ASUS 5X PROTECTION III

Protection technologies include:

• DIGI+ VRM with DrMOS
• LANGuard
• Overvoltage Protection
• SafeSlot
• Stainless-Steel Back I/O

ASUS Q-Design

Designed to simplify installation and troubleshooting with:

• M.2 Q-Latch
• PCIe Slot Q-Release
• Q-Antenna
• Q-Dashboard
• Q-DIMM
• Q-LED Core
• Q-Slot

ASUS Thermal Solution

• Flexible M.2 heatsink
• VRM heatsink design

ASUS EZ DIY

• BIOS FlashBack button
• BIOS FlashBack LED
• ProCool
• Pre-mounted I/O shield
• SafeSlot

Aura Sync

The motherboard features Addressable Gen 2 RGB headers with ASUS Aura Sync support for synchronizing compatible RGB components.

Audio

The integrated Realtek 7.1 Surround Sound High Definition Audio CODEC supports:

• Jack detection
• Multi-streaming
• Front Panel Jack-retasking
• Up to 24-bit/192 kHz playback
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers

A chassis with an HD audio module in the front panel is required for 7.1-channel surround sound output.

Software Features

ASUS Exclusive Software

• Armoury Crate
• Aura Creator
• Aura Sync
• Fan Xpert 4 with AI Cooling II
• Power Saving
• ASUS DriverHub
• ASUS GlideX
• TurboV Core
• ASUS CPU-Z
• Norton 360 Deluxe—60 Days Free Trial
• WinRAR—40 Days Free Trial

UEFI BIOS

• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
• ASUS MyHotkey

Remote Management

The motherboard supports ASUS Control Center Express (ACCE) for IT management applications.

Manageability

• Wake-on-LAN by PME
• PXE support

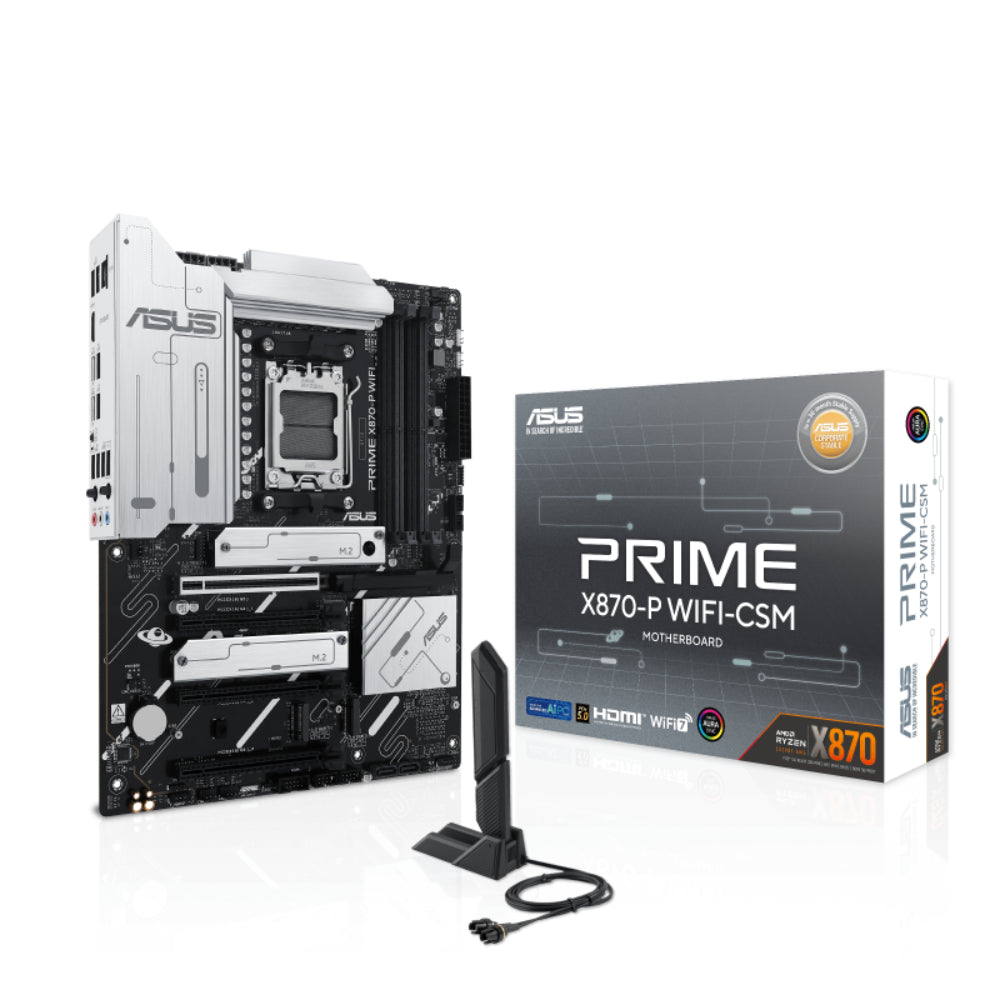

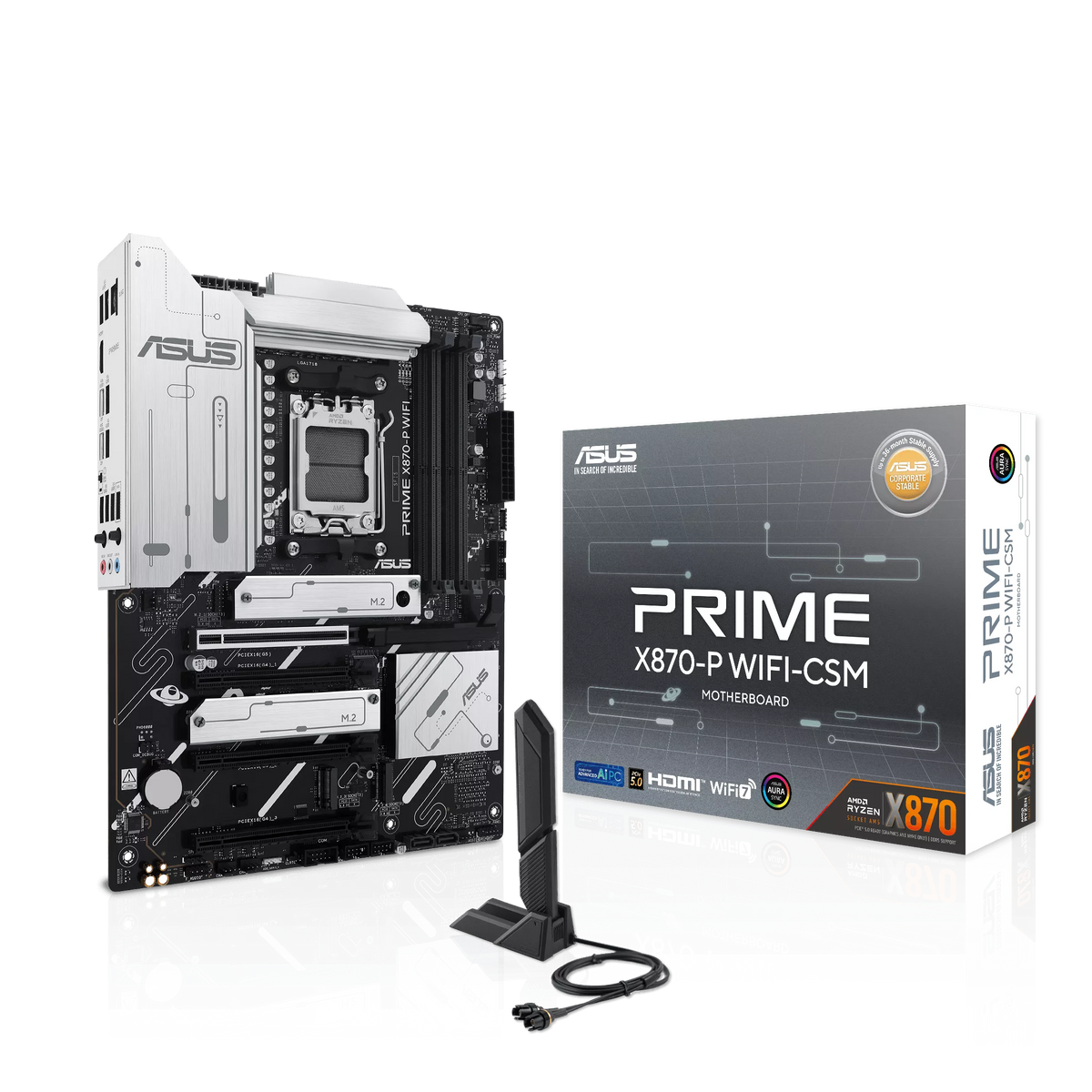

Accessories

• 2 × SATA 6Gb/s cables
• ASUS WiFi Q-Antenna
• M.2 rubber package
• 2 × M.2 SSD screw packages
• ACC Express Activation Key Card
• Quick Start Guide

Operating System Support

• Windows 11

Ideal For

• High-performance AMD Ryzen PCs
• Ryzen 9000 desktop builds
• Gaming and enthusiast systems
• Advanced AI PC applications
• High-speed DDR5 systems
• PCIe 5.0 graphics card builds
• Multiple NVMe storage configurations
• Wi-Fi 7 desktop systems
• Content creation and productivity
• Professional and business PC builds

Why Choose ASUS PRIME X870-P WIFI-CSM?

• AMD X870 chipset with AM5 socket
• Ryzen 9000 / 8000 / 7000 Series support
• Up to 256GB DDR5
• Up to 8000+ MT/s (OC)
• PCIe 5.0 x16
• 4 × M.2 slots
• 2 × SATA 6Gb/s
• Wi-Fi 7 2×2
• Bluetooth 5.4
• Realtek 2.5 Gb Ethernet
• 2 × USB4 40 Gbps Type-C
• Comprehensive cooling solution
• ASUS 5X Protection III
• Aura Sync RGB support
• BIOS FlashBack
• ASUS Control Center Express support
