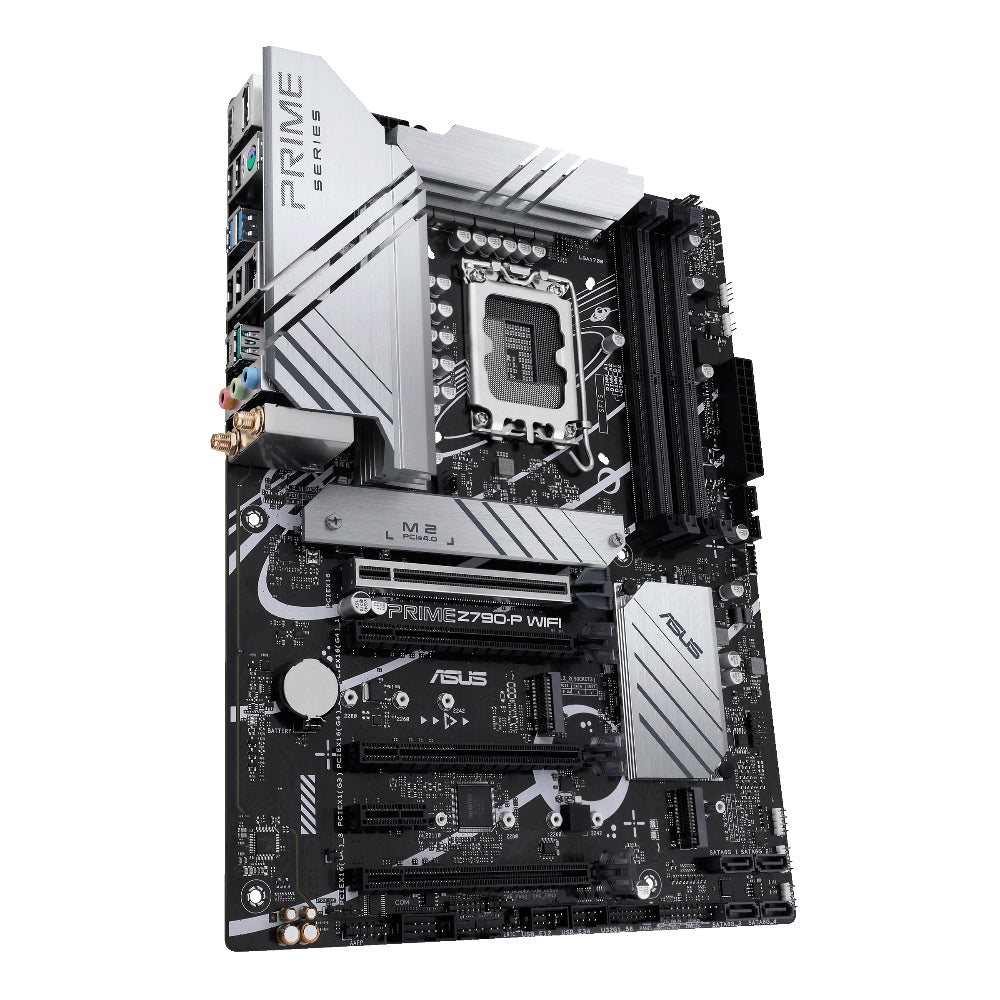

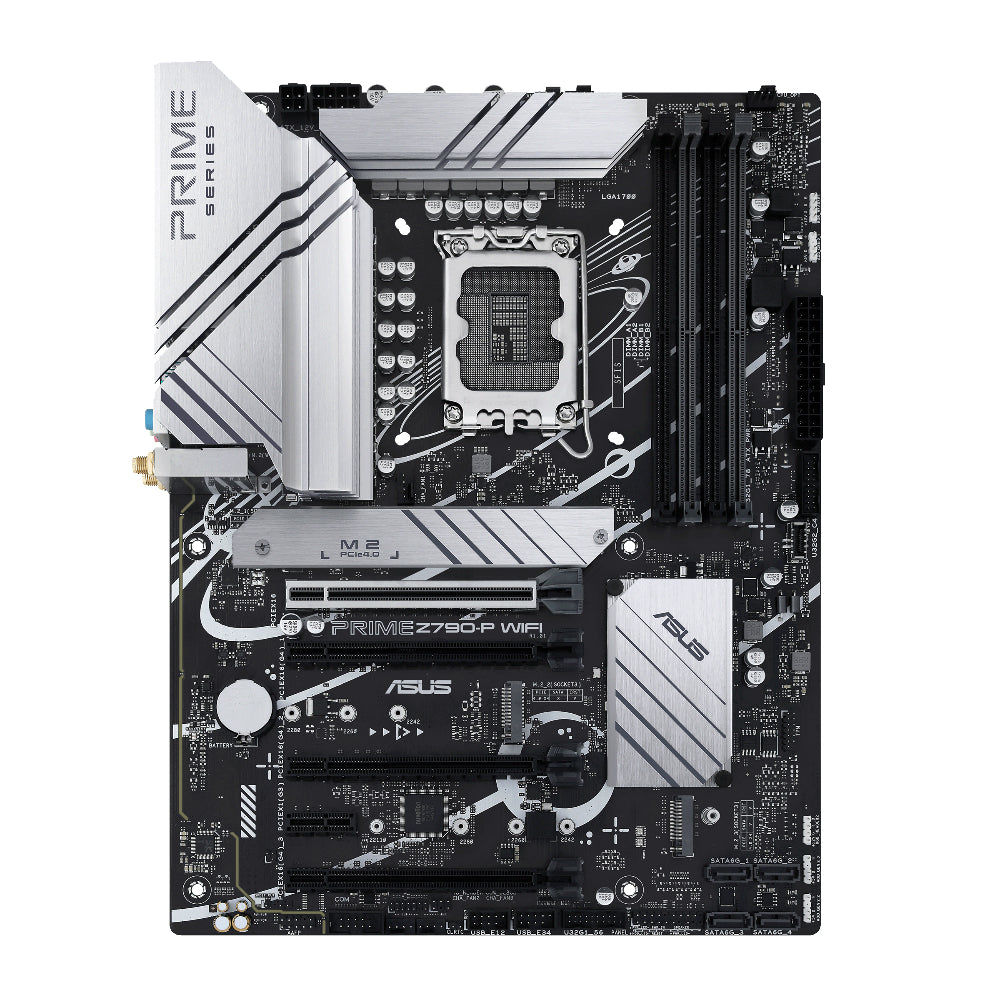

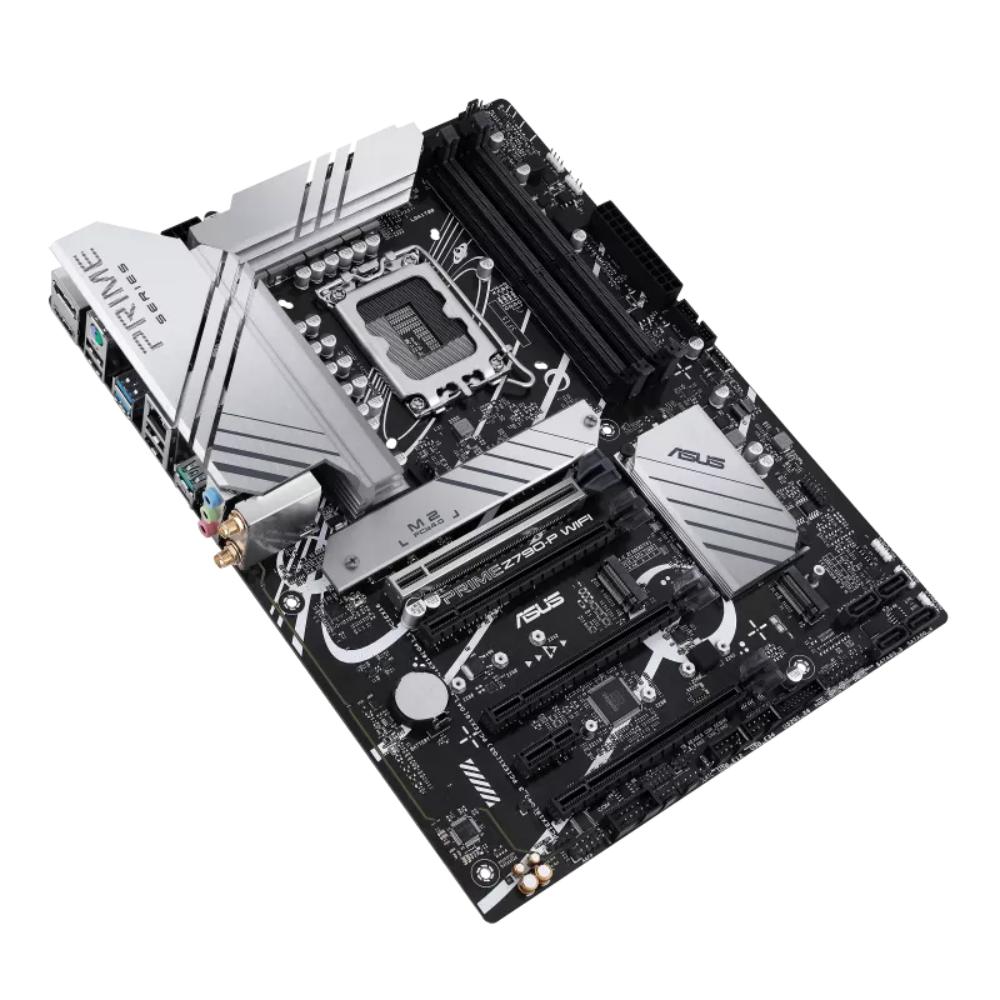

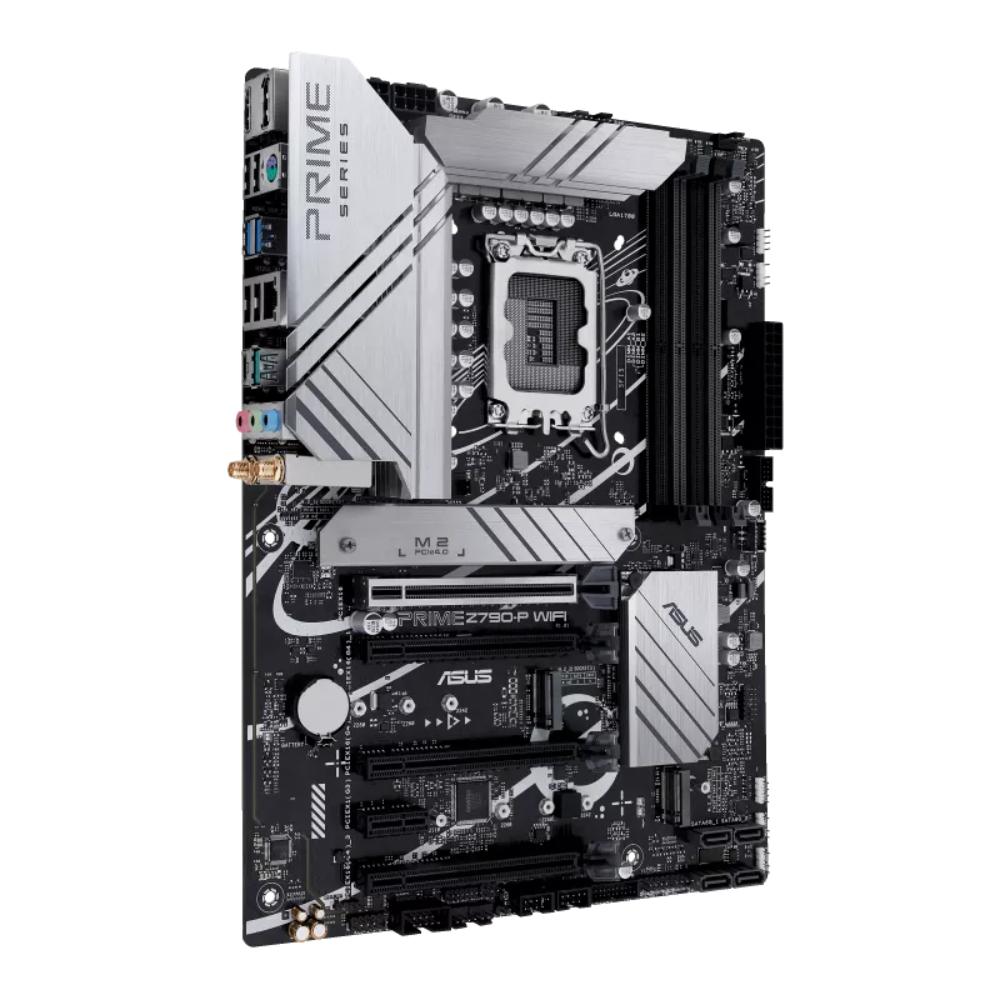

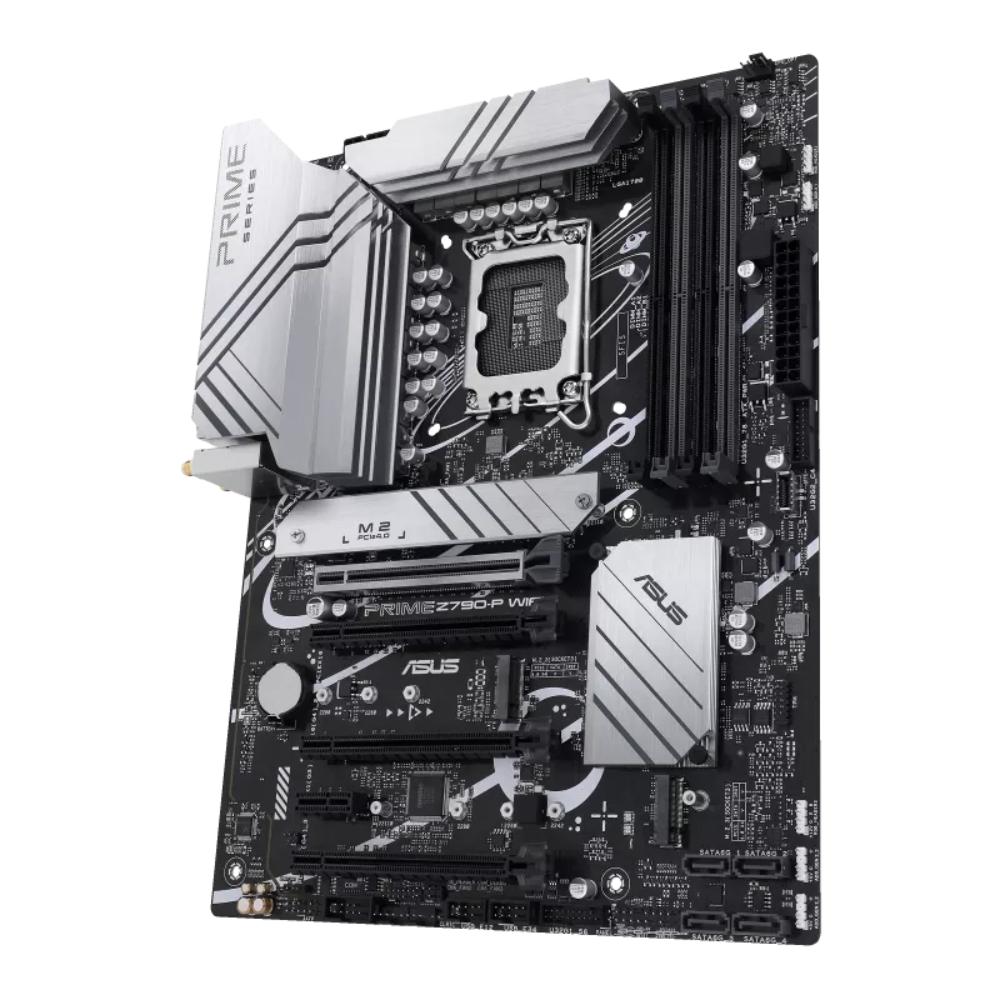

ASUS PRIME Z790-P WIFI-CSM | Intel Z790 ATX Motherboard | LGA1700 | DDR5 | Wi-Fi 6 | PCIe 5.0 | 3x M.2

The ASUS PRIME Z790-P WIFI-CSM is a powerful ATX motherboard designed to unleash the performance of Intel Core 14th, 13th, and 12th Gen processors. Built on the Intel Z790 chipset and featuring the LGA1700 socket, it provides a strong platform for gaming PCs, high-performance workstations, content creation systems, and demanding productivity builds.

With support for up to 192GB of DDR5 memory and speeds of up to 7200+ MT/s (OC), the PRIME Z790-P WIFI-CSM delivers high-speed memory performance for demanding applications and multitasking. A PCIe 5.0 x16 slot provides next-generation graphics expansion, while three M.2 slots offer fast NVMe storage support.

The motherboard also features Wi-Fi 6, 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C, 7.1-channel audio, comprehensive cooling, ASUS 5X Protection III, Aura Sync RGB, and extensive expansion options, making it a versatile foundation for a modern Intel-based PC.

Key Features

Intel LGA1700 Processor Support

The PRIME Z790-P WIFI-CSM supports a broad range of Intel desktop processors.

• Intel LGA1700 socket
• Supports 14th Gen Intel Core processors
• Supports 13th Gen Intel Core processors
• Supports 12th Gen Intel Core processors
• Supports Intel Pentium Gold processors
• Supports Intel Celeron processors
• Intel Turbo Boost Technology 2.0
• Intel Turbo Boost Max Technology 3.0 support depending on CPU

High-Speed DDR5 Memory

Four DIMM slots provide substantial memory capacity and high-speed performance.

• 4 × DDR5 DIMM slots
• Maximum capacity: 192GB
• Up to 7200+ MT/s (OC)
• Dual-channel memory architecture
• Intel XMP support
• ASUS OptiMem II
• Non-ECC, unbuffered DDR5
• On-die ECC support

Actual supported memory speeds depend on the CPU, memory configuration, and installed DIMMs.

PCIe 5.0 Expansion

The PRIME Z790-P WIFI-CSM provides PCIe 5.0 support for modern graphics cards and expansion devices.

• 1 × PCIe 5.0 x16 slot
• 3 × PCIe 4.0 x16 slots operating at x4
• 1 × PCIe 3.0 x1 slot
• PCIe bifurcation support
• ASUS SafeSlot Core+ protection

This combination provides flexibility for graphics cards, storage controllers, capture cards, networking cards, and other expansion hardware.

Triple M.2 NVMe Storage

Fast storage expansion is provided through three M.2 slots.

• 3 × M.2 slots
• M.2_1: PCIe 4.0 x4
• M.2_2: PCIe 4.0 x4
• M.2_3: PCIe 4.0 x4 / SATA mode
• Supports M.2 2242, 2260, 2280, and selected 22110 drives
• 4 × SATA 6Gb/s ports
• Intel Rapid Storage Technology
• PCIe RAID 0/1/5/10 support
• SATA RAID 0/1/5/10 support

Wi-Fi 6 Wireless Connectivity

The integrated Wi-Fi 6 solution provides fast and reliable wireless networking.

• 2×2 Wi-Fi 6
• 802.11a/b/g/n/ac/ax
• 2.4 GHz and 5 GHz frequency support
• Bluetooth 5.2
• Designed for wireless gaming, streaming, browsing, and file transfers

2.5 Gb Ethernet

A Realtek 2.5Gb Ethernet controller provides high-speed wired networking.

• 2.5 Gb Ethernet
• High-bandwidth network connectivity
• Ideal for gaming, streaming, NAS access, and large file transfers
• ASUS LANGuard protection

High-Speed USB Connectivity

The motherboard provides a wide range of USB ports for peripherals, storage devices, and accessories.

Rear USB:

• 1 × USB 3.2 Gen 2x2 Type-C
• 1 × USB 3.2 Gen 2 Type-A
• 2 × USB 3.2 Gen 1 Type-A
• 4 × USB 2.0 Type-A

Front USB:

• 1 × USB 3.2 Gen 2 Type-C connector
• 2 × USB 3.2 Gen 1 headers supporting 4 additional ports
• 2 × USB 2.0 headers supporting 4 additional ports

7.1-Channel High Definition Audio

The PRIME Z790-P WIFI-CSM features a Realtek 7.1-channel High Definition Audio codec.

• Realtek 7.1 Surround Sound
• Up to 24-bit/192 kHz playback
• Jack detection
• Multi-streaming
• Front-panel jack retasking
• Audio shielding
• Premium audio capacitors
• Dedicated audio PCB layers
• S/PDIF output header

Comprehensive Cooling

ASUS provides multiple cooling and fan-control features to help maintain stable system temperatures.

• VRM heatsink design
• Flexible M.2 heatsink
• 1 × CPU fan header
• 1 × CPU OPT fan header
• 1 × AIO pump header
• 3 × chassis fan headers
• Fan Xpert 4 with AI Cooling II

ASUS 5X Protection III

Designed for reliable operation and long-term durability.

• DIGI+ VRM with DrMOS
• LANGuard
• Overvoltage Protection
• SafeSlot Core+
• Stainless-steel back I/O

ASUS Q-Design

Convenient hardware installation and troubleshooting features include:

• Q-DIMM
• Q-Slot
• Q-LED Core

Aura Sync RGB

Customize your PC's lighting with ASUS Aura Sync.

• 2 × Aura RGB headers
• 3 × Addressable Gen 2 headers
• Aura Sync support
• Compatible with supported RGB components and accessories

BIOS & DIY Features

The PRIME Z790-P WIFI-CSM provides convenient firmware and system management features.

• 192 MB Flash ROM
• UEFI AMI BIOS
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
• Clear CMOS header
• ProCool
• Thunderbolt / USB4 header
• SPI TPM header
• COM port header

Display Connectivity

The motherboard supports integrated graphics output when paired with a compatible Intel processor with integrated graphics.

• 1 × DisplayPort
• 1 × HDMI
• DisplayPort up to 4K@60Hz
• HDMI 2.1 up to 4K at 60 Hz

Actual graphics support depends on the installed processor.

Technical Specifications

Specification	Details
Model	ASUS PRIME Z790-P WIFI-CSM
Series	ASUS PRIME
Socket	Intel LGA1700
CPU Support	Intel Core 14th / 13th / 12th Gen
Chipset	Intel Z790
Form Factor	ATX
Dimensions	30.5 × 23.4 cm / 12 × 9.2 in
Memory Type	DDR5
Memory Slots	4 × DIMM
Maximum Memory	192GB
Memory Speed	Up to 7200+ MT/s (OC)
Memory Architecture	Dual Channel
XMP Support	Yes.
OptiMem	OptiMem II
Primary PCIe Slot	1 × PCIe 5.0 x16
Additional PCIe	3 × PCIe 4.0 x16 (x4), 1 × PCIe 3.0 x1
M.2 Slots	3
M.2 Interface	PCIe 4.0 x4 / SATA
SATA Ports	4 × SATA 6 Gb/s
LAN	Realtek 2.5 Gb Ethernet
Wireless	Wi-Fi 6
Bluetooth	Bluetooth 5.2
Rear USB	8 ports
USB-C	USB 3.2 Gen 2x2
DisplayPort	1
HDMI	1
Audio Codec	Realtek 7.1-channel HD Audio
S/PDIF	Header
RGB	Aura Sync
BIOS	192 MB UEFI AMI BIOS
Operating System	Windows 11 / Windows 10 64-bit

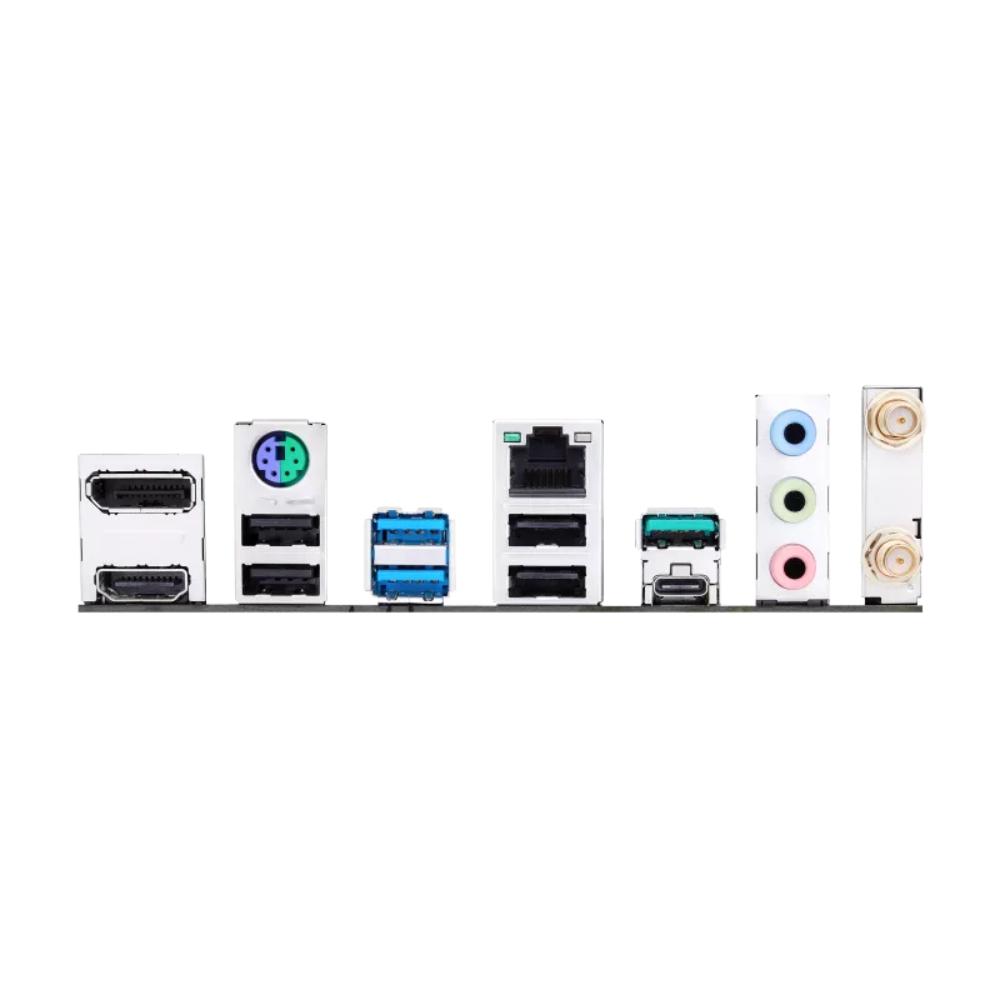

Back Panel I/O

• 1 × USB 3.2 Gen 2x2 Type-C
• 1 × USB 3.2 Gen 2 Type-A
• 2 × USB 3.2 Gen 1 Type-A
• 4 × USB 2.0 Type-A
• 1 × DisplayPort
• 1 × HDMI
• 1 × Wi-Fi module
• 1 × Realtek 2.5 Gb Ethernet
• 3 × audio jacks
• 1 × PS/2 keyboard/mouse combo port

Ideal For

• Intel 14th Gen gaming PCs
• Intel 13th Gen gaming systems
• Intel 12th Gen PCs
• High-performance desktop builds
• Gaming PCs
• Content creation workstations
• Productivity systems
• Streaming PCs
• NVMe-based storage builds
• Wi-Fi gaming PCs
• Multi-expansion workstation systems

Why Choose the ASUS PRIME Z790-P WIFI-CSM?

The ASUS PRIME Z790-P WIFI-CSM combines the powerful Intel Z790 chipset with DDR5 memory, PCIe 5.0 graphics support, triple M.2 storage expansion, Wi-Fi 6, 2.5Gb Ethernet, high-speed USB connectivity, and robust ASUS power and thermal solutions.

With support for Intel 14th, 13th, and 12th Gen processors, up to 192GB DDR5 memory, and a broad range of expansion and connectivity options, it is an excellent choice for users building a powerful Intel desktop for gaming, productivity, content creation, or professional workloads.

Buy the ASUS PRIME Z790-P WIFI-CSM Motherboard from Mustafa Computers—Authorized ASUS Reseller in Pakistan.

Get 100% genuine ASUS products, competitive pricing, official warranty, professional sales and after-sales support, and nationwide delivery across Pakistan.

Build a powerful Intel desktop with the ASUS PRIME Z790-P WIFI-CSM and take advantage of Z790 performance, DDR5 memory, PCIe 5.0, Wi-Fi 6, and extensive storage and expansion options.
