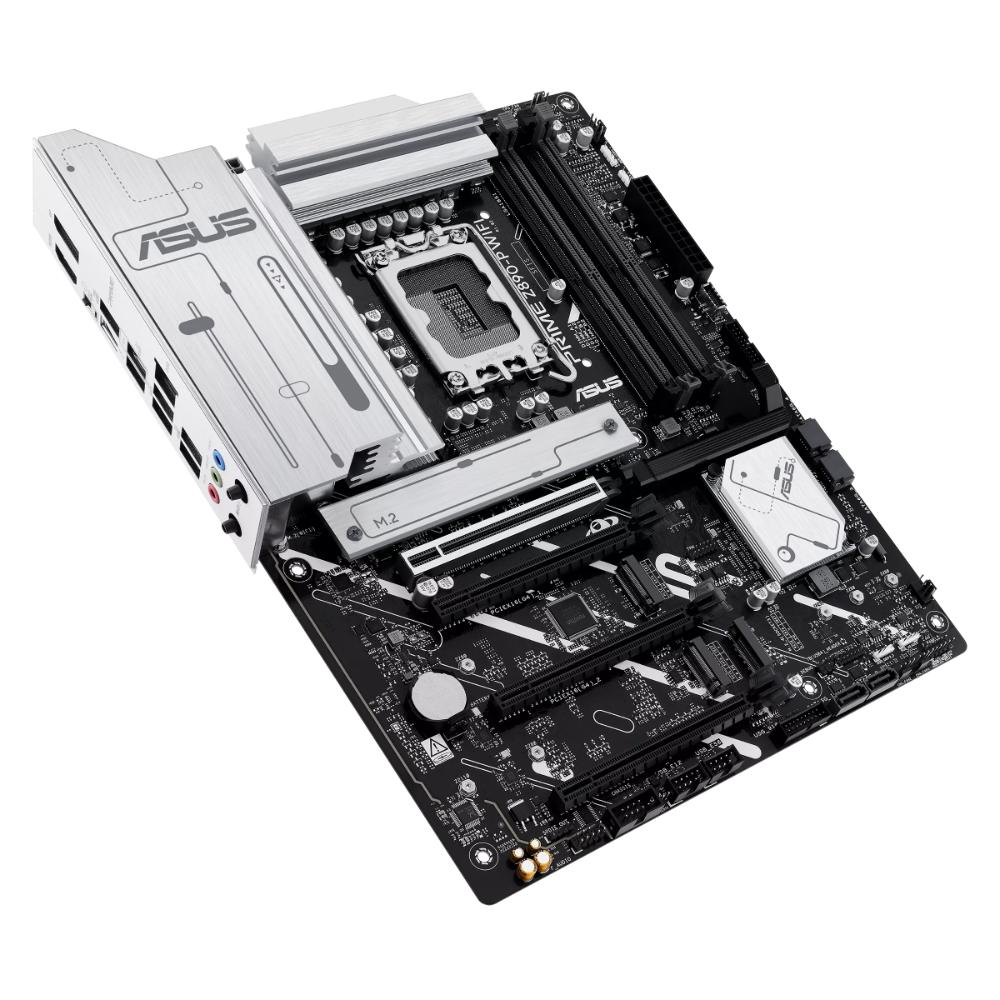

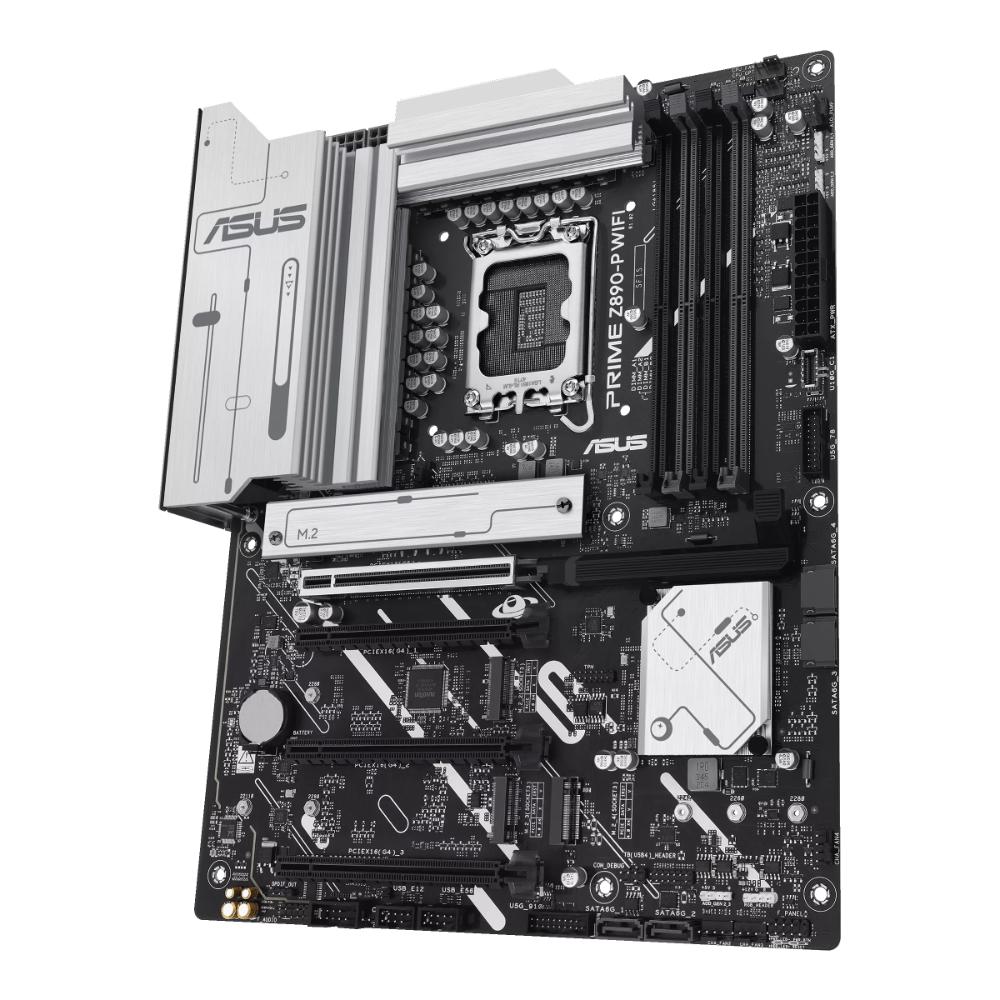

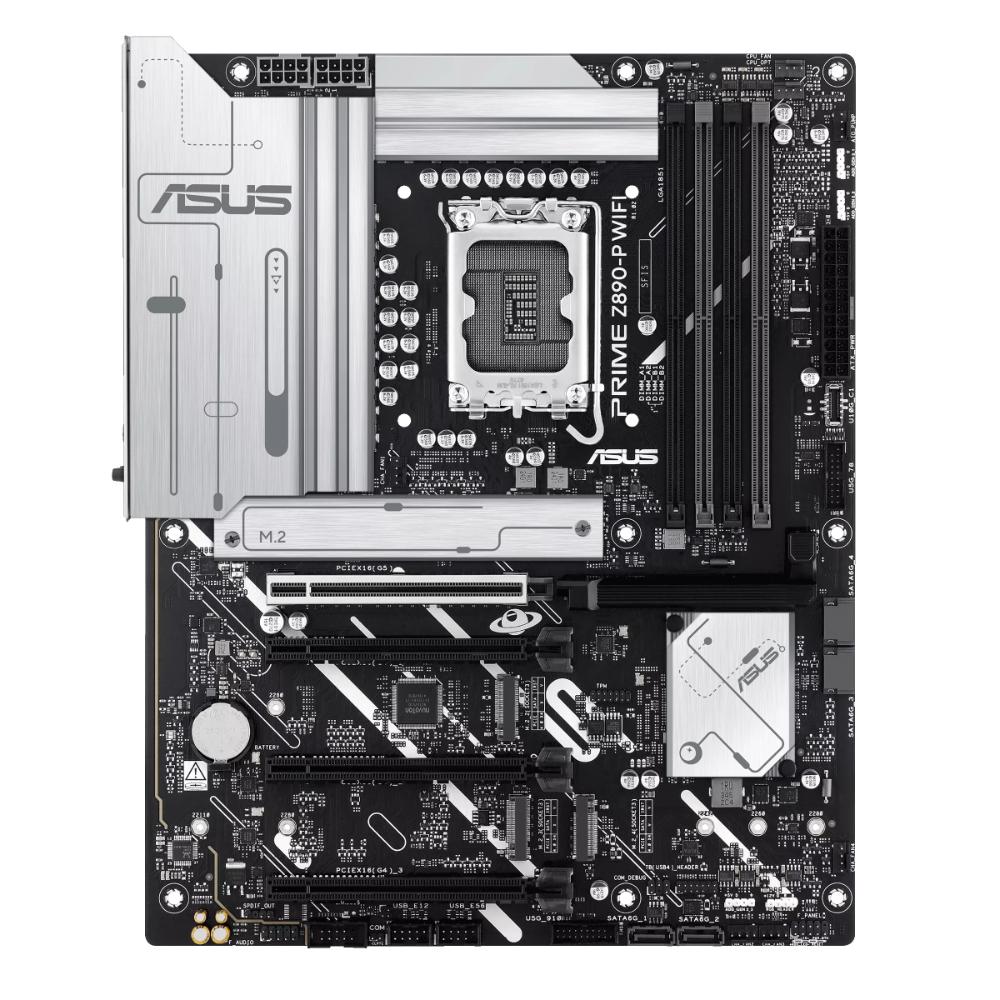

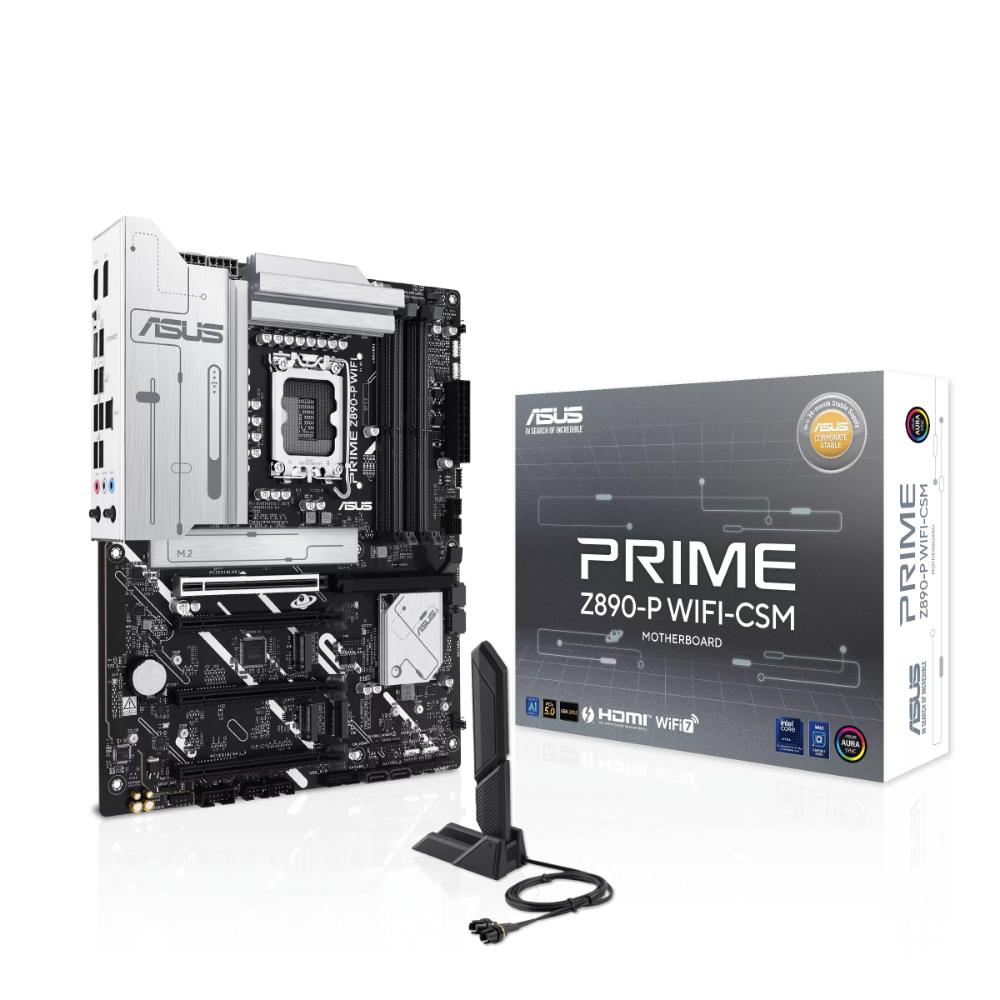

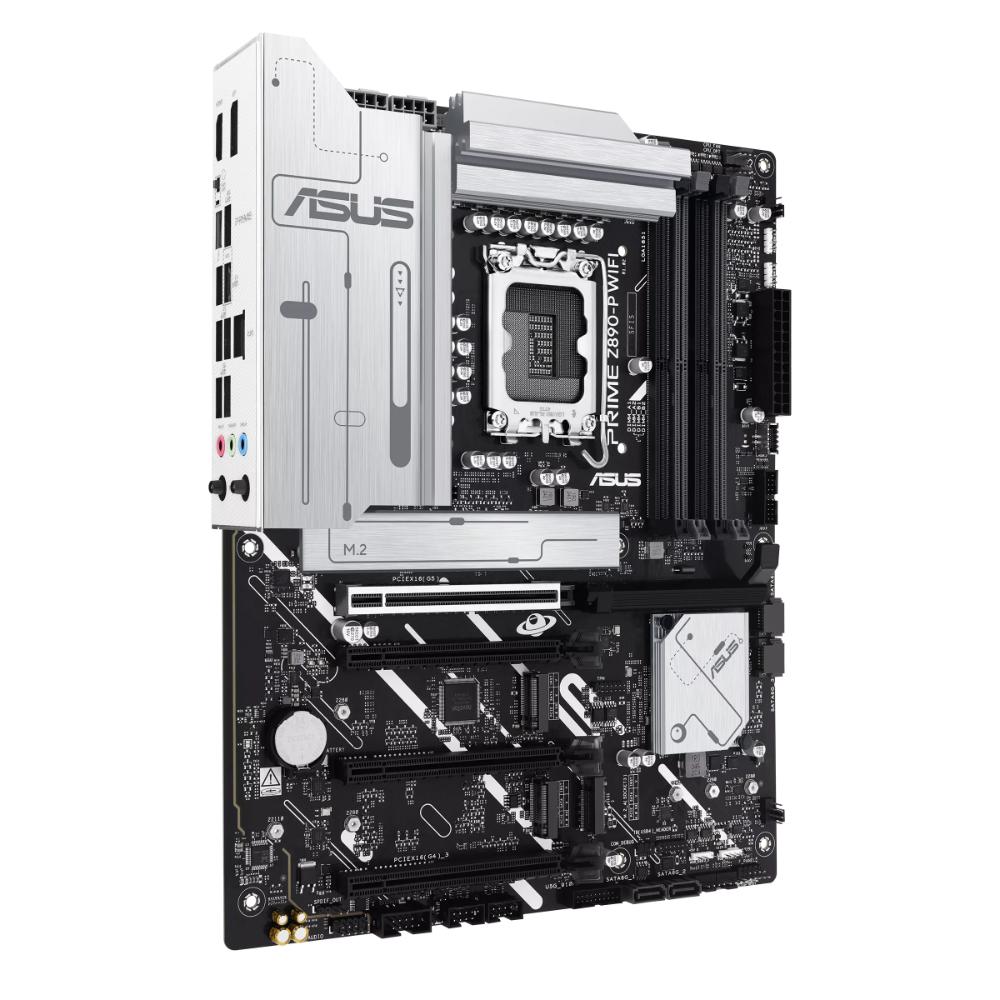

ASUS PRIME Z890-P WIFI-CSM | Intel Z890 ATX Motherboard | LGA1851 | DDR5 | Wi-Fi 7 | PCIe 5.0 | 4x M.2

The ASUS PRIME Z890-P WIFI-CSM is a feature-rich ATX motherboard engineered for the latest Intel Core Ultra Processors (Series 2). Built around the Intel Z890 chipset and LGA1851 socket, it provides a powerful foundation for advanced gaming PCs, AI-ready desktops, content creation workstations, professional systems, and high-performance PC builds.

With support for up to 256GB of DDR5 memory and speeds of up to 8666+ MT/s (OC), the PRIME Z890-P WIFI-CSM delivers the bandwidth required for demanding applications and intensive multitasking. Its PCIe 5.0 x16 slot, four M.2 slots, and four SATA 6Gb/s ports provide extensive expansion and storage options.

For modern connectivity, the motherboard includes Wi-Fi 7, Bluetooth 5.4, 2.5Gb Ethernet, Thunderbolt 4, high-speed USB connectivity, and 7.1-channel audio. ASUS 5X Protection III, comprehensive thermal solutions, Q-Design features, and Aura Sync RGB support further enhance reliability, usability, and customization.

Key Features

Intel LGA1851 & Core Ultra Processor Support

The PRIME Z890-P WIFI-CSM is designed for the latest generation of Intel desktop processors.

• Intel LGA1851 socket
• Supports Intel Core Ultra Processors (Series 2)
• Intel Turbo Boost Technology 2.0
• Intel Turbo Boost Max Technology 3.0 support depending on CPU
• Intel Z890 chipset
• Advanced AI PC-ready platform

High-Speed DDR5 Memory

Four DDR5 DIMM slots provide high memory capacity and excellent bandwidth for gaming, productivity, content creation, and AI workloads.

• 4 × DDR5 DIMM slots
• Maximum capacity: 256GB
• Up to 8666+ MT/s (OC)
• Dual-channel memory architecture
• Non-ECC, unbuffered DDR5
• Supports Clocked Unbuffered DIMM (CUDIMM)
• Intel XMP support
• ASUS Enhanced Memory Profile III (AEMPIII)
• ASUS DIMM Fit
• On-Die ECC support

Actual supported memory speeds depend on the CPU, DIMM configuration, and memory modules installed.

PCIe 5.0 Graphics & Expansion

The motherboard provides a PCIe 5.0 x16 slot for next-generation graphics cards and high-bandwidth expansion hardware.

• 1 × PCIe 5.0 x16
• 2 × PCIe 4.0 x16 operating at x4
• 1 × PCIe 4.0 x16 operating at x1
• PCIe bifurcation support
• ASUS PCIe Slot Q-Release
• SafeSlot protection

Quad M.2 NVMe Storage

Four M.2 slots provide extensive high-speed storage expansion.

• 4 × M.2 slots
• M.2_1: PCIe 5.0 x4
• M.2_2: PCIe 4.0 x4
• M.2_3: PCIe 4.0 x4
• M.2_4: PCIe 4.0 x4 / SATA mode
• Supports compatible 2242, 2260, 2280, and 22110 drives
• 4 × SATA 6Gb/s ports
• Intel Rapid Storage Technology
• PCIe RAID 0/1/5/10
• SATA RAID 0/1/5/10
• CPU-connected M.2 RAID 0/1/5 support

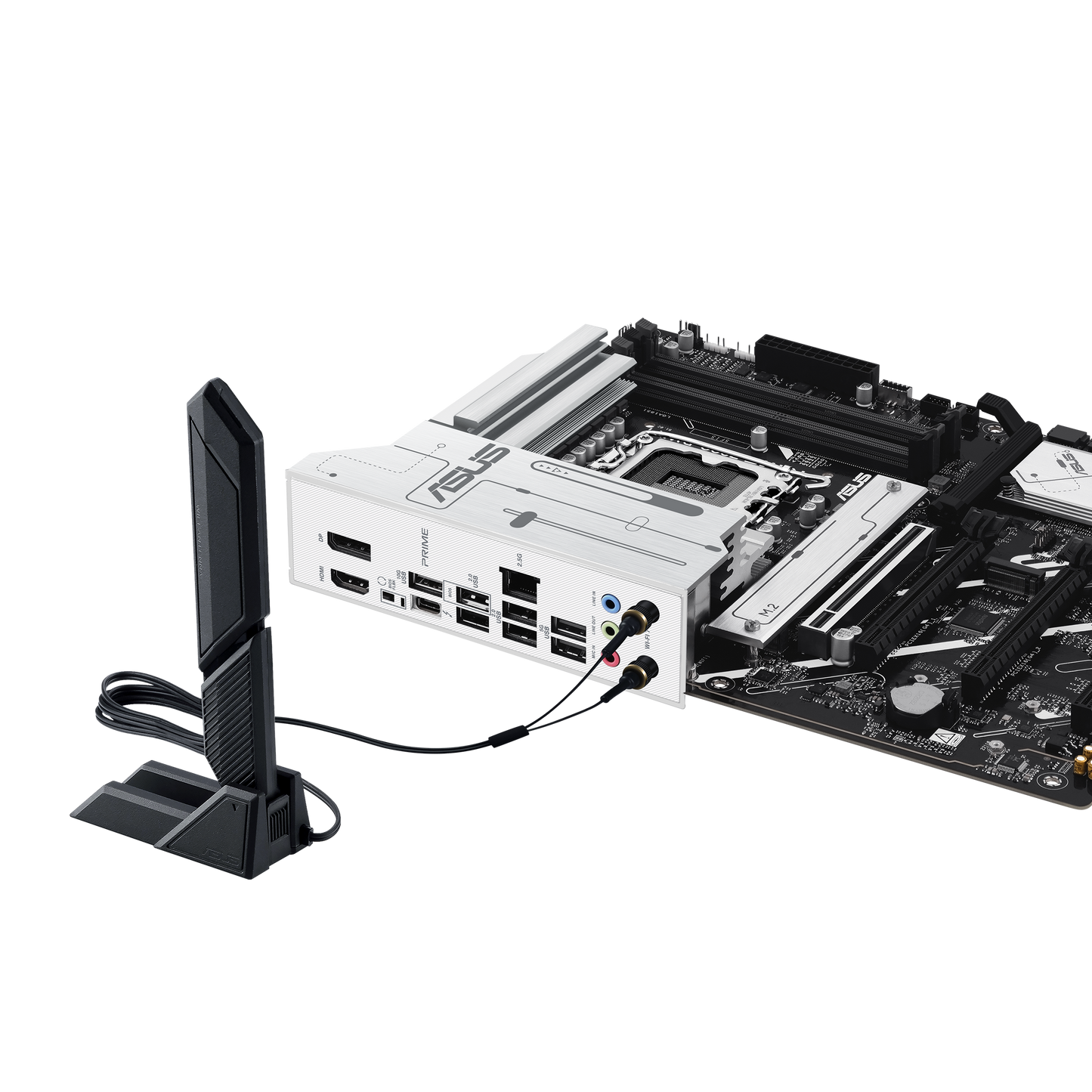

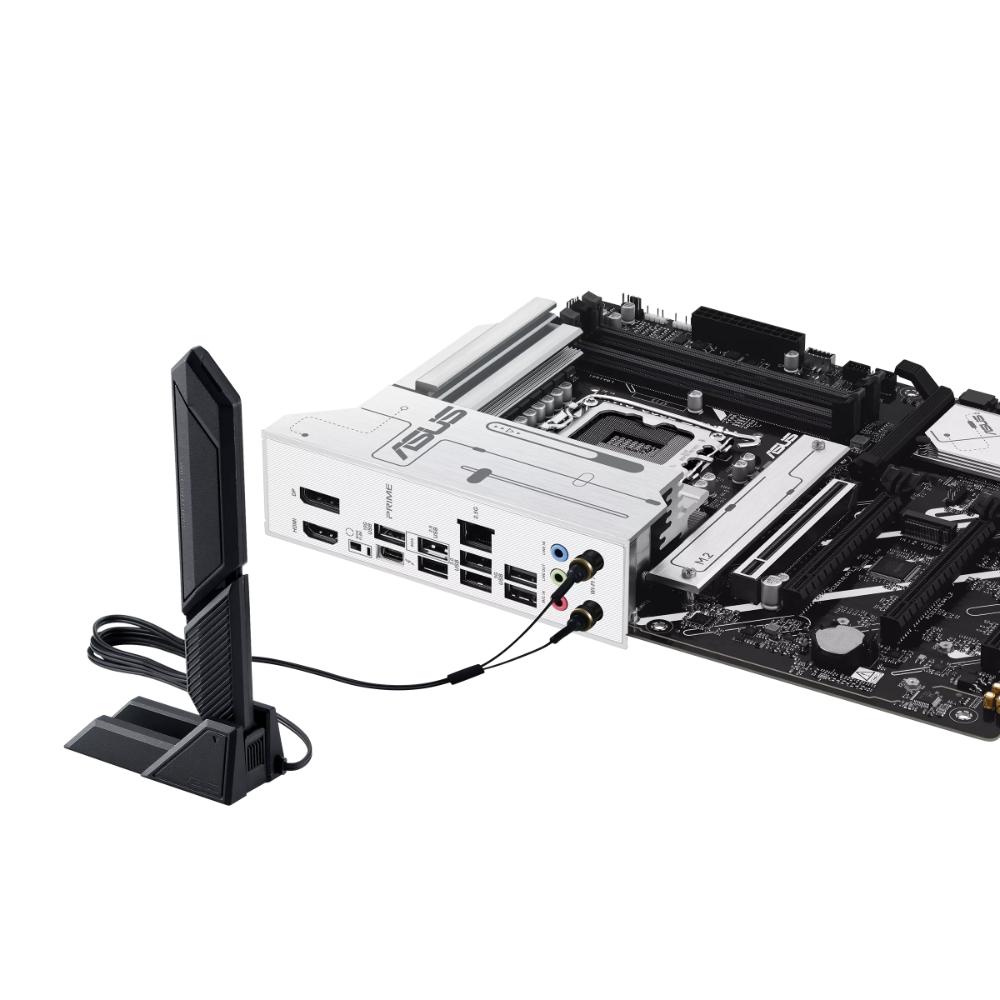

Next-Generation Wi-Fi 7

Built-in Wi-Fi 7 provides high-speed wireless networking for modern connected PCs.

• 2×2 Wi-Fi 7 (802.11be)
• 2.4 GHz / 5 GHz / 6 GHz support
• Wi-Fi 7 160 MHz bandwidth
• Up to 2.9 Gbps transfer rate
• Bluetooth 5.4
• Wi-Fi 7 full functionality on Windows 11 requires version 24H2 or later

Wireless features and 6GHz availability may vary according to operating system and regional regulations.

2.5 Gb Ethernet

The integrated Realtek 2.5Gb Ethernet controller provides fast wired networking for gaming, large file transfers, NAS environments, streaming, and professional workloads.

• 2.5 Gb Ethernet
• ASUS LANGuard
• High-speed wired connectivity

Thunderbolt 4 & High-Speed USB

The PRIME Z890-P WIFI-CSM includes modern high-speed connectivity, including a rear Thunderbolt 4 USB Type-C port.

Rear USB:

• 1 × Thunderbolt 4 USB Type-C
• 1 × USB 10 Gbps Type-A
• 2 × USB 5 Gbps Type-A
• 4 × USB 2.0 Type-A

Front USB:

• 1 × USB 10 Gbps Type-C connector
• 2 × USB 5 Gbps headers supporting 4 additional ports
• 2 × USB 2.0 headers supporting 4 additional ports

The Thunderbolt 4 port supports DisplayPort and Thunderbolt video output.

Display Connectivity

The motherboard provides multiple display outputs when paired with a compatible Intel processor with integrated graphics.

• 1 × DisplayPort
• 1 × HDMI
• 1 × Thunderbolt 4 USB Type-C
• DisplayPort up to 4K@60Hz
• HDMI 2.1 up to 4K at 60 Hz
• Thunderbolt 4 video output up to 8K@60Hz with DSC
• DP Alt Mode support up to UHBR20

Actual graphics capabilities depend on the installed processor.

7.1-Channel High Definition Audio

The PRIME Z890-P WIFI-CSM delivers immersive audio through a Realtek 7.1-channel High Definition Audio codec.

• Realtek 7.1 Surround Sound
• Up to 24-bit/192 kHz playback
• Jack detection
• Multi-streaming
• Front-panel jack retasking
• Audio shielding
• Premium audio capacitors
• Dedicated audio PCB layers
• S/PDIF output header

Comprehensive Cooling & Fan Control

ASUS provides a comprehensive cooling system for stable performance under demanding workloads.

• VRM heatsink design
• M.2 heatsink
• 4 × chassis fan headers
• 1 × CPU fan header
• 1 × CPU OPT fan header
• 1 × AIO pump header
• Fan Xpert 4 with AI Cooling II

ASUS 5X Protection III

Designed with multiple hardware protection features for dependable operation.

• DIGI+ VRM with DrMOS
• ASUS LANGuard
• Overvoltage Protection
• SafeSlot
• Stainless-steel back I/O

ASUS Q-Design

Convenient installation, troubleshooting, and maintenance features include:

• M.2 Q-Latch
• PCIe Slot Q-Release
• Q-Antenna
• Q-Dashboard
• Q-DIMM
• Q-LED Core
• Q-Slot

Aura Sync RGB

Customize compatible components and accessories with ASUS Aura Sync.

• 1 × Aura RGB header
• 3 × Addressable Gen 2 headers
• Aura Sync support

ASUS EZ DIY Features

The PRIME Z890-P WIFI-CSM includes several features designed to simplify PC building and maintenance.

• BIOS FlashBack button
• BIOS FlashBack LED
• ProCool
• Pre-mounted I/O shield
• Clear CMOS
• M.2 Q-Latch
• PCIe Q-Release
• SafeSlot
• SafeDIMM

BIOS & Software

The motherboard features a 256 MB UEFI AMI BIOS and a comprehensive software ecosystem.

ASUS Exclusive Software

• Armoury Crate
• Aura Creator
• Aura Sync
• Fan Xpert 4 with AI Cooling II
• Power Saving
• ASUS DriverHub
• ASUS GlideX
• ASUS CPU-Z
• TurboV Core
• NPU Boost for Intel K-series processors
• Norton 360 Deluxe – 60-day free trial
• WinRAR

UEFI BIOS

• ASUS CrashFree BIOS 3
• ASUS EZ Flash
• ASUS UEFI BIOS EZ Mode
• ASUS MyHotkey

Technical Specifications

Specification	Details
Model	ASUS PRIME Z890-P WIFI-CSM
Series	ASUS PRIME
Socket	Intel LGA1851
CPU Support	Intel Core Ultra Processors (Series 2)
Chipset	Intel Z890
Form Factor	ATX
Dimensions	30.5 × 24.4 cm / 12 × 9.6 in
Memory Type	DDR5
Memory Slots	4 × DIMM
Maximum Memory	256GB
Memory Speed	Up to 8666+ MT/s (OC)
Memory Architecture	Dual Channel
XMP Support	Yes.
CUDIMM Support	Yes.
Primary PCIe Slot	1 × PCIe 5.0 x16
Additional PCIe	2 × PCIe 4.0 x16 (x4), 1 × PCIe 4.0 x16 (x1)
M.2 Slots	4
Primary M.2 Interface	PCIe 5.0 x4
Additional M.2	PCIe 4.0 x4
SATA Ports	4 × SATA 6 Gb/s
LAN	Realtek 2.5 Gb Ethernet
Wireless	Wi-Fi 7
Bluetooth	Bluetooth 5.4
Rear USB	8 ports
Thunderbolt	1 × Thunderbolt 4 USB Type-C
DisplayPort	1
HDMI	1
Audio	Realtek 7.1-channel HD Audio
RGB	Aura Sync
BIOS	256 MB UEFI AMI BIOS
Operating System	Windows 11 22H2 and later

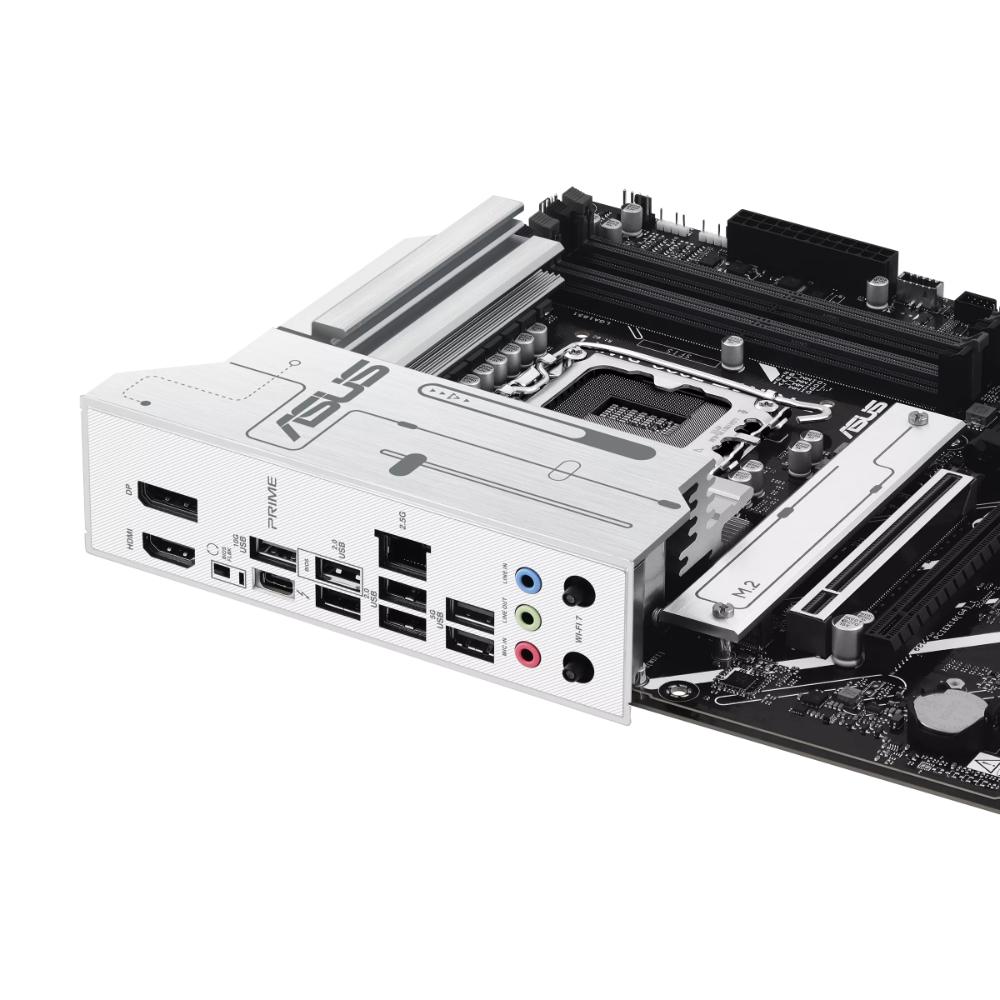

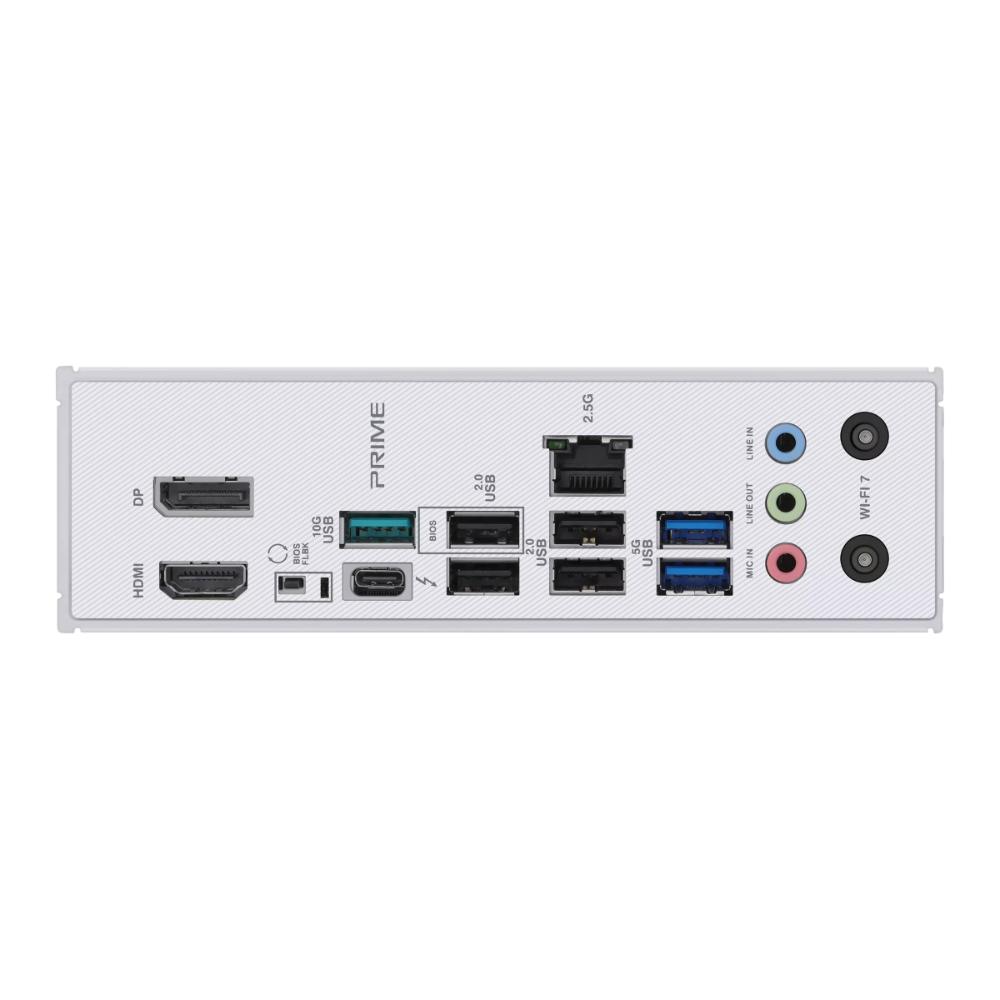

Back Panel I/O

• 1 × Thunderbolt 4 USB Type-C
• 1 × USB 10 Gbps Type-A
• 2 × USB 5 Gbps Type-A
• 4 × USB 2.0 Type-A
• 1 × DisplayPort
• 1 × HDMI
• 1 × Wi-Fi module
• 1 × Realtek 2.5 Gb Ethernet
• 3 × audio jacks
• 1 × BIOS FlashBack button

Ideal For

• Intel Core Ultra Series 2 PCs
• High-end gaming PCs
• AI-ready desktop systems
• Content creation workstations
• Professional productivity PCs
• Streaming systems
• High-speed NVMe storage builds
• Wi-Fi 7 gaming PCs
• Thunderbolt 4 workstations
• High-performance desktop builds

Why Choose the ASUS PRIME Z890-P WIFI-CSM?

The ASUS PRIME Z890-P WIFI-CSM combines the latest Intel Z890 platform with high-speed DDR5 memory, PCIe 5.0, four M.2 slots, Wi-Fi 7, 2.5Gb Ethernet, Thunderbolt 4, extensive USB connectivity, and robust ASUS power and thermal technologies.

With support for up to 256GB DDR5 memory, next-generation PCIe 5.0 expansion, multiple NVMe drives, and modern wireless and wired networking, it is an excellent choice for users building a powerful Intel Core Ultra Series 2 gaming PC, AI PC, workstation, or professional desktop.
