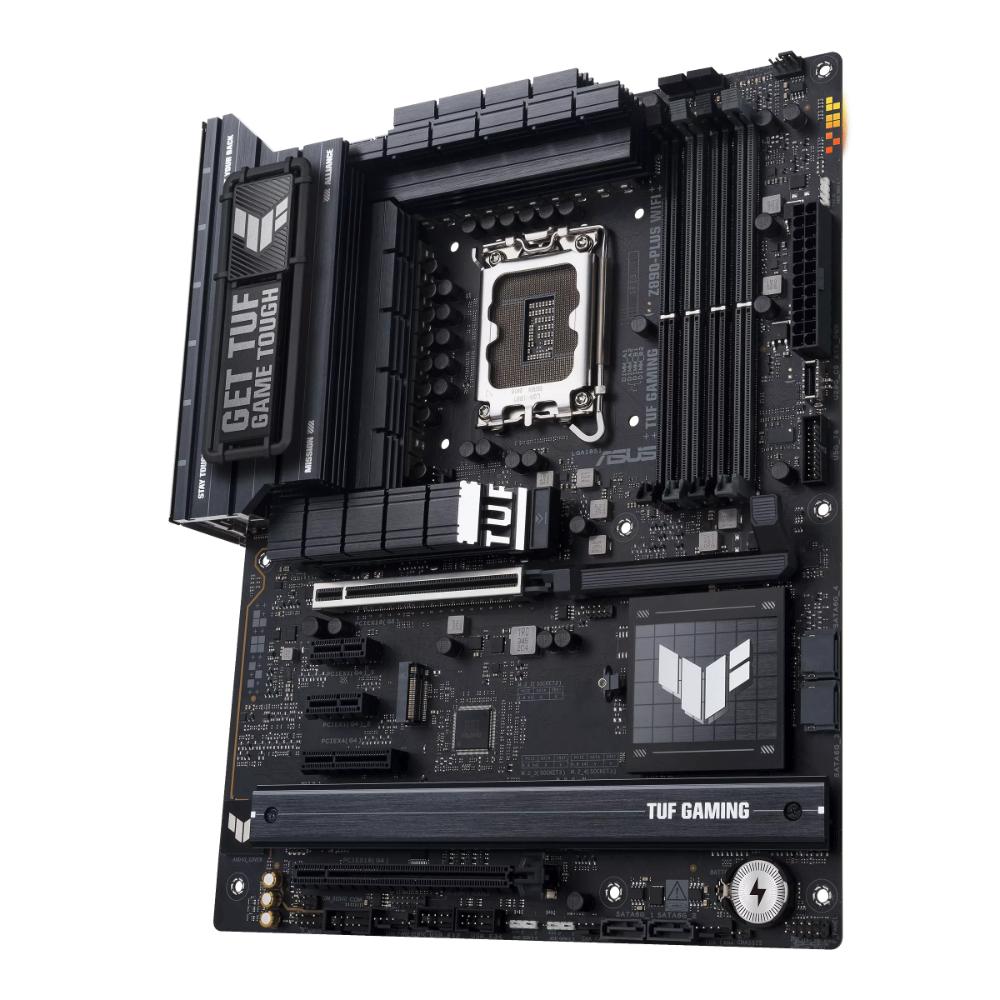

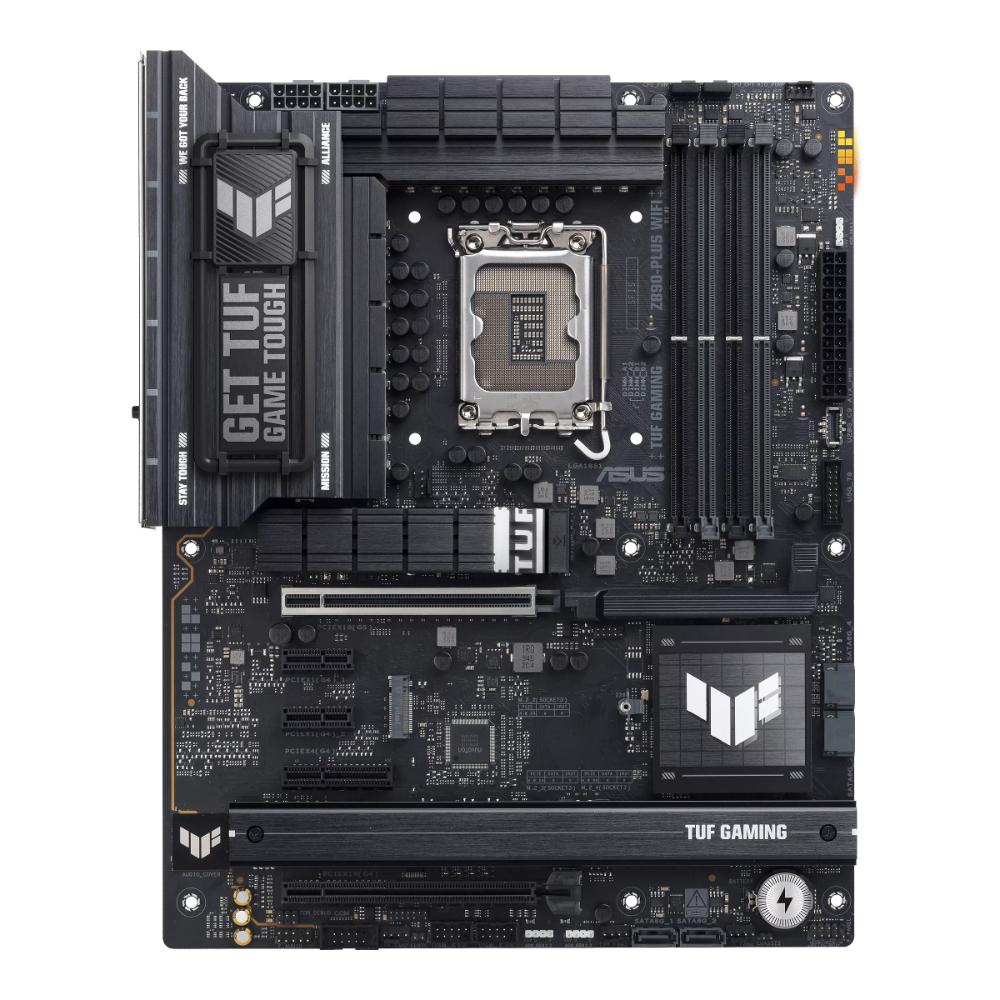

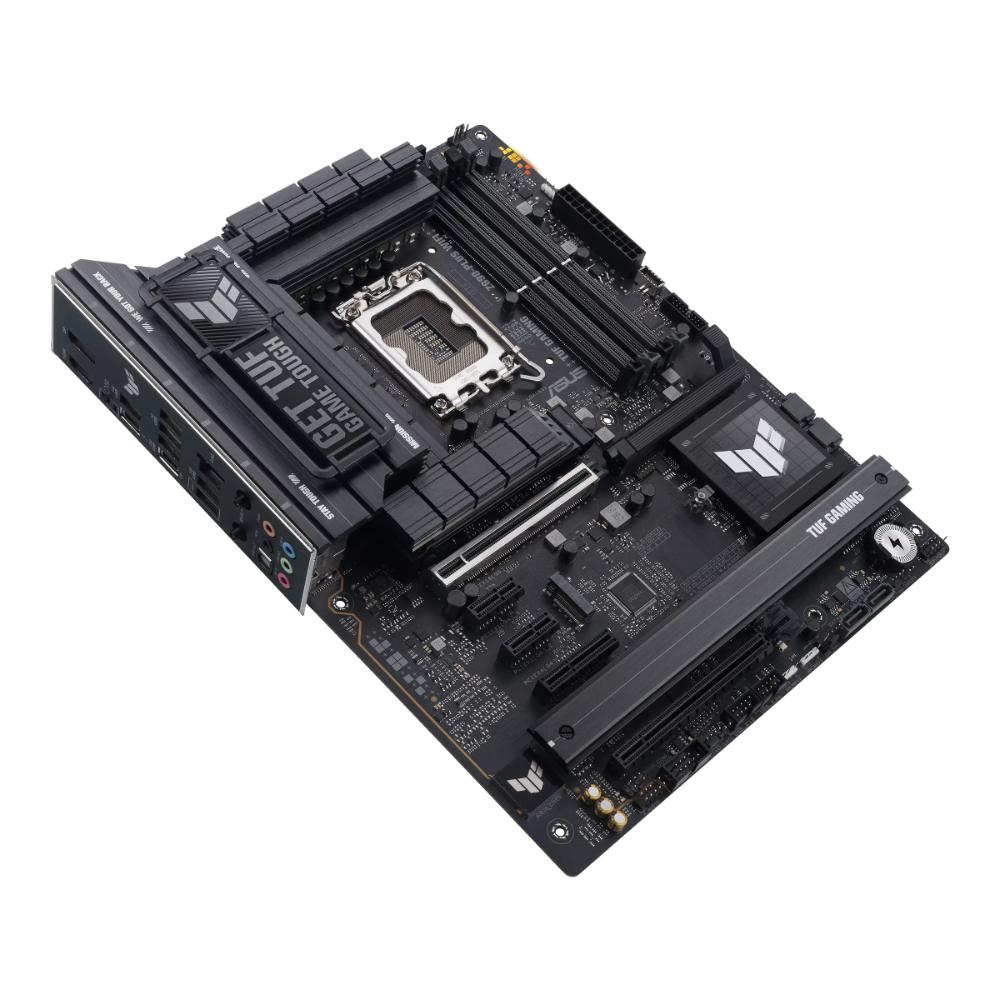

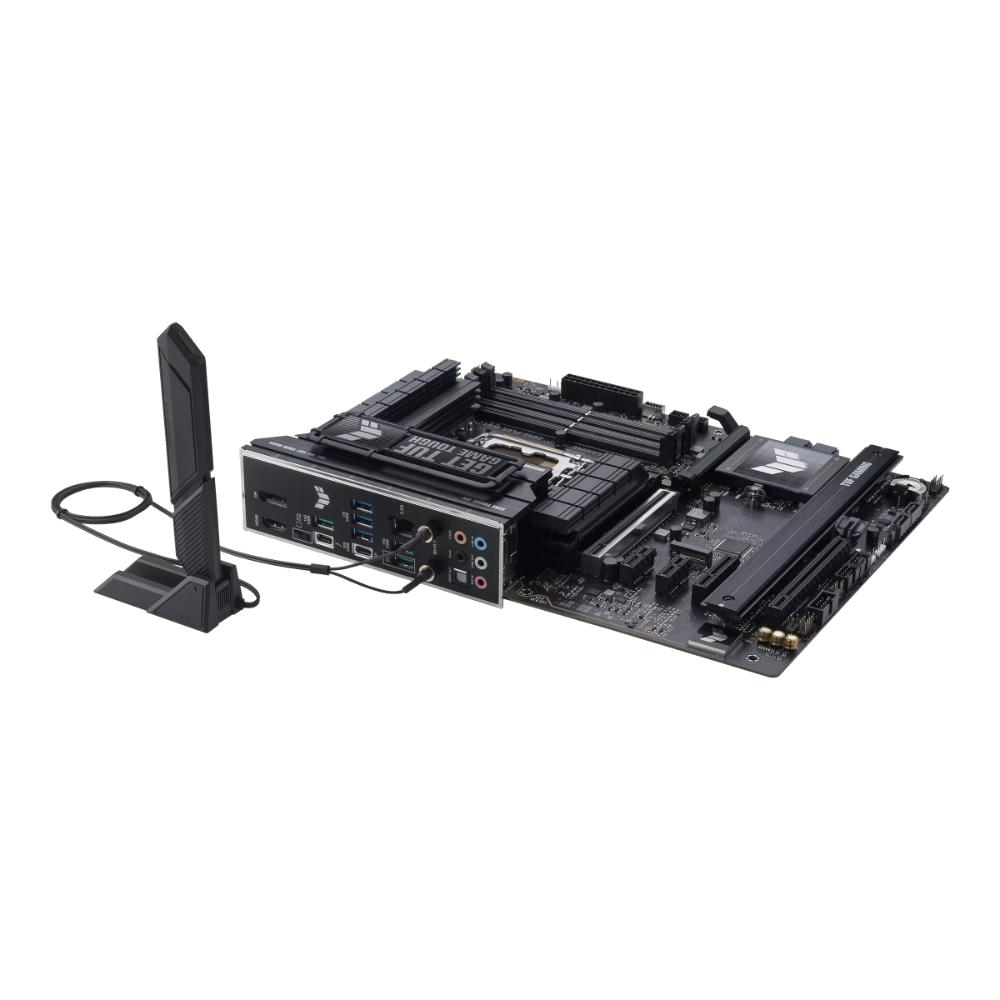

ASUS TUF GAMING Z890-PLUS WIFI | Intel Z890 | LGA1851 | DDR5 | Wi-Fi 7 | PCIe 5.0 | 4x M.2 | Thunderbolt 4

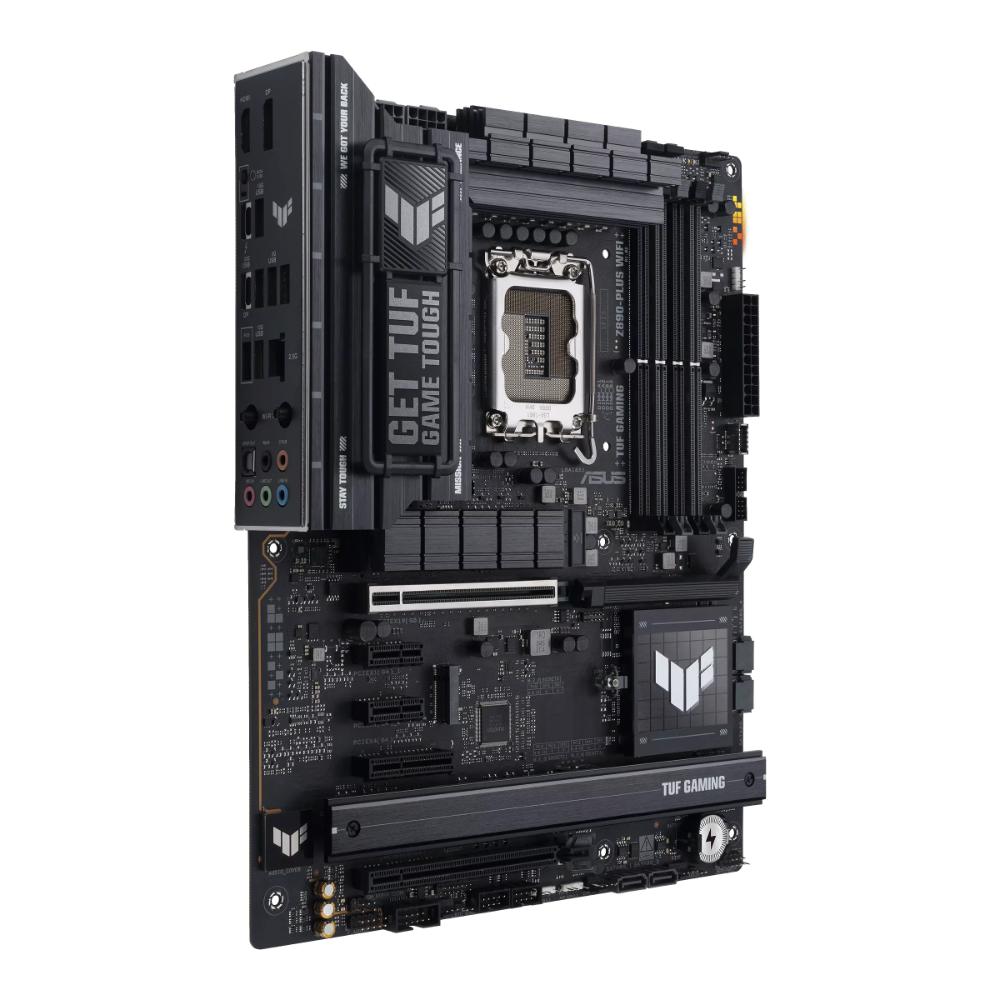

The ASUS TUF GAMING Z890-PLUS WIFI is a powerful ATX gaming motherboard designed for the latest Intel Core Ultra Processors (Series 2). Built on the Intel Z890 chipset and LGA1851 socket, it combines robust power delivery, comprehensive cooling, next-generation connectivity, and proven TUF durability for high-performance gaming and demanding workloads.

With support for up to 256GB of DDR5 memory at speeds up to 9066+ MT/s (OC), a PCIe 5.0 x16 slot, four M.2 slots, Wi-Fi 7, 2.5Gb Ethernet, Thunderbolt 4, and high-speed USB connectivity, the TUF GAMING Z890-PLUS WIFI provides an excellent foundation for a modern gaming PC, AI-ready desktop, workstation, or enthusiast build.

Key Features

Intel Core Ultra Series 2 & LGA1851 Support

Designed for the latest Intel desktop platform, the TUF GAMING Z890-PLUS WIFI supports Intel Core Ultra Processors (Series 2).

• Intel LGA1851 socket
• Supports Intel Core Ultra Processors (Series 2)
• Intel Z890 chipset
• Intel Turbo Boost Technology 2.0
• Intel Turbo Boost Max Technology 3.0 support depending on CPU
• Advanced AI PC-ready platform

High-Speed DDR5 Memory

Four DIMM slots support high-capacity DDR5 memory and extreme overclocked speeds for demanding gaming and productivity workloads.

• 4 × DDR5 DIMM slots
• Maximum capacity: 256GB
• Up to 9066+ MT/s (OC)
• Dual-channel memory architecture
• Non-ECC, unbuffered memory
• Clocked Unbuffered DIMM (CUDIMM) support
• Intel XMP support
• ASUS Enhanced Memory Profile III (AEMPIII)
• ASUS DIMM Fit
• On-Die ECC support

Supported memory speed and capacity depend on the processor, memory configuration, and installed DIMMs.

PCIe 5.0 Ready

The primary PCIe 5.0 x16 slot provides high-bandwidth connectivity for next-generation graphics cards and expansion hardware.

• 1 × PCIe 5.0 x16
• 1 × PCIe 4.0 x16 operating at x4
• 1 × PCIe 4.0 x4
• 2 × PCIe 4.0 x1
• PCIe bifurcation support
• ASUS PCIe Slot Q-Release
• SafeSlot protection

Four M.2 Slots

Install multiple high-speed NVMe SSDs with four onboard M.2 slots.

• 4 × M.2 slots
• M.2_1: PCIe 5.0 x4
• M.2_2: PCIe 4.0 x4
• M.2_3: PCIe 4.0 x4
• M.2_4: PCIe 4.0 x4 / SATA mode
• Supports 2242, 2260, and 2280 drives
• M.2_3 supports 22110 drives
• 4 × SATA 6 Gb/s
• Intel Rapid Storage Technology
• PCIe RAID 0/1/5/10
• SATA RAID 0/1/5/10
• CPU-connected M.2 RAID 0/1/5 support

Wi-Fi 7 & Bluetooth 5.4

Built-in Wi-Fi 7 provides fast wireless networking with support for the latest wireless standards.

• 2×2 Wi-Fi 7 (802.11be)
• 2.4 GHz / 5 GHz / 6 GHz support
• Wi-Fi 7 160 MHz bandwidth
• Up to 2.9 Gbps transfer rate
• Bluetooth 5.4
• ASUS Wi-Fi Q-Antenna

Full Wi-Fi 7 functionality on Windows 11 requires version 24H2 or later. Windows 10 does not have a supplied Wi-Fi driver for this configuration.

Intel 2.5 Gb Ethernet

The integrated Intel 2.5Gb Ethernet controller provides fast and reliable wired networking for competitive gaming, streaming, NAS systems, large file transfers, and demanding network workloads.

• Intel 2.5 Gb Ethernet
• TUF LANGuard
• High-speed wired connectivity

Thunderbolt 4 & USB 20 Gbps

The TUF GAMING Z890-PLUS WIFI delivers a versatile selection of high-speed USB connectivity, including Thunderbolt 4.

Rear USB:

• 1 × Thunderbolt 4 USB Type-C
• 1 × USB 20 Gbps Type-C
• 3 × USB 10 Gbps Type-A
• 3 × USB 5 Gbps Type-A

Front USB:

• 1 × USB 20 Gbps Type-C connector
• 1 × USB 5 Gbps header supporting 2 additional ports
• 2 × USB 2.0 headers supporting 4 additional ports

The USB Type-C power delivery output supports up to 5V/3A.

Multi-Display Support

The motherboard provides multiple display outputs when used with a compatible Intel processor featuring integrated graphics.

• 1 × DisplayPort
• 1 × HDMI
• 1 × Thunderbolt 4 USB Type-C
• 1 × USB 20 Gbps Type-C with DisplayPort output
• DisplayPort up to 4K@60Hz
• HDMI 2.1 up to 4K at 60 Hz
• Thunderbolt 4 supports up to 8K at 60 Hz with DSC
• DisplayPort Alt Mode support up to UHBR20

Actual display capabilities depend on the installed processor.

Premium 7.1-Channel Audio

The TUF GAMING Z890-PLUS WIFI features the Realtek ALC1220P audio codec for high-quality gaming, entertainment, and communication.

• Realtek ALC1220P 7.1-channel HD Audio
• Up to 32-bit/192kHz playback
• 120 dB SNR stereo playback
• 113 dB SNR recording input
• Front and rear headphone impedance sensing
• Internal audio amplifier
• Audio shielding
• Premium audio capacitors
• Dedicated audio PCB layers
• Rear optical S/PDIF output
• Unique de-pop circuit

Comprehensive TUF Cooling

The motherboard is designed to maintain stable performance during demanding gaming and high-load workloads.

• M.2 heatsink backplate
• M.2 heatsink
• VRM heatsink design
• 4 × chassis fan headers
• CPU fan header
• CPU OPT fan header
• AIO pump header
• Fan Xpert 4 with AI Cooling II

TUF Protection

ASUS TUF GAMING components are designed with durability and protection in mind.

ASUS TUF Protection includes:

• DIGI+ VRM with DrMOS
• ESD Guards
• TUF LANGuard
• Overvoltage Protection
• SafeSlot
• Stainless-steel back I/O

These features help provide reliable operation for demanding gaming and extended workloads.

ASUS Q-Design

Convenient installation and troubleshooting features make building and maintaining a PC easier.

• M.2 Q-Latch
• M.2 Q-Release
• M.2 Q-Slide
• PCIe Slot Q-Release
• Q-Antenna
• Q-Dashboard
• Q-DIMM
• Q-LED
• Q-Slot

Aura Sync RGB

Customize your gaming setup with ASUS Aura Sync-compatible lighting.

• 3 × Addressable Gen 2 RGB headers
• Aura Sync support
• Compatible with a wide range of ASUS RGB components and accessories

ASUS EZ DIY

Built-in DIY features simplify installation, upgrades, and troubleshooting.

• BIOS FlashBack button
• BIOS FlashBack LED
• CPU socket lever protector
• ProCool
• Pre-mounted I/O shield
• SafeDIMM
• Clear CMOS
• PCIe Q-Release
• M.2 Q-Slide
• M.2 Q-Latch

BIOS & Software

The motherboard features a 256 MB UEFI AMI BIOS with ASUS utilities for system management, customization, and performance tuning.

ASUS Exclusive Software

• Armoury Crate
• Aura Creator
• Aura Sync
• Fan Xpert 4 with AI Cooling II
• Power Saving
• ASUS DriverHub
• ASUS GlideX
• TurboV Core
• TUF GAMING CPU-Z
• DTS Audio Processing
• Adobe Creative Cloud – Free Trial
• Norton 360 for Gamers – 60-day free trial
• WinRAR – 40-day free trial

UEFI BIOS

• ASUS CrashFree BIOS 3
• ASUS EZ Flash
• ASUS UEFI BIOS EZ Mode
• ASUS MyHotkey
• NPU Boost

Technical Specifications

Specification	Details
Model	ASUS TUF GAMING Z890-PLUS WIFI
Series	TUF GAMING
Socket	Intel LGA1851
CPU Support	Intel Core Ultra Processors (Series 2)
Chipset	Intel Z890
Form Factor	ATX
Dimensions	30.5 × 24.4 cm / 12 × 9.6 in
Memory Type	DDR5
Memory Slots	4 × DIMM
Maximum Memory	256GB
Memory Speed	Up to 9066+ MT/s (OC)
Memory Architecture	Dual Channel
XMP Support	Yes.
CUDIMM Support	Yes.
Primary PCIe Slot	1 × PCIe 5.0 x16
Additional PCIe	1 × PCIe 4.0 x16 (x4), 1 × PCIe 4.0 x4, 2 × PCIe 4.0 x1
M.2 Slots	4
Primary M.2 Interface	PCIe 5.0 x4
Additional M.2	PCIe 4.0 x4
SATA Ports	4 × SATA 6 Gb/s
LAN	Intel 2.5 Gb Ethernet
Wireless	Wi-Fi 7
Bluetooth	Bluetooth 5.4
Rear USB	8 ports
USB-C High-Speed	USB 20 Gbps + Thunderbolt 4
Audio Codec	Realtek ALC1220P
Audio	7.1-channel HD Audio
RGB	Aura Sync
BIOS	256 MB UEFI AMI BIOS
Operating System	Windows 11 22H2 and later

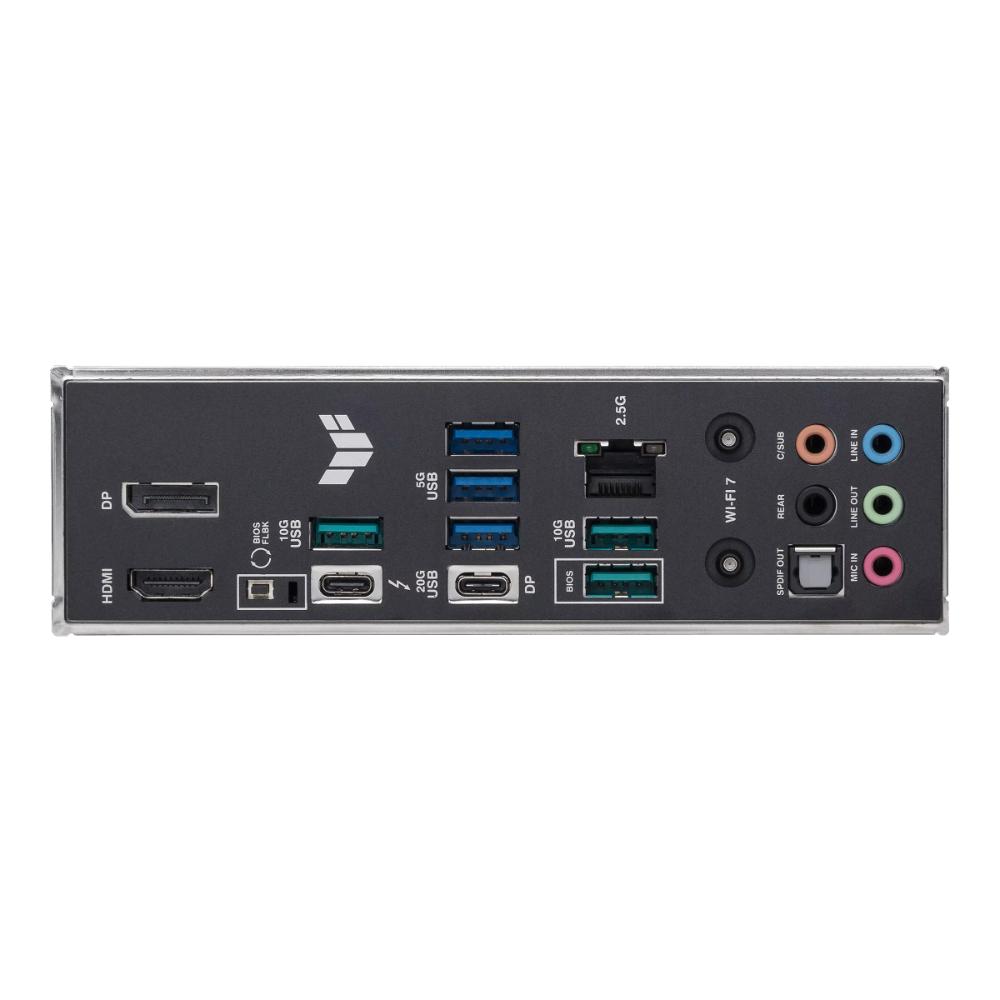

Back Panel I/O

• 1 × Thunderbolt 4 USB Type-C
• 1 × USB 20 Gbps USB Type-C with DP Alt Mode
• 3 × USB 10 Gbps Type-A
• 3 × USB 5 Gbps Type-A
• 1 × DisplayPort
• 1 × HDMI
• 1 × Wi-Fi module
• 1 × Intel 2.5 Gb Ethernet
• 5 × audio jacks
• 1 × optical S/PDIF out
• 1 × BIOS FlashBack button

Ideal For

• Intel Core Ultra Series 2 gaming PCs
• High-performance gaming systems
• Enthusiast PC builds
• AI-ready PCs
• Content creation workstations
• Streaming PCs
• Professional productivity systems
• High-speed NVMe storage builds
• Wi-Fi 7 gaming systems
• Thunderbolt 4 workstations
• DDR5 enthusiast builds

Why Choose ASUS TUF GAMING Z890-PLUS WIFI?

The ASUS TUF GAMING Z890-PLUS WIFI combines the performance of the Intel Z890 platform with the reliability and durability of the TUF GAMING series. Its support for DDR5 memory up to 9066+ MT/s (OC), PCIe 5.0, four M.2 slots, Wi-Fi 7, 2.5 Gb Ethernet, Thunderbolt 4, USB 20 Gbps, and premium ALC1220P audio makes it a strong choice for a modern high-performance PC.

Its robust power design, VRM and M.2 cooling, TUF protection technologies, BIOS FlashBack, Q-Design features, and Aura Sync support make it particularly well suited to users who want a durable, feature-rich platform for gaming, AI applications, content creation, streaming, and demanding everyday workloads.
