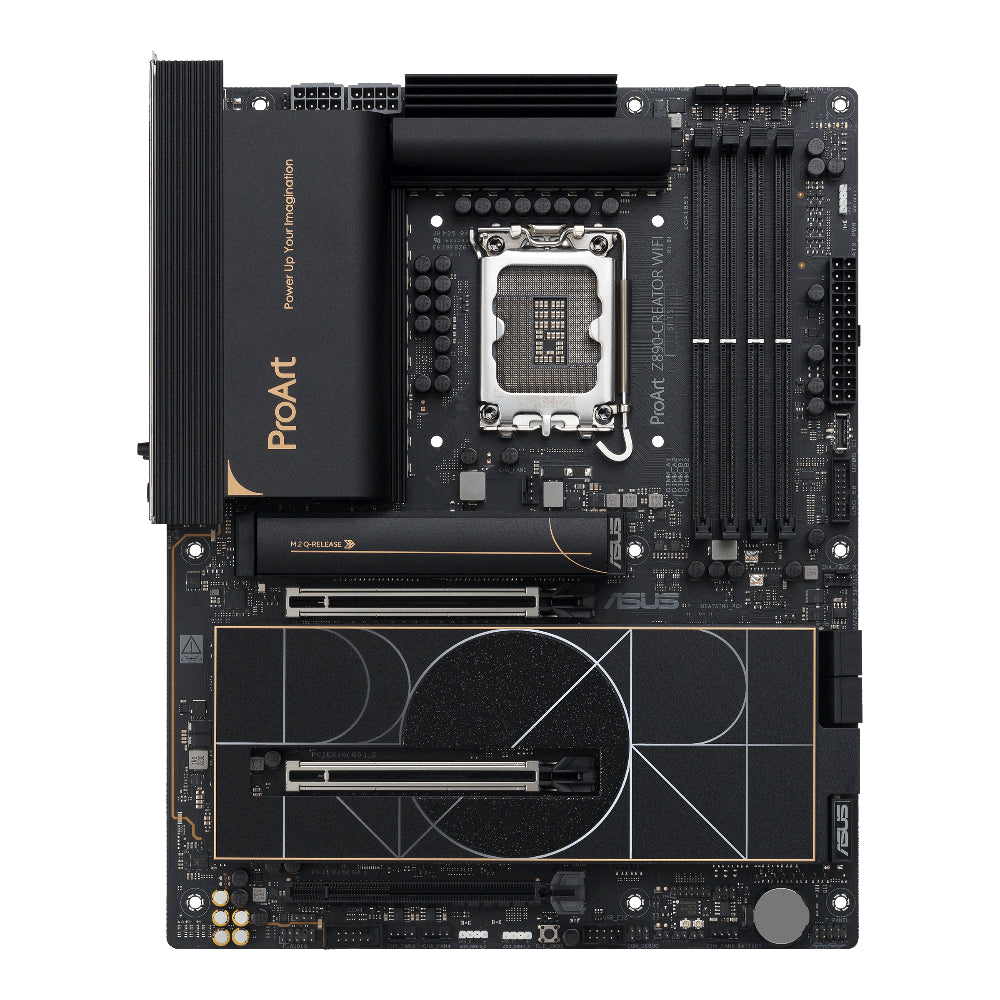

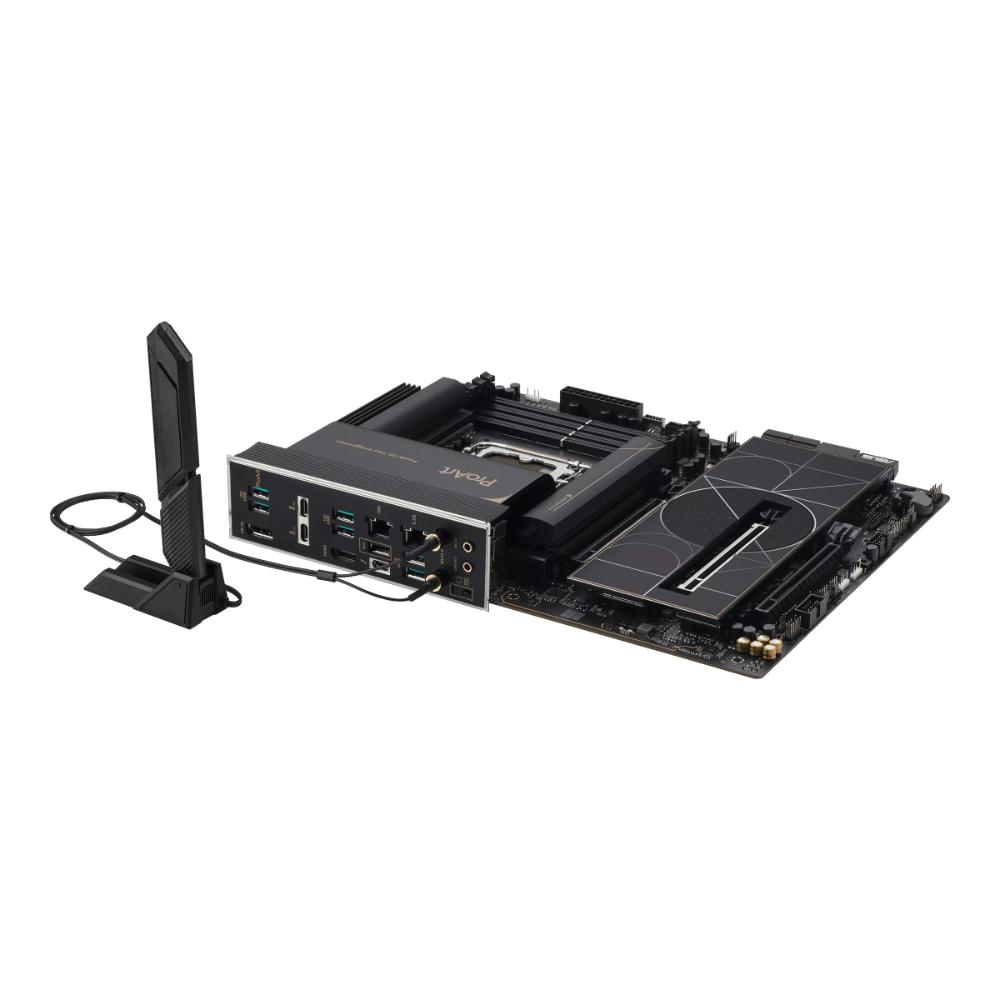

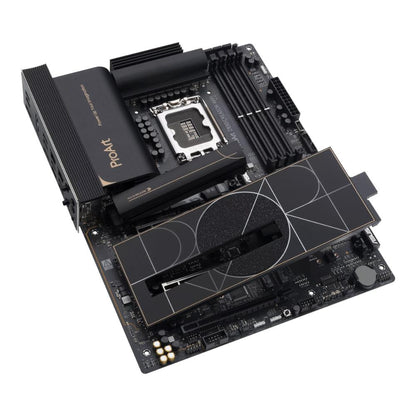

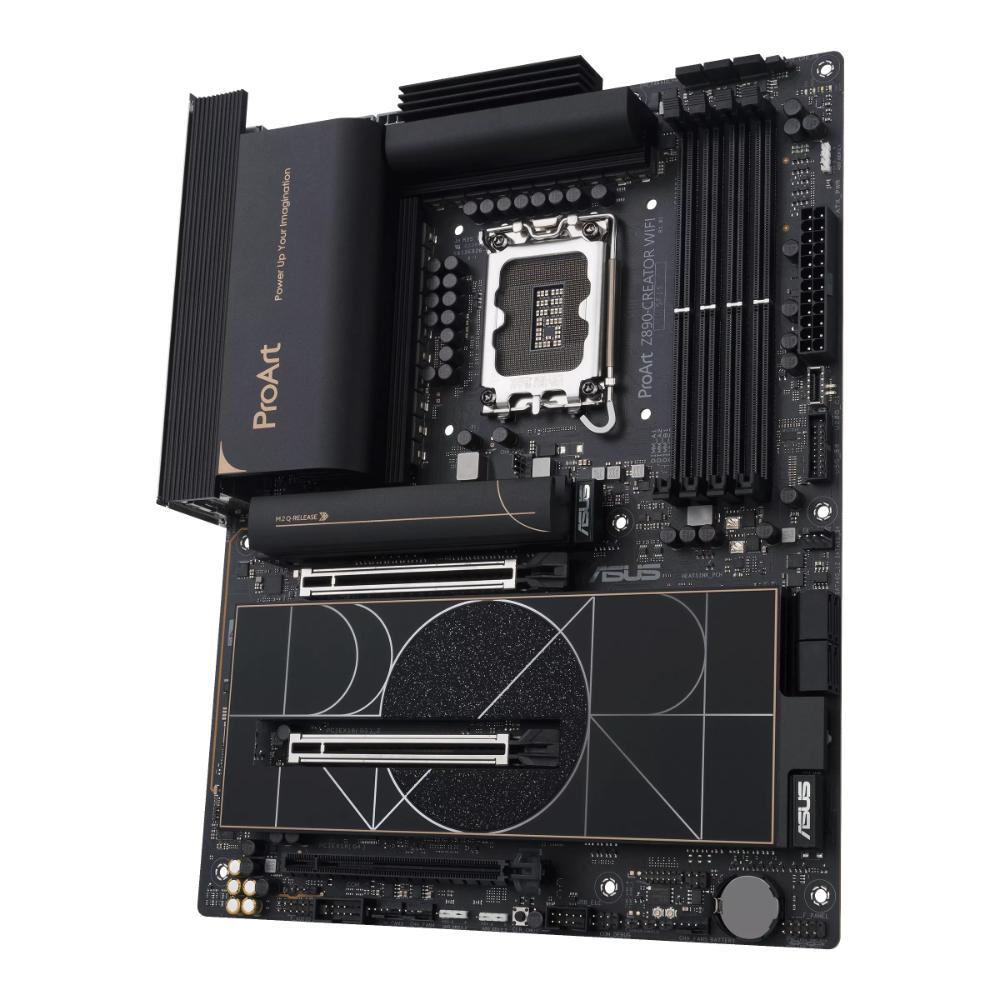

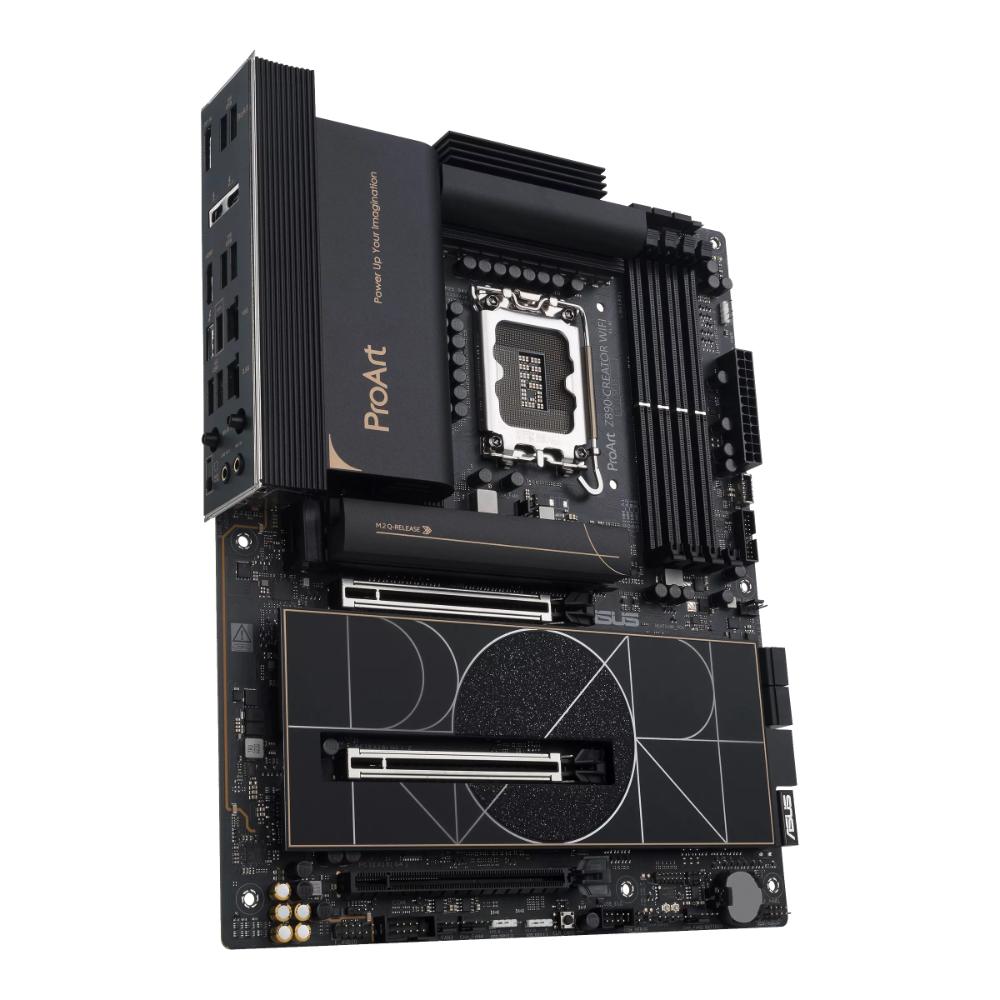

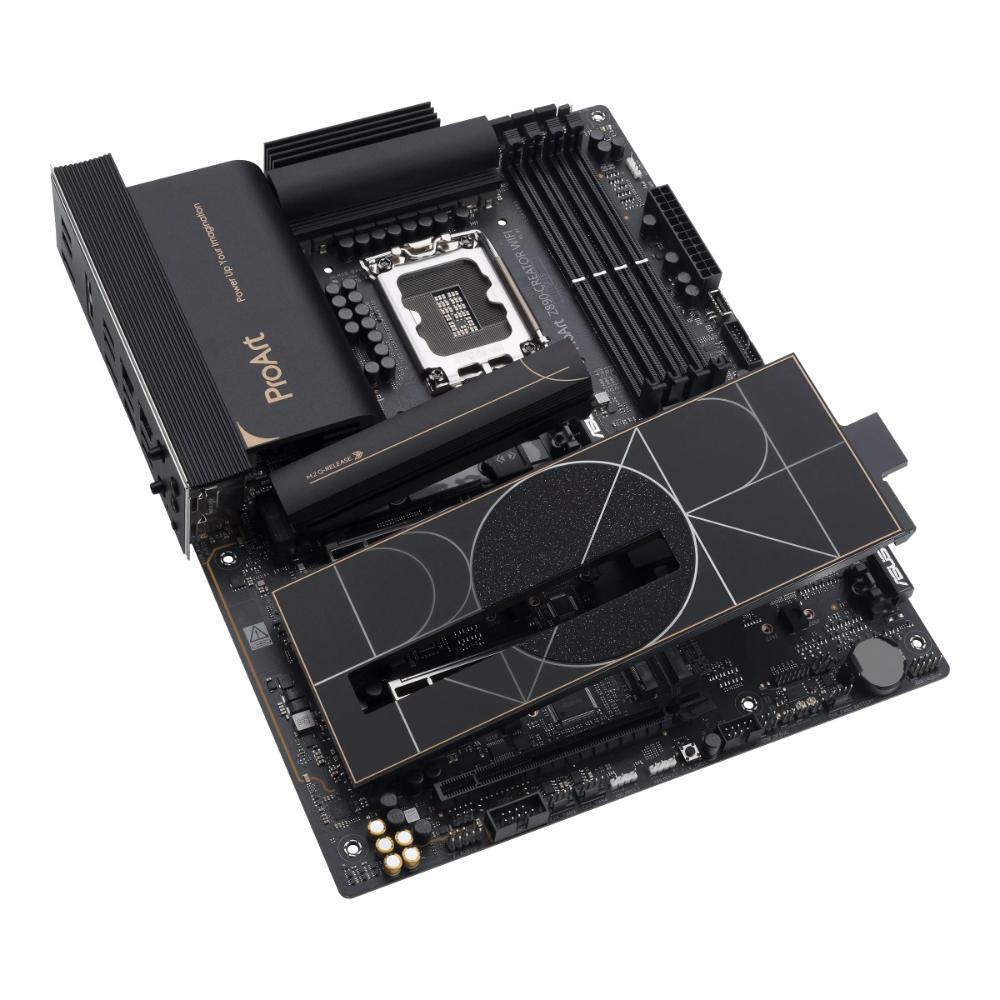

ASUS ProArt Z890-CREATOR WIFI | Intel Z890 | LGA1851 | DDR5 | Wi-Fi 7 | Thunderbolt 5 | 10GbE

The ASUS ProArt Z890-CREATOR WIFI is a premium ATX motherboard designed specifically for professional creators, engineers, developers, and high-performance workstation users. Built around the Intel Z890 chipset and LGA1851 socket, it supports the latest Intel Core Ultra Processors (Series 2) and combines exceptional processing performance with professional-grade connectivity and expansion.

Featuring 16+1+2+2 teamed power stages, support for up to 256GB of DDR5 memory at speeds up to 9066+ MT/s (OC), dual PCIe 5.0 x16 slots, five M.2 slots, dual Thunderbolt 5, Thunderbolt 4, 10Gb Ethernet + 2.5Gb Ethernet, and Wi-Fi 7, the ProArt Z890-CREATOR WIFI is built for demanding workflows such as 3D rendering, video production, photography, AI development, engineering, CAD, virtualization, and content creation.

Its sophisticated black design with metallic gold accents gives professional workstations a clean, refined appearance while delivering the connectivity and expandability expected from a high-end creator platform.

Key Features

Intel Core Ultra Series 2 & Z890 Platform

The ProArt Z890-CREATOR WIFI is built for the latest Intel desktop platform and supports Intel Core Ultra Processors (Series 2).

• Intel LGA1851 socket
• Intel Core Ultra Processors (Series 2)
• Intel Z890 chipset
• Intel Turbo Boost Technology 2.0
• Intel Turbo Boost Max Technology 3.0
• Advanced AI PC-ready platform
• NPU Boost support

Professional Power Design

A robust power delivery system provides a stable foundation for high-performance processors and demanding professional workloads.

• 16+1+2+2 teamed power stages
• ASUS DIGI+ VRM
• Dr. MOS
• Premium power components
• Overcurrent protection
• Overvoltage protection
• Designed for demanding workstation workloads

High-Speed DDR5 Memory

Four DIMM slots provide substantial memory capacity and high-speed performance for professional applications.

• 4 × DDR5 DIMM slots
• Up to 256GB total memory
• Up to 9066+ MT/s (OC)
• Dual-channel memory architecture
• Non-ECC unbuffered DDR5
• Clocked Unbuffered DIMM (CUDIMM) support
• Intel XMP support
• ASUS Enhanced Memory Profile III (AEMP III)
• DIMM Fit
• DIMM Flex
• On-Die ECC support

Actual memory support depends on the CPU, DIMM configuration, and memory modules installed.

Dual PCIe 5.0 x16 Slots

The ProArt Z890-CREATOR WIFI provides extensive PCIe bandwidth for graphics cards and professional expansion hardware.

• 2 × PCIe 5.0 x16 slots
• Supports x16 or x8/x8 configurations
• 1 × PCIe 4.0 x16 slot operating at x4
• PCIe bifurcation support
• PCIe SafeSlot
• Q-Release Slim

The dual PCIe 5.0 configuration is particularly useful for multi-GPU setups, high-speed accelerator cards, capture hardware, professional networking cards, and other workstation expansion devices.

Five M.2 Slots

With five M.2 slots, the ProArt Z890-CREATOR WIFI provides extensive high-speed NVMe storage expansion.

• 5 × M.2 Key M slots
• M.2_1: PCIe 5.0 x4
• M.2_2: PCIe 4.0 x4
• M.2_3: PCIe 4.0 x4
• M.2_4: PCIe 4.0 x4
• M.2_5: PCIe 4.0 x4 / SATA mode
• Supports 2242, 2260, 2280, and selected 22110 drives
• 4 × SATA 6Gb/s ports
• Intel Rapid Storage Technology
• PCIe RAID 0/1/5/10
• SATA RAID 0/1/5/10
• CPU-connected M.2 RAID 0/1/5 support

Note: M.2_5 shares bandwidth with the PCIe 4.0 x16 slot. When M.2_5 is operating, the PCIe 4.0 x16 slot is disabled.

Dual Thunderbolt 5

One of the ProArt Z890-CREATOR WIFI's biggest advantages is its professional Thunderbolt connectivity.

• 2 × Thunderbolt 5 USB Type-C ports
• Thunderbolt 5 video output support
• DisplayPort support
• Up to 77.4 Gbps Thunderbolt 5 bandwidth
• Supports up to 2 × 8K at 60 Hz + 1 × 4K at 60 Hz with DP input
• Supports up to 1 × 8K at 60 Hz + 1 × 4K at 60 Hz without DP input
• DisplayPort 2.1 support
• Daisy-chain capable with compatible Thunderbolt devices

Thunderbolt 5 makes the motherboard especially suitable for high-speed external storage, professional displays, docks, capture devices, audio equipment, and other creator-focused peripherals.

Important: Thunderbolt 5 features on this motherboard are supported only under Windows 11.

Thunderbolt 4 & USB Connectivity

In addition to Thunderbolt 5, the motherboard provides a broad range of high-speed USB connectivity.

Rear USB:

• 2 × Thunderbolt 5 USB Type-C
• 1 × USB4 / Thunderbolt USB Type-C
• 6 × USB 10 Gbps Type-A
• 1 × USB 2.0 Type-A

Front USB:

• 1 × USB 20 Gbps Type-C connector
• 1 × USB 5 Gbps header supporting 2 additional ports
• 1 × USB 2.0 header supporting 2 additional ports

USB Type-C power delivery output supports up to 5V/3A.

Professional Networking

The ProArt Z890-CREATOR WIFI provides both ultra-fast wired networking and next-generation wireless connectivity.

10 Gb Ethernet

• Marvell AQtion 10Gb Ethernet
• High-speed professional networking
• Ideal for NAS, media servers, workstation networks, large file transfers, and professional production environments

2.5 Gb Ethernet

• Intel 2.5 Gb Ethernet
• ASUS LANGuard

Having both 10GbE and 2.5GbE makes the motherboard highly suitable for creators working with large video files, network storage, collaborative workflows, and high-speed local networks.

Wi-Fi 7

Built-in Wi-Fi 7 provides next-generation wireless connectivity.

• 2×2 Wi-Fi 7 (802.11be)
• 2.4 GHz / 5 GHz / 6 GHz support
• 320MHz channel bandwidth
• Up to 5.8 Gbps transfer rate
• Bluetooth 5.4
• ASUS Wi-Fi Q-Antenna

Windows 11 version 24H2 or later is required for full Wi-Fi 7 functionality. Windows 10 supports Wi-Fi 6 with this configuration.

Multi-Display Support

The ProArt Z890-CREATOR WIFI is designed for professional multi-monitor environments.

• 1 × HDMI 2.1
• 2 × Thunderbolt 5 USB Type-C display outputs
• 1 × Thunderbolt 4 USB Type-C display output
• Supports up to 2 × 8K at 60 Hz + 1 × 4K at 60 Hz under supported Thunderbolt 5 configurations
• Thunderbolt 4 supports up to 8K at 60 Hz with DSC
• DisplayPort 2.1 Support through Thunderbolt

Display capabilities depend on the installed Intel processor and display configuration.

Professional 7.1-Channel Audio

The integrated Realtek ALC1220P codec provides high-quality audio for professional and entertainment applications.

• Realtek ALC1220P 7.1-channel HD Audio
• Up to 32-bit/192kHz playback
• 120 dB SNR stereo playback
• 113 dB SNR recording input
• Front and rear headphone impedance sensing
• Integrated audio amplifier
• Premium audio capacitors
• Dedicated audio PCB layers
• Gold-plated audio jacks
• Optical audio support

Comprehensive Cooling

Designed for high-performance processors and sustained workloads, the ProArt Z890-CREATOR WIFI includes extensive cooling options.

• M.2 heatsinks
• M.2 heatsink backplate
• VRM heatsinks
• 5 × chassis fan headers
• CPU fan header
• CPU OPT fan header
• AIO pump header
• Fan Xpert 4

ASUS Q-Design

ASUS Q-Design features make installation, upgrades, and troubleshooting easier.

• M.2 Q-Latch
• M.2 Q-Release
• M.2 Q-Slide
• PCIe Q-Release Slim
• Q-Antenna
• Q-Connector
• Q-Dashboard
• Q-DIMM
• Q-LED

ASUS EZ DIY

• BIOS FlashBack
• Clear CMOS button
• CPU socket lever protector
• ProCool II
• Pre-mounted I/O shield
• SafeDIMM
• Box headers

Aura Sync

Customize the workstation or gaming environment with ASUS Aura Sync-compatible lighting.

• 3 × Addressable Gen 2 headers
• Aura Sync support

Creator-Focused Software

The ProArt Z890-CREATOR WIFI includes software specifically suited to professional creators and workstation users.

ASUS Exclusive Software

• Armoury Crate
• Aura Creator
• Aura Sync
• Fan Xpert 4
• Power Saving
• ASUS DriverHub
• ASUS GlideX
• ASUS CPU-Z
• Creation First
• ProArt Creator Hub
• TurboV Core
• Thunderbolt Share
• Adobe Creative Cloud – Free Trial
• Norton 360 Deluxe – 60-day free trial
• WinRAR

UEFI BIOS

• AI Overclocking Guide
• ASUS CrashFree BIOS 3
• ASUS EZ Flash
• ASUS UEFI BIOS EZ Mode
• ASUS MyHotkey
• NPU Boost

Remote Management

Professional environments can benefit from integrated management capabilities.

• ASUS Control Center Express (ACCE)
• IT management software support
• Wake-on-LAN
• UEFI PXE

Technical Specifications

Specification	Details
Model	ASUS ProArt Z890-CREATOR WIFI
Series	ProArt
Socket	Intel LGA1851
CPU Support	Intel Core Ultra Processors (Series 2)
Chipset	Intel Z890
Form Factor	ATX
Dimensions	30.5 × 24.4 cm / 12 × 9.6 in
Memory Type	DDR5
Memory Slots	4 × DIMM
Maximum Memory	256GB
Memory Speed	Up to 9066+ MT/s (OC)
Memory Architecture	Dual Channel
XMP	Yes.
CUDIMM	Yes.
PCIe 5.0	2 × PCIe 5.0 x16
PCIe Configuration	x16 or x8/x8
Additional PCIe	1 × PCIe 4.0 x16 (x4)
M.2 Slots	5
Primary M.2	PCIe 5.0 x4
Additional M.2	PCIe 4.0 x4
SATA	4 × SATA 6 Gb/s
LAN 1	Marvell Action 10Gb Ethernet
LAN 2	Intel 2.5 Gb Ethernet
Wireless	Wi-Fi 7
Bluetooth	Bluetooth 5.4
Thunderbolt	2 × Thunderbolt 5 + 1 × Thunderbolt 4
Rear USB	10 ports
Audio Codec	Realtek ALC1220P
Audio	7.1-channel HD Audio
RGB	Aura Sync / Addressable Gen 2
BIOS	256 MB UEFI AMI BIOS
Operating System	Windows 11 22H2 and later

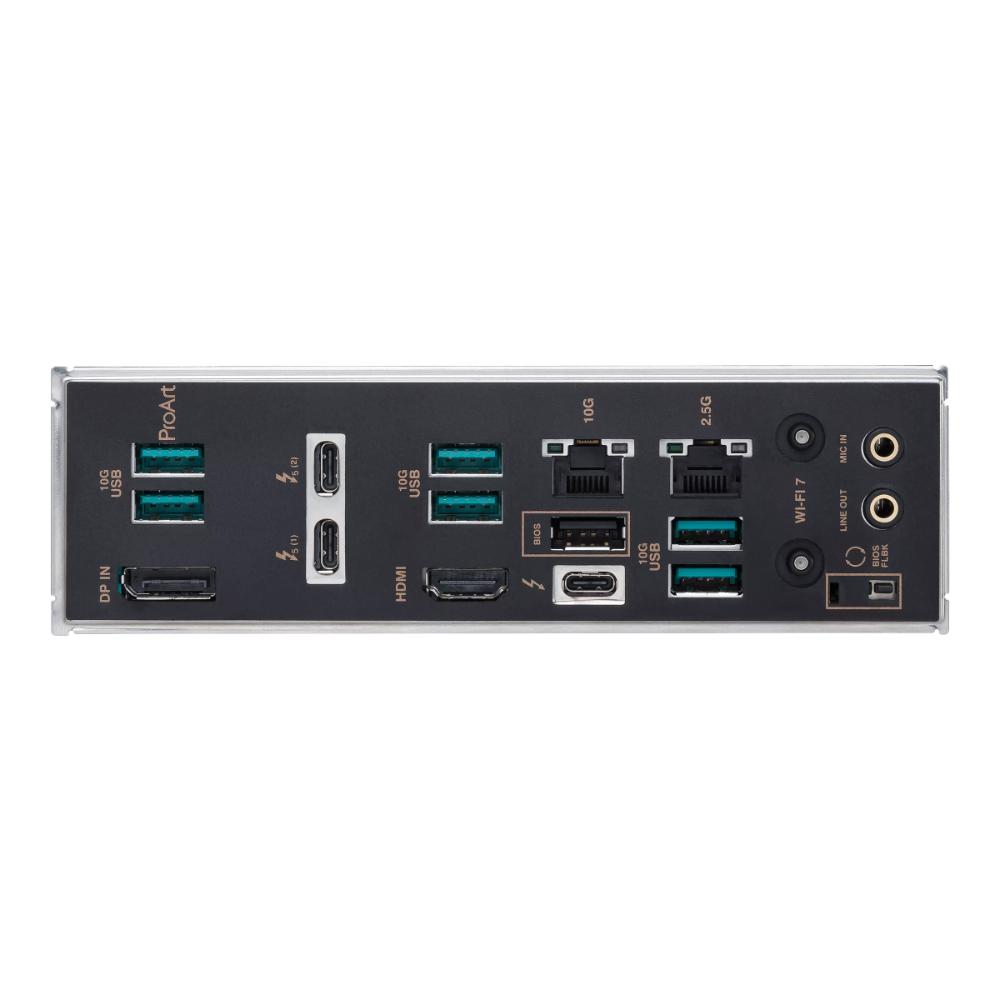

Back Panel I/O

• 2 × Thunderbolt 5 USB Type-C
• 1 × USB4 / Thunderbolt USB Type-C
• 6 × USB 10 Gbps Type-A
• 1 × USB 2.0 Type-A
• 1 × DisplayPort input
• 1 × HDMI
• 1 × Wi-Fi module
• 1 × Marvell AQtion 10Gb Ethernet
• 1 × Intel 2.5 Gb Ethernet
• 2 × gold-plated audio jacks
• 1 × BIOS FlashBack button

Ideal For

• Professional content creators
• Video editors
• 3D artists and animators
• Photographers
• CAD and engineering professionals
• AI development and machine-learning workloads
• Game development
• 3D rendering
• Streaming and production
• High-end workstation builds
• Professional NAS and 10GbE environments
• Multi-monitor workstations
• Thunderbolt 5 storage and peripheral setups
• High-performance Intel Core Ultra PCs

Why Choose ASUS ProArt Z890-CREATOR WIFI?

The ASUS ProArt Z890-CREATOR WIFI is built for users who need more than a conventional gaming motherboard. Its combination of dual PCIe 5.0 x16 slots, five M.2 slots, 10GbE + 2.5GbE networking, Wi-Fi 7, dual Thunderbolt 5, Thunderbolt 4, high-speed DDR5 support, and creator-focused software makes it an exceptionally versatile platform for professional workstations.

With support for up to 256GB DDR5 memory and speeds up to 9066+ MT/s (OC), along with extensive storage and expansion capabilities, it provides the foundation for demanding creative workflows where performance, connectivity, and expandability matter.

The elegant ProArt design, professional networking, Thunderbolt 5 connectivity, and extensive storage support make it an excellent choice for video editing, 3D rendering, photography, AI workloads, CAD, engineering, game development, and other demanding professional applications.
