ASUS RT-AX52 AX1800 Dual-Band WiFi 6 Router | 1800Mbps | 1201Mbps 5GHz | 574Mbps 2.4GHz | AiMesh | VPN | Instant Guard | Parental Control

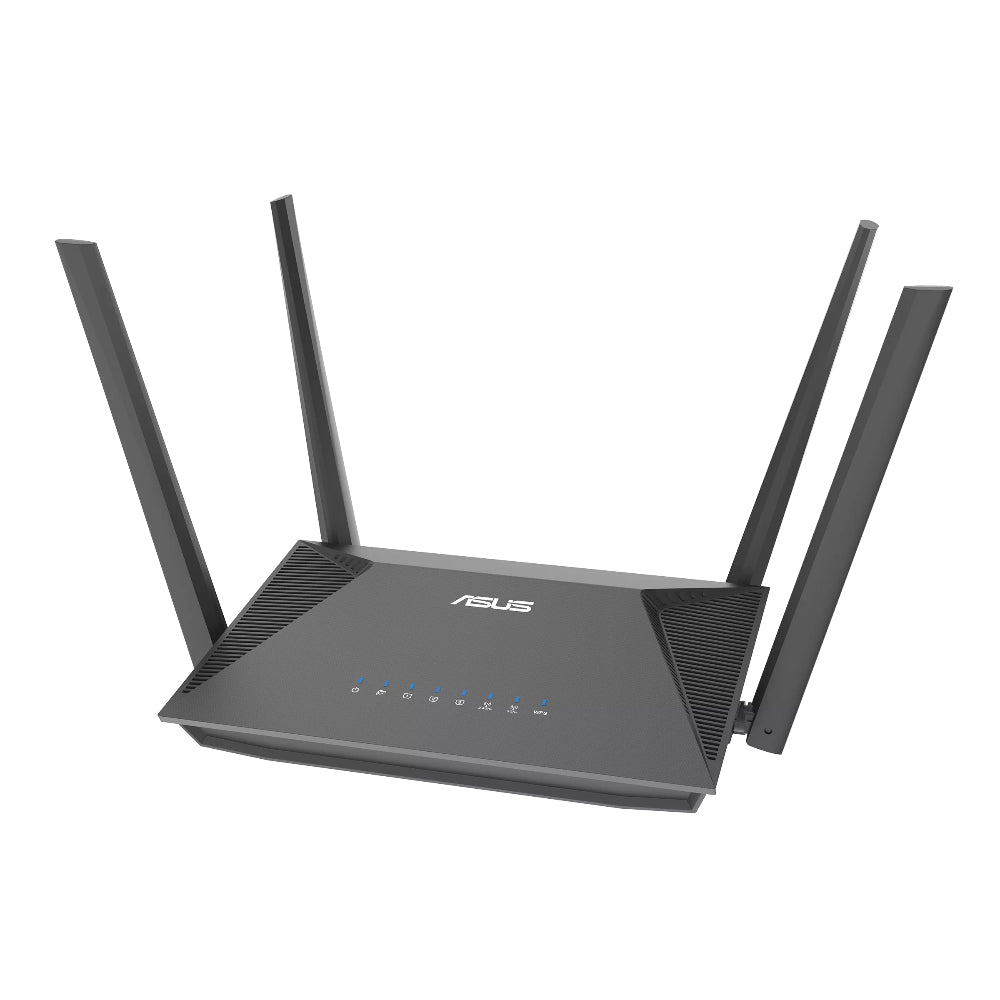

The ASUS RT-AX52 AX1800 Dual-Band WiFi 6 Router delivers fast and efficient wireless connectivity with the latest WiFi 6 (802.11ax) standard. With combined speeds of up to 1800Mbps, OFDMA, MU-MIMO, 1024-QAM, AiMesh compatibility, built-in VPN features, Instant Guard, and flexible parental controls, it provides a versatile networking solution for homes, offices, and connected environments.

Key Features

Next-Generation WiFi 6

Built with WiFi 6 (802.11ax) technology, the router is designed to provide improved network efficiency, capacity, and throughput compared with previous-generation WiFi standards.

AX1800 Dual-Band Performance

The RT-AX52 delivers combined wireless speeds of up to 1800Mbps, with up to 1201Mbps on 5GHz and 574Mbps on 2.4GHz.

Efficient Multi-Device Connectivity

Support for OFDMA and MU-MIMO allows the router to communicate efficiently with multiple connected devices, helping improve network capacity and responsiveness in busy environments.

1024-QAM Technology

1024-QAM increases data transmission efficiency, enabling higher wireless data rates on compatible devices.

Improved Wireless Efficiency with BSS Coloring

WiFi 6 BSS Coloring helps the router distinguish between neighboring wireless networks using the same channel, improving network efficiency in crowded wireless environments.

WiFi 6 Coverage

WiFi 6 technology is designed to provide improved coverage and efficiency, helping maintain reliable wireless connectivity across compatible devices.

AiMesh Compatible

Create a flexible whole-home WiFi network by connecting the RT-AX52 with other compatible ASUS AiMesh routers. AiMesh allows multiple compatible routers to work together for expanded coverage and seamless roaming.

Built-In VPN Support

The RT-AX52 provides extensive VPN functionality, including VPN Client and VPN Server support for compatible protocols such as OpenVPN, PPTP, L2TP, WireGuard, and IPSec.

ASUS Instant Guard

Instant Guard allows supported devices to establish a secure VPN connection through the router, helping provide safer internet access when using public WiFi networks.

Parental Controls

Customized internet scheduling allows administrators to manage when connected devices can access the internet, providing greater control over home network usage.

Easy ASUS Router App Management

The ASUS Router App provides an intuitive way to configure and manage the router, monitor network activity, and access supported networking features.

Technical Specifications

Specification	Details
Brand	ASUS
Model	RT-AX52
Wireless Standard	WiFi 6 (802.11ax)
WiFi Class	AX1800
Total WiFi Speed	Up to 1800Mbps
5GHz Speed	Up to 1201Mbps
2.4GHz Speed	Up to 574Mbps
Wireless Bands	2.4GHz / 5GHz
Antennas	4 × External Antennas
Transmit / Receive	2×2 on 5GHz / 2×2 on 2.4GHz
Processor	1.3GHz Dual-Core
RAM	256MB
Flash Memory	128MB
Ethernet WAN	1 × Gigabit RJ45
Ethernet LAN	3 × Gigabit RJ45
Operating Modes	Router, Access Point, Repeater, AiMesh Node
AiMesh	Yes
Parental Control	Customized Internet Schedule
VPN	Client & Server Support
Security	WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, Firewall
Power Supply	12V / 1A
Dimensions	192 × 126.3 × 47.5mm
Weight	298g

Wireless Performance

5GHz Band

• WiFi 6 (802.11ax): Up to 1201Mbps
• WiFi 5 (802.11ac): Up to 867Mbps
• 2×2 transmit/receive

2.4GHz Band

• WiFi 6 (802.11ax): Up to 574Mbps
• WiFi 4 (802.11n): Up to 300Mbps
• 2×2 transmit/receive

Wireless Technologies

• OFDMA
• MU-MIMO
• 1024-QAM
• Beamforming
• Universal Beamforming
• Explicit Beamforming
• Airtime Fairness
• 20/40/80MHz bandwidth
• Wireless Scheduler
• WiFi MAC Address Filter

Network Standards

The router supports:

• IPv6
• IPv4
• WiFi 6 (802.11ax)
• WiFi 5 (802.11ac)
• WiFi 4 (802.11n)
• IEEE 802.11g
• IEEE 802.11b
• IEEE 802.11a

Ethernet Connectivity

WAN

• 1 × Gigabit RJ45 WAN port

LAN

• 3 × Gigabit RJ45 LAN ports

Supported WAN features include:

• PPPoE
• PPTP
• L2TP
• Automatic IP
• Static IP
• Dual WAN
• Port Triggering
• DMZ
• DDNS

AiMesh

The RT-AX52 supports ASUS AiMesh, allowing it to operate as:

• Primary AiMesh Router
• AiMesh Node

Compatible ASUS routers can be combined to create an expandable wireless network with seamless roaming and centralized management.

VPN Features

The RT-AX52 provides flexible VPN functionality for compatible configurations.

VPN Client

• L2TP
• OpenVPN
• PPTP
• WireGuard

VPN Server

• IPSec
• OpenVPN
• PPTP

Instant Guard

ASUS Instant Guard provides a convenient way to establish a secure VPN connection through the router when using supported devices and public WiFi networks.

Security

Supported network security and protection features include:

• WPA/WPA2/WPA3-Personal
• WPA/WPA2-Enterprise
• WPS
• Firewall
• SSH

Parental Control

The router includes Customized Internet Schedule functionality, allowing administrators to control internet access according to individual device schedules.

Guest Network

The Guest Network provides internet access for visitors while restricting access to the local network.

Traffic Control

Network management features include:

• Bandwidth Limiter
• Traditional QoS
• Traffic Monitor
• Real-Time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor

Administration Features

The ASUS RT-AX52 provides management tools including:

• Configuration Backup and Restore
• Diagnosis Tools
• Feedback System
• System Log
• Wireless Scheduler
• RADIUS Client
• DHCP Server
• IGMP Snooping
• IPTV
• Manually Assign IP Address
• Wake-on-LAN (WOL)

Physical Features

Buttons

• WPS Button
• Reset Button
• Power Switch

LED Indicators

• Power × 1
• WAN × 1
• LAN × 3
• 2.4GHz × 1
• 5GHz × 1
• WPS × 1

Power & Dimensions

• AC Input: 110V–240V, 50–60Hz
• DC Output: 12V / 1A
• Dimensions: 192 × 126.3 × 47.5mm
• Weight: 298g

Package Contents

• ASUS RT-AX52 Router
• RJ45 Ethernet Cable
• Power Adapter
• Quick Start Guide
• Warranty Card

Ideal For

• Home WiFi networks
• Small offices
• WiFi 6 upgrades
• Multi-device households
• Streaming and everyday internet usage
• Gaming and connected devices
• AiMesh whole-home WiFi systems
• VPN-enabled networking
• Users requiring parental controls
• Secure public WiFi access through Instant Guard

Why Choose ASUS RT-AX52?

• AX1800 dual-band WiFi 6
• Up to 1800Mbps combined wireless speed
• 1201Mbps 5GHz + 574Mbps 2.4GHz
• OFDMA and MU-MIMO
• 1024-QAM
• 4 external antennas
• Gigabit WAN + 3 × Gigabit LAN
• AiMesh compatible
• WiFi 6 BSS Coloring
• Instant Guard VPN
• VPN Client and Server support
• WireGuard, OpenVPN, PPTP, L2TP and IPSec support
• Customized parental control scheduling
• Guest Network
• ASUS Router App management
