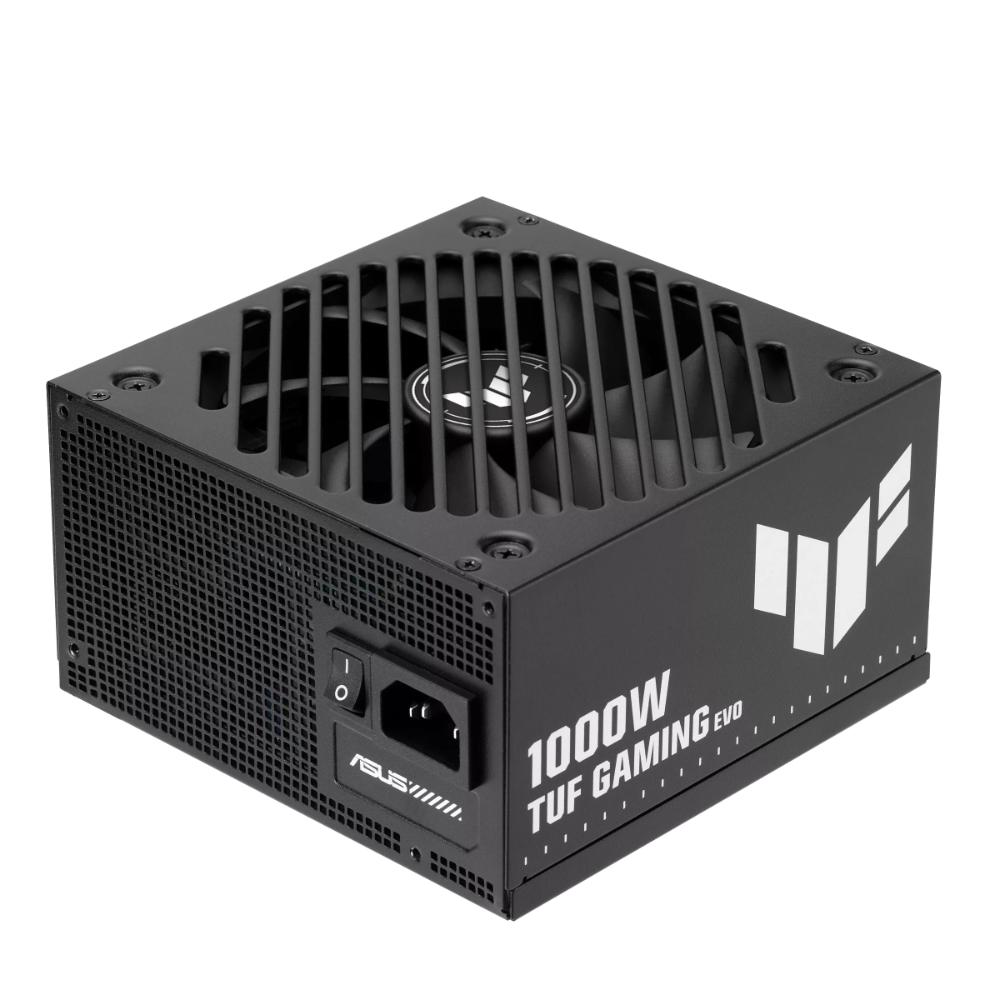

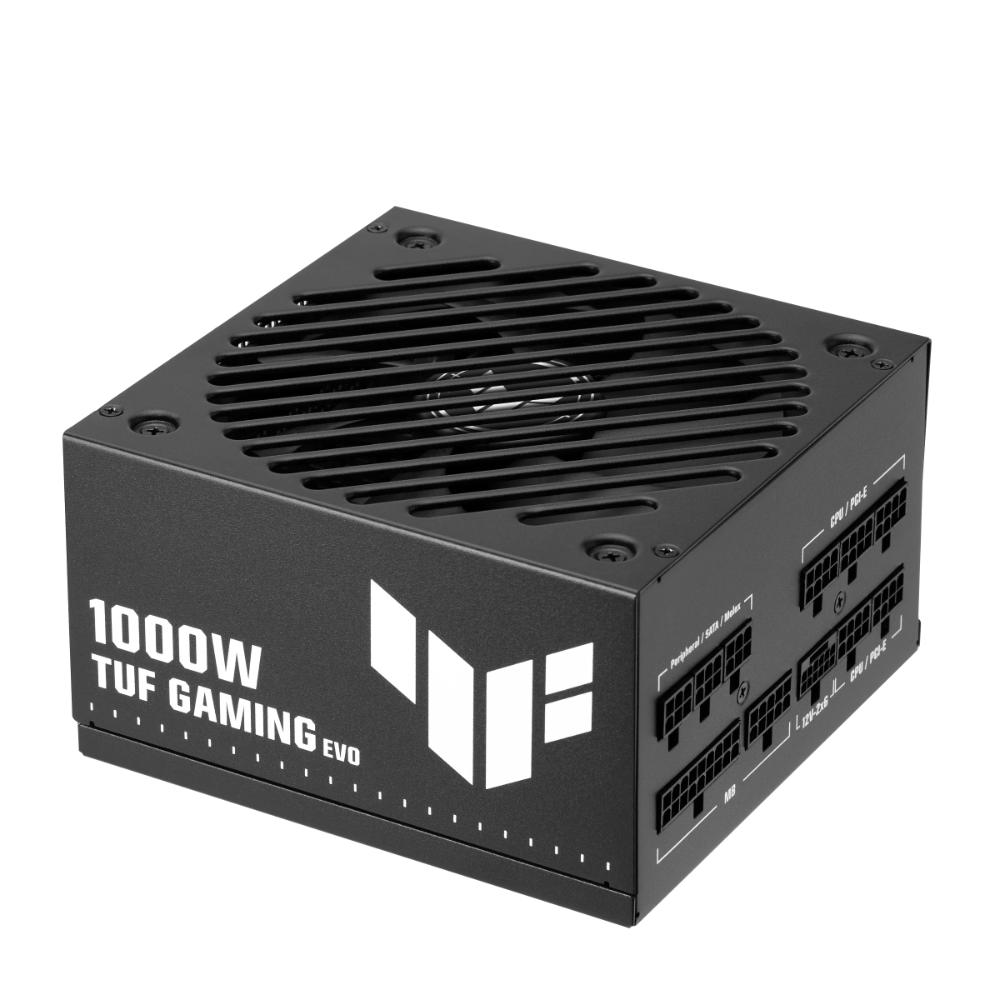

ASUS TUF Gaming 1000W Gold EVO Power Supply | 1000W | 80 PLUS Gold | ATX 3.1 | PCIe 5.1 | 12V-2x6 | Fully Modular | Military-Grade Components

The ASUS TUF Gaming 1000W Gold EVO is a high-performance power supply engineered for demanding gaming PCs, high-end workstations and next-generation graphics card systems. Part of the TUF Gaming Gold EVO Series, it combines 1000W power delivery, 80 PLUS Gold efficiency, ATX 3.1 compatibility, PCIe 5.1 support and military-grade components for reliable long-term operation.

Designed for durability, the PSU features TUF 5K black metallic capacitors, a 135mm dual-ball-bearing fan, protective PCB coating, superior copper pins and premium etched cables. It is also GeForce RTX 50 and Radeon RX 9000 ready, providing modern GPU power connectivity through its PCIe 5.1 16-pin 12V-2x6 cable.

Key Features

1000W High-Performance Power Delivery

The ASUS TUF Gaming 1000W Gold EVO delivers 1000W of total output, with the +12V rail capable of providing up to 83.33A / 1000W.

The high-capacity +12V rail is designed to provide stable power for demanding processors, graphics cards and other high-performance PC components.

80 PLUS Gold Efficiency

The TUF Gaming Gold EVO series achieves 80 PLUS Gold certification using low-ESR Japanese capacitors and premium components.

The efficient design helps reduce power consumption and heat generation while supporting stable and reliable operation.

ATX 3.1 & PCIe 5.1 Compatible

The ASUS TUF Gaming 1000W Gold EVO meets the requirements of the ATX 3.1 standard and supports PCIe 5.1 graphics cards.

It includes a dedicated PCIe Gen 5.1 16-pin-to-16-pin 12V-2x6 cable, providing modern power connectivity for compatible graphics cards.

The PSU supports total power excursions of up to twice the rated power and graphics card power excursions of up to three times the rated power, according to ASUS specifications.

GeForce RTX 50 & Radeon RX 9000 Ready

The TUF Gaming 1000W Gold EVO is designed to support next-generation graphics card platforms, including GeForce RTX 50 Series and Radeon RX 9000 Series systems.

Its PCIe 5.1 12V-2x6 power connection provides a direct power solution for compatible modern GPUs.

Military-Grade TUF 5K Capacitors

The TUF Gaming Gold EVO series uses TUF 5K black metallic capacitors engineered for enhanced durability.

ASUS specifies a 52% wider temperature tolerance and up to 2.5X longer lifespan compared with standard capacitors.

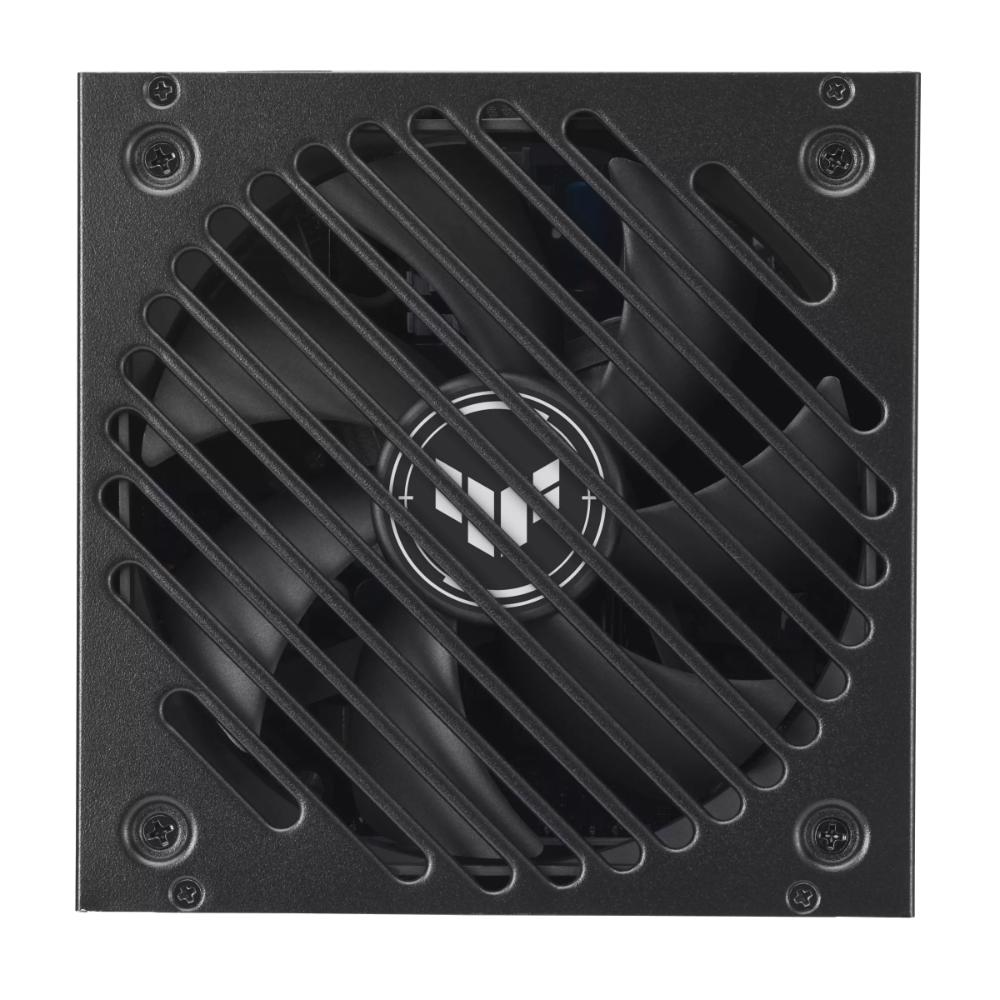

135mm Dual-Ball-Bearing Fan

The cooling system uses a 135mm fan with dual-ball bearings.

ASUS states that the dual-ball-bearing design can provide up to twice the lifespan of sleeve-bearing designs, supporting long-term cooling reliability.

Protective PCB Coating

A protective conformal coating covers the PCB to help protect against moisture, dust and debris.

This additional protection helps reduce the risk of short circuits caused by environmental contaminants.

Superior Copper Pins

Upgraded PCIe connectors feature copper pins designed to provide improved thermal conductivity and efficient power delivery.

ASUS states that this design can achieve a 29% reduction in connector temperatures, up to 12.28°C, under its specified testing conditions.

This helps promote stable operation for demanding graphics cards.

Premium Etched Cables

The TUF Gaming 1000W Gold EVO uses premium etched cables made from a pliable material for easier installation and cable management.

The cables feature:

• Solid-core copper wire
• Tin-plated layer
• Etched cable jacket
• High conductivity
• Low resistance
• Low heat generation
• High ductility and bendability
• Long-term stability

ASUS states that the etched cables operate at temperatures 50°C below the safety limit when routed for cable management.

The cables also meet the UL1581 flame test and UL758 certification requirements.

Technical Specifications

Specification	Details
Model	TUF-GAMING-1000G-EVO
Series	TUF Gaming Gold EVO
Total Output	1000W
Form Factor	ATX12V
PFC Type	Active PFC
ATX Standard	ATX 3.1
80 PLUS Certification	80 PLUS Gold
AC Input Range	100–240Vac
+3.3V Maximum Load	25A
+5V Maximum Load	25A
+12V Maximum Load	83.33A
-12V Maximum Load	0.3A
+5Vsb Maximum Load	3A
+3.3V Combined Load	125W
+5V Combined Load	125W
+12V Combined Load	1000W
-12V Combined Load	3.6W
+5Vsb Combined Load	15W
Protection Features	OPP / OVP / UVP / SCP / OCP / OTP
Hazardous Materials Compliance	RoHS
Fan Size	135mm
Fan Bearing	Dual Ball Bearing
0dB Technology	No
Aura Sync	No
MTBF	>120,000 hours @ 40°C
Dimensions	150 x 150 x 86mm
Weight	1.72kg

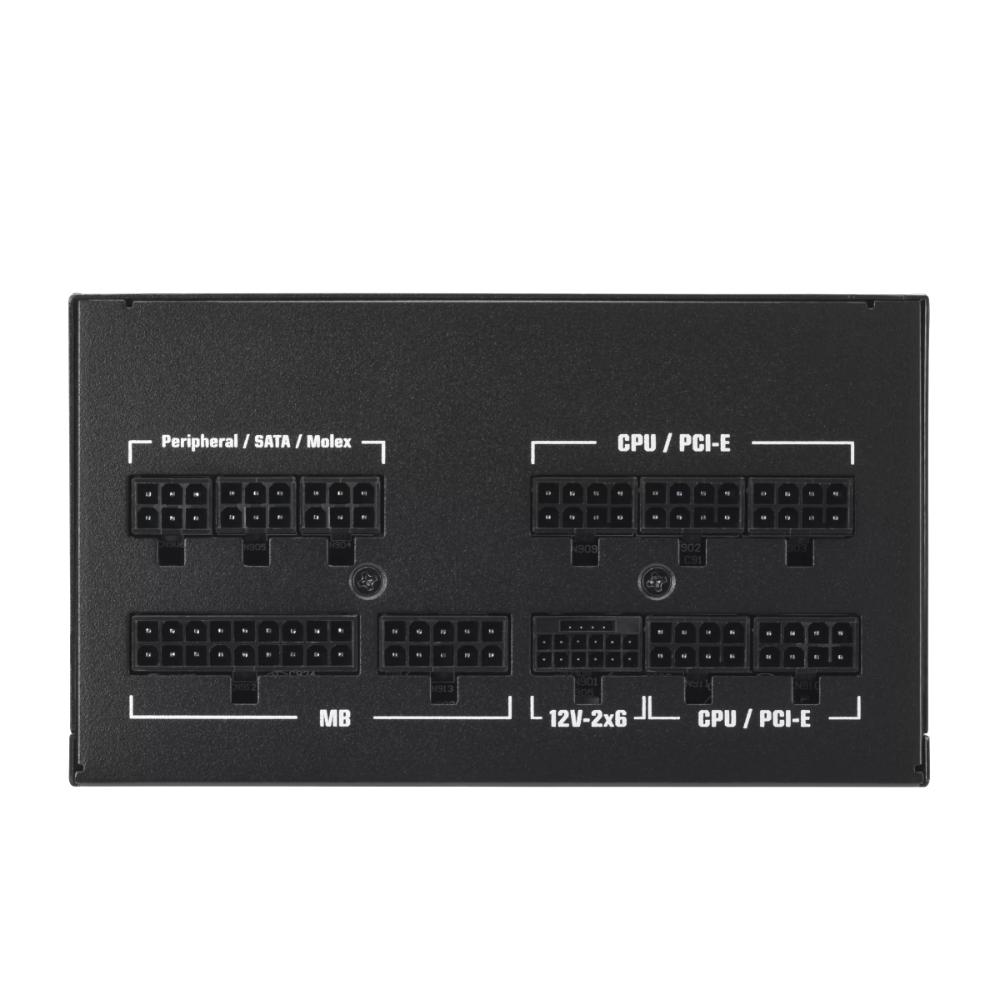

Cable Connectors

Connector	Quantity
Motherboard 20+4-pin	1
CPU 4+4-pin	2
PCIe 16-pin 12V-2x6	1
PCIe 6+2-pin	3
SATA	6
Peripheral	3

PCIe 5.1 12V-2x6 Cable

The PSU includes one PCIe Gen 5.1 16-pin-to-16-pin cable, using the 12V-2x6 connection standard.

The dedicated cable is designed for compatible PCIe 5.1 graphics cards and provides a modern direct power connection from the PSU to the GPU.

Durability Testing

The TUF Gaming Gold EVO series undergoes demanding durability testing to support reliable operation under challenging conditions.

Testing includes:

• MTBF testing
• 75cm drop testing
• Vibration testing
• Extreme temperature testing
• Corrosion-resistance testing

The series is tested through temperature changes from -40°C to 85°C for 27 cycles while maintaining operation.

ASUS also specifies corrosion testing involving up to 95% humidity with salt fog for up to 240 hours.

Protection Features

The ASUS TUF Gaming 1000W Gold EVO incorporates multiple protection mechanisms designed to help safeguard the PSU and connected components:

• OCP — Over-Current Protection
• OTP — Over-Temperature Protection
• OVP — Over-Voltage Protection
• OPP — Over-Power Protection
• SCP — Short-Circuit Protection
• UVP — Under-Voltage Protection

No 0dB Technology

Unlike some ASUS power supply models, the TUF Gaming 1000W Gold EVO does not feature 0dB technology.

The manufacturer specification explicitly lists 0dB Fan Button: No, this product is without 0dB technology.

Cable Lengths & Package Contents

• Power Cord x1
• Motherboard Power Cable x1 — 610mm
• CPU Cable x2 — 750mm
• PCIe Gen 5.1 16-pin-to-16-pin Cable x1 — 500mm
• PCIe 1-to-1 Cable (8-pin-to-6+2-pin) x3 — 500mm
• SATA 1-to-3 Cable x2 — 400 + 120 + 120mm
• Peripheral 1-to-3 Cable x1 — 400 + 120 + 120mm
• TUF Gaming Cable Tie x3
• Chassis Screws Package x1
• User Manual x1

Premium Etched Cable Construction

The etched cables use tin-plated oxygen-free copper designed to provide:

• Ultra-high conductivity
• Long lifespan
• Long-term stability
• High ductility
• Improved bendability
• Low resistance
• Low heat generation

The flexible design makes cable routing easier while helping maintain a clean and organized PC build.

Ideal For

• High-end gaming PCs
• Enthusiast gaming systems
• High-performance workstations
• GeForce RTX 50 Series builds
• Radeon RX 9000 Series builds
• PCIe 5.1 graphics card systems
• ATX 3.1 gaming PCs
• High-performance custom PCs
• Power-demanding graphics card configurations
• Next-generation gaming systems

Warranty

2-Year ASUS Warranty

The ASUS TUF Gaming 1000W Gold EVO is backed by an 2-year warranty, providing long-term coverage for the power supply.
