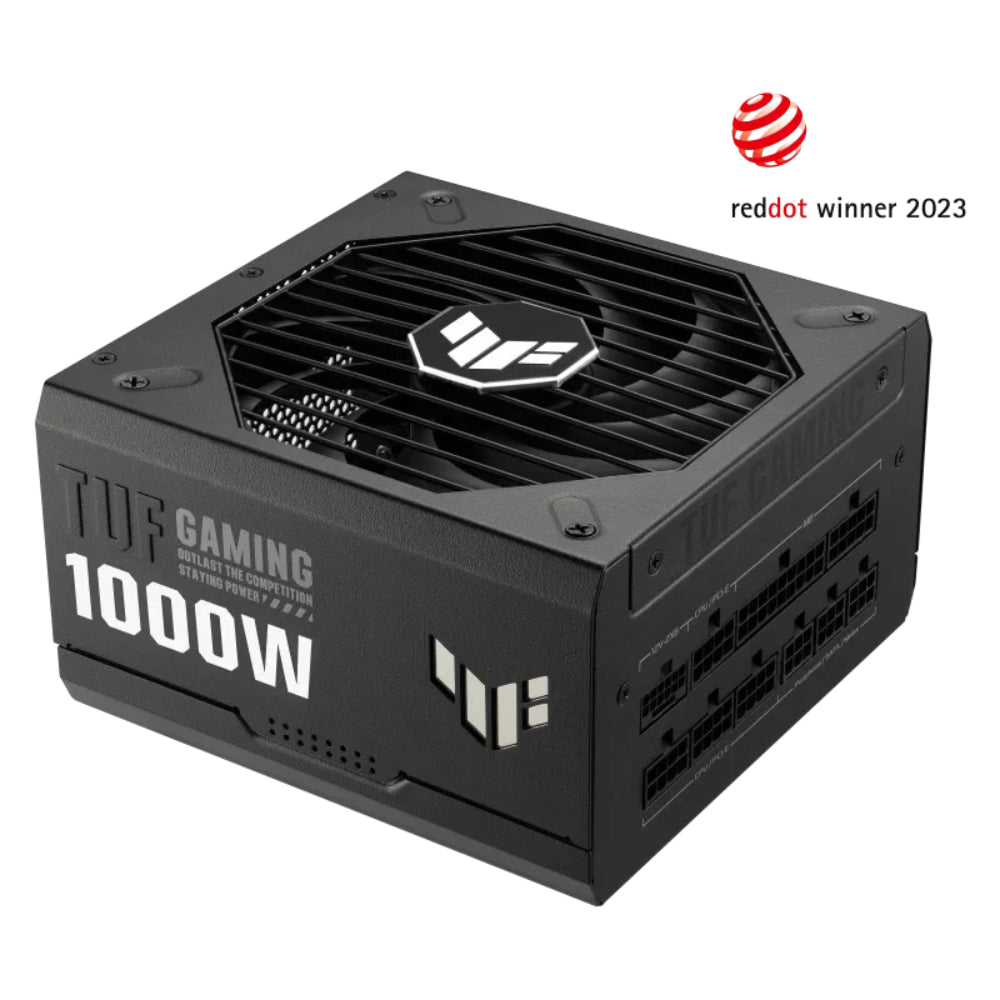

ASUS TUF Gaming 1000W Gold Power Supply | 1000W | 80 PLUS Gold | ATX 3.1 | PCIe 5.1 Ready | Fully Modular | Military-Grade Components | Axial-Tech Fan

The ASUS TUF Gaming 1000W Gold is a high-performance power supply designed for demanding gaming PCs, high-end workstations and modern systems equipped with power-hungry graphics cards. It combines 1000W total output, 80 PLUS Gold efficiency, ATX 3.1 compatibility, military-grade components and fully modular etched cables for dependable long-term power delivery.

Built for durability, the PSU features dual ball fan bearings, protective PCB coating, high-performance copper pins and an Axial-tech fan design. It also includes a PCIe Gen 5.1 16-pin cable, making it ready for compatible next-generation graphics cards.

Key Features

1000W High-Performance Power Delivery

The ASUS TUF Gaming 1000W Gold delivers 1000W of total power, with the +12V rail capable of supplying up to 83.3A / 1000W.

This high-capacity power delivery makes it suitable for high-end gaming systems, powerful graphics cards, enthusiast PCs and demanding workstation configurations.

80 PLUS Gold Efficiency

The power supply features 80 PLUS Gold certification, using Japanese capacitors and other premium components to support efficient and reliable power delivery.

Higher efficiency helps reduce energy losses and unnecessary heat generation during operation.

ATX 3.1 Compatible

The ASUS TUF Gaming 1000W Gold supports the ATX 3.1 standard and includes a PCIe Gen 5.1 16-pin cable for compatible modern graphics cards.

This makes it well suited for next-generation gaming and high-performance PC configurations.

Military-Grade Components

The capacitors and chokes undergo demanding testing to achieve military-grade certification, helping provide dependable operation and long-term durability.

ASUS also subjects the PSU to extensive reliability and environmental testing.

Dual Ball Fan Bearings

The cooling fan uses dual ball bearings, which ASUS states can last up to twice as long as sleeve-bearing designs.

This bearing design is intended to provide reliable long-term cooling performance.

Axial-Tech Fan Design

The Axial-tech fan features a smaller fan hub that allows the use of longer fan blades. A barrier ring helps increase downward air pressure for improved airflow through the power supply.

Protective PCB Coating

A protective PCB coating helps protect the internal electronics against moisture, dust and extreme temperatures, adding another layer of protection for long-term operation.

Fully Modular Etched Cables

The ASUS TUF Gaming 1000W Gold uses fully modular etched cables, allowing unnecessary cables to be left disconnected.

The flexible cable construction makes installation and cable management easier while helping maintain a clean-looking PC build.

Technical Specifications

Specification	Details
Model	ASUS TUF Gaming 1000W Gold
Total Output	1000W
Form Factor	ATX12V
PFC Type	Active PFC
ATX Standard	ATX 3.1
80 PLUS Certification	80 PLUS Gold
AC Input Range	100–240Vac
+3.3V Maximum Load	25A
+5V Maximum Load	25A
+12V Maximum Load	83.3A
-12V Maximum Load	0.8A
+5Vsb Maximum Load	3A
+3.3V Combined Load	130W
+5V Combined Load	130W
+12V Combined Load	1000W
-12V Combined Load	9.6W
+5Vsb Combined Load	15W
Protection Features	OPP / OVP / UVP / SCP / OCP / OTP
Hazardous Materials Compliance	RoHS
MTBF	>120,000 hours @ 40°C
Fan Design	Axial-tech
Fan Bearing	Dual Ball Bearing
0dB Fan Technology	Yes, operates in 0dB mode by default
Aura Sync	No
Dimensions	150 x 150 x 86mm
Weight	2.48kg

Cable Connectors

Connector	Quantity
Motherboard 24/20-pin	1
CPU 4+4-pin	2
PCIe 16-pin	1
PCIe 8-pin	4
SATA	5
Peripheral	4

PCIe Gen 5.1 & GeForce RTX 50 Ready

The ASUS TUF Gaming 1000W Gold includes a PCIe Gen 5.1 16-pin power cable, providing connectivity for compatible next-generation graphics cards.

The PSU also includes a PCIe 16-pin to 8-pin + 8-pin cable and two PCIe 1-to-1 cables for additional GPU power connectivity.

0dB Fan Operation

The ASUS TUF Gaming 1000W Gold operates in 0dB mode by default. The cooling fan remains off during lower-load conditions and spins up when the system reaches a certain load level.

This helps provide quieter operation when active fan cooling is not required.

High-Performance Copper Pins

Upgraded PCIe connectors feature high-performance copper pins designed to provide improved thermal conductivity and power delivery efficiency.

ASUS states that the upgraded design can achieve a 29% reduction in connector temperatures, up to 12.28°C, under its specified testing conditions.

This helps promote stable operation when powering demanding graphics cards.

Durability & Reliability Testing

The ASUS TUF Gaming 1000W Gold is subjected to demanding durability testing designed to verify reliable operation under challenging conditions.

Testing includes:

• MTBF testing
• 75cm drop testing
• Vibration testing
• Extreme temperature testing
• Corrosion-resistance testing

The PSU is tested through temperature changes from -40°C to 85°C for 27 cycles.

ASUS also specifies corrosion-resistance testing involving up to 95% humidity with salt fog for up to 240 hours.

Etched Cable Design

The fully modular etched cables use a flexible premium material designed to simplify installation and cable routing.

ASUS states that the cables operate at temperatures 50°C below the safety limit when routed for cable management.

The cables also meet the UL1581 flame test and UL758 certification requirements.

Comprehensive Protection Features

The ASUS TUF Gaming 1000W Gold incorporates multiple protection systems:

• OPP — Over Power Protection
• OVP — Over Voltage Protection
• UVP — Under Voltage Protection
• SCP — Short Circuit Protection
• OCP — Over Current Protection
• OTP — Over Temperature Protection

These protections help safeguard the power supply and connected PC components against abnormal electrical conditions.

Package Contents & Cables

• Power Cord x1
• Motherboard Power Cable x1 — 610mm
• CPU Cable x2 — 650mm
• PCIe Gen 5.1 16-pin Cable x1 — 675mm
• PCIe 16-pin to 8-pin + 8-pin Cable x1 — 675mm
• PCIe 1-to-1 Cable x2 — 675mm
• SATA 1-to-2 Cable x1 — 400 + 120mm
• SATA 1-to-3 Cable x1 — 400 + 120 + 120mm
• Peripheral 1-to-4 Cable x1 — 400 + 150 + 150 + 150mm
• TUF Gaming Cable Tie x3
• User Manual x1

Built for High-End PC Builds

The ASUS TUF Gaming 1000W Gold is designed for:

• High-end gaming PCs
• Enthusiast gaming systems
• High-performance workstations
• Next-generation GPU builds
• GeForce RTX 50 Series-ready systems
• ATX 3.1 gaming PCs
• PCIe Gen 5.1 graphics card systems
• High-performance custom PCs
• Power-demanding graphics card configurations

Warranty

10-Year ASUS Warranty

The ASUS TUF Gaming 1000W Gold includes a 10-year warranty, providing long-term coverage for the power supply.

ASUS TUF Gaming Durability

The combination of military-grade components, dual ball fan bearings, protective PCB coating, Axial-tech cooling, high-performance copper pins and fully modular etched cables makes the ASUS TUF Gaming 1000W Gold a durable choice for demanding PC systems.
