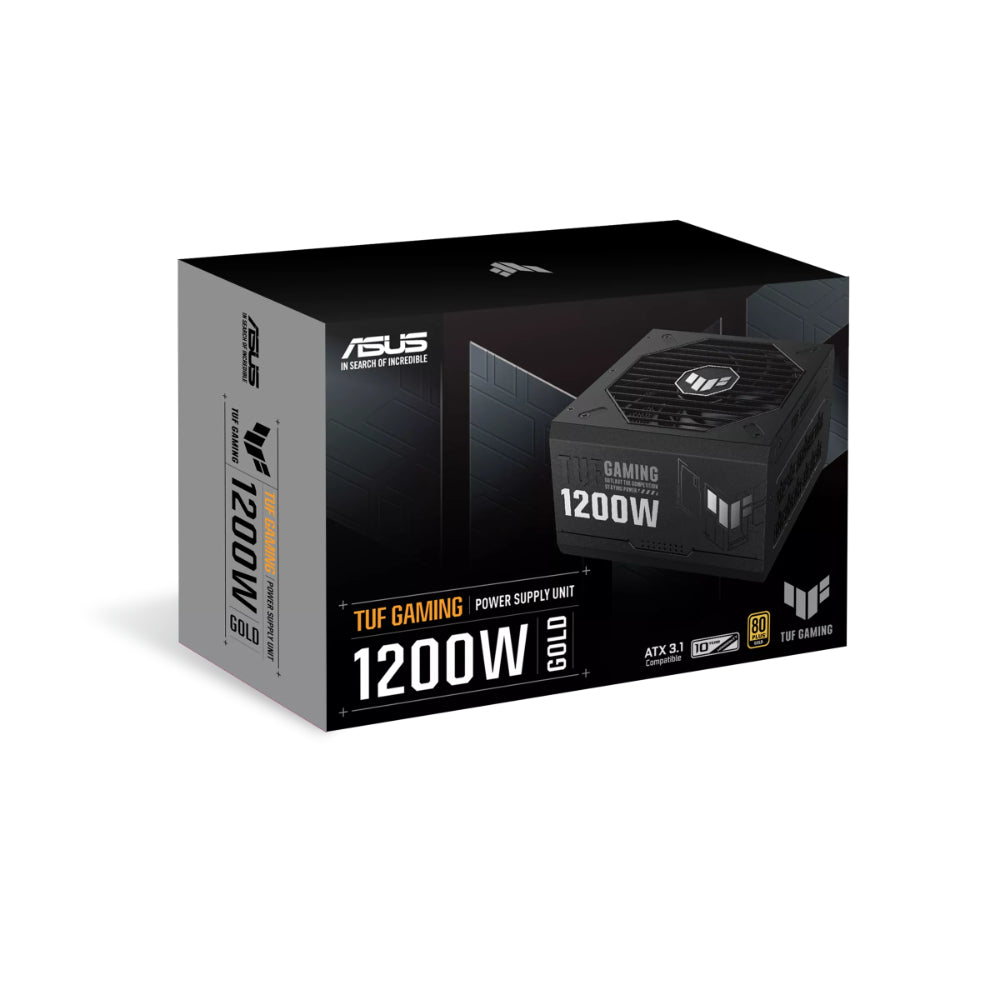

ASUS TUF Gaming 1200W Gold Power Supply | 1200W | 80 PLUS Gold | ATX 3.1 | PCIe 5.1 Ready | Fully Modular | Military-Grade Components | Axial-Tech Fan

The ASUS TUF Gaming 1200W Gold is a high-capacity power supply engineered for demanding gaming PCs, high-performance workstations and next-generation graphics card systems. It combines 1200W power delivery, 80 PLUS Gold efficiency, ATX 3.1 compatibility, military-grade components and fully modular etched cables for reliable long-term operation.

A dual ball-bearing Axial-tech fan provides efficient cooling, while the protective PCB coating helps protect against moisture, dust and extreme temperatures. The PSU also includes two PCIe Gen 5.1 16-pin cables for compatible high-performance graphics cards.

Key Features

1200W High-Performance Power Delivery

The ASUS TUF Gaming 1200W Gold provides 1200W total output, with the +12V rail delivering up to 99A / 1188W.

This high power capacity makes it suitable for demanding gaming systems, high-performance workstations and systems equipped with powerful modern graphics cards.

80 PLUS Gold Certification

The PSU features 80 PLUS Gold certification using Japanese capacitors and other premium components.

Its efficient design helps reduce power losses and heat generation while providing reliable power delivery to connected components.

ATX 3.1 Compatible

The ASUS TUF Gaming 1200W Gold complies with the ATX 3.1 standard and includes PCIe Gen 5.1-compatible 16-pin power cables, making it suitable for compatible next-generation graphics cards.

Military-Grade Components

The capacitors and chokes undergo demanding testing to achieve military-grade certification, supporting durability and reliable operation.

ASUS also states that the PSU undergoes stricter reliability testing designed to support a longer lifespan.

Dual Ball Fan Bearings

The cooling fan uses dual ball bearings, which ASUS states can last up to twice as long as sleeve-bearing designs.

The fan is designed to provide long-term cooling reliability for demanding PC configurations.

Axial-Tech Fan Design

The Axial-tech fan design uses a smaller fan hub that allows longer fan blades, combined with a barrier ring designed to increase downward air pressure.

This design helps improve airflow through the PSU for efficient cooling.

Protective PCB Coating

A protective coating is applied to the PCB to help protect against moisture, dust and extreme temperatures, providing additional protection for the internal electronics.

Fully Modular Etched Cables

The ASUS TUF Gaming 1200W Gold uses fully modular etched cables, allowing users to connect only the cables required by their PC configuration.

The flexible cable construction also helps simplify cable routing and management inside the chassis.

Technical Specifications

Specification	Details
Model	ASUS TUF Gaming 1200W Gold
Total Output	1200W
Form Factor	ATX12V
PFC Type	Active PFC
ATX Standard	ATX 3.1
80 PLUS Certification	80 PLUS Gold
AC Input Range	100–240Vac
+3.3V Maximum Load	25A
+5V Maximum Load	25A
+12V Maximum Load	99A
-12V Maximum Load	0.8A
+5Vsb Maximum Load	3A
+3.3V Combined Load	130W
+5V Combined Load	130W
+12V Combined Load	1188W
-12V Combined Load	9.6W
+5Vsb Combined Load	15W
Protection Features	OPP / OVP / UVP / SCP / OCP / OTP
Hazardous Materials Compliance	RoHS
MTBF	>120,000 hours @ 40°C
Fan Design	Axial-tech
Fan Bearing	Dual Ball Bearing
0dB Fan Technology	Yes, operates in 0dB mode by default
Aura Sync	No
Dimensions	150 x 150 x 86mm
Weight	2.66kg

Cable Connectors

Connector	Quantity
Motherboard 24/20-pin	1
CPU 4+4-pin	2
PCIe 16-pin	2
PCIe 8-pin	3
SATA	5
Peripheral	4

PCIe Gen 5.1 Ready

The PSU includes two PCIe Gen 5.1 16-pin cables, providing modern GPU power connectivity for compatible graphics cards.

It also includes a PCIe 16-pin to 8-pin + 8-pin cable and a PCIe 1-to-1 cable for additional connection flexibility.

0dB Fan Operation

The ASUS TUF Gaming 1200W Gold operates in 0dB mode by default. The fan remains off during lower-load conditions and spins up when the system reaches a certain load level.

This allows quieter operation when full cooling capacity is not required.

Durability Testing

The ASUS TUF Gaming 1200W Gold is designed for long-term reliability and undergoes demanding durability testing, including:

• MTBF testing
• Drop testing from 75cm
• Vibration testing
• Extreme temperature testing
• Corrosion-resistance testing

ASUS specifies extreme-temperature testing from -40°C to 85°C for 27 cycles and corrosion testing involving up to 95% humidity with salt fog for up to 240 hours.

High-Performance Copper Pins

Upgraded PCIe connectors use high-performance copper pins designed to provide improved thermal conductivity and power delivery efficiency.

ASUS states that this design can reduce connector temperatures by up to 29% / 12.28°C under its specified testing conditions.

Etched Cable Design

The fully modular etched cables use a pliable material designed to make installation and cable management easier.

ASUS states that these cables operate at temperatures 50°C below the safety limit when routed for cable management and meet UL1581 flame test and UL758 certification requirements.

Comprehensive Protection

The PSU incorporates multiple protection mechanisms:

• OPP — Over Power Protection
• OVP — Over Voltage Protection
• UVP — Under Voltage Protection
• SCP — Short Circuit Protection
• OCP — Over Current Protection
• OTP — Over Temperature Protection

Included Cables & Package Contents

• Power Cord x1
• Motherboard Power Cable x1 — 610mm
• CPU Cable x2 — 650mm
• PCIe Gen 5.1 16-pin Cable x2 — 675mm
• PCIe 16-pin to 8-pin + 8-pin Cable x1 — 675mm
• PCIe 1-to-1 Cable x1 — 675mm
• SATA 1-to-2 Cable x1 — 400 + 120mm
• SATA 1-to-3 Cable x1 — 400 + 120 + 120mm
• Peripheral 1-to-4 Cable x1 — 400 + 150 + 150 + 150mm
• TUF Gaming Cable Tie x3
• User Manual x1

Ideal For

• High-end gaming PCs
• Enthusiast gaming systems
• High-performance workstations
• Next-generation GPU builds
• High-power graphics card systems
• ATX 3.1 gaming PCs
• PCIe Gen 5.1 graphics card systems
• Custom high-performance PCs
• Multi-GPU power-demanding configurations where supported

Warranty

2-Year ASUS Warranty

The ASUS TUF Gaming 1200W Gold is backed by a 2-year warranty, providing long-term coverage for the power supply.
