ASUS TUF Gaming 850W Gold EVO Power Supply | 850W | 80 PLUS Gold | ATX 3.1 | PCIe 5.1 | 12V-2x6 | Fully Modular | Military-Grade Components | Cybenetics Platinum

The ASUS TUF Gaming 850W Gold EVO is a high-performance power supply designed for modern gaming PCs, enthusiast systems and next-generation graphics card configurations. Part of the TUF Gaming Gold EVO Series, it combines 850W power delivery, 80 PLUS Gold efficiency, ATX 3.1 compatibility and PCIe 5.1 support with military-grade durability features.

The PSU features TUF 5K black metallic capacitors, a 135mm dual-ball-bearing fan, protective PCB coating, superior copper pins and premium embossed cables. It is GeForce RTX 50 and Radeon RX 9000 ready, while its 12V-2x6 PCIe 5.1 connector provides modern GPU power connectivity.

Key Features

850W High-Performance Power Delivery

The ASUS TUF Gaming 850W Gold EVO provides 850W total output, with the +12V rail capable of delivering up to 70.83A / 850W.

The dedicated +12V power delivery is designed to provide stable power for modern CPUs, graphics cards and other demanding PC components.

80 PLUS Gold Efficiency

The PSU features 80 PLUS Gold certification, using low-ESR capacitors and premium components designed to provide efficient and stable power delivery.

The efficient design helps reduce power consumption and heat generation while supporting reliable operation.

Cybenetics Platinum Efficiency

The ASUS TUF Gaming 850W Gold EVO achieves Cybenetics Platinum efficiency certification at 230V and Gold efficiency at 115V.

This provides an additional efficiency certification alongside its 80 PLUS Gold rating.

Cybenetics Lambda A- Noise Certification

The PSU has earned a Cybenetics Lambda A- noise certification.

ASUS states that this model produces less than 30dB of average noise, providing a quieter operating experience.

ATX 3.1 & PCIe 5.1 Compatible

The TUF Gaming 850W Gold EVO complies with the ATX 3.1 standard and supports PCIe 5.1 graphics cards.

It includes a dedicated PCIe Gen 5.1 16-pin-to-16-pin cable using a 12V-2x6 connection, providing modern power connectivity for compatible graphics cards.

The PSU supports total power excursions up to twice its rated power and graphics card power excursions up to three times its rated power, according to ASUS specifications.

GeForce RTX 50 & Radeon RX 9000 Ready

The TUF Gaming 850W Gold EVO is designed for modern graphics card platforms, including GeForce RTX 50 Series and Radeon RX 9000 Series systems.

Its PCIe 5.1 12V-2x6 connection provides a direct power solution for compatible GPUs.

Military-Grade TUF 5K Capacitors

The TUF Gaming Gold EVO series features TUF 5K black metallic capacitors engineered for enhanced durability.

ASUS specifies a 52% wider temperature tolerance and up to a 2.5X longer lifespan compared with standard capacitors.

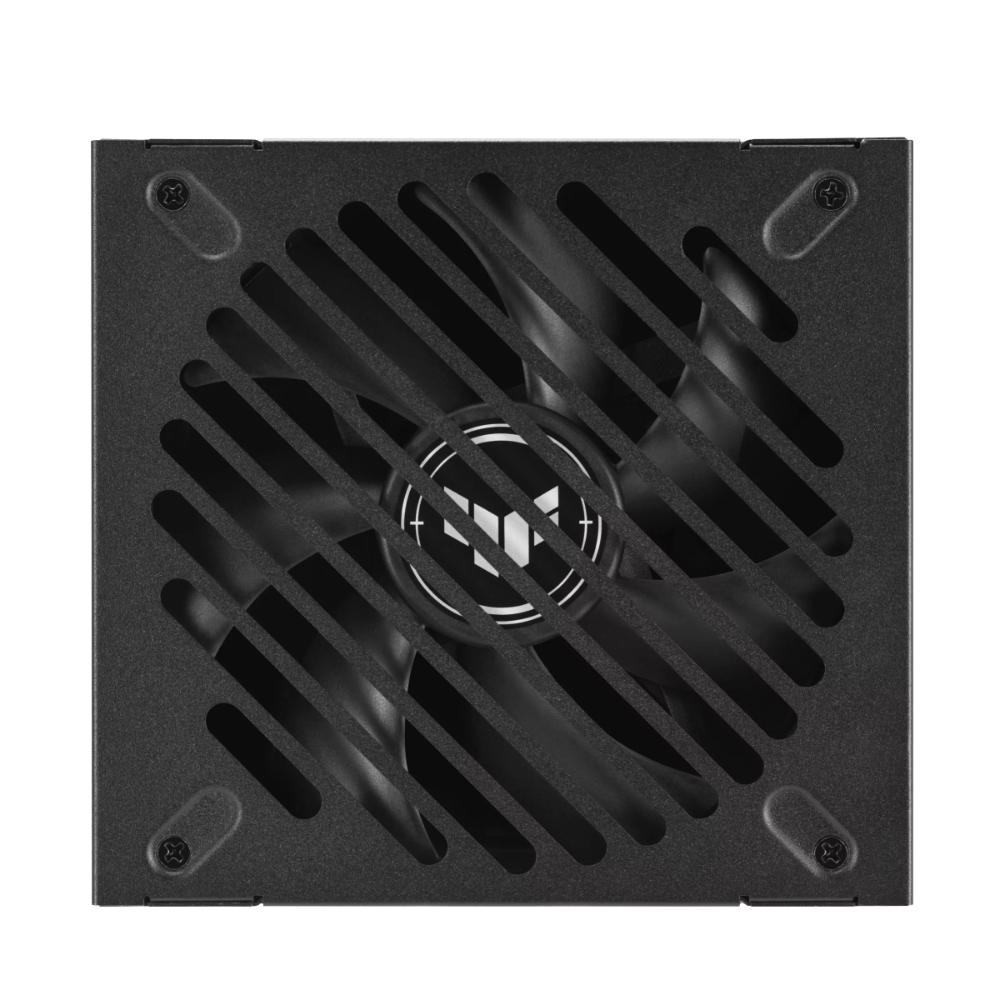

135mm Dual-Ball-Bearing Fan

The PSU uses a 135mm cooling fan with dual-ball bearings.

ASUS states that the dual-ball-bearing design can last up to twice as long as a sleeve-bearing design, supporting long-term cooling reliability.

Protective PCB Coating

A protective conformal coating covers the PCB to help protect the internal electronics against moisture, dust and debris.

This helps reduce the risk of short circuits caused by environmental contaminants.

Superior Copper Pins

Upgraded PCIe connectors feature superior copper pins designed to provide improved thermal conductivity and efficient power delivery.

ASUS states that this design provides a 29% reduction in connector temperatures, up to 12.28°C, under its specified testing conditions.

This helps support stable operation when powering demanding graphics cards.

Premium Embossed Cables

The TUF Gaming 850W Gold EVO uses premium embossed cables made from a pliable material designed for easier installation and cable management.

The cable construction consists of:

• Solid-core copper wire
• Tin-plated layer
• Embossed cable jacket

The cables are designed to provide:

• Ultra-high conductivity
• Long lifespan
• Long-term stability
• High ductility and bendability
• Low resistance
• Low heat generation

ASUS states that these cables operate at temperatures 50°C below the safety limit when routed for cable management.

The cables also meet the UL1581 flame test and UL758 certification requirements.

Technical Specifications

Specification	Details
Model	TUF-GAMING-850G-EVO
Series	TUF Gaming Gold EVO
Total Output	850W
Form Factor	ATX12V
PFC Type	Active PFC
ATX Standard	ATX 3.1
80 PLUS Certification	80 PLUS Gold
Cybenetics Efficiency	Platinum (230V) / Gold (115V)
Cybenetics Noise Certification	Lambda A-
AC Input Range	100–240Vac
+3.3V Maximum Load	20A
+5V Maximum Load	20A
+12V Maximum Load	70.83A
-12V Maximum Load	0.3A
+5Vsb Maximum Load	3A
+3.3V Combined Load	110W
+5V Combined Load	110W
+12V Combined Load	850W
-12V Combined Load	3.6W
+5Vsb Combined Load	15W
Protection Features	OPP / OVP / UVP / SCP / OCP / OTP
Hazardous Materials Compliance	RoHS
Fan Size	135mm
Fan Bearing	Dual Ball Bearing
0dB Technology	No
Aura Sync	No
MTBF	>120,000 hours @ 40°C
Dimensions	140 x 150 x 86mm
Weight	1.35kg

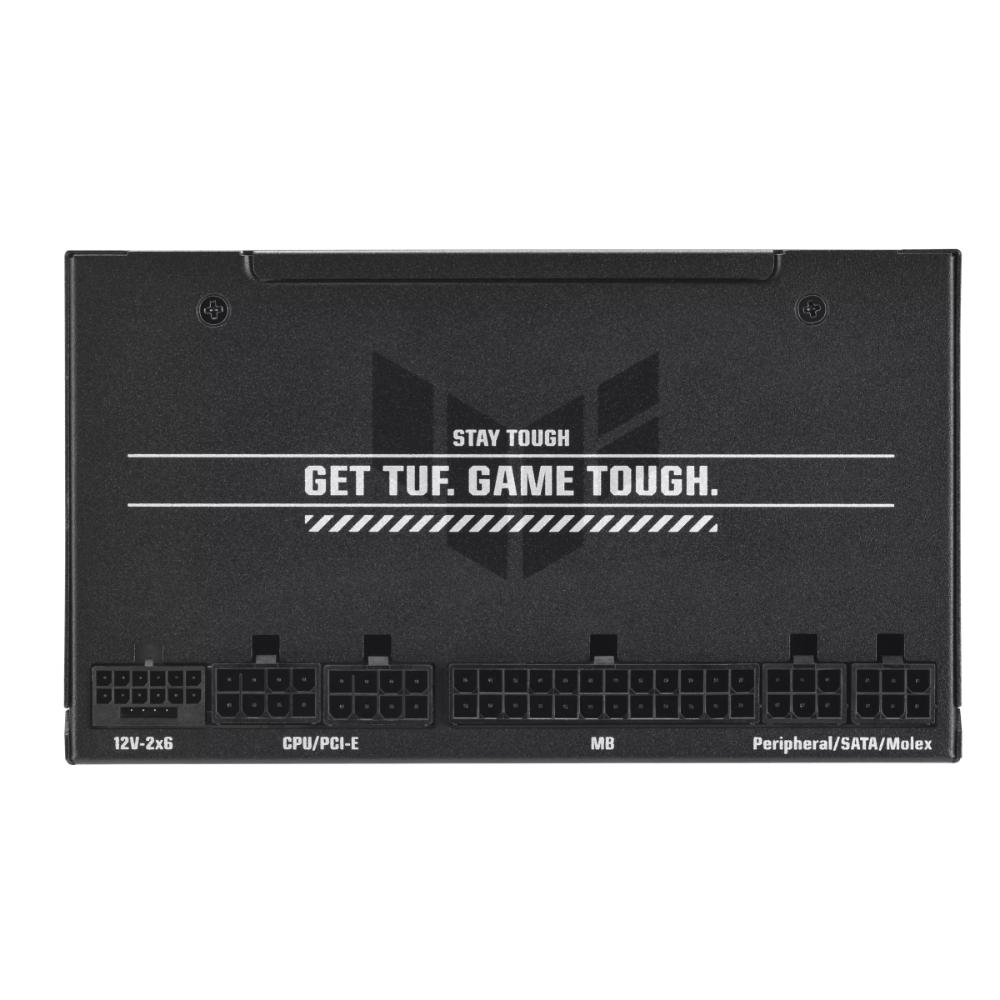

Cable Connectors

Connector	Quantity
Motherboard 20+4-pin	1
CPU 4+4-pin	2
PCIe 16-pin 12V-2x6	1
PCIe 6+2-pin	3
SATA	4
Peripheral	2

PCIe 5.1 12V-2x6 Cable

The ASUS TUF Gaming 850W Gold EVO includes a PCIe Gen 5.1 16-pin-to-16-pin cable with a 12V-2x6 connector.

This provides a dedicated modern power connection for compatible PCIe 5.1 graphics cards.

Additional PCIe connectivity is provided through:

• PCIe 1-to-1 cable — 8-pin to 6+2-pin
• PCIe 1-to-2 cable — 16-pin to dual 6+2-pin

Power Excursion Support

The TUF Gaming Gold EVO series is designed to meet the requirements of the ATX 3.1 standard.

According to ASUS, it supports:

• Total power excursions up to 2X rated power
• Graphics card power excursions up to 3X rated power

This is designed to help maintain stability during demanding transient power events from modern graphics cards.

Premium Durability Testing

The ASUS TUF Gaming 850W Gold EVO undergoes demanding testing designed to verify durability and reliability.

Testing includes:

• MTBF testing
• 75cm drop testing
• Vibration testing
• Extreme temperature testing
• Corrosion-resistance testing

The series is tested through temperature changes from -40°C to 85°C for 27 cycles while maintaining operation.

ASUS also specifies corrosion testing involving up to 95% humidity with salt fog for up to 240 hours.

Comprehensive Protection

The ASUS TUF Gaming 850W Gold EVO includes multiple protection mechanisms:

• OCP — Over-Current Protection
• OTP — Over-Temperature Protection
• OVP — Over-Voltage Protection
• OPP — Over-Power Protection
• SCP — Short-Circuit Protection
• UVP — Under-Voltage Protection

The specification also includes surge and inrush protection and no-load operation.

No 0dB Technology

The ASUS TUF Gaming 850W Gold EVO does not feature 0dB technology.

The manufacturer specification explicitly lists 0dB Fan Button: No, this product is without 0dB technology.

Cable Lengths & Package Contents

• Power Cord x1
• Motherboard Power Cable x1 — 610mm
• CPU 1-to-2 Cable x1 — 650mm + 100mm
• PCIe Gen 5.1 16-pin-to-16-pin Cable x1 — 500mm
• PCIe 1-to-1 Cable (8-pin-to-6+2-pin) x1 — 500mm
• PCIe 1-to-2 Cable (16-pin-to-6+2-pin x2) x1 — 500 + 100mm
• SATA & Peripheral 1-to-2+1 Cable x2 — 400 + 120 + 120mm
• TUF Gaming Cable Tie x3
• User Manual x1

Ideal For

• High-end gaming PCs
• Enthusiast gaming systems
• GeForce RTX 50 Series builds
• Radeon RX 9000 Series builds
• PCIe 5.1 graphics card systems
• ATX 3.1 gaming PCs
• High-performance custom PCs
• Gaming workstations
• Modern desktop PCs
• Next-generation GPU systems

Warranty

2-Year ASUS Warranty

The ASUS TUF Gaming 850W Gold EVO includes an 2-year warranty, providing long-term coverage for the power supply.
