ASUS TUF GAMING B850-E WIFI AMD AM5 ATX Motherboard | Ryzen 9000/8000/7000 | 256GB DDR5 | 8000+MT/s (OC) | Wi-Fi 6E | 2.5Gb LAN | 3× M.2 | PCIe 5.0

The ASUS TUF GAMING B850-E WIFI motherboard combines the latest AMD Ryzen™ platform with durable TUF Gaming engineering, upgraded power delivery, comprehensive cooling, and high-speed connectivity. Built for demanding gaming and advanced AI PC applications, it supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors, DDR5 memory up to 8000+MT/s (OC), PCIe 5.0, three M.2 slots, 2.5 Gb Ethernet, and Wi-Fi 6E.

Key Features

AMD AM5 Platform

Designed for AMD Socket AM5, the motherboard supports AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors, providing a flexible platform for modern gaming and high-performance PC builds.

High-Speed DDR5 Memory

Four DDR5 DIMM slots support up to 256 GB of system memory and speeds of up to 8000+ MT/s (OC) with compatible Ryzen processors. Support for AMD EXPO™ and ASUS Enhanced Memory Profile (AEMP) makes memory optimization easier.

PCIe 5.0 Expansion

With a PCIe 5.0 x16 slot on compatible Ryzen 9000 and 7000 processors, the board provides high-bandwidth connectivity for modern graphics cards and other expansion devices.

Triple M.2 Storage

Three M.2 slots support high-speed NVMe storage, including PCIe 5.0 x4 on the primary M.2 slot with compatible Ryzen 9000 and 7000 processors. Four SATA 6Gb/s ports provide additional storage connectivity.

2.5 Gb Ethernet

The integrated Realtek 2.5Gb Ethernet provides high-speed wired networking, while TUF LANGuard helps protect the network connection against electrical and static-related damage.

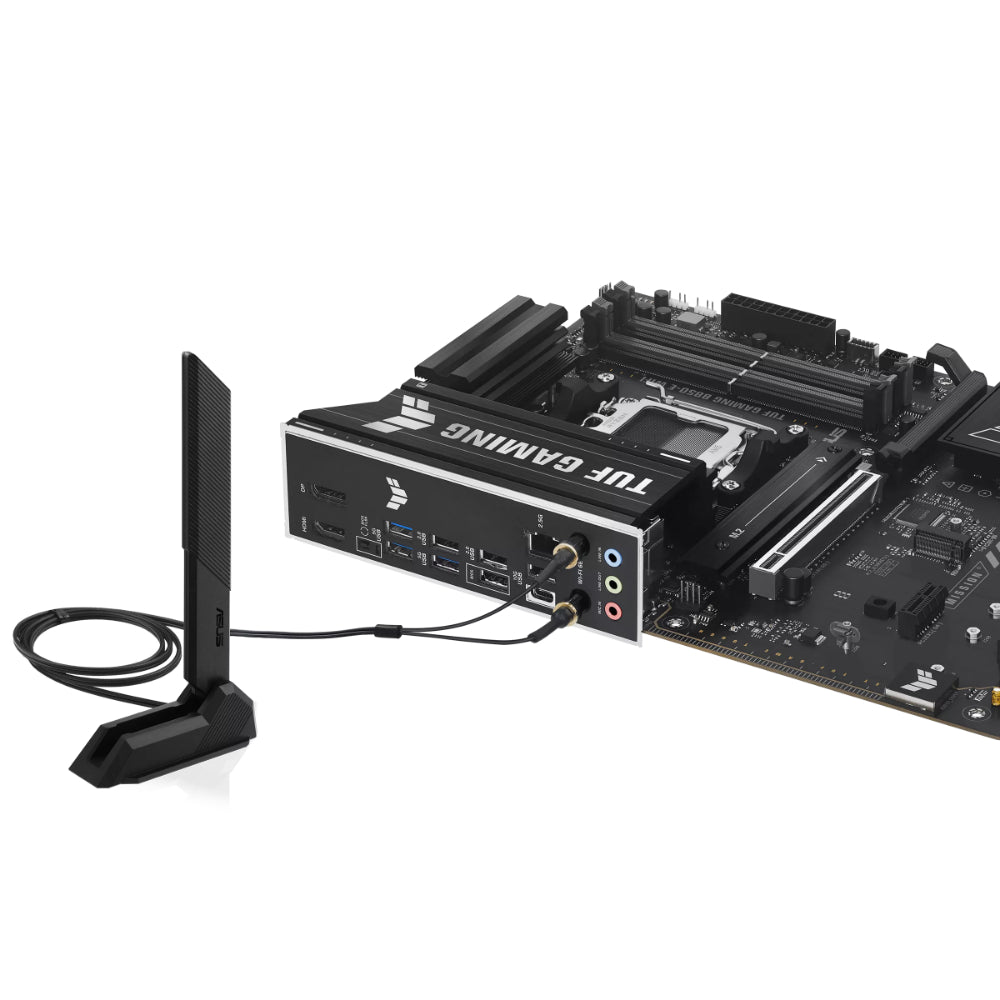

Wi-Fi 6E & Bluetooth 5.3

Built-in Wi-Fi 6E 2×2 supports 2.4GHz, 5GHz, and 6GHz frequency bands, while Bluetooth 5.3 provides convenient wireless connectivity for compatible peripherals and devices.

High-Speed USB Connectivity

The motherboard provides USB 20Gbps, USB 10Gbps, USB 5Gbps, and USB 2.0 connectivity, including a rear USB Type-C port and front-panel USB Type-C support.

TUF Gaming Durability

TUF Gaming components and protection features are designed for dependable operation during demanding workloads and extended gaming sessions.

Comprehensive Cooling

The board incorporates VRM heatsink design, flexible M.2 heatsink support, multiple fan headers, and an AIO pump header to help maintain stable temperatures.

Immersive Audio

The Realtek 7.1-channel High Definition Audio codec supports up to 24-bit/192 kHz playback, enhanced by audio shielding, premium capacitors, dedicated PCB audio layers, and an audio cover.

Technical Specifications

Specification	Details
Brand	ASUS
Series	TUF Gaming
Model	TUF GAMING B850-E WIFI
Form Factor	ATX
Dimensions	30.5 × 24.4 cm
CPU Socket	AMD Socket AM5
Supported Processors	AMD Ryzen 9000 / 8000 / 7000 Series
Chipset	AMD B850
Memory Type	DDR5
Memory Slots	4 × DIMM
Maximum Memory	256GB
Memory Speed	Up to 8000+ MT/s (OC)
Memory Architecture	Dual Channel
Memory Support	ECC & Non-ECC Unbuffered DIMM
Memory Technologies	AMD EXPO, ASUS AEMP
Primary PCIe	PCIe 5.0 x16
M.2 Slots	3 × M.2
SATA	4 × SATA 6 Gb/s
Ethernet	Realtek 2.5 Gb Ethernet
Wireless	Wi-Fi 6E 2×2
Bluetooth	Bluetooth 5.3
Audio	Realtek 7.1 Surround Sound HD Audio
BIOS	256 MB Flash ROM, UEFI AMI BIOS
Operating System	Windows 11 / Windows 10 64-bit

Expansion Slots

AMD Ryzen 9000 & 7000 Series

• 1 × PCIe 5.0 x16 slot supporting x16 mode

AMD Ryzen 8000 Series

• 1 × PCIe 4.0 x16 slot supporting x8/x4 mode depending on CPU

AMD B850 Chipset

• 1 × PCIe 4.0 x16 slot supporting x1 mode
• 1 × PCIe 4.0 x1 slot

Storage

The motherboard supports 3 × M.2 slots and 4 × SATA 6Gb/s ports.

M.2 Support

• M.2_1: PCIe 5.0 x4 with Ryzen 9000/7000 processors
• M.2_2: PCIe 4.0 x4 with Ryzen 9000/7000 processors
• M.2_1: PCIe 4.0 x4 with Ryzen 8000 processors
• M.2_2: PCIe 4.0 x4/x2 with Ryzen 8000 processors
• M.2_3: PCIe 4.0 x4 through the B850 chipset
• Supports 2242 / 2260 / 2280 / 22110 M.2 form factors where applicable
• 4 × SATA 6Gb/s ports

AMD RAIDXpert2 Technology

• Ryzen 9000: RAID 0/1/5/10
• Ryzen 8000: RAID 0/1
• Ryzen 7000: RAID 0/1/10

Graphics Output

• 1 × DisplayPort 1.4—up to 8K at 30 Hz
• 1 × HDMI 2.1—up to 4K at 60 Hz

Graphics output capabilities depend on the installed processor.

USB Connectivity

Rear USB

• 1 × USB Type-C 10 Gbps
• 1 × USB Type-A 10 Gbps
• 3 × USB Type-A 5 Gbps
• 3 × USB Type-A USB 2.0

Front USB

• 1 × USB 20 Gbps Type-C connector
• 1 × USB 5 Gbps header supporting 2 additional ports
• 2 × USB 2.0 headers supporting 4 additional ports

USB Type-C power delivery output supports up to 5V/3A.

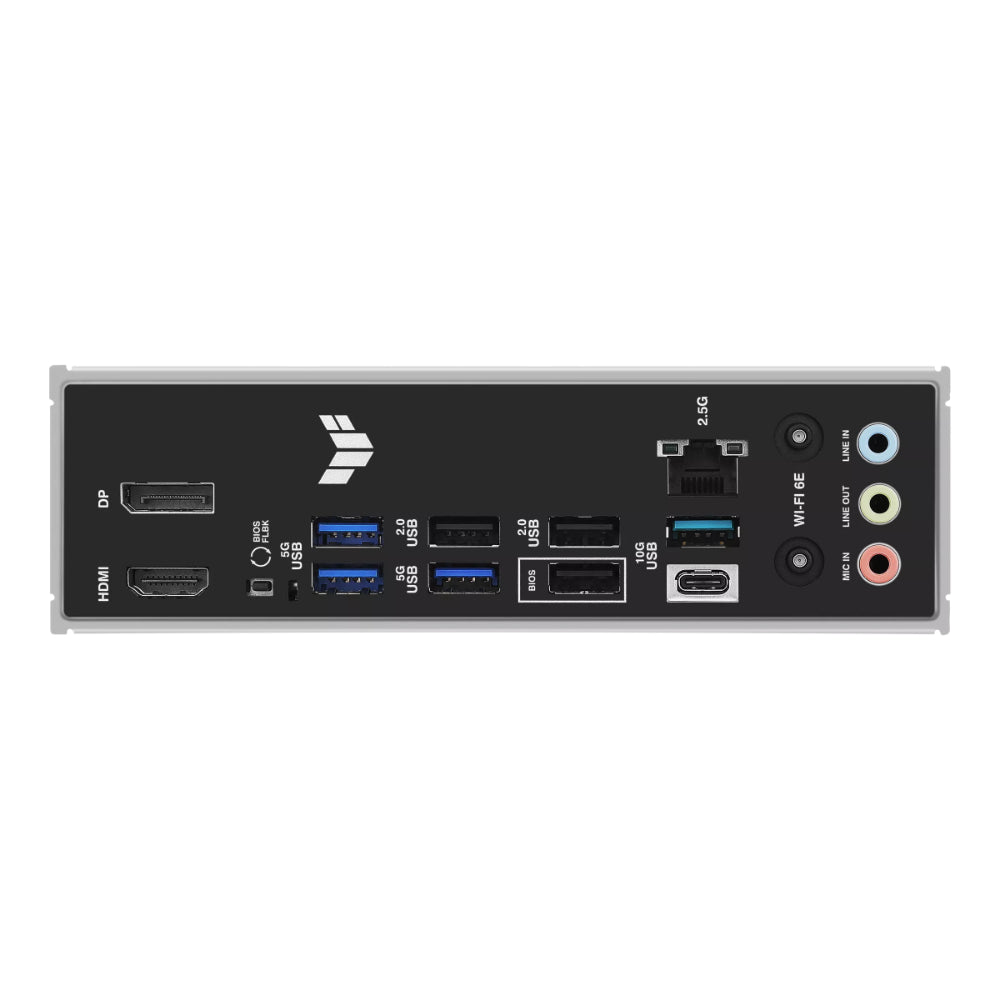

Rear I/O

• 1 × USB Type-C 10 Gbps
• 1 × USB Type-A 10 Gbps
• 3 × USB Type-A 5 Gbps
• 3 × USB Type-A USB 2.0
• 1 × DisplayPort
• 1 × HDMI
• 1 × Wi-Fi module connection
• 1 × Realtek 2.5 Gb Ethernet
• 3 × Audio jacks
• 1 × BIOS FlashBack button

Internal I/O

Fan & Cooling

• 1 × CPU Fan header
• 1 × CPU OPT Fan header
• 1 × AIO Pump header
• 4 × Chassis Fan headers

Power

• 1 × 24-pin main power connector
• 1 × 8-pin +12V CPU power connector
• 1 × 4-pin +12V CPU power connector

Storage

• 3 × M.2 slots
• 4 × SATA 6Gb/s ports

Additional Connectivity

• 1 × USB 20 Gbps Type-C connector
• 1 × USB 5 Gbps header
• 2 × USB 2.0 headers
• 3 × Addressable RGB Gen 2 headers
• Clear CMOS header
• Chassis Intrusion Header
• COM Port header
• Front Panel Audio header
• Front Panel System header

TUF Gaming Protection

The TUF Gaming B850-E WIFI incorporates multiple protection and durability technologies:

• DIGI+ VRM with DrMOS
• ESD Guards
• TUF LANGuard
• Overvoltage Protection
• SafeSlot
• Stainless-Steel Back I/O

ASUS Q-Design

Designed to simplify PC building and maintenance with:

• M.2 Q-Latch
• PCIe Slot Q-Release
• Q-Antenna
• Q-Dashboard
• Q-DIMM
• Q-LED diagnostic indicators
• Q-Slot

Thermal & DIY Features

• Flexible M.2 heatsink
• VRM heatsink design
• BIOS FlashBack button
• BIOS FlashBack LED
• ProCool power connectors
• Pre-mounted I/O shield
• SafeDIMM

Aura Sync RGB

The motherboard includes Addressable RGB Gen 2 headers with ASUS Aura Sync support, allowing compatible lighting components to be synchronized through ASUS software.

Software Features

ASUS Exclusive Software

• Armoury Crate
• Aura Creator
• Aura Sync
• Fan Xpert 4
• Power Saving
• ASUS AI Advisor
• ASUS DriverHub
• ASUS GlideX
• TurboV Core
• TUF Gaming CPU-Z
• DTS Audio Processing
• Adobe Creative Cloud Free Trial
• Norton 360 for Gamers — 60-day free trial
• WinRAR — 40-day free trial

UEFI BIOS

• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
• ASUS MyHotkey

Manageability

• Wake-on-LAN by PME
• PXE support

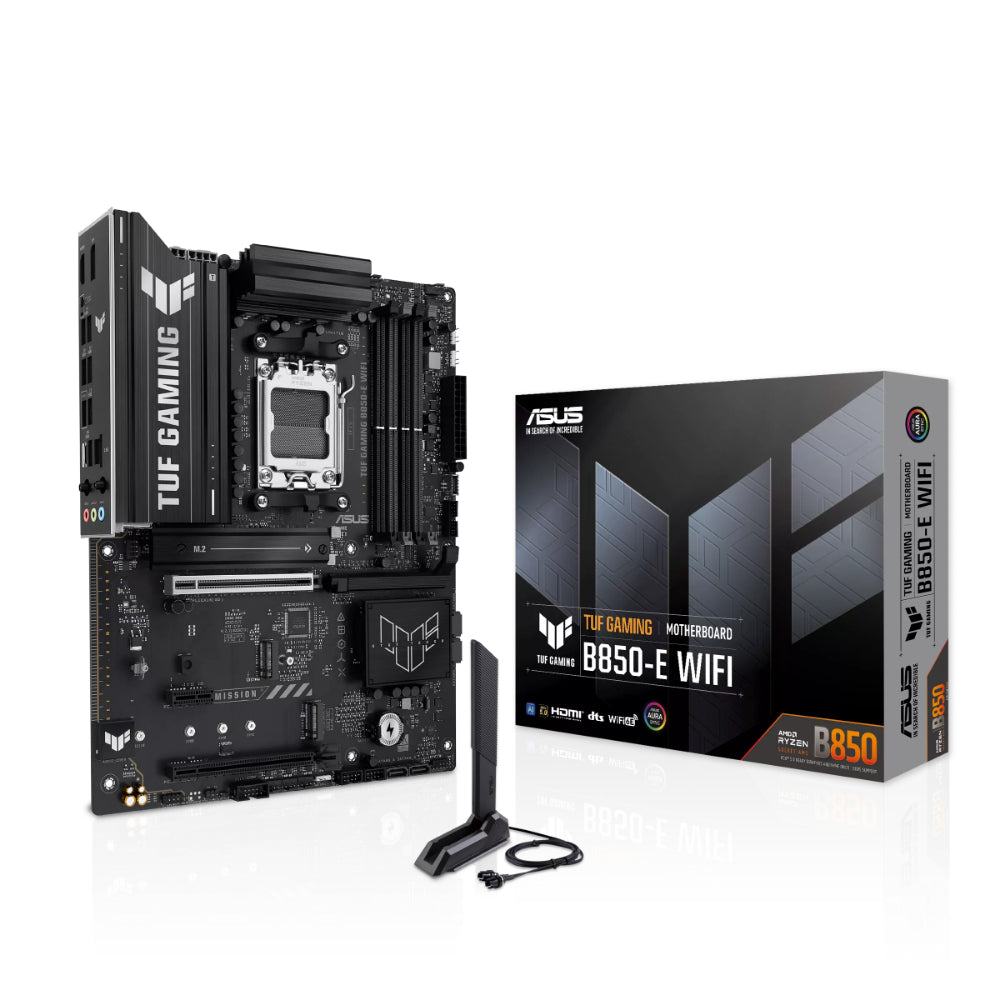

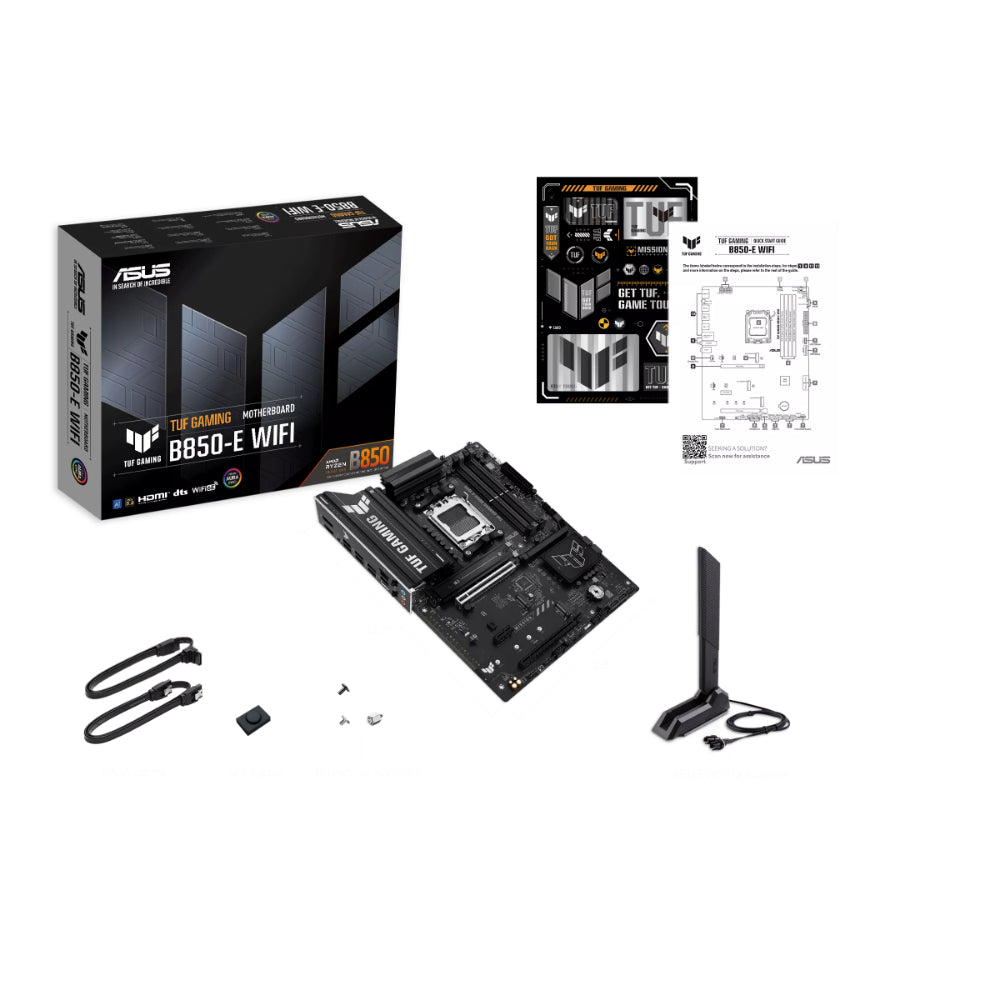

Accessories

• 2 × SATA 6Gb/s cables
• ASUS WiFi Q-Antenna
• TUF Gaming sticker
• M.2 rubber package
• 2 × M.2 SSD screw packages
• Quick Start Guide

Operating System Support

• Windows 11
• Windows 10 64-bit

Ideal For

• High-performance gaming PCs
• AMD Ryzen 9000 gaming builds
• AMD Ryzen 7000 and 8000 systems
• AI PC applications
• High-speed DDR5 systems
• PCIe 5.0 graphics cards and storage
• NVMe-based gaming PCs
• Enthusiast desktop builds
• Productivity and content creation systems

Why Choose ASUS TUF GAMING B850-E WIFI?

• AMD B850 chipset with AM5 socket
• Ryzen 9000 / 8000 / 7000 Series support
• Up to 256GB DDR5
• Up to 8000+ MT/s (OC) memory support
• PCIe 5.0 x16
• 3 × M.2 slots
• 4 × SATA 6 Gb/s
• Realtek 2.5 Gb Ethernet
• Wi-Fi 6E and Bluetooth 5.3
• USB 20Gbps Type-C connectivity
• TUF Gaming protection and durability
• Comprehensive thermal design
• Aura Sync RGB support
• BIOS FlashBack
