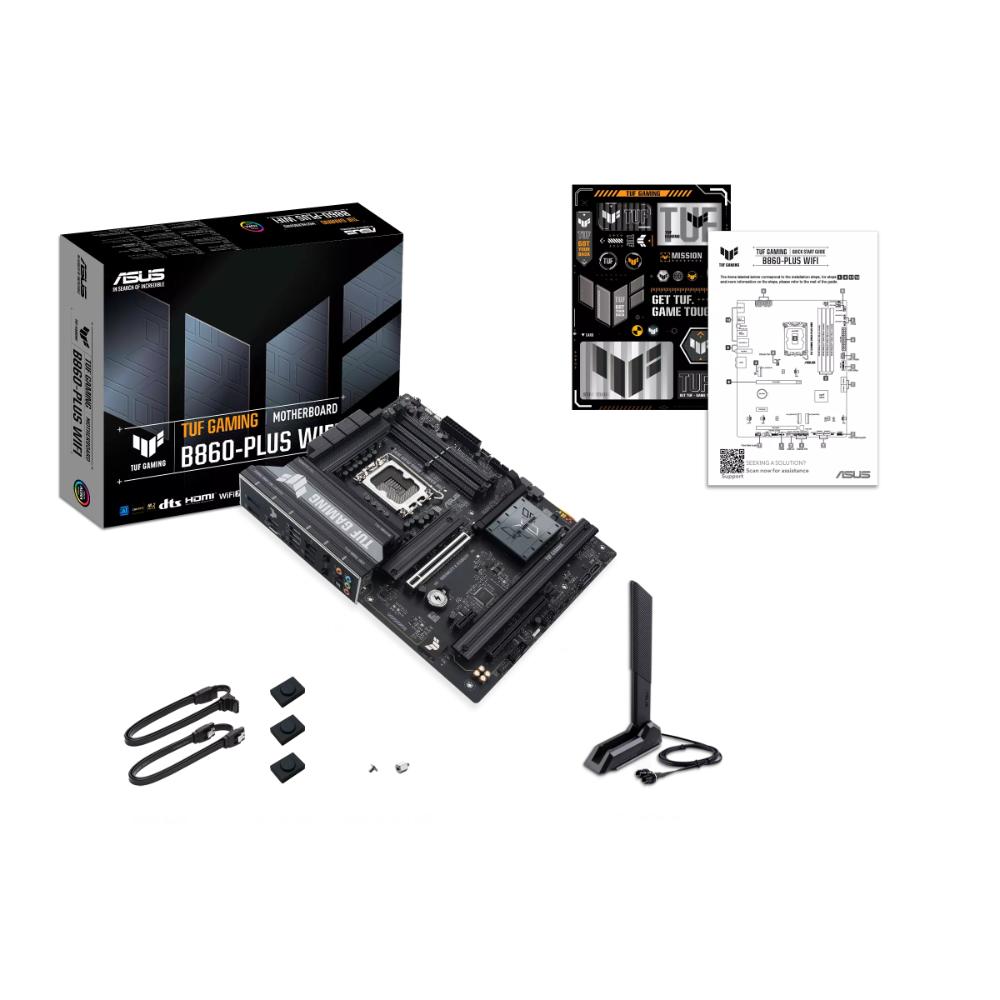

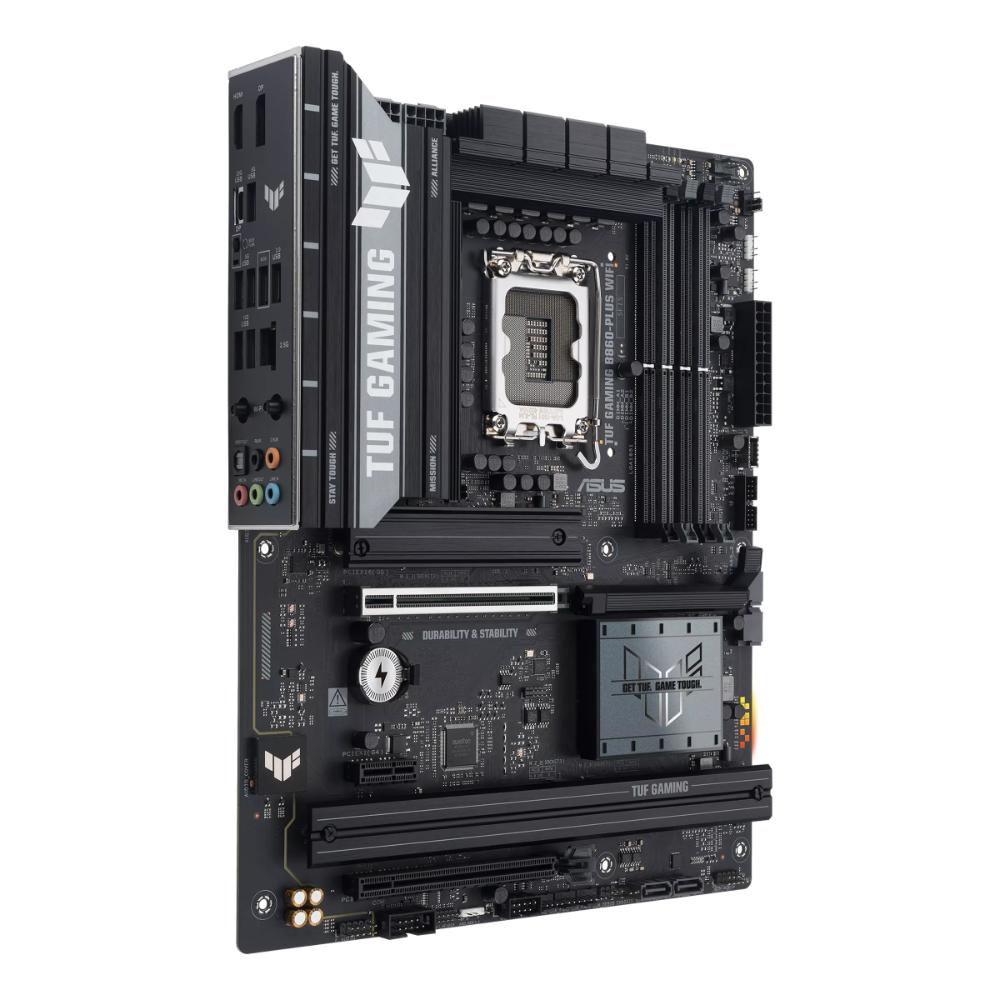

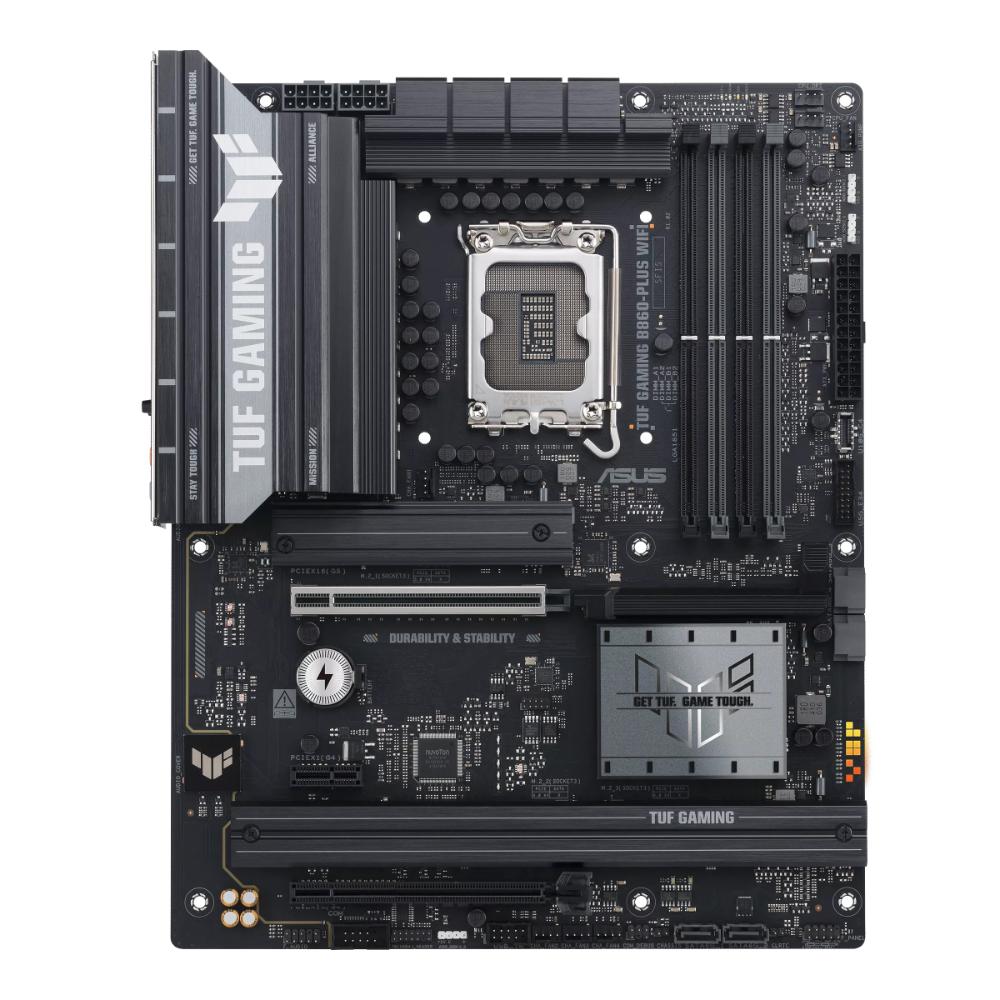

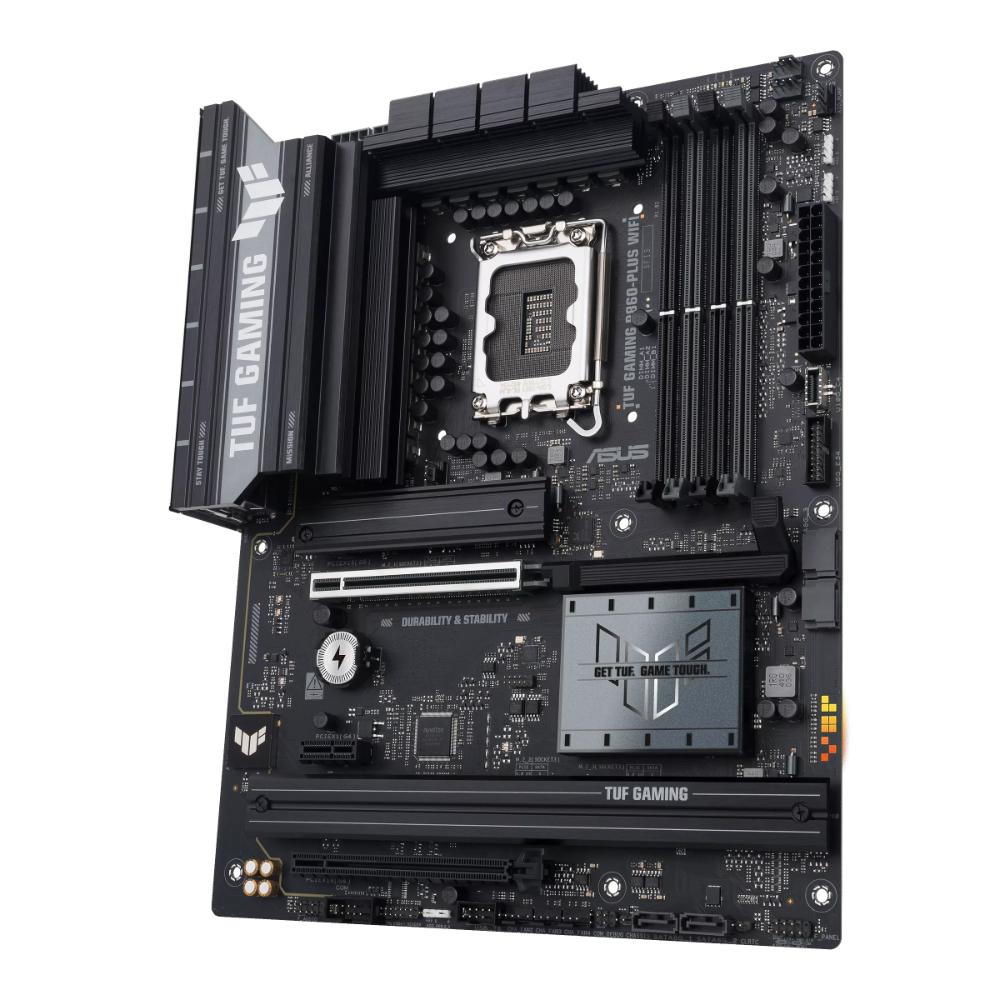

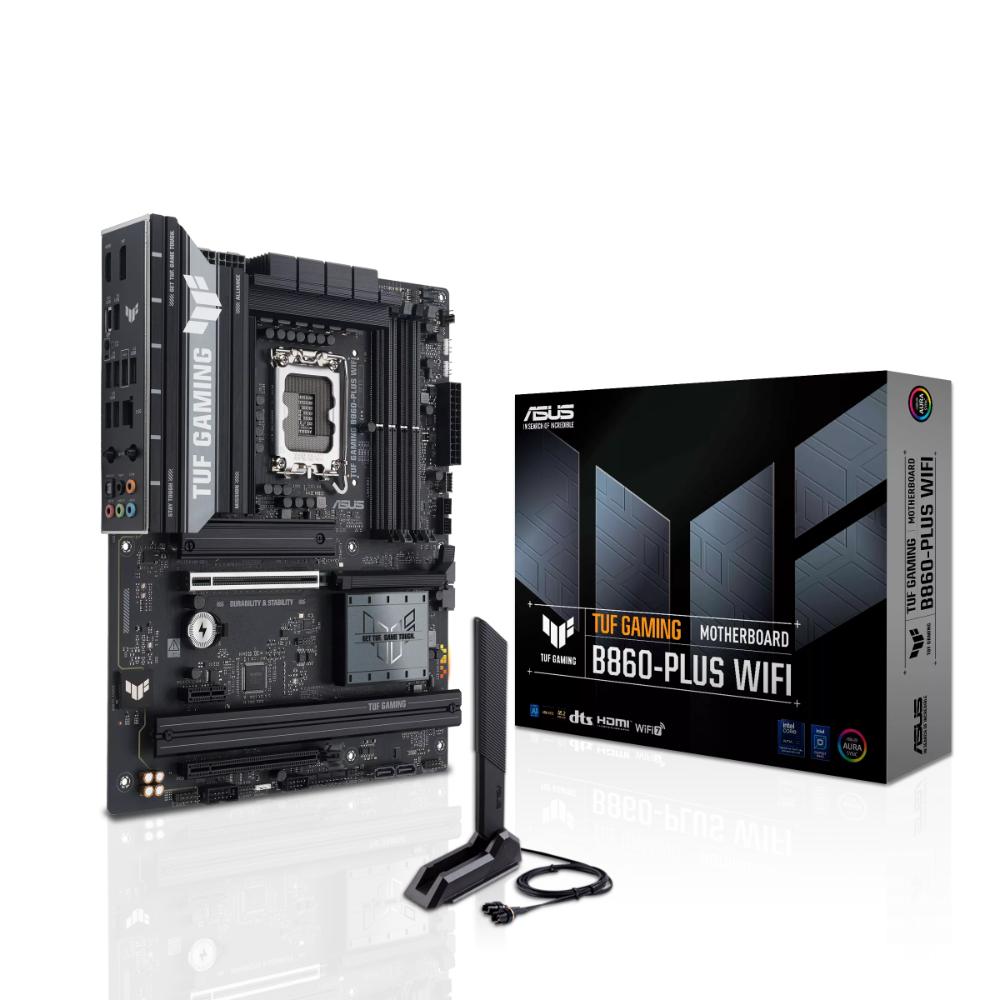

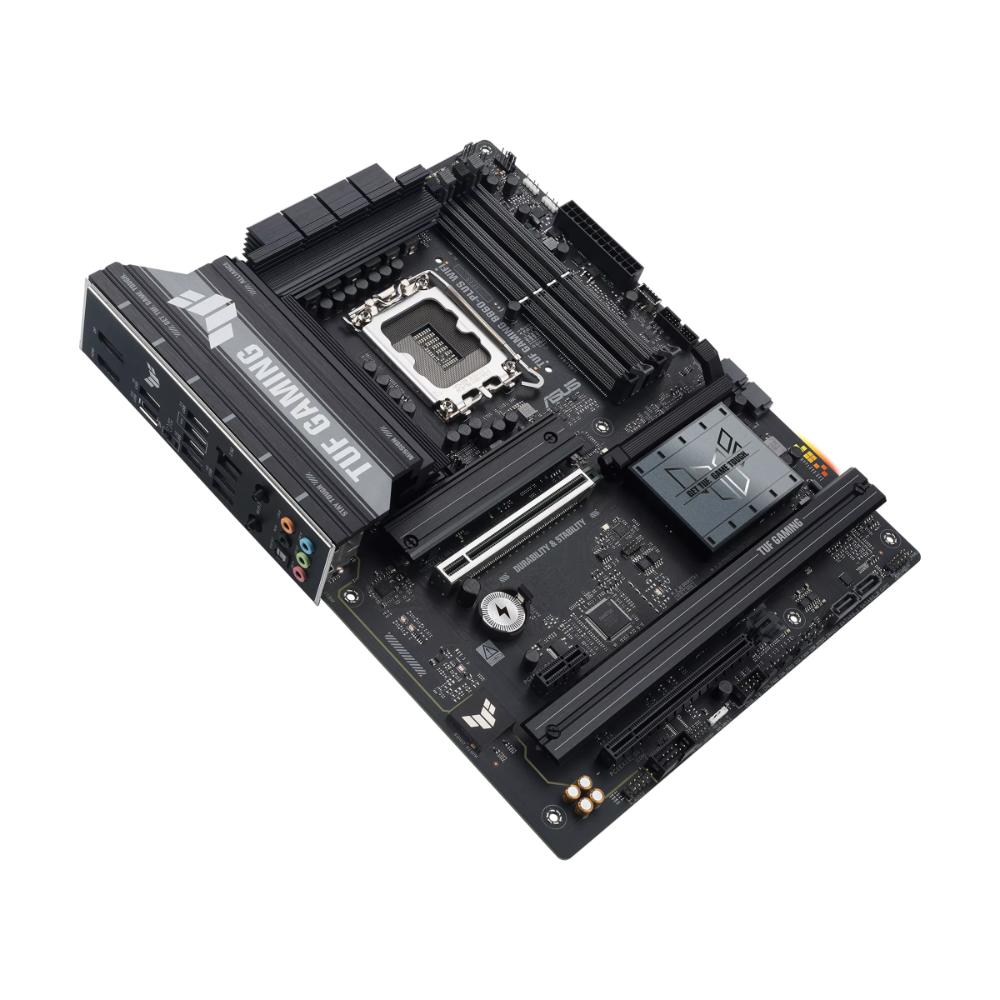

ASUS TUF GAMING B860-PLUS WIFI | Intel B860 ATX Motherboard | LGA1851 | DDR5 | Wi-Fi 7 | PCIe 5.0 | 3x M.2

The ASUS TUF GAMING B860-PLUS WIFI is a durable, feature-rich ATX motherboard designed for the latest Intel Core Ultra Processors (Series 2). Built around the Intel B860 chipset and LGA1851 socket, it combines a robust power design, comprehensive cooling, high-speed connectivity, and gaming-focused features for demanding gaming, productivity, and AI PC applications.

With support for up to 256GB of DDR5 memory and speeds of up to 8666+ MT/s (OC), the TUF GAMING B860-PLUS WIFI provides a strong foundation for high-performance systems. Its PCIe 5.0 x16 slot is ready for next-generation graphics cards, while three M.2 slots—including a PCIe 5.0 x4 slot—provide fast storage expansion.

For networking, the motherboard features 2.5Gb Ethernet and Wi-Fi 7, with Bluetooth 5.4 for wireless peripherals. High-speed USB connectivity includes a 20Gbps USB Type-C port, multiple 10Gbps and 5Gbps ports, and a front USB Type-C connector.

Designed with ASUS TUF durability in mind, the motherboard incorporates DrMOS-based DIGI+ VRM, ESD protection, TUF LANGuard, SafeSlot, VRM and M.2 heatsinks, and other protective features for stable performance during demanding workloads and marathon gaming sessions.

Key Features

Intel Core Ultra Processor Support

The TUF GAMING B860-PLUS WIFI is built for the latest Intel Core Ultra desktop platform.

• Intel LGA1851 socket
• Supports Intel Core Ultra Processors (Series 2)
• Intel B860 chipset
• Supports Intel Turbo Boost Technology 2.0
• Supports Intel Turbo Boost Max Technology 3.0

High-Speed DDR5 Memory

Four DIMM slots provide substantial memory expansion for gaming, content creation, multitasking, and AI applications.

• 4 × DDR5 DIMM slots
• Maximum capacity: 256GB
• Up to 8666+ MT/s (OC)
• Dual-channel memory architecture
• Intel XMP support
• ASUS Enhanced Memory Profile III (AEMP III)
• Supports Non-ECC, unbuffered DDR5
• Supports CUDIMM memory

PCIe 5.0 for Next-Generation Graphics

The primary PCIe slot connects directly to the Intel Core Ultra processor and supports the latest PCI Express standard.

• 1 × PCIe 5.0 x16 slot
• Designed for next-generation graphics cards
• Additional PCIe 4.0 expansion slots
• PCIe Slot Q-Release for easier installation and removal

Triple M.2 Storage Support

The TUF GAMING B860-PLUS WIFI provides three M.2 slots for high-speed NVMe storage.

• 3 × M.2 slots
• M.2_1: PCIe 5.0 x4
• M.2_2: PCIe 4.0 x4
• M.2_3: PCIe 4.0 x4
• Supports M.2 2280 and other supported form factors
• 4 × SATA 6Gb/s ports
• Intel Rapid Storage Technology
• SATA RAID 0/1/5/10 support

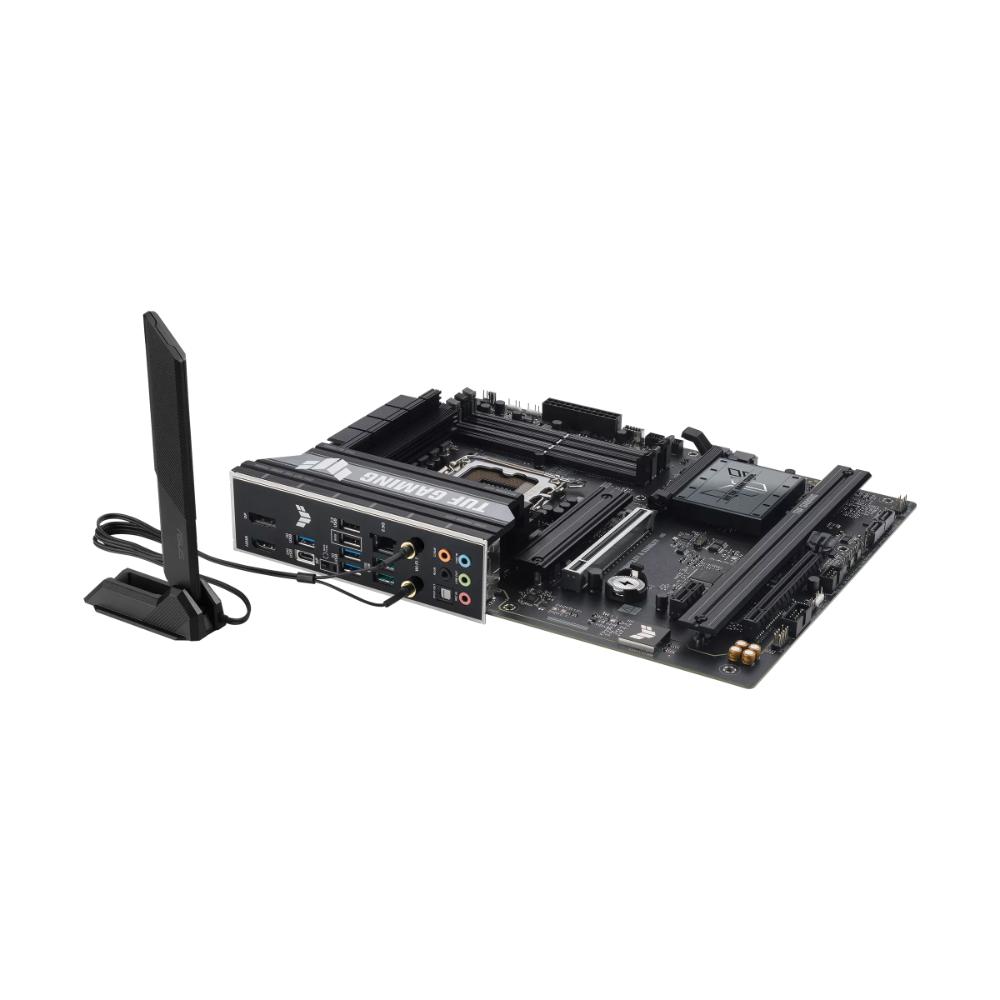

Wi-Fi 7 & Bluetooth 5.4

Enjoy next-generation wireless networking with integrated Wi-Fi 7.

• Wi-Fi 7
• 2×2 802.11be
• 2.4 GHz / 5 GHz / 6 GHz support
• Up to 160 MHz bandwidth
• Up to 2.9 Gbps transfer rate
• Bluetooth 5.4
• Wi-Fi 7 full functionality requires compatible Windows 11 versions and regional regulatory support

2.5 Gb Ethernet

The integrated Realtek 2.5Gb Ethernet provides fast wired networking for gaming, file transfers, streaming, and high-speed network environments.

• 2.5 Gb Ethernet
• TUF LANGuard
• High-speed wired networking
• Designed for low-latency gaming and demanding network workloads

High-Speed USB Connectivity

The motherboard provides a comprehensive selection of rear and front USB connections.

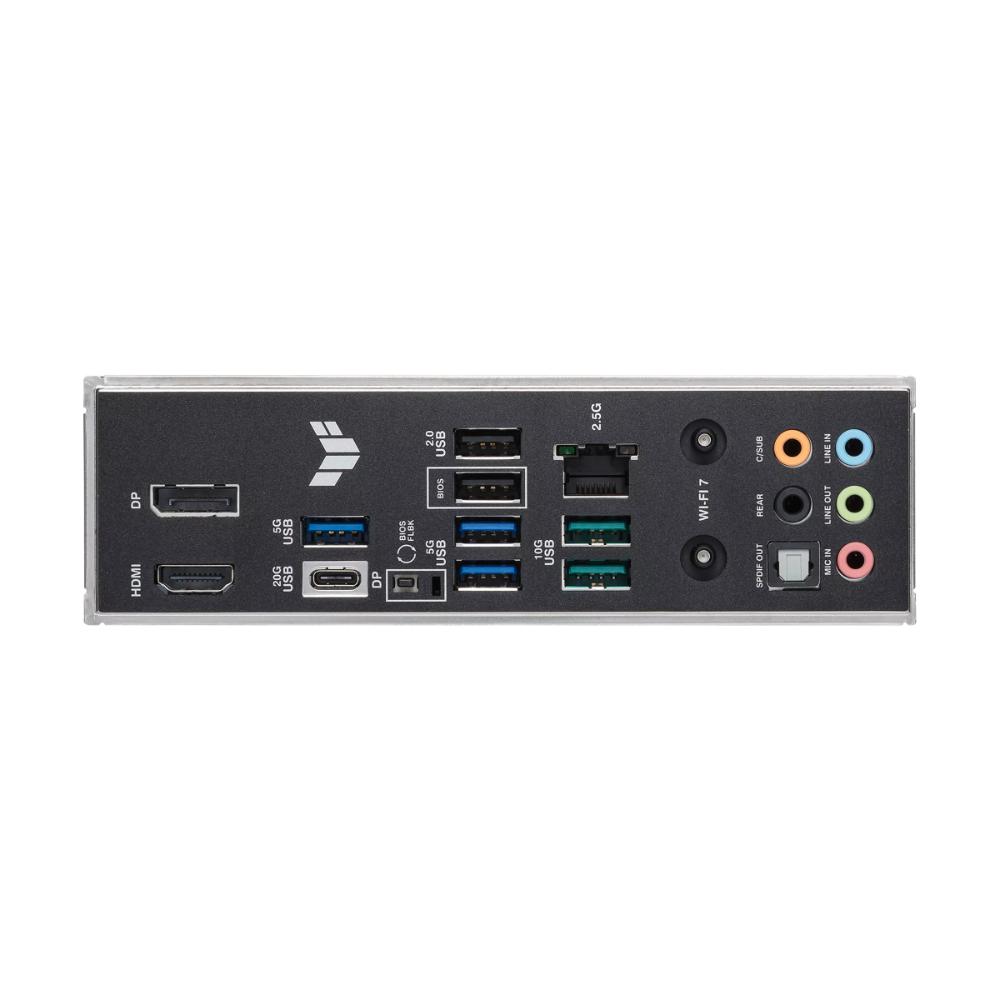

Rear USB:

• 1 × USB 20 Gbps Type-C
• 2 × USB 10 Gbps Type-A
• 3 × USB 5 Gbps Type-A
• 2 × USB 2.0 Type-A

Front USB:

• 1 × USB 10 Gbps Type-C connector
• 1 × USB 5 Gbps header supporting 2 additional ports
• 1 × USB 2.0 header supporting 2 additional ports

Display Connectivity

The integrated graphics outputs provide flexible display connectivity when paired with a compatible processor.

• 1 × DisplayPort
• 1 × HDMI
• USB Type-C with DisplayPort video output
• Up to 4K@60Hz support depending on interface and processor capabilities

Enhanced Audio

The TUF GAMING B860-PLUS WIFI features a Realtek 7.1-channel high-definition audio solution designed for immersive gaming, entertainment, and productivity.

• Realtek 7.1 Surround Sound HD Audio CODEC
• Up to 24-bit/192 kHz playback
• Audio shielding
• Premium audio capacitors
• Dedicated audio PCB layers
• Audio cover
• Rear optical S/PDIF output

Comprehensive Cooling

TUF GAMING cooling solutions help maintain stable temperatures under demanding workloads.

• VRM heatsink design
• M.2 heatsinks
• 1 × CPU fan header
• 1 × CPU OPT fan header
• 1 × AIO pump header
• 4 × chassis fan headers
• ASUS Fan Xpert 4 support

TUF Protection & Durability

The motherboard is engineered with ASUS TUF protection technologies for enhanced durability and system reliability.

• DIGI+ VRM with DrMOS
• ESD Guards
• TUF LANGuard
• Overvoltage Protection
• SafeSlot
• Stainless-steel rear I/O
• SafeDIMM
• Pre-mounted I/O shield
• CPU socket lever protector

ASUS Q-Design

Installation and troubleshooting are simplified with ASUS Q-Design features.

• M.2 Q-Latch
• PCIe Slot Q-Release
• Q-Antenna
• Q-Dashboard
• Q-DIMM
• Q-LED
• Q-Slot

BIOS FlashBack

The integrated BIOS FlashBack button provides a convenient way to update the motherboard BIOS without requiring a CPU or memory configuration in supported scenarios.

• BIOS FlashBack button
• BIOS FlashBack LED
• 2 × 128 Mb Flash ROM
• ASUS EZ Flash
• ASUS CrashFree BIOS 3
• ASUS UEFI BIOS EZ Mode

Aura Sync RGB

Customize your gaming PC with ASUS Aura Sync lighting support.

• Addressable Gen 2 RGB headers
• Compatible with the Aura Sync ecosystem
• Supports customizable RGB lighting effects

Technical Specifications

Specification	Details
Model	ASUS TUF GAMING B860-PLUS WIFI
CPU Socket	Intel LGA1851
CPU Support	Intel Core Ultra Processors (Series 2)
Chipset	Intel B860
Form Factor	ATX
Dimensions	30.5 × 24.4 cm / 12 × 9.6 in
Memory Type	DDR5
Memory Slots	4 × DIMM
Maximum Memory	256GB
Memory Speed	Up to 8666+ MT/s (OC)
Memory Architecture	Dual Channel
XMP Support	Yes.
Primary PCIe Slot	1 × PCIe 5.0 x16
Additional PCIe	1 × PCIe 4.0 x16 (x4), 1 × PCIe 4.0 x1
M.2 Slots	3
M.2 Interface	1 × PCIe 5.0 x4 + 2 × PCIe 4.0 x4
SATA Ports	4 × SATA 6 Gb/s
LAN	Realtek 2.5 Gb Ethernet
Wireless	Wi-Fi 7
Bluetooth	Bluetooth 5.4
Rear USB	8 ports
USB Type-C	Up to 20Gbps
DisplayPort	1
HDMI	1
Audio	Realtek 7.1 Surround Sound HD Audio
Optical S/PDIF	Yes.
BIOS	2 × 128 MB Flash ROM
BIOS FlashBack	Yes.
RGB	Aura Sync / Addressable Gen 2
Operating System	Windows 11 (22H2 & later)

Expansion & Connectivity

The ASUS TUF GAMING B860-PLUS WIFI is designed to provide extensive connectivity for modern gaming and workstation builds.

Expansion:

• 1 × PCIe 5.0 x16
• 1 × PCIe 4.0 x16 running at x4
• 1 × PCIe 4.0 x1

Storage:

• 3 × M.2
• 4 × SATA 6 Gb/s

Networking:

• 2.5 Gb Ethernet
• Wi-Fi 7
• Bluetooth 5.4

Internal Expansion:

• Thunderbolt / USB4 header
• COM header
• TPM header
• S/PDIF header
• Front-panel audio
• Addressable Gen 2 RGB headers

Ideal For

• High-performance gaming PCs
• Intel Core Ultra gaming builds
• AI PC systems
• Content creation workstations
• Streaming PCs
• High-speed NVMe systems
• Productivity workstations
• Enthusiast PC builds
• Wi-Fi 7 gaming systems
• Next-generation GPU builds

Why Choose the ASUS TUF GAMING B860-PLUS WIFI?

The ASUS TUF GAMING B860-PLUS WIFI combines the latest Intel platform technologies with the durability and gaming-focused features of the TUF GAMING series. With PCIe 5.0, DDR5 memory support, three M.2 slots, Wi-Fi 7, 2.5Gb Ethernet, high-speed USB connectivity, comprehensive cooling, and robust power delivery, it provides an excellent foundation for a modern high-performance PC.

Whether you're building a powerful gaming machine, an AI-ready PC, or a versatile workstation, the TUF GAMING B860-PLUS WIFI offers the connectivity, expansion, and reliability needed for demanding applications.

Buy the ASUS TUF GAMING B860-PLUS WIFI Motherboard from Mustafa Computers—Authorized ASUS Reseller in Pakistan.

Get 100% genuine ASUS products, competitive pricing, an official warranty, professional customer support, and nationwide delivery across Pakistan.

Build your next-generation PC with the ASUS TUF GAMING B860-PLUS WIFI and experience the performance, connectivity, durability, and expandability of the Intel Core Ultra platform.
