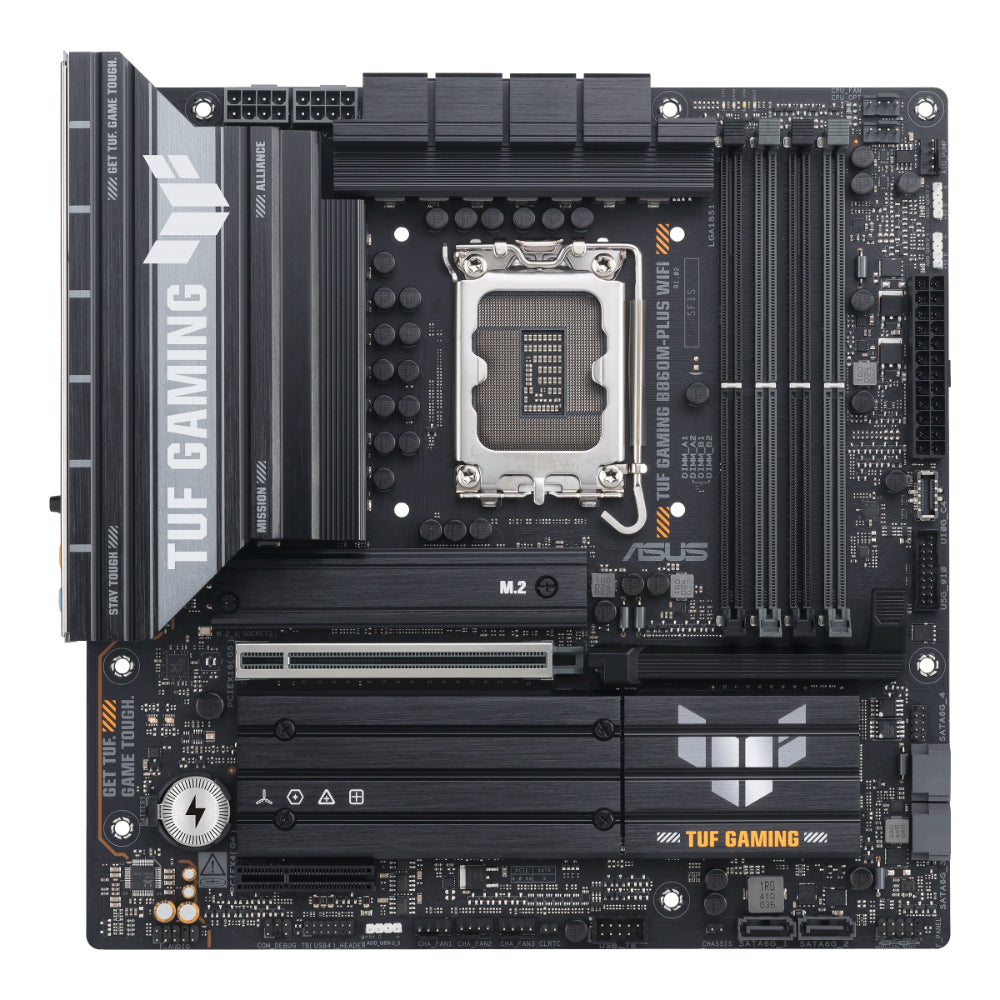

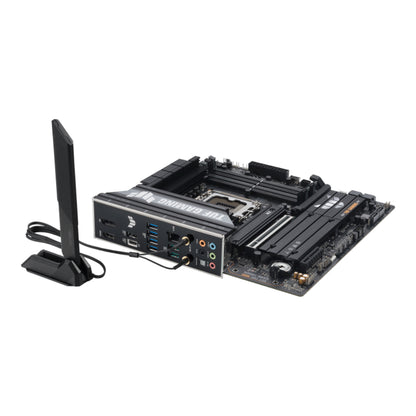

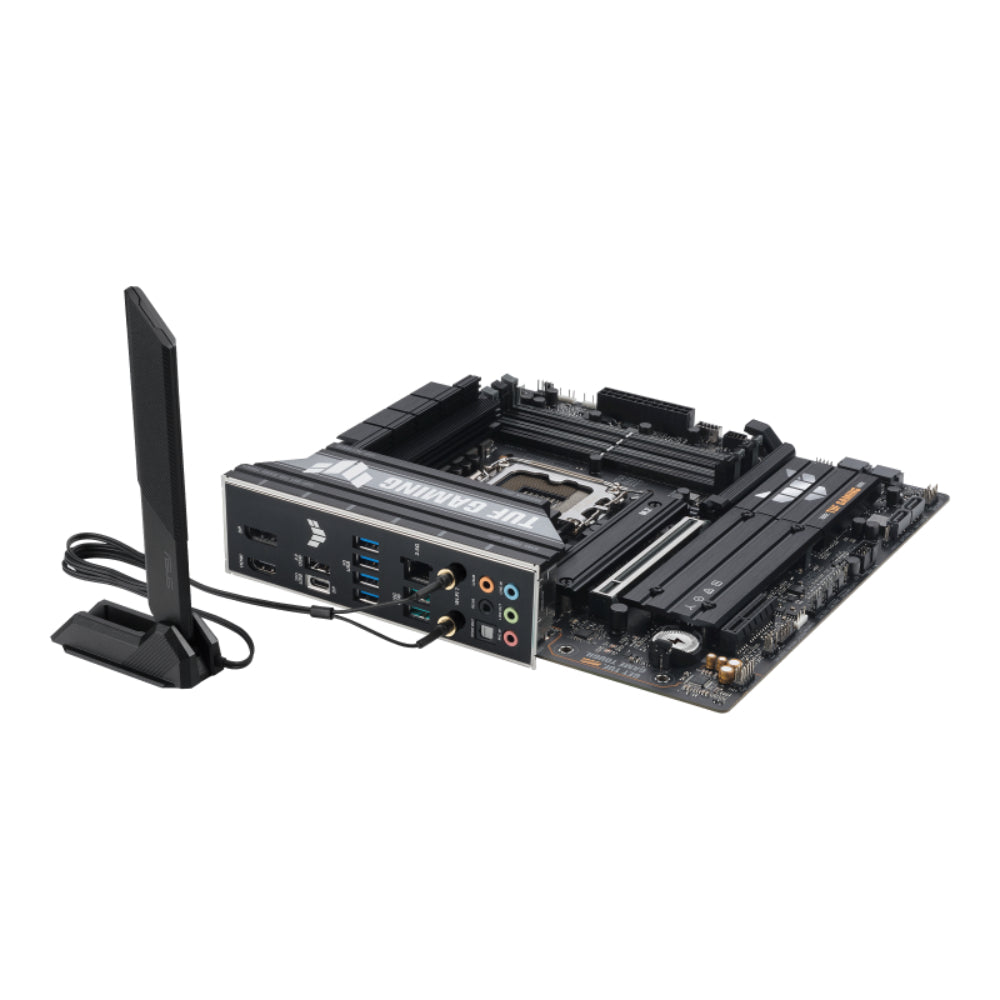

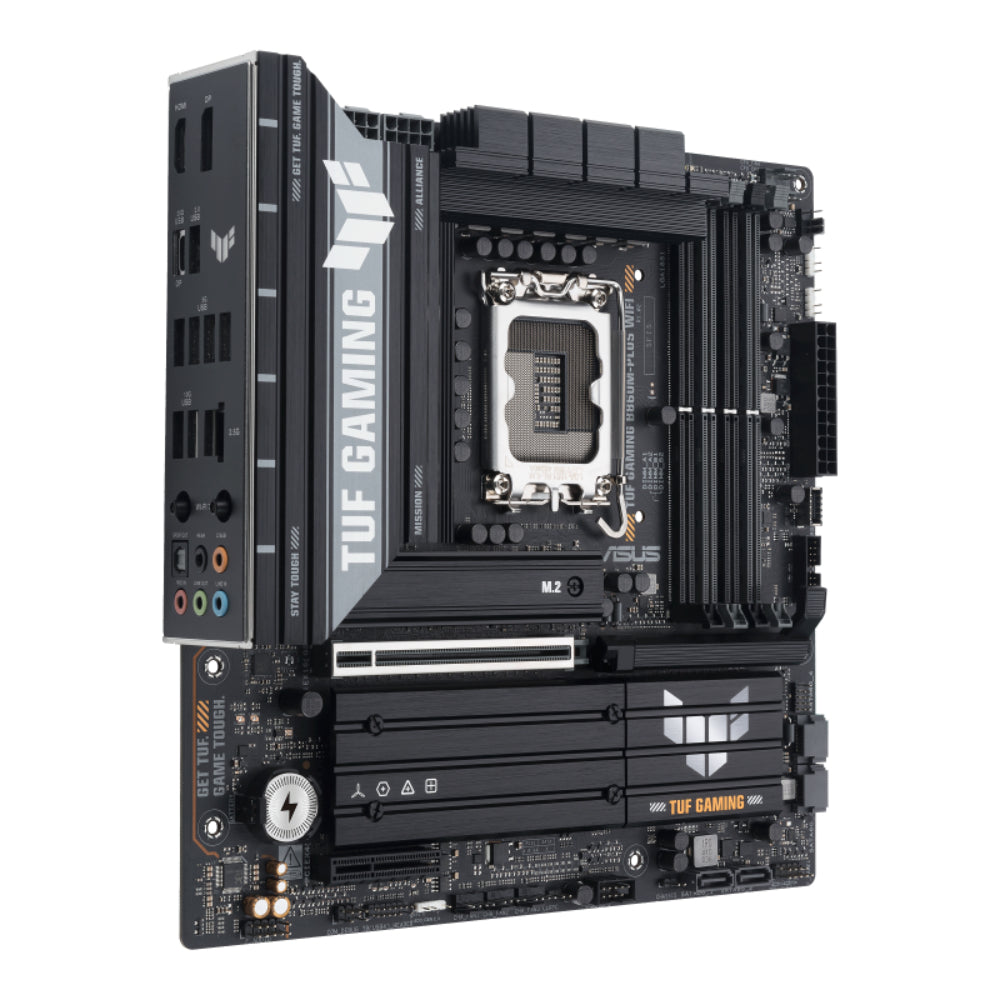

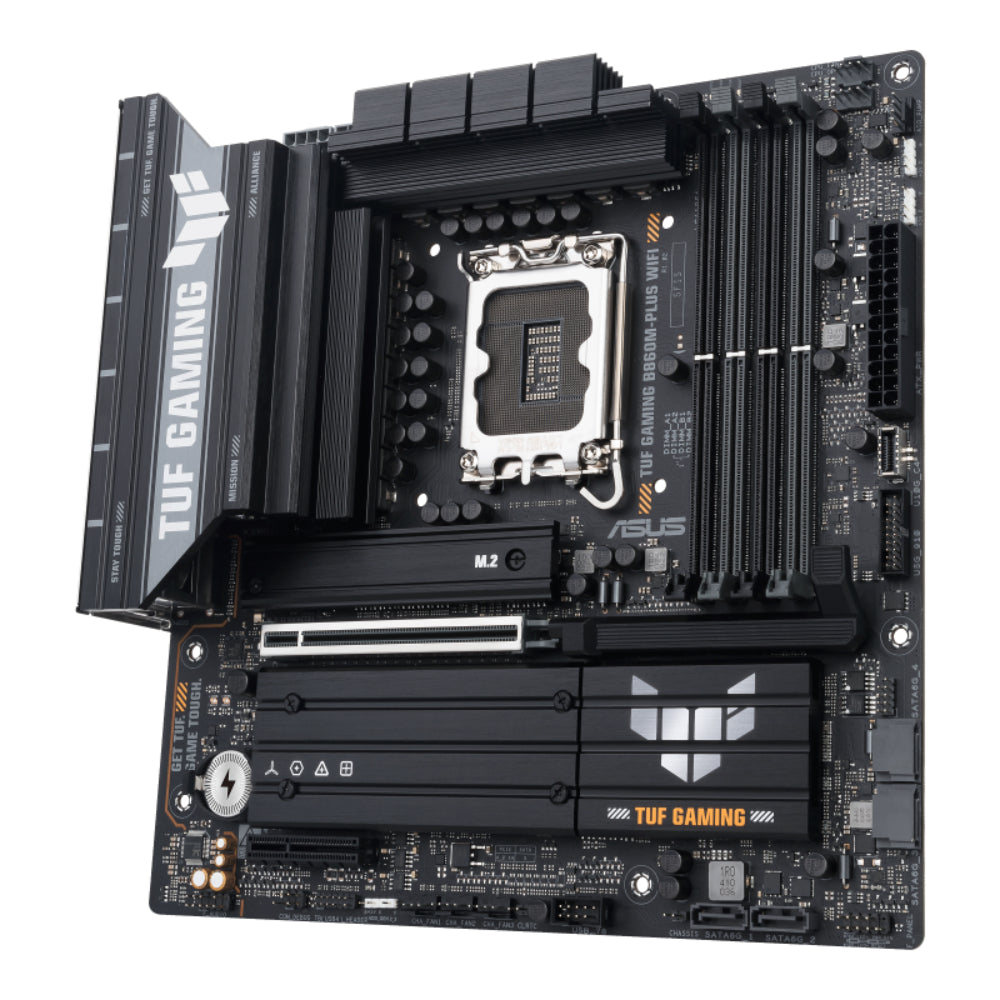

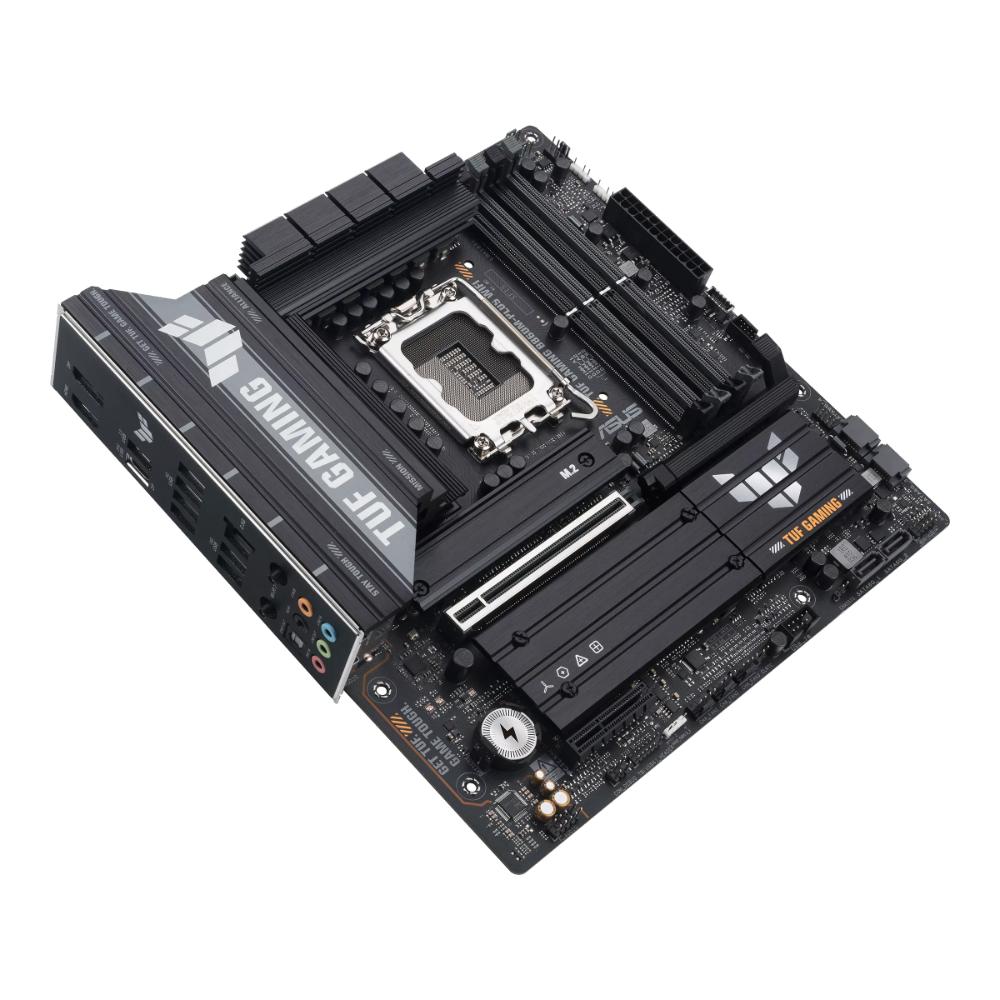

ASUS TUF GAMING B860M-PLUS WIFI | Intel B860 | LGA1851 | DDR5 | PCIe 5.0 | Wi-Fi 7 | 2.5Gb Ethernet | 3× M.2 | mATX

The ASUS TUF GAMING B860M-PLUS WIFI is a high-performance micro-ATX gaming motherboard engineered for the latest Intel® Core™ Ultra Processors (Series 2). Built on the Intel B860 chipset with the LGA1851 socket, it combines a robust power solution, comprehensive cooling, next-generation connectivity, and proven TUF durability for demanding gaming and performance-oriented PC builds.

Supporting up to 256GB of DDR5 memory at speeds up to 8800+ MT/s (OC), the motherboard features a PCIe 5.0 x16 slot, three M.2 slots, Wi-Fi 7, 2.5Gb Ethernet, USB 20Gbps Type-C connectivity, and ASUS TUF-exclusive protection and Q-Design technologies.

Designed for both gaming and advanced AI PC applications, the TUF GAMING B860M-PLUS WIFI provides a powerful and reliable foundation for modern gaming PCs, enthusiast builds, content creation systems, and high-performance workstations.

Key Features

Intel LGA1851 Socket for Core Ultra Processors

The motherboard supports the latest Intel Core Ultra Processors (Series 2) using the LGA1851 socket, providing a modern platform for next-generation desktop performance.

• Intel LGA1851 socket
• Intel Core Ultra Processors (Series 2) support
• Intel Turbo Boost Technology 2.0
• Intel Turbo Boost Max Technology 3.0
• Intel B860 chipset

High-Speed DDR5 Memory

The TUF GAMING B860M-PLUS WIFI features four DDR5 DIMM slots with support for up to 256 GB of system memory.

• 4 × DDR5 DIMM slots
• Maximum capacity: 256GB
• Up to 8800+ MT/s (OC)
• Dual-channel memory architecture
• Intel XMP support
• ASUS Enhanced Memory Profile III (AEMP III)
• DIMM Fit
• Supports Non-ECC, Unbuffered, and CUDIMM memory

PCIe 5.0 Graphics Support

The primary PCIe 5.0 x16 slot provides high-bandwidth connectivity for modern graphics cards and next-generation expansion hardware.

• 1 × PCIe 5.0 x16
• 1 × PCIe 4.0 x4
• ASUS SafeSlot protection
• PCIe Slot Q-Release for easier hardware installation

Triple M.2 Storage

With three M.2 slots, the motherboard provides flexible high-speed NVMe storage options.

• 3 × M.2 slots
• M.2_1: PCIe 5.0 x4
• M.2_2: PCIe 4.0 x4
• M.2_3: PCIe 4.0 x4
• Supports 2280 M.2 drives
• M.2_2 also supports 2242 / 2260
• 4 × SATA 6 Gb/s
• Intel Rapid Storage Technology
• SATA RAID 0/1/5/10 support

Next-Generation Wi-Fi 7

The integrated Wi-Fi 7 solution provides high-speed wireless networking for gaming, streaming, downloads, and connected applications.

• Wi-Fi 7
• 2×2 802.11be
• 2.4 GHz / 5 GHz / 6 GHz support
• Up to 2.9 Gbps transfer rate
• Wi-Fi 7 160 MHz bandwidth
• Bluetooth 5.4
• Windows 11 24H2 or later required for full Wi-Fi 7 functionality

2.5 Gb Ethernet

For users who prefer wired networking, the integrated Realtek 2.5Gb Ethernet provides fast and reliable network connectivity.

• Realtek 2.5 Gb Ethernet
• TUF LANGuard
• High-speed wired networking
• Ideal for gaming, file transfers, and network-intensive applications

High-Speed USB Connectivity

The motherboard provides a comprehensive selection of high-speed USB ports, including a USB 20Gbps Type-C rear port.

Rear USB:

• 1 × USB 20 Gbps Type-C
• 2 × USB 10 Gbps Type-A
• 4 × USB 5 Gbps Type-A
• 1 × USB 2.0 Type-A

Front USB:

• 1 × USB 10 Gbps Type-C
• 1 × USB 5 Gbps header supporting 2 additional ports
• 1 × USB 2.0 header supporting 2 additional ports

HDMI & DisplayPort

The motherboard provides display outputs for compatible Intel processors with integrated graphics.

• 1 × DisplayPort
• 1 × HDMI
• USB Type-C DisplayPort Alt Mode
• DisplayPort supports up to 4K at 60 Hz
• HDMI 2.1 supports up to 4K at 60 Hz

Immersive 7.1-Channel Audio

The integrated Realtek 7.1 Surround Sound High Definition Audio CODEC provides enhanced audio for gaming, movies, music, and everyday use.

• Realtek 7.1-channel HD Audio
• Up to 24-bit / 192 kHz playback
• Audio shielding
• Premium audio capacitors
• Dedicated audio PCB layers
• Rear optical S/PDIF output
• Front-panel jack retasking and multi-streaming

Comprehensive Thermal Design

The TUF GAMING B860M-PLUS WIFI is equipped with extensive cooling features to help maintain stable performance during demanding workloads.

• VRM heatsink design
• Multiple M.2 heatsinks
• CPU fan header
• CPU OPT fan header
• AIO pump header
• 3 × chassis fan headers
• ASUS Fan Xpert 2+

TUF Protection & Durability

TUF GAMING motherboards are designed with durability and stability in mind.

ASUS TUF Protection:

• DIGI+ VRM with DrMOS
• ESD Guards
• TUF LANGuard
• Overvoltage Protection
• SafeSlot
• Stainless-steel back I/O

ASUS Q-Design

Convenient hardware installation and troubleshooting features include:

• M.2 Q-Latch
• PCIe Slot Q-Release
• Q-Antenna
• Q-Dashboard
• Q-DIMM
• Q-LED diagnostic indicators

Aura Sync RGB

Customize compatible components and lighting accessories with ASUS Aura Sync.

• 3 × Addressable Gen 2 headers
• Aura Sync support
• Aura Creator support
• Armoury Crate integration

Technical Specifications

Specification	Details
Model	ASUS TUF GAMING B860M-PLUS WIFI
Form Factor	Micro-ATX
Dimensions	24.4 × 24.4 cm (9.6 × 9.6")
CPU Socket	Intel LGA1851
Processor Support	Intel Core Ultra Processors (Series 2)
Chipset	Intel B860
Memory Type	DDR5
Memory Slots	4 × DIMM
Maximum Memory	256GB
Memory Speed	Up to 8800+ MT/s (OC)
Memory Architecture	Dual Channel
Primary Expansion Slot	PCIe 5.0 x16
Additional Expansion	PCIe 4.0 x4
M.2 Slots	3
M.2_1	PCIe 5.0 x4
M.2_2	PCIe 4.0 x4
M.2_3	PCIe 4.0 x4
SATA	4 × SATA 6 Gb/s
Ethernet	Realtek 2.5 Gb
Wireless	Wi-Fi 7
Bluetooth	Bluetooth 5.4
Rear USB	USB 20 Gbps Type-C, USB 10 Gbps, USB 5 Gbps & USB 2.0
Front USB	USB 10 Gbps Type-C, USB 5 Gbps & USB 2.0 headers
Audio	Realtek 7.1 Surround Sound HD Audio
Optical Audio	S/PDIF Out
RGB	Aura Sync / Addressable Gen 2
BIOS	2 × 128 Mb Flash ROM, UEFI AMI BIOS
Operating System	Windows 11 (22H2 & later)

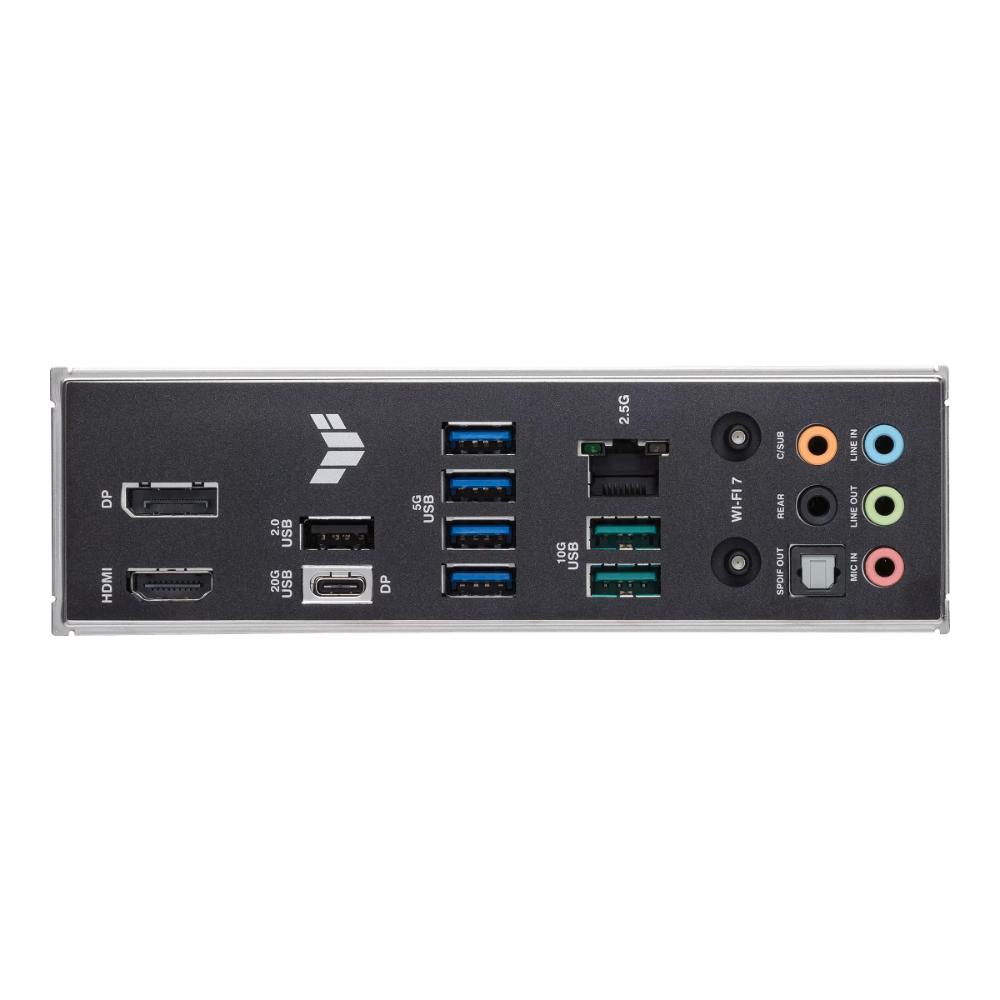

Rear I/O

The TUF GAMING B860M-PLUS WIFI provides a comprehensive rear I/O configuration:

• 1 × USB 20 Gbps Type-C with DP Alt Mode
• 2 × USB 10 Gbps Type-A
• 4 × USB 5 Gbps Type-A
• 1 × USB 2.0 Type-A
• 1 × DisplayPort
• 1 × HDMI
• 1 × Wi-Fi module
• 1 × Realtek 2.5 Gb Ethernet
• 5 × Audio jacks
• 1 × Optical S/PDIF Out

Internal Connectivity

The motherboard includes extensive internal headers for cooling, storage, USB expansion, RGB lighting, and system integration.

• 3 × M.2
• 4 × SATA 6 Gb/s
• 1 × CPU fan header
• 1 × CPU OPT fan header
• 1 × AIO pump header
• 3 × chassis fan headers
• 24-pin main power connector
• 2 × 8-pin CPU power connectors
• USB Type-C internal connector
• USB 5 Gbps header
• USB 2.0 header
• 3 × Addressable Gen 2 headers
• Clear CMOS header
• Chassis intrusion header
• Front-panel audio header
• System panel header
• Thunderbolt / USB4 header

ASUS Gaming Software

The TUF GAMING B860M-PLUS WIFI supports a range of ASUS software and utilities.

ASUS Exclusive Software

• Armoury Crate
• AURA Creator
• AURA Sync
• Fan Xpert 2+
• Power Saving
• ASUS DriverHub
• ASUS GlideX
• TurboV Core
• TUF GAMING CPU-Z
• DTS Audio Processing
• Norton 360 for Gamers – 60-day trial
• WinRAR – 40-day trial

BIOS Features

• ASUS CrashFree BIOS 3
• ASUS EZ Flash
• ASUS UEFI BIOS EZ Mode
• ASUS MyHotkey
• NPU Boost

Advanced AI PC Ready

The TUF GAMING B860M-PLUS WIFI is designed to provide the power and connectivity required for advanced AI PC applications. With Intel Core Ultra Processor support, high-speed DDR5 memory, PCIe 5.0, fast NVMe storage, high-speed networking, and NPU Boost functionality, it provides a modern platform for AI-enhanced computing and demanding workloads.

Ideal Applications

Perfect for:

• Gaming PCs
• Intel Core Ultra Gaming Builds
• AI PC Systems
• High-Performance PC Builds
• Content Creation Workstations
• Video Editing Systems
• Streaming PCs
• Wi-Fi 7 Gaming PCs
• High-Speed NVMe Systems
• Professional Workstations
• PC DIY Builds
• Compact Micro-ATX Gaming PCs

Why Choose the ASUS TUF GAMING B860M-PLUS WIFI?

• Intel B860 chipset
• LGA1851 socket
• Intel Core Ultra Processors (Series 2) support
• 4 × DDR5 DIMM slots
• Up to 256GB DDR5
• Up to 8800+ MT/s (OC)
• PCIe 5.0 x16
• 3 × M.2 slots
• PCIe 5.0 + PCIe 4.0 NVMe support
• Wi-Fi 7
• Bluetooth 5.4
• 2.5 Gb Ethernet
• USB 20 Gbps Type-C
• HDMI & DisplayPort
• Realtek 7.1-channel audio
• Optical S/PDIF
• VRM & M.2 heatsinks
• ASUS Fan Xpert 2+
• Aura Sync RGB
• TUF Protection technologies
• Q-Design installation features
• NPU Boost
• Durable TUF GAMING design
• Compact 24.4 × 24.4 cm micro-ATX form factor
