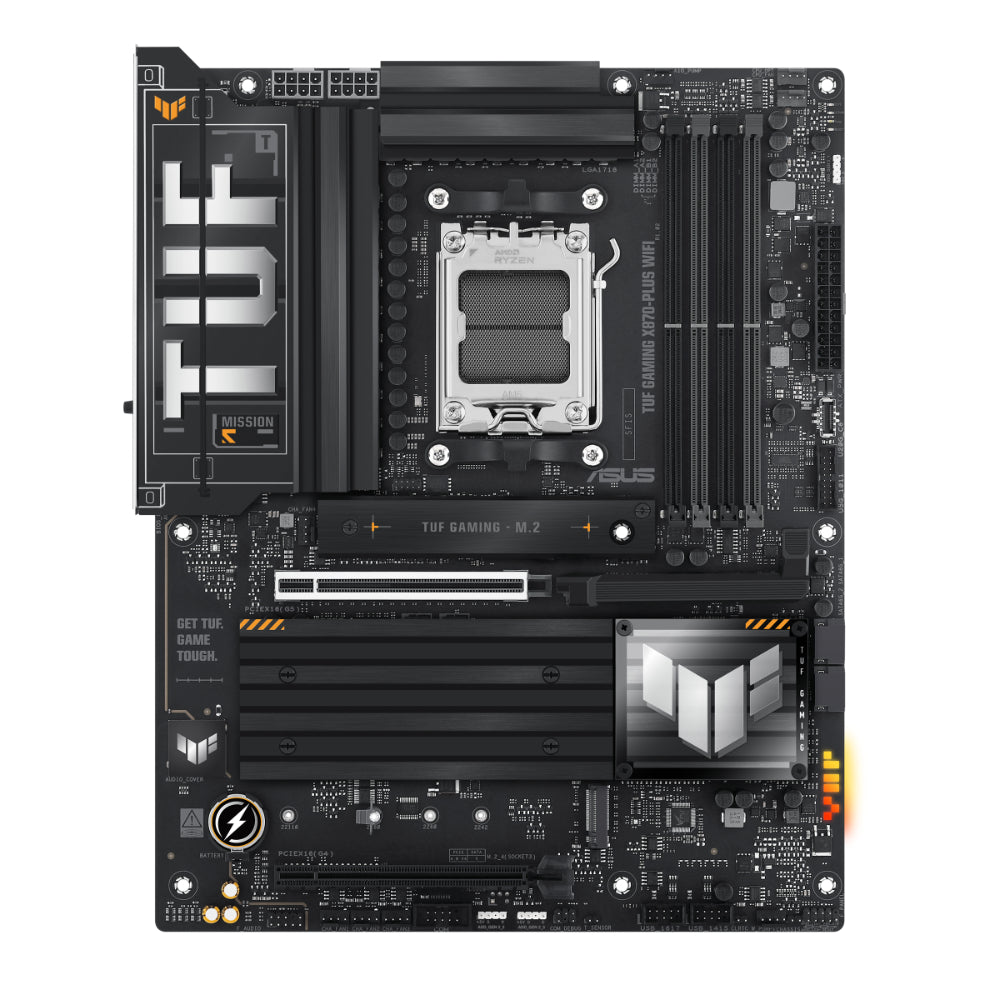

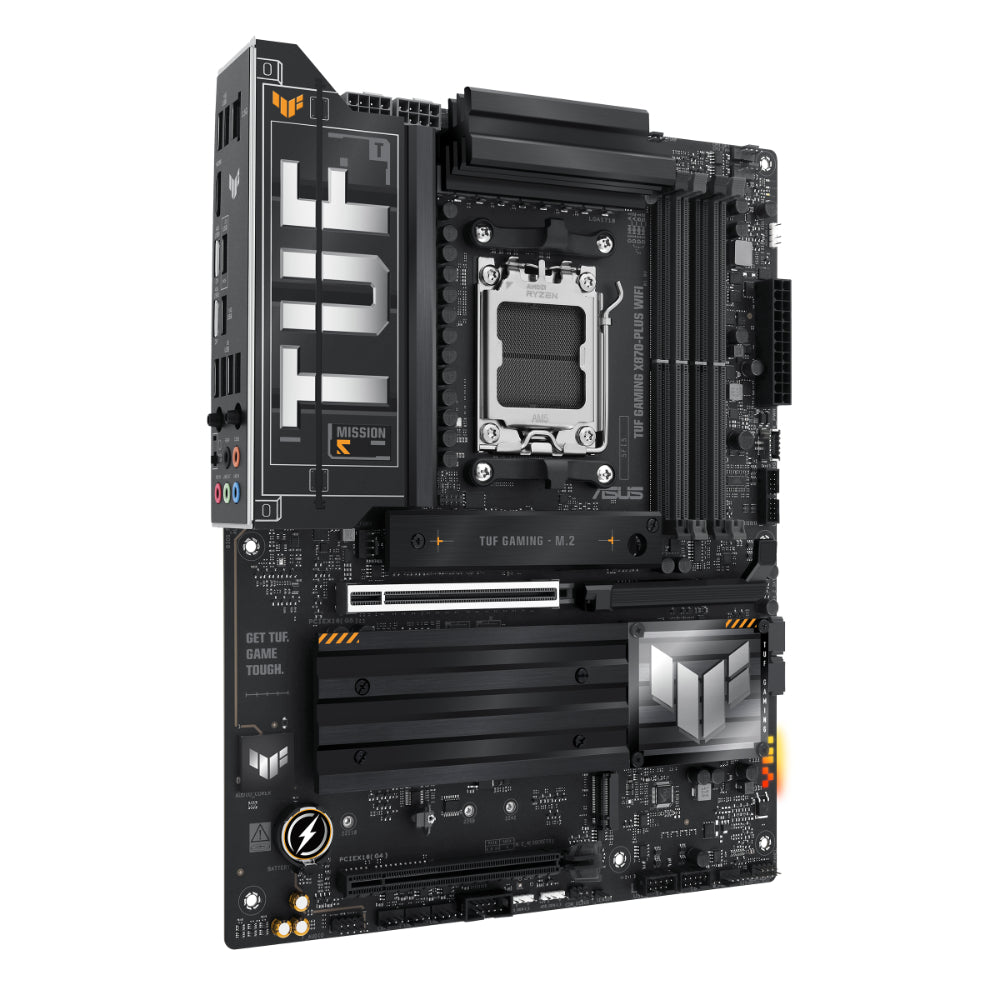

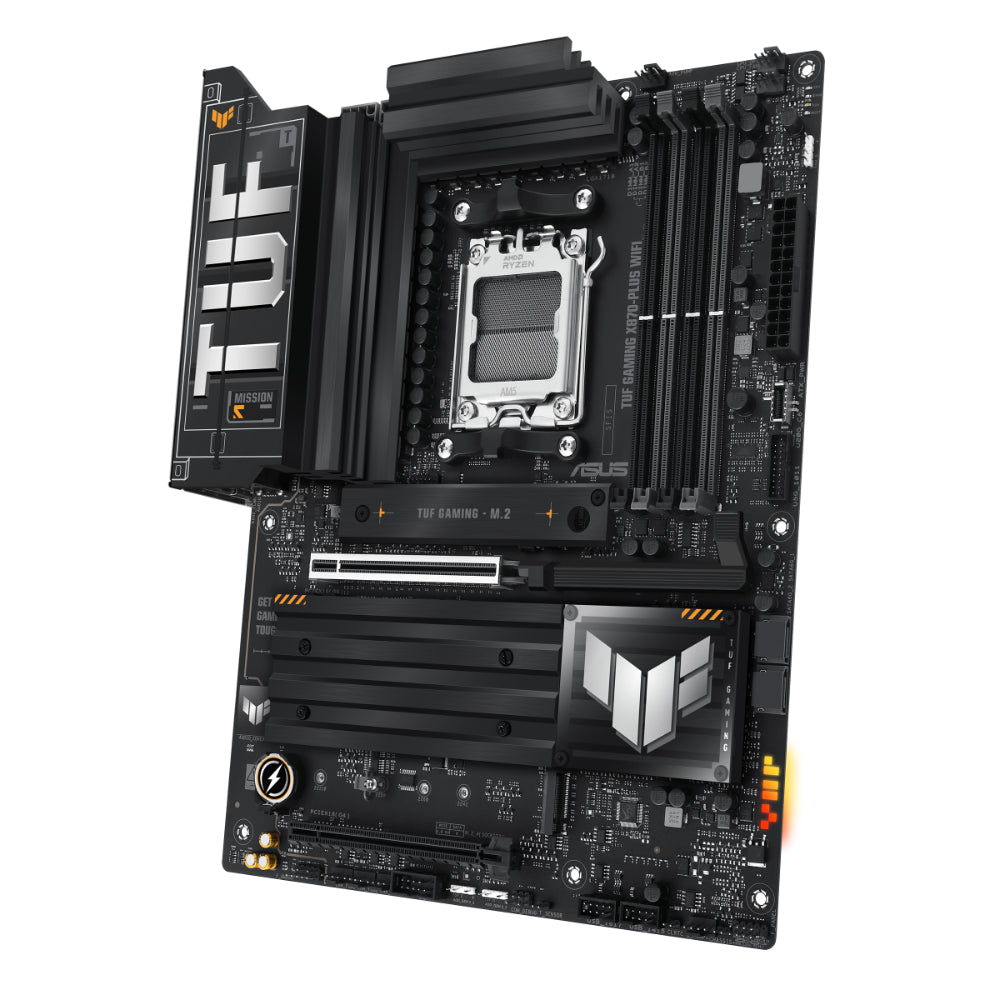

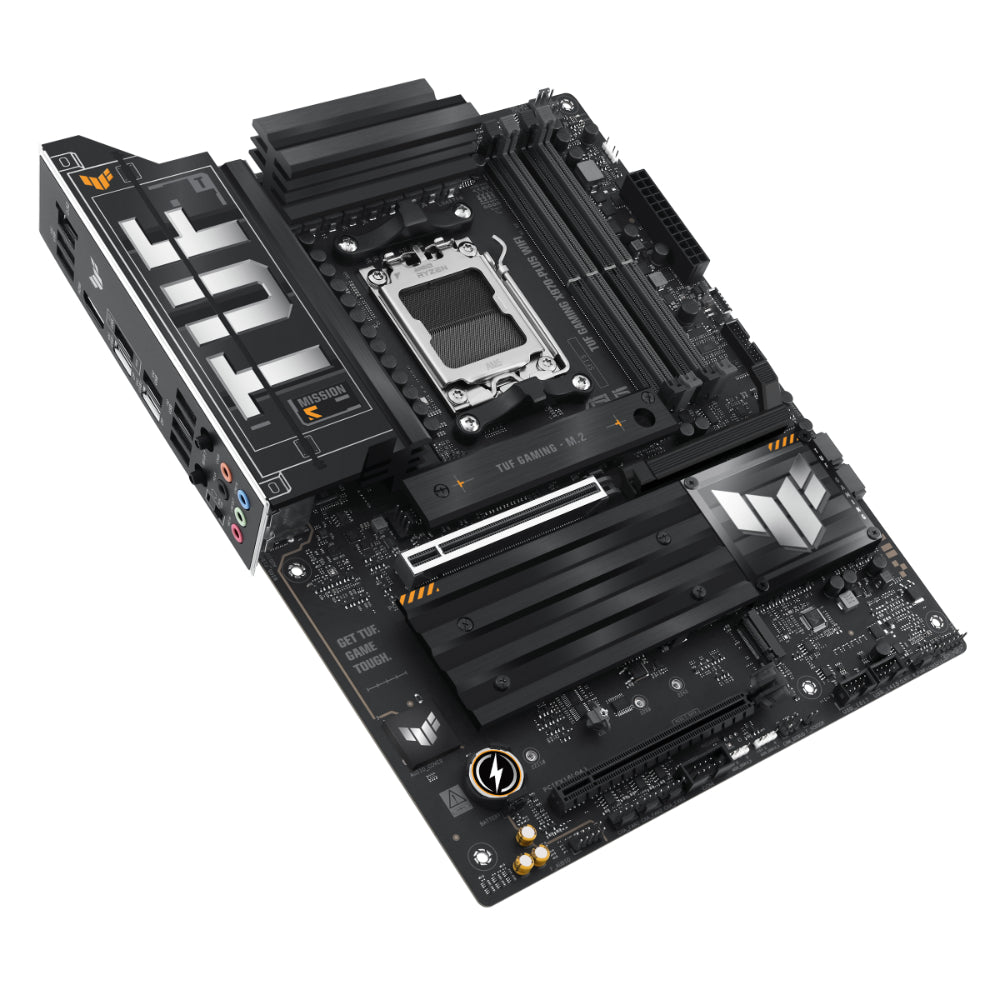

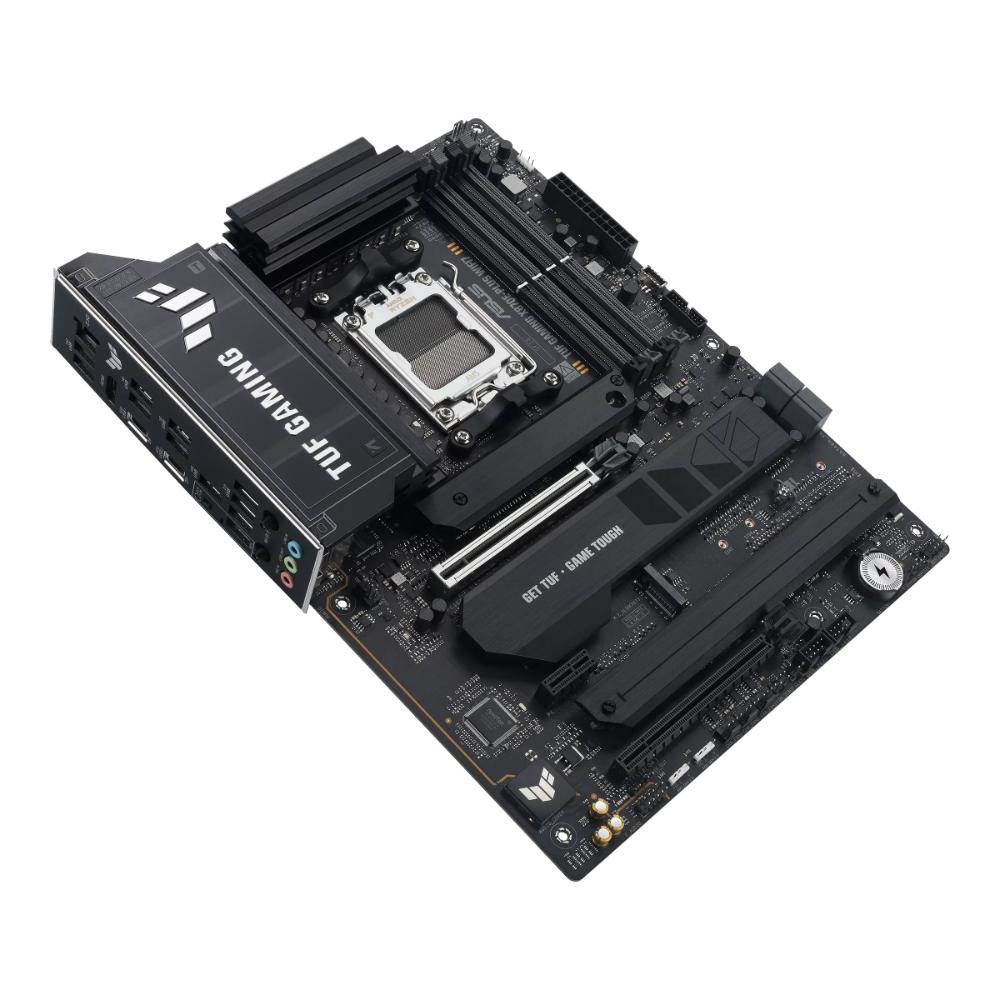

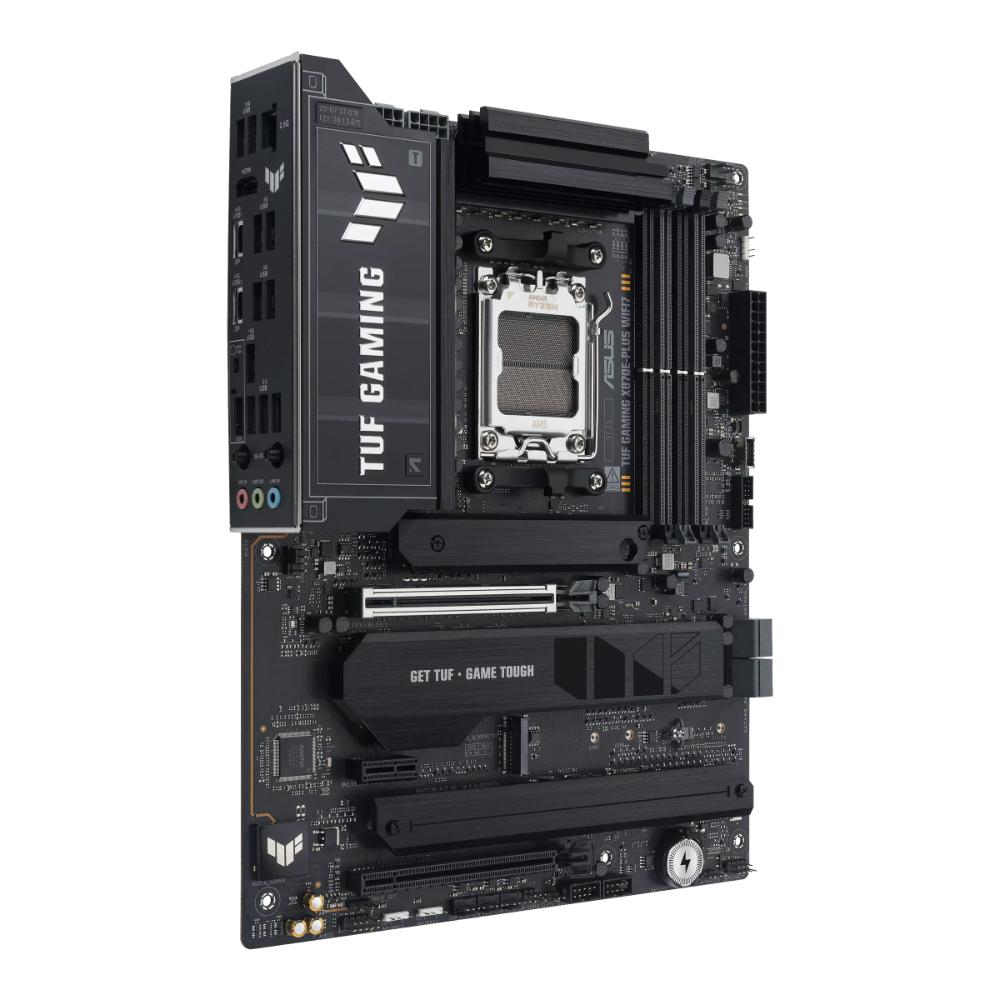

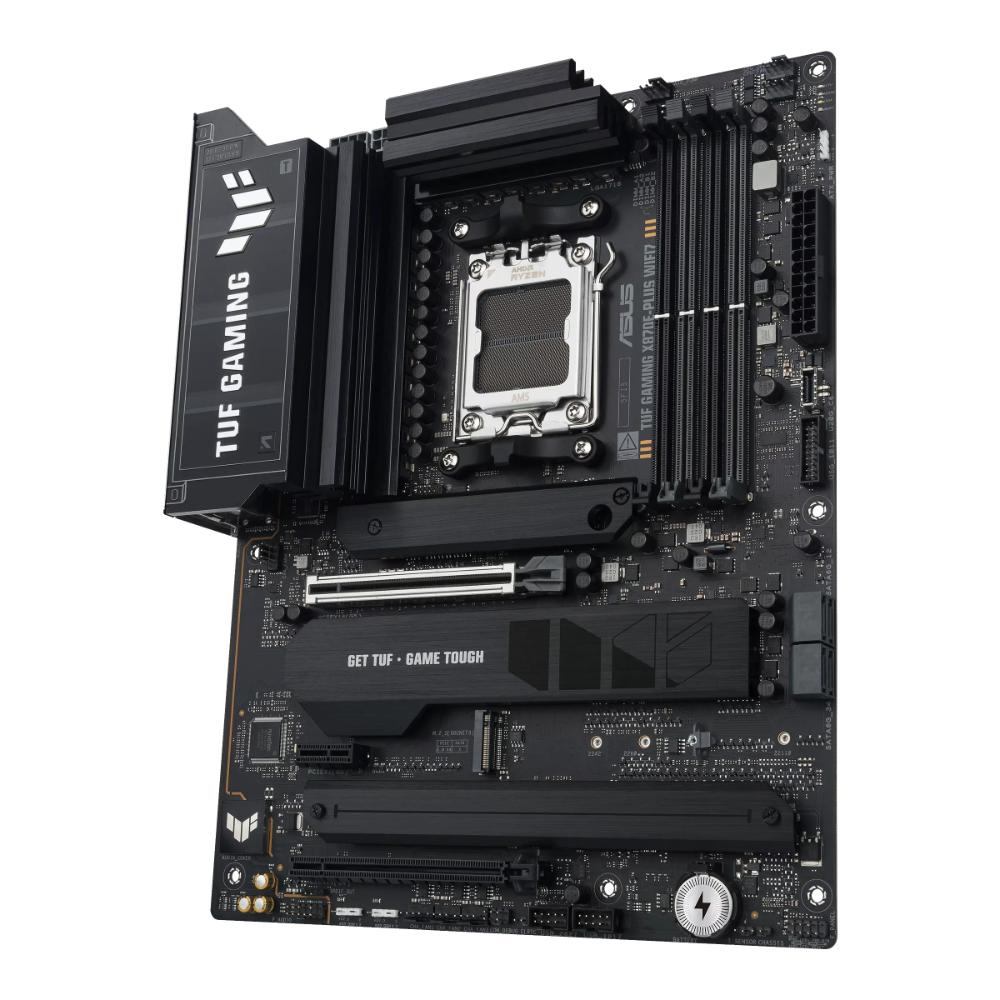

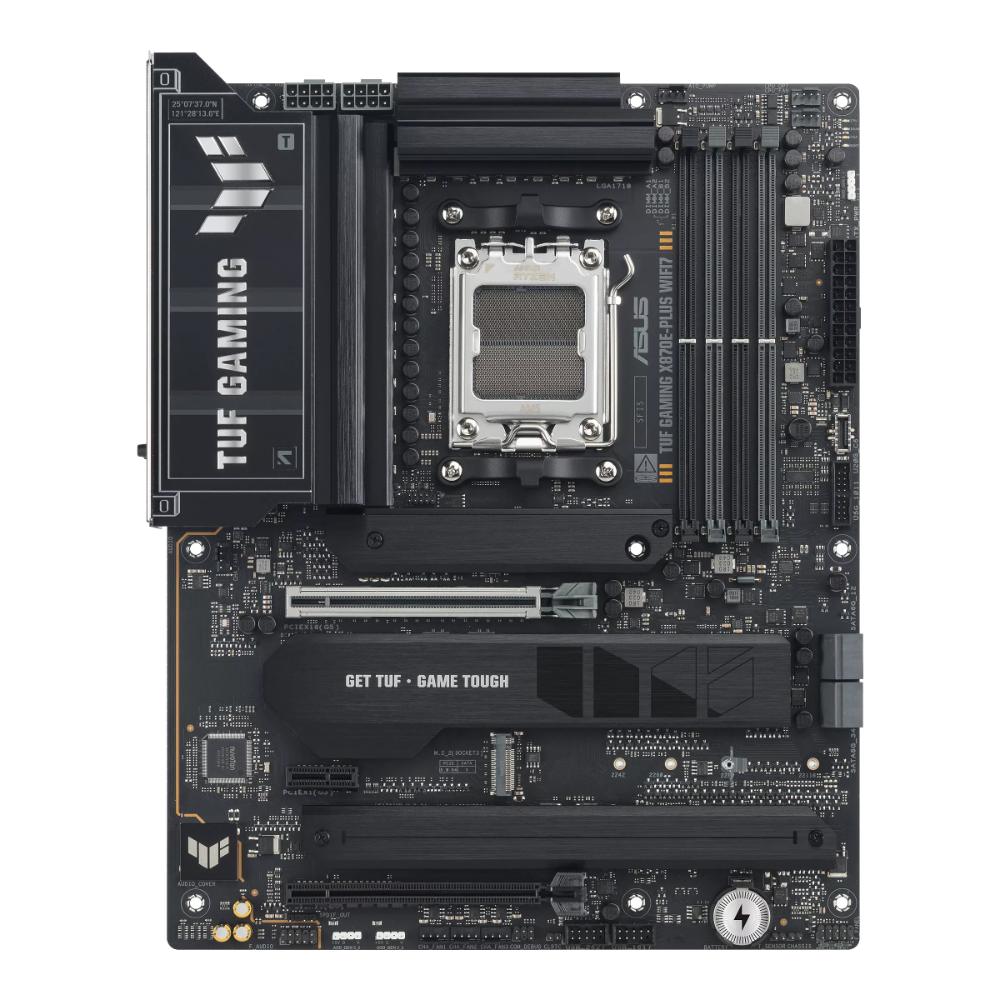

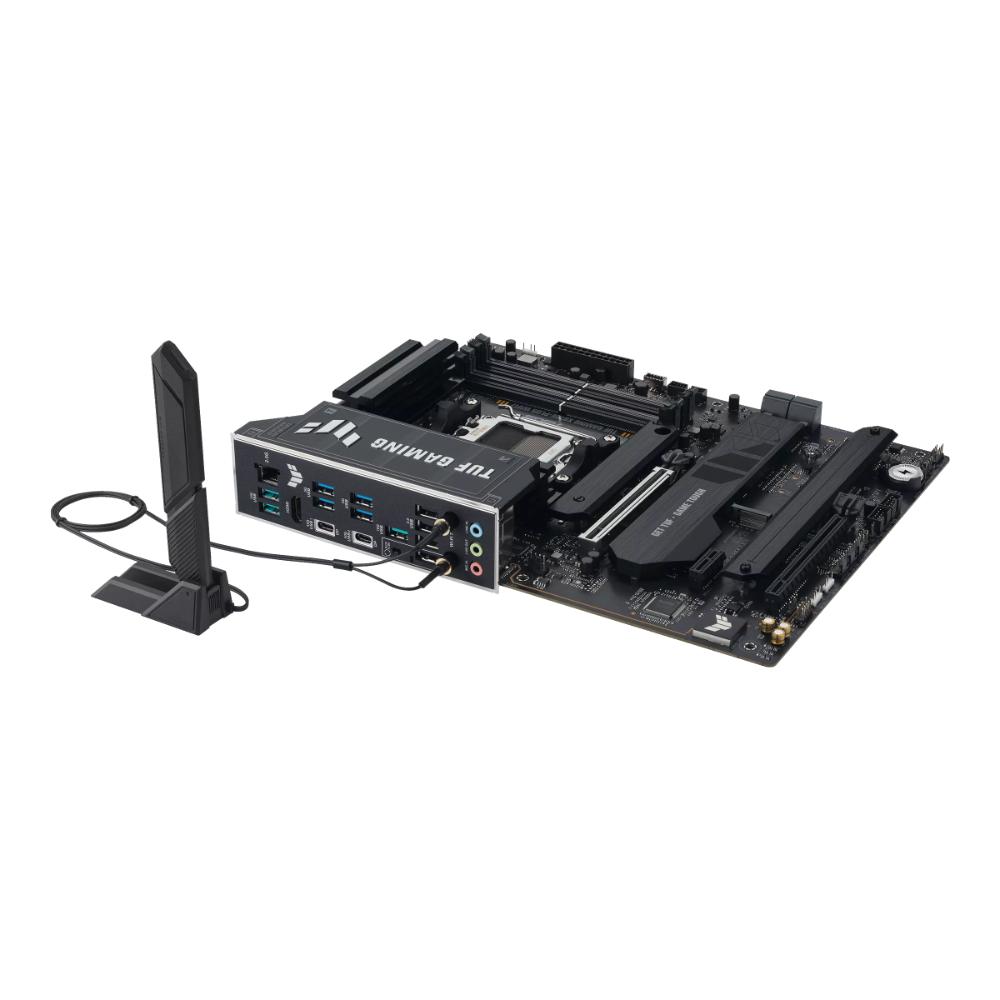

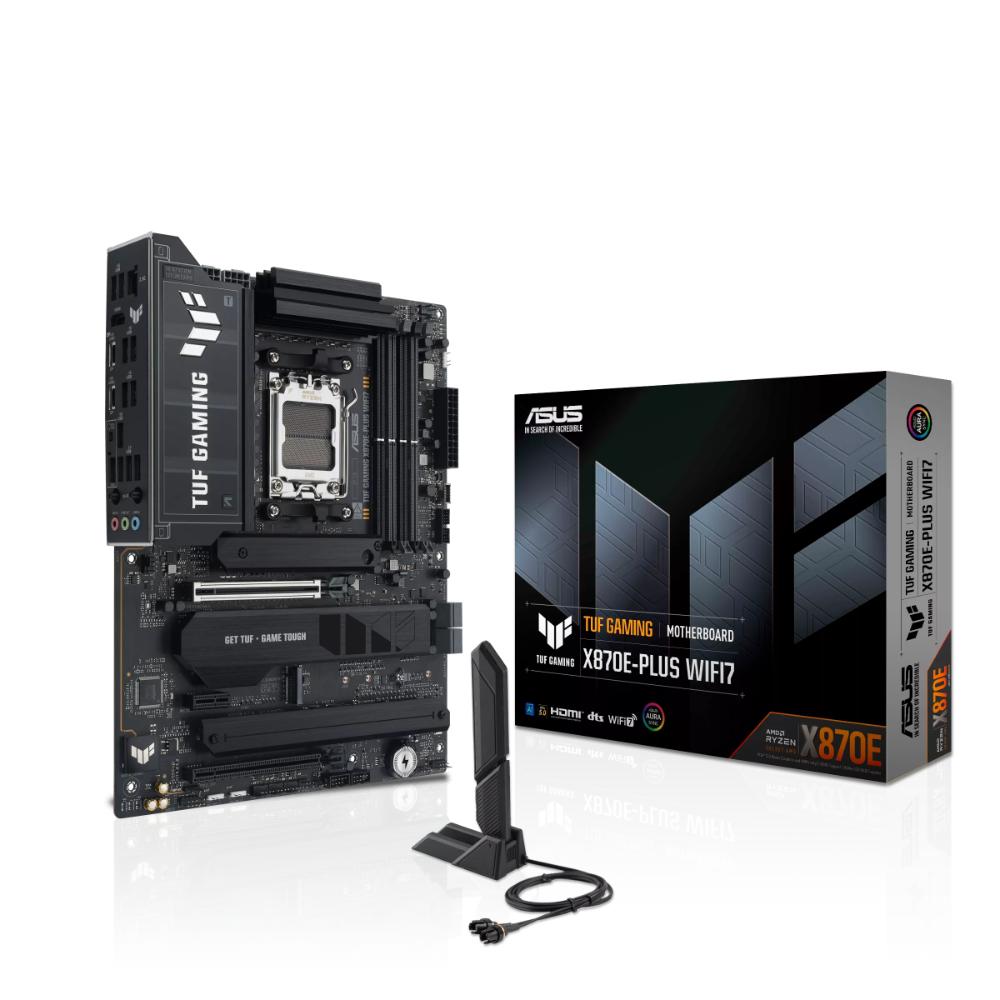

ASUS TUF GAMING X870E-PLUS WIFI7 Motherboard | AMD X870E | AM5 | DDR5 256GB | PCIe 5.0 | Wi-Fi 7 | 2.5GbE | USB4 40Gbps | 30W USB-C PD | ATX

The ASUS TUF GAMING X870E-PLUS WIFI7 combines the latest AMD Ryzen processor platform with gaming-focused features, durable components, enhanced power delivery, and comprehensive cooling. Built around the AMD X870E chipset, it supports Ryzen 9000, 8000, and 7000 Series desktop processors, DDR5 memory up to 256GB, PCIe 5.0, Wi-Fi 7, 2.5 Gb Ethernet, USB4, and advanced ASUS DIY and protection technologies.

Key Features

AMD AM5 & X870E Platform

The motherboard features an AMD Socket AM5 and supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors. Its X870E chipset platform provides the connectivity and expansion required for high-performance gaming and advanced AI PC applications.

DDR5 Memory up to 256GB

Four DIMM slots support up to 256GB of DDR5 memory with speeds of up to 8000+ MT/s (OC), depending on the CPU and memory configuration. AMD EXPO and ASUS AEMP provide additional memory optimization options, while DIMM Fit helps with memory installation and compatibility.

PCIe 5.0 Expansion

With compatible AMD Ryzen 9000 and 7000 Series processors, the primary PCIe slot supports PCIe 5.0 x16. The X870E chipset also provides additional PCIe expansion for add-in cards and peripherals.

Four M.2 Slots

The motherboard provides four M.2 slots for high-speed NVMe storage. With Ryzen 9000 and 7000 Series processors, the first two M.2 slots support PCIe 5.0 x4, while the chipset-connected M.2 slots support PCIe 4.0 x4.

Wi-Fi 7 & Bluetooth 5.4

Integrated 2x2 Wi-Fi 7 supports 2.4 GHz, 5 GHz, and 6 GHz bands with 160 MHz bandwidth and transfer rates of up to 2.9 Gbps. Bluetooth 5.4 provides wireless connectivity for compatible devices.

2.5 Gb Ethernet

The integrated Realtek 2.5Gb Ethernet controller delivers high-speed wired networking, supported by TUF LANGuard for additional network protection.

USB4 40 Gbps

Two rear USB4 40 Gbps Type-C ports provide high-speed connectivity and support Type-C display output. The motherboard also offers multiple USB 10 Gbps, 5 Gbps, and USB 2.0 ports.

Front USB-C 20 Gbps with 30W PD

The internal USB 20 Gbps Type-C connector supports up to 30 W Power Delivery fast charging, providing convenient high-speed connectivity and charging for compatible devices.

Premium 7.1-Channel Audio

The Realtek ALC1220P audio codec supports 7.1-channel surround sound, with up to 32-bit/192kHz playback under supported configurations. The audio design includes a dedicated amplifier, audio shielding, premium capacitors, dedicated PCB layers, an audio cover, and a de-pop circuit.

TUF Protection

ASUS TUF Protection technologies include:

• DIGI+ VRM with Smart Power Stage design
• ESD Guards
• TUF LANGuard
• Overvoltage Protection
• SafeSlot
• Stainless-Steel Back I/O

ASUS Q-Design

Built-in DIY features simplify installation and maintenance with:

• M.2 Q-Latch
• Q-Release Slim
• Q-Antenna
• Q-Dashboard
• Q-DIMM
• Q-LED
• Q-Slot

Comprehensive Cooling

The motherboard includes dedicated M.2 heatsinks, an enhanced VRM heatsink design, CPU and CPU OPT fan headers, an AIO pump header, and four chassis fan headers for flexible cooling configurations.

BIOS FlashBack

The dedicated BIOS FlashBack button and LED provide a convenient way to update or recover the BIOS.

Aura Sync RGB

Addressable Gen 2 RGB headers allow compatible lighting components to be customized and synchronized through ASUS Aura Sync and Aura Creator.

Technical Specifications

Specification	Details
Model	TUF GAMING X870E-PLUS WIFI7
Form Factor	ATX
Dimensions	30.5 x 24.4 cm
CPU Socket	AMD Socket AM5
CPU Support	AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
Chipset	AMD X870E
Memory Slots	4 x DIMM
Maximum Memory	256GB
Memory Type	DDR5
Memory Speed	Up to 8000+ MT/s (OC)
Memory Architecture	Dual Channel
Memory Support	ECC/Non-ECC Unbuffered DIMM
Memory Technologies	AMD EXPO / ASUS AEMP / DIMM Fit
Primary PCIe	PCIe 5.0 x16 with Ryzen 9000/7000
M.2 Slots	4 x M.2
SATA	4 x SATA 6 Gb/s
Ethernet	Realtek 2.5 Gb Ethernet
Wireless	Wi-Fi 7, 2x2
Wi-Fi Bands	2.4 GHz / 5GHz / 6GHz
Wi-Fi Bandwidth	Up to 160 MHz
Wi-Fi Transfer Rate	Up to 2.9Gbps
Bluetooth	5.4
Rear USB Ports	13
USB4	2 x USB4 40 Gbps Type-C
Rear USB 10 Gbps	3 x Type-A
Rear USB 5 Gbps	4 x Type-A
Rear USB 2.0	4 x Type-A
Front USB 20 Gbps	1 x USB Type-C
Front USB-C PD	Up to 30W
Audio Codec	Realtek ALC1220P
Audio	7.1 Surround Sound HD Audio
Audio Playback	Up to 32-bit / 192 kHz
HDMI	1 x HDMI
BIOS	256 MB Flash ROM, UEFI AMI BIOS
Operating System	Windows 11

Storage Support

The board supports four M.2 slots and four SATA 6Gb/s ports.

• M.2_1: PCIe 5.0 x4 with Ryzen 9000/7000 Series processors
• M.2_2: PCIe 5.0 x4 with Ryzen 9000/7000 Series processors
• M.2_3: PCIe 4.0 x4 through the AMD X870E chipset
• M.2_4: PCIe 4.0 x4 through the AMD X870E chipset
• 4 x SATA 6 Gb/s

Important: M.2_2 shares bandwidth with the primary PCIe 5.0 x16 slot. When M.2_2 operates at PCIe x4, the primary PCIe slot operates at x8.

RAID support through AMD RAIDXpert2 varies by processor:

• Ryzen 9000: RAID 0/1/5/10
• Ryzen 8000: RAID 0/1
• Ryzen 7000: RAID 0/1/10

Expansion Slots

With AMD Ryzen 9000 and 7000 Series processors:

• 1 x PCIe 5.0 x16 slot

With AMD Ryzen 8000 Series processors:

• 1 x PCIe 4.0 x16 slot supporting x8/x4 mode

Through the AMD X870E chipset:

• 1 x PCIe 4.0 x16 slot supporting x4 mode
• 1 x PCIe 3.0 x1 slot

PCIe specifications and operating modes vary according to the installed processor.

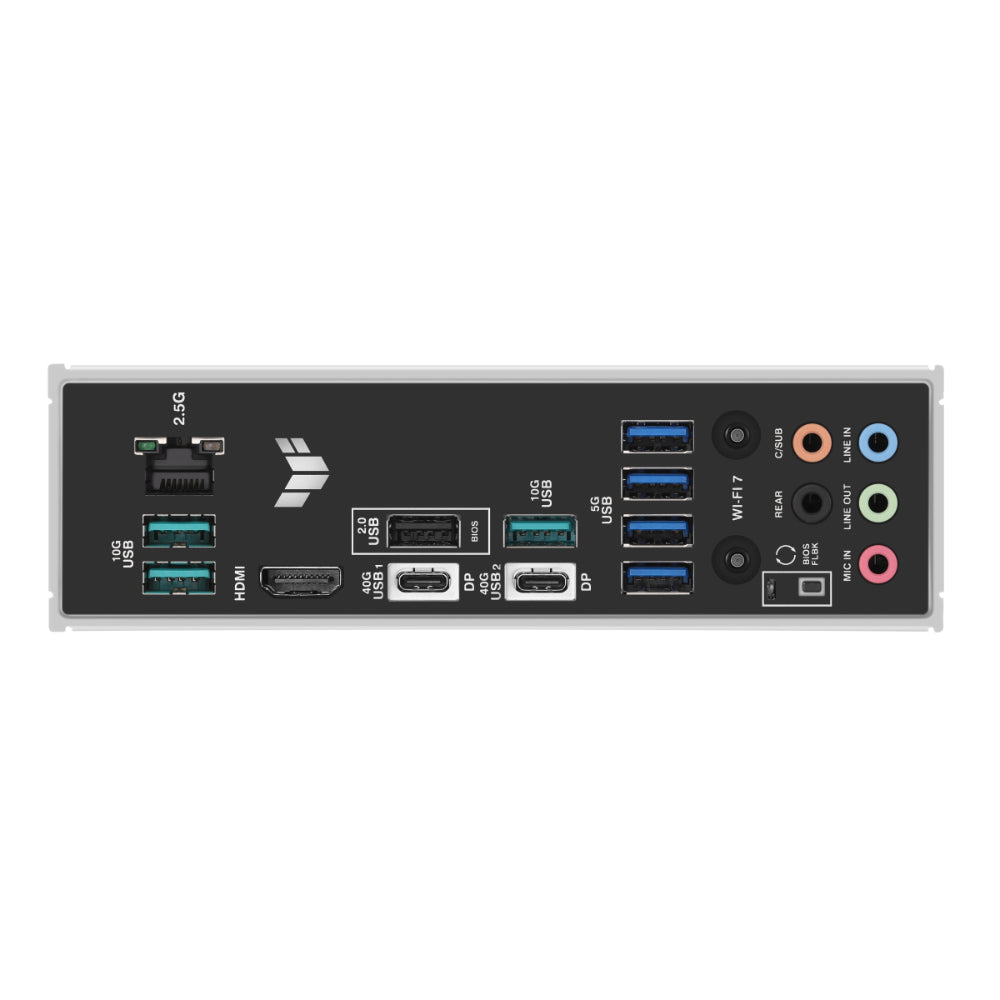

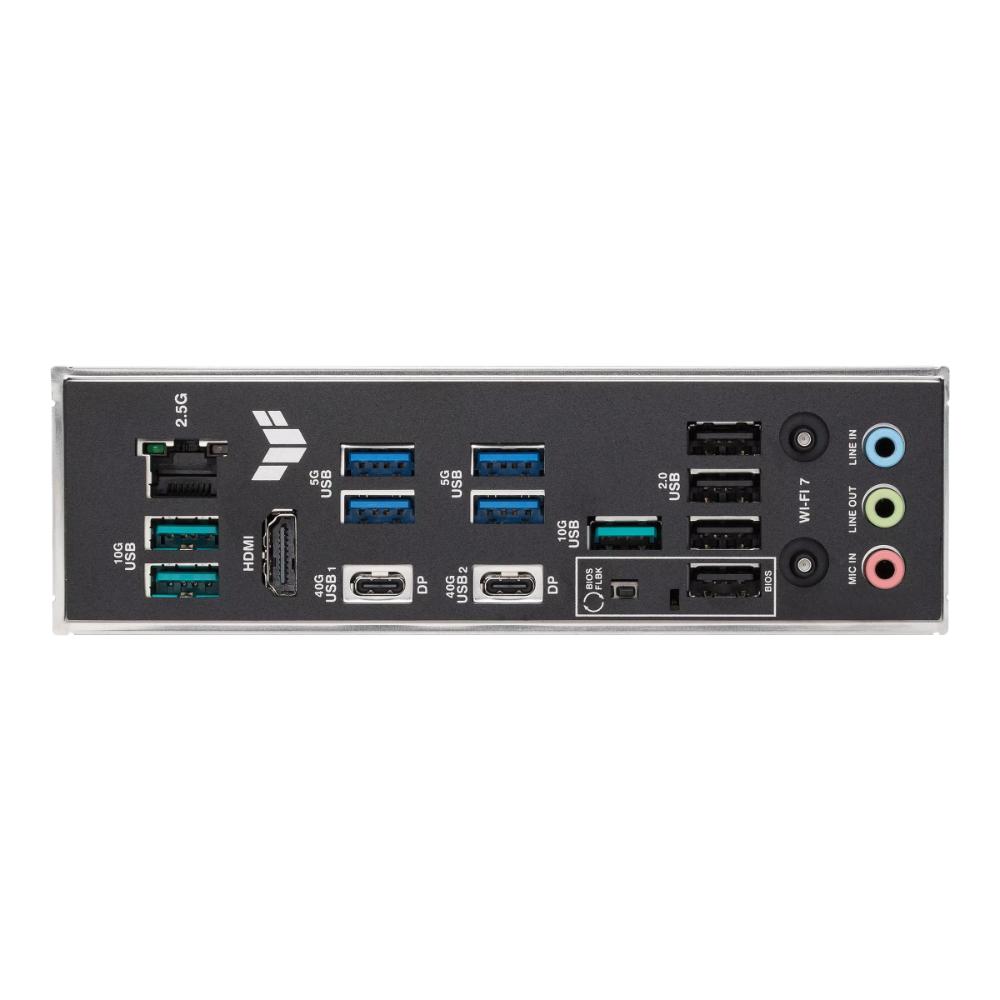

Rear I/O

• 2 x USB4 40 Gbps Type-C
• 3 x USB 10 Gbps Type-A
• 4 x USB 5 Gbps Type-A
• 4 x USB 2.0 Type-A
• 1 x HDMI
• 1 x Wi-Fi module
• 1 x Realtek 2.5 Gb Ethernet
• 3 x Audio jacks
• 1 x BIOS FlashBack button

Internal Connectivity

Fan & Cooling

• 1 x CPU fan header
• 1 x CPU OPT Fan header
• 1 x AIO Pump header
• 4 x Chassis Fan headers

Power

• 1 x 24-pin main power connector
• 2 x 8-pin +12V CPU power connectors

Storage

• 4 x M.2 slots
• 4 x SATA 6Gb/s ports

USB

• 1 x USB 20 Gbps Type-C connector with up to 30W PD fast charging
• 1 x USB 5Gbps header supporting 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers supporting 4 additional USB 2.0 ports

Other Headers

• 3 x Addressable Gen 2 headers
• Clear CMOS header
• Chassis Intrusion Header
• Front Panel Audio header
• Front System Panel header
• Thermal Sensor header

ASUS Software & Utilities

The motherboard supports a comprehensive collection of ASUS software and utilities:

• Armoury Crate
• Aura Creator
• Aura Sync
• Fan Xpert 4 with AI Cooling II
• ASUS AI Advisor
• ASUS DriverHub
• ASUS GlideX
• USB Wattage Watcher
• TurboV Core
• TUF GAMING CPU-Z
• DTS Audio Processing
• AI Overclocking Guide
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
• ASUS MyHotkey

Also included:

• Norton 360 for Gamers — 60-day free trial
• WinRAR — 40-day free trial

Front USB-C Power Delivery

The front-panel USB 20Gbps Type-C connector supports up to 30W fast charging with USB Power Delivery 3.0 compatibility.

Supported output:

• 5V / 9V up to 3A
• 12V up to 2.5A
• 15V up to 2A

The USB Wattage Watcher provides power monitoring functionality.

Audio Features

The Realtek ALC1220P audio solution provides:

• 7.1-channel surround sound
• Front and rear headphone impedance sensing
• Internal audio amplifier
• Jack detection
• Multi-streaming
• Front-panel jack retasking
• Up to 120 dB SNR stereo playback
• Up to 113 dB SNR recording input
• Up to 32-bit/192kHz playback

Note: Due to HDA bandwidth limitations, 32-bit/192 kHz is not supported for 7.1-channel surround sound audio.

ASUS TUF Protection & DIY Features

TUF Protection

• DIGI+ VRM
• ESD Guards
• TUF LANGuard
• Overvoltage Protection
• SafeSlot
• Stainless-Steel Back I/O

Q-Design

• M.2 Q-Latch
• Q-Release Slim
• Q-Antenna
• Q-Dashboard
• Q-DIMM
• Q-LED
• Q-Slot

EZ DIY

• BIOS FlashBack button
• BIOS FlashBack LED
• ProCool
• Pre-mounted I/O shield
• SafeDIMM
• SafeSlot

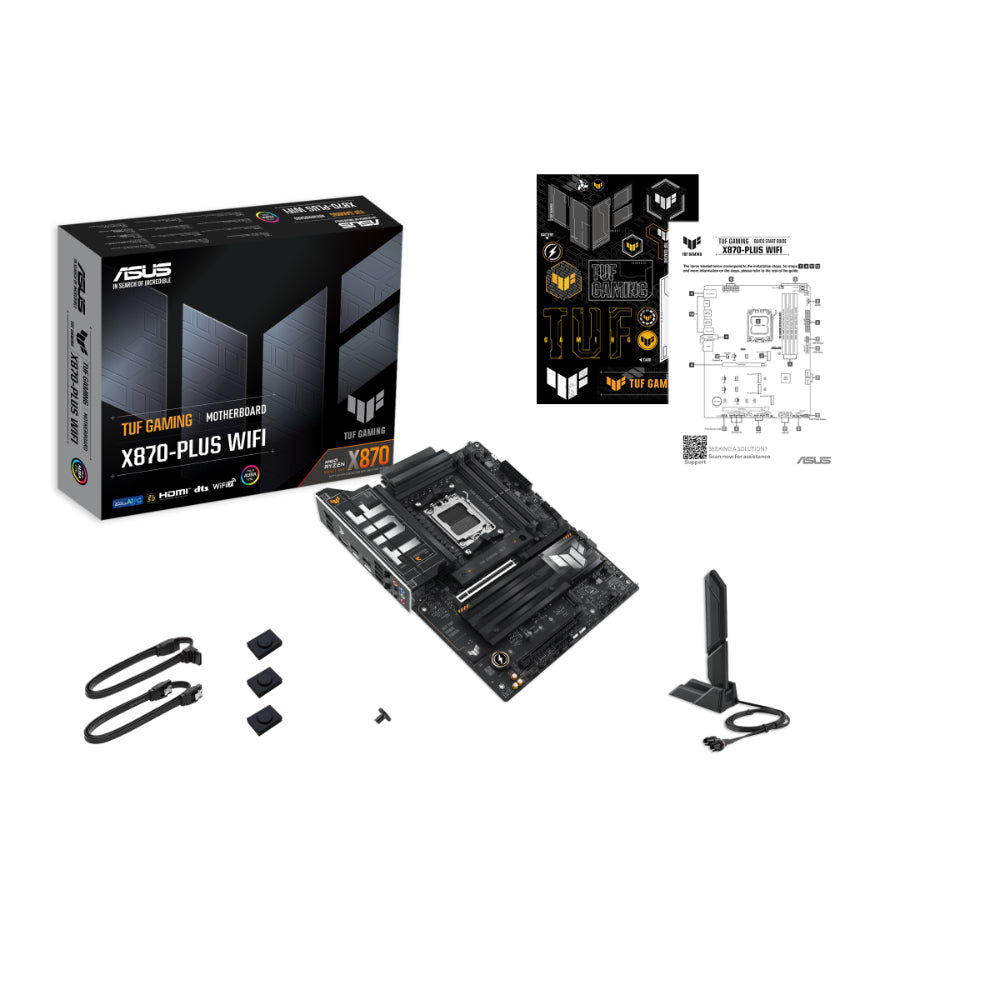

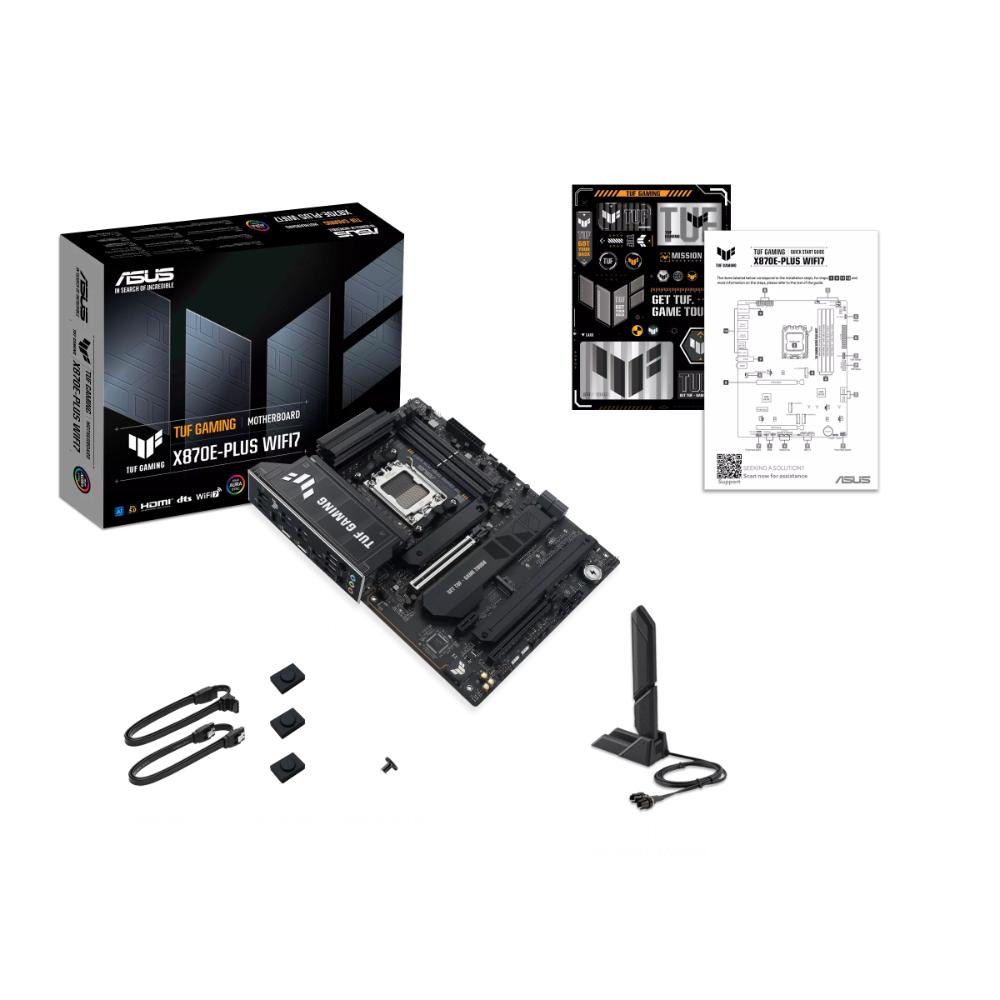

Accessories

• 2 x SATA 6Gb/s cables
• ASUS Wi-Fi Q-Antenna
• 2 x M.2 rubber packages
• M.2 SSD screw package
• TUF GAMING sticker
• Quick Start Guide

Ideal For

• AMD Ryzen 9000 gaming PCs
• High-performance AM5 systems
• Gaming and enthusiast PC builds
• DDR5 gaming systems
• PCIe 5.0 graphics and storage
• Wi-Fi 7 gaming PCs
• Content creation and workstation systems
• Advanced AI PC applications
• Custom PC and DIY enthusiasts

Why Choose ASUS TUF GAMING X870E-PLUS WIFI7?

The TUF GAMING X870E-PLUS WIFI7 combines the AMD X870E platform with DDR5 support up to 256GB, PCIe 5.0, four M.2 slots, Wi-Fi 7, 2.5Gb Ethernet, USB4 40Gbps, 30W front USB-C Power Delivery, enhanced audio, comprehensive cooling, and TUF durability features for demanding gaming and performance-oriented systems.
