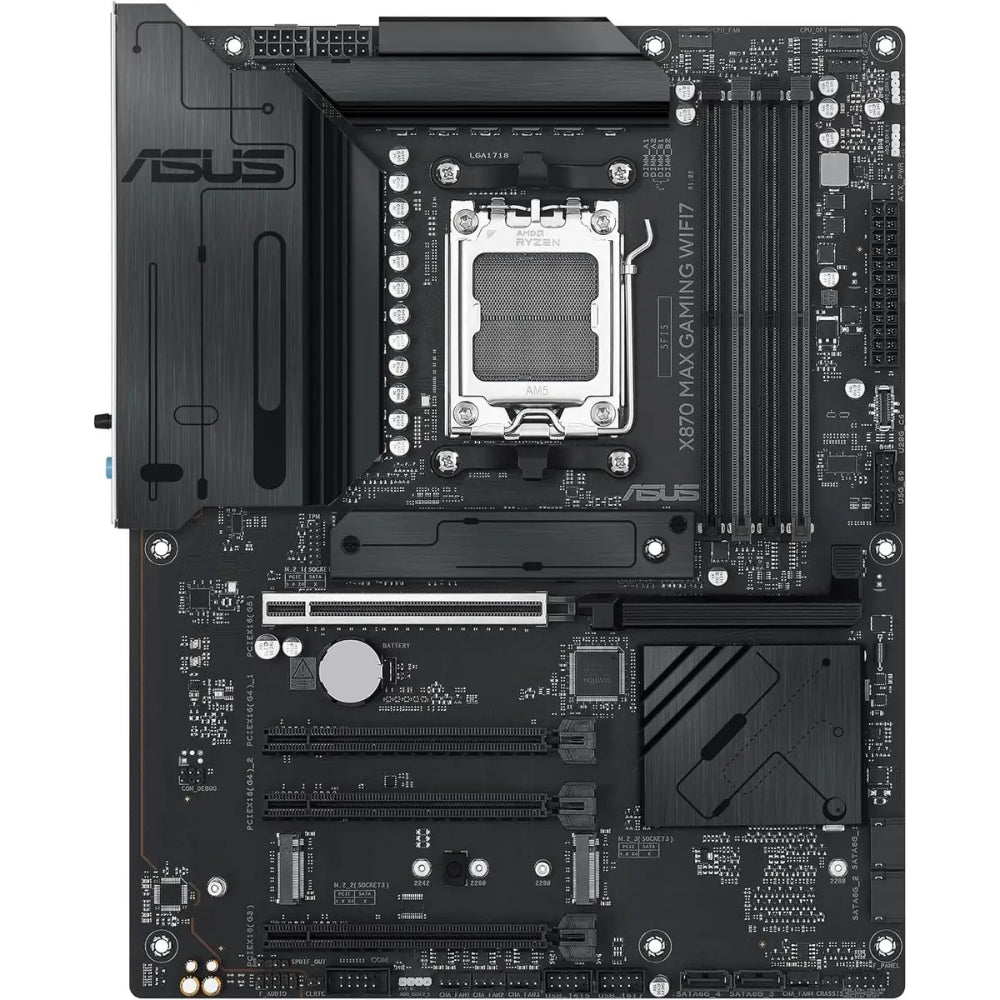

ASUS X870 MAX GAMING WIFI7 AMD AM5 ATX Motherboard | Ryzen 9000/8000/7000 | 256GB DDR5 | 8000+MT/s (OC) | Wi-Fi 7 | 2.5Gb LAN | 3× M.2 | PCIe 5.0

The ASUS X870 MAX GAMING WIFI7 motherboard combines the latest AMD Ryzen™ platform with robust power delivery, comprehensive cooling, and intelligent tuning features. Designed for advanced gaming, PC DIY builds, and AI PC applications, it delivers high-speed DDR5 memory support, PCIe 5.0 connectivity, Wi-Fi 7, USB4, 2.5 Gb Ethernet, and flexible storage options.

Key Features

AMD AM5 Platform

Built with AMD Socket AM5, the motherboard supports AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors, providing a powerful foundation for gaming, productivity, and advanced AI PC systems.

High-Speed DDR5 Memory

Four DDR5 DIMM slots support up to 256 GB of memory and speeds of up to 8000+ MT/s (OC) with compatible Ryzen processors. AMD EXPO™ and ASUS Enhanced Memory Profile (AEMP) make memory performance optimization easier.

PCIe 5.0 Support

The primary PCIe x16 slot supports PCIe 5.0 x16 mode with compatible Ryzen 9000 and 7000 Series processors, providing high-bandwidth connectivity for modern graphics cards and expansion devices.

Triple M.2 Storage

Three M.2 slots provide high-speed NVMe storage connectivity. The primary M.2 slot supports PCIe 5.0 x4 with compatible Ryzen 9000 and 7000 Series processors, while additional slots support PCIe 4.0 connectivity.

Wi-Fi 7 Connectivity

Integrated 2×2 Wi-Fi 7 supports 2.4 GHz, 5 GHz, and 6 GHz frequency bands, with support for 160 MHz bandwidth and transfer rates of up to 2.9 Gbps under supported conditions.

USB4 40 Gbps

Two rear USB4 40 Gbps Type-C ports provide high-speed connectivity for modern peripherals and support USB Type-C display output.

2.5 Gb Ethernet

The integrated Realtek 2.5Gb Ethernet provides fast wired networking, complemented by ASUS LANGuard for enhanced network protection.

Comprehensive Cooling

A dedicated thermal solution includes a flexible M.2 heatsink, a VRM heatsink design, multiple chassis fan headers, CPU fan headers, and an AIO pump header for effective system cooling.

TUF-Grade Protection & DIY Features

ASUS 5X Protection III, Q-Design, EZ DIY features, BIOS FlashBack, Q-LED Core, and Q-Dashboard simplify installation, troubleshooting, and system maintenance.

Technical Specifications

Specification	Details
Brand	ASUS
Series	X870 MAX GAMING
Model	X870 MAX GAMING WIFI7
CPU Socket	AMD Socket AM5
Chipset	AMD X870
Supported Processors	AMD Ryzen 9000 / 8000 / 7000 Series
Memory Type	DDR5
Memory Slots	4 × DIMM
Maximum Memory	256GB
Memory Speed	Up to 8000+ MT/s (OC)
Memory Architecture	Dual Channel
Memory Support	ECC & Non-ECC Unbuffered DIMM
Memory Technologies	AMD EXPO, ASUS AEMP
Primary PCIe Slot	PCIe 5.0 x16
M.2 Slots	3 × M.2
SATA Ports	4 × SATA 6 Gb/s
Ethernet	Realtek 2.5 Gb Ethernet
Wireless	Wi-Fi 7 2×2
Bluetooth	Bluetooth 5.4
Audio	Realtek 7.1 Surround Sound HD Audio
BIOS	256 MB Flash ROM, UEFI AMI BIOS
Form Factor	ATX
Dimensions	30.5 × 24.4 cm
Operating System	Windows 11

Expansion Slots

AMD Ryzen 9000 & 7000 Series

• 1 × PCIe 5.0 x16 slot supporting x16 mode

AMD Ryzen 8000 Series

• 1 × PCIe 4.0 x16 slot supporting x8/x4 mode depending on CPU

AMD X870 Chipset

• 2 × PCIe 4.0 x16 slots supporting x1 mode
• 1 × PCIe 3.0 x16 slot supporting x1 mode

The PCIEX16(G3) slot shares bandwidth with SATA6G_3 and SATA6G_4. Both SATA ports are disabled when the PCIEX16(G3) slot is operating.

Storage

The motherboard supports 3 × M.2 slots and 4 × SATA 6Gb/s ports.

M.2 Support

• M.2_1: PCIe 5.0 x4 with Ryzen 9000/7000 processors
• M.2_2: PCIe 4.0 x4 with Ryzen 9000/7000 processors
• M.2_1: PCIe 4.0 x4 with Ryzen 8000 processors
• M.2_2: PCIe 4.0 x4/x2 with Ryzen 8000 processors
• M.2_3: PCIe 4.0 x4 through the X870 chipset
• Supports 2242 / 2260 / 2280 M.2 form factors where applicable
• 4 × SATA 6Gb/s ports

Storage Bandwidth Sharing

• M.2_2 shares bandwidth with the two USB4 40Gbps ports
• M.2_2 is disabled when either USB4 40 Gbps port is operating, unless settings are adjusted in BIOS
• PCIEX16(G3) shares bandwidth with SATA6G_3 and SATA6G_4
• Both SATA6G_3 and SATA6G_4 are disabled when PCIEX16(G3) is operating

AMD RAIDXpert2 Technology

• Ryzen 9000: RAID 0/1/5/10
• Ryzen 8000: RAID 0/1
• Ryzen 7000: RAID 0/1/10

Graphics Output

• 1 × HDMI 2.1—up to 4K at 60 Hz
• 2 × USB4 40 Gbps Type-C ports with DisplayPort 1.4a display output—up to 4K at 60 Hz

Graphics capabilities depend on the installed processor.

Wireless & Bluetooth

Wi-Fi 7

• 2×2 Wi-Fi 7 (802.11be)
• 2.4 GHz / 5 GHz / 6 GHz frequency bands
• Wi-Fi 7 160 MHz bandwidth
• Up to 2.9 Gbps transfer rate
• Bluetooth 5.4

For Windows 11, full Wi-Fi 7 functionality requires version 24H2 or later. Windows 11 21H2/22H2/23H2 supports Wi-Fi 6E, while Windows 10 supports Wi-Fi 6 only.

6GHz availability and bandwidth are subject to regional regulations.

USB Connectivity

Rear USB

• 2 × USB4 40 Gbps Type-C
• 1 × USB Type-A 10 Gbps
• 3 × USB Type-A 5 Gbps
• 4 × USB Type-A USB 2.0

Front USB

• 1 × USB 20 Gbps Type-C connector
• 1 × USB 5Gbps header supporting 2 additional USB 5Gbps ports
• 2 × USB 2.0 headers supporting 4 additional USB 2.0 ports

USB Type-C power delivery output supports up to 5V/3A.

Rear I/O

• 2 × USB4 40 Gbps Type-C
• 1 × USB Type-A 10 Gbps
• 3 × USB Type-A 5 Gbps
• 4 × USB Type-A USB 2.0
• 1 × HDMI
• 1 × Wi-Fi module
• 1 × Realtek 2.5 Gb Ethernet
• 3 × Audio jacks
• 1 × BIOS FlashBack button

Internal I/O Connectors

Fan & Cooling

• 1 × 4-pin CPU fan header
• 1 × 4-pin CPU OPT Fan header
• 1 × 4-pin AIO pump header
• 4 × 4-pin chassis fan headers

Power

• 1 × 24-pin main power connector
• 2 × 8-pin +12V CPU power connectors

Storage

• 3 × M.2 slots
• 4 × SATA 6Gb/s ports

USB

• 1 × USB 20 Gbps Type-C connector
• 1 × USB 5 Gbps header supporting 2 additional ports
• 2 × USB 2.0 headers supporting 4 additional ports

Additional Headers

• 3 × Addressable RGB Gen 2 headers
• 1 × Clear CMOS header
• 1 × Chassis Intrusion header
• 1 × COM Port header
• 1 × Front Panel Audio header
• 1 × S/PDIF Out header
• 1 × SPI TPM header
• 1 × System Panel header

ASUS 5X PROTECTION III

Protection technologies include:

• DIGI+ VRM with DrMOS
• LANGuard
• Overvoltage Protection
• SafeSlot
• Stainless-Steel Back I/O

ASUS Q-Design

Features designed to simplify system building and maintenance:

• PCIe Slot Q-Release
• Q-Antenna
• Q-Dashboard
• Q-DIMM
• Q-LED Core
• Q-Slot

ASUS Thermal Solution

• Flexible M.2 heatsink
• VRM heatsink design

ASUS EZ DIY

• BIOS FlashBack button
• BIOS FlashBack LED
• ProCool
• Pre-mounted I/O shield
• SafeSlot

Aura Sync

The motherboard features Addressable RGB Gen 2 headers with ASUS Aura Sync support for synchronizing compatible RGB components.

Audio

The integrated Realtek 7.1 Surround Sound High Definition Audio CODEC supports:

• Jack detection
• Multi-streaming
• Front Panel Jack-retasking
• Up to 24-bit/192 kHz playback
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers

A chassis with an HD audio module in the front panel is required for 7.1-channel surround sound output.

Software Features

ASUS Exclusive Software

• Armoury Crate
• Aura Creator
• Aura Sync
• Fan Xpert 4 with AI Cooling II
• ASUS AI Advisor
• ASUS DriverHub
• ASUS GlideX
• TurboV Core
• ASUS CPU-Z
• Norton 360 Deluxe—60 Days Free Trial
• WinRAR—40 Days Free Trial

UEFI BIOS

• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
• ASUS MyHotkey

Manageability

• Wake-on-LAN by PME
• PXE support

Accessories

• 2 × SATA 6Gb/s cables
• ASUS WiFi Q-Antenna
• M.2 rubber package
• 1 × M.2 SSD screw package
• Quick Start Guide

Operating System Support

• Windows 11

Ideal For

• High-performance AMD Ryzen PCs
• Ryzen 9000 gaming builds
• Ryzen 8000 and 7000 systems
• Advanced AI PC applications
• High-speed DDR5 gaming systems
• PCIe 5.0 graphics card builds
• NVMe storage systems
• Wi-Fi 7 desktop systems
• Content creation and productivity
• Enthusiast PC builds

Why Choose ASUS X870 MAX GAMING WIFI7?

• AMD X870 chipset with AM5 socket
• Ryzen 9000 / 8000 / 7000 Series support
• Up to 256GB DDR5
• Up to 8000+ MT/s (OC)
• PCIe 5.0 x16
• 3 × M.2 slots
• 4 × SATA 6 Gb/s
• Wi-Fi 7 2×2
• Bluetooth 5.4
• Realtek 2.5 Gb Ethernet
• 2 × USB4 40 Gbps Type-C
• Comprehensive cooling solution
• ASUS 5X Protection III
• Aura Sync RGB support
• BIOS FlashBack
