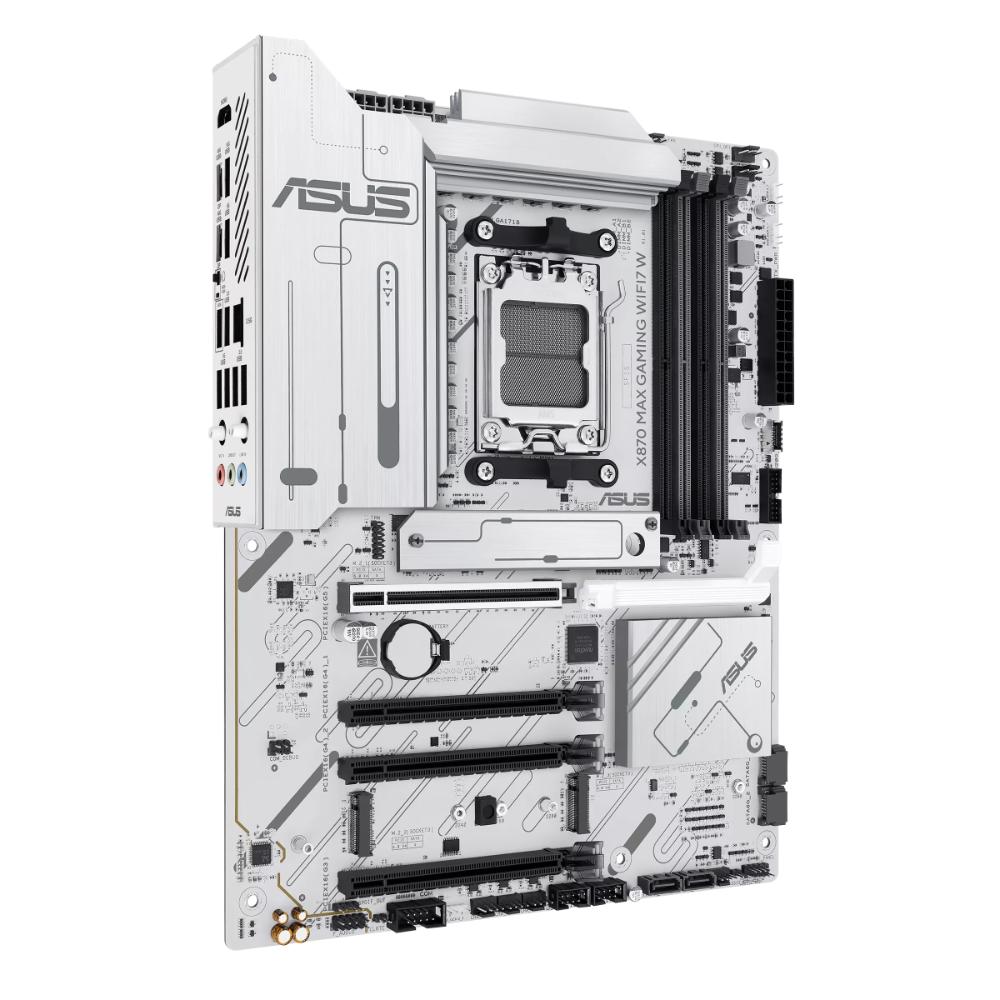

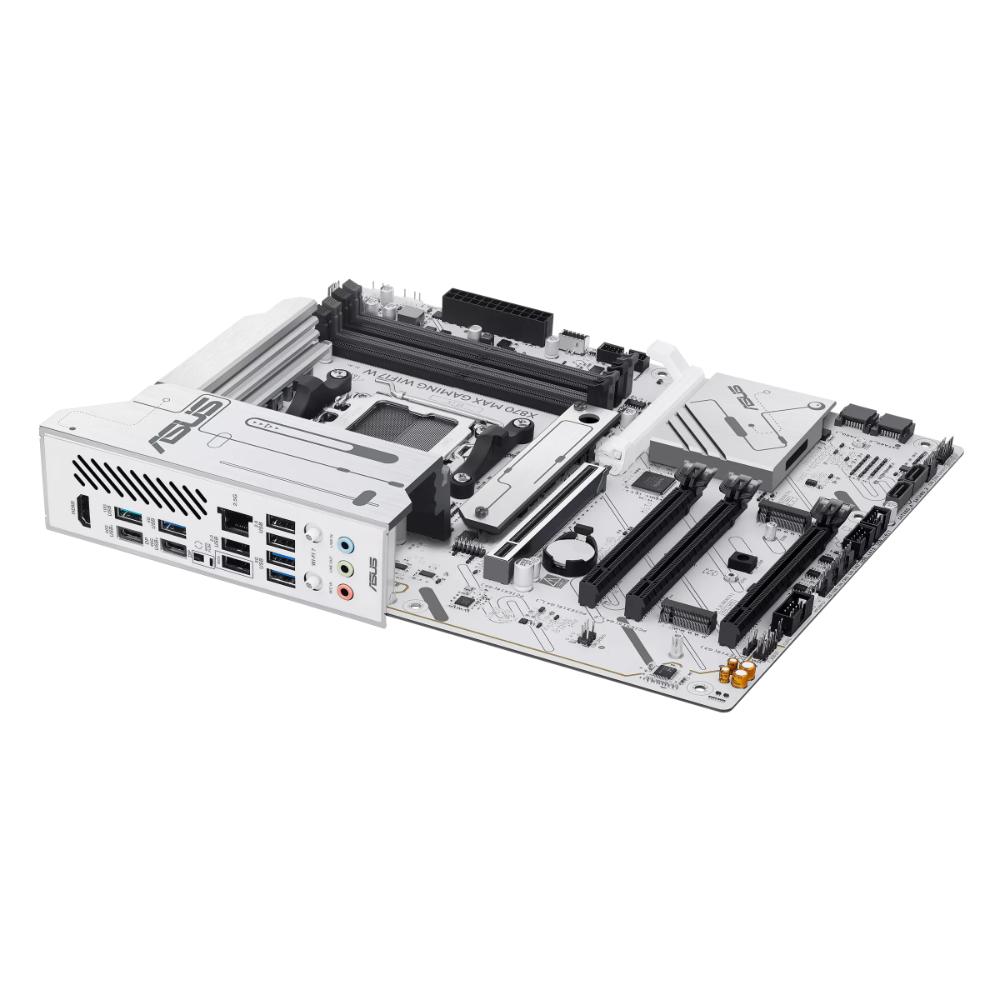

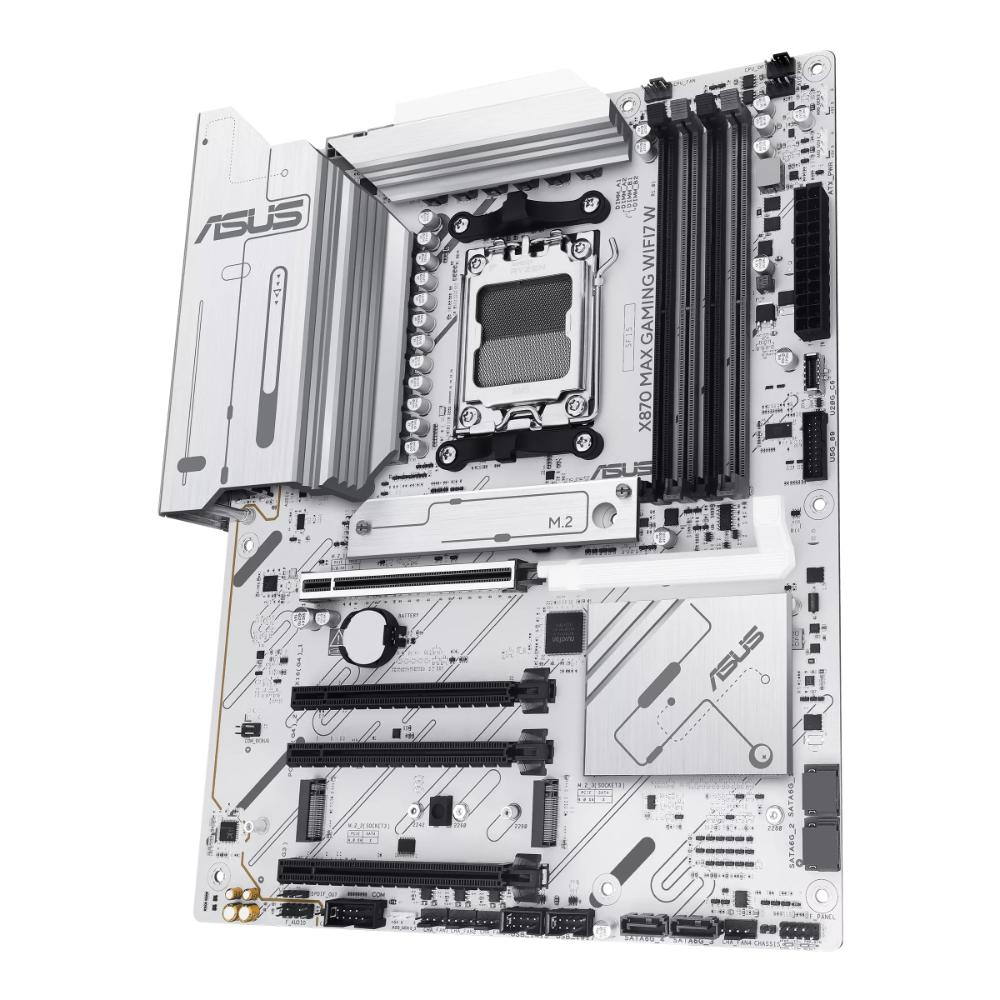

ASUS X870 MAX GAMING WIFI7 W Motherboard | AMD X870 | AM5 | DDR5 256GB | PCIe 5.0 | Wi-Fi 7 | 2.5GbE | USB4 40Gbps | ATX

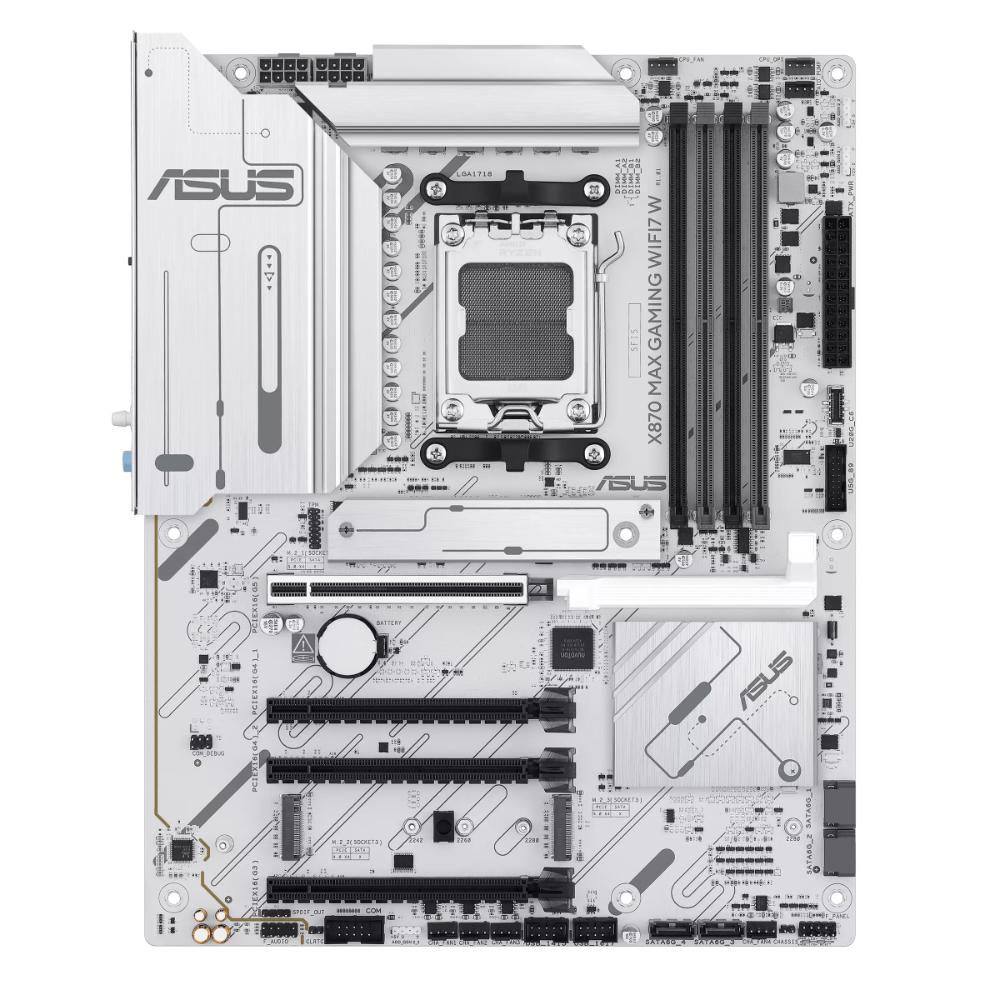

The ASUS X870 MAX GAMING WIFI7 W is an ATX motherboard designed to unleash the performance of AMD Ryzen 9000, 8000, and 7000 Series desktop processors. Built around the AMD X870 chipset, it combines a robust power design, comprehensive thermal solutions, DDR5 memory support, PCIe 5.0 connectivity, Wi-Fi 7, 2.5 Gb Ethernet, USB4, and ASUS intelligent tuning and DIY features.

Key Features

AMD AM5 Platform

The motherboard features an AMD Socket AM5 and supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors, providing a flexible platform for high-performance PC builds.

DDR5 Memory Support

Four DIMM slots support up to 256GB of DDR5 memory with speeds of up to 8000+ MT/s (OC), depending on the processor and memory configuration. Support for AMD EXPO and ASUS AEMP enables optimized memory performance.

PCIe 5.0 Expansion

With AMD Ryzen 9000 and 7000 Series processors, the primary PCIe slot supports PCIe 5.0 x16 operation. Additional chipset-connected PCIe slots provide further expansion options.

High-Speed M.2 Storage

The board supports three M.2 slots and four SATA 6Gb/s ports. With compatible Ryzen 9000 and 7000 Series processors, the primary M.2 slot supports PCIe 5.0 x4, while additional M.2 slots provide PCIe 4.0 connectivity.

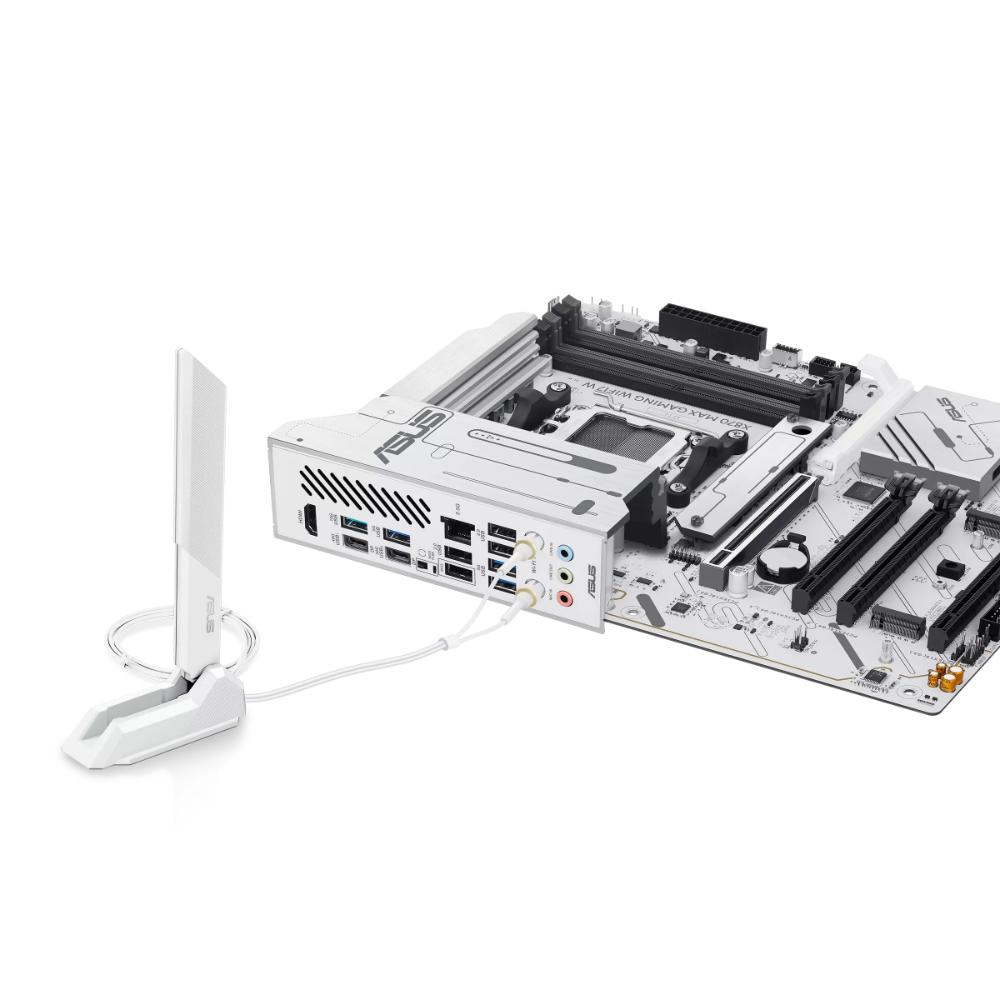

Wi-Fi 7 & Bluetooth 5.4

Integrated 2x2 Wi-Fi 7 supports the 2.4 GHz, 5 GHz, and 6 GHz bands, with 160 MHz bandwidth and transfer rates of up to 2.9 Gbps. Bluetooth 5.4 provides wireless connectivity for compatible peripherals.

2.5 Gb Ethernet

A Realtek 2.5Gb Ethernet controller provides high-speed wired networking, complemented by ASUS LANGuard for additional network protection.

USB4 40 Gbps

Two rear USB4 40 Gbps Type-C ports provide high-speed connectivity and support Type-C display output up to 4K at 60 Hz as specified by DisplayPort 1.4a.

Comprehensive USB Connectivity

The motherboard provides 10 rear USB ports and internal headers supporting additional front-panel connectivity, including a 20Gbps USB Type-C connector.

High-Definition 7.1 Audio

The Realtek 7.1-channel High Definition Audio CODEC supports up to 24-bit/192 kHz playback, with audio shielding, premium audio capacitors, and dedicated audio PCB layers.

ASUS 5X Protection III

Built-in protection features include DIGI+ VRM with DrMOS, LANGuard, overvoltage protection, SafeSlot, and a stainless-steel back I/O panel.

ASUS Q-Design

Convenient DIY features include:

• PCIe Slot Q-Release
• Q-Antenna
• Q-Dashboard
• Q-DIMM
• Q-LED Core
• Q-Slot

Advanced Cooling

The motherboard includes a flexible M.2 heatsink, a VRM heatsink design, CPU and CPU OPT fan headers, an AIO pump header, and four chassis fan headers.

BIOS FlashBack

The dedicated BIOS FlashBack button and LED provide a convenient method for BIOS updates and recovery.

Aura Sync RGB

Three addressable RGB Gen 2 headers enable customizable lighting and synchronization through ASUS Aura Sync and Aura Creator.

Technical Specifications

Specification	Details
Model	X870 MAX GAMING WIFI7 W
Form Factor	ATX
Dimensions	30.5 x 24.4 cm
CPU Socket	AMD Socket AM5
CPU Support	AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
Chipset	AMD X870
Memory	4 x DIMM
Maximum Memory	256GB
Memory Type	DDR5
Memory Speed	Up to 8000+ MT/s (OC)
Memory Architecture	Dual Channel
Memory Support	ECC/Non-ECC Unbuffered DIMM
AMD Memory Technology	AMD EXPO
ASUS Memory Technology	AEMP
Primary PCIe Slot	PCIe 5.0 x16 with Ryzen 9000/7000
M.2 Slots	3 x M.2
SATA	4 x SATA 6 Gb/s
Ethernet	Realtek 2.5 Gb Ethernet
Wireless	Wi-Fi 7, 2x2
Wi-Fi Bands	2.4 GHz / 5GHz / 6GHz
Wi-Fi Bandwidth	Up to 160 MHz
Wi-Fi Transfer Rate	Up to 2.9Gbps
Bluetooth	5.4
Rear USB	10 ports
USB4	2 x USB4 40 Gbps Type-C
Rear USB 10 Gbps	1 x Type-A
Rear USB 5 Gbps	3 x Type-A
Rear USB 2.0	4 x Type-A
Front USB 20 Gbps	1 x USB Type-C connector
Audio Codec	Realtek 7.1 Surround Sound HD Audio
Audio Resolution	Up to 24-bit / 192 kHz
HDMI	1 x HDMI
BIOS	256 MB Flash ROM, UEFI AMI BIOS
Operating System	Windows 11

Storage Support

The motherboard provides three M.2 slots and four SATA 6Gb/s ports.

• M.2_1: PCIe 5.0 x4 with Ryzen 9000/7000 Series processors
• M.2_2: PCIe 4.0 x4 with Ryzen 9000/7000 Series processors
• M.2_3: PCIe 4.0 x4 through the AMD X870 chipset
• 4 x SATA 6 Gb/s

Important: The M.2_2 slot shares bandwidth with the two USB4 40 Gbps ports. When either USB4 port is operating, M.2_2 may be disabled unless the BIOS settings are adjusted.

Expansion Slots

With AMD Ryzen 9000 and 7000 Series processors:

• 1 x PCIe 5.0 x16 slot
• 2 x PCIe 4.0 x16 slots operating at x1
• 1 x PCIe 3.0 x16 slot operating at x1

With AMD Ryzen 8000 Series processors, PCIe specifications and available modes vary according to the processor.

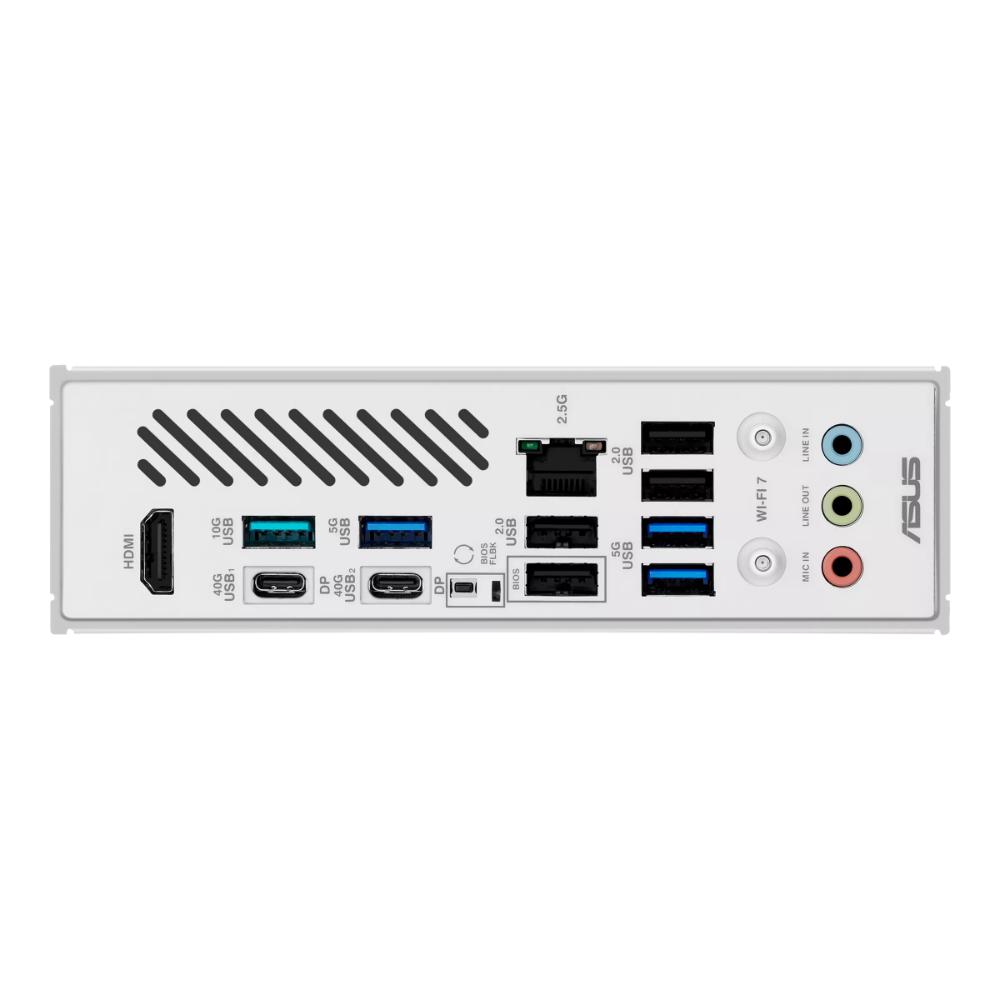

Rear I/O

• 2 x USB4 40 Gbps Type-C
• 1 x USB 10 Gbps Type-A
• 3 x USB 5 Gbps Type-A
• 4 x USB 2.0 Type-A
• 1 x HDMI
• 1 x Wi-Fi module
• 1 x Realtek 2.5 Gb Ethernet
• 3 x Audio jacks
• 1 x BIOS FlashBack button

Internal Connectivity

Fan Headers

• 1 x CPU fan header
• 1 x CPU OPT Fan header
• 1 x AIO Pump header
• 4 x Chassis Fan headers

Power

• 1 x 24-pin main power connector
• 2 x 8-pin +12V CPU power connectors

USB

• 1 x USB 20 Gbps Type-C connector
• 1 x USB 5Gbps header supporting 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers supporting 4 additional USB 2.0 ports

Other Headers

• 3 x Addressable RGB Gen 2 headers
• Clear CMOS header
• Chassis Intrusion Header
• COM Port header
• Front Panel Audio header
• S/PDIF Out header
• SPI TPM header
• System Panel header

ASUS Software & Utilities

The X870 MAX GAMING WIFI7 W supports a range of ASUS software and utilities, including:

• Armoury Crate
• Aura Creator
• Aura Sync
• Fan Xpert 4 with AI Cooling II
• ASUS AI Advisor
• ASUS DriverHub
• ASUS GlideX
• TurboV Core
• ASUS CPU-Z
• ASUS UEFI BIOS EZ Mode
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS MyHotkey

Also included are

• Norton 360 Deluxe — 60-day free trial
• WinRAR — 40-day free trial

ASUS Q-Design & DIY Features

Designed for easier PC building and maintenance, the motherboard includes:

• PCIe Slot Q-Release
• Q-DIMM
• Q-LED Core
• Q-Slot
• Q-Antenna
• Q-Dashboard
• Pre-mounted I/O shield
• BIOS FlashBack
• ProCool
• SafeSlot

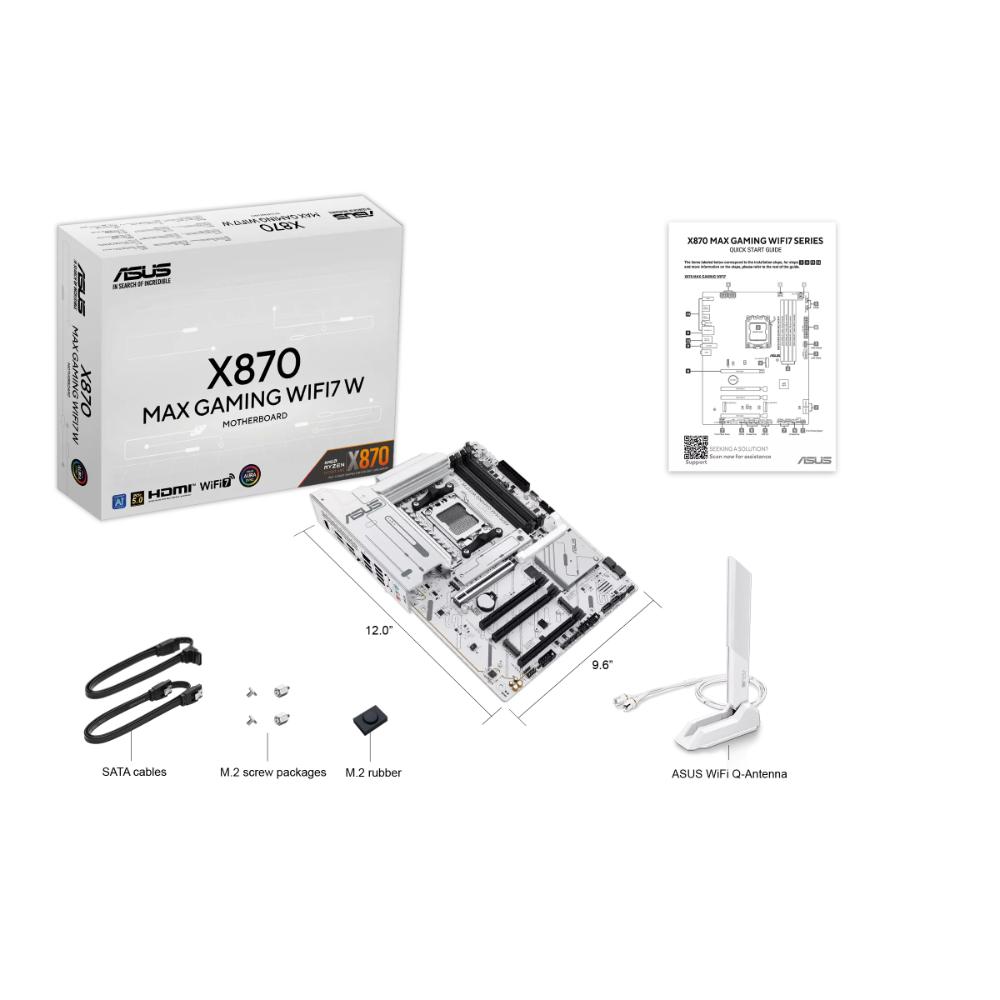

Accessories

• 2 x SATA 6Gb/s cables
• ASUS Wi-Fi Q-Antenna
• M.2 rubber package
• M.2 SSD screw package
• Quick Start Guide

Ideal For

• AMD Ryzen 9000 gaming PCs
• High-performance desktop builds
• Gaming PCs with DDR5 memory
• Wi-Fi 7 gaming systems
• High-speed PCIe 5.0 storage
• Content creation and workstation builds
• Advanced AI PC-ready systems
• Custom PC and DIY enthusiasts

Why Choose ASUS X870 MAX GAMING WIFI7?

The X870 MAX GAMING WIFI7 W combines the AMD X870 platform with DDR5 support up to 256GB, PCIe 5.0, three M.2 slots, Wi-Fi 7, 2.5Gb Ethernet, USB4 40Gbps, comprehensive cooling, advanced ASUS DIY features, and extensive connectivity for modern high-performance PC builds.
