CABLETIME

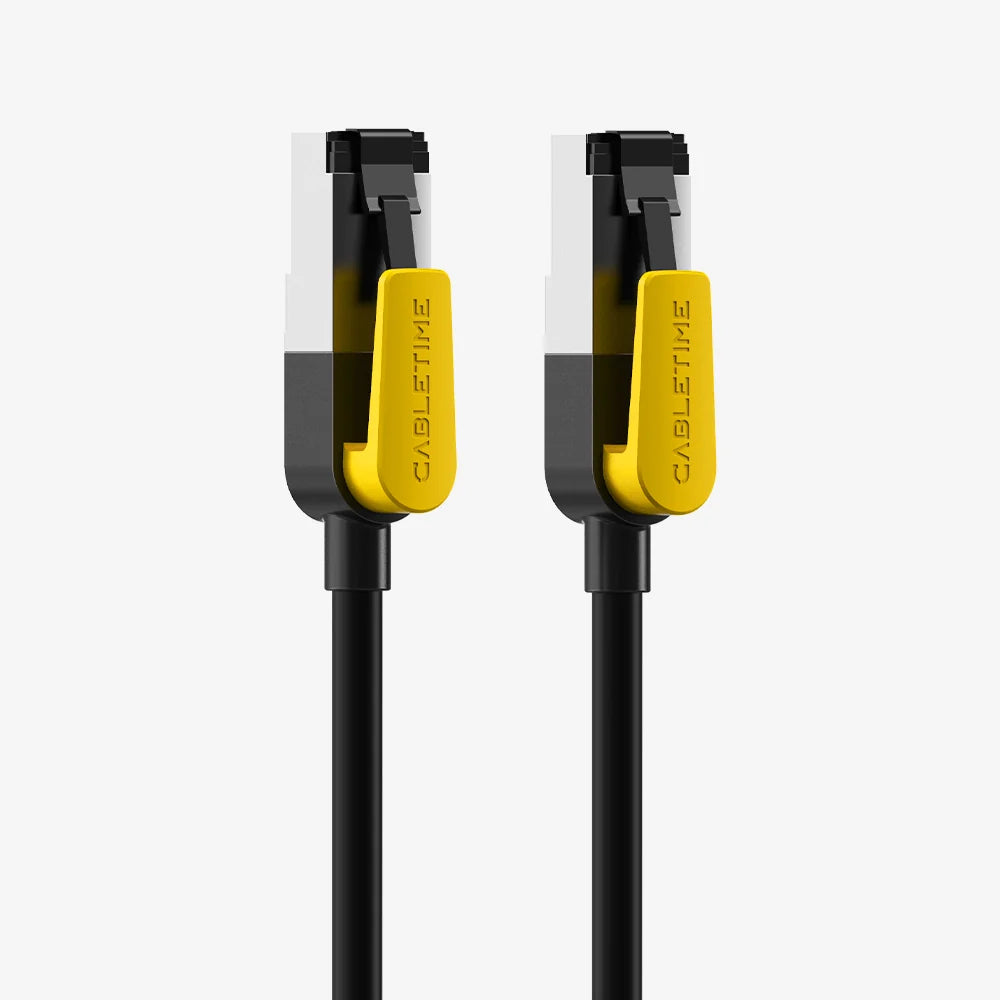

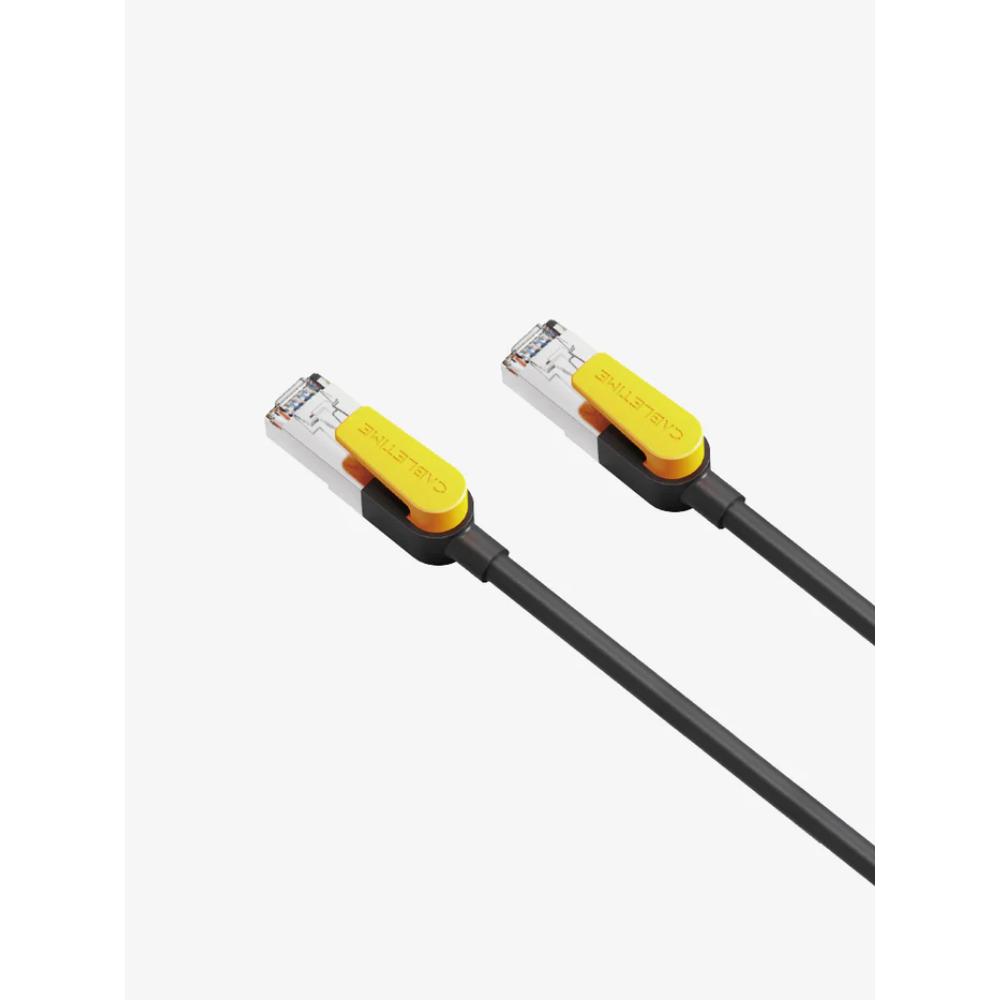

CABLETIME CN70 Cat 7 Ethernet Patch Cable | 10Gbps | 600MHz | S/STP Shielded | Pure Copper | Gold-Plated RJ45 | 0.5m–20m
CABLETIME CN70 Cat 7 Ethernet Patch Cable | 10Gbps | 600MHz | S/STP Shielded | Pure Copper | Gold-Plated RJ45 | 0.5m–20m
Couldn't load pickup availability
The CABLETIME CN70 Cat 7 Ethernet Patch Cable is designed for high-speed wired networking with data rates of up to 10Gbps and 600MHz bandwidth. Featuring S/STP shielding, 26AWG oxygen-free copper conductors, an 8-core twisted-pair design, and gold-plated pure copper RJ45 connectors, it provides reliable signal transmission with enhanced protection against electromagnetic and radio-frequency interference.
Available in lengths from 0.5 meters to 20 meters, the CN70 is suitable for gaming, streaming, professional networking, home offices, workstations, network switches, and other high-bandwidth Ethernet applications.
Key Features
10Gbps High-Speed Performance
With support for Ethernet speeds up to 10Gbps, the CN70 provides significantly higher throughput than conventional Gigabit Ethernet connections. It is ideal for demanding applications such as high-resolution streaming, gaming, large file transfers, and high-speed network storage.
600MHz Bandwidth
The 600MHz channel bandwidth provides increased transmission capacity for high-speed networking and bandwidth-intensive applications.
Advanced S/STP Shielding
The CN70 uses S/STP (Screened Shielded Twisted Pair) construction. Each twisted pair is individually shielded with aluminum foil, while the cable incorporates an additional overall shield to help reduce EMI, RFI, crosstalk, and signal leakage.
Double Aluminum Foil & Ground Wire
The shielded construction incorporates double aluminum foil and a ground wire, providing additional protection against external electromagnetic interference and helping maintain stable signal transmission in electrically noisy environments.
26AWG Oxygen-Free Copper
The cable uses 26AWG oxygen-free copper conductors for dependable signal transmission and improved signal integrity during high-speed data communication.
Gold-Plated RJ45 Connectors
Pure copper RJ45 connectors with gold plating provide reliable electrical contact and help resist corrosion for consistent network connectivity.
Durable & Snagless Design
A sturdy PVC outer jacket protects the internal wiring, while the snagless push-tab design makes connecting and disconnecting the cable easier while helping protect the connector latch.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | CABLETIME |
| Series | CN70 |
| Cable Type | Cat 7 Ethernet Patch Cable |
| Shielding | S/STP |
| Shielded Wire | Double Aluminum Foil + Ground Wire |
| Ethernet Speed | Up to 10Gbps |
| Channel Bandwidth | 600MHz |
| Conductor | 26AWG Oxygen-Free Copper |
| Internal Structure | 8-Core Twisted Pair |
| Connection Type | RJ45 |
| Connector | Pure Copper Plated with Gold |
| Connection Method | 568B |
| Outer Diameter | 6.3mm |
| Jacket | PVC |
| Available Lengths | 0.5m–20m |
| Warranty | 1-Year |
Superior S/STP Shielding
The S/STP construction combines individually shielded twisted pairs with an overall shield, helping minimize electromagnetic and radio-frequency interference. This makes the CN70 particularly suitable for networking environments where multiple electrical and electronic devices can create signal noise.
Performance & Construction
| Feature | Specification |
|---|---|
| Category | Cat 7 |
| Maximum Ethernet Speed | 10Gbps |
| Bandwidth | 600MHz |
| Conductor Gauge | 26AWG |
| Conductor Material | Oxygen-Free Copper |
| Shielding | S/STP |
| Shielding Structure | Double Aluminum Foil + Ground Wire |
| Internal Wiring | 8-Core Twisted Pair |
| Connector | RJ45 |
| Connector Material | Pure Copper with Gold Plating |
| Wiring Standard | 568B |
| Outer Diameter | 6.3mm |
| Jacket Material | PVC |
Available Models & Lengths
| Model | Length | Approx. Length |
|---|---|---|
| CN70E | 0.5m | 1.5ft |
| CN70H | 1m | 3.3ft |
| CN70L | 2m | 6.6ft |
| CN70N | 3m | 10ft |
| CN70P | 5m | 16.4ft |
| CN70R | 8m | 26.2ft |
| CN70S | 10m | 33ft |
| CN70T | 15m | 50ft |
| CN70U | 20m | 65.6ft |
Universal Compatibility
The standard RJ45 interface allows the CN70 to connect with a wide range of Ethernet-enabled devices, including:
- Desktop PCs and laptops
- Gaming PCs
- PlayStation consoles
- Xbox consoles
- Routers and modems
- Network switches
- Servers
- NAS devices
- Smart TVs
- iMac and other computers
- Raspberry Pi and compatible network devices
- Professional networking equipment
Ideal For
- 10Gbps Ethernet networks
- Gaming and esports setups
- 4K and 8K streaming
- Large file transfers
- Network Attached Storage
- High-performance home networks
- Offices and workstations
- Server and switch connections
- Data centers
- Electromagnetically noisy environments
Why Choose CABLETIME CN70 Cat 7 Cable?
The CN70 combines 10Gbps Ethernet performance, 600MHz bandwidth, advanced S/STP shielding, oxygen-free copper conductors, and gold-plated RJ45 connectors for fast and reliable wired networking. Its enhanced shielding makes it suitable for demanding environments where signal stability and interference protection are important.
Mustafa Computers – Authorized CABLETIME Distributor in Pakistan
Mustafa Computers is an Authorized CABLETIME Distributor in Pakistan, offering genuine CABLETIME products with competitive pricing, official warranty support, and professional pre-sales and after-sales assistance.
Why Buy from Mustafa Computers?
Mustafa Computers offers genuine and original products sourced through trusted and authorized channels, backed by competitive pricing and professional pre-sales and after-sales assistance. With years of experience in technology retail and solutions, we provide reliable customer service and applicable manufacturer warranty support for a dependable purchasing experience.
