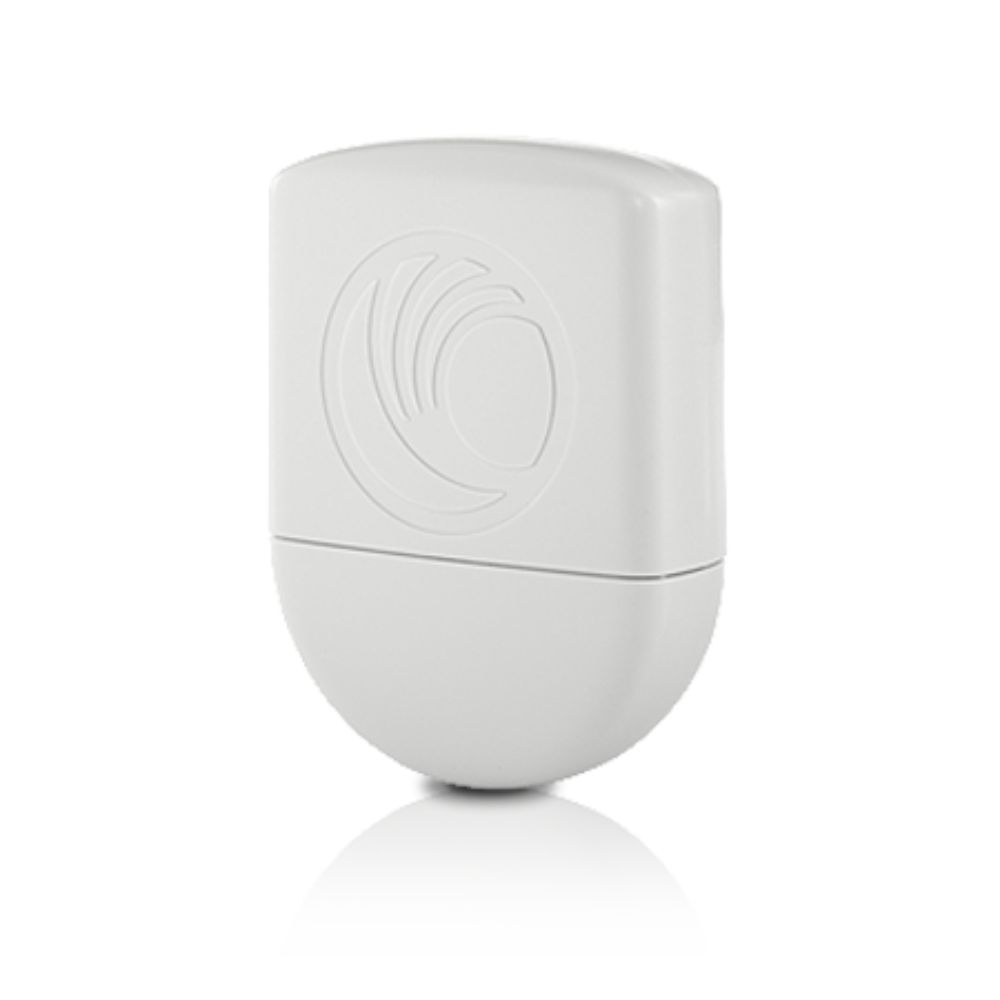

Cambium 56 VDC Gigabit Ethernet Surge Suppressor | Model C000000L033A

Cambium 56 VDC Gigabit Ethernet Surge Suppressor | Model C000000L033A

Rs.24,000.00
Rs.24,000.00
Sale Sold out
Shipping calculated at checkout.
WARRANTY

The Cambium 56 VDC Gigabit Ethernet Surge Suppressor (C000000L033A) is a critical lightning protection device engineered to shield Cambium Networks equipment from electrical surges and harsh outdoor conditions. Built for long-term reliability, it helps reduce network downtime and protects valuable infrastructure from lightning strikes and power fluctuations.

Designed for seamless integration with Cambium PMP 450i, PTP 450i, and PTP 820S systems, this suppressor delivers line-to-line and line-to-ground protection using advanced TVS diode technology for rapid response and superior surge absorption.


Key Features

Electrical and Performance

  • Nominal Voltage: 56 VDC

  • Transfer Rate: 1000 Base-T (Gigabit Ethernet)

  • Protection Mode: Line-to-Line and Line-to-Ground

  • Surge Arrestor Type: TVS Diodes for extended operational life

  • Surge Current Rating: 172A (L-G, Total, 10/1000 µs)

  • Response Time: 5 nanoseconds (typical)

Connectivity and Mounting

  • Connectors: Two RJ-45 Ethernet ports

  • Mounting Options: Wall or pole mount

Environmental Durability

  • Environmental Protection: IP54-rated enclosure

  • Wind Survival: Up to 321 kph (200 mph)

  • Operating Temperature: -40°C to +60°C (-40°F to +140°F)

  • Humidity: 100% condensing

Compliance

  • UL/cUL 62368

  • IEC 62368 Edition 2


Technical Specifications

Parameter Details
Model C000000L033A
Transfer Rate 1000 Base-T (Gigabit Ethernet)
Nominal Voltage 56 V
Surge Arrestor TVS Diodes
Response Time 5 ns (typical)
Surge Current Rating 172A (L-G, Total, 10/1000 µs)
Connectors 2 × RJ-45
Mounting Wall or Pole mount
Dimensions 118 × 87.5 × 46.5 mm (4.6 × 3.4 × 1.8 in)
Weight 156 g (0.34 lbs)
Environmental Protection IP54
Operating Temperature -40°C to 60°C
Wind Survival 321 kph (200 mph)


Compatibility

  • Cambium PMP 450i (Access Point and Subscriber Module)

  • Cambium PTP 450i

  • Cambium PTP 820S


Why Choose the Cambium 56 VDC Gigabit Ethernet Surge Suppressor

Built to withstand extreme environmental conditions, this surge suppressor is essential for protecting outdoor and tower-mounted network installations. It helps reduce service interruptions, lower maintenance costs, and extend the life of your wireless broadband infrastructure.


Buy from Mustafa Computers – Authorized Cambium Reseller in Pakistan

Purchase the Cambium Gigabit Ethernet Surge Suppressor from Mustafa Computers, an authorized Cambium Networks reseller in Pakistan. We offer genuine products, competitive pricing, and fast nationwide delivery to keep your network secure and operational.
