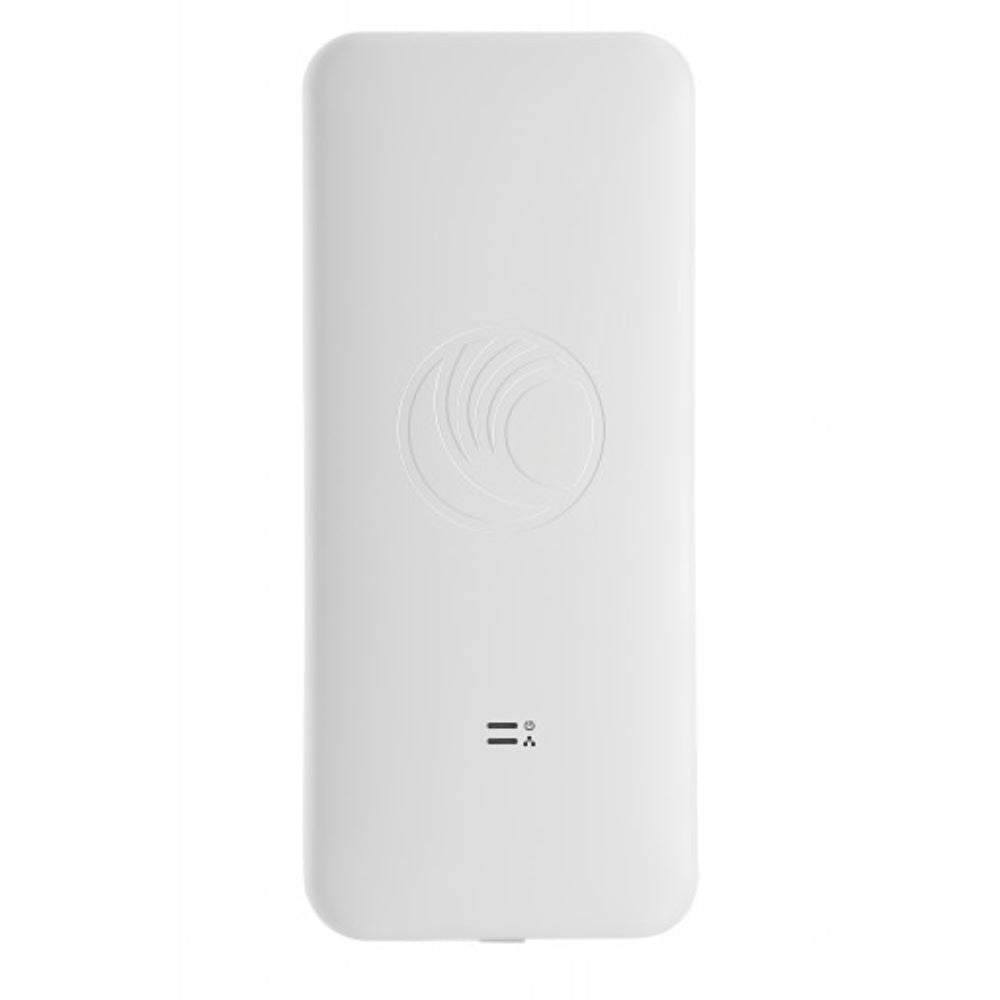

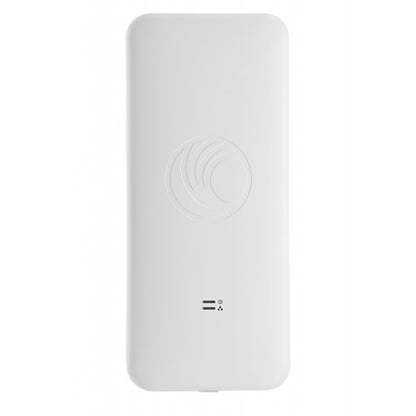

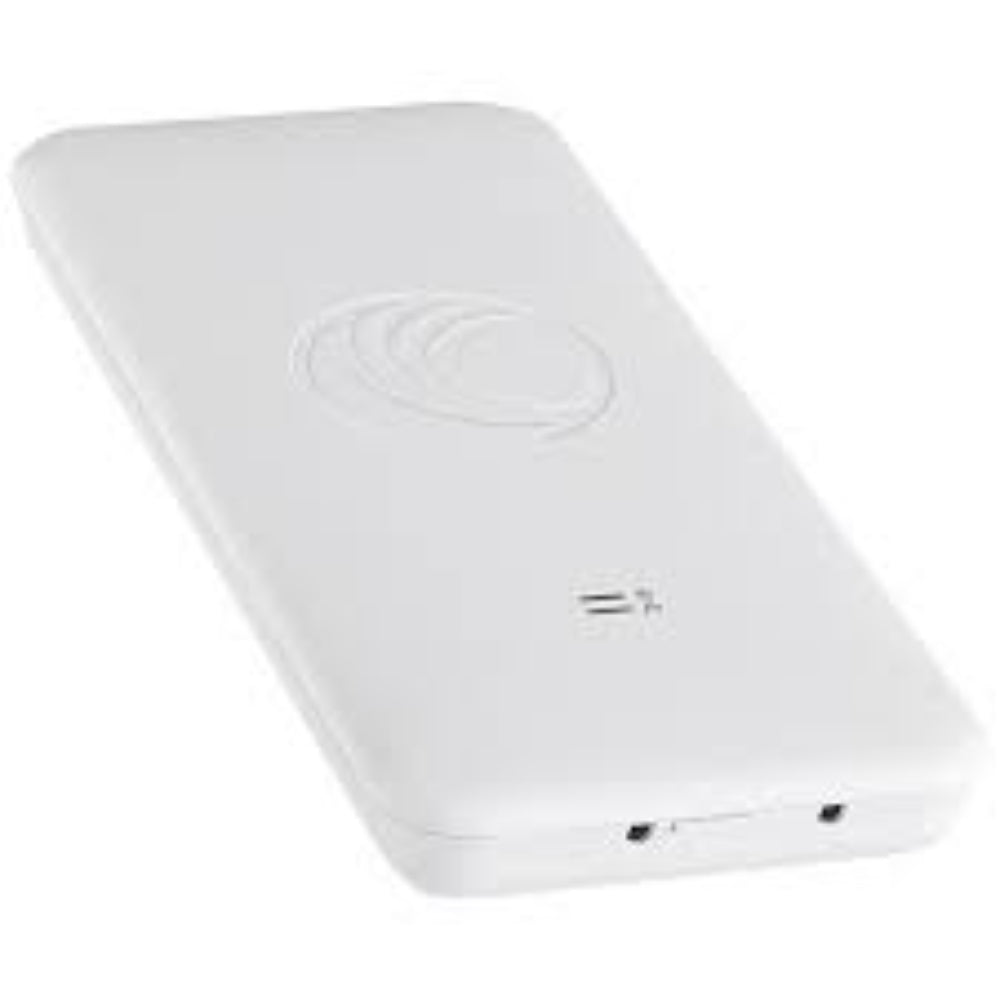

Cambium Networks cnPilot e500 Outdoor Wi-Fi 5 Access Point

Cambium Networks cnPilot e500 Outdoor Wi-Fi 5 Access Point

Rs.98,000.00
Rs.98,000.00
Sale Sold out
Shipping calculated at checkout.
WARRANTY

The Cambium Networks cnPilot e500 is a rugged, high-performance outdoor Wi-Fi 5 access point designed for enterprise-grade wireless coverage in outdoor environments. With dual-band 802.11ac support, two Gigabit Ethernet ports, and an AUX port for powering additional devices, the e500 is ideal for extending connectivity to courtyards, campuses, parks, and public spaces.

Built to withstand harsh weather conditions, the plenum-rated e500 offers flexible mounting options and advanced RF optimization features such as band steering, airtime fairness, and automatic channel selection. It supports cloud-managed, autonomous, and on-premise controller modes, making it suitable for scalable deployments across service providers, municipalities, and commercial networks.


Key Features

Outdoor-Ready Performance

  • Dual-band 802.11ac Wi-Fi with combined throughput up to 1.167 Gbps

  • Supports up to 256 concurrent clients for high-density outdoor environments

  • 2x2 MIMO antenna design with omni-directional coverage

Connectivity and Expansion

  • Two Gigabit Ethernet ports for high-speed data transmission

  • AUX port capability to power additional equipment such as backhaul radios or security cameras

Management and Optimization

  • Operates in standalone, cloud-managed (cnMaestro), or on-premise controller modes

  • Advanced RF features including Automatic Channel Scanning (ACS), airtime fairness, and band steering

Security and Access Control

  • Enterprise-grade security with WPA2-AES, 802.1x, and Protected Management Frames (802.11w)

  • Captive portal and Hotspot 2.0 support with RADIUS and Active Directory integration

Durability and Installation

  • IP67-rated enclosure for dust and water resistance

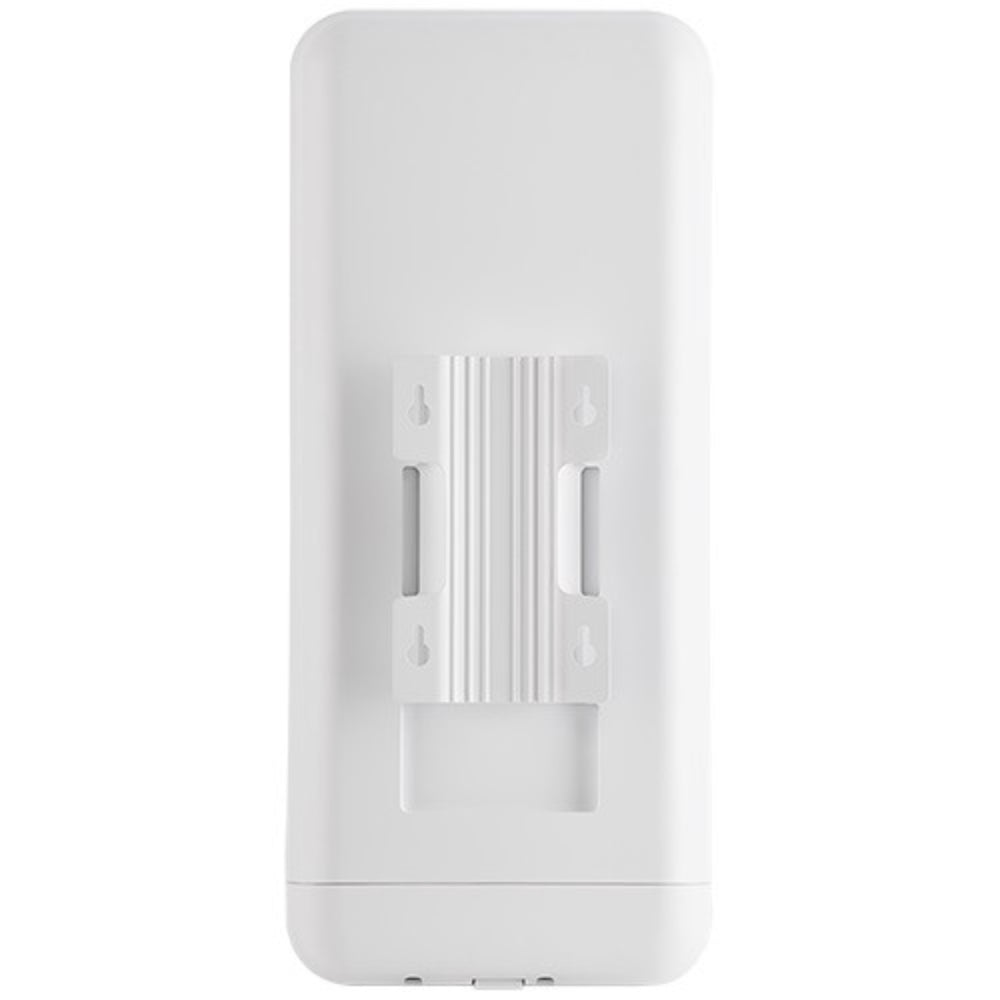

  • Plenum-rated for safe outdoor installation on walls or poles

  • Powered via 802.3af PoE (injector included)


Technical Specifications

Parameter Details
Model cnPilot e500
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac
Antenna Type 2x2 MIMO, Omni (360°)
Max Data Rate 1.167 Gbps
Concurrent Clients 256
Ethernet Ports 2 x Gigabit Ethernet
AUX Port Supported for powering additional devices
Frequency Bands 2.4 GHz and 5 GHz
Power Supply 802.3af PoE (Injector supplied)
Management Modes Cloud-managed, Autonomous, On-premise controller
Security WPA2-AES, 802.1x, 802.11w
Captive Portal Internal, cnMaestro, or External RADIUS
Guest Access Active Directory Integration
Enclosure IP67-rated, Plenum-rated
Mounting Wall or Pole


Applications

  • Ideal for outdoor Wi-Fi coverage in parks, campuses, and public venues

  • Suitable for enterprise, hospitality, and municipal networks

  • Supports additional equipment like surveillance cameras and backhaul radios


Why Choose the Cambium Networks cnPilot e500

The cnPilot e500 offers robust outdoor connectivity with enterprise-grade features, flexible management, and expansion capabilities. Its rugged design and dual Gigabit ports make it a versatile solution for extending wireless coverage and powering auxiliary devices in outdoor deployments.


Buy Cambium Networks cnPilot e500 in Pakistan

Purchase the Cambium Networks cnPilot e500 Outdoor Access Point from Mustafa Computers, an Authorized Cambium Networks Reseller in Pakistan. Enjoy genuine products, official warranty, competitive pricing, and fast delivery across Lahore, Karachi, Islamabad, and other cities nationwide.
