Cambium Networks cnPilot e505 | Outdoor Wi-Fi 5 Access Point | 802.11ac Wave 2 | Dual-Band 2.4GHz + 5GHz | MU-MIMO | Beamforming | 360° Omni Antenna | IP67 Weatherproof | For Public Wi-Fi, Hospitality, and Enterprise Networks
Cambium Networks cnPilot e505 | Outdoor Wi-Fi 5 Access Point | 802.11ac Wave 2 | Dual-Band 2.4GHz + 5GHz | MU-MIMO | Beamforming | 360° Omni Antenna | IP67 Weatherproof | For Public Wi-Fi, Hospitality, and Enterprise Networks
Couldn't load pickup availability

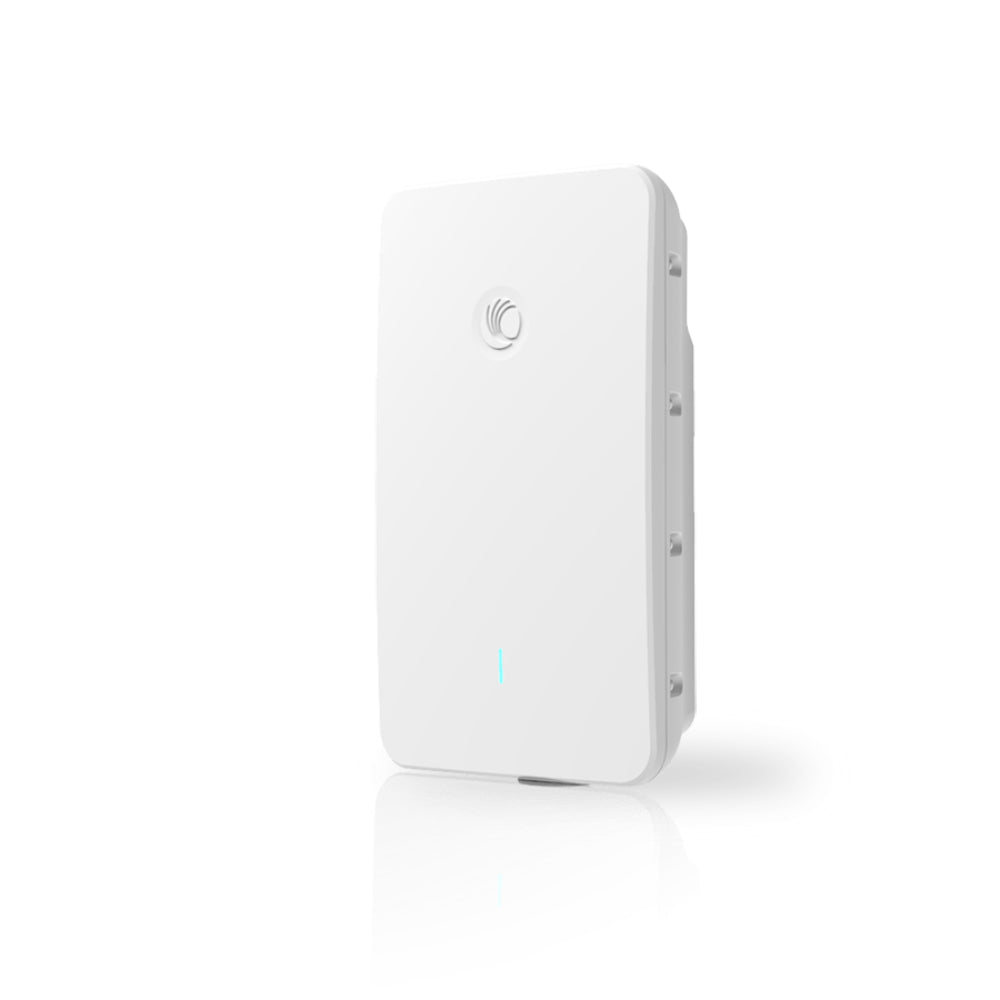

The Cambium Networks cnPilot e505 is a compact, enterprise-grade outdoor access point designed for high-density deployments—ideal for public Wi-Fi, hospitality venues, and campus-wide coverage.
802.11ac Wave 2 with MU-MIMO Supports simultaneous multi-user connections—ensures high throughput and efficient airtime usage in crowded environments.
360° Integrated Omni Antenna Delivers uniform coverage in all directions—perfect for open-air venues, courtyards, and outdoor corridors.
Beamforming + Airtime Fairness Enhances signal strength and balances bandwidth—improves performance for all connected clients.
Dual-Band Concurrent Radios 2.4GHz (up to 300 Mbps) + 5GHz (up to 867 Mbps)—combined PHY rate of 1.167 Gbps.
Rugged IP67 Enclosure UV-rated, dustproof, and waterproof—built to withstand harsh outdoor conditions.
Lightweight and Discreet Form Factor Weighs under 800 grams—easy to mount and blends into outdoor environments.
Full Specifications
| Feature | Details |
|---|---|
| Model | cnPilot e505 |
| Wireless Standard | 802.11ac Wave 2 (Wi-Fi 5) |
| Frequency Bands | 2.4GHz (300 Mbps), 5GHz (867 Mbps) |
| Antenna Type | Integrated 360° omni-directional |
| MIMO Support | 2×2 MU-MIMO per band |
| Beamforming | Supported |
| Max PHY Rate | 1.167 Gbps combined |
| Enclosure Rating | IP67, UV-resistant |
| Weight | < 800g |
| Mounting | Pole or wall mount |
| Security | WPA2, WPA2-Enterprise, WPA-PSK, Open |
| Management | cnMaestro cloud/on-premise, CLI, SNMP |
| Power Options | 802.3af PoE (Power over Ethernet) |
| Operating Temp | -30°C to +60°C |
| Use Case | Outdoor Wi-Fi for public, enterprise, hospitality |
Recommended Use Cases in Pakistan Perfect for outdoor campuses, hotels, parks, and public Wi-Fi zones—ideal for high-density, always-on wireless coverage.
Why Buy cnPilot e505 from Mustafa Computers Mustafa Computers offers genuine Cambium Networks access points with expert guidance and free nationwide delivery across Pakistan.
Order Now from Mustafa Computers Get the Cambium Networks cnPilot e505 Outdoor Wi-Fi Access Point from Mustafa Computers—delivered free across Lahore, Karachi, Islamabad, and beyond.
