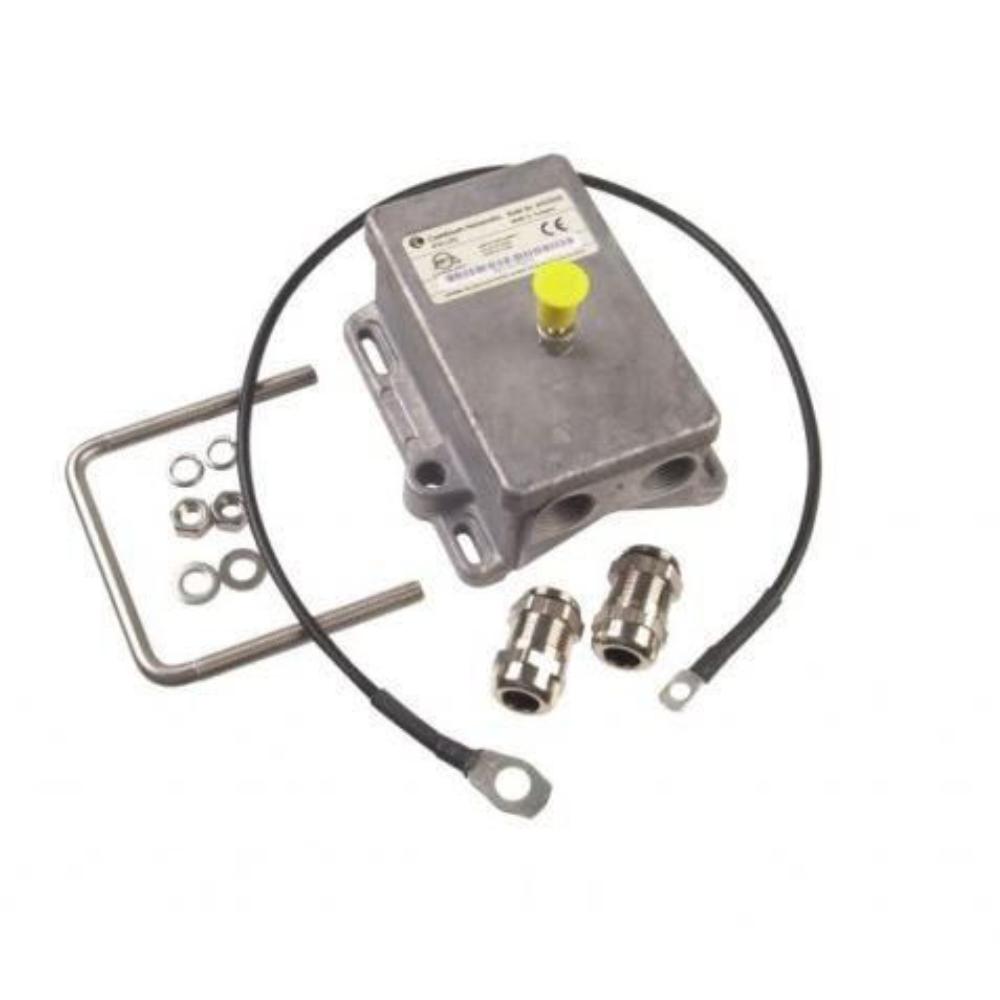

Cambium Networks LPU and Grounding Kit (1 Kit per ODU) | Model C000065L007B

Cambium Networks LPU and Grounding Kit (1 Kit per ODU) | Model C000065L007B

Rs.165,000.00
Rs.165,000.00
Sale Sold out
Shipping calculated at checkout.
WARRANTY

The Cambium Networks LPU and Grounding Kit (C000065L007B) is an essential component for protecting outdoor wireless equipment from lightning and electrical surges. Designed specifically for Cambium PTP 650 and PTP 670 radios, this Lightning Protection Unit (LPU) safeguards your network infrastructure, ensuring maximum uptime and reliability in challenging outdoor environments.

Encased in a rugged metal housing built to withstand extreme weather conditions, the Cambium LPU provides long-term durability, capable of surviving ice, snow, rain, and winds up to 150 mph (242 kph). Its compact design allows for easy installation on poles or walls, making it ideal for both new deployments and existing setups.

For optimal performance and complete protection, each PTP 650/670 radio requires two LPUs — one near the radio on the tower or mast, and another at the building’s cable entry point to safeguard the internal LAN network.


Key Features

Protection and Performance

  • Superior lightning protection to minimize damage from electrical surges

  • Fast response time of 5 nanoseconds for quick surge suppression

  • High surge capacity rated at 150A (10/1000µs) and 1500A (8/20µs)

Durability and Design

  • Rugged metal enclosure rated IP66/IP67 for dust and water resistance

  • Engineered for a 10-year operational life under harsh conditions

  • Wind survival up to 150 mph (242 kph)

  • Wide operating range from −40°C to +60°C with 100% condensing humidity tolerance

Mounting and Compatibility

  • Flexible mounting options for poles (1"–3" / 25–75 mm diameter) or walls

  • Compatible with Cambium PTP 650 and PTP 670 radios

  • Compact design for easy integration into new or existing installations


Technical Specifications

Parameter Details
Model C000065L007B
Compatible Devices Cambium PTP 650 / PTP 670
Transfer Rate 1000 Base-T
Connectors RJ45
Protection Mode Line-to-Line, Line-to-Ground
Response Time 5 nanoseconds typical
Surge Rating 150A (10/1000µs), 1500A (8/20µs)
Mounting Pole mount (1"–3") or wall mount
Enclosure Metal, IP66 / IP67 rated
Dimensions 16 cm (L) x 10 cm (W) x 9 cm (H)
Weight 700 g (1.5 lbs)
Wind Loading 150 mph (242 kph)
Operating Temperature −40°C to +60°C
Humidity 100% condensing
Operational Life 10 years (projected)


Applications

  • Ideal for enterprise and ISP outdoor broadband deployments

  • Suitable for tower-mounted and building-entry installations

  • Helps reduce downtime and maintenance costs due to lightning damage


Why Choose the Cambium Networks LPU and Grounding Kit (C000065L007B)

Built to protect your wireless infrastructure, this Cambium Networks lightning protection unit ensures consistent performance, reduced downtime, and long-term network reliability. It is a critical component for safeguarding sensitive equipment in outdoor environments and maintaining uninterrupted service.


Buy from Mustafa Computers – Authorized Cambium Reseller in Pakistan

Get the Cambium Networks LPU and Grounding Kit from Mustafa Computers, an Authorized Cambium Networks Reseller in Pakistan. We provide genuine Cambium accessories, competitive pricing, official warranty, and nationwide delivery to cities including Karachi, Lahore, and Islamabad.
