Dahua

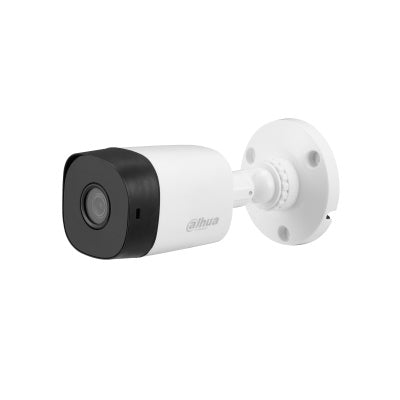

Dahua HAC-B1A21 2MP HDCVI IR Bullet Camera

Dahua HAC-B1A21 2MP HDCVI IR Bullet Camera

Rs.2,999.00 PKR
Rs.2,999.00 PKR
Sale Sold out
Shipping calculated at checkout.

Product Description


Dahua HAC-B1A21 2MP HDCVI IR Bullet Camera

Experience Dahua 1080P full HD video and the simplicity of using existing cabling infrastructure with HDCVI IR. The Cooper series HAC-B1A21 camera features a compact design and offers a high quality image at a friendly price.

Features:

Max. 30fps@1080P

HD and SD output switchable

3.6mm fixed lens (6mm optional)

Max. IR length 20m, Smart IR

IP67, DC12V

Image Sensor 1/2.7″ CMOS
Effective Pixels 1920(H)×1080(V), 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25~1/100000s



NTSC: 1/30~1/100000s
Minimum Illumination 0.04Lux/F1.85, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 20m (66feet)
IR On/Off Control Auto / Manual
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 3.6mm (2.8mm, 6mm Optional)
Max Aperture F1.85
Angle of View H: 93° (103°, 54.7°)
Focus Control N/A
Close Focus Distance 800mm (2000mm)



31.50” (78.74”)

Distance
Detect 25px/m



(8px/ft)

 3.6mm: 51m(167ft)



6mm: 80m(262ft)
Observe 63px/m



(19px/ft)

 3.6mm: 20m(66ft)



6mm: 32m(105ft)
Recognize 125px/m



(38px/ft)

 3.6mm: 10m(33ft)



6mm: 16m(51ft)
Identify 250ppm



(76px/ft)

 3.6mm: 5m(17ft)



6mm: 8m(26ft)
Pan / Tilt / Rotation
Pan/Tilt/Rotation Pan: 0° ~ 360°



Tilt: 0° ~ 90°

Rotation: 0° ~ 360°
Video
Resolution 1080P (1920×1080)
Frame Rate 25/30fps@1080P, 25/30/50/60fps@720P
Video Output 1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR DWDR
Gain Control AGC
Noise Reduction 2D
White Balance Auto / Manual
Smart IR Auto / Manual
Certifications
Certifications CE (EN55032, EN55024, EN50130-4)



FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
Interface
Audio Interface N/A
Eelectrical
Power Supply 12V DC ±30%
Power Consumption Max. 2.7W (12V DC, IR on)
Environmental
Operating Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH



* Start up should be done at above -40°C (-40°F)
Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Ingress Protection & Vandal Resistance IP67
Construction
Casing Plastic
Dimensions 70mm×70mm×149mm (2.76″×2.76″×5.87″)
Net Weight 0.14kg (0.31lb)
Gross Weight 0.17kg (0.37lb)
