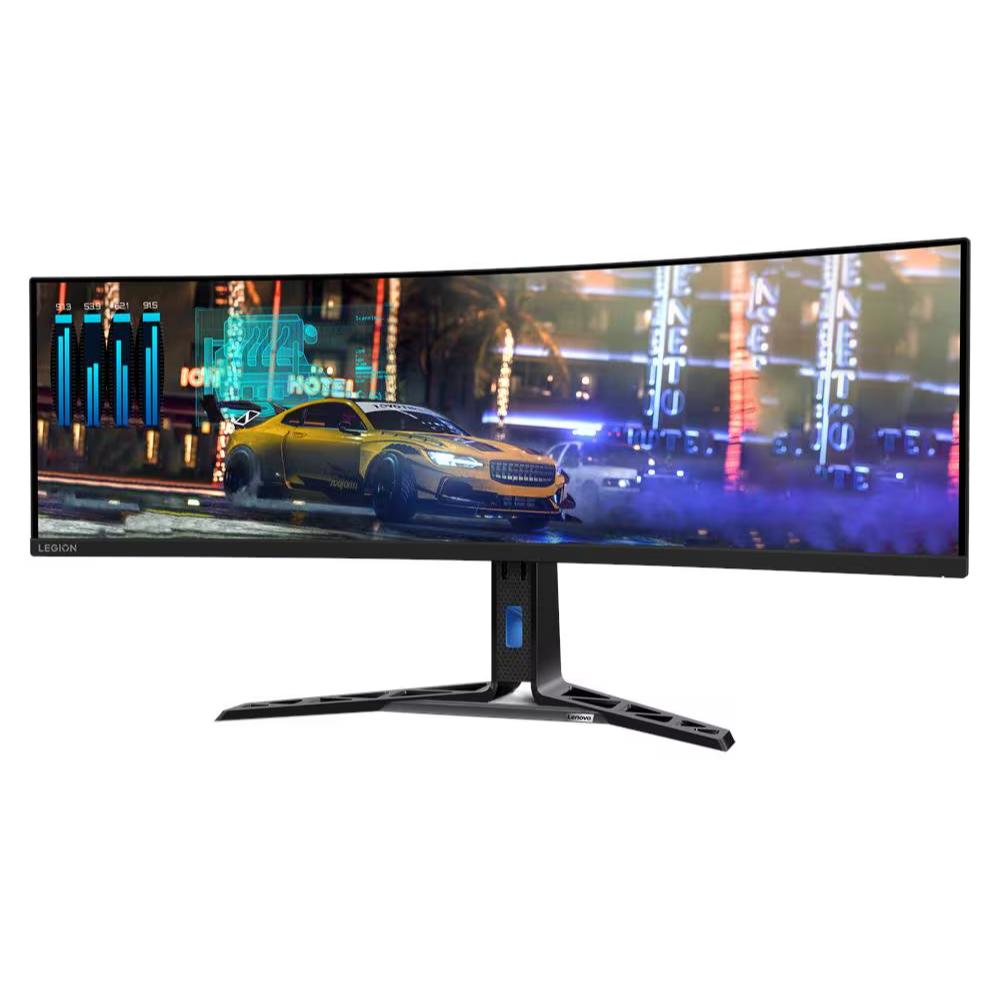

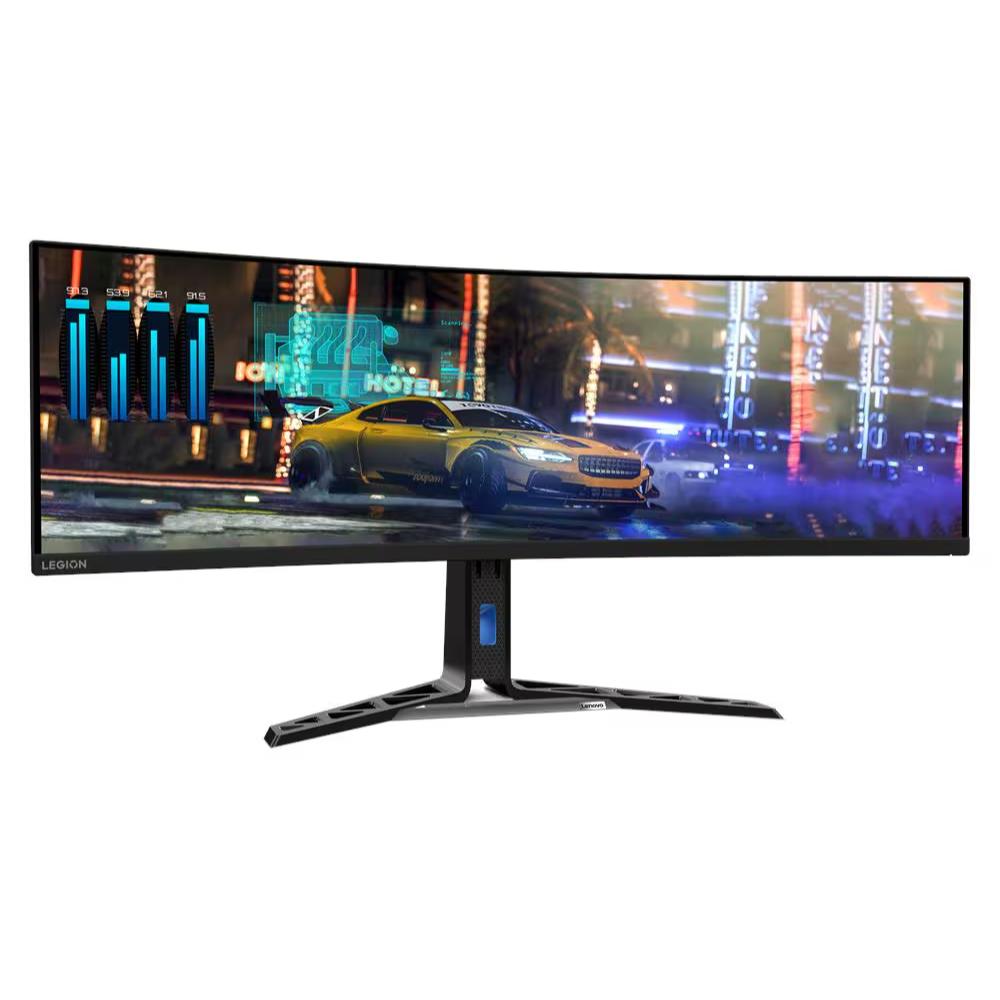

Lenovo Legion R45w-30 Gaming Monitor | 44.5" Dual QHD 32:9 Curved VA | 170Hz Overclock | 1ms MPRT | 1500R | 450 nits | 99% sRGB | 90% DCI-P3 | HDR400 | FreeSync Premium Pro | USB-C 75W | RJ45 | KVM

The Lenovo Legion R45w-30 is an ultra-wide 44.5-inch gaming monitor built for immersive gaming, multitasking and high-performance desktop setups. Its 32:9 Dual QHD resolution of 5120 × 1440, 1500R curved VA panel, and 165Hz refresh rate with up to 170Hz overclocking provide an expansive viewing area with smooth motion.

The monitor combines a 3000:1 contrast ratio, 450 cd/m² brightness, 99% sRGB and 90% DCI-P3 color gamut coverage. DisplayHDR 400, AMD FreeSync Premium Pro and VESA Adaptive-Sync support enhance gaming and multimedia performance.

For productivity and multi-device setups, the R45w-30 includes USB-C with DisplayPort Alt Mode and up to 75W power delivery, an integrated RJ-45 Ethernet port, USB hub, KVM switch, and Picture-by-Picture / Picture-in-Picture functionality.

Key Features

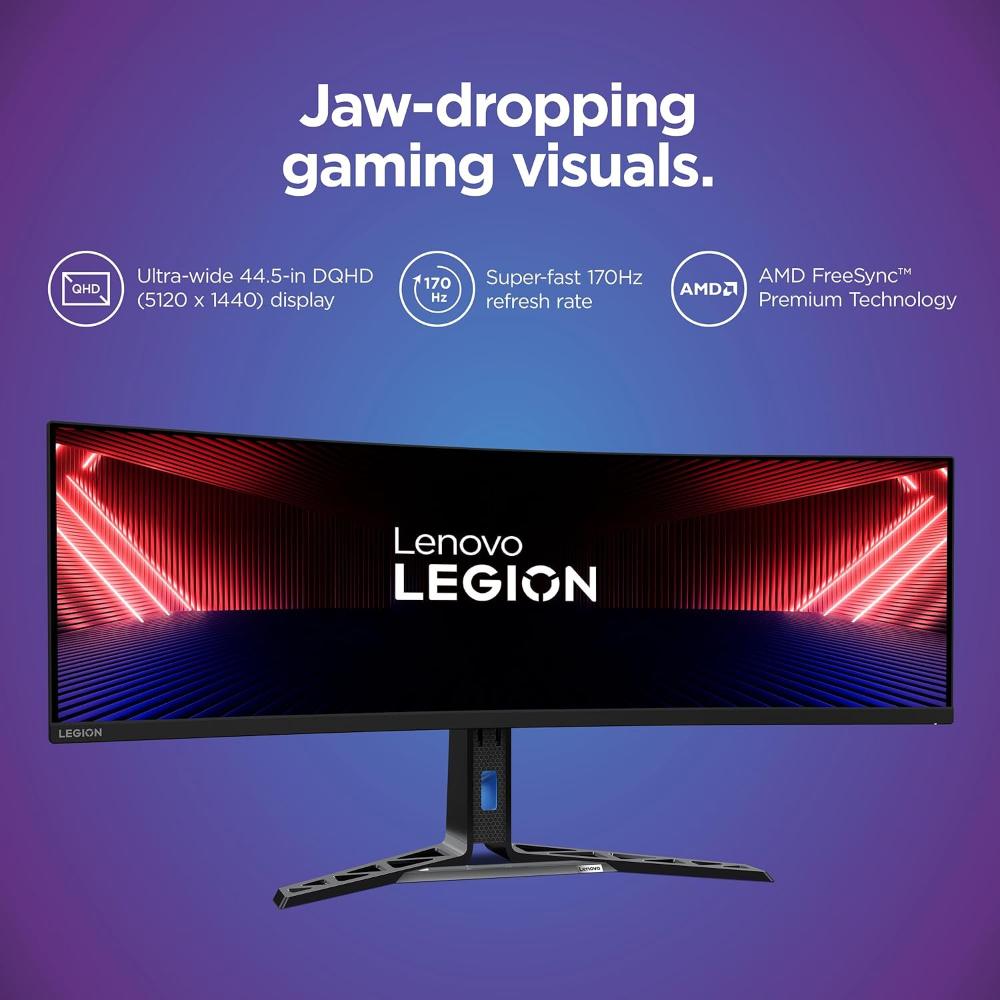

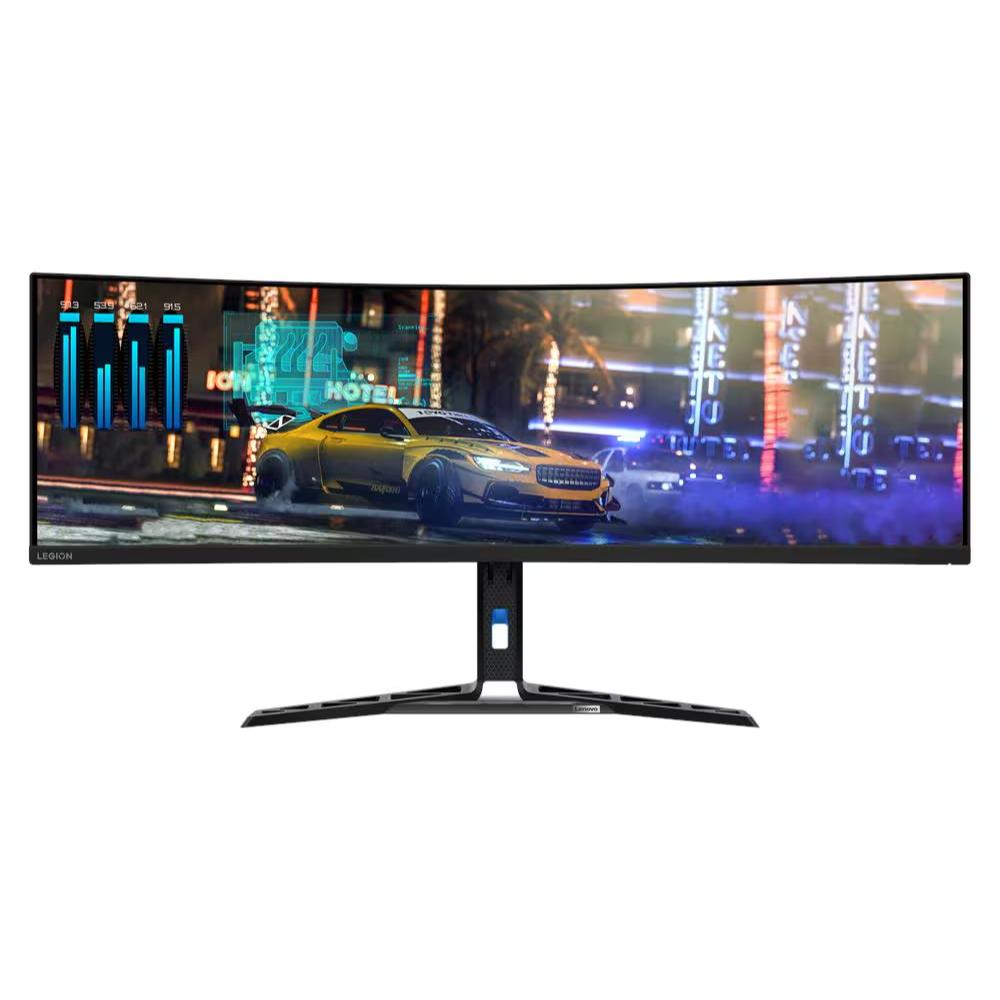

44.5" Dual QHD Ultra-Wide Display

The 44.5-inch VA display provides an expansive 5120 × 1440 Dual QHD resolution with a 32:9 aspect ratio, making it suitable for immersive gaming and wide multitasking workflows.

1500R Curved VA Panel

The 1500R curvature creates an immersive viewing format across the ultra-wide display while the VA panel provides a 3000:1 contrast ratio.

Up to 170Hz Refresh Rate

The monitor operates at 165Hz, with support for overclocking up to 170Hz for smoother motion in gaming and fast-moving content.

Up to 1ms MPRT Response Time

The R45w-30 supports up to 1ms MPRT response time, with additional response-time levels of 4ms, 7ms, 9ms and 12ms.

Wide Color Coverage

The display provides 99% sRGB and 90% DCI-P3 color gamut coverage with 16.7 million colors.

DisplayHDR 400

DisplayHDR 400 support provides HDR capability for compatible content.

AMD FreeSync Premium Pro

AMD FreeSync Premium Pro works with compatible AMD Radeon graphics hardware to synchronize the display and help reduce screen tearing and stuttering.

USB-C with 75W Power Delivery

The integrated USB-C port supports DisplayPort 1.4 Alt Mode and provides up to 75W power delivery, allowing compatible devices to receive video and power through a single connection.

Integrated KVM Switch

The built-in KVM switch allows compatible connected systems to share the monitor's USB peripherals, helping simplify multi-device setups.

PIP / PBP & True Split

The monitor supports Picture-in-Picture (PIP) and Picture-by-Picture (PBP) functionality, along with True Split, providing additional options for viewing and managing multiple sources.

Technical Specifications

Specification	Details
Brand	Lenovo
Product	Legion R45w-30 Gaming Monitor
Model	67B1GAC3AE
Machine Type	67B1
Display Size	44.5"
Panel Type	VA
Backlight	WLED
Resolution	5120 × 1440 Dual QHD
Aspect Ratio	32:9
Pixel Pitch	0.212 × 0.212mm
Pixel Density	119.5 dpi
Viewing Angle	178° / 178°
Refresh Rate	165Hz / 170Hz Overclock
Response Time	1ms MPRT / 4–12ms selectable levels
Brightness	450 cd/m²
Contrast Ratio	3000:1
Color Support	16.7 Million
Color Gamut	99% sRGB, 90% DCI-P3
Screen Surface	Anti-glare
Curvature	1500R
HDR	DisplayHDR 400
Adaptive Sync	AMD FreeSync Premium Pro, VESA Adaptive-Sync
Speakers	3W × 2
Camera Support	Lenovo LC50 Support
Microphone	None
Touchscreen	None
Smart System	None
Case Color	Black C
Bezel Width	2.5mm
VESA Mount	100 × 100mm & 200 × 100mm
Power Consumption	34W typical / 165W maximum
Power Adapter	Integrated

Connectivity

The Legion R45w-30 provides a comprehensive range of connectivity options:

• 1 × USB-B 3.2 Gen 1 upstream
• 1 × USB-C 3.2 Gen 1 upstream
  • DisplayPort 1.4 Alt Mode
  • Up to 75W power delivery
• 3 × USB 3.2 Gen 1 downstream
• 2 × HDMI 2.1 TMDS
• 1 × DisplayPort 1.4
• 1 × RJ-45 Ethernet
• 1 × 3.5mm audio-out
• 1 × Power connector

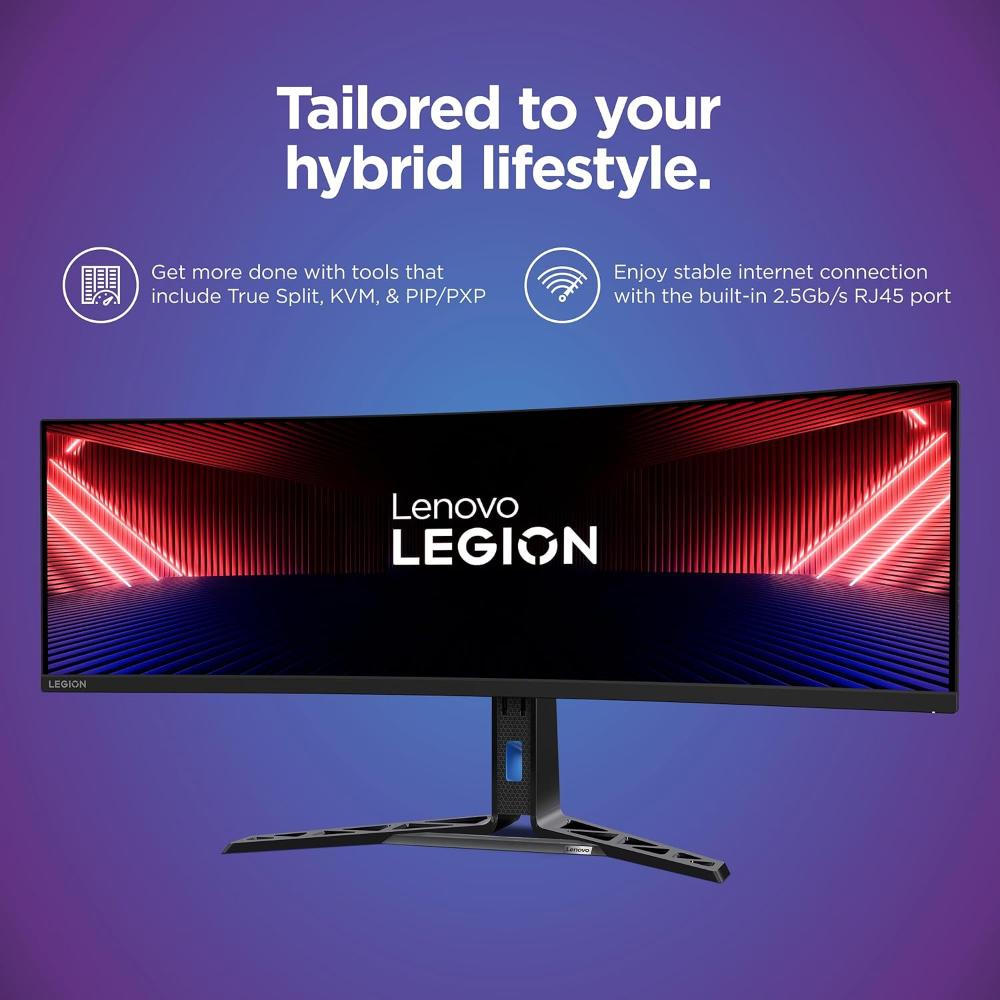

KVM & Multi-Device Features

The integrated KVM switch allows compatible systems connected to the monitor to share connected USB peripherals.

The R45w-30 also supports:

• Picture-in-Picture (PIP)
• Picture-by-Picture (PBP)
• True Split
• Smart Power

Smart Power dynamically manages power delivery to connected devices based on overall power consumption.

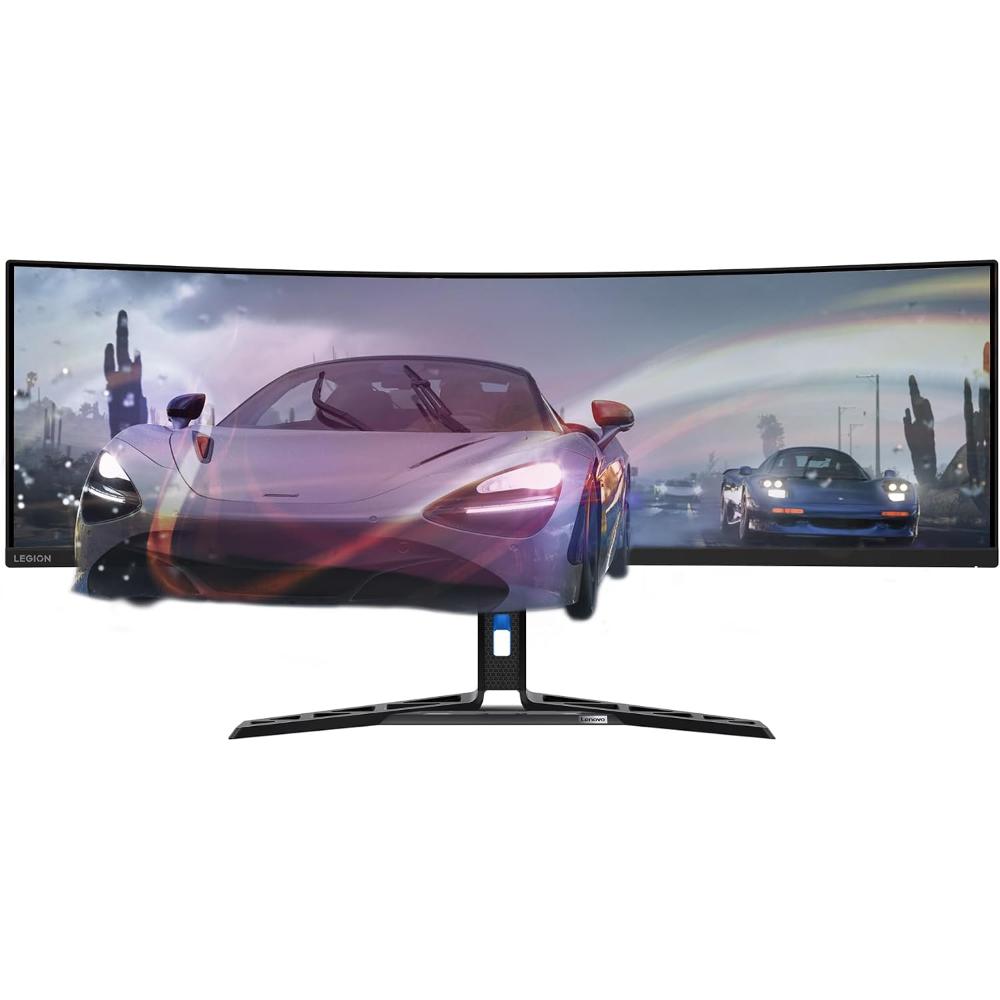

Gaming Performance

The combination of 5120 × 1440 Dual QHD resolution, 165Hz refresh rate with 170Hz overclocking, 1ms MPRT, AMD FreeSync Premium Pro and VESA Adaptive-Sync provides a gaming-focused ultra-wide display experience.

The 32:9 format provides an exceptionally wide field of view and can also support multi-window workflows without requiring multiple separate monitors.

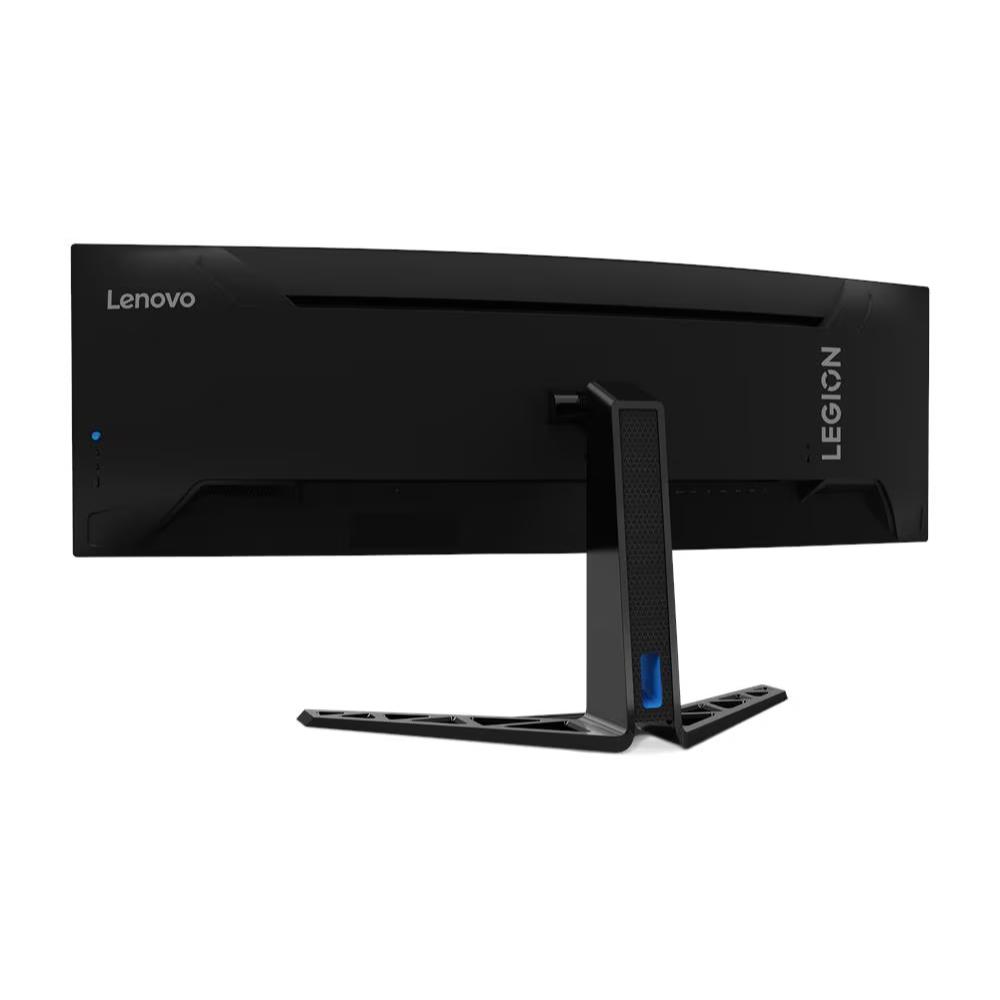

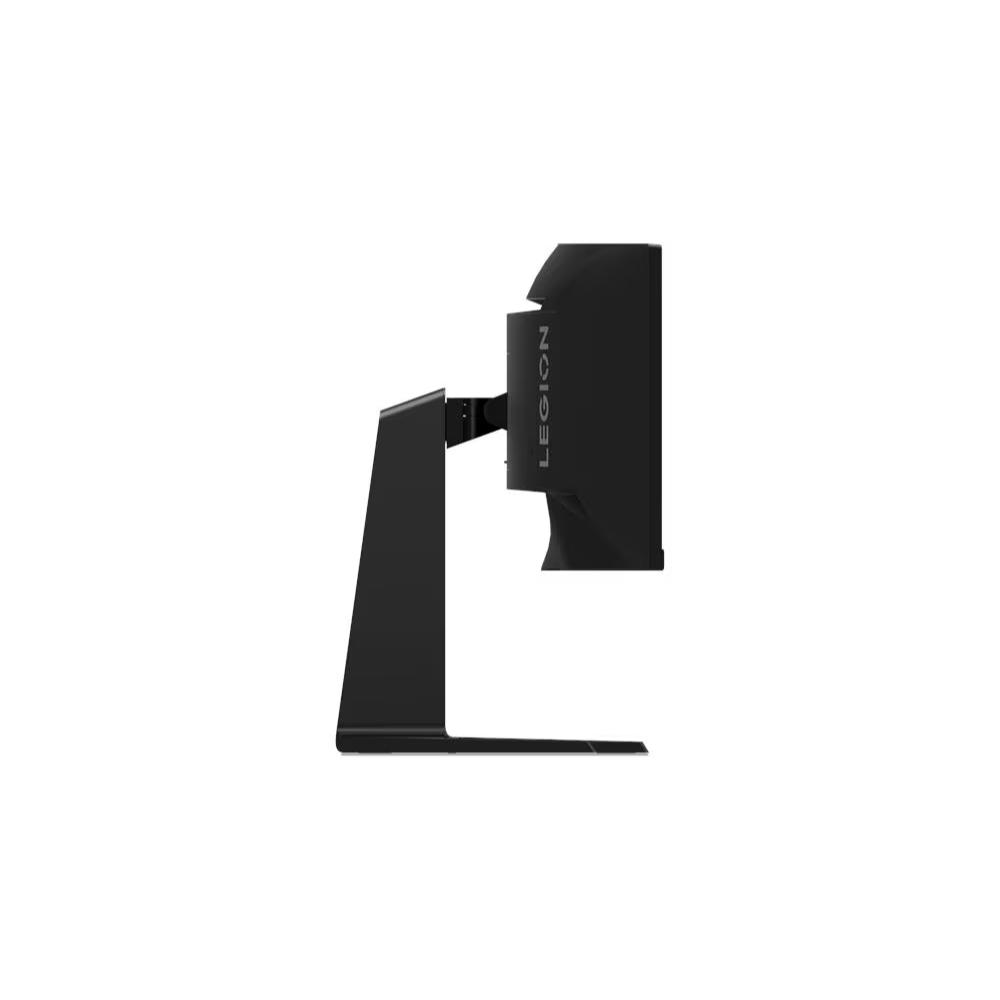

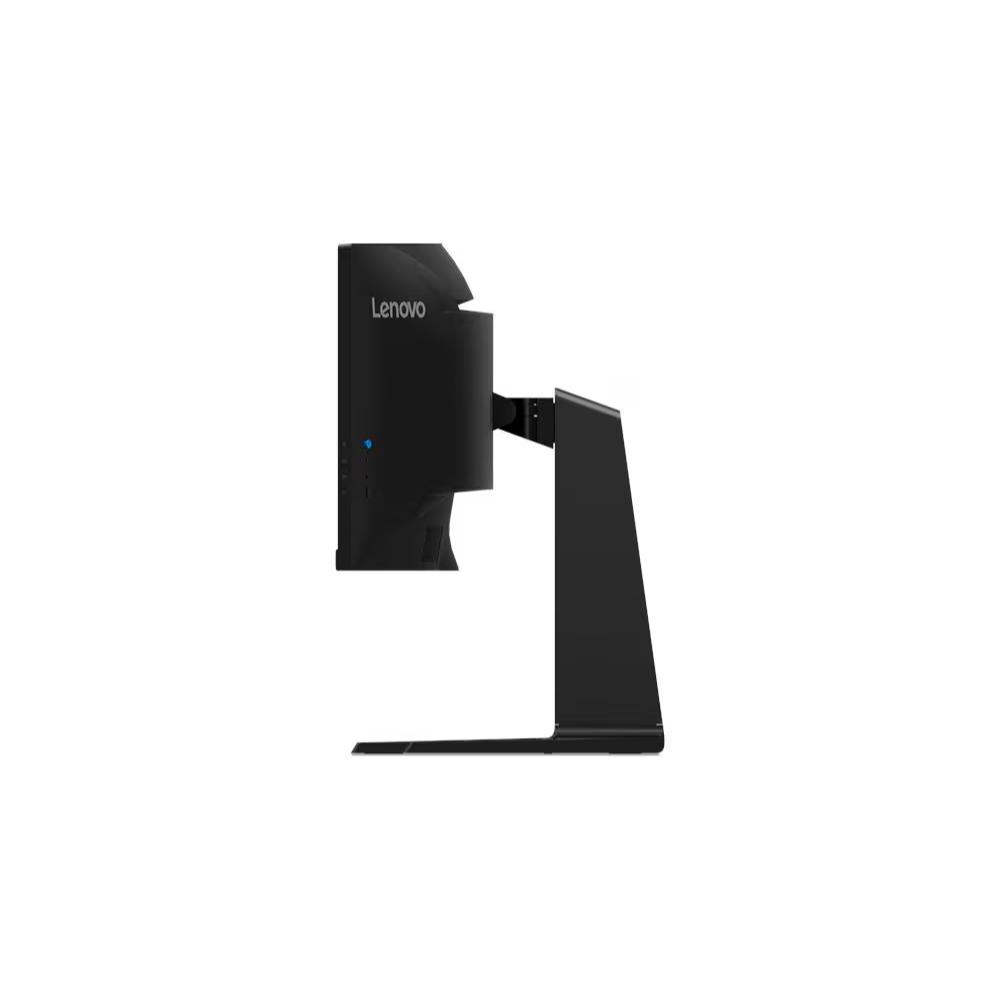

Ergonomic Stand

The included stand supports:

• Tilt: -5° to +22°
• Swivel: 30° left and right
• Height adjustment: up to 135mm

The monitor supports both 100 × 100mm and 200 × 100mm VESA mounting.

Dimensions

Configuration	Dimensions
Monitor Head Only	1089.9 × 163.6 × 339.1mm
Lowest Stand Position	1089.9 × 341.1 × 393.4mm
Highest Stand Position	1089.9 × 341.1 × 528.4mm
Packaging	1230 × 345 × 480mm

Weight

Configuration	Weight
Monitor with Stand	12.1kg
Monitor Head Only	8.3kg
Packaging Weight	20.2kg

Eye Care Features

The Legion R45w-30 includes:

• Eyesafe Display 2.0
• TÜV Low Blue Light Hardware Solution
• TÜV Rheinland Eye Comfort
• Natural Low Blue Light
• Anti-glare screen surface

Lenovo Artery Software

The monitor supports Lenovo Artery, also known as Lenovo Accessories and Display Manager.

The supplied source lists support for:

• Windows 10
• Windows 11
• macOS
• Windows on Arm

Functions may vary depending on the operating system.

Gaming Console Support

The supplied specifications list gaming console support for the Legion R45w-30.

Ideal For

• Ultra-wide PC gaming
• Racing and simulation gaming
• Immersive gaming setups
• Multitasking
• Content consumption
• Multi-window productivity
• Professional workstations
• Multi-device setups
• Users requiring KVM functionality
• Users requiring USB-C connectivity and power delivery

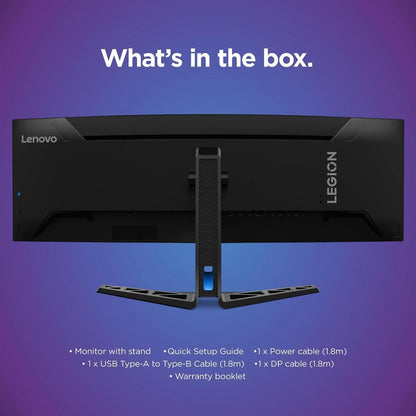

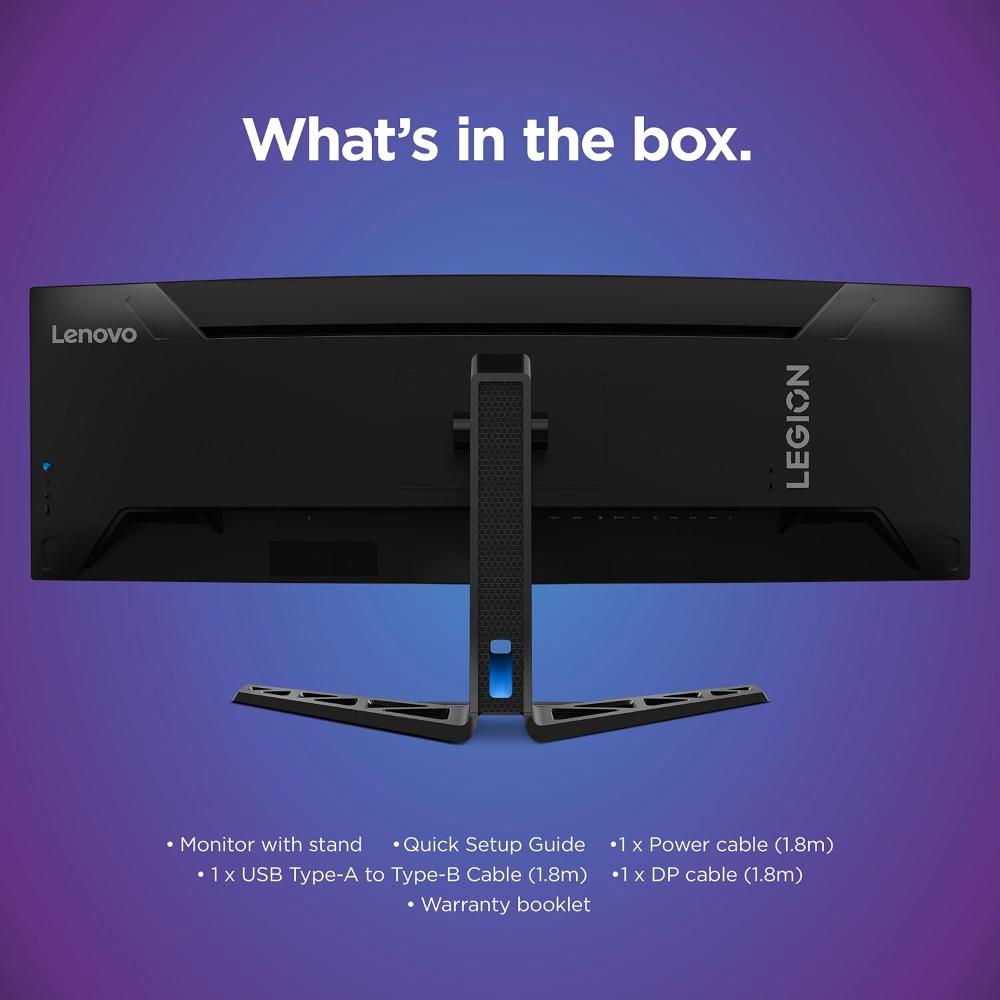

In the Box

• Lenovo Legion R45w-30 Monitor with stand
• 1 × DisplayPort cable, 1.8m
• 1 × USB-A to USB-B cable, 1.8m
• 1 × Power cable, 1.8m
• Quick setup guide
• Warranty booklet

Certifications & Features

• RoHS
• EU Energy Efficiency Level F
• Eyesafe Display 2.0
• TÜV Low Blue Light Hardware Solution
• TÜV Rheinland Eye Comfort
• AMD FreeSync Premium Pro
• VESA Adaptive-Sync
• DisplayHDR 400
• ClearMR 7000
• PIP / PBP
• KVM Switch
• Natural Low Blue Light
• Smart Power
• True Split

Warranty

3-Year Limited Warranty

Product Information

Specification	Details
Product	Lenovo Legion R45w-30 Gaming Monitor
Model	67B1GAC3AE
Machine Type	67B1
Region	EMEA
EAN	0196803817577
UPC	196803817577
