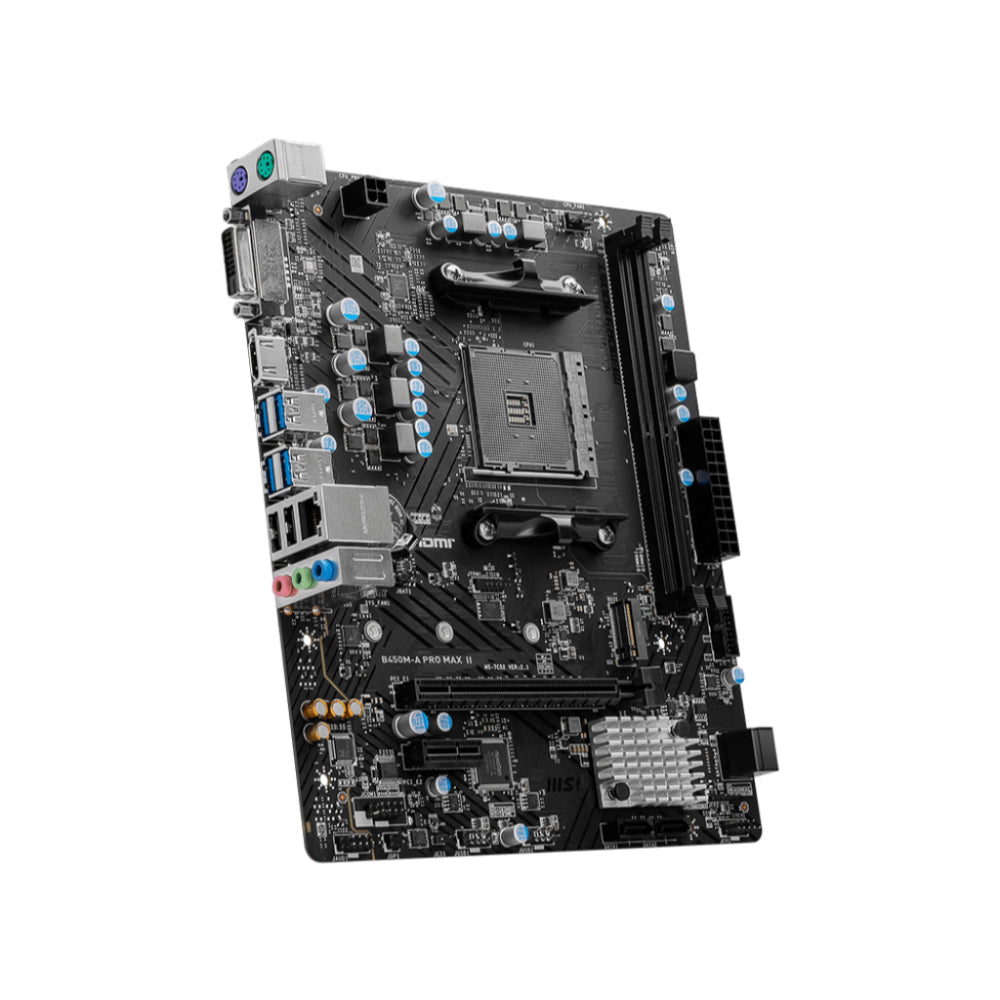

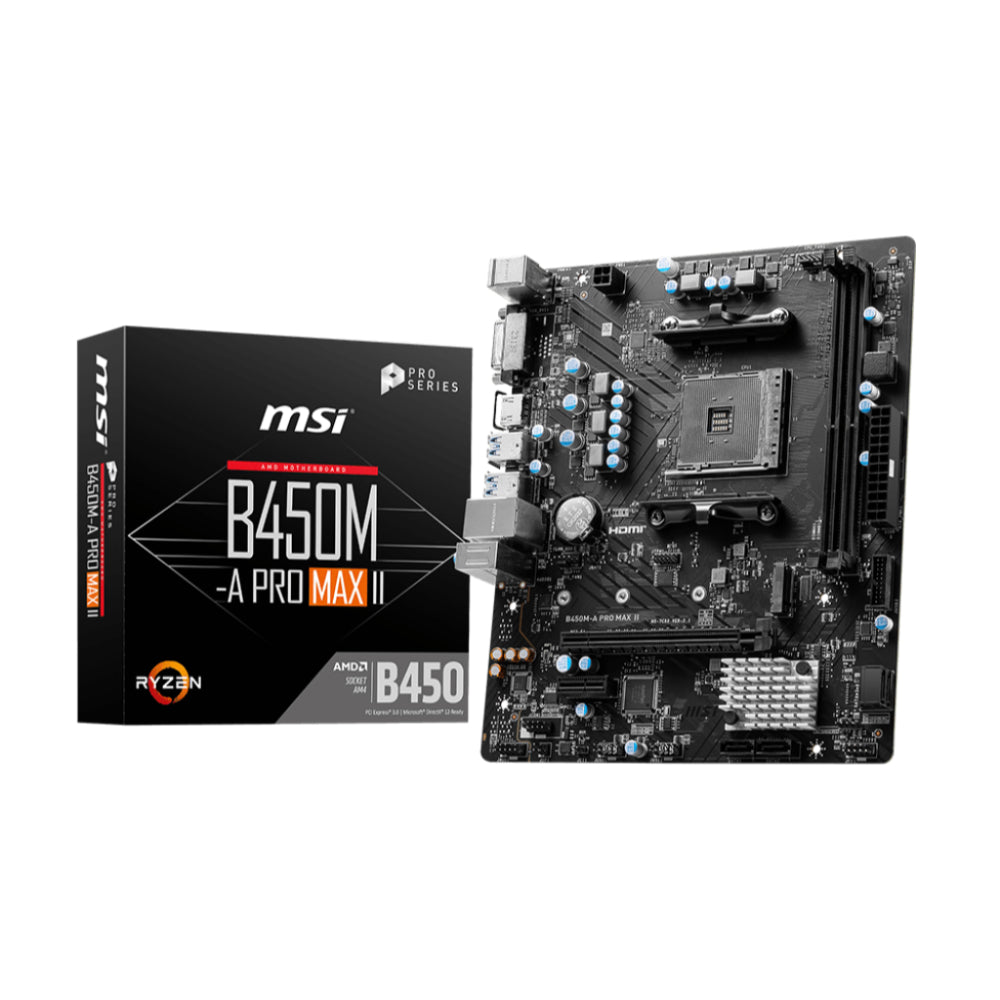

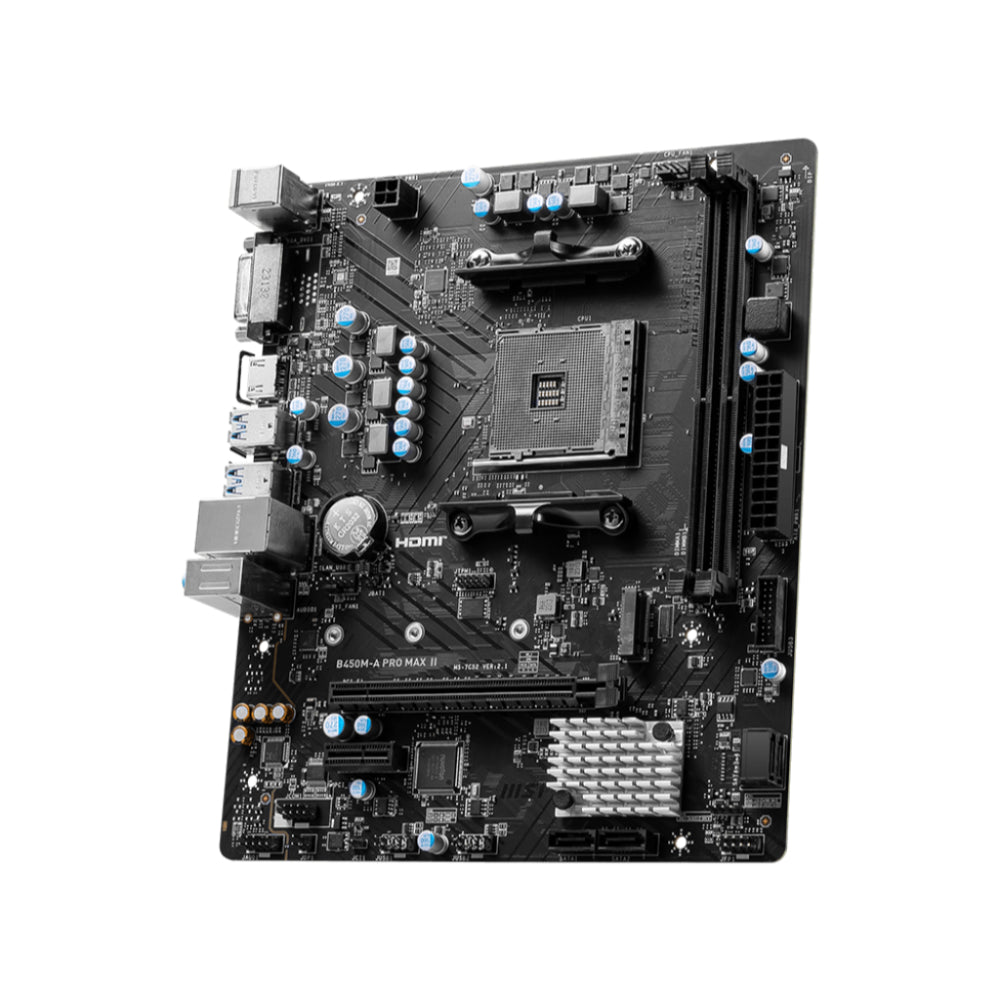

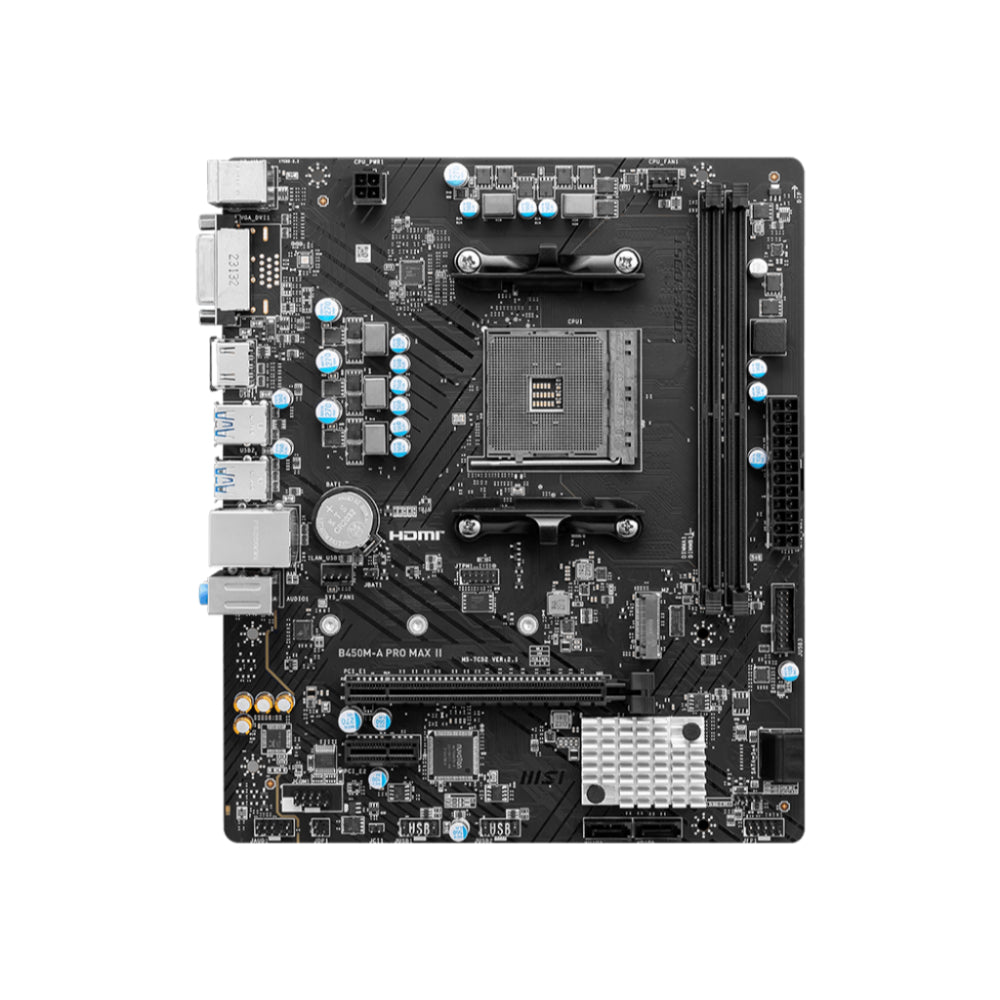

MSI B450M-A PRO MAX II Motherboard | AM4 Power and Performance in a Compact Form
MSI B450M-A PRO MAX II Motherboard | AM4 Power and Performance in a Compact Form
Couldn't load pickup availability
The MSI B450M-A PRO MAX II is a micro-ATX motherboard engineered for AMD’s versatile AM4 platform, supporting a wide range of Ryzen™ desktop processors from the 1000 series to the latest 5000 series. Designed with stability, efficiency, and essential connectivity in mind, this board offers a balanced foundation for budget-conscious builders, office systems, and mainstream gaming setups.
Performance
With support for AMD Ryzen™ 5000, 4000, 3000, 2000, and even 1000 series processors, including G-Series and Athlon™ APUs, the B450M-A PRO MAX II delivers broad compatibility and impressive performance. It features two DDR4 memory slots supporting up to 64GB RAM and frequencies up to 4133 MHz (OC), enabling high-speed data access and multitasking. Thanks to AMD's A-XMP OC Mode, memory overclocking is streamlined for both beginners and advanced users.
Connectivity
This motherboard provides a strong range of connectivity options with 6 USB ports on the rear I/O, including four USB 5Gbps Type-A and two USB 2.0 ports. Internally, it supports additional front-panel USB headers for expanded access. For network demands, it is equipped with a Realtek® 8125 2.5Gbps LAN controller, delivering ultra-fast wired networking for both everyday computing and online gaming.
Visual Output & Audio
Integrated graphics are supported via HDMI™ 2.0b and DVI-D ports (dependent on APU), providing 4K support at 60Hz and 1080p resolutions respectively. Realtek® ALC897 powers 7.1-channel high-definition audio with crisp, immersive sound quality—ideal for casual entertainment or professional audio environments.
Expansion & Storage
The B450M-A PRO MAX II includes a PCIe 3.0 x16 slot for discrete GPUs and a PCIe 2.0 x1 slot for other add-in cards. For storage, it supports one M.2 slot with PCIe 3.0 x4 and SATA modes, along with four SATA 6Gbps ports. RAID support (0, 1, 10) is included for enhanced data reliability and performance.
Compatibility & Features
With support for Windows® 11 and 10 (64-bit), this board is future-ready while maintaining compatibility with legacy systems. It offers TPM 2.0 support for enhanced security and features a comprehensive I/O panel including HDMI, DVI, USB 5Gbps, and 2.5G LAN ports. Internal connectors include fan headers, chassis intrusion detection, front audio, COM port, and more.
Specifications
| Specification | Details |
|---|---|
| Chipset | AMD B450 |
| CPU Support | AMD Ryzen™ 5000, 4000, 3000, 2000, 1000 Series, Athlon™ with Radeon™ Vega Graphics |
| Socket | AM4 |
| Memory | 2x DDR4, up to 64GB, up to 4133 MHz (OC) |
| Graphics Outputs | 1x HDMI™ 2.0b (4K 60Hz), 1x DVI-D (1920x1200 60Hz) |
| Audio | Realtek® ALC897, 7.1-Channel HD Audio |
| Expansion Slots | 1x PCIe 3.0 x16, 1x PCIe 2.0 x1 |
| Storage | 1x M.2 (PCIe 3.0 x4/SATA), 4x SATA 6Gb/s |
| RAID Support | RAID 0, 1, 10 |
| LAN | Realtek® 8125 2.5Gbps |
| USB Ports (Rear) | 2x USB 2.0, 4x USB 5Gbps Type-A |
| USB Ports (Front) | 4x USB 2.0, 2x USB 5Gbps Type-A |
| Internal I/O | ATX_PWR, CPU_PWR, CPU Fan, System Fan, Front Audio, TPM, COM, JFP, JCI |
| Form Factor | mATX (200mm x 236mm) |
| Operating System | Windows® 10/11 64-bit |
Ideal For
The B450M-A PRO MAX II is perfect for budget builds, office workstations, home entertainment PCs, and entry-level gaming rigs. Its AM4 socket offers a wide upgrade path, making it a flexible choice for users who may wish to upgrade their CPU in the future.
Why Choose the B450M-A PRO MAX II?
This board combines affordability with key features such as high-speed RAM support, 2.5Gb LAN, and excellent compatibility with AMD’s full AM4 CPU lineup. With stable performance and a clean micro-ATX layout, it’s an excellent choice for users building reliable systems without the extra frills.
Buy Now from Mustafa Computers
Get the MSI B450M-A PRO MAX II motherboard today from Mustafa Computers, Pakistan’s trusted destination for PC components. Enjoy competitive prices, verified products, and nationwide delivery. Order now to build your next AM4-powered rig.
