MSI

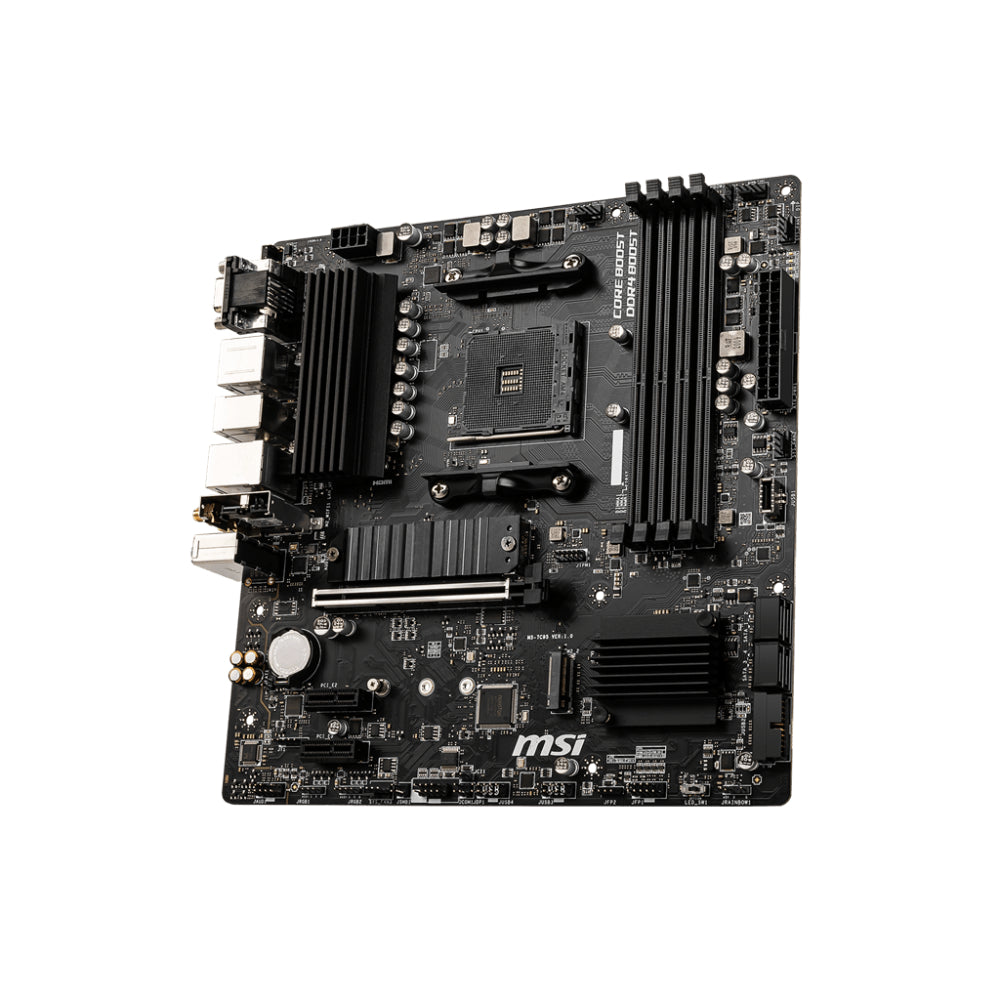

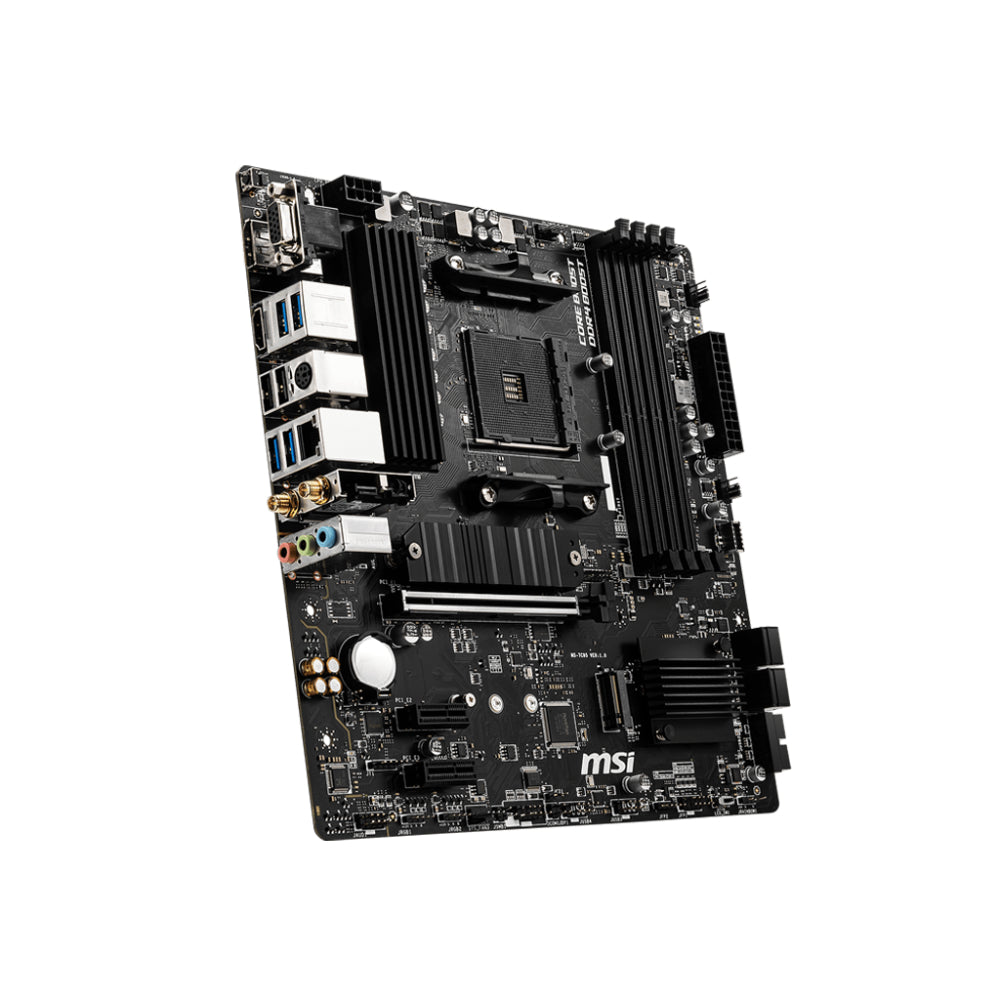

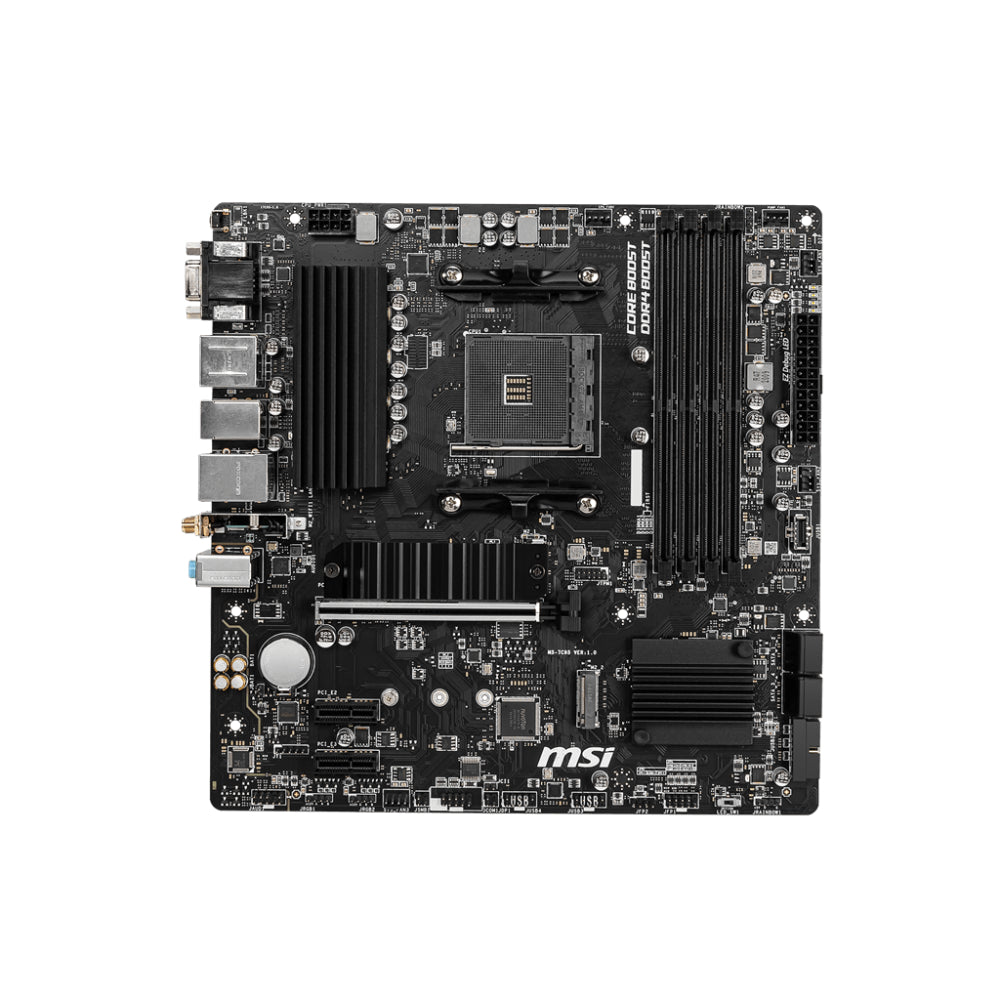

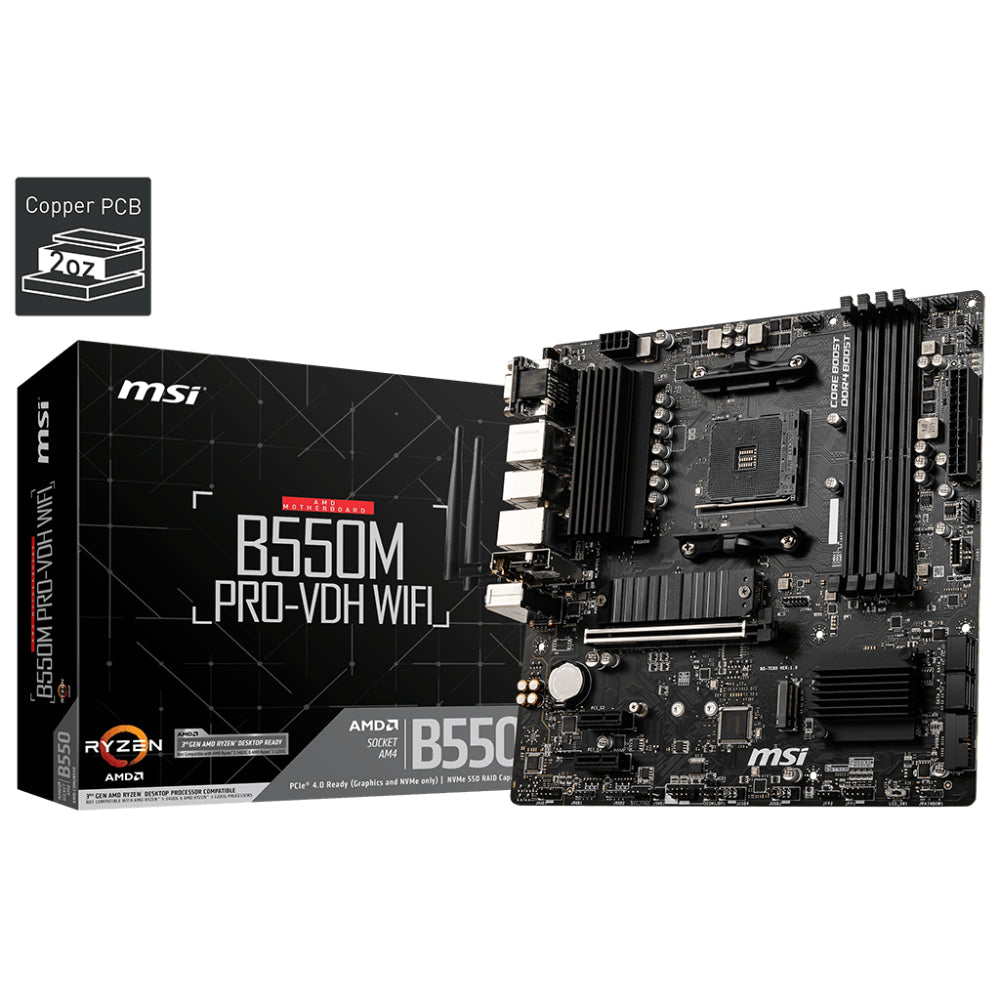

MSI B550M PRO-VDH WIFI Motherboard | AM4 Powerhouse with PCIe 4.0 and Wireless Connectivity
MSI B550M PRO-VDH WIFI Motherboard | AM4 Powerhouse with PCIe 4.0 and Wireless Connectivity
Couldn't load pickup availability
The MSI B550M PRO-VDH WIFI motherboard is built to empower AMD Ryzen desktop processors with advanced features, fast connectivity, and efficient power delivery. Featuring PCIe 4.0 support, dual M.2 slots, and built-in Wi-Fi AC with Bluetooth, it’s an ideal solution for performance-focused mainstream and professional PC builds using the AM4 platform.
Performance
Powered by the AMD B550 chipset and designed for AMD AM4 socket processors, this motherboard supports Ryzen 5000, 4000G, and 3000 series CPUs. With four DDR4 DIMM slots, it supports up to 128GB of dual-channel memory with speeds suitable for both productivity and gaming. PCIe Gen4 and Gen3 slots enable faster graphics and storage capabilities, while RAID support ensures data redundancy and speed for SATA drives.
Connectivity
The B550M PRO-VDH WIFI is loaded with connectivity options. It features one PCIe x16 slot (Gen4/Gen3) for GPUs and two PCIe x1 slots for additional expansion. There are two M.2 slots, including support for NVMe SSDs, and four SATA 6Gb/s ports. Rear I/O offers four USB 3.2 Gen1 Type-A ports, and the front panel includes a USB 3.2 Gen1 Type-C and two Type-A connectors. Wireless connectivity includes Wi-Fi AC and Bluetooth 4.2, offering seamless integration for wireless peripherals and network access.
Visual Output & Audio
Display options include HDMI, VGA, and DisplayPort for compatibility with a wide range of monitors and resolutions. HDMI and DisplayPort support up to 4K resolution, while the VGA port ensures backward compatibility. The onboard Realtek ALC892/ALC897 codec powers a high-quality 7.1-channel HD audio experience through the rear panel audio jacks.
Compatibility & Features
This motherboard includes essential internal headers such as TPM, COM (Serial), fan connectors, and front panel audio. With support for DirectX 12 and Windows 10 64-bit, the B550M PRO-VDH WIFI ensures optimal compatibility for modern gaming and productivity software. Debug LEDs provide easy troubleshooting during the build process.
Full Specifications
| MODEL NAME | B550M PRO-VDH WIFI |
|---|---|
| SOCKET | AMD Socket AM4 |
| CHIPSET | AMD B550 |
| MEMORY CHANNEL | Dual |
| DIMM SLOTS | 4 |
| MAX MEMORY (GB) | 128GB |
| PCI-E x16 | 1 |
| PCI-E GEN | Gen4 / Gen3 |
| PCI-E x1 | 2 |
| SATAIII | 4 |
| M.2 SLOT | 2 |
| RAID | 0/1/10 |
| TPM (HEADER) | Yes |
| WIFI & BLUETOOTH | Wi-Fi AC, Bluetooth 4.2 |
| USB 3.2 (FRONT) | 1x Gen1 Type-C, 2x Gen1 Type-A |
| USB 3.2 (REAR) | 4x Gen1 Type-A |
| USB 2.0 (FRONT) | 4 |
| USB 2.0 (REAR) | 2 |
| SERIAL PORT (FRONT) | 1 |
| AUDIO PORTS (REAR) | Realtek ALC892/ALC897, 7.1-Channel HD |
| DISPLAYPORT | 1 |
| VGA | 1 |
| HDMI | 1 |
| DIRECTX | 12 |
| CPU SUPPORT | AMD Ryzen 5000/4000G/3000 Series |
| FORM FACTOR | mATX |
Applications
Perfect for users building compact productivity workstations, home office PCs, or budget-friendly gaming systems that demand fast performance and modern wireless connectivity.
Why Choose MSI B550M PRO-VDH WIFI?
Offering premium features like PCIe 4.0, dual M.2, Wi-Fi AC, and extensive USB support at an affordable price, this motherboard is ideal for AM4 users seeking performance and connectivity in a space-saving micro-ATX form factor.
Buy Now from Mustafa Computers
Get the MSI B550M PRO-VDH WIFI motherboard now at Mustafa Computers and experience reliable performance and wireless freedom in your next AMD build.
