MSI B840 GAMING PLUS WIFI ATX Motherboard | AMD B840 Chipset, AM5 Socket, DDR5 Support, PCIe 4.0, Wi-Fi 7, and Bluetooth 5.4
MSI B840 GAMING PLUS WIFI ATX Motherboard | AMD B840 Chipset, AM5 Socket, DDR5 Support, PCIe 4.0, Wi-Fi 7, and Bluetooth 5.4
Couldn't load pickup availability

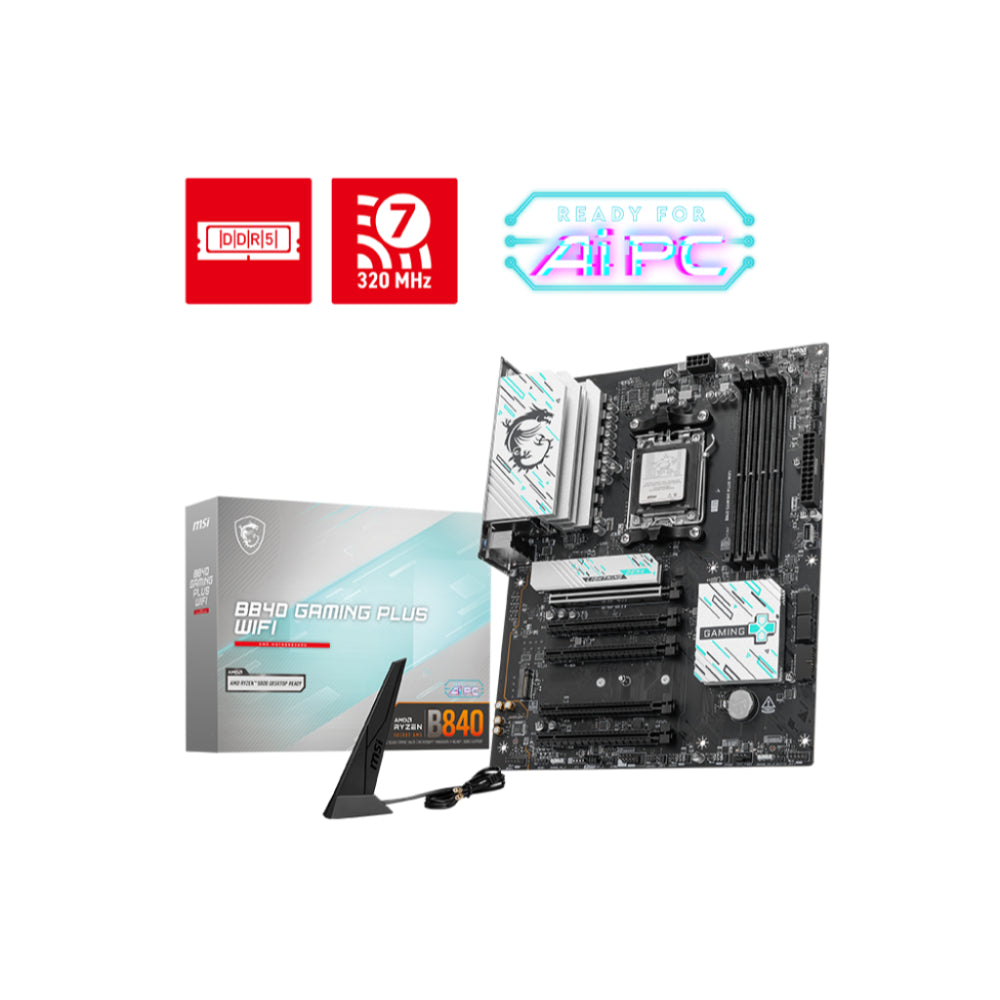

The MSI B840 GAMING PLUS WIFI is a high-performance ATX motherboard built for AMD Ryzen™ 9000, 8000, and 7000 Series desktop processors. Featuring support for ultra-fast DDR5 memory, PCIe 4.0, dual M.2 slots, and next-gen wireless connectivity, it offers a robust platform for gaming, content creation, and productivity.
Overview
Supports AMD Ryzen™ 9000/8000/7000 Series processors (Socket AM5) AMD B840 chipset Supports up to 256GB DDR5 UDIMM memory across 4 DIMM slots DDR5 speeds up to 8000+ MT/s (OC), AMD EXPO™ and Dual-Channel mode supported Integrated HDMI™ 2.1 for 4K 60Hz output (with supported CPUs) Five PCIe x16 slots with flexible bandwidth configurations Dual M.2 slots with PCIe 4.0 x4 support and four SATA 6Gb/s ports Supports RAID 0, 1, and 10 for SATA and RAID 0, 1 for NVMe storage Realtek® ALC897 7.1-channel HD audio Realtek® 8125BG 2.5Gbps LAN Wi-Fi 7 and Bluetooth® 5.4 wireless module pre-installed Multiple USB ports including USB 10Gbps, USB 5Gbps, and USB 2.0 EZ Debug LED indicators for quick diagnostics ATX form factor (243.84mm x 304.8mm)
Specifications
| Category | Details |
|---|---|
| Product Title | MSI B840 GAMING PLUS WIFI ATX Motherboard |
| CPU Support | AMD Ryzen™ 9000/8000/7000 Series (Socket AM5) |
| Chipset | AMD B840 |
| Memory | 4× DDR5 UDIMM, up to 256GB, speeds up to 8000+ MT/s (OC) |
| Graphics Output | HDMI™ 2.1 |
| Expansion Slots | 5× PCIe x16 (PCIe 4.0/3.0 from CPU and chipset) |
| Storage | 2× M.2 (PCIe 4.0 x4), 4× SATA 6Gb/s |
| RAID Support | RAID 0, 1, 10 for SATA; RAID 0, 1 for NVMe |
| Audio | Realtek® ALC897, 7.1 HD Audio |
| LAN | Realtek® 8125BG 2.5Gbps LAN |
| Wireless | Wi-Fi 7, Bluetooth® 5.4 |
| USB Ports | USB 2.0, USB 5Gbps, USB 10Gbps (Type-A and Type-C) |
| Internal Headers | ATX_PWR, CPU_PWR, Fan headers, RGB, TPM, USB, Audio, etc. |
| Form Factor | ATX (243.84mm x 304.8mm) |
| OS Support | Windows® 11 64-bit |
Applications
Ideal for high-performance gaming builds and professional desktops Perfect for users seeking ultra-fast DDR5 memory, advanced storage, and next-gen wireless connectivity Suitable for mid-range and high-end PC setups with modern AMD processors
Why Choose MSI B840 GAMING PLUS WIFI
With support for the latest AMD CPUs, blazing-fast DDR5 memory, PCIe 4.0, and Wi-Fi 7, the B840 GAMING PLUS WIFI offers a powerful and future-ready platform for demanding users.
Buy Now from Mustafa Computers
Get the MSI B840 GAMING PLUS WIFI ATX Motherboard today at Mustafa Computers—an authorized MSI retailer in Pakistan. Enjoy genuine MSI products, official warranty, competitive pricing, and nationwide delivery across Lahore, Karachi, Islamabad, and beyond.
