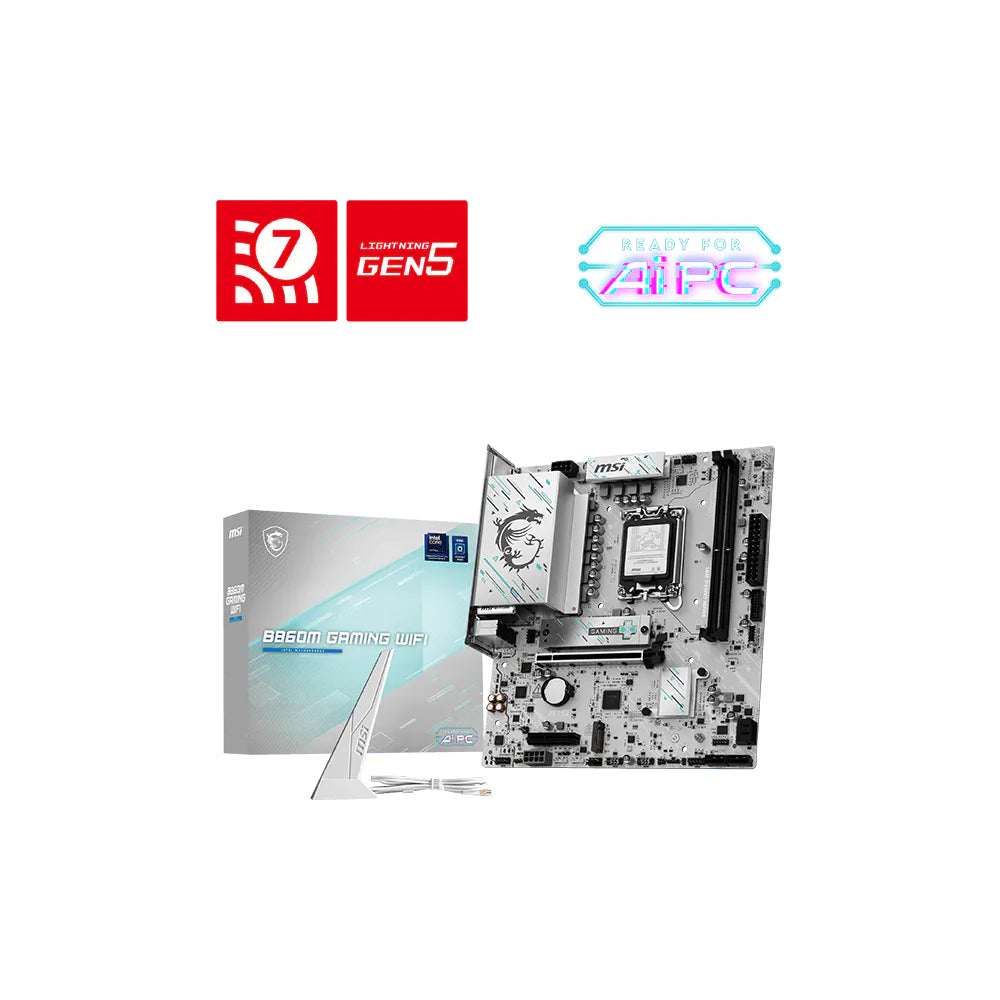

MSI B860M Gaming WiFi | Intel B860 Chipset Motherboard (DDR5, Micro‑ATX, Wi‑Fi 7)

MSI B860M Gaming WiFi | Intel B860 Chipset Motherboard (DDR5, Micro‑ATX, Wi‑Fi 7)

Rs.49,000.00
Rs.49,000.00
Sale Sold out
Shipping calculated at checkout.
WARRANTY

The MSI B860M Gaming WiFi is a micro‑ATX motherboard built on the latest Intel B860 chipset, supporting Intel Core Ultra (Series 2) processors with the new LGA1851 socket. It combines DDR5 memory support, PCIe 5.0 GPU slot, M.2 Gen5 storage, and Wi‑Fi 7 connectivity, making it a future‑proof choice for gaming and productivity builds.


Key Features

  • Intel B860 Chipset – Optimized for Intel Core Ultra (Series 2) CPUs

  • DDR5 Memory Support – Up to 128GB, dual channel, 9066+ MHz (OC)

  • PCIe 5.0 x16 Slot – Full GPU support for next‑gen graphics cards

  • M.2 Gen5 Storage – Ultra‑fast NVMe SSD compatibility

  • Additional Storage – 1× M.2 Gen4 + 4× SATA 6Gb/s with RAID 0/1/5/10

  • Networking – Realtek 8126 5Gb LAN + Wi‑Fi 7 module (2.9Gbps, MU‑MIMO, 2.4/5/6GHz)

  • Audio – Realtek ALC897, 7.1‑channel HD sound

  • USB Connectivity – USB 20Gbps Type‑C, USB 10Gbps Type‑A, USB 5Gbps Type‑A, USB 2.0

  • Cooling – Extended heatsinks, M.2 Shield Frozr, heavy plated VRM heatsink, 7W/mK thermal pads

  • EZ DIY Features – Pre‑installed I/O shield, EZ PCIe Clip II, EZ M.2 Clip II, Debug LEDs


Specifications

  • Model: MSI B860M Gaming WiFi

  • Socket: LGA1851

  • Chipset: Intel B860

  • Memory: DDR5, up to 128GB, dual channel, 9066+ MHz OC

  • Expansion: 1× PCIe 5.0 x16, 1× PCIe 4.0 x4

  • Storage: 2× M.2 (Gen5 + Gen4), 4× SATA 6Gb/s

  • Audio: Realtek ALC897, 7.1 HD

  • Networking: 5G LAN + Wi‑Fi 7

  • USB Ports: USB 20Gbps Type‑C, USB 10Gbps Type‑A, USB 5Gbps Type‑A, USB 2.0

  • Video Outputs: HDMI 2.1, DisplayPort 1.4

  • Form Factor: Micro‑ATX


Recommended Use Cases

  • High‑End Gaming Builds – PCIe 5.0 GPU slot and DDR5 memory for maximum performance

  • AI & Productivity PCs – Optimized for Intel Core Ultra processors with advanced bandwidth

  • Future‑Proof Workstations – Wi‑Fi 7 + 5G LAN ensures ultra‑fast connectivity

  • Clean DIY Builds – EZ installation features simplify assembly
