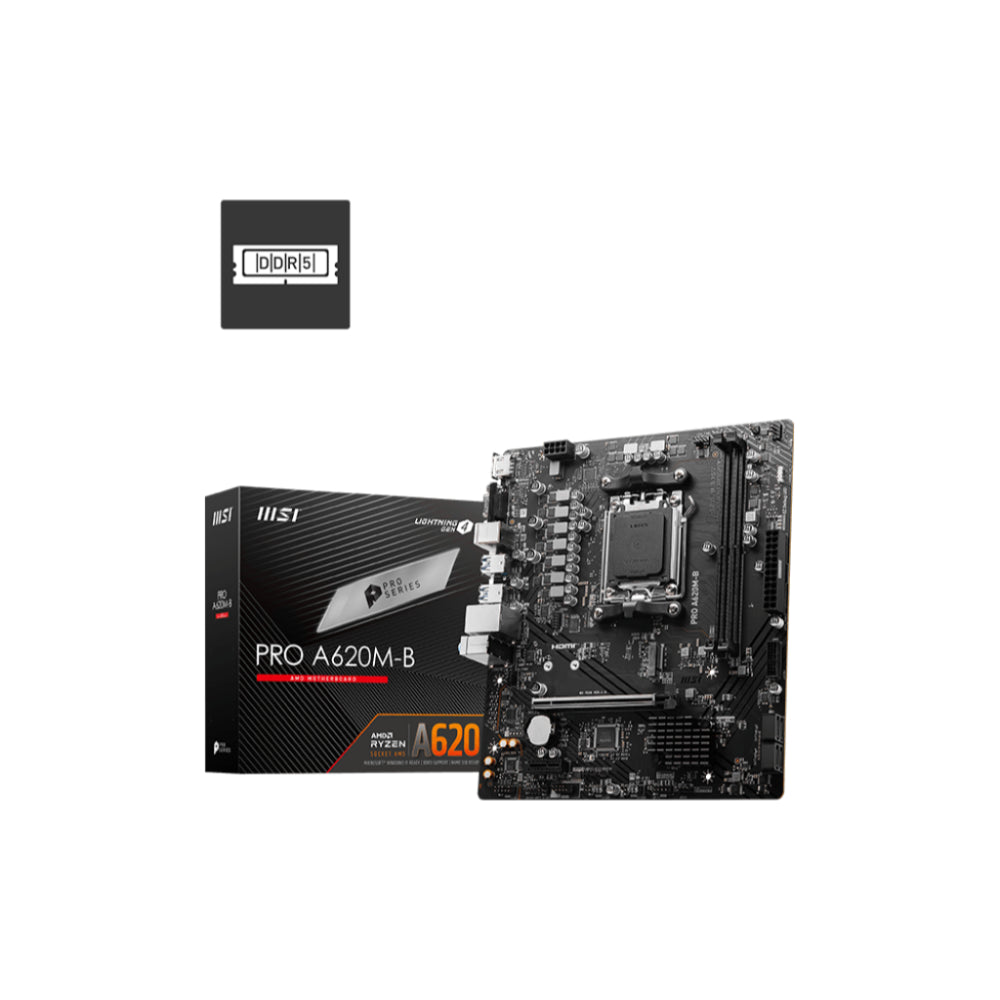

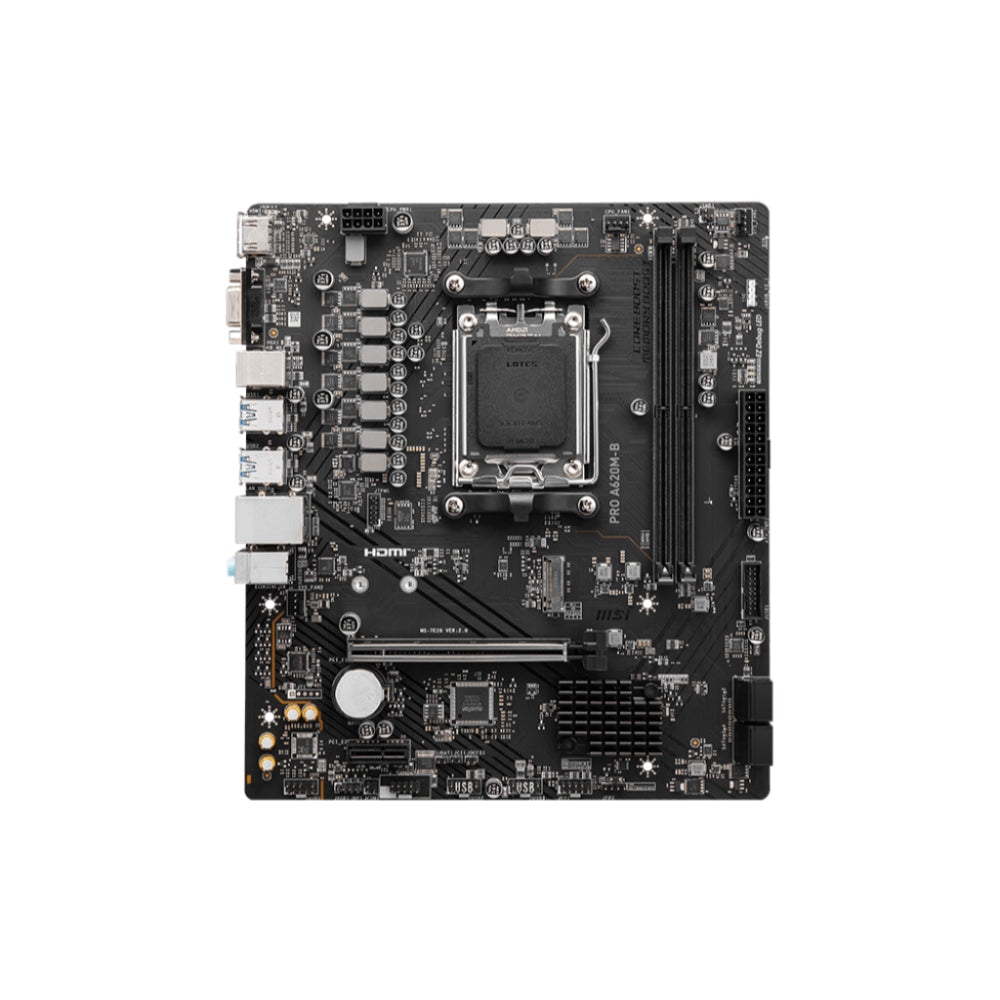

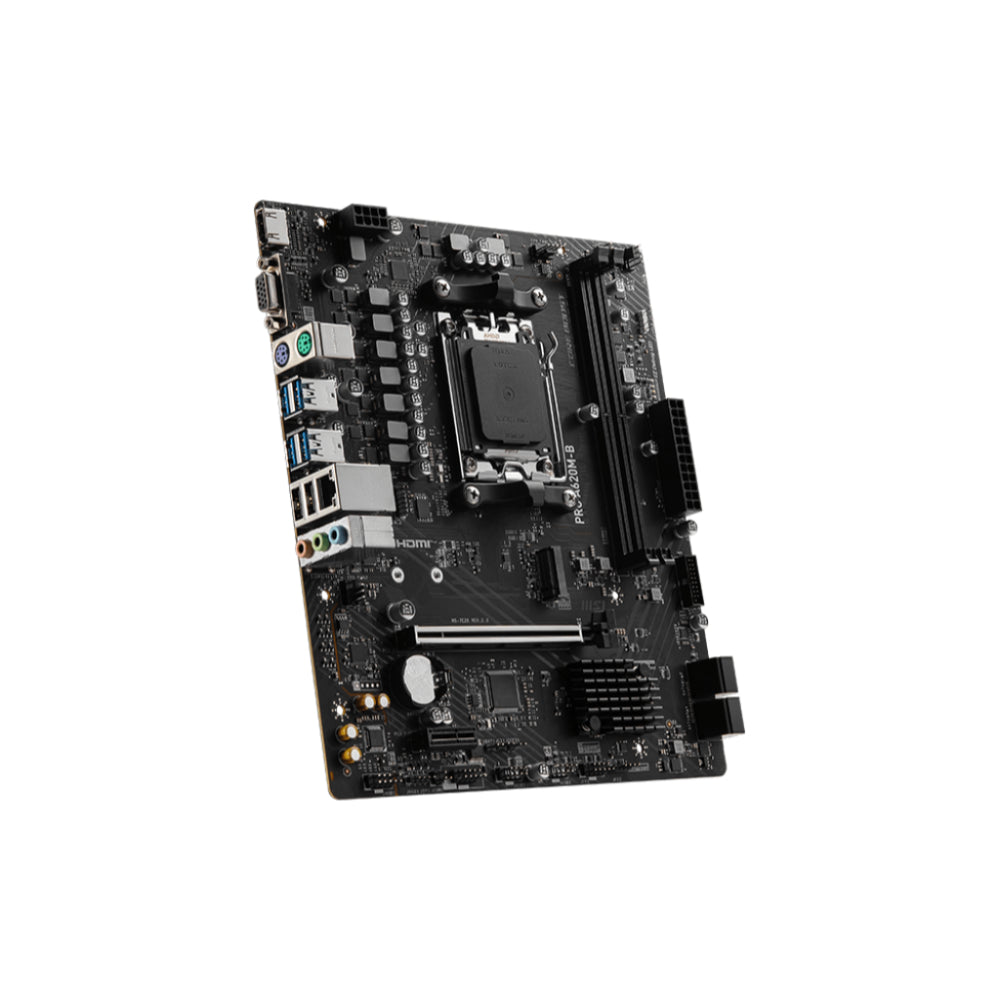

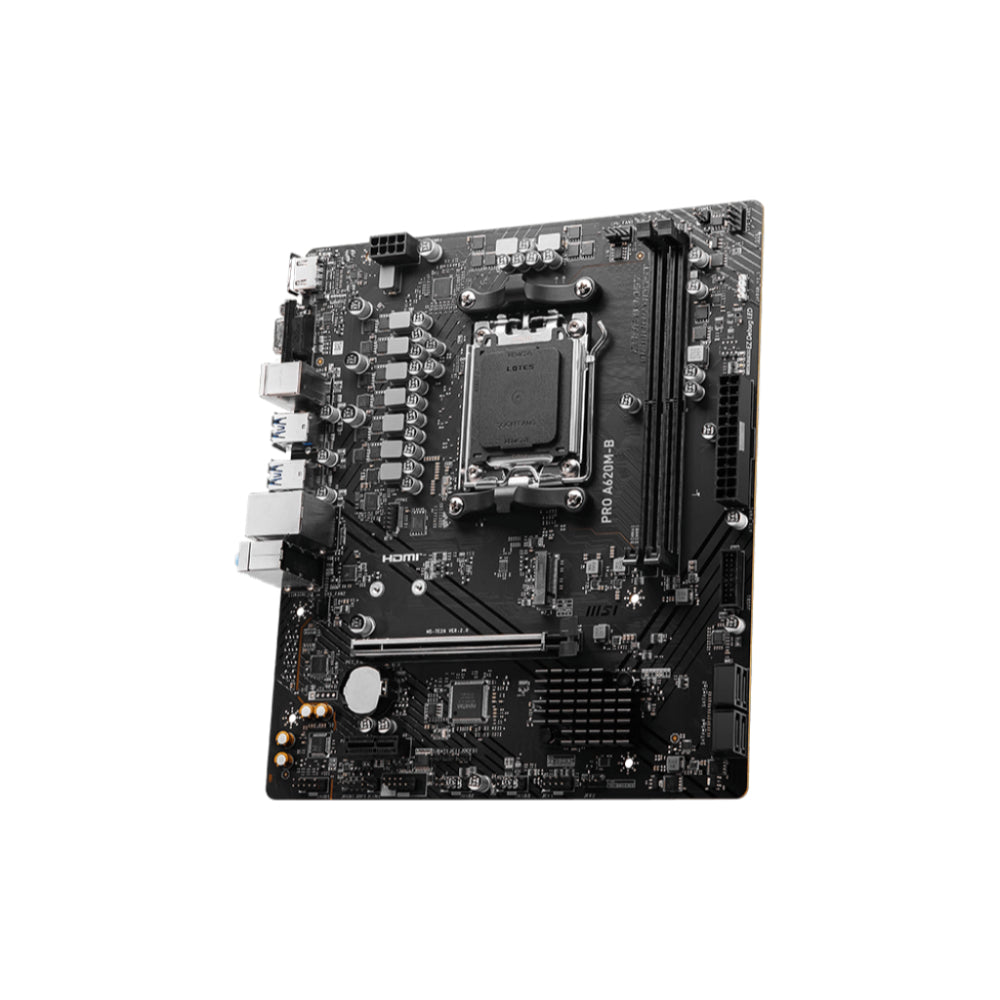

MSI PRO A620M-B Motherboard | AM5 Platform with DDR5 & PCIe 4.0 for Future-Ready Performance
MSI PRO A620M-B Motherboard | AM5 Platform with DDR5 & PCIe 4.0 for Future-Ready Performance
Couldn't load pickup availability
The MSI PRO A620M-B is a reliable and cost-effective AM5 motherboard designed to support the latest AMD Ryzen 9000, 8000, and 7000 series desktop processors. Built on the AMD A620 chipset, it delivers robust performance, DDR5 memory compatibility, high-speed PCIe 4.0 support, and essential connectivity options, making it a dependable choice for business and home PC builds alike.
Performance
The PRO A620M-B supports AMD Ryzen processors on the AM5 socket and leverages the AMD A620 chipset for seamless compatibility and reliable processing power. It accommodates up to 128GB of DDR5 memory across two slots, supporting frequencies up to 6800+ MHz (OC). Dual-channel support, AMD EXPO compatibility, and non-ECC un-buffered memory ensure top-tier performance for modern applications and multitasking workloads.
Connectivity
Equipped with a PCIe 4.0 x16 slot directly from the CPU and a PCIe 3.0 x1 slot from the chipset, the board provides ample expansion possibilities for GPUs and other devices. Storage connectivity includes one PCIe 4.0 x4 M.2 slot and four SATA 6Gb/s ports, with RAID 0, 1, and 10 support for SATA devices. For networking, it integrates a high-speed Realtek 2.5G LAN controller ensuring reliable and fast data transfers.
Visual Output & Audio
Onboard display outputs include HDMI 2.1 and VGA, offering broad compatibility with a wide range of monitors. The HDMI port supports up to 4K resolution at 60Hz, while VGA supports up to 2048x1536. Realtek ALC897 codec powers the 7.1-channel HD audio for immersive sound clarity across multimedia, gaming, or productivity.
Compatibility & Features
The PRO A620M-B includes 4x EZ Debug LEDs for troubleshooting and a rich set of internal headers including CPU/System fan, front audio, addressable RGB (JARGB_V2), standard RGB (JRGB), TPM 2.0, and COM port. USB options are plentiful, with a total of ten USB ports: six USB 2.0 and four USB 3.2 Gen 1 Type-A ports. The motherboard comes in a compact mATX form factor, fitting easily in most standard cases.
Full Specifications
| MODEL NAME | PRO A620M-B |
|---|---|
| SOCKET | AMD AM5 |
| CHIPSET | AMD A620 |
| CPU SUPPORT | Ryzen™ 9000 / 8000 / 7000 Series |
| MEMORY SUPPORT | DDR5 6800+ (OC), Dual-Channel, 2 DIMMs |
| MAX MEMORY (GB) | 128GB |
| PCI-E x16 | 1 (Gen4 from CPU) |
| PCI-E x1 | 1 (Gen3 from Chipset) |
| M.2 SLOT | 1x PCIe 4.0 x4 (CPU) |
| SATAIII | 4 |
| RAID SUPPORT | RAID 0, 1, 10 |
| TPM (Header) | Yes (Supports TPM 2.0) |
| USB 3.2 (Front) | 2x Gen1 Type-A |
| USB 3.2 (Rear) | 4x Gen1 Type-A |
| USB 2.0 (Front) | 4 |
| USB 2.0 (Rear) | 2 |
| LAN | Realtek RTL8125BG 2.5G LAN |
| AUDIO | Realtek ALC897, 7.1-Channel HD |
| HDMI | 1 (HDMI 2.1, 4K 60Hz) |
| VGA | 1 |
| DEBUG LED | 4x EZ Debug LED |
| FORM FACTOR | mATX (215 x 243.84 mm) |
| OPERATING SYSTEM | Windows® 11/10 64-bit |
Applications
Ideal for budget-friendly AM5 desktop builds, general productivity systems, entry-level gaming rigs, and multimedia setups that require modern performance without the premium price tag.
Why Choose MSI PRO A620M-B?
With support for the latest Ryzen CPUs, DDR5 memory, PCIe 4.0, and fast 2.5G LAN, the MSI PRO A620M-B provides future-ready capabilities in a compact mATX design. Whether you're building a new system or upgrading from AM4, it offers stability, essential features, and quality at a great value.
Buy Now from Mustafa Computers
Build your next AMD PC with the MSI PRO A620M-B motherboard – available now at Mustafa Computers with trusted delivery across Pakistan.
