MSI PRO B650M-P | DDR5 Micro-ATX Motherboard for AMD AM5 Platform
MSI PRO B650M-P | DDR5 Micro-ATX Motherboard for AMD AM5 Platform
Couldn't load pickup availability

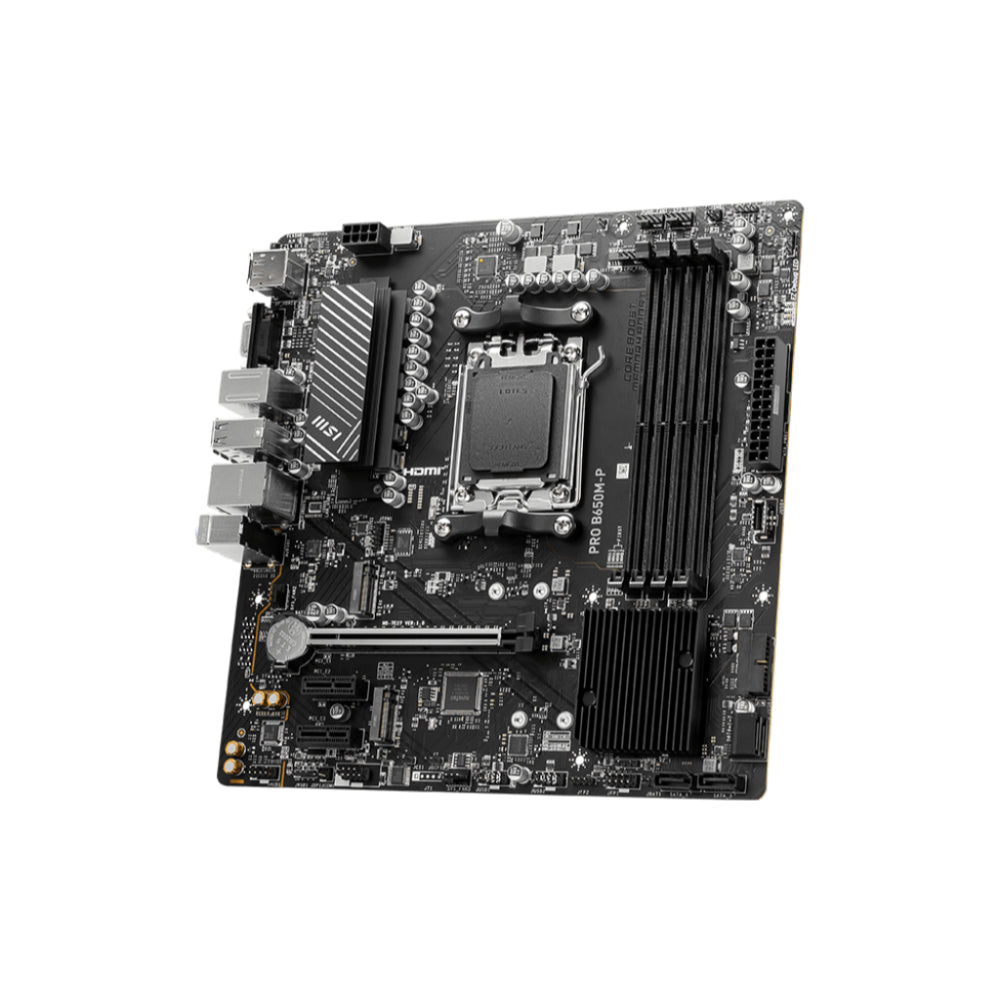

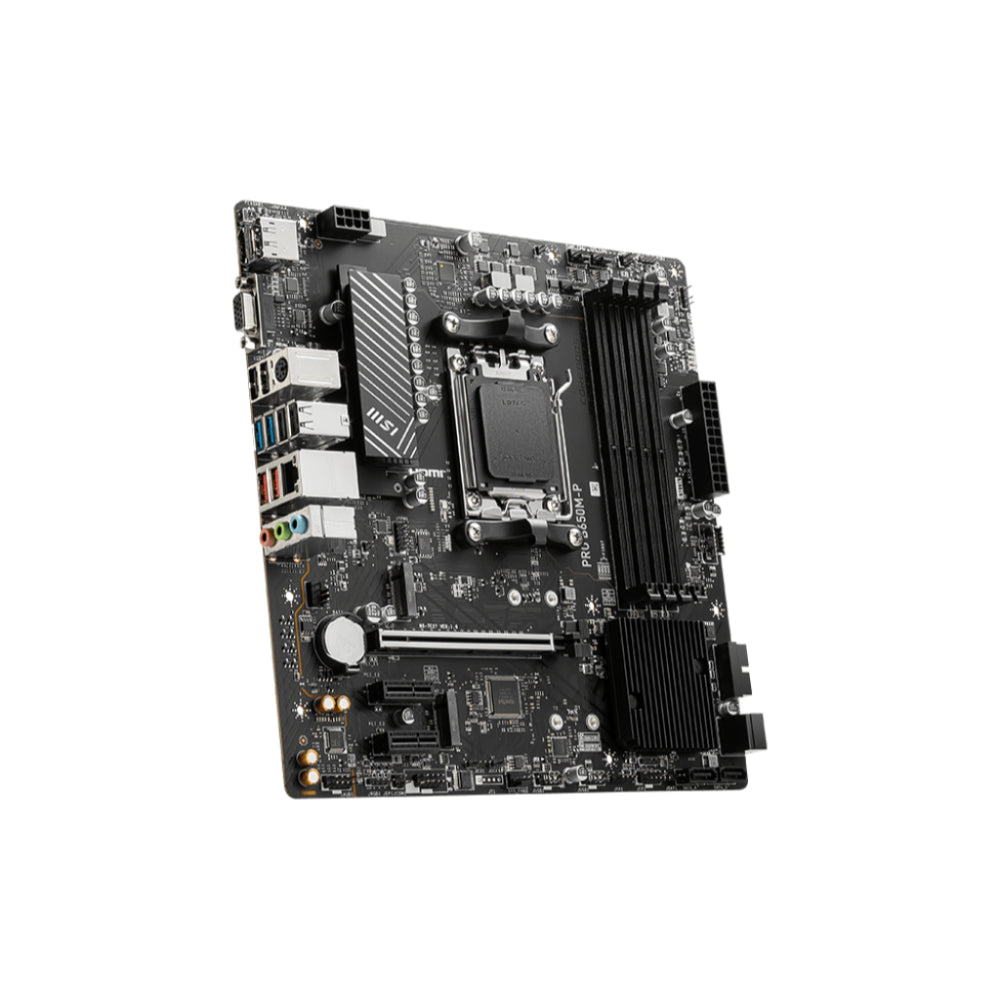

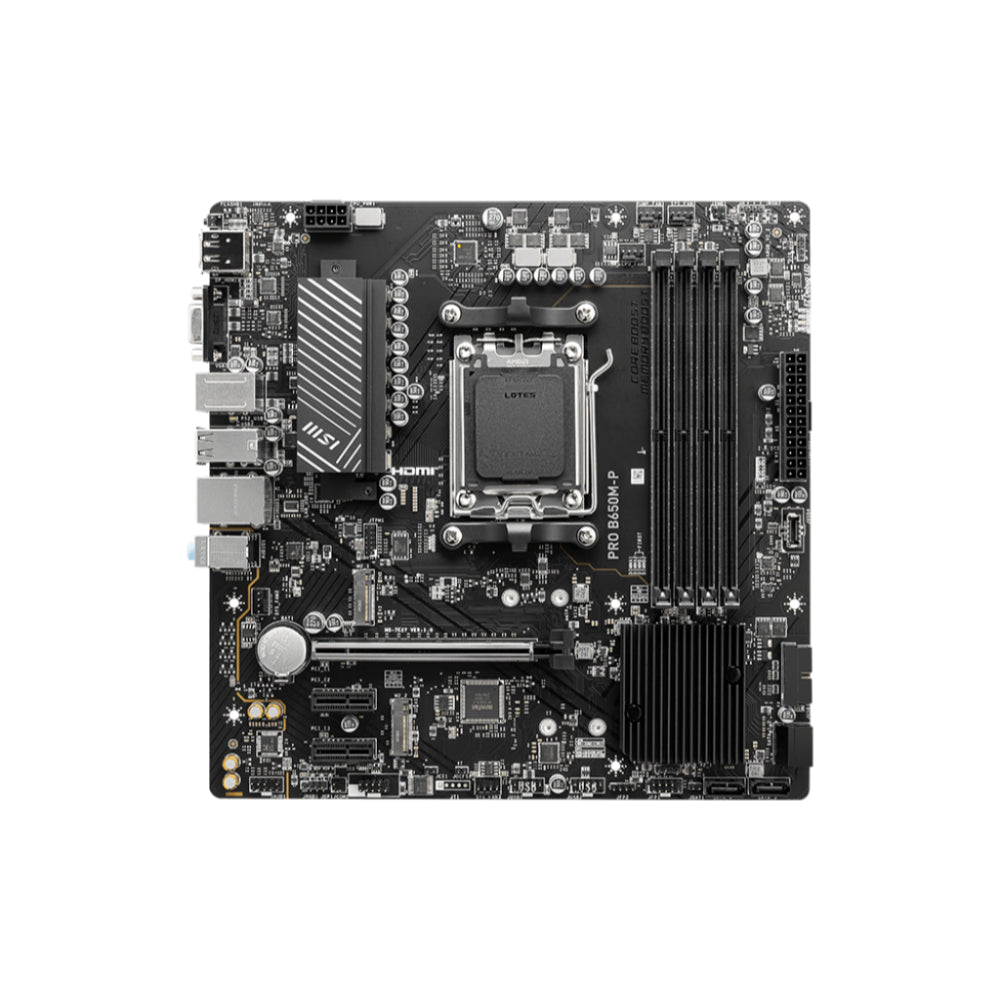

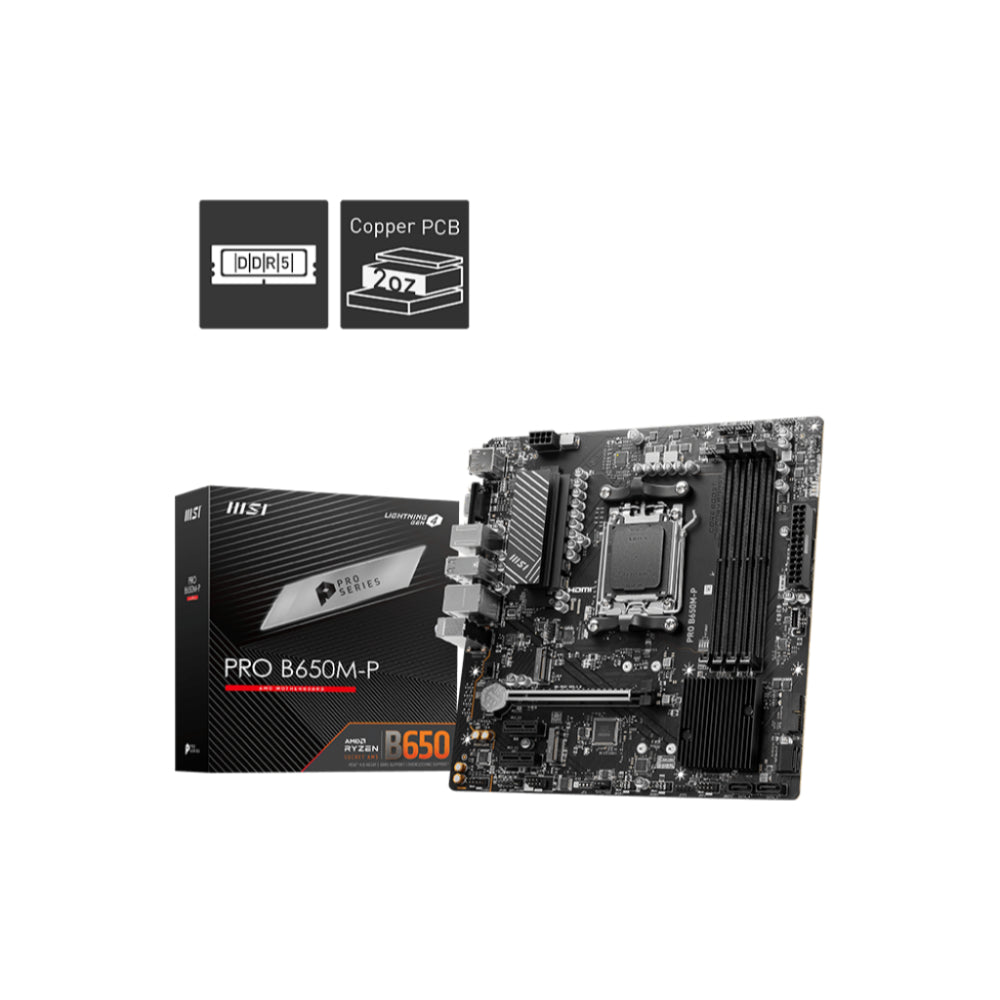

The MSI PRO B650M-P is a high-performance Micro-ATX motherboard built for AMD Ryzen™ 9000, 8000, and 7000 series processors. Featuring the advanced AMD B650 chipset and DDR5 support up to 256GB, this board delivers cutting-edge speed, stability, and expandability for modern desktop builds.
Performance
Powered by the AMD B650 chipset with AM5 socket support, the PRO B650M-P supports blazing-fast DDR5 memory up to 7200+ MHz (OC) and offers advanced overclocking capabilities with AMD EXPO profiles. Its PCIe 4.0 x16 slot ensures top-tier GPU performance, while dual M.2 PCIe 4.0 slots enable lightning-fast storage solutions. Dual-channel memory architecture enhances data throughput for demanding applications.
Connectivity
Equipped with Realtek® 8125BG 2.5G LAN, this board ensures ultra-fast wired networking for gaming and productivity. It offers extensive USB connectivity, including USB 3.2 Gen 2 10Gbps, USB 3.2 Gen 1 5Gbps, and multiple USB 2.0 ports for peripherals. Support for both front and rear high-speed USB ports allows convenient access for devices.
Visual Output & Audio
The PRO B650M-P supports HDMI™ 2.1, DisplayPort 1.4, and VGA outputs (available with CPUs featuring integrated graphics), delivering resolutions up to 4K@60Hz. Integrated Realtek® ALC897 7.1-channel high-definition audio provides crystal-clear sound for gaming, streaming, and professional use.
Compatibility & Features
This Micro-ATX board supports RAID configurations for both SATA and M.2 NVMe devices, offering flexible storage redundancy and speed options. Onboard EZ Debug LEDs simplify troubleshooting, while TPM 2.0 support ensures secure computing. Designed for stability and reliability, it’s compatible with Windows® 11 and Windows® 10 64-bit systems.
Full Specifications
| Specification | Details |
|---|---|
| Chipset | AMD B650 |
| CPU Support | AMD Ryzen™ 9000 / 8000 / 7000 Series |
| Socket | AM5 |
| Memory Slots | 4x DDR5 |
| Max Memory | 256GB |
| Memory Support | DDR5 7200+(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800(JEDEC) MHz |
| Dual-Channel Support | Yes |
| PCI-E x16 | 1 (Gen4) |
| PCI-E x1 | 2 (Gen3) |
| SATA III | 4 |
| M.2 Slots | 2x PCIe 4.0 x4 |
| RAID Support | SATA: 0/1/10, M.2 NVMe: 0/1 |
| LAN | Realtek® 8125BG 2.5G LAN |
| USB Ports (Rear) | 4x USB 2.0, 2x USB 5Gbps Type-A, 2x USB 10Gbps Type-A |
| USB Ports (Front) | 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C |
| Display Outputs | 1x HDMI™ 2.1, 1x DisplayPort 1.4, 1x VGA |
| Audio | Realtek® ALC897 Codec, 7.1-Channel HD |
| Internal IO | CPU Fan, Pump Fan, 3x System Fan, Front Audio, COM Port, RGB headers, TPM Header |
| LED Feature | 4x EZ Debug LED |
| Form Factor | mATX (243.84mm x 243.84mm) |
| OS Support | Windows® 11 64-bit, Windows® 10 64-bit |
Applications
The MSI PRO B650M-P is perfect for gamers, content creators, and professionals who need the latest DDR5 performance, PCIe 4.0 bandwidth, and reliable networking in a compact Micro-ATX form factor.
Why Choose the MSI PRO B650M-P?
This motherboard offers a perfect balance of next-gen performance and practical features, making it an excellent choice for AM5 builds that demand both speed and stability.
Available Now at Mustafa Computers
Build your next-gen AMD system with the MSI PRO B650M-P — now available at Mustafa Computers, your trusted source for original PC hardware in Pakistan.
