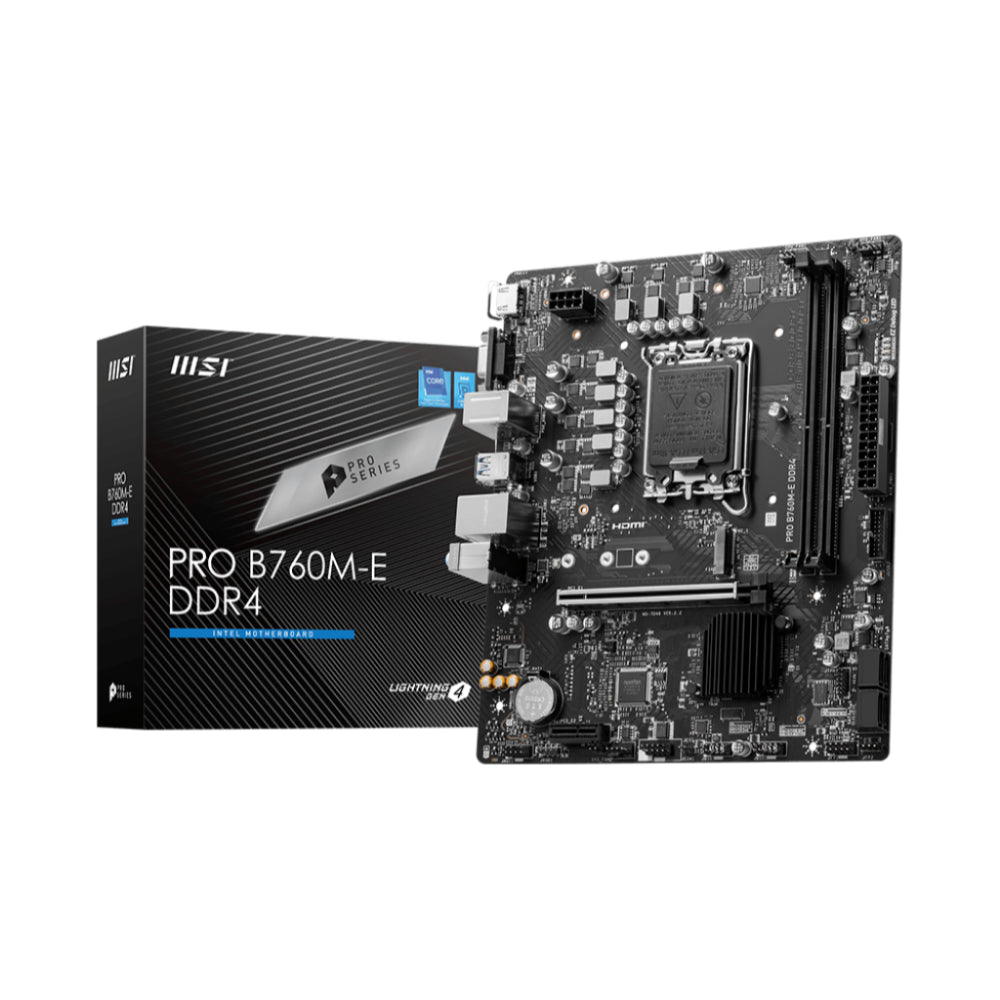

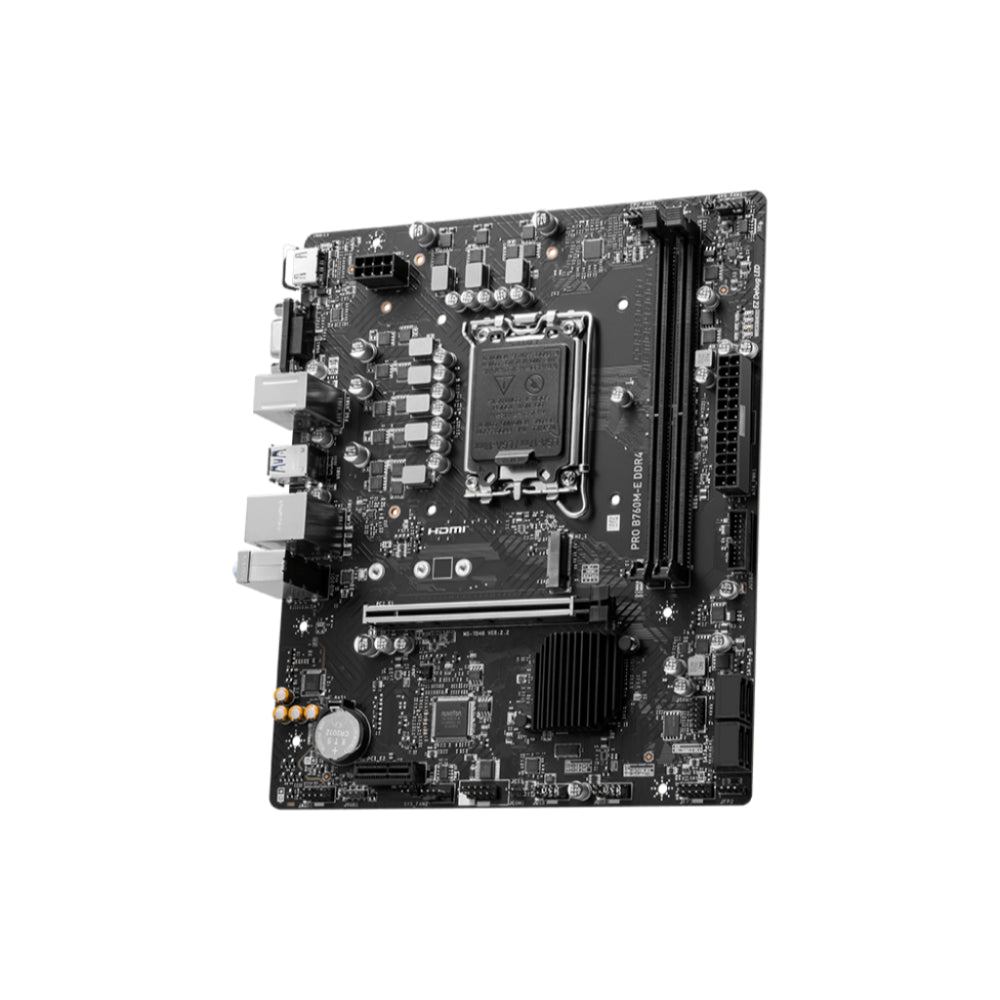

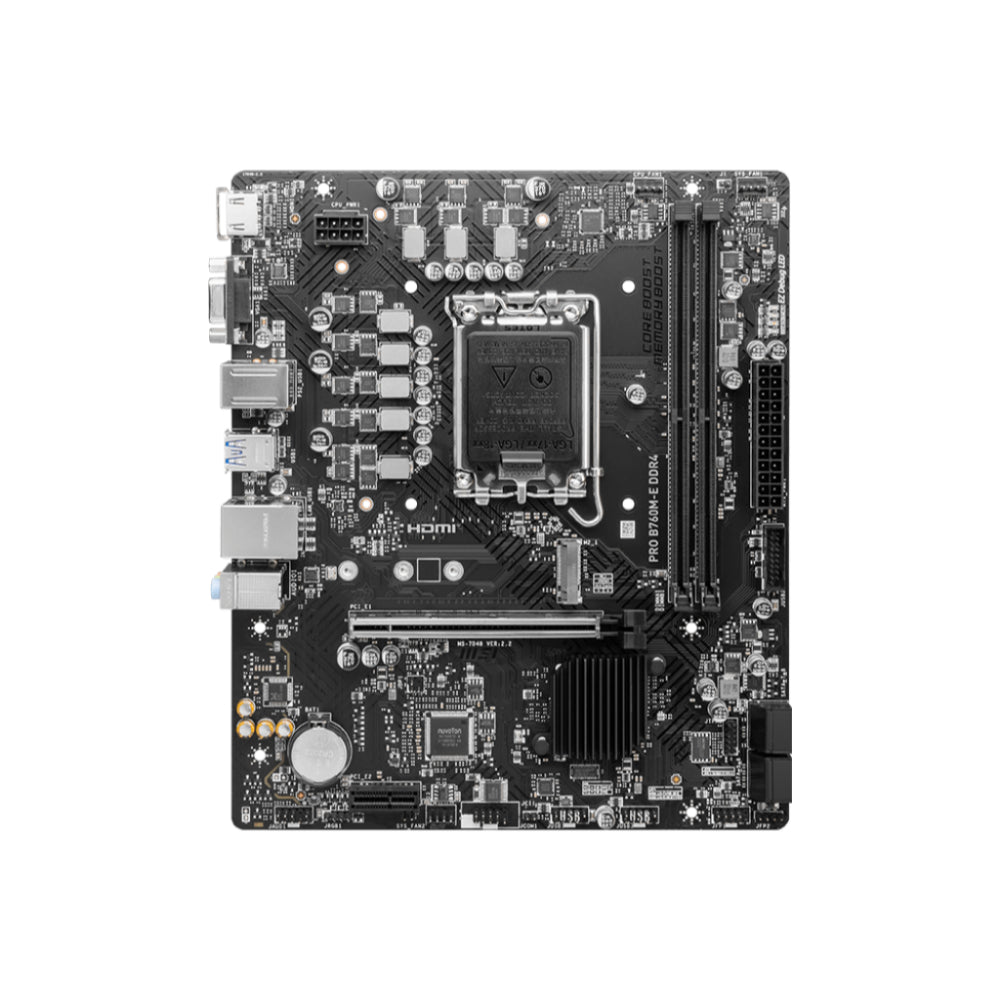

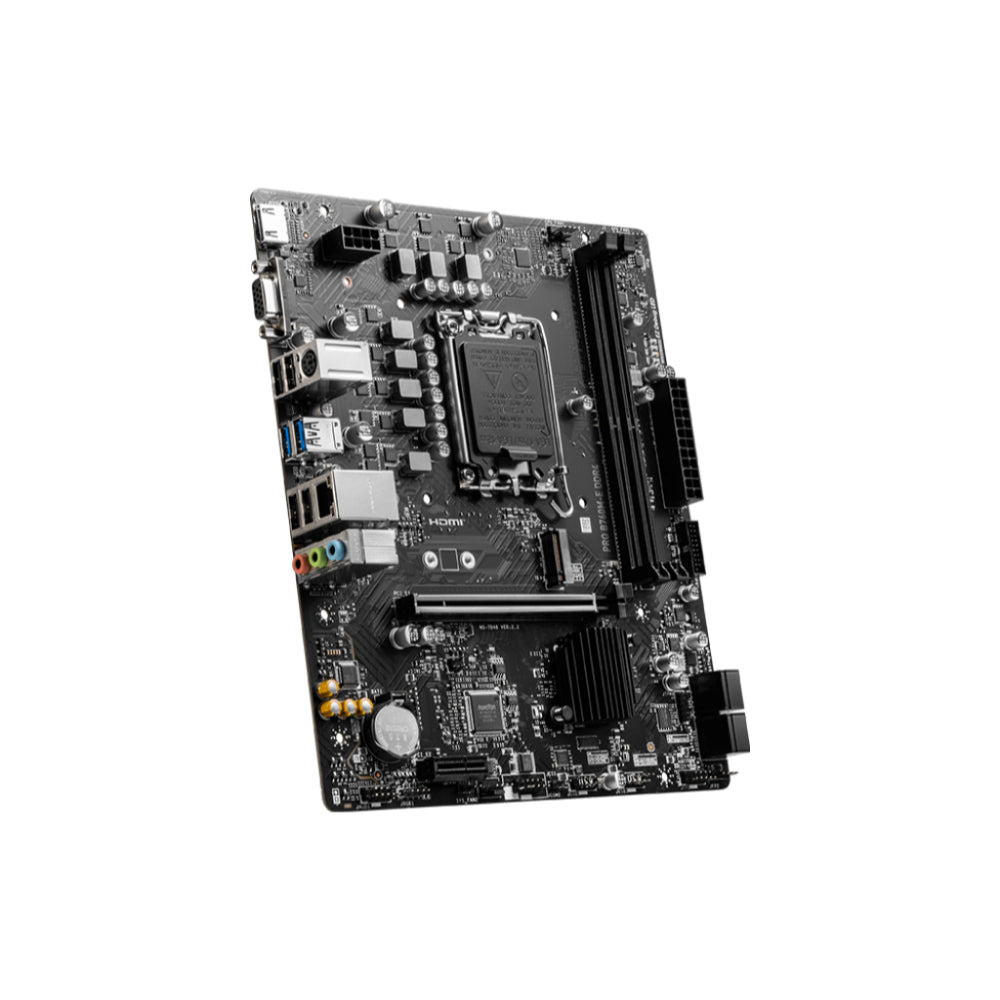

MSI PRO B760M-E DDR4 Motherboard | Reliable Performance for Business & Everyday Computing
MSI PRO B760M-E DDR4 Motherboard | Reliable Performance for Business & Everyday Computing
Couldn't load pickup availability
Step into the world of stability and efficiency with the MSI PRO B760M-E DDR4, a micro-ATX motherboard designed for professionals, builders, and everyday users who value reliability and solid performance. Built on the Intel® B760 chipset, this board supports the latest Intel® Core™ 14th, 13th, and 12th Gen processors and delivers essential connectivity and expansion features to power a wide range of computing needs.
Performance and Compatibility
The PRO B760M-E DDR4 is engineered to handle modern workloads with support for Intel® Core™, Pentium® Gold, and Celeron® processors on the LGA 1700 socket. It offers dual DDR4 DIMM slots with support for overclocking up to 4800+ MHz, delivering responsive multitasking and smooth application performance. The board also supports Intel® Extreme Memory Profile (XMP) for easy memory tuning.
Storage and Expansion
With one PCIe 4.0 x16 slot and one PCIe 3.0 x1 slot, the board supports high-speed GPUs and expansion cards. For storage, it features one PCIe 4.0 x4/SATA M.2 slot and four SATA 6Gbps ports, along with RAID 0, 1, 5, and 10 support for data redundancy and performance optimization. This configuration ensures fast boot times and quick file transfers.
Display and Connectivity

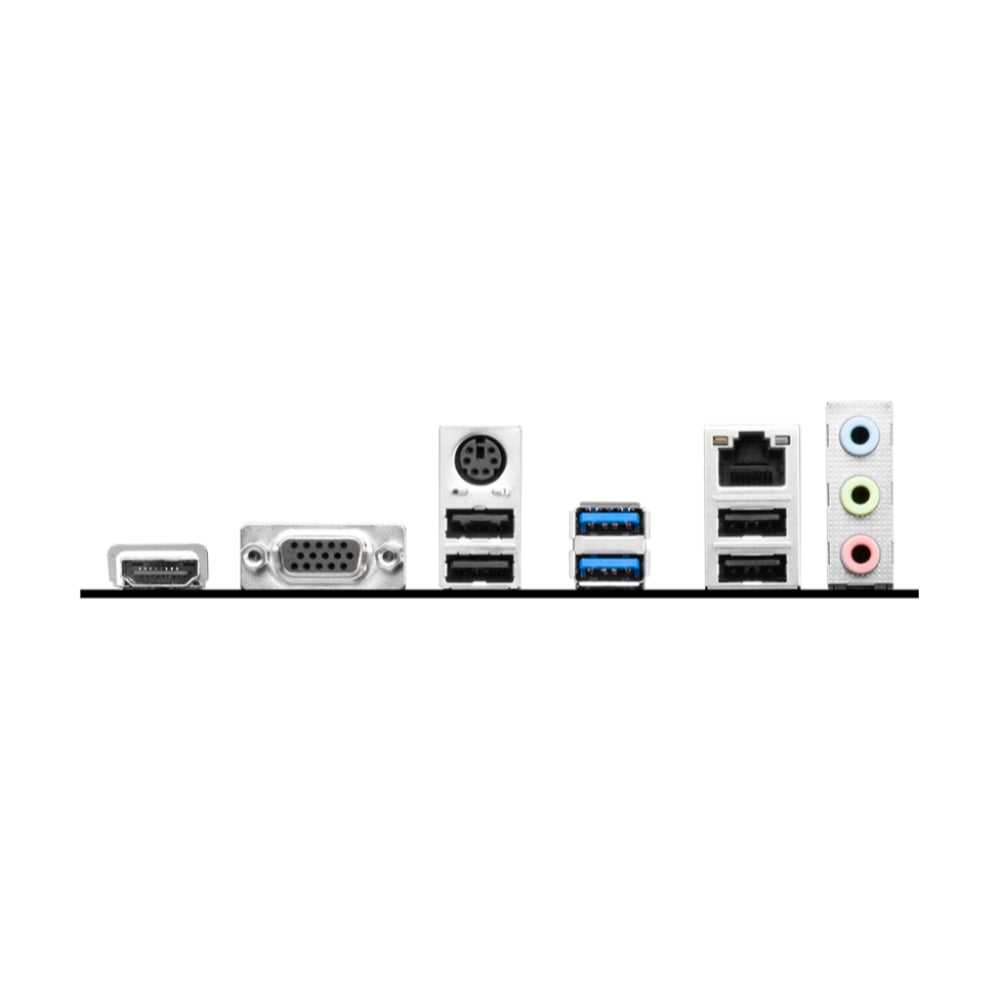

The onboard HDMI and VGA outputs provide flexible display options, supporting resolutions up to 4K at 30Hz via HDMI. Networking is handled by Realtek® RTL8111H Gigabit LAN, ensuring stable and fast internet connectivity. For USB connectivity, the board offers a total of eight USB 2.0 ports and four USB 5Gbps Type-A ports across the front and rear I/O.
Audio and Internal Features
Audio is powered by the Realtek® ALC897 codec with support for 7.1-channel HD audio, making it suitable for basic multimedia needs. Additional internal headers include CPU and system fan connectors, RGB LED connector, TPM header, and COM port, giving system integrators more control over system functionality and security.
Full Specifications
| Specification | Details |
|---|---|
| Chipset | Intel® B760 |
| CPU Support | Intel® Core™ 14th/13th/12th Gen, Pentium® Gold, Celeron® |
| Socket | LGA 1700 |
| Memory Support | 2x DDR4 DIMM, up to 64GB |
| Memory Speed (OC) | Up to 4800+ MHz |
| Dual-Channel Support | Yes |
| XMP Support | Yes |
| Display Outputs | 1x HDMI 1.4, 1x VGA |
| Expansion Slots | 1x PCIe 4.0 x16, 1x PCIe 3.0 x1 |
| Storage | 1x M.2 (PCIe 4.0 x4/SATA), 4x SATA 6Gbps |
| RAID Support | RAID 0, 1, 5, 10 |
| USB Ports (Rear) | 4x USB 2.0, 2x USB 5Gbps Type-A |
| USB Ports (Front) | 4x USB 2.0, 2x USB 5Gbps Type-A |
| LAN | Realtek® RTL8111H Gigabit LAN |
| Audio | Realtek® ALC897 Codec, 7.1-Channel HD Audio |
| Internal Connectors | ATX_PWR, CPU_PWR, CPU Fan, 2x System Fan, JAUD, JFP, JCOM, JRGB, TPM header |
| Debug Features | 4x EZ Debug LED |
| Operating System Support | Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor | mATX (200mm x 236.16mm) |
Ideal Applications
This motherboard is ideal for general-purpose desktop builds, small business workstations, office setups, and home PCs that require dependable performance with current-generation Intel CPUs. It is also well-suited for budget gaming systems and multimedia setups with modest GPU and storage needs.
Why Choose the MSI PRO B760M-E DDR4
The PRO B760M-E DDR4 offers exceptional value for users looking to build stable, modern systems without unnecessary extras. With support for high-speed DDR4 memory, 12th to 14th Gen Intel CPUs, PCIe 4.0, and M.2 storage, it provides all the core features you need for a reliable PC. MSI’s EZ Debug LED and durable build quality further ensure a smooth setup and long-lasting usage.
Build With Confidence – Buy Now from Mustafa Computers
Upgrade your system with the MSI PRO B760M-E DDR4 motherboard and experience a solid foundation for your next desktop build. Shop now at Mustafa Computers and enjoy genuine products with local warranty and expert support across Pakistan.
