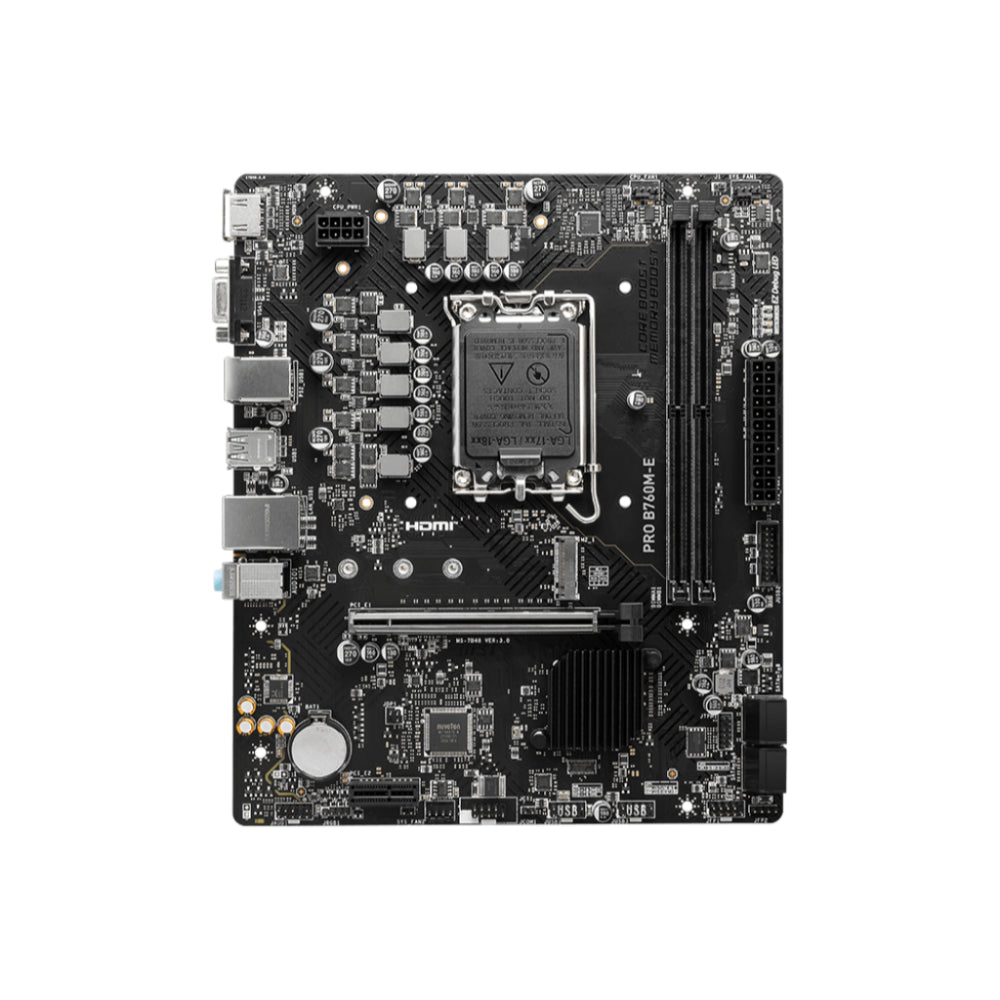

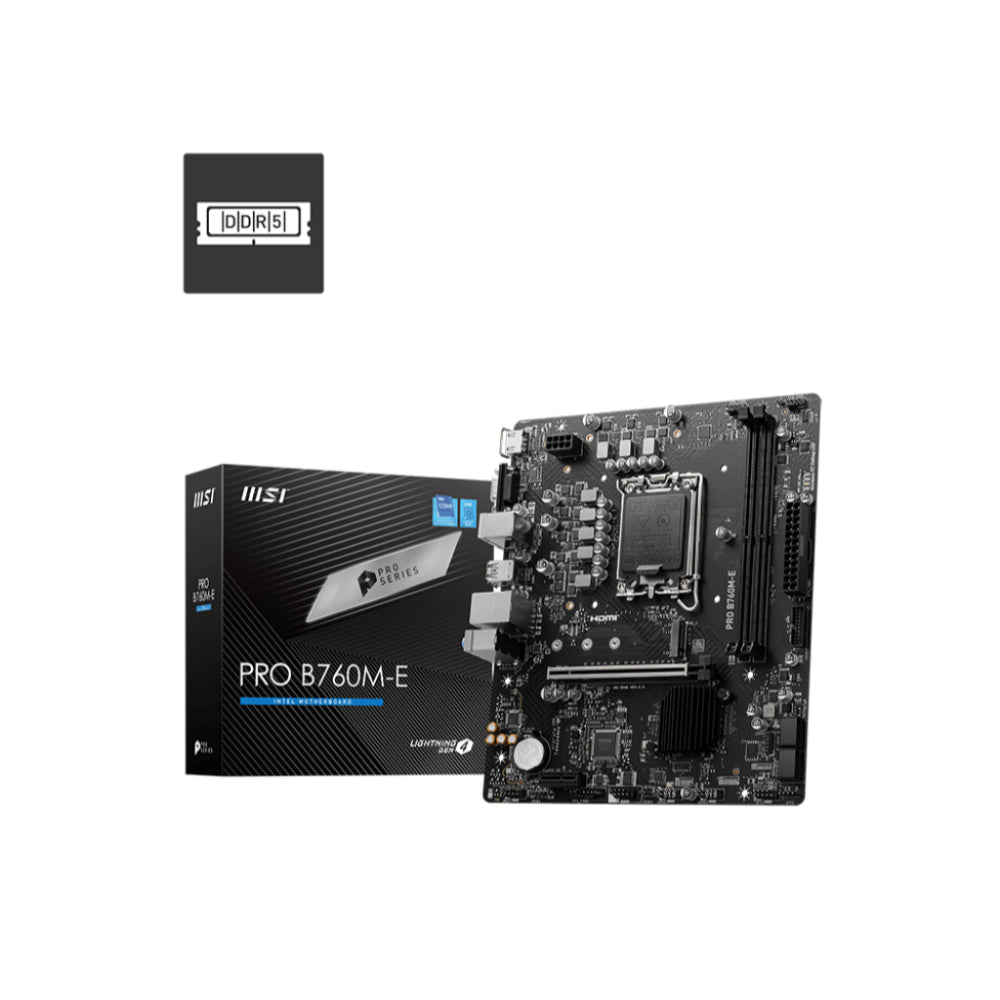

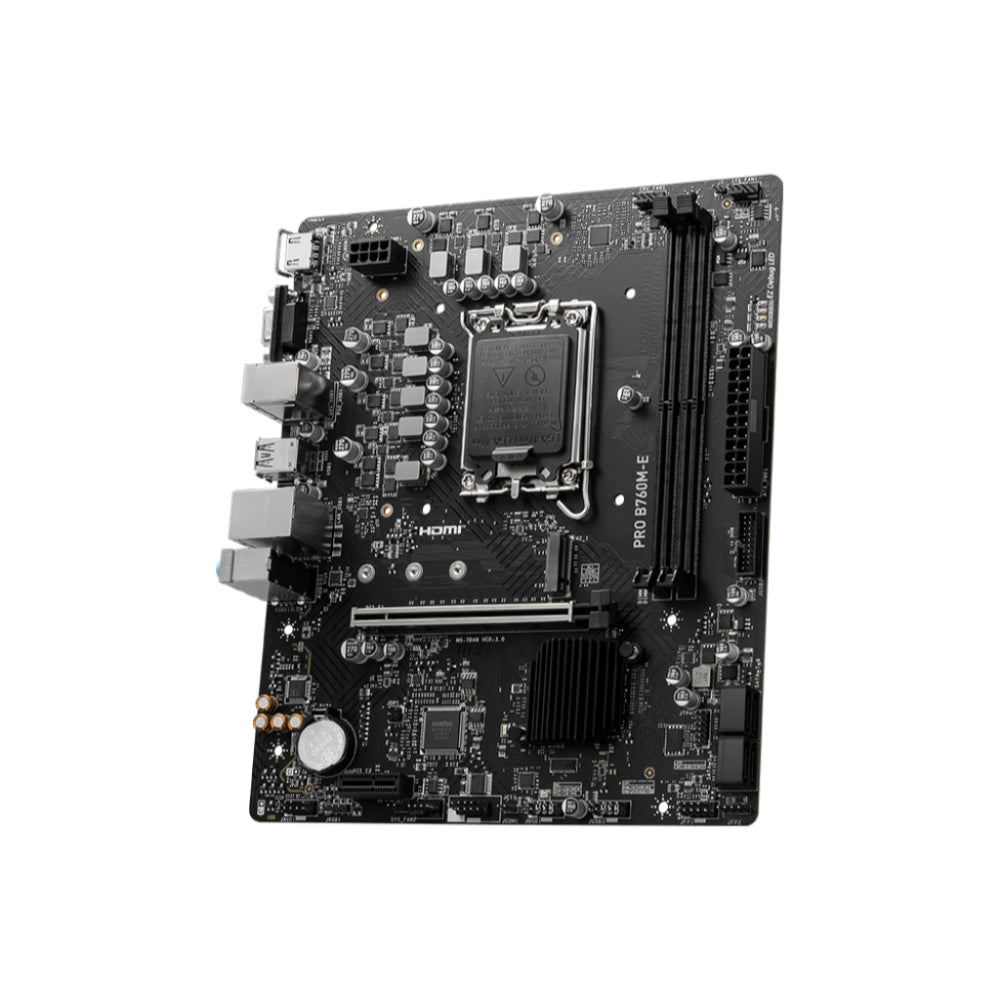

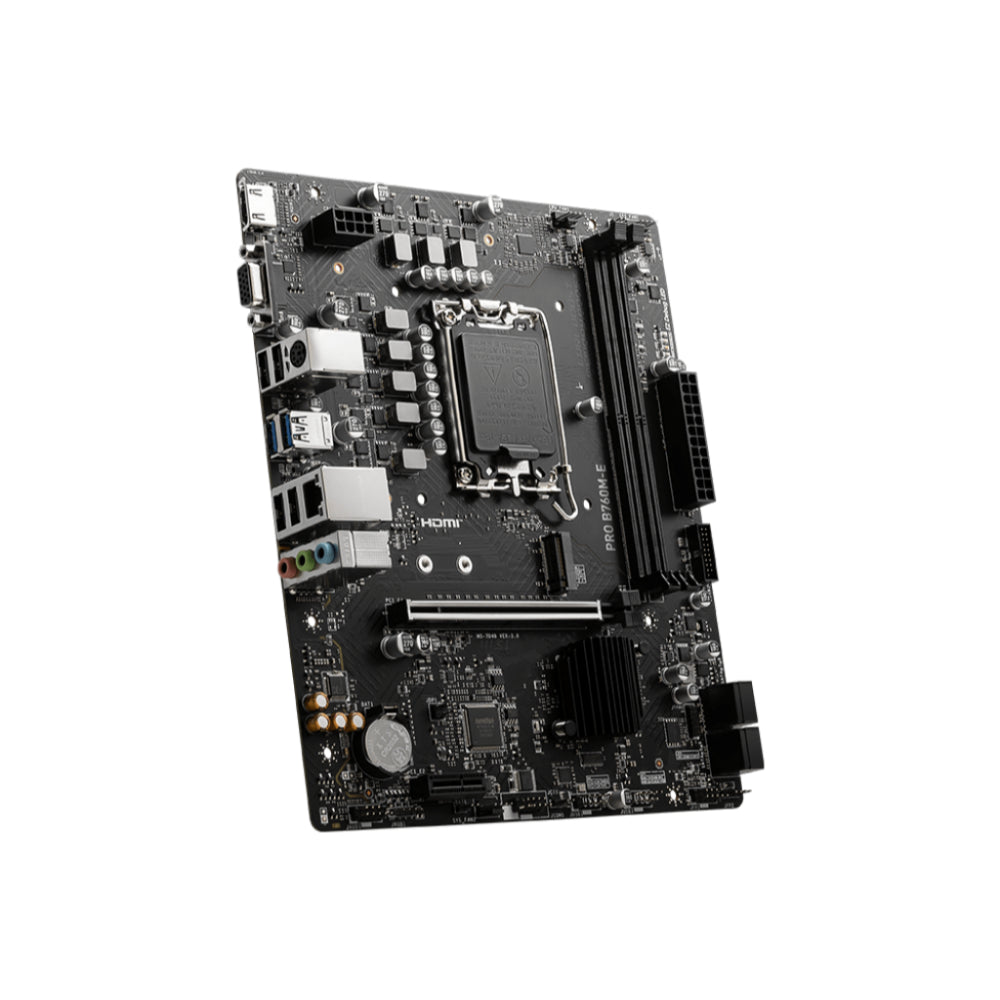

MSI PRO B760M-E DDR5 Motherboard | Solid Foundation for Next-Gen Performance

MSI PRO B760M-E DDR5 Motherboard | Solid Foundation for Next-Gen Performance

Rs.32,000.00
Rs.32,000.00
Sale Sold out
Shipping calculated at checkout.
WARRANTY

Unlock the potential of Intel’s latest CPUs with the MSI PRO B760M-E DDR5, a micro-ATX motherboard designed to provide rock-solid stability, advanced connectivity, and memory speeds that push performance boundaries. Ideal for mainstream productivity setups and office-grade builds, this board ensures dependable computing with a clean layout and essential features tailored for the LGA 1700 platform.

Performance

Equipped with the Intel® B760 chipset, the PRO B760M-E DDR5 supports Intel® Core™ 14th, 13th, and 12th Gen processors, including Pentium® Gold and Celeron® CPUs. Designed for DDR5 memory, it supports up to 128GB across two slots, with speeds reaching an impressive 6400+ MHz (OC). Thanks to support for Intel® XMP 3.0 profiles and dual-channel architecture, users can experience significant memory bandwidth improvements for demanding workloads and multitasking.

Connectivity

This board includes one PCIe 4.0 x16 slot and one PCIe 3.0 x1 slot, giving flexibility for GPU and expansion cards. Storage options include a PCIe 4.0 x4 M.2 slot (2280/2260/2242) and four SATA 6Gbps ports, supporting RAID 0, 1, 5, and 10 configurations. It also features Realtek® RTL8111H Gigabit LAN for stable wired networking.

Visual Comfort & Design

Integrated graphics outputs include HDMI™ 1.4 with HDR support and VGA, offering compatibility with both legacy and modern displays. HDMI supports up to 4K resolution at 30Hz, while VGA supports up to 2048x1536 resolution. The board also features 4x EZ Debug LEDs for quick troubleshooting and a black PCB design that blends well in any case window setup.

Compatibility & Features

With Realtek® ALC897 7.1-Channel High Definition Audio, TPM 2.0 header support, RGB LED header (JRGB), and USB ports including 4x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 5Gbps Type-A (Rear), and 2x USB 5Gbps Type-A (Front), this board is ready for a modern desktop experience. It is fully compatible with Windows® 11 and Windows® 10 (64-bit), and comes in a compact mATX form factor (200mm x 236.16mm), making it ideal for smaller cases.

Full Specifications

Specification Details
Socket LGA 1700
Chipset Intel® B760
CPU Support 14th/13th/12th Gen Intel® Core™, Pentium® Gold, and Celeron®
Memory Type 2x DDR5
Max Memory Capacity 128GB
Memory Speeds DDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(JEDEC) / 5400 / 5200 / 5000 / 4800
Memory Features Dual-channel, non-ECC, un-buffered, Intel® XMP 3.0
Expansion Slots 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
Audio Realtek® ALC897 7.1-Channel HD Audio
LAN Realtek® RTL8111H Gigabit LAN
Storage 1x M.2 (PCIe 4.0 x4 / SATA), 4x SATA 6Gbps
RAID Support RAID 0, 1, 5, 10 (SATA only)
Graphics Outputs 1x HDMI™ (4K 30Hz), 1x VGA
USB Ports (Rear) 4x USB 2.0, 2x USB 5Gbps Type-A
USB Ports (Front) 4x USB 2.0, 2x USB 5Gbps Type-A
Internal Headers TPM, RGB (JRGB), Front Audio, COM, Fans, USB
EZ Debug LED 4 LEDs for CPU, DRAM, VGA, BOOT
Form Factor mATX (200mm x 236.16mm)
Operating System Support Windows® 11 64-bit, Windows® 10 64-bit

Ideal For

The MSI PRO B760M-E DDR5 is ideal for office professionals, system integrators, or home users looking to build a compact yet powerful desktop PC with support for the latest Intel CPUs and DDR5 memory. It’s built for long-term reliability and smooth operation in business or daily productivity tasks.

Why Choose the MSI PRO B760M-E DDR5?

If you want to step into the next-gen computing era without going overboard, this motherboard offers a perfect mix of future-ready specs and budget-friendly practicality. With DDR5 memory support, PCIe 4.0 storage, HDMI + VGA display output, and a sturdy micro-ATX design, it brings excellent value for Intel 1700 socket systems.
