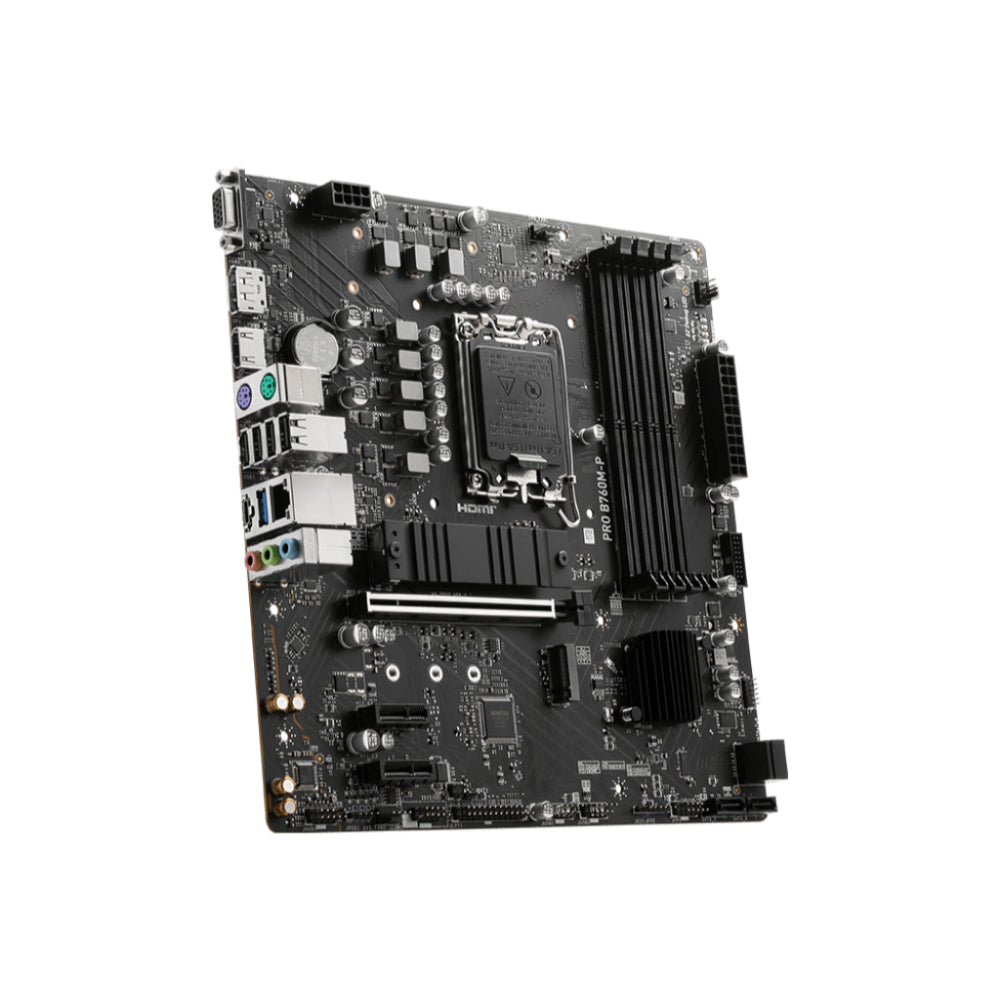

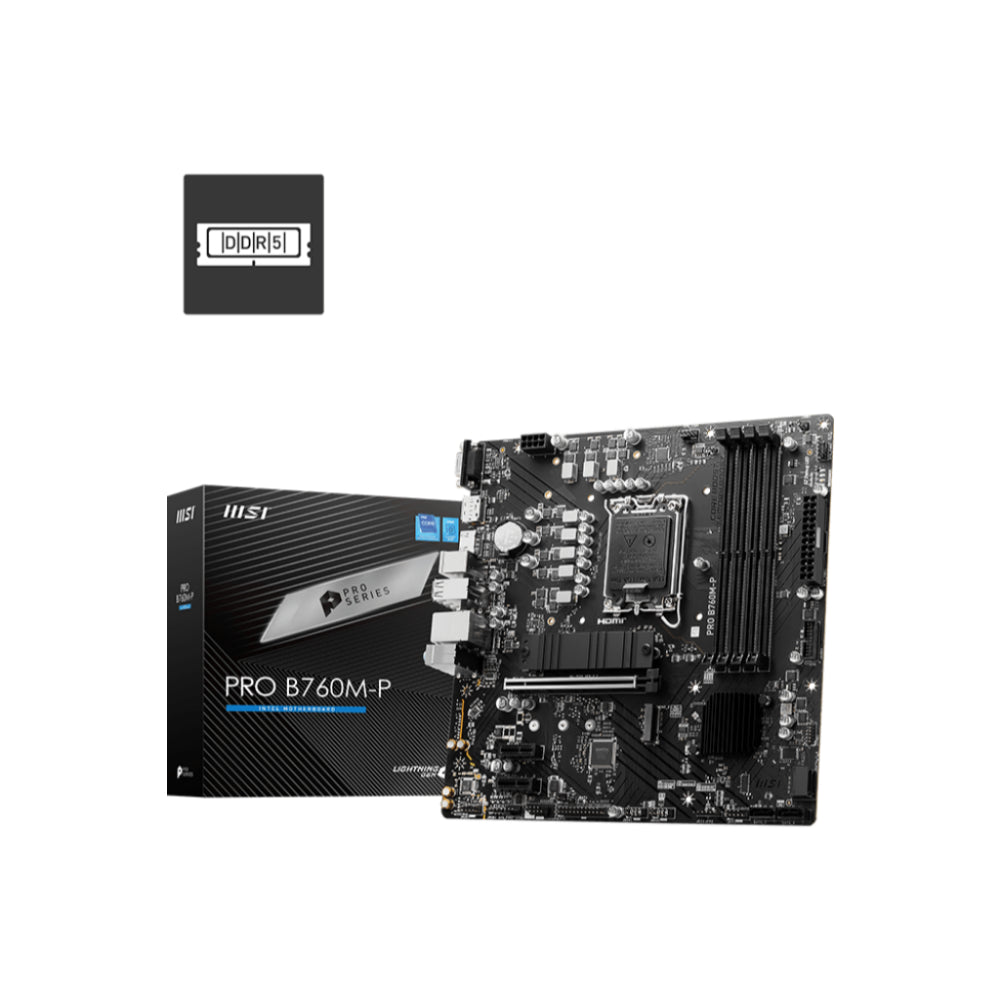

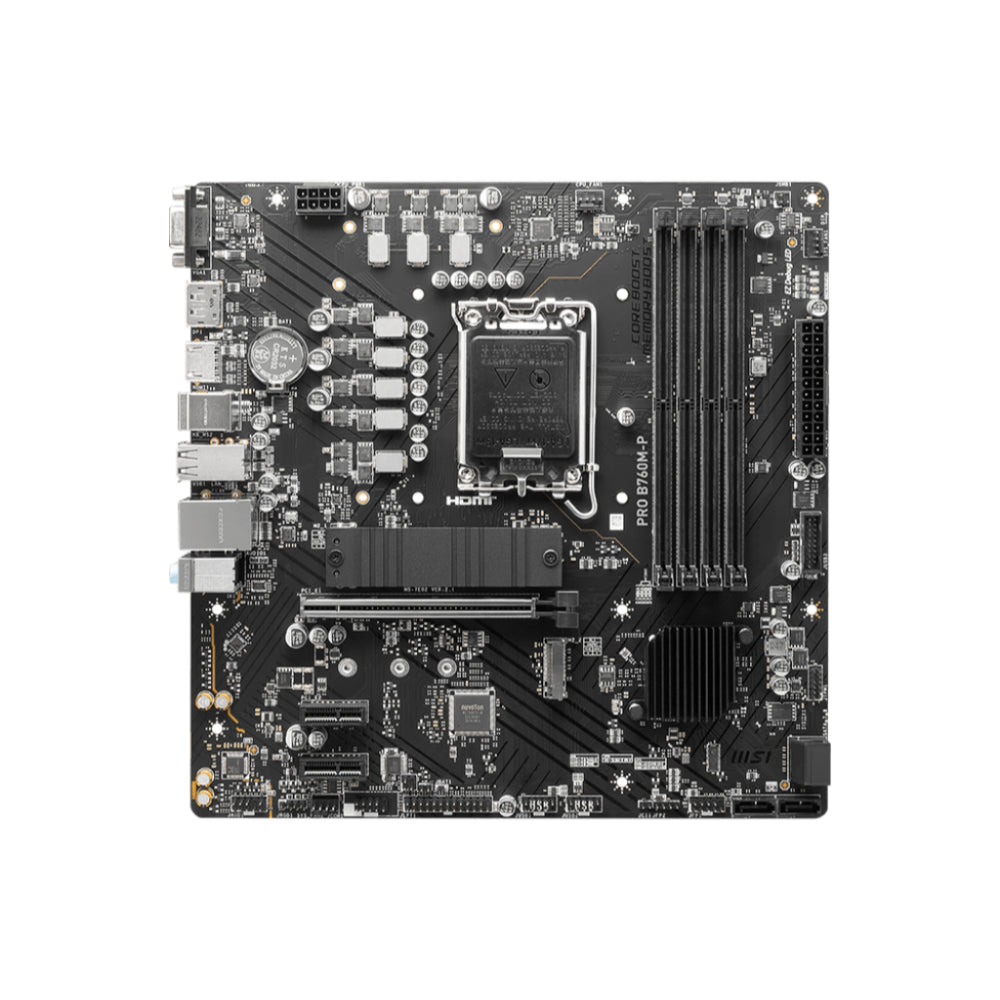

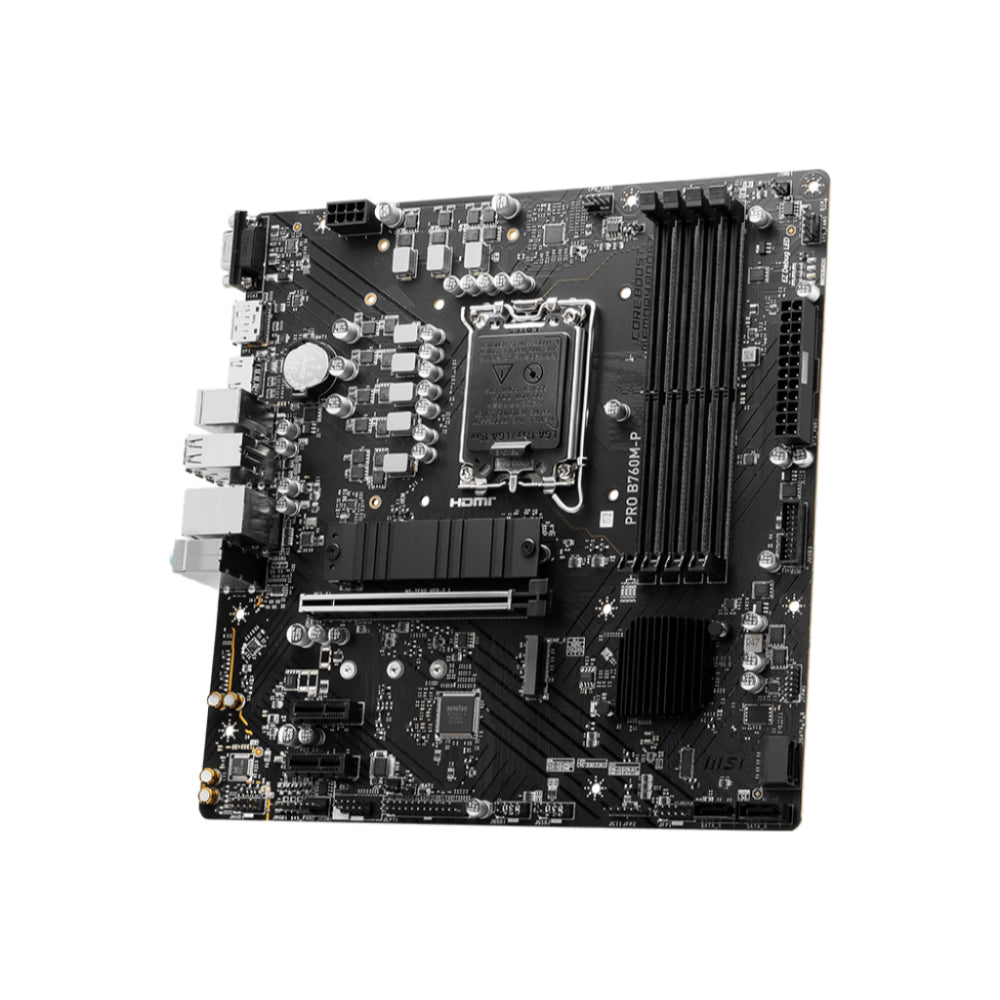

MSI PRO B760M-P DDR5 mATX Motherboard | Power, Efficiency & Next-Gen Memory Support
MSI PRO B760M-P DDR5 mATX Motherboard | Power, Efficiency & Next-Gen Memory Support
Couldn't load pickup availability
Unlock the full potential of 12th, 13th, and 14th Gen Intel processors with the MSI PRO B760M-P, a micro-ATX motherboard designed for stability, performance, and modern connectivity. Whether you're building a reliable workstation or a powerful desktop PC, this board offers robust memory support, extensive storage options, and versatile expansion—all in a compact form factor.
Performance
Powered by the Intel B760 chipset and LGA 1700 socket, the PRO B760M-P supports Intel® Core™ 14th, 13th, and 12th Gen CPUs, along with Pentium® Gold and Celeron® processors. With four DDR5 DIMM slots, it handles up to 256GB of non-ECC, un-buffered memory, supporting speeds up to 6800+ MHz (OC) for blazing-fast multitasking and processing power. Intel® XMP 3.0 support allows seamless memory overclocking, while the dual-channel architecture ensures optimal bandwidth efficiency.
Connectivity
Equipped with a mix of USB ports including USB 3.2 Gen 2 Type-C (10Gbps), multiple USB 3.2 Gen 1 and USB 2.0, and Realtek® RTL8111H Gigabit LAN, the motherboard provides high-speed wired connections and expansion support. Internally, you'll find PCIe 4.0 slots (1x PCIe x16 and 2x PCIe x1) for GPUs and add-on cards, and multiple fan headers to maintain ideal system temperatures.
Visual Output & Design
Offering versatile display options, the PRO B760M-P supports DisplayPort 1.4 (4K@60Hz), HDMI 1.4 (4K@30Hz), and VGA (2048x1536@50Hz), making it suitable for a wide range of monitor configurations. It also includes 7.1-channel HD audio powered by the Realtek® ALC897 codec for immersive sound quality. The board features a sleek black PCB with MSI’s signature durability and 4x EZ Debug LEDs for quick troubleshooting.
Compatibility & Features
This motherboard offers two M.2 slots—one connected to the CPU and one to the chipset—supporting PCIe Gen 4 x4 and SATA SSDs for high-speed NVMe storage. Four SATA 6Gb/s ports and RAID support (0/1/5/10) make it ideal for data-intensive applications. Onboard TPM 2.0 support ensures Windows 11 compatibility, and RGB LED headers allow additional lighting customization.
Full Product Specifications
| Specification | Details |
|---|---|
| Chipset | Intel B760 |
| CPU Support | Intel 14th/13th/12th Gen Core™, Pentium® Gold, Celeron® |
| Socket | LGA 1700 |
| Memory | 4x DDR5 DIMMs, up to 256GB, up to 6800+ MHz (OC) |
| Memory Support | DDR5 6800+(OC)/6600(OC)/6400(OC)/.../4800(JEDEC) |
| Graphics Outputs | 1x HDMI™ (4K@30Hz), 1x DP (4K@60Hz), 1x VGA |
| Expansion Slots | 1x PCIe 4.0 x16, 2x PCIe 4.0 x1 |
| Audio | Realtek® ALC897 7.1-Channel HD Audio |
| M.2 Slots | 2x (1x PCIe Gen 4 x4 CPU, 1x PCIe Gen 4 x4/SATA Chipset) |
| SATA Ports | 4x SATA 6Gb/s |
| RAID Support | RAID 0, 1, 5, 10 |
| USB Ports (Rear) | 4x USB 2.0, 1x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type-C |
| USB Ports (Front) | 4x USB 2.0, 2x USB 3.2 Gen 1 |
| LAN | Realtek® RTL8111H Gigabit LAN |
| Internal I/O Headers | 1x ATX_PWR, 1x CPU_PWR, 2x Sys Fan, 1x CPU Fan, RGB, TPM |
| Debug Tools | 4x EZ Debug LED |
| Form Factor | mATX (243.84mm x 243.84mm) |
| Operating System | Windows® 11/10 64-bit |
Ideal Applications
Perfect for entry-level to mid-range PC builds, office systems, and general productivity workstations requiring modern features, efficient power usage, and future-ready DDR5 support.
Why Choose MSI PRO B760M-P
Choose the MSI PRO B760M-P for an affordable, reliable foundation with advanced DDR5 memory capabilities, versatile display options, and a clean mATX layout. It brings together Intel’s latest CPU compatibility with robust connectivity and storage features ideal for productivity and longevity.
Order Now from Mustafa Computers
Ready to upgrade your system with next-gen performance? Order the MSI PRO B760M-P DDR5 motherboard today at Mustafa Computers—your trusted source for the latest PC hardware in Pakistan.
