MSI PRO H510M-B Motherboard | Reliable and Efficient Platform for Everyday Productivity
MSI PRO H510M-B Motherboard | Reliable and Efficient Platform for Everyday Productivity
Couldn't load pickup availability
Build a dependable PC foundation with the MSI PRO H510M-B, a compact and capable micro-ATX motherboard engineered for business and everyday computing needs. With support for 10th Gen Intel Core processors, robust memory compatibility, and versatile connectivity options, this board ensures smooth operation, essential stability, and long-term reliability.
Performance
The MSI PRO H510M-B is powered by the Intel H470 chipset and supports 10th Gen Intel Core, Pentium Gold, and Celeron processors for the LGA 1200 socket. It features two DDR4 DIMM slots with support for up to 64GB of memory, enabling speeds up to 2933MHz (depending on CPU). Dual-channel memory architecture and Intel XMP profiles are supported for enhanced performance.
Connectivity
Equipped with essential slots and ports, the PRO H510M-B includes a PCIe 3.0 x16 slot for graphics, a PCIe 3.0 x1 slot for expansion, and comprehensive USB support including four USB 2.0 ports and four USB 5Gbps Type-A ports across front and rear I/O. For storage, it provides one high-speed M.2 slot supporting PCIe 3.0 x4 and SATA modes, as well as four SATA 6Gb/s connectors for traditional drives.
Visual Output & Audio
This board supports integrated graphics via HDMI and VGA outputs. The HDMI 1.4 port supports up to 4K resolution at 30Hz, while VGA supports up to 1920x1200 at 60Hz. Audio is delivered through the Realtek ALC897 codec, offering 7.1-channel high-definition sound, providing clear output for professional and home use alike.
Compatibility & Features
Built with a business-focused feature set, the PRO H510M-B includes TPM 2.0 header support, system fan headers, and a chassis intrusion connector. Four EZ Debug LEDs provide visual troubleshooting indicators for CPU, DRAM, VGA, and Boot status. The board supports Windows 10 and Windows 11 (64-bit) operating systems and includes essential internal headers like RGB LED, COM, and audio connectors.
Full Specifications
| Specification | Details |
|---|---|
| Chipset | Intel H470 |
| CPU Support | 10th Gen Intel Core, Pentium Gold, Celeron |
| Socket | LGA 1200 |
| Memory Slots | 2x DDR4 DIMM |
| Max Memory | 64GB |
| Memory Speed Support | 2133 / 2400 / 2666 / 2933 MHz (varies by CPU) |
| ECC/Non-ECC | Non-ECC, un-buffered |
| Dual Channel Support | Yes |
| XMP Support | Yes |
| Graphics Outputs | 1x HDMI 1.4 (4K@30Hz), 1x VGA |
| Expansion Slots | 1x PCIe 3.0 x16, 1x PCIe 3.0 x1 |
| Storage | 1x M.2 (PCIe 3.0 x4/SATA), 4x SATA 6Gb/s |
| Audio Codec | Realtek ALC897, 7.1-Channel HD Audio |
| LAN | Realtek 8111H Gigabit LAN |
| USB Ports | 4x USB 2.0 (Rear), 4x USB 2.0 (Front), |
| 2x USB 5Gbps (Rear), 2x USB 5Gbps (Front) | |
| Internal Headers | ATX_PWR, CPU_PWR, CPU Fan, 2x System Fan |
| JFP, JCI, JAUD, JCOM, JRGB, TPM, USB headers | |
| LED Features | 4x EZ Debug LED |
| Form Factor | mATX (202 x 236 mm) |
| OS Support | Windows 10 & 11 (64-bit) |

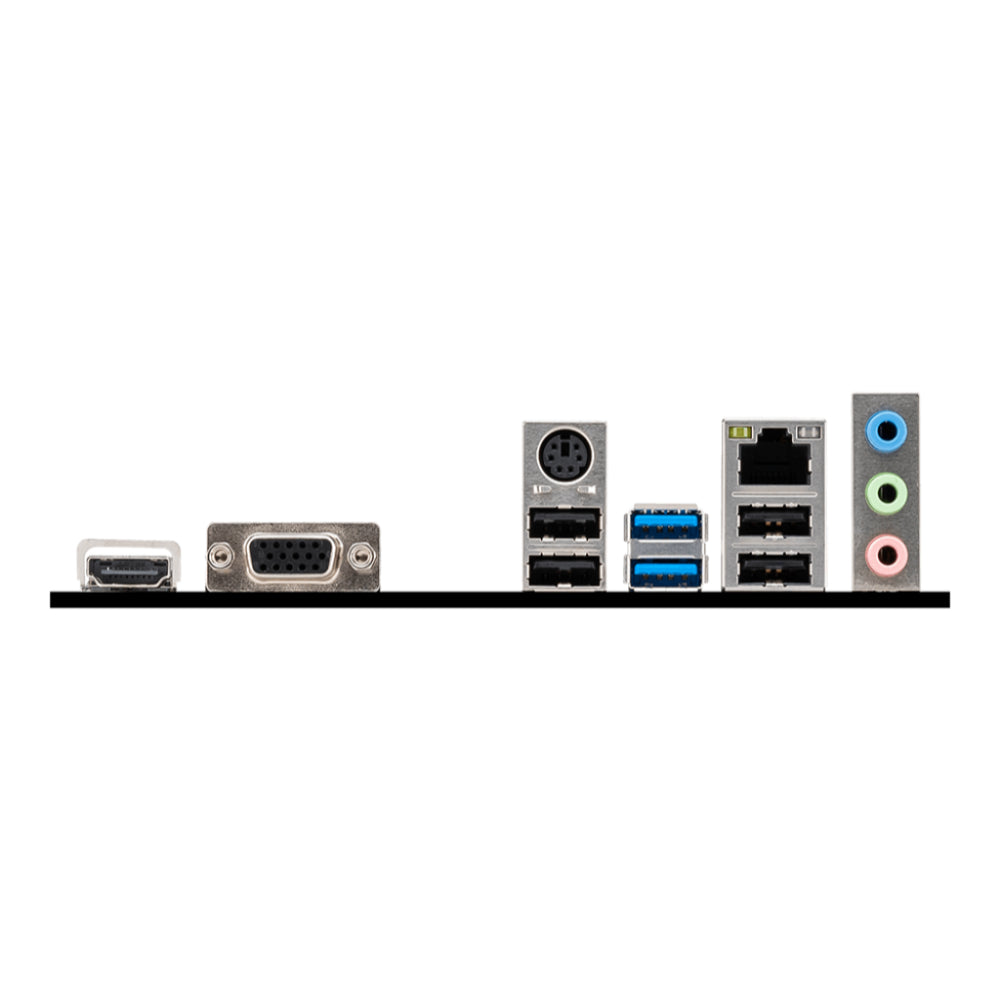

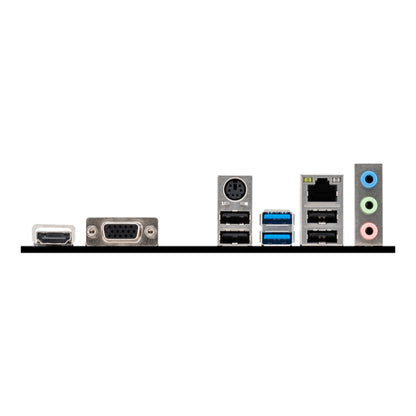

| Back Panel Ports | HDMI, VGA, 2x USB 2.0, 2x USB 5Gbps, |
| LAN port, Audio connectors, PS/2 Keyboard/Mouse |
Suitable Applications
Ideal for business desktops, home office setups, basic productivity workstations, educational environments, and light media consumption PCs where stability and compatibility are essential.
Why Choose the MSI PRO H510M-B?
The MSI PRO H510M-B offers practical functionality in a compact form factor, providing just the right blend of performance, expandability, and affordability. It’s built to deliver consistent operation, user-friendly diagnostics, and flexible compatibility across various Intel CPUs and storage devices.
Buy Now from Mustafa Computers
Upgrade your system foundation with the MSI PRO H510M-B Motherboard, now available at Mustafa Computers. Enjoy trusted support, fast delivery across Pakistan, and genuine MSI products at competitive prices.
