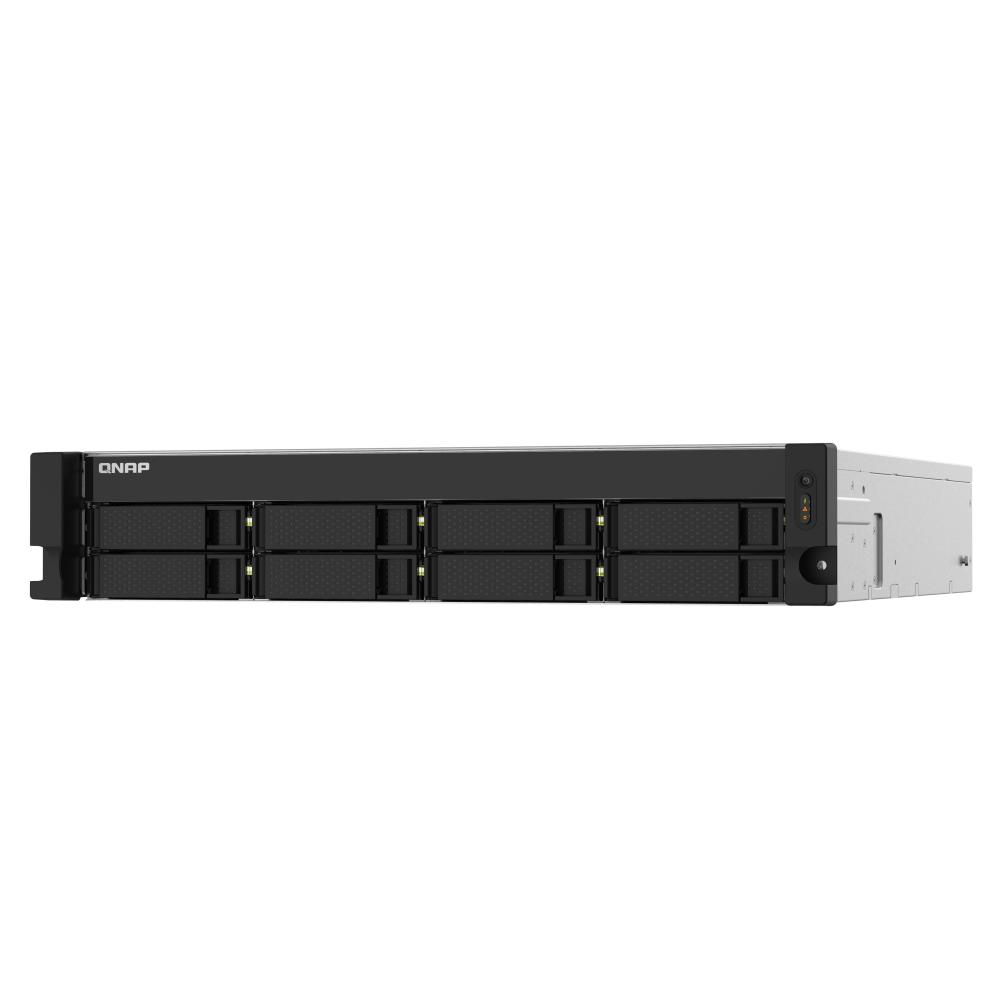

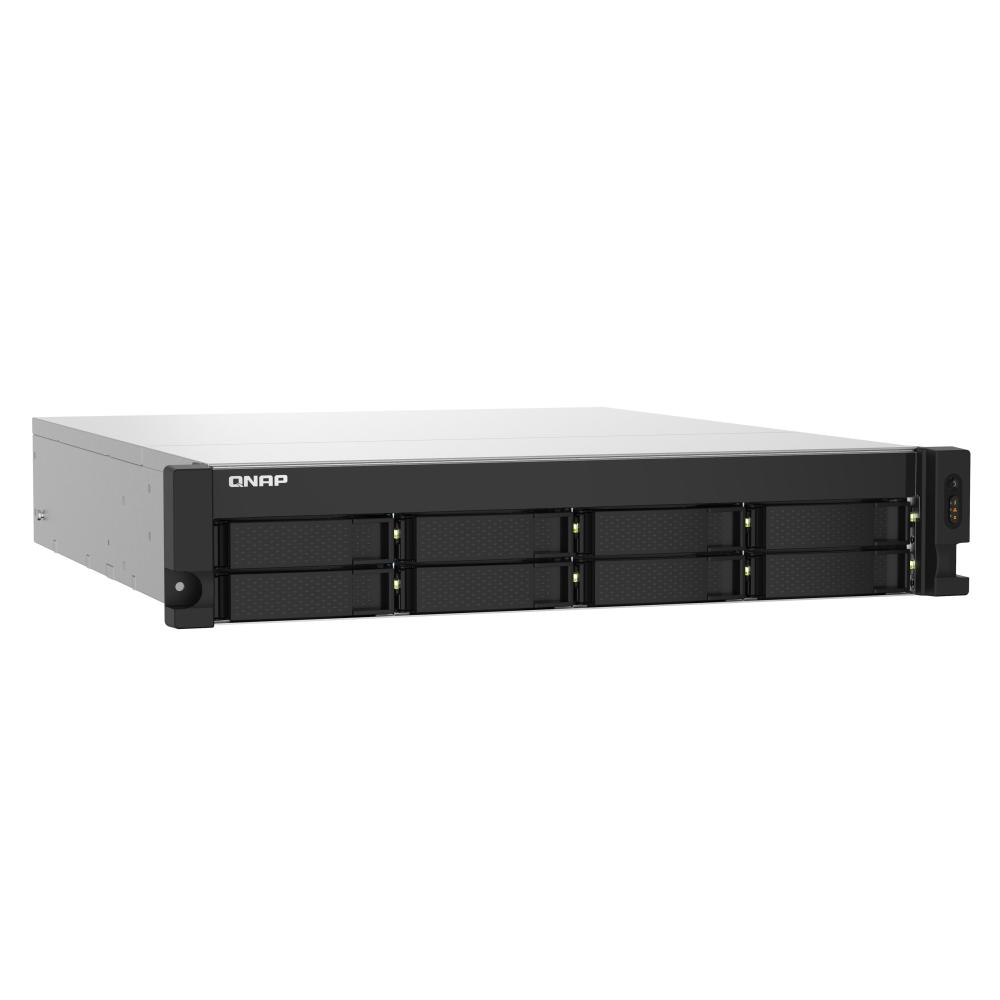

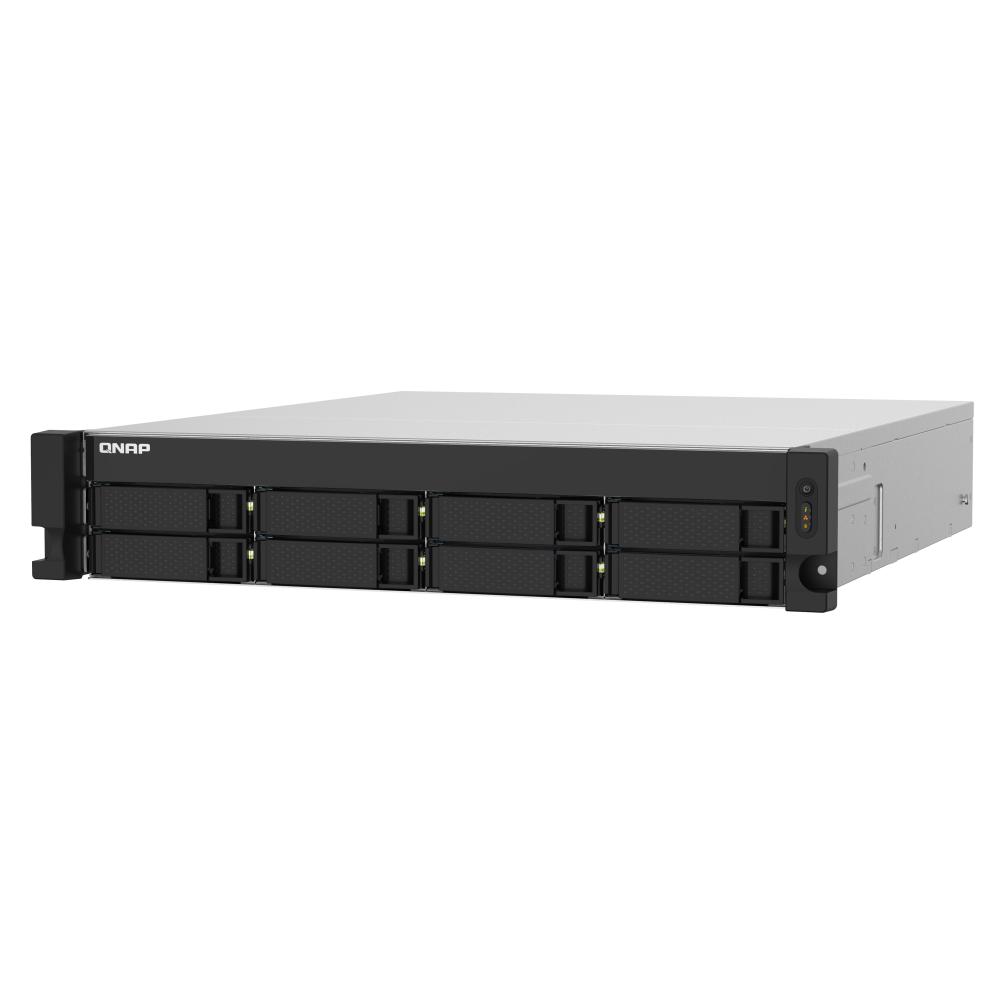

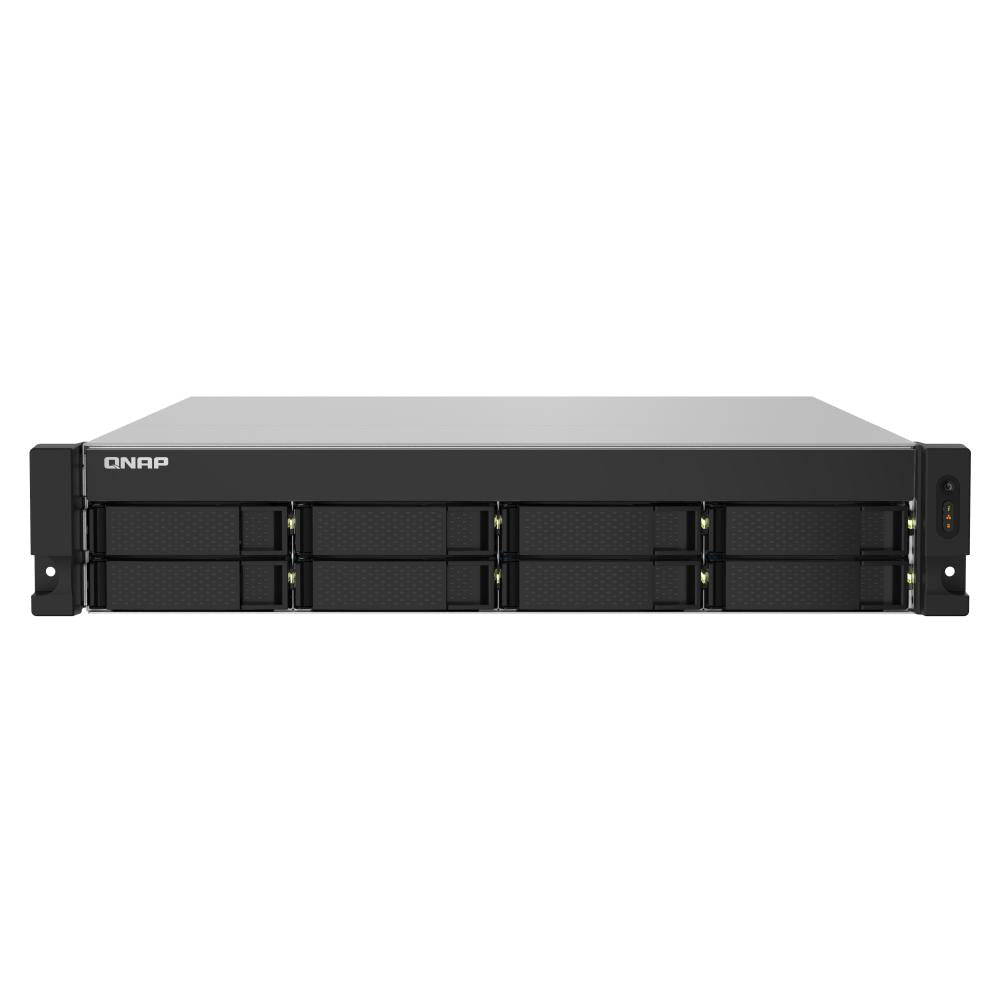

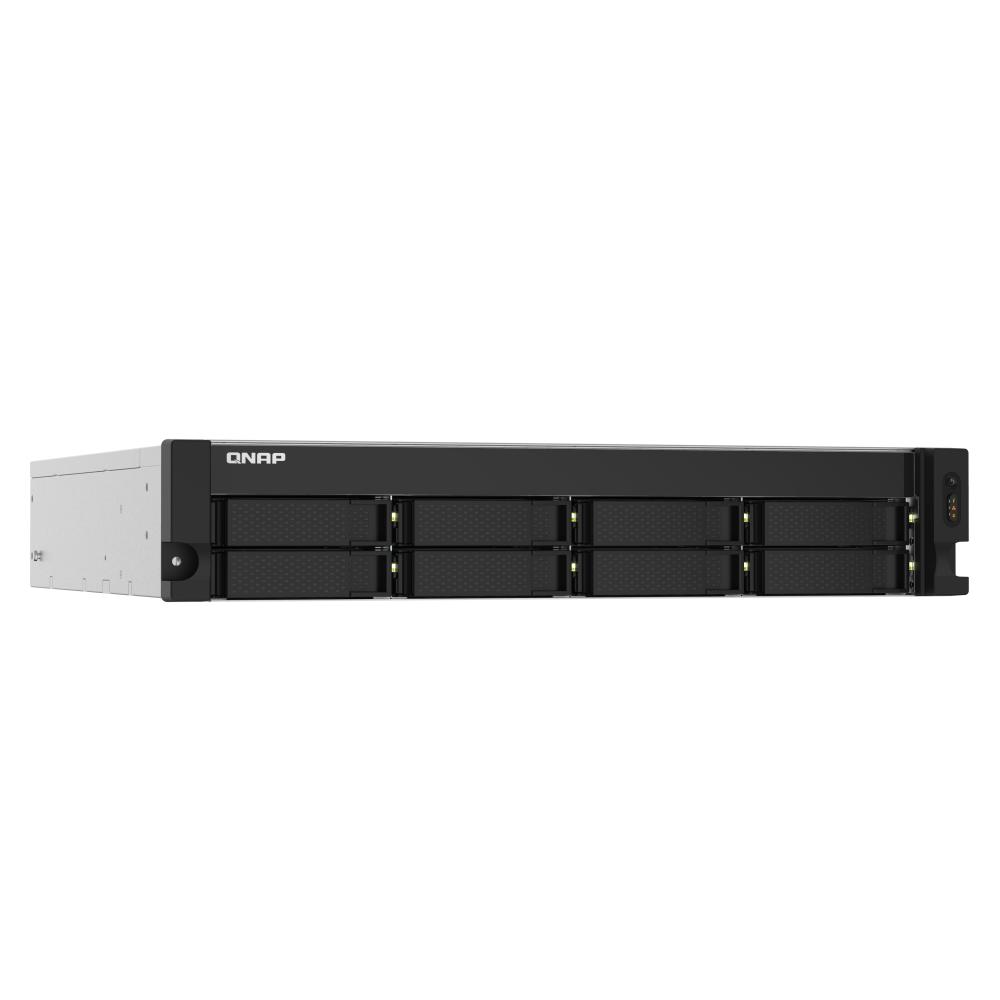

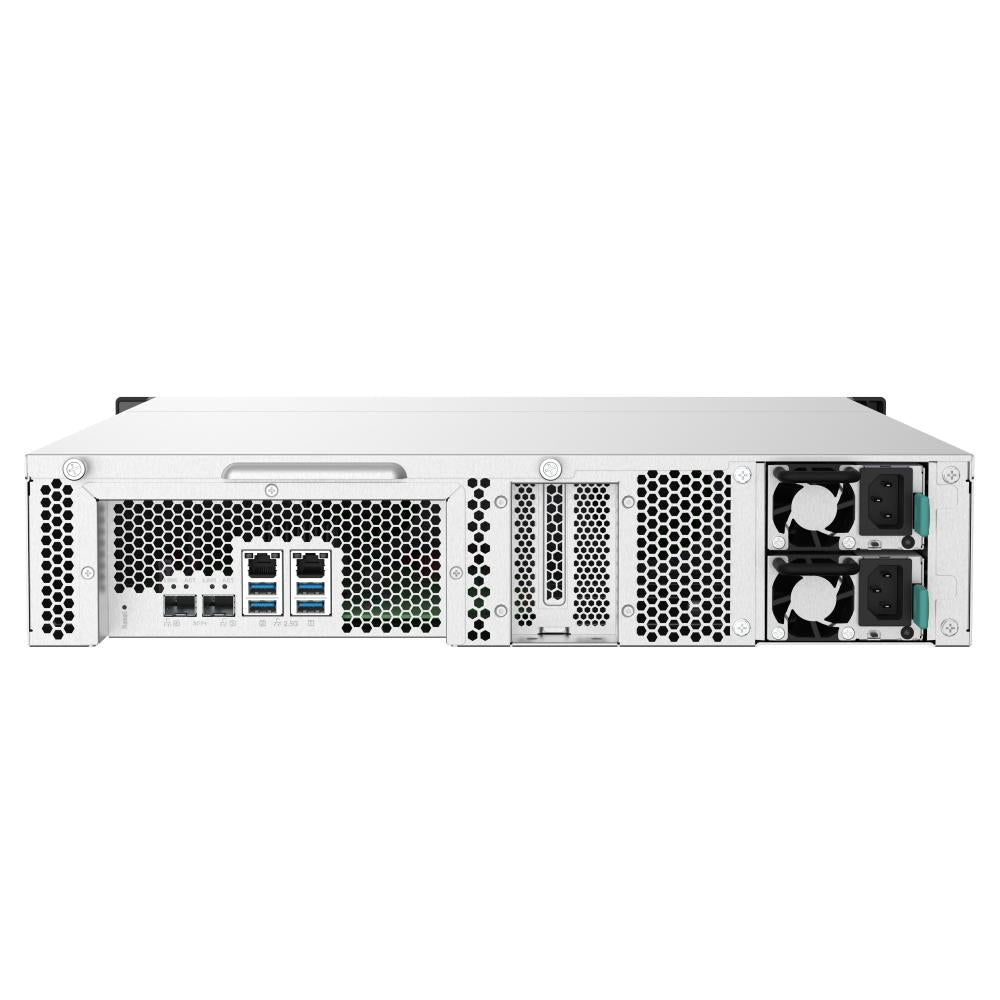

QNAP TS-832PXU-RP 8-Bay Rackmount NAS Server | Quad-Core 1.7GHz | 4GB DDR4 | Dual 10GbE SFP+ & 2.5GbE | Redundant PSU

The QNAP TS-832PXU-RP is an enterprise-ready, 2U rackmount NAS server designed for small and medium-sized businesses, IT departments, and organisations requiring high-speed network storage, centralised data management, and dependable backup solutions. Powered by an AnnapurnaLabs Alpine AL-324 quad-core 1.7GHz ARM Cortex-A57 processor and equipped with 4GB DDR4 memory, this 8-bay NAS provides a flexible platform for file sharing, business collaboration, backup, and disaster recovery.

Featuring two 10GbE SFP+ ports, two 2.5GbE RJ-45 ports, and a redundant power supply, the TS-832PXU-RP combines high-bandwidth networking with power redundancy for business-critical environments. Its PCIe Gen 2 ×2 expansion slot allows compatible cards to add networking or other supported capabilities, while support for QNAP TR RAID expansion enclosures and TL JBOD units provides additional storage flexibility.

Running QNAP QTS, the TS-832PXU-RP offers integrated backup, synchronisation, snapshot protection, cloud connectivity, and business data management tools in a rackmount form factor.

Key Features

• 8-Bay Rackmount NAS: Supports up to eight compatible 3.5-inch SATA HDDs or 2.5-inch SATA HDDs and SSDs.

• Quad-Core ARM Processor: AnnapurnaLabs Alpine AL-324, 64-bit ARM Cortex-A57 running at 1.7GHz.

• 4GB DDR4 Memory: Pre-installed memory, expandable up to 16GB using a compatible memory configuration.

• Dual 10GbE SFP+ Ports: High-bandwidth connectivity for demanding file transfers, backups, and business workloads.

• Dual 2.5GbE RJ-45 Ports: Additional high-speed Ethernet connectivity for workstations, servers, and network infrastructure.

• Redundant Power Supply: Two 250W power supply units help maintain service availability if one power supply fails.

• PCIe Gen 2 ×2 Expansion: Supports compatible expansion cards for additional networking and other supported functions.

• SSD Cache and Qtier: Supports SSD caching, Qtier auto-tiering, and SSD over-provisioning features.

• HBS Backup and Synchronisation: Consolidates backup, restoration, and synchronisation with supported NAS, servers, and cloud destinations.

• Snapshot Protection: Helps protect data against accidental deletion, unwanted changes, and malware-related incidents.

• Boxafe SaaS Backup: Supports backup of Google Workspace and Microsoft 365 data.

• Expandable Storage: Supports compatible QNAP TR RAID expansion enclosures and TL JBOD units.

• 2U Rackmount Design: Suitable for server racks in offices, server rooms, and IT environments.

High-Speed Networking for Business Workloads

The TS-832PXU-RP is designed to provide flexible network bandwidth for teams working with shared files, large datasets, media assets, and backup repositories.

Its network interfaces include:

• 2 × 10GbE SFP+ ports

• 2 × 2.5GbE RJ-45 ports

These connections allow businesses to allocate network resources according to their requirements and compatible network infrastructure. The 10GbE interfaces are particularly useful for high-throughput storage networks, while the 2.5GbE ports provide additional connectivity for compatible network devices.

QNAP's published laboratory tests report the following file-transfer results under specific configurations:

Test Configuration	Upload	Download
2 × 2.5GbE, 10GB file	581MB/s	488MB/s
2 × 10GbE, 10GB file	649MB/s	2,104MB/s

These are manufacturer-reported laboratory results, not guaranteed real-world speeds. Actual throughput depends on drive configuration, RAID level, network setup, client hardware, workload, and software version.

Reliable Storage with Redundant Power

For business environments where storage availability is important, the TS-832PXU-RP includes two 250W power supply units in a redundant configuration. Redundant power helps reduce the risk of interruption caused by an individual power supply failure, provided the system is correctly configured and the remaining supply is functioning.

Combined with its rackmount chassis and network connectivity, this design is suitable for offices, server rooms, and business infrastructure requiring continuous access to shared data.

Eight-Bay Storage and Flexible Expansion

The eight drive bays support compatible SATA storage devices, allowing organisations to select drive capacities and RAID configurations according to their storage requirements.

Supported drive types include:

• 3.5-inch SATA hard disk drives

• 2.5-inch SATA hard disk drives

• 2.5-inch SATA solid-state drives

The TS-832PXU-RP supports RAID configurations including JBOD, Single, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, and RAID 60. Available configurations depend on the number of installed drives.

Storage capacity can be expanded using compatible QNAP TR RAID expansion enclosures or TL JBOD units. Expansion hardware and additional drives are sold separately unless specifically included in the package.

PCIe Expansion and SSD Performance

The built-in PCIe Gen 2 ×2 slot provides additional configuration flexibility through compatible expansion cards. Depending on the card and supported software, expansion options can include:

• Additional 2.5GbE, 5GbE, or 10GbE networking

• Compatible QM2 cards for M.2 SSD caching or additional networking

• Supported USB expansion cards for faster external-device connectivity

The NAS also supports SSD caching, Qtier auto-tiering, and SSD extra over-provisioning. These features can help balance performance, storage capacity, and SSD endurance in supported configurations.

Note: The model does not include built-in M.2 SSD slots. M.2 storage or caching requires a compatible expansion card.

Comprehensive Backup and Disaster Recovery

QNAP's Hybrid Backup Sync (HBS) consolidates backup, restoration, and synchronisation tasks. It supports data protection workflows involving compatible QNAP NAS systems, remote servers, external storage, and supported cloud services.

Key capabilities include:

• NAS-to-NAS backup and synchronisation

• Cloud backup and cloud synchronisation

• External drive backup

• Two-way and active synchronisation

• Apple Time Machine backup

• Scheduled data-protection tasks

The TS-832PXU-RP also supports snapshot-based protection for supported volumes and LUNs. Snapshots help users restore earlier data states after accidental deletion, unwanted modifications, or certain malware incidents.

For business continuity, snapshots should be combined with independent backups and appropriate retention policies.

Google Workspace and Microsoft 365 Backup

Cloud-based productivity services do not eliminate the need for independent data protection. The TS-832PXU-RP supports QNAP Boxafe, which provides backup capabilities for supported Google Workspace and Microsoft 365 accounts.

Depending on the service and configuration, Boxafe can protect business information such as emails, files, contacts, and calendars, helping organisations retain recoverable copies of important cloud data.

Boxafe requires at least 4GB of system memory according to the supplied specifications. Cloud-service support and available functions depend on the installed application version and service configuration.

File Sharing, Synchronisation and Collaboration

QNAP QTS provides tools for centralised file access across supported Windows, macOS, Linux, and other compatible clients. The NAS can serve as a shared storage location for departments, workgroups, and branch offices.

With supported applications, users can:

• Share files and folders with controlled permissions.

• Synchronise files across computers and mobile devices using Qsync.

• Search stored content using Qsirch.

• Organise photos with QuMagie.

• Automate file organisation using Qfiling.

• Connect supported cloud storage through HybridMount.

• Manage network shares and user accounts centrally.

These capabilities help reduce scattered file storage and improve access to shared business information.

Hybrid Cloud Storage Connectivity

The TS-832PXU-RP supports QNAP cloud gateway applications for integrating local NAS storage with compatible cloud services.

HybridMount enables supported file-based cloud access and local caching, helping users work with cloud-hosted files through compatible applications.

VJBOD Cloud supports block-based cloud storage workflows for supported backup scenarios involving data such as LUNs and databases.

These options allow businesses to build hybrid storage strategies that combine local access with cloud-based storage and backup destinations.

Rackmount Design and System Management

The TS-832PXU-RP features a 2U rackmount chassis designed for structured IT deployments. Its cooling system uses two 70mm fans, while built-in indicators provide status information for the system, network connections, and installed drives.

QTS includes system monitoring, user and group management, network configuration, security controls, and application management tools. The NAS supports features such as scheduled power on/off, network access protection, two-step verification, firewall functionality, and encrypted volume configurations where supported.

Technical Specifications

Specification	Details
Brand	QNAP
Model	TS-832PXU-RP-4G
Product Type	8-Bay Rackmount NAS Server
Form Factor	2U Rackmount
Processor	AnnapurnaLabs Alpine AL-324
CPU Architecture	64-bit ARM Cortex-A57
CPU Cores	4
CPU Frequency	1.7GHz
Pre-Installed Memory	4GB DDR4 UDIMM
Maximum Memory	16GB, subject to compatible memory configuration
Memory Slots	1 × DDR4 UDIMM
Flash Memory	512MB, dual-boot OS protection
Drive Bays	8 × SATA 6Gb/s and 3Gb/s
Supported Drives	3.5-inch SATA HDD; 2.5-inch SATA HDD/SSD
M.2 SSD Slots	None built in; optional via compatible PCIe adapter
SSD Cache	Supported
Auto-Tiering	Qtier supported
RAID Types	JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60
10GbE Networking	2 × 10GbE SFP+
2.5GbE Networking	2 × 2.5GbE RJ-45
PCIe Slot	1 × PCIe Gen 2 ×2
USB Ports	4 × USB 3.2 Gen 1
Power Supply	2 × 250W redundant power supply units
Input Voltage	100–240V AC
System Fans	2 × 70mm, 12V DC
Dimensions (H × W × D)	88.6 × 432 × 511mm
Net Weight	12.47kg
Gross Weight	14.61kg
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
Relative Humidity	5–95% RH, non-condensing
Typical Power Consumption	69.191W, tested with drives fully populated
Operating System	QNAP QTS
Standard Warranty	1 Year

Specifications are based on the supplied model information. Drive compatibility, supported applications, expansion options, and memory configurations should be confirmed against QNAP's compatibility list and product documentation before purchase.

Ideal For

• Small and medium-sized businesses

• Corporate file sharing and centralised storage

• IT departments and server-room deployments

• High-speed file transfers and media workflows

• Centralised backup and disaster recovery

• Google Workspace and Microsoft 365 data backup

• Multi-user collaboration and file synchronisation

• Businesses requiring redundant power supplies

• Expandable network storage and supported hybrid-cloud workflows
