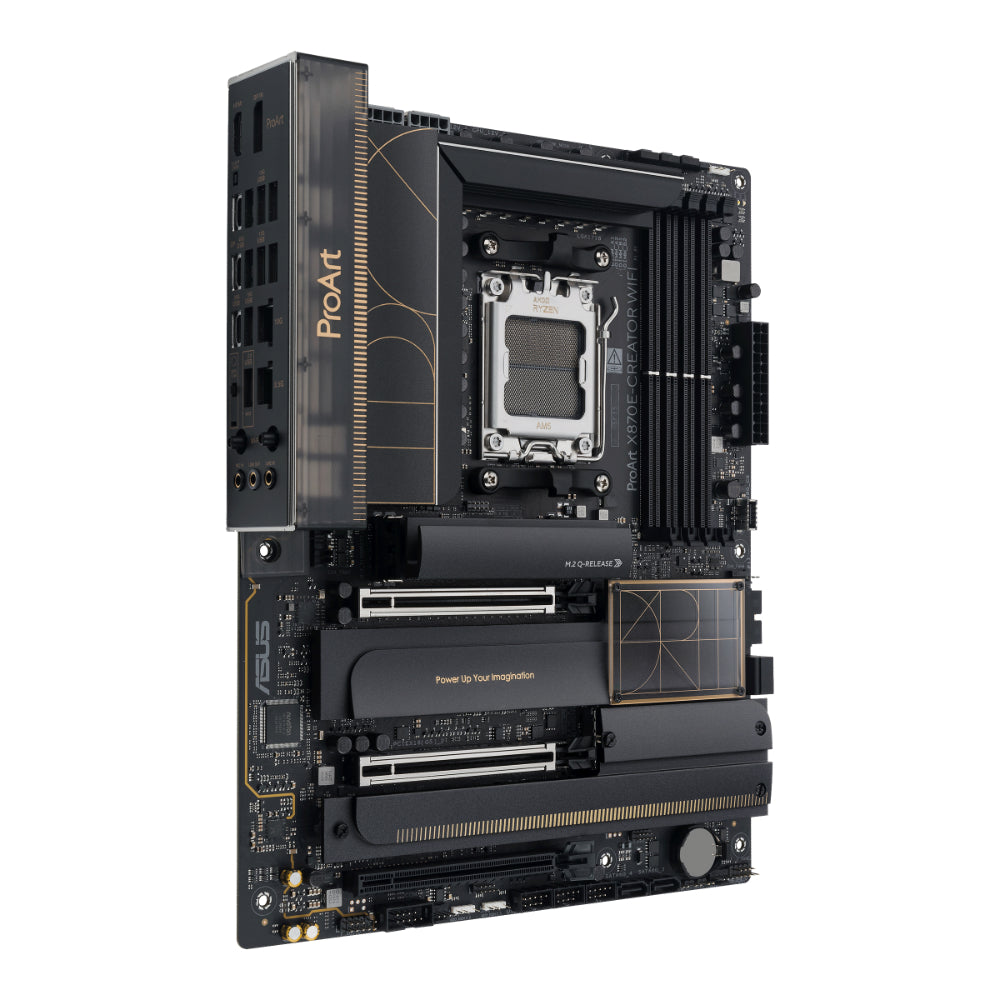

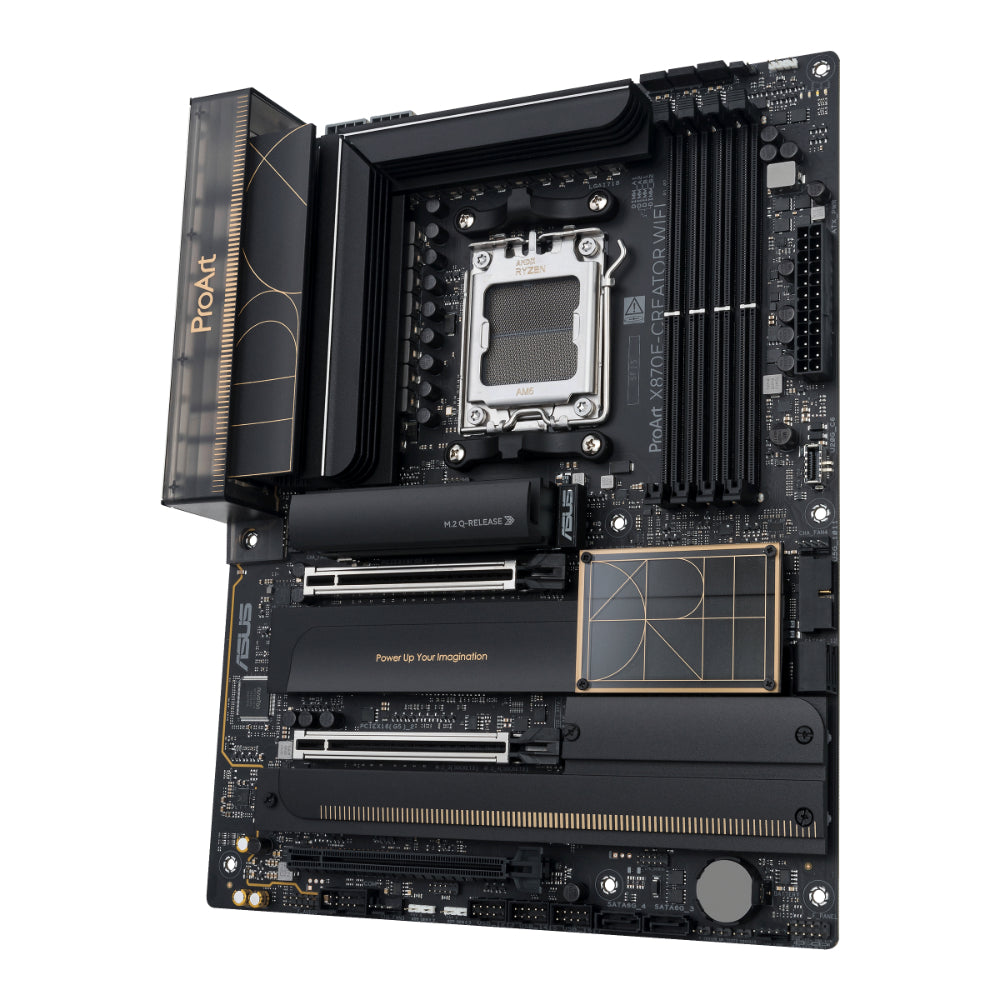

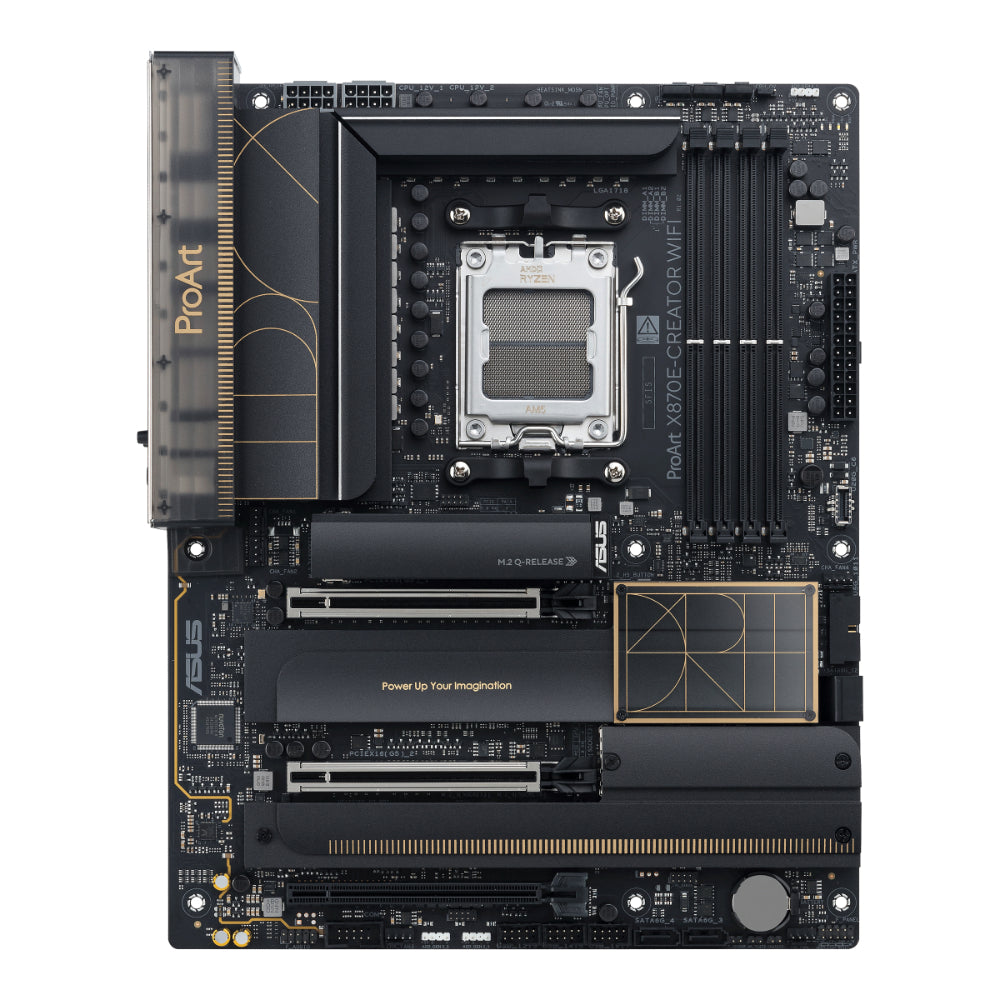

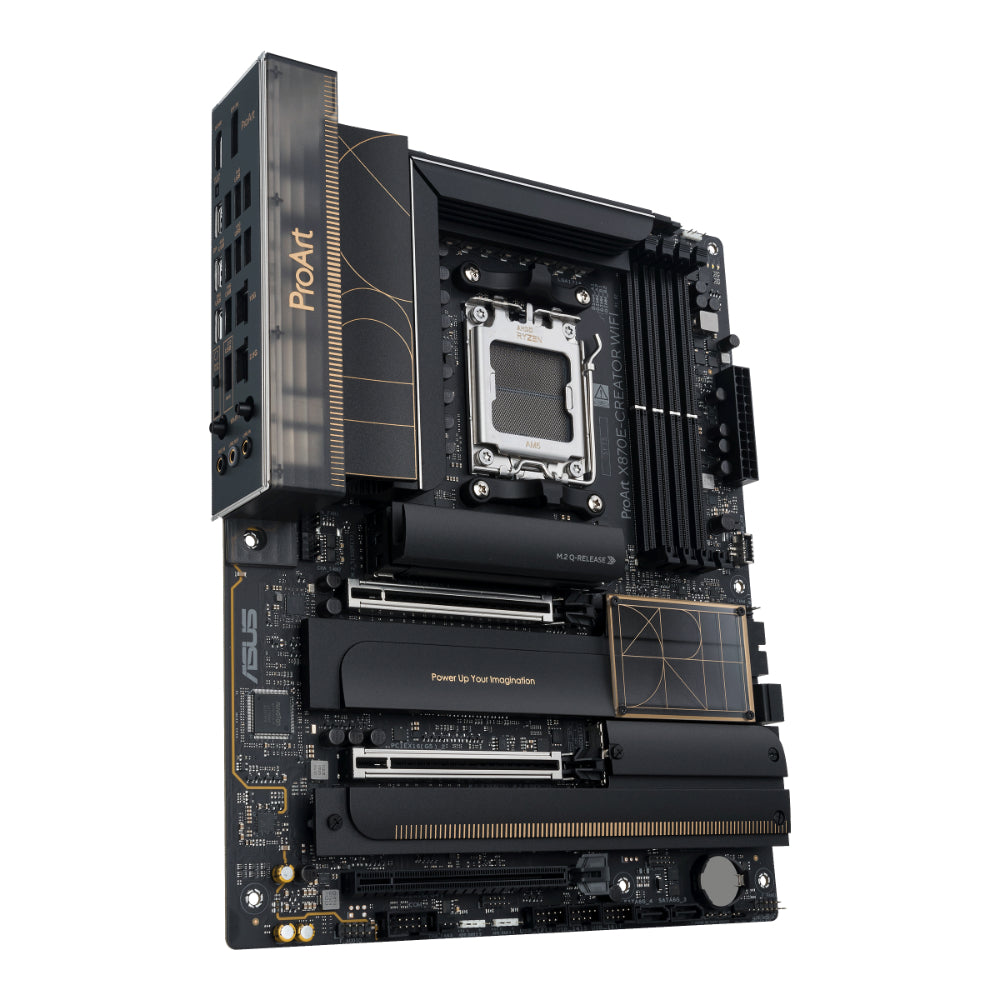

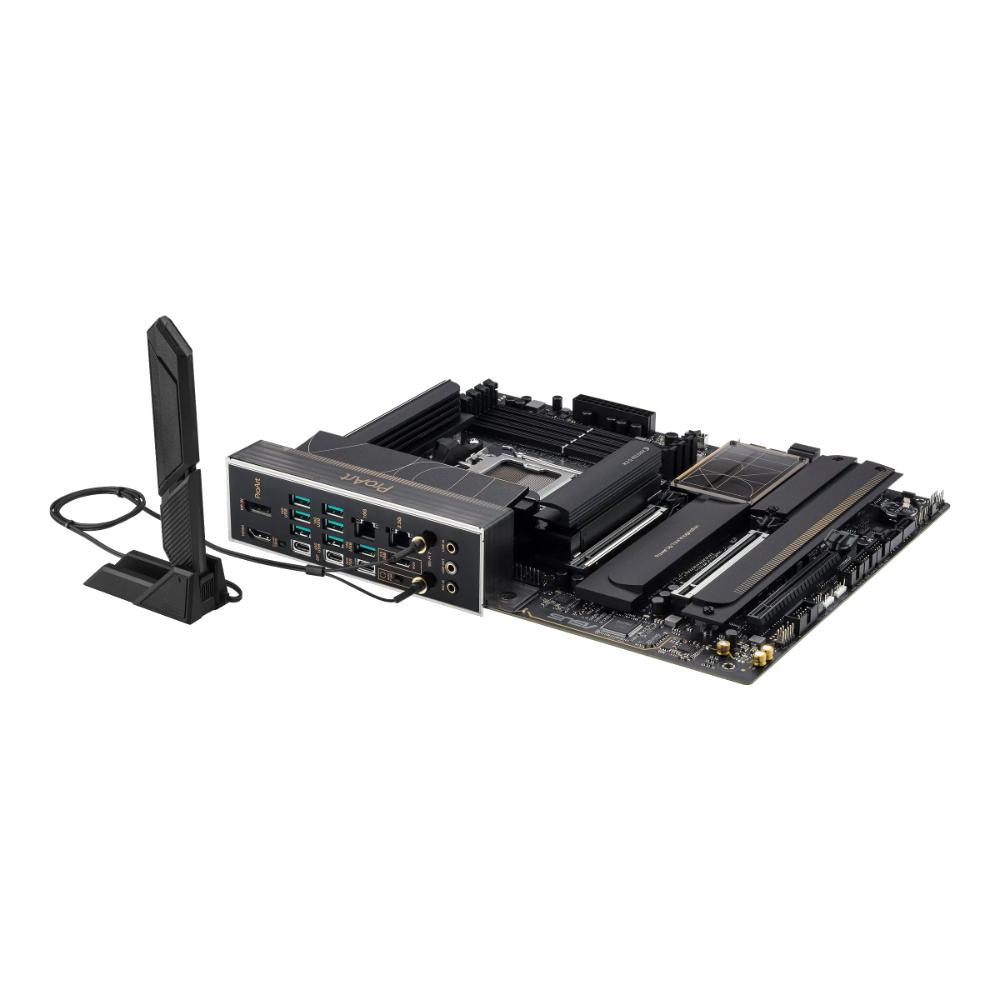

ASUS ProArt X870E-CREATOR WIFI Motherboard | AMD X870E | AM5 | DDR5 256GB | PCIe 5.0 | Dual USB4 | 10GbE + 2.5GbE | Wi-Fi 7 | ATX

The ASUS ProArt X870E-CREATOR WIFI is a professional-grade AMD AM5 motherboard designed for content creators, professionals, and high-performance workstation systems. Built around the AMD X870E chipset, it supports AMD Ryzen™ 9000, 8000, and 7000 Series desktop processors, up to 256GB of DDR5 memory, PCIe 5.0, dual USB4, 10Gb Ethernet, 2.5Gb Ethernet, and Wi-Fi 7.

Designed with the ProArt philosophy of precision and professional aesthetics, the motherboard features a sophisticated black design with metallic gold accents and a translucent I/O cover that provides a view of the premium connectivity.

Key Features

AMD AM5 & X870E Platform

The motherboard features AMD Socket AM5 and supports AMD Ryzen™ 9000, 8000, and 7000 Series desktop processors. The AMD X870E chipset provides a high-performance platform for professional content creation, workstation applications, demanding multitasking, and advanced PC builds.

DDR5 Memory up to 256GB

Four DIMM slots support up to 256GB of DDR5 memory with speeds of up to 8000+ MT/s (OC) with supported Ryzen processors.

Memory support includes:

• DDR5 ECC and Non-ECC Unbuffered DIMM
• Dual-channel memory architecture
• AMD EXPO™
• ASUS Enhanced Memory Profile (AEMP)
• On-Die ECC support on non-ECC unbuffered DDR5 memory

Actual memory support and operating speeds depend on the CPU and memory configuration.

Dual PCIe 5.0 x16 Slots

With supported AMD Ryzen 9000 and 7000 Series processors, the motherboard provides two PCIe 5.0 x16 slots with ASUS Q-Release Slim technology.

The slots support:

• x16
• x8/x8
• x8/x4/x4

When both primary PCIe 5.0 slots are used, they operate at x8/x8.

The second PCIe 5.0 slot shares bandwidth with the M.2_2 slot. When M.2_2 is enabled, the primary slot operates at x8 and the second PCIe slot operates at x4.

Four M.2 Storage Slots

The motherboard supports four M.2 slots and four SATA 6Gb/s ports for high-speed and flexible storage configurations.

With Ryzen 9000 and 7000 Series processors:

• M.2_1: PCIe 5.0 x4
• M.2_2: PCIe 5.0 x4

With Ryzen 8000 Series processors:

• M.2_1: PCIe 4.0 x4
• M.2_2: Not supported

Through the X870E chipset:

• M.2_3: PCIe 4.0 x4
• M.2_4: PCIe 4.0 x4

M.2_4 supports 2242, 2260, 2280, and 22110 drives.

10 GbE + 2.5 GbE Networking

Professional networking is provided through two high-speed Ethernet controllers:

• Marvell AQtion 10Gb Ethernet
• Intel 2.5 Gb Ethernet

ASUS LANGuard provides additional protection for the wired network interface.

Wi-Fi 7 & Bluetooth 5.4

Integrated 2x2 Wi-Fi 7 supports the 2.4 GHz, 5 GHz, and 6 GHz frequency bands with up to 320 MHz channel bandwidth.

Bluetooth 5.4 provides wireless connectivity for compatible peripherals and devices.

The supplied Wi-Fi module may use Qualcomm QCNCM865 or MediaTek MT7927 depending on the product version.

Dual USB4 40 Gbps

Two rear USB4 40 Gbps Type-C ports provide high-speed connectivity and support USB Type-C display outputs.

The motherboard also includes:

• 1 x rear USB 20 Gbps Type-C
• 7 x rear USB 10 Gbps Type-A
• 1 x rear USB 2.0 Type-A

Front USB-C with 30W Power Delivery

The internal USB 20 Gbps Type-C connector supports up to 30 W fast charging with USB Power Delivery and Quick Charge 4+ support.

Supported output includes:

• 5V / 9V up to 3A
• 12V up to 2.5A
• 15V up to 2A

The USB Wattage Watcher provides power monitoring functionality.

Professional 7.1-Channel Audio

The Realtek ALC1220P audio codec provides 7.1-channel high-definition audio with features designed for professional and multimedia systems.

Audio features include:

• Front and rear headphone impedance sensing
• Internal audio amplifier
• Jack detection
• Multi-streaming
• Front-panel jack retasking
• 120 dB SNR stereo playback
• 113 dB SNR recording input
• Up to 32-bit/192kHz playback
• Audio shielding
• Premium audio capacitors
• Dedicated audio PCB layers
• De-pop circuit

Due to HDA bandwidth limitations, 32-bit/192 kHz is not supported for 7.1-channel surround sound audio.

Comprehensive Thermal Design

The ProArt X870E-CREATOR WIFI includes dedicated thermal solutions for high-performance components:

• M.2 heatsinks
• M.2 heatsink backplate
• VRM heatsink design
• CPU fan header
• CPU OPT fan header
• AIO pump header
• Five chassis fan headers
• Thermal sensor header

ASUS 5X Protection III

The motherboard incorporates ASUS protection technologies, including

• DIGI+ VRM
• Enhanced DRAM Overcurrent Protection
• ESD Guards
• LANGuard
• Overvoltage Protection
• SafeSlot
• Stainless-Steel Back I/O

ASUS Q-Design

ASUS Q-Design technologies simplify installation and maintenance:

• M.2 Q-Latch
• M.2 Q-Release
• M.2 Q-Slide
• PCIe Slot Q-Release Slim
• Q-Antenna
• Q-Connector
• Q-DIMM
• Q-LED
• Q-Slot

EZ DIY Features

The motherboard includes convenient installation and maintenance features such as

• BIOS FlashBack button
• BIOS FlashBack LED
• ProCool
• Pre-mounted I/O shield
• SafeSlot
• SafeDIMM

ProArt Creator Features

Designed specifically for professional workflows, the motherboard supports:

• ProArt Creator Hub
• Creation First
• ASUS Control Center Express
• 24/7 reliability features
• Overcurrent protection

Technical Specifications

Specification	Details
Brand	ASUS
Series	ProArt
Model	ProArt X870E-CREATOR WIFI
Form Factor	ATX
Dimensions	30.5 x 24.4 cm
CPU Socket	AMD Socket AM5
CPU Support	AMD Ryzen 9000 / 8000 / 7000 Series
Chipset	AMD X870E
Memory Slots	4 x DIMM
Maximum Memory	256GB
Memory Type	DDR5
Memory Speed	Up to 8000+ MT/s (OC)
Memory Architecture	Dual Channel
Memory Support	ECC/Non-ECC buffered DIMM
Memory Technologies	AMD EXPO / ASUS AEMP
PCIe 5.0 Slots	2 x PCIe 5.0 x16
Additional PCIe	1 x PCIe 4.0 x16, x4 mode
M.2 Slots	4 x M.2
SATA	4 x SATA 6 Gb/ss
Ethernet	Marvell AQtion 10GbE + Intel 2.5GbE
Wireless	Wi-Fi 7 2x2
Wi-Fi Bands	2.4 GHz / 5 GHz / 6 GHz
Wi-Fi Bandwidth	Up to 320MHz
Bluetooth	5.4
Rear USB	11 ports
USB4	2 x USB4 40 Gbps Type-C
Rear USB 20 Gbps	1 x Type-C
Rear USB 10 Gbps	7 x Type-A
Rear USB 2.0	1 x Type-A
Front USB	9 ports
Front USB-C	USB 20 Gbps, up to 30 WW PD/QC4+
Audio Codec	Realtek ALC1220P
Audio	7.1-Channel HD Audio
HDMI	1 x HDMI 2.1
DisplayPort	1 x DisplayPort Input
BIOS	256 MBB Flash ROM, UEFI AMI BIOS
Operating System	Windows 11

Expansion Slots

With AMD Ryzen 9000 and 7000 Series processors:

• 2 x PCIe 5.0 x16 slots
• Supports x16 or x8/x8 or x8/x4/x4 configurations

With AMD Ryzen 8700, 8600, and 8400 Series processors:

• 1 x PCIe 4.0 x16 slot
• Total bandwidth of x8
• Second PCIe slot disabled

With AMD Ryzen 8500 and 8300 Series processors:

• 1 x PCIe 4.0 x16 slot
• Total bandwidth of x4
• Second PCIe slot disabled

Through the AMD X870E chipset:

• 1 x PCIe 4.0 x16 slot supporting x4 mode

PCIe operating modes vary depending on the installed processor.

Storage Support

The motherboard supports:

• 4 x M.2 slots
• 4 x SATA 6Gb/s ports

M.2 Configuration

Ryzen 9000 / 7000 Series:

• M.2_1: PCIe 5.0 x4
• M.2_2: PCIe 5.0 x4

Ryzen 8000 Series:

• M.2_1: PCIe 4.0 x4
• M.2_2: Not supported

AMD X870E Chipset:

• M.2_3: PCIe 4.0 x4
• M.2_4: PCIe 4.0 x4

Supported M.2 form factors include 2242, 2260, and 2280, while M.2_4 also supports 22110.

RAID Support

AMD RAIDXpert2 supports:

• Ryzen 9000: PCIe RAID 0/1/5/10
• Ryzen 8000: PCIe RAID 0/1
• Ryzen 7000: PCIe RAID 0/1/10

SATA RAID is supported by MD chipsets:

• RAID 0/1/10

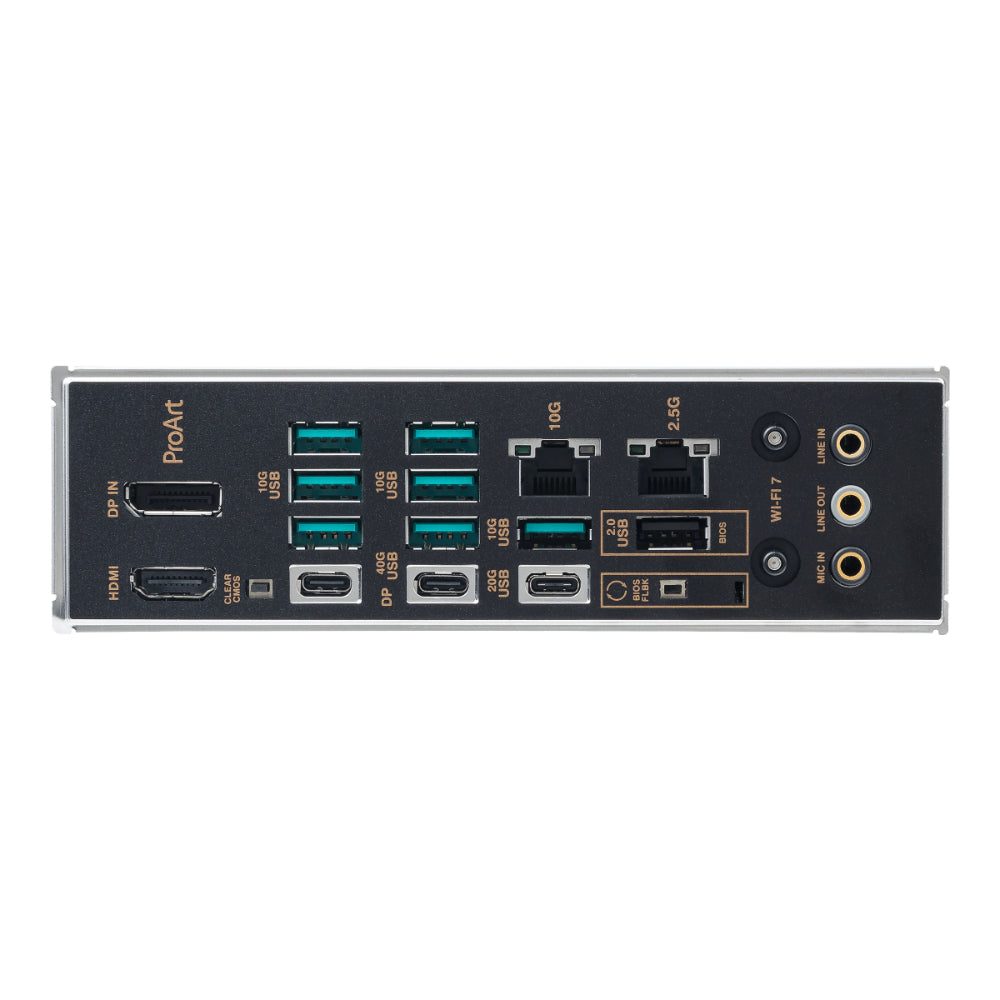

Rear I/O

• 2 x USB4 40 Gbps Type-C
• 1 x USB 20 Gbps Type-C
• 7 x USB 10 Gbps Type-A
• 1 x USB 2.0 Type-A
• 1 x DisplayPort Input
• 1 x HDMI
• Wi-Fi module connectors
• 1 x Marvell AQtion 10Gb Ethernet
• 1 x Intel 2.5 Gb Ethernet
• 3 x Audio jacks
• 1 x BIOS FlashBack button
• 1 x Clear CMOS button

Internal I/O

Fan & Cooling

• 1 x CPU fan header
• 1 x CPU OPT Fan header
• 1 x AIO Pump header
• 5 x Chassis Fan headers
• 1 x Thermal Sensor header

Power

• 1 x 24-pin main power connector
• 2 x 8-pin +12V CPU power connectors
• 1 x CPU Over Voltage jumper

Storage

• 4 x M.2 Key M slots
• 4 x SATA 6Gb/s ports

USB

• 1 x USB 20 Gbpss Type-C connector with up to 30W PD/QC4+
• 1 x USB 5Gbps header supporting 2 additional USB 5Gbps ports
• 3 x USB 2.0 headers supporting 6 additional USB 2.0 ports

Other Connectors

• 3 x Addressable Gen 2 headers
• Chassis Intrusion Header
• COM Port header
• Front Panel Audio header
• 10-1 pin system panel header

Software & Utilities

The motherboard supports a range of ASUS software and professional tools:

• Armoury Crate
• Aura Creator
• Aura Sync
• Fan Xpert 4 with AI Cooling II
• Power Saving
• ASUS DriverHub
• ASUS GlideX
• USB Wattage Watcher
• TurboV Core
• ASUS CPU-Z
• ProArt Creator Hub
• Creation First
• ASUS Control Center Express
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
• FlexKey

Additional software included:

• Adobe Creative Cloud — Free Trial
• Norton 360 Deluxe — 60-day Free Trial
• WinRAR — 40-day Free Trial

Display Connectivity

The motherboard provides multiple display outputs through integrated connectivity:

• 1 x HDMI 2.1 supporting up to 4K at 60 Hz
• 2 x USB4 40 Gbps Type-C ports supporting display outputs up to 8K@60 Hz as specified by DisplayPort 1.4
• 1 x DisplayPort input on the rear I/O

Actual graphics capabilities depend on the installed processor and graphics configuration.

BIOS & Manageability

The motherboard features a 256 MB ROM with UEFI AMI BIOS.

Manageability features include:

• ASUS Control Center Express
• Wake-on-LAN by PME
• PXE support
• BIOS FlashBack
• Clear CMOS
• ASUS EZ Flash 3
• ASUS CrashFree BIOS 3

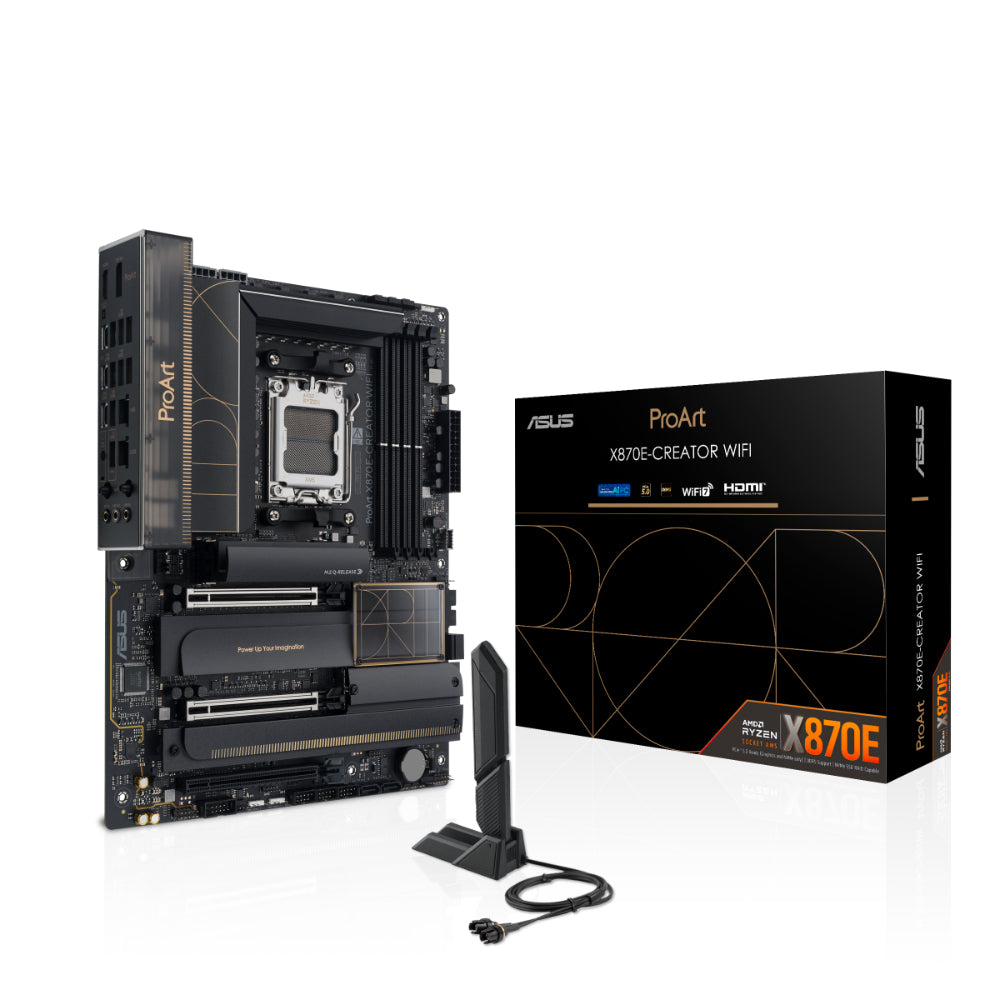

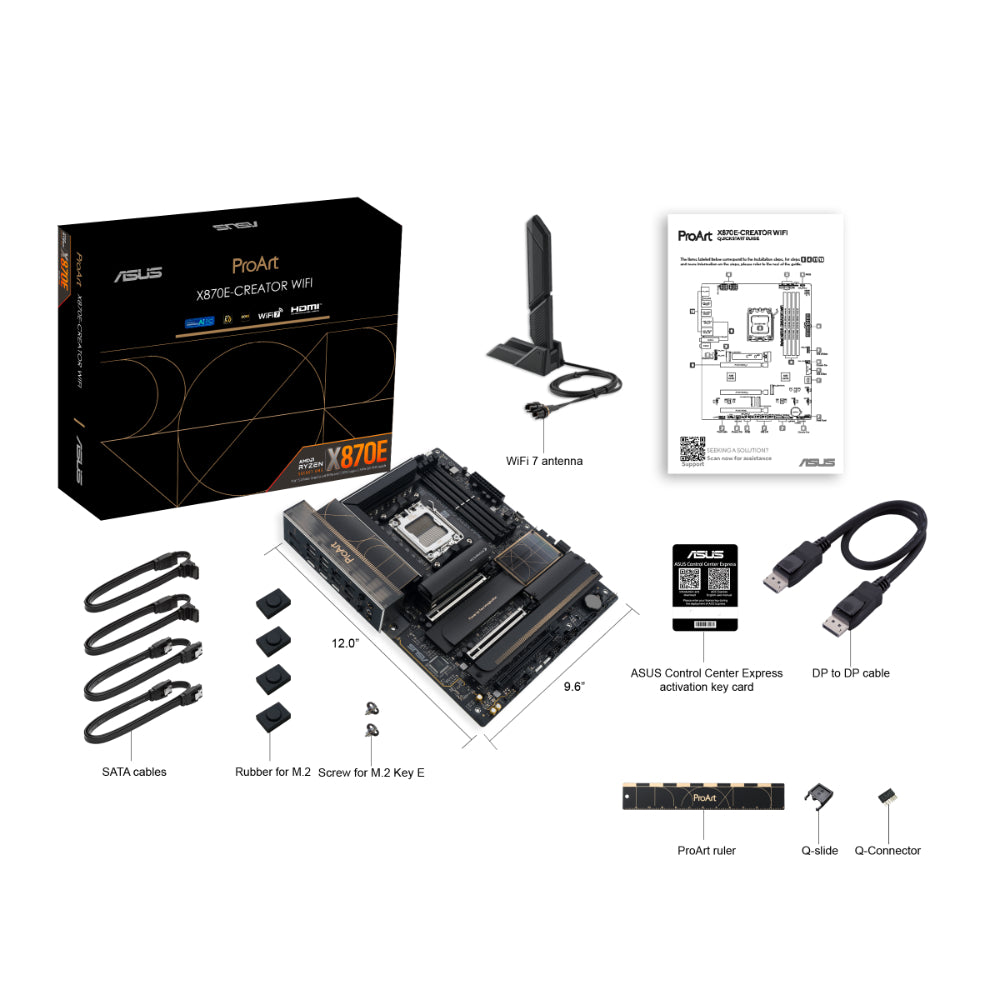

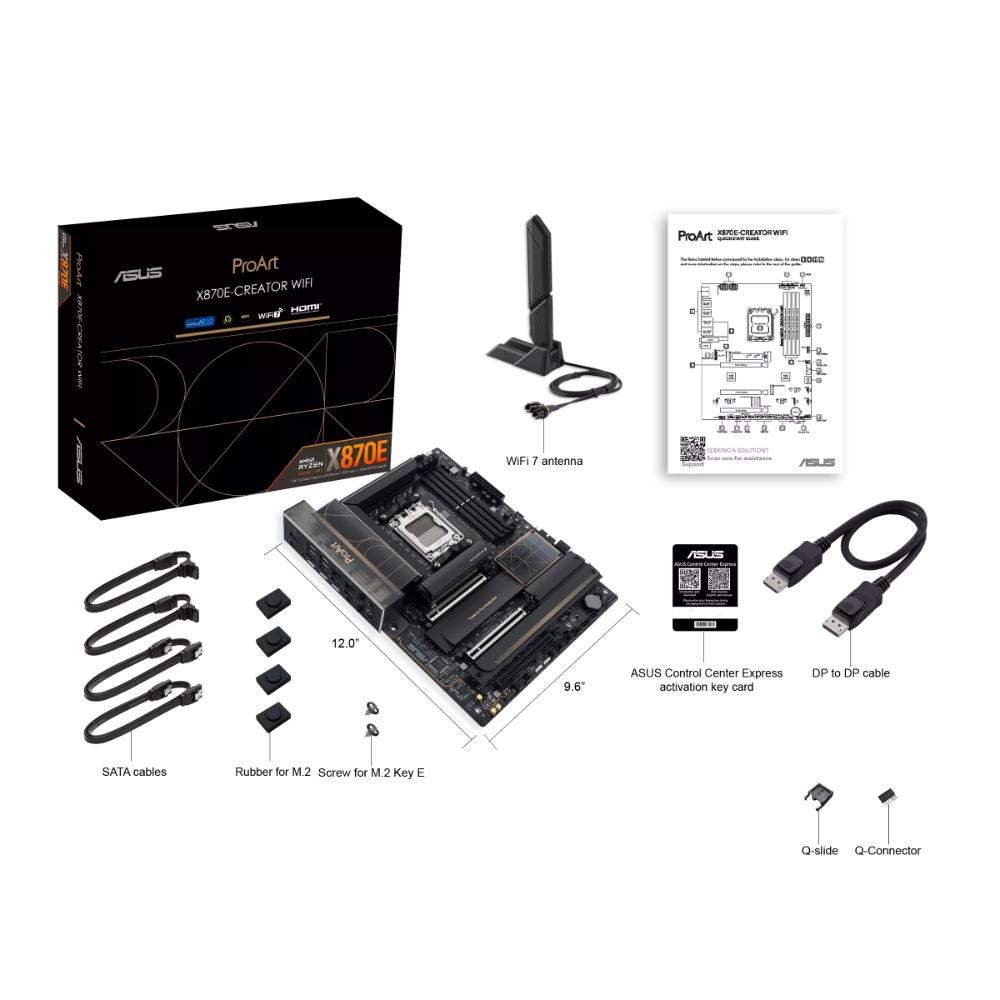

Accessories

Cables

• 1 x DisplayPort cable
• 4 x SATA 6Gb/s cables

Additional Cooling

• 1 x Thermal pad for M.2 22110

Other Accessories

• ASUS Wi-Fi Q-Antenna
• Q-Connector
• M.2 Q-Latch package
• M.2 Q-Latch Q-Slide package for M.2 backplate
• 2 x Rubber packages for M.2
• ProArt Gift Item

Documentation

• Quick Start Guide
• ACC Express Activation Key Card

Ideal For

• Professional content creators
• Video editors
• 3D artists and designers
• Photographers
• Creative professionals
• High-performance workstation systems
• AI and compute-intensive PC builds
• Professional multitasking
• Advanced AM5 desktop systems
• High-speed storage and networking environments

Why Choose ASUS ProArt X870E-CREATOR WIFI?

The ASUS ProArt X870E-CREATOR WIFI combines the AMD X870E platform with high-speed DDR5 memory, dual PCIe 5.0 x16 slots, four M.2 slots, dual USB4 connectivity, 10 GbE and 2.5 GbEbE networking, Wi-Fi 7, professional-grade audio, advanced cooling, and ProArt-focused software and management features. It provides a strong foundation for demanding creator and workstation systems.
