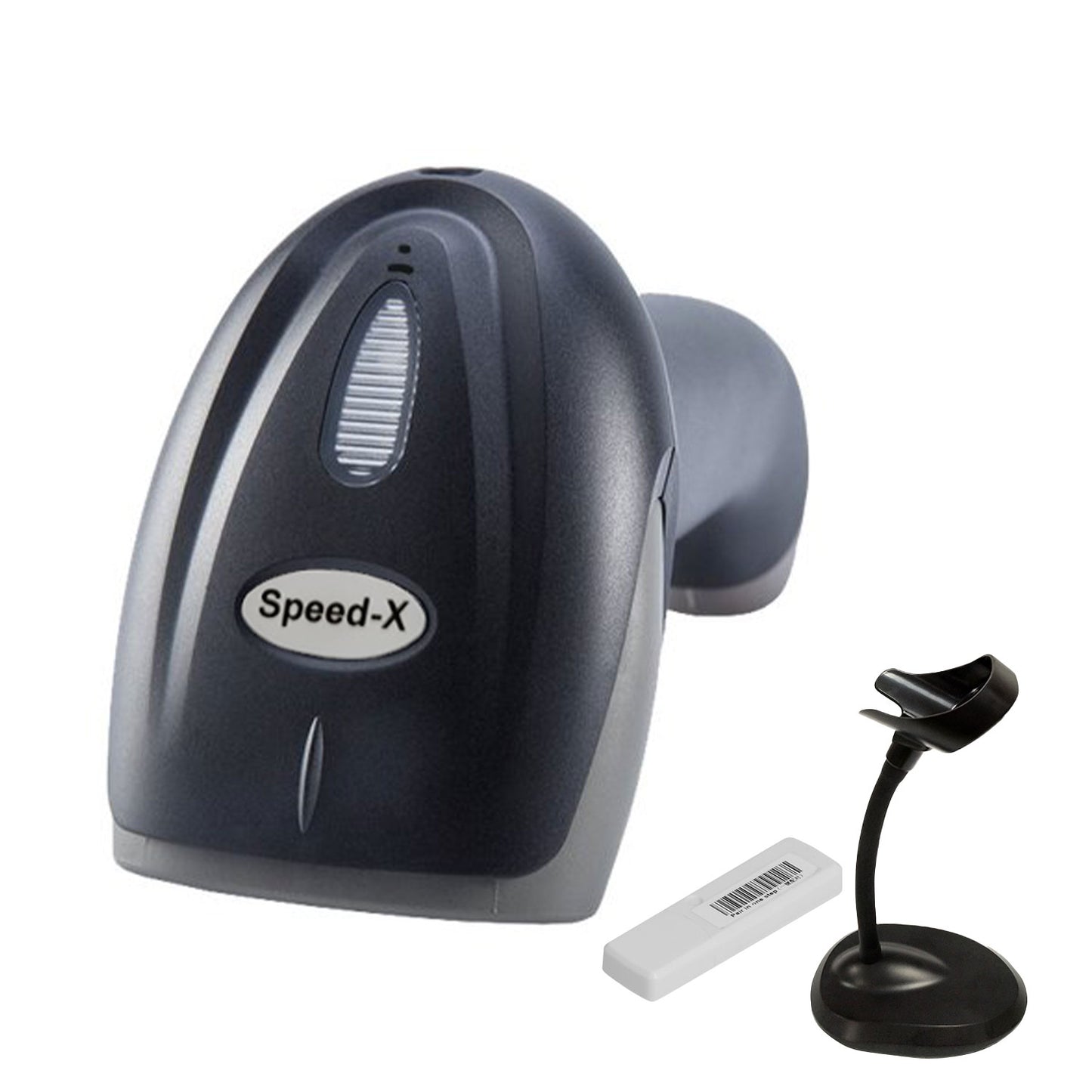

Speed-X 60D | 2D Wireless 2.4GHz Barcode Scanner with Stand

The Speed-X 60D is a 2D wireless handheld barcode scanner designed for fast and efficient scanning with unmatched mobility. With its reliable 2.4GHz communication technology, ergonomic design, and long-lasting battery, it ensures optimal performance for various business applications. This scanner supports both 1D and 2D barcodes, making it suitable for retail, inventory management, and logistics.

Key Features

1. Wireless Freedom

   • Utilizes 2.4GHz wireless technology for stable communication within a 30m range (line of sight).
   • Comes with a USB wireless receiver for easy plug-and-play connectivity.

2. High Performance

   • Equipped with a CMOS array sensor for superior barcode decoding.
   • Reads a wide range of 1D and 2D barcodes on paper, screens, and other media.

3. Extended Battery Life

   • Powered by a 1500mAh lithium battery with:
     • 4 hours of continuous reading time.
     • 9.5 hours in manual reading mode.
     • Over 15 days of standby time.
   • Fully charges in 4.5 hours.

4. Versatile Scan Modes

   • Supports real-time mode and inventory mode for different scanning scenarios.

5. Durable and User-Friendly Design

   • Withstands 1.5m drops onto concrete.
   • Lightweight (186g) with an ergonomic grip for comfortable use.

6. Wide Compatibility

   • Decodes all major 1D and 2D barcode symbologies.
   • Compatible with multiple languages and supports USB HID Keyboard interface.

7. Stand Included

   • Comes with a stand for hands-free operation, improving workflow efficiency.

Technical Specifications

Wireless Characteristics

• Communication Frequency: 2.402 to 2.480GHz
• Transmission Range: ≤30m in open areas
• Data Rate: 1Mbps
• Memory: Stores up to 100,000 barcodes (13-byte per barcode)

Electrical Characteristics

• Interface: USB HID Keyboard (Wireless Receiver)
• Voltage: Max 120mA, Min 50mA

Optical Characteristics

• Sensor: CMOS array sensor with 648x488 pixels
• Light Source: White LED with red bar LED for aiming
• Field of View: 46° (H), 35° (V)

Performance Characteristics

• Decoding Angle:
  • Pitch: ±60°
  • Skew: ±60°
  • Tilt: ±180°
• Resolution:
  • 1D: ≥4mil
  • 2D: ≥10mil
• Min PCS Value: >15% (UPC/EAN 13, 13mil)

Decoding Depth of Field

Physical Characteristics

• Scanner Dimensions: 95mm x 70mm x 168mm
• Receiver Dimensions: 83mm x 18mm x 13mm
• Weight:
  • Scanner: 186g
  • Receiver: 16g

Environmental Characteristics

• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Humidity: 20% to 85% (operation); 20% to 95% (storage)
• Ambient Light Tolerance:
  • Fluorescent Light: 4000 lx max
  • Direct Sunlight: 80,000 lx max

Applications

• Retail: Streamline checkout and stock replenishment.
• Warehouse: Efficient inventory tracking and management.
• Logistics: Optimize package scanning and tracking.
• Healthcare: Manage patient records and inventory seamlessly.

Why Choose SPEED-X 60D?

The Speed-X 60D 2D Wireless Barcode Scanner is a robust and versatile solution for businesses requiring mobility, high performance, and reliable scanning. Its wireless capabilities, ergonomic design, and support for a wide range of barcodes make it ideal for improving efficiency across various industries.
