Thermalright ARGB and Fan Hub X10 Black | 10-Port PWM Fan & ARGB Controller | 10× PWM + 10× ARGB Headers | SATA Powered | 500mm Cable
Thermalright ARGB and Fan Hub X10 Black | 10-Port PWM Fan & ARGB Controller | 10× PWM + 10× ARGB Headers | SATA Powered | 500mm Cable
Couldn't load pickup availability
The Thermalright ARGB and Fan Hub X10 Black is an all-in-one internal controller designed to expand compatible PC systems with multiple PWM fan and 5V ARGB connections. It supports synchronized connection of up to 10 PWM fans and 10 ARGB devices, making it suitable for multi-fan and multi-lighting PC builds where motherboard headers are limited.
The hub uses direct SATA power for stable operation and supports mainstream motherboard 4-pin PWM fan headers and 5V 3-pin ARGB headers. Its compact 92.7 × 50 × 22 mm design allows flexible installation inside a variety of PC chassis.
Key Features
10-Port Synchronized Connection
Supports connection of up to 10 PWM fans and 10 ARGB devices, allowing fan power and lighting devices to be connected through a single compact hub.
This helps address limited motherboard header availability in systems with multiple cooling and lighting components.
Important: Fan speed control and lighting effect control are not supported by the hub itself.
Mainstream Motherboard Compatibility
Designed to work with mainstream motherboard:
- 5V 3-pin ARGB lighting headers
- 4-pin PWM fan headers
The hub supports motherboard synchronization technology for integrating compatible ARGB lighting with the motherboard.

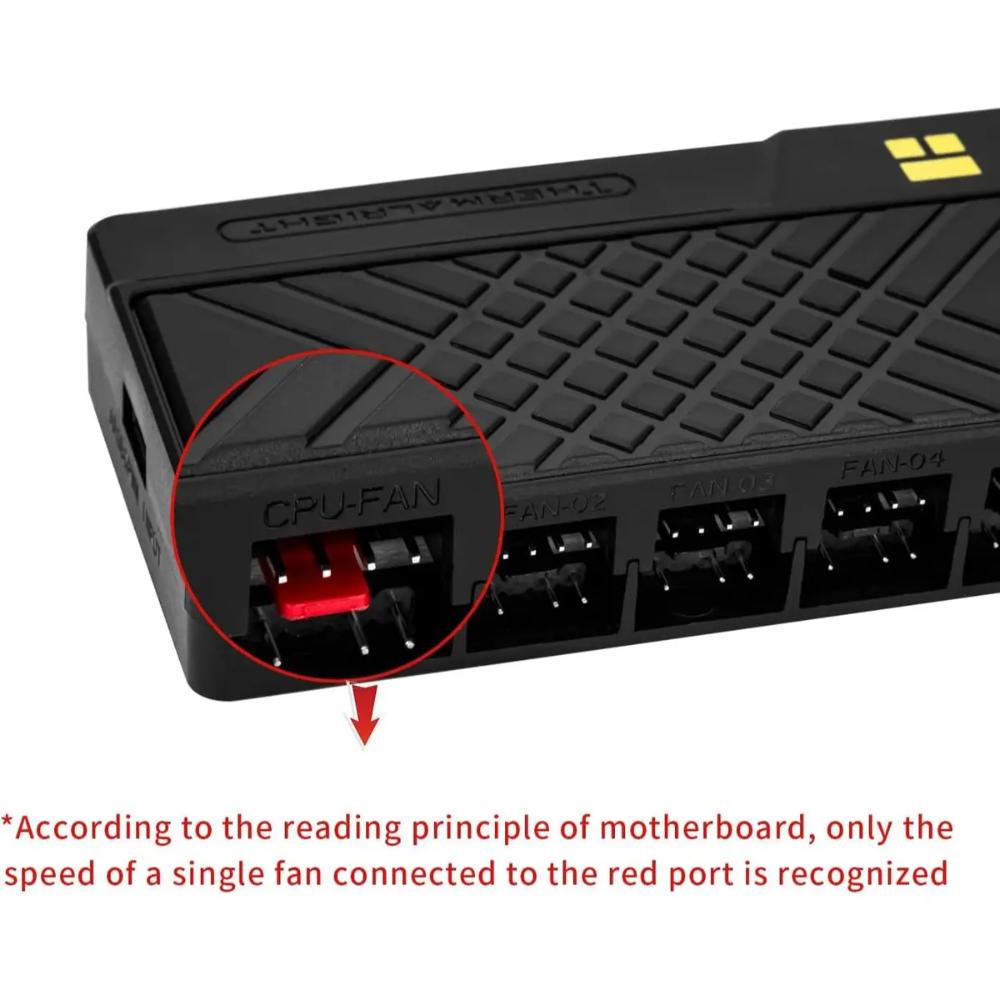

Due to limitations of PWM motherboard IC reading, the hub recognizes the fan speed of only one fan connected to the red header.
SATA-Powered Operation
The hub receives power directly through SATA, helping provide stable power for connected CPU fans and LED devices while reducing potential power limitations from motherboard headers.
SATA power cable is not included and must be purchased separately.
10× PWM Fan Headers
Provides 10 PC fan headers for connecting multiple compatible PWM cooling fans.
Each connector has a maximum rated current of 1A.
10× ARGB Headers
Provides 10 ARGB headers for connecting multiple compatible 5V ARGB lighting devices and supporting synchronized lighting integration.
Plug-and-Play Design
The hub provides direct connection points for PWM fans and ARGB devices, while SATA direct power helps maintain stable operation.
Compact Installation

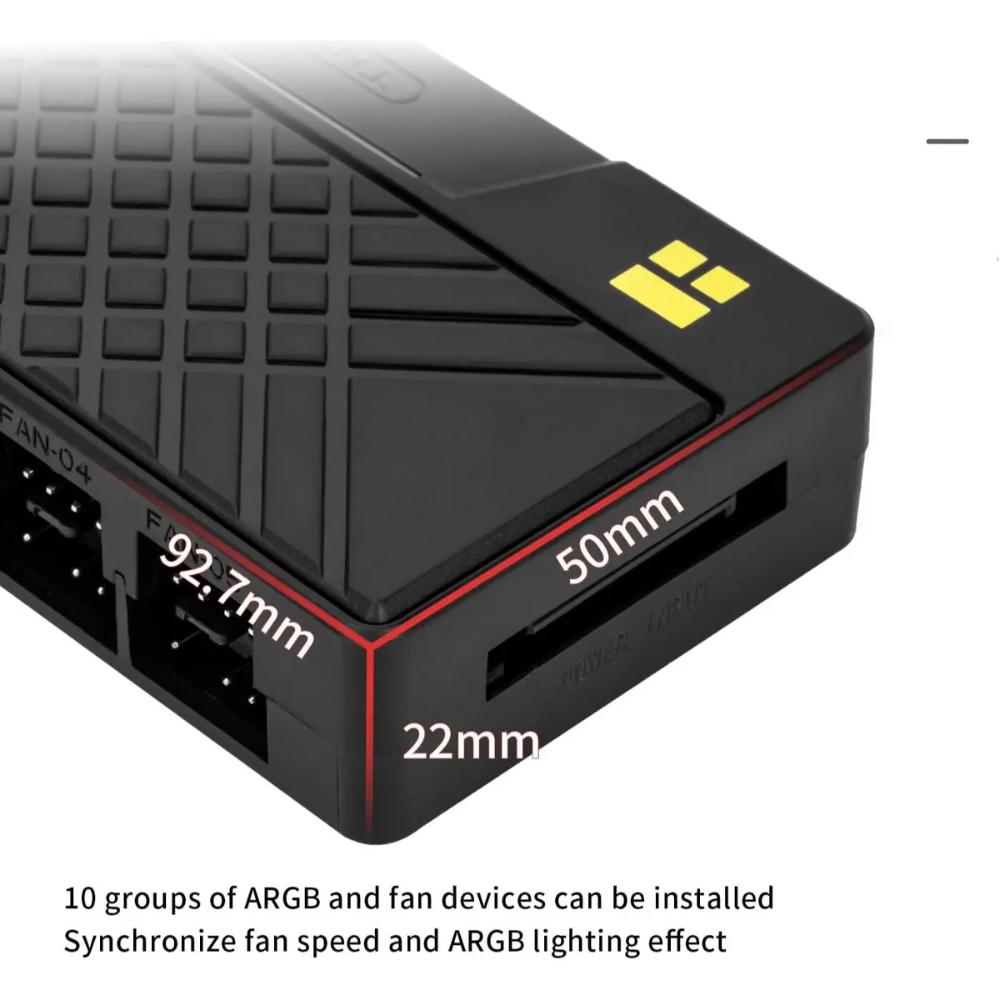

Measuring just 92.7 × 50 × 22 mm, the controller can fit into various chassis spaces and offers flexible installation options.
Technical Specifications
| Specification | Details |
|---|---|
| Product | Thermalright ARGB and Fan Hub X10 Black |
| Product Type | PWM Fan & ARGB Controller |
| PWM Fan Headers | 10 |
| ARGB Headers | 10 |
| Motherboard Fan Header | 4-Pin PWM |
| Motherboard ARGB Header | 5V 3-Pin ARGB |
| Power Connection | SATA Power |
| Maximum Rated Current | 1A per connector |
| Cable Length | 500 mm |
| Hub Dimensions | 92.7 × 50 × 22 mm |
| Color | Black |
Fan & ARGB Management
The X10 provides a centralized connection point for up to 10 PWM fans and 10 ARGB devices, helping simplify cable management in systems with multiple cooling and lighting components.
The hub supports motherboard synchronization for compatible ARGB lighting. However, fan speed control and lighting effect control are not supported by the hub itself.
For PWM monitoring, only the fan connected to the designated red header is recognized for fan-speed reading due to motherboard PWM IC limitations.
Power & Installation
The controller uses direct SATA power rather than relying solely on motherboard header power. This is designed to provide stable power delivery for connected fans and LED devices.
Note: A SATA power cable is required but is not included with the product.
The included 500mm cable provides flexibility for positioning the hub inside compatible PC cases.
Compatibility
The Thermalright ARGB and Fan Hub X10 Black is designed for:
- Compatible 4-pin PWM PC fans
- Compatible 5V 3-pin ARGB devices
- Mainstream motherboards with 4-pin PWM and 5V 3-pin ARGB headers
- Standard 120mm and 140mm fan configurations
- Mainstream PC cooling devices
Ideal For
- Gaming PC builds
- High-airflow systems
- Multi-fan configurations
- ARGB gaming PCs
- Custom PC builds
- Systems with limited motherboard fan headers
- Systems with multiple ARGB devices
- Cable-management-focused PC installations
