Thermalright Grand Vision 360 ARGB Black & White 360mm AIO Liquid CPU Cooler | 6400RPM Pump | TL-H12-X28-S Fans
Thermalright Grand Vision 360 ARGB Black & White 360mm AIO Liquid CPU Cooler | 6400RPM Pump | TL-H12-X28-S Fans
Couldn't load pickup availability

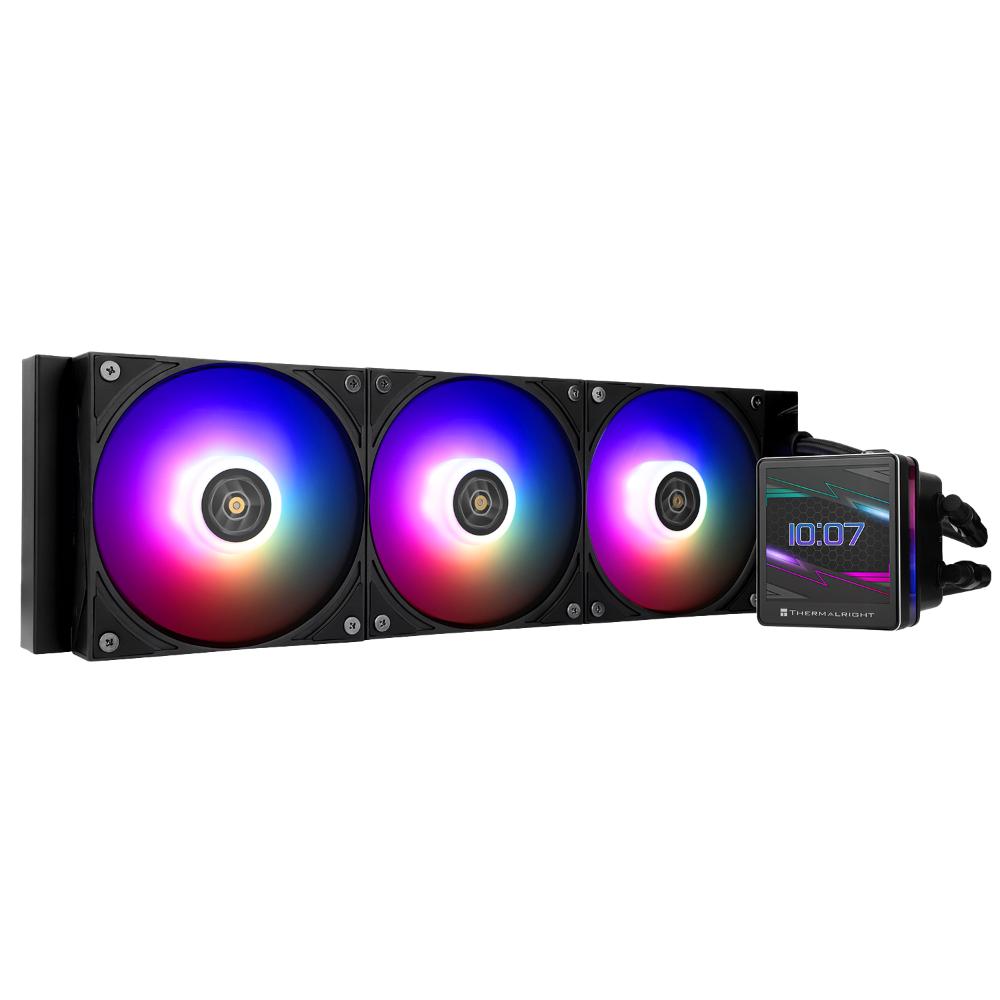

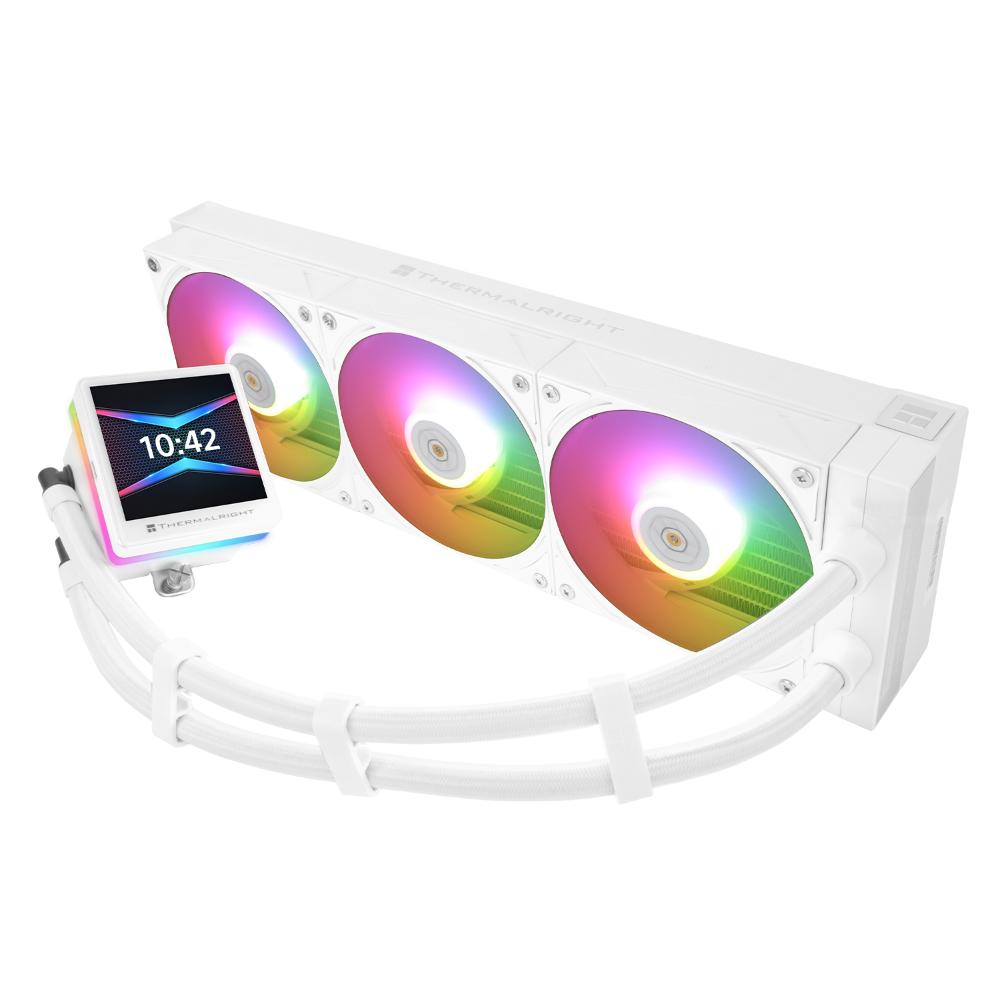

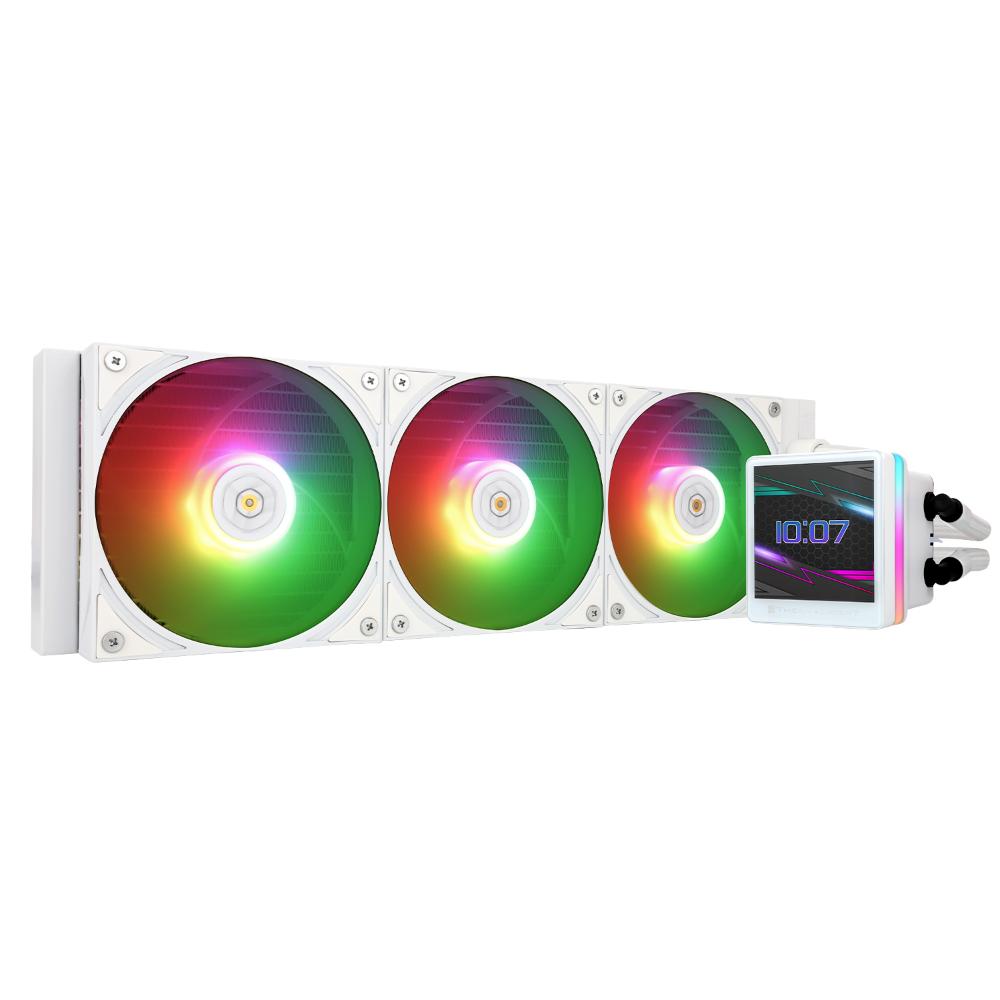

The Thermalright Grand Vision 360 ARGB Black & White is a high-performance 360mm all-in-one liquid CPU cooler designed for gaming PCs, enthusiast systems, and custom desktop builds. It combines a high-speed 6400RPM pump, large aluminum radiator, ARGB lighting, and three high-airflow TL-H12-X28-S PWM fans.
With support for a broad range of Intel and AMD CPU platforms, the Grand Vision 360 features 2150RPM fans, up to 80.45 CFM airflow, 2.65 mm H₂O air pressure, and a 5-year warranty.
Key Features
High-Speed 6400RPM Pump
The Grand Vision 360 uses a high-speed pump rated for up to 6400 RPM ±10%, providing rapid coolant circulation through the liquid cooling system.

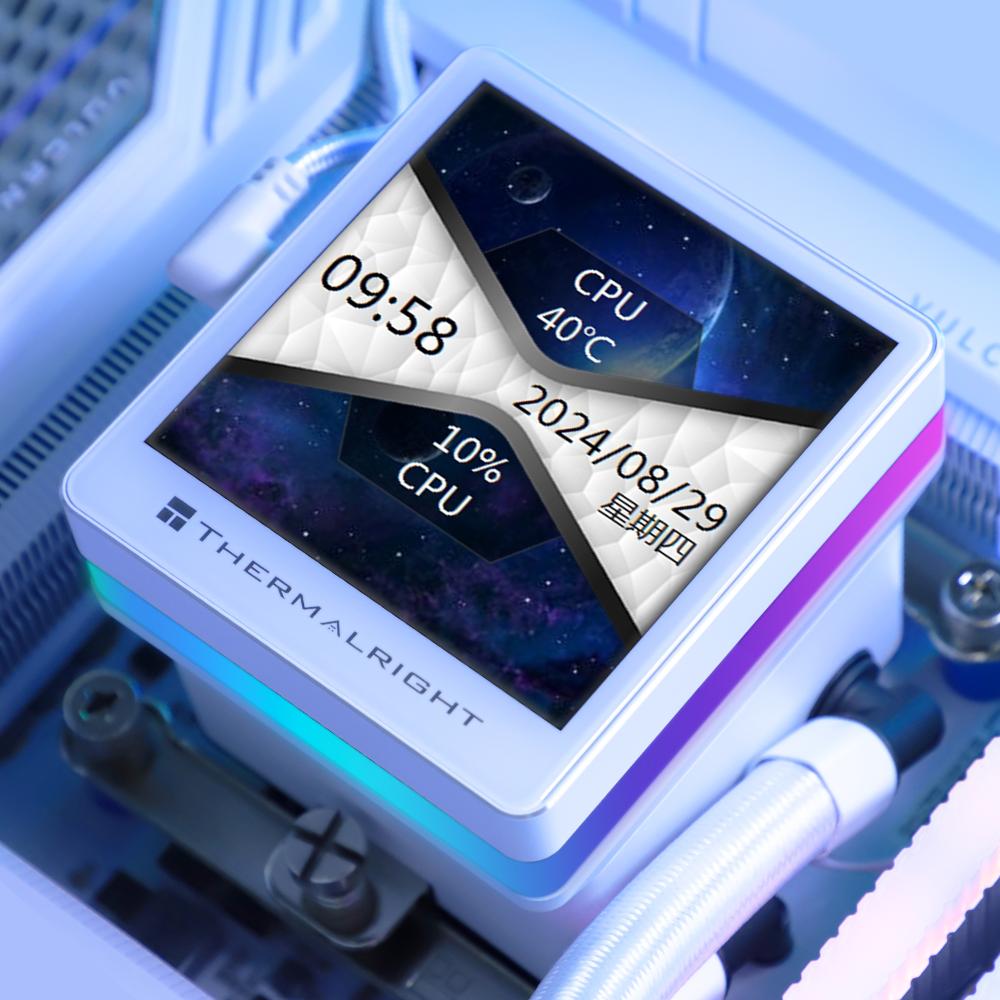

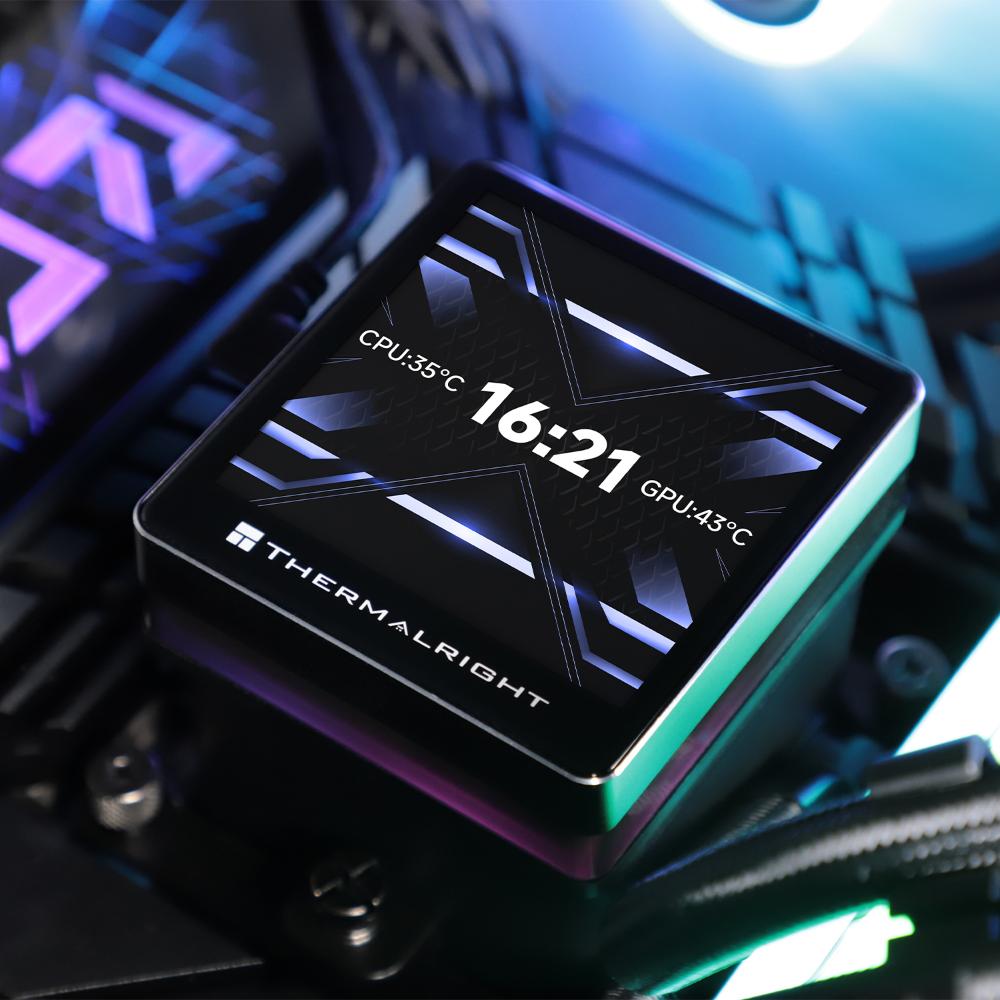

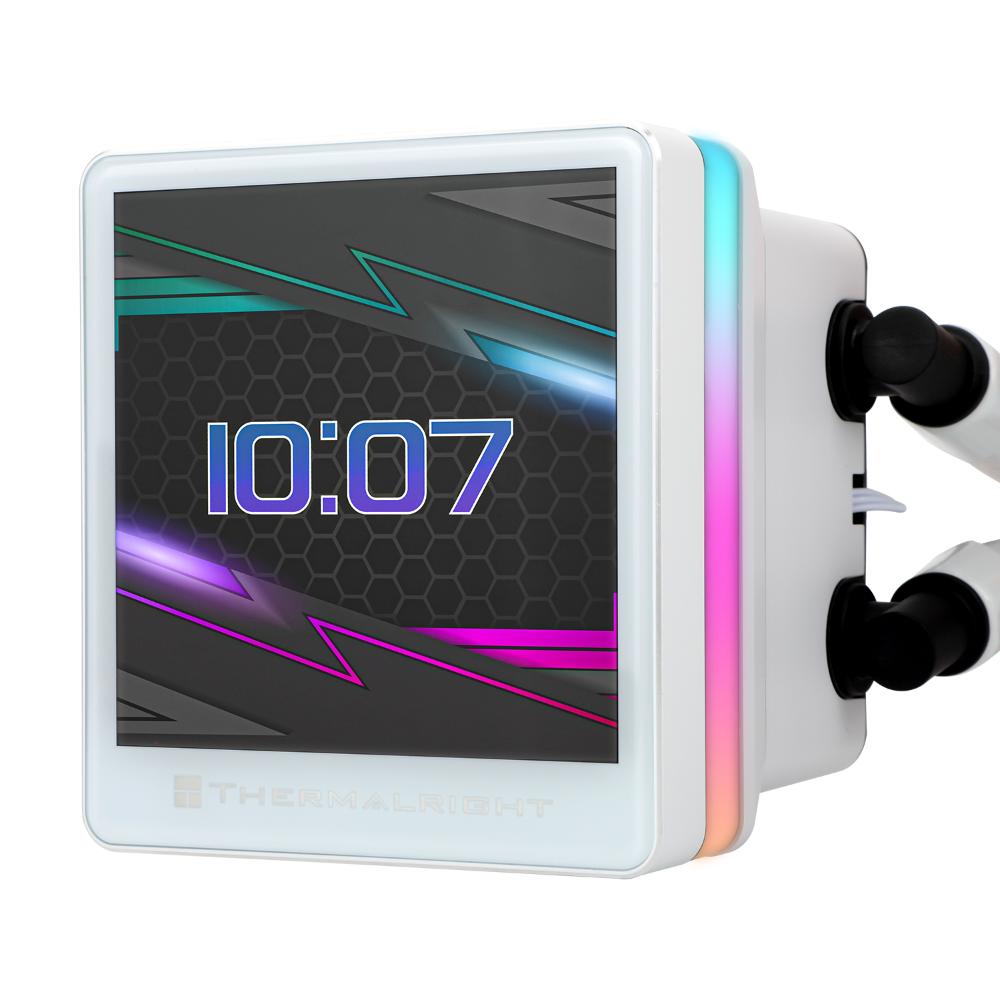

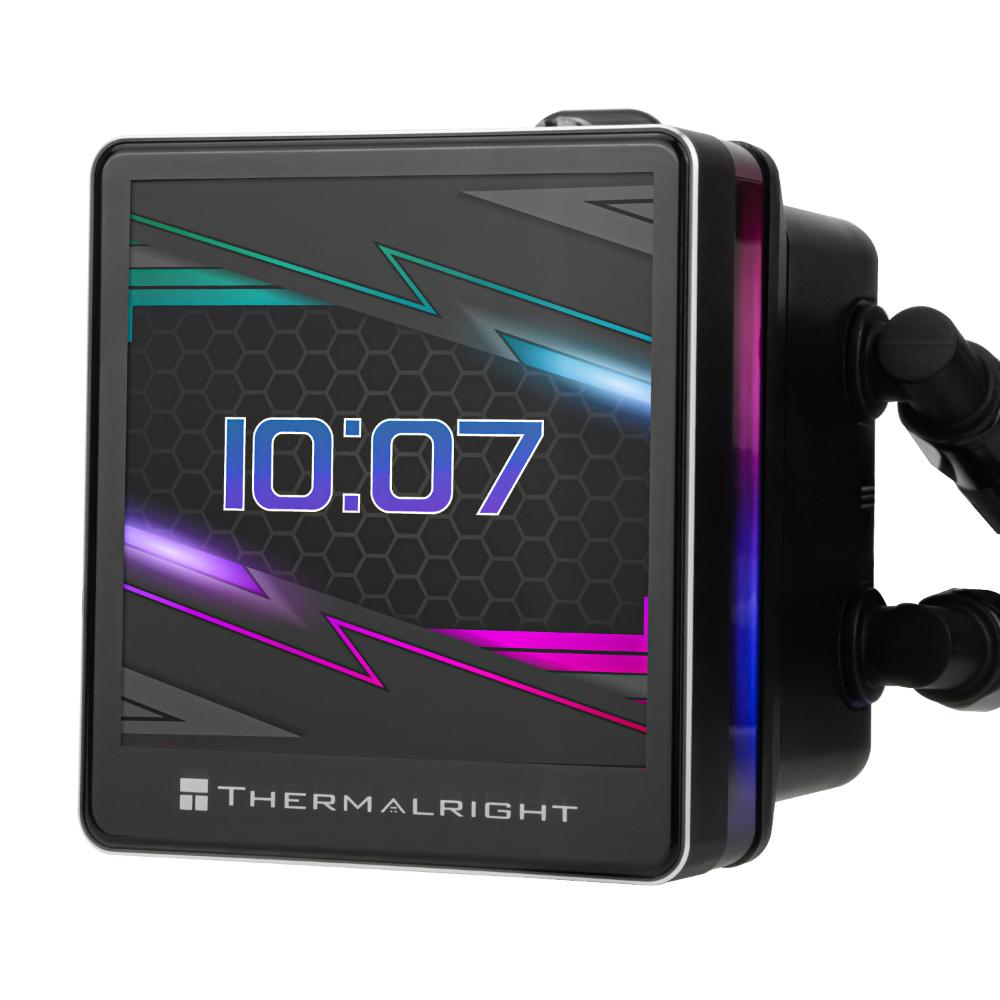

The water block measures 70.5 × 77.5 × 72.5mm and uses a 4-pin PWM connector for compatible motherboard control.
360mm Aluminum Radiator
The cooler features a large 403 × 120 × 27mm aluminum radiator, providing substantial surface area for heat dissipation in compatible 360mm radiator installations.
TL-H12-X28-S High-Airflow Fans
The Grand Vision 360 includes TL-H12-X28-S PWM fans measuring 120 × 120 × 28mm.
Each fan reaches up to 2150 RPM ±10%, delivering up to 80.45 CFM airflow and 2.65 mm H₂O air pressure.
ARGB Lighting
The cooling system features 3-pin 5V ARGB connectivity, allowing compatible ARGB lighting systems to be connected to the motherboard or supported controller.
Fan control uses a 4-pin PWM connector.
S-FDB V2 Bearing
The TL-H12-X28-S fans use an S-FDB V2 bearing, providing the specified bearing design for the radiator fan system.
Wide Intel & AMD Compatibility
The Grand Vision 360 supports a broad selection of desktop CPU platforms.
Intel:
- LGA115X
- LGA1200
- LGA1700
- LGA1851
- LGA2011
- LGA2066
AMD:
- AM4
- AM5
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Thermalright Grand Vision 360 ARGB Black & White |
| Cooler Type | 360mm AIO Liquid CPU Cooler |
| Water Block Dimensions | L70.5 × W77.5 × H72.5 mm |
| Pump Rated Speed | 6400 RPM ±10% MAX |
| Pump Connector | 4-Pin PWM |
| ARGB Connector | 3-Pin 5V |
| Radiator Dimensions | L403 × W120 × H27 mm |
| Radiator Material | Aluminum |
| Fan Model | TL-H12-X28-S |
| Fan Dimensions | L120 × W120 × H28 mm |
| Fan Rated Speed | 2150 RPM ±10% MAX |
| Fan Noise Level | 29.4 dBA MAX |
| Fan Airflow | 80.45 CFM MAX |
| Fan Air Pressure | 2.65 mm H₂O MAX |
| Fan Connector | 4-Pin PWM |
| Fan ARGB Connector | 3-Pin 5V |
| Fan Bearing Type | S-FDB V2 Bearing |
| Intel Compatibility | LGA115X, LGA1200, LGA1700, LGA1851, LGA2011, LGA2066 |
| AMD Compatibility | AM4, AM5 |
| Color | Black & White |
| Warranty | 2 Years |
Fan & Cooling System
The Grand Vision 360 combines its 360mm aluminum radiator with high-airflow TL-H12-X28-S fans.
The cooling system provides:
- 403 × 120 × 27mm aluminum radiator
- 6400 RPM ±10% maximum pump speed
- 2150 RPM ±10% maximum fan speed
- 80.45 CFM maximum airflow per fan
- 2.65 mm H₂O maximum air pressure
- 29.4 dBA maximum fan noise
- 4-pin PWM fan control
- 3-pin 5V ARGB lighting
- S-FDB V2 fan bearings
ARGB Lighting
The Grand Vision 360 supports 5V 3-pin ARGB connectivity, allowing the cooler's lighting to be integrated with compatible ARGB components within a gaming PC.
The 4-pin PWM connection provides fan and cooling control through a compatible motherboard.
Compatibility
Intel
- LGA115X
- LGA1200
- LGA1700
- LGA1851
- LGA2011
- LGA2066
AMD
- AM4
- AM5
Ideal For
The Thermalright Grand Vision 360 ARGB is suitable for:
- High-performance gaming PCs
- Enthusiast desktop systems
- Custom PC builds
- Black and white themed gaming PCs
- ARGB gaming setups
- 360mm liquid cooling installations
- Performance-focused Intel systems
- Performance-focused AMD systems
- Long-term PC builds requiring extended warranty coverage
Package Contents
The supplied specifications do not provide a complete package-content list. Package contents should therefore be confirmed according to the specific retail package.
