THERMALRIGHT
Thermalright Magic QUBE 360 ARGB White & Black 360mm AIO Liquid CPU Cooler | Digital ARGB Screen | Wireless Splice 3-Fan Design
Thermalright Magic QUBE 360 ARGB White & Black 360mm AIO Liquid CPU Cooler | Digital ARGB Screen | Wireless Splice 3-Fan Design
Couldn't load pickup availability
The Thermalright Magic QUBE 360 ARGB White & Black is a 360mm all-in-one liquid CPU cooler designed for high-performance desktop systems. It combines a digital ARGB display water pump, 360mm radiator, three 2000RPM PWM fans, wireless fan splicing, and temperature-responsive ARGB lighting for both cooling performance and a visually customizable PC build.
Its integrated ARGB digital display screen provides an interactive visual interface, while the magnetic pump-screen design allows the display to be freely rotated to suit different installation orientations. The cooler can also be managed through TRCC Control Center software for real-time data monitoring and LCD display control.
Key Features

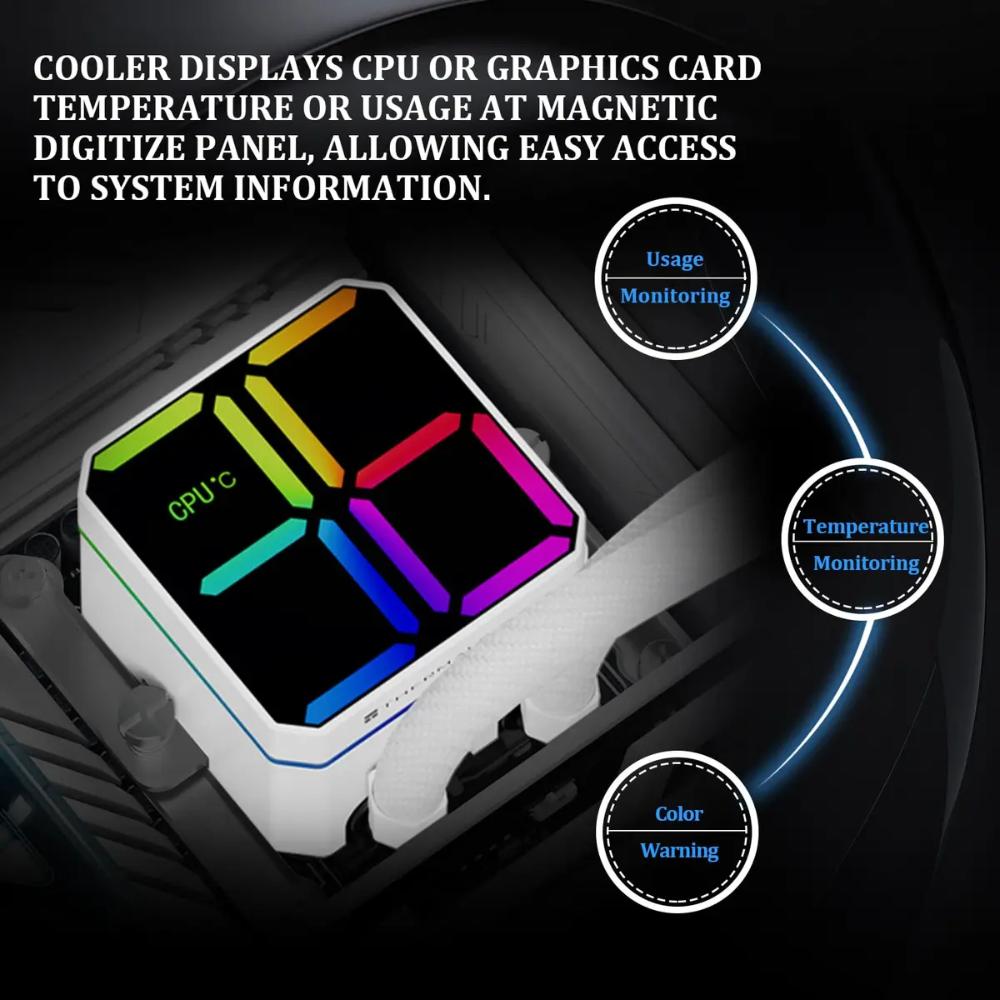

ARGB Digital Screen Water Pump
The Magic QUBE features a visual ARGB digital display screen integrated into the water pump. The magnetic suction design allows the display to rotate freely, making it easier to orient the screen according to the layout of your PC build.
The intelligent temperature-changing ARGB cold head provides a dynamic visual effect while displaying temperature-related information for the CPU and graphics card.
The water pump uses a 4-pin PWM power interface for connection to a compatible motherboard header.
High-Speed 360mm Cooling
The cooler uses a 360mm radiator assembly measuring 397 × 120 × 52mm including the fans. The three included PWM fans can reach up to 2000RPM ±10%, providing high airflow through the radiator.
Each fan is rated for up to 68.9 CFM airflow with a maximum operating noise level of ≤28.2 dB(A).
Wireless Splice 3-Fan Design
The included fans use a wireless splicing design, allowing signals and power to be transmitted between connected fans through contact points.
This reduces cable clutter around the radiator while simplifying the installation of the three-fan assembly.
TL-M12Q CPU Fans
The Magic QUBE 360 includes 3 pre-installed fans for the radiator. The fans measure 124 × 120 × 25mm and operate at up to 2000RPM ±10%.
The fan assembly includes temperature control functionality, ARGB lighting, and infinite-mirror lighting effects on the top and bottom for a distinctive gaming aesthetic.
ARGB Lighting

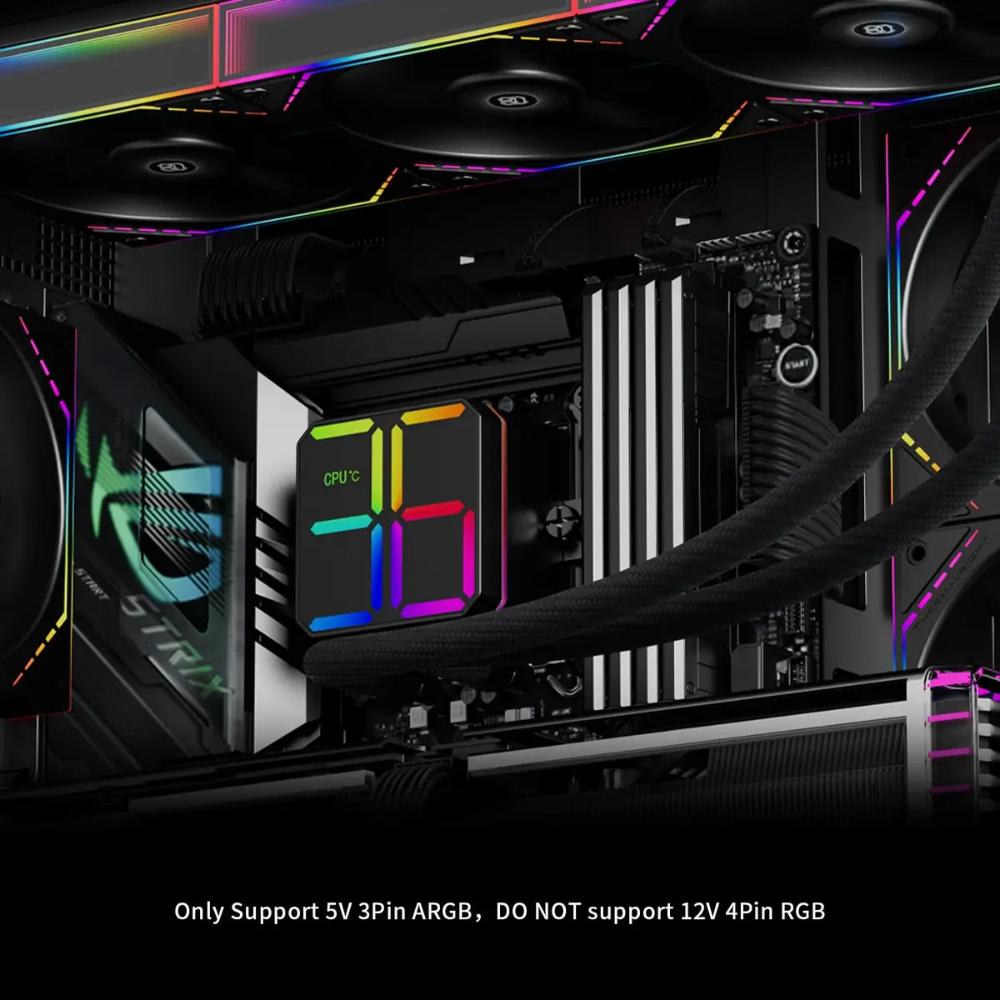

The fans use a 5V 3-pin ARGB lighting interface, allowing compatible motherboard ARGB systems to coordinate the cooler's lighting with other components.
The fan power connection uses 4-pin PWM.
TRCC Control Center
The TRCC Control Center software provides control over the digital LCD screen experience after the cooler's wiring is completed.
Supported functions include:
- Real-time data monitoring
- Data transmission
- LCD screen on/off control
- Digital display management
The software also includes a help icon for additional guidance.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Thermalright Magic QUBE 360 ARGB White & Black |
| Cooler Type | 360mm AIO Liquid CPU Cooler |
| Water Pump Design | Visual ARGB Digital Display Screen |
| Pump Display Mounting | Magnetic Suction / Free Rotation |
| Cold Head | Intelligent Temperature-Changing ARGB Cold Head |
| Water Pump Power Interface | 4-Pin PWM |
| Radiator Size | 397 × 120 × 52mm Including Fan |
| Cold Head Size | 68 × 68 × 56mm |
| CPU Fan Size | 124 × 120 × 25mm |
| Included Fans | 3× Pre-Installed Fans |
| Fan Speed | 2000RPM ±10% |
| Fan Airflow | 68.9 CFM |
| Fan Noise | ≤28.2 dB(A) |
| Operating Voltage | DC 12V |
| Fan Power Interface | 4-Pin PWM |
| Lighting Interface | 5V 3-Pin ARGB |
| Fan Design | Wireless Splicing Design |
| Lighting Effects | ARGB / Infinite Mirror Lighting |
| Software | TRCC Control Center |
| CPU Mounting System | SS2 Buckle System |
| Color | White & Black |
Digital Display & Software Control
The integrated display and TRCC Control Center provide a dedicated interface for managing the cooler's visual display functions.
The software supports:
- Real-time monitoring
- Data transmission
- LCD screen on/off
- Digital display management
The magnetic display design allows the screen to be rotated for easier viewing depending on the orientation of the pump inside the PC case.
Fan & Lighting System
The three pre-installed radiator fans feature a wireless splicing architecture that transfers power and signals between fans through contact points.
The setup combines:
- 3× pre-installed radiator fans
- 2000RPM ±10% fan speed
- 68.9 CFM airflow
- ≤28.2 dB(A) noise
- 4-pin PWM fan connection
- 5V 3-pin ARGB lighting
- Temperature control functionality
- Infinite-mirror lighting effects
Compatibility
The supplied specifications state that the cooler uses the SS2 Buckle System, which is compatible with multiple CPU models.
The provided source does not specify the individual Intel and AMD socket models, so socket compatibility should be confirmed for the exact package/variant before purchase.
Ideal For
The Thermalright Magic QUBE 360 ARGB is suitable for:
- Gaming PCs
- High-performance desktop builds
- RGB/ARGB gaming systems
- Custom PC builds
- Systems requiring 360mm AIO cooling
- Builds with limited cable-management space around radiator fans
- Users who want an integrated digital CPU cooling display
