THERMALRIGHT

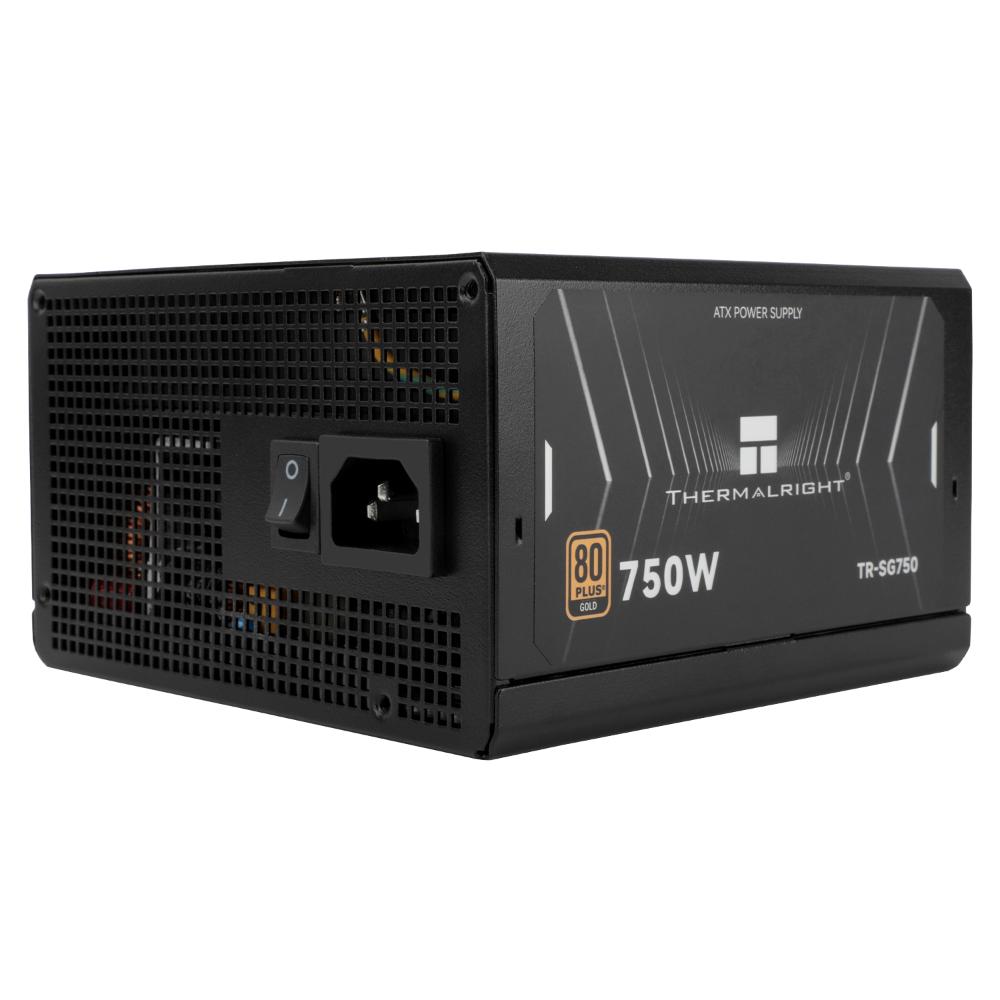

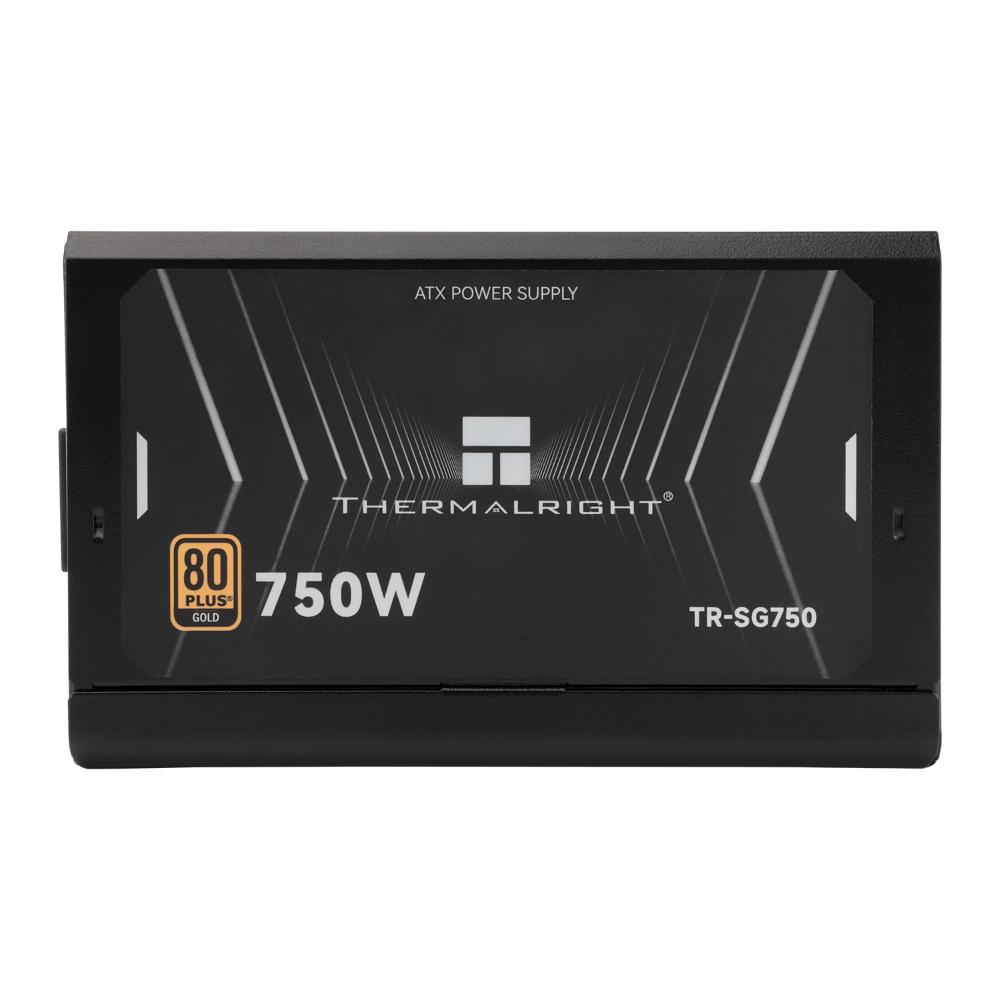

Thermalright SG-750 750W 80 PLUS Gold Full-Modular Power Supply | 750W PSU | 120mm Fan | OPP/OVP/OTP/OCP/SCP/UVP
Thermalright SG-750 750W 80 PLUS Gold Full-Modular Power Supply | 750W PSU | 120mm Fan | OPP/OVP/OTP/OCP/SCP/UVP
Couldn't load pickup availability
The Thermalright SG-750 is a 750W full-modular power supply designed for desktop PC systems requiring reliable and efficient power delivery. It features 80 PLUS Gold efficiency, a compact PSU form factor, and a 120mm cooling fan.
The SG-750 supports an input voltage range of 100–240VAC and incorporates multiple protection mechanisms including OPP, OVP, OTP, OCP, SCP and UVP for added protection during operation.
Key Features
750W Power Output
The SG-750 provides 750W of rated power, making it suitable for a wide range of desktop PC configurations.
80 PLUS Gold Efficiency
With 80 PLUS Gold efficiency, the SG-750 is designed for efficient power conversion during system operation.
Full-Modular Design
The full-modular design allows compatible power cables to be connected according to system requirements, helping reduce unnecessary cabling inside the PC chassis.

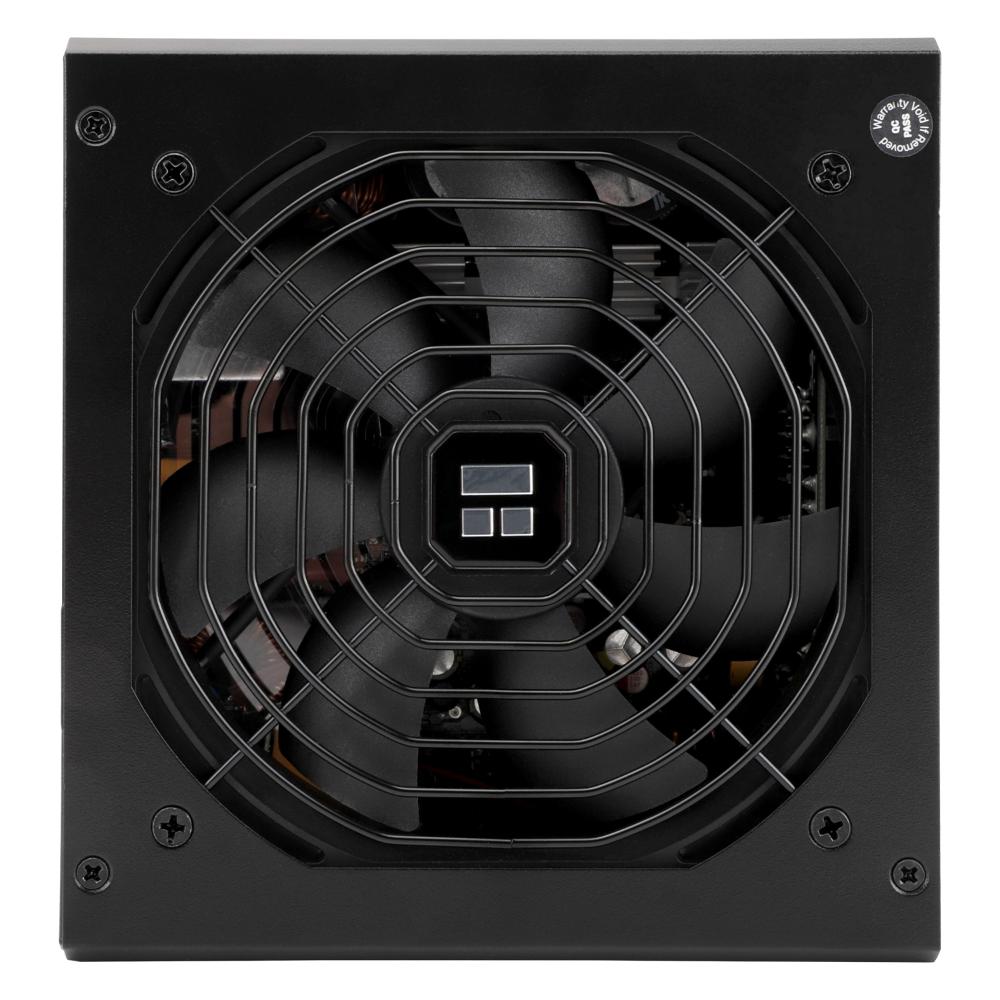

120mm Cooling Fan
The power supply is equipped with a 120mm fan for active cooling during operation.
Multiple Protection Systems
The SG-750 incorporates the following protection mechanisms:
- OPP — Over Power Protection
- OVP — Over Voltage Protection
- OTP — Over Temperature Protection
- OCP — Over Current Protection
- SCP — Short Circuit Protection
- UVP — Under Voltage Protection
Compact PSU Dimensions
Measuring 150 × 140 × 86 mm ±1 mm, the SG-750 is designed around a compact power supply form factor.
Technical Specifications
| Specification | Details |
|---|---|
| Product | Thermalright SG-750 |
| Power Output | 750W |
| Efficiency | 80 PLUS Gold |
| Modular Design | Full-Modular |
| Dimensions | L150 × W140 × H86 mm ±1 mm |
| Input Voltage | 100–240VAC |
| Input Current | 11–5.5A |
| Input Frequency | 47–63Hz |
| Fan Size | 120mm |
| Operating Temperature | 0–40°C |
| MTBF | >100,000 Hours |
| Protections | OPP / OVP / OTP / OCP / SCP / UVP |
| Warranty | 2 Years |
Cooling & Reliability
The SG-750 features a 120mm cooling fan and is specified for an operating temperature range of 0–40°C.
Its manufacturer-rated MTBF exceeds 100,000 hours, providing a stated long-term reliability specification for the power supply.
Power Protection
The built-in protection systems include:
OPP / OVP / OTP / OCP / SCP / UVP
These cover over-power, over-voltage, over-temperature, over-current, short-circuit and under-voltage conditions.
Ideal For
- Gaming PCs
- High-performance desktop systems
- Custom PC builds
- Workstations
- Full-modular PC configurations
- Systems requiring a 750W power supply
Warranty
2 YEARS WARRANTY
The Thermalright SG-750 comes with a 2-year warranty as specified by the manufacturer.
